200 Technical Data
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 200
Engine Identification . . . . . . . . . . 200
Identification Plate . . . . . . . . . . . . 201
Vehicle Data
Engine Data . . . . . . . . . . . . . . . . . . 202
Performance . . . . . . . . . . . . . . . . . 202
Vehicle Weight . . . . . . . . . . . . . . . 203
Vehicle Dimensions . . . . . . . . . . 203
Capacities and Specifications . . . . . . . . . . . . . . . 204
Tyre Pressure . . . . . . . . . . . . . . . . 204
Vehicle Identification
Vehicle Identification
Number (VIN)
The Vehicle Identification Number is
located in the engine compartment.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the
windscreen.
Engine Identification
The technical data tables show the
engine identifier code. Engine data
0Engine Data 0202.
To identify the respective engine,
refer to the engine power in the
EEC Certificate of Conformity
provided with your vehicle or other
national registration documents.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Technical Data 203

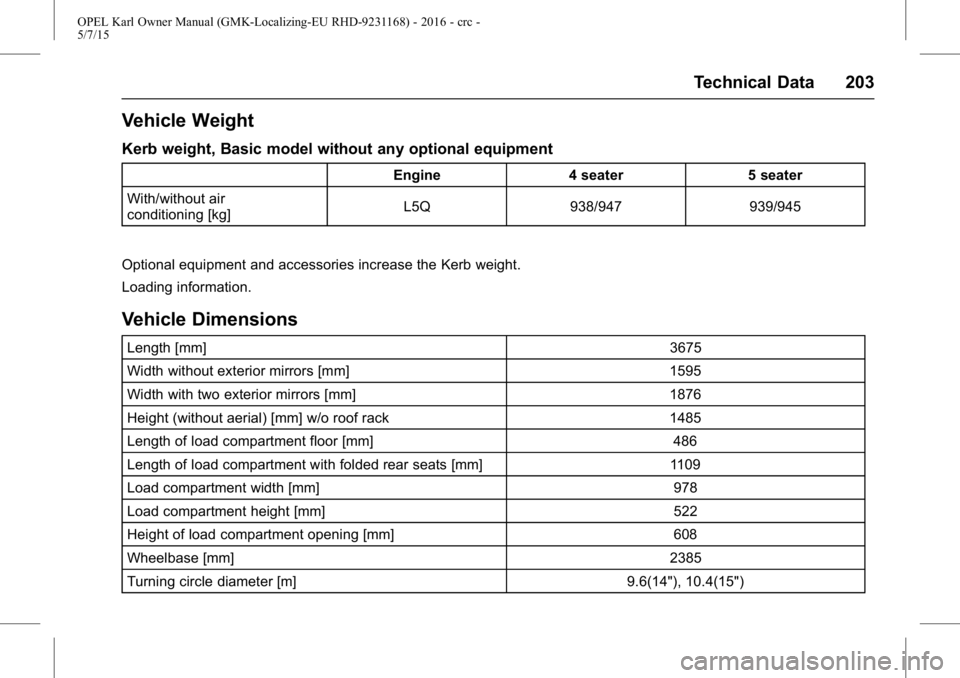

Vehicle Weight
