OPEL MERIVA 2009 Owners Manual

85
Instruments, Controls
Picture no: 18385s.tif
T
Winter mode for manual transmission
automated 3
Control indicator lights up yellow.
Control indicator lights up when winter
program is enabled 3132. m

Cruise control 3
Control indicator lights up green
This comes on when the system is switched
on 3148.
r
Fog tail lamp
Control indicator lights up yellow.
This comes on when the fog tail lamp is
switched on 3104.
Picture no:
p

Alternator
Control indicator lights up red.
It illuminates when the ignition is switched
on and goes out shortly after the engine
starts.
Illuminates when the engine is running
Stop, switch off engine. Battery is not
charging. Contact a workshop
immediately. R

Brake system, clutch system
Control indicator lights up or flashes red.
Illuminated
Illuminates when the ignition is switched on
if the hand brake is applied 3151.
Lights up when the hand brake is released
when the fluid level for the brake or clutch
systems is low 3214.
FlashesOn vehicles with manual transmission
automated 3, control indicator R flashes
for a few seconds after the ignition is
switched off when the hand brake has not
been applied. u

Anti-lock brake system
Control indicator lights up red.
Illuminates while driving
Fault in anti-lock braking system 3152. S

Engine oil level 3
Control indicator lights up yellow.
The engine oil level is checked
automatically 3.
Illuminates when the engine is running

Engine oil level too lo w. Check engine oil
level and top up engine oil if necessary
3 210.
9 Warning
Stop. Do not continue your journey.
Consult a workshop.

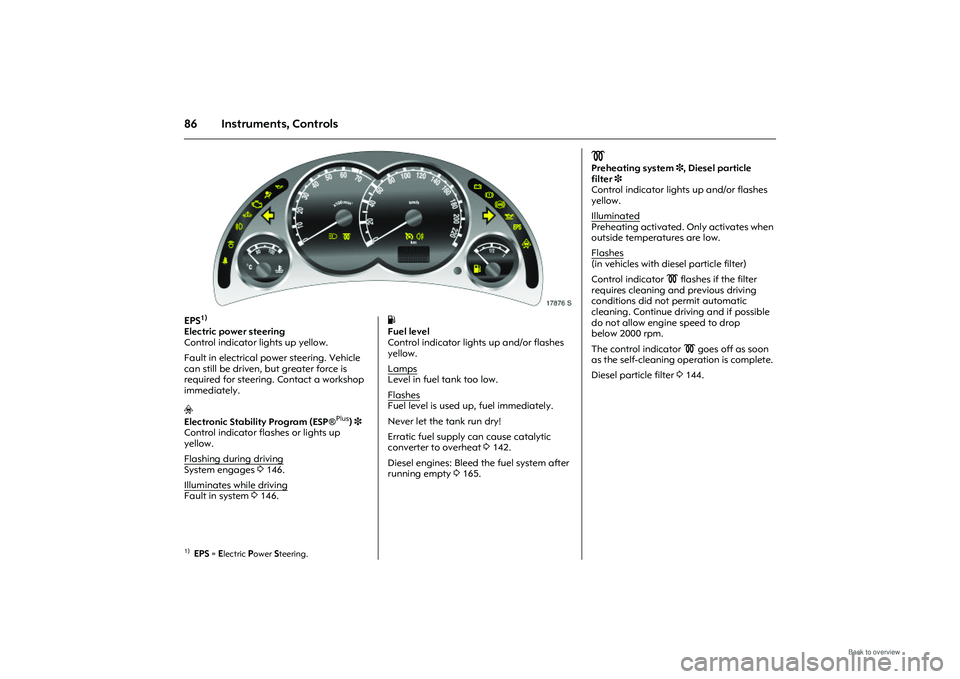

86 Instruments, Controls
Picture no: 17876s.tif
EPS
1)
Electric power steering
Control indicator lights up yellow.
Fault in electr ical power steering. Vehicle
can still be driven, but greater force is
required for steering. Contact a workshop
immediately.
v
Electronic Stability Program (ESP ®
Plus
)3
Control indicator flashes or lights up
yellow.
Flashing during driving
System engages 3146.
Illuminates while drivingFault in system 3146.
Picture no:
Y
Fuel level
Control indicator lights up and/or flashes
yellow.
Lamps

Level in fuel tank too low.
Flashes
Fuel level is used up, fuel immediately.
Never let the tank run dry!
Erratic fuel supply can cause catalytic
converter to overheat 3142.
Diesel engines: Bleed the fuel system after
running empty 3165.
1)EPS
= Electric
Power
Steering.
!

Preheating system 3, Diesel particle
filter 3
Control indicator lights up and/or flashes
yellow.
Illuminated
Preheating activated. Only activates when
outside temperatures are low.
Flashes(in vehicles with dies el particle filter)
Control indicator ! flashes if the filter
requires cleaning and previous driving
conditions did not permit automatic
cleaning. Continue driving and if possible
do not allow engine speed to drop
below 2000 rpm.
The control indicator ! goes off as soon
as the self-cleaning op eration is complete.
Diesel particle filter 3 144.

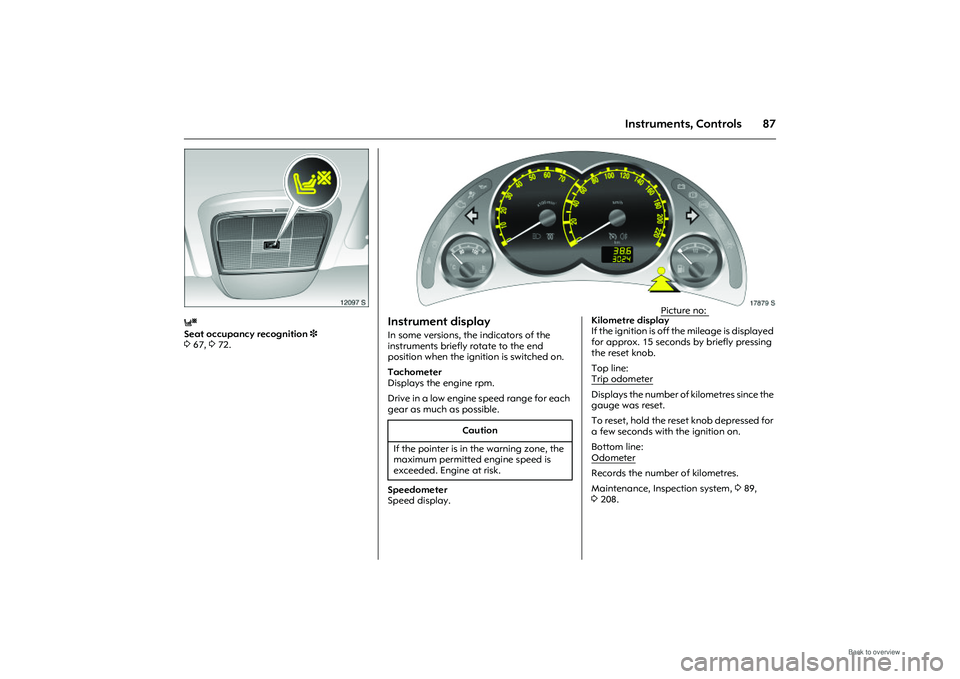

87
Instruments, Controls
Picture no: 12097s.tif
y

Seat occupancy recognition 3
3 67, 372.
Picture no: 17879s.tif
Instrument display In some versions, the indicators of the
instruments briefly rotate to the end
position when the ignition is switched on.
Tachometer
Displays the engine rpm.
Drive in a low engine speed range for each
gear as much as possible.
Speedometer
Speed display. Picture no:
Kilometre display
If the ignition is off the mileage is displayed
for approx. 15 seconds by briefly pressing
the reset knob.
Top line:
Trip odometerDisplays the number of
kilometres since the
gauge was reset.
To reset, hold the reset knob depressed for
a few seconds with the ignition on.
Bottom line:
OdometerRecords the number of kilometres.
Maintenance, Inspection system, 389,
3 208.
Caution
If the pointer is in the warning zone, the
maximum permitted engine speed is
exceeded. Engine at risk.

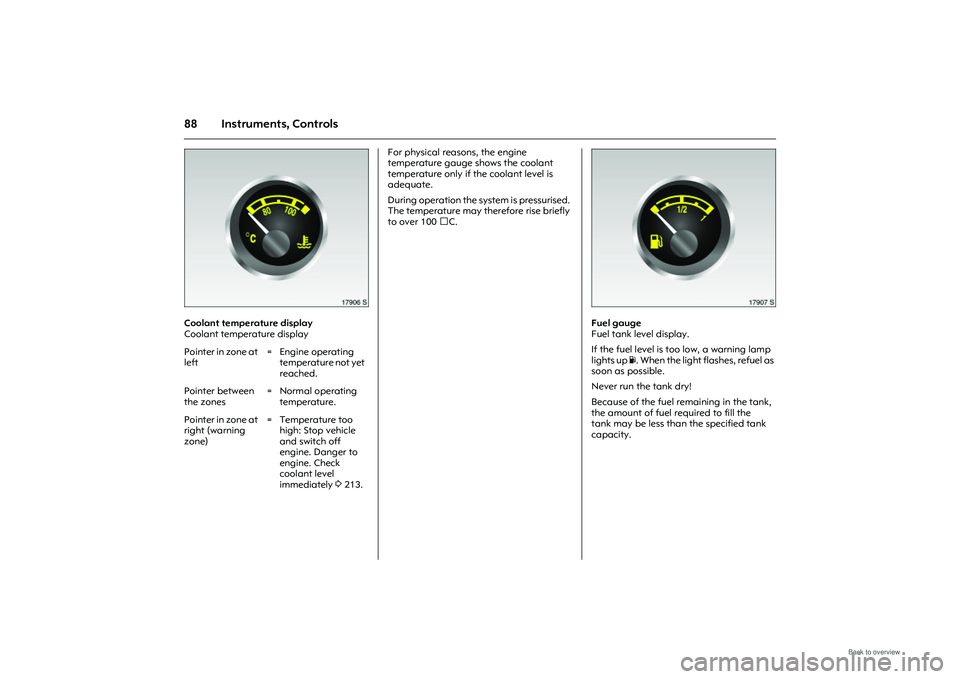

88 Instruments, Controls
Picture no: 17906s.tif
Coolant temperature display
Coolant temperature display For physical reasons, the engine
temperature gauge shows the coolant
temperature only if the coolant level is
adequate.
During operation the system is pressurised.
The temperature may therefore rise briefly
to over 100 C.
Picture no: 17907s.tif
Fuel gauge
Fuel tank level display.
If the fuel level is too low, a warning lamp
lights up
Y. When the light flashes, refuel as
soon as possible.
Never run the tank dry!
Because of the fuel remaining in the tank,
the amount of fuel required to fill the
tank may be less than the specified tank
capacity.
Pointer in zone at
left
= Engine operating
temperature not yet
reached.
Pointer between
the zones = Normal operating
temperature.
Pointer in zone at
right (warning
zone) = Temperature too
high: Stop vehicle
and switch off
engine. Danger to
engine. Check
coolant level
immediately 3 213.

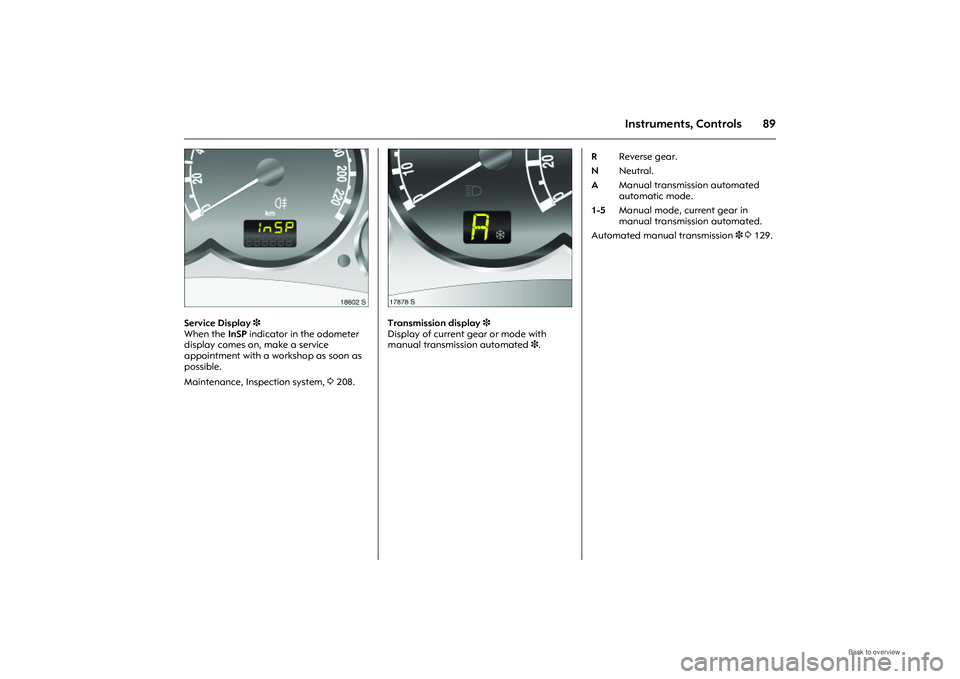

89
Instruments, Controls
Picture no: 18602s.tif
Service Display 3
When the InSP indicator in the odometer
display comes on, make a service
appointment with a workshop as soon as
possible.
Maintenance, Inspection system, 3208.
Picture no: 17878s.tif
Transmission display 3
Display of current gear or mode with
manual transmission automated 3. Automated manual transmission
3 3 129.
R Reverse gear.
N Neutral.
A Manual transmission automated
automatic mode.
1-5 Manual mode, current gear in
manual transmission automated.

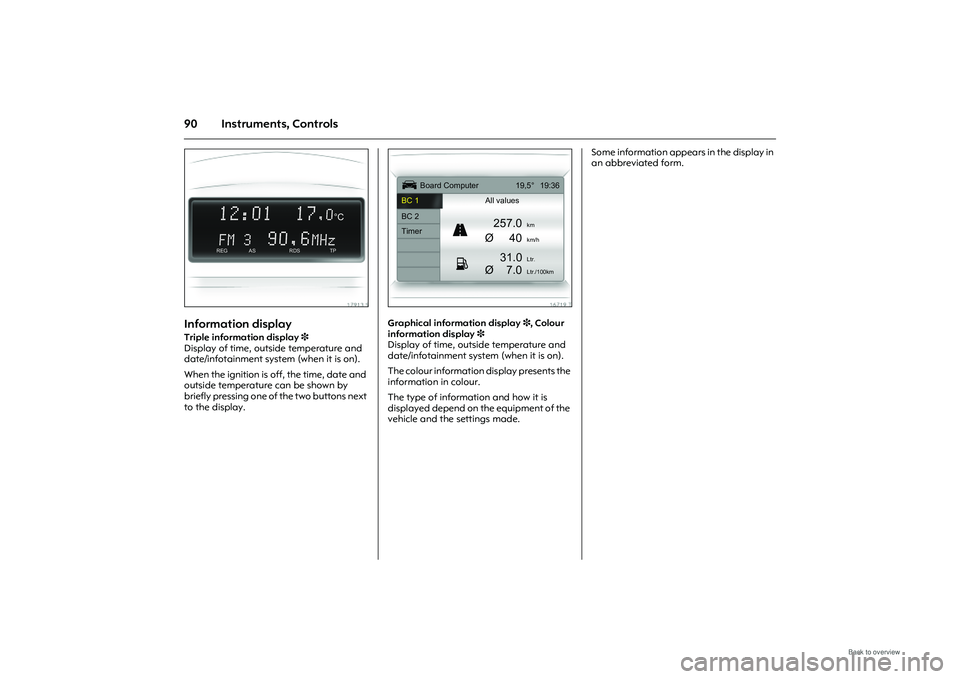

90 Instruments, Controls
Picture no: 17913s.tif
Information display Triple information display 3
Display of time, outside temperature and
date/infotainment system (when it is on).
When the ignition is off, the time, date and
outside temperature can be shown by
briefly pressing one of the two buttons next
to the display.
Picture no: 16719t.tif
Graphical information display 3, Colour
information display 3
Display of time, outside temperature and
date/infotainment system (when it is on).
The colour information display presents the
information in colour.
The type of information and how it is
displayed depend on the equipment of the
vehicle and the settings made. Some information appears in the display in
an abbreviated form.
12:01 17
,0
°C
FM 3
90,6
MHz
REG AS
RDSTP
Ü
Board Computer 19,5° 19:36
BC 1 All values
BC 2
257.0
km
Timer
Ø40
km/h
31.0
Ltr.
Ø
7.0
Ltr./100km
1
8

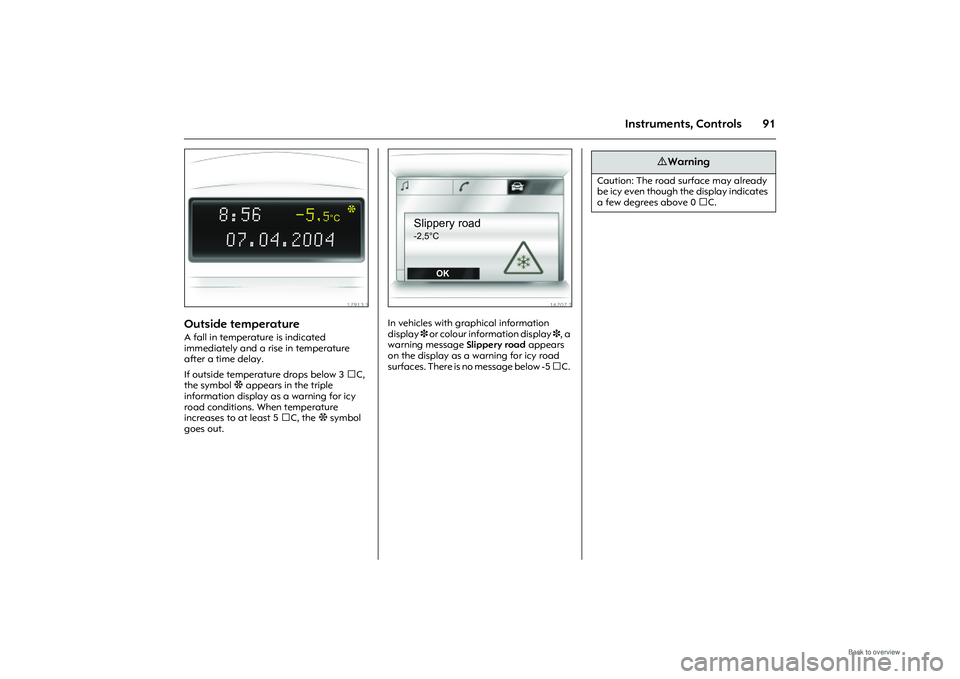

91
Instruments, Controls
Picture no: 17913s.tif
Outside temperature A fall in temperature is indicated
immediately and a rise in temperature
after a time delay.
If outside temperature drops below 3 C,
the symbol : appears in the triple
information display as a warning for icy
road conditions. When temperature
increases to at least 5 C, the : symbol
goes out.
Picture no: 16707t.tif
In vehicles with graphical information
display 3 or colour information display 3, a
warning message Slippery road appears
on the display as a warning for icy road
surfaces. There is no message below -5 C.
:
8:56
-5
,5
°C
07.04.2004
Slippery road-2,5°C
OK
9 Warning
Caution: The road surface may already
be icy even though the display indicates
a few degrees above 0 C.

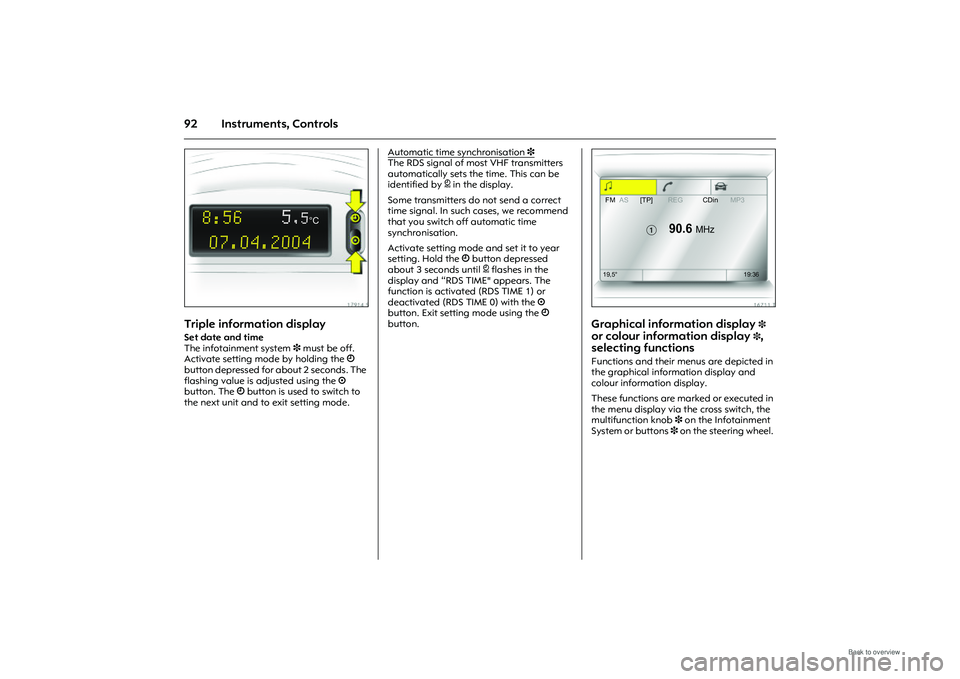

92 Instruments, Controls
Picture no: 17914s.tif
Triple information display Set date and time
The infotainment system 3 must be off.
Activate setting mode by holding the Ö
button depressed for about 2 seconds. The
flashing value is adjusted using the ;
button. The Ö button is used to switch to
the next unit and to exit setting mode. Automatic time synchronisation
3
The RDS signal of most VHF transmitters
automatically sets the time. This can be
identified by } in the display.
Some transmitters do not send a correct
time signal. In such cases, we recommend
that you switch off automatic time
synchronisation.
Activate setting mode and set it to year
setting. Hold the Ö button depressed
about 3 seconds until } flashes in the
display and “RDS TIME" appears. The
function is activated (RDS TIME 1) or
deactivated (RDS TIME 0) with the ;
button. Exit setting mode using the Ö
button.
Picture no: 16711t.tif
Graphical information display
3
or colour information display
3,
selecting functions
Functions and their menus are depicted in
the graphical information display and
colour information display.
These functions are marked or executed in
the menu display via the cross switch, the
multifunction knob 3 on the Infotainment
System or buttons 3 on the steering wheel.
8:56
5
,5
°C
07.04.2004
FM AS [TP] REG CDinMP3

90.6
MHz
19,5° 19:36

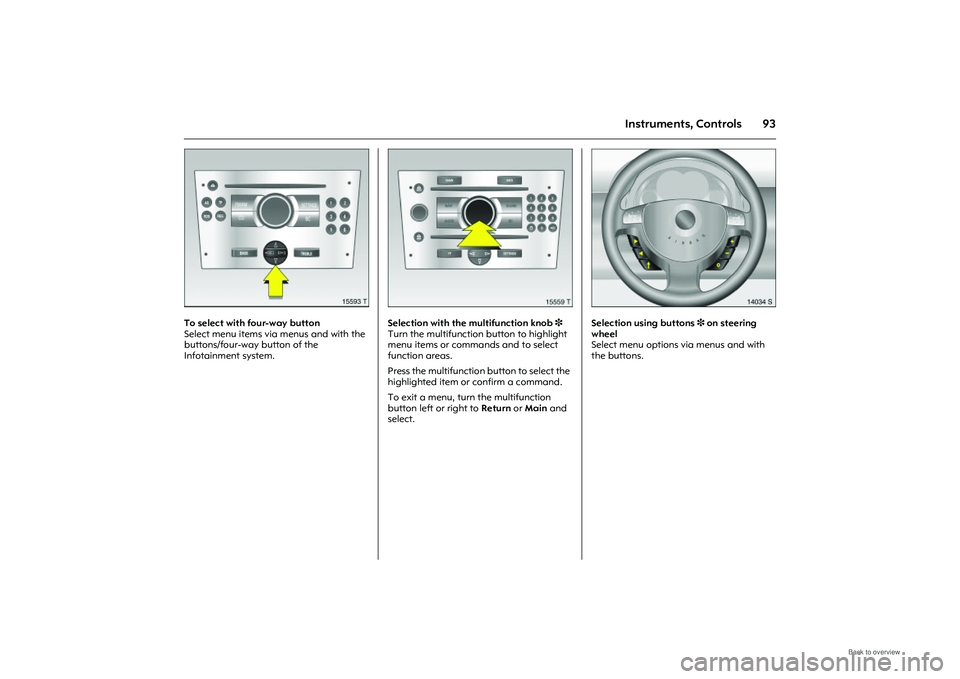

93
Instruments, Controls
Picture no: 15593t.tif
To select with four-way button
Select menu items via menus and with the
buttons/four-way button of the
Infotainment system.
Picture no: 15559t.tif
Selection with the multifunction knob 3
Turn the multifunction button to highlight
menu items or commands and to select
function areas.
Press the multifunction button to select the
highlighted item or confirm a command.
To exit a menu, turn the multifunction
button left or right to Return or Main and
select.
Picture no: 14034s.tif
Selection using buttons 3 on steering
wheel
Select menu options via menus and with
the buttons.

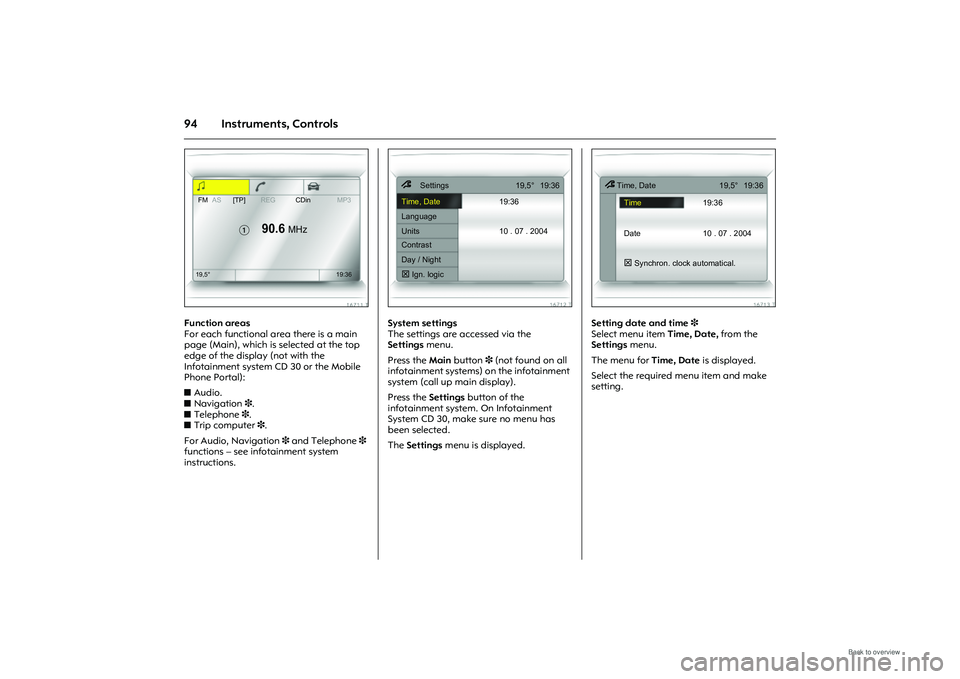

94 Instruments, Controls
Picture no: 16711t.tif
Function areas
For each functional area there is a main
page (Main), which is selected at the top
edge of the display (not with the
Infotainment system CD 30 or the Mobile
Phone Portal):
zAudio.
z Navigation 3.
z Telephone 3.
z Trip computer 3 .
For Audio, Navigation 3 and Telephone 3
functions – see infotainment system
instructions.
Picture no: 16712t.tif
System settings
The settings are accessed via the
Settings menu.
Press the Main button 3 (not found on all
infotainment systems) on the infotainment
system (call up main display).
Press the Settings button of the
infotainment system. On Infotainment
System CD 30, make sure no menu has
been selected.
The Settings menu is displayed.
Picture no: 16713t.tif
Setting date and time 3
Select menu item Time, Date, from the
Settings menu.
The menu for Time, Date is displayed.
Select the required menu item and make
setting.
FM AS [TP] REG CDin MP3

90.6
MHz
19,5° 19:36
7
Settings19,5° 19:36
Time, Date 19:36
Language
Units 10 . 07 . 2004
Contrast
Day / Night
! Ign. logic
7 Time, Date 19,5° 19:36
Time 19:36
Date 10 . 07 . 2004! Synchron. clock automatical.
