OPEL MERIVA 2009 Repair Manual

55
Seats, Interior

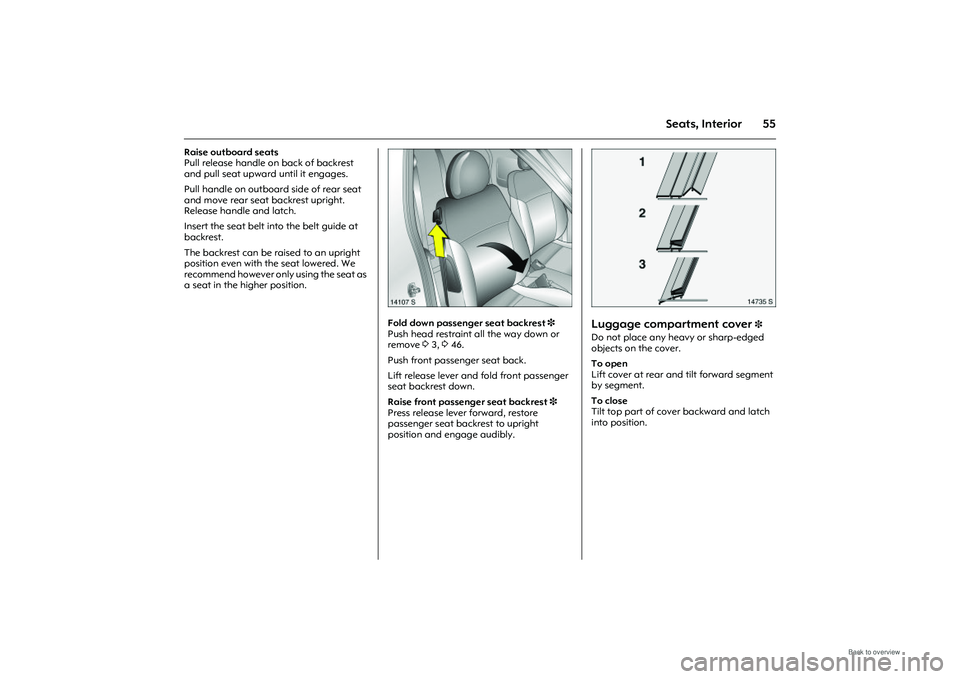

Raise outboard seats
Pull release handle on back of backrest
and pull seat upward until it engages.
Pull handle on outboard side of rear seat
and move rear seat backrest upright.
Release handle and latch.
Insert the seat belt in to the belt guide at
backrest.
The backrest can be raised to an upright
position even with the seat lowered. We
recommend however only using the seat as
a seat in the higher position.
Picture no: 14107S.tif
Fold down passenger seat backrest 3
Push head restraint all the way down or
remove 33, 346.
Push front passenger seat back.
Lift release lever and fold front passenger
seat backrest down.
Raise front passenger seat backrest 3
Press release lever forward, restore
passenger seat backrest to upright
position and engage audibly.
Picture no: 14735S.tif
Luggage compartment cover
3
Do not place any heavy or sharp-edged
objects on the cover.
To open
Lift cover at rear and tilt forward segment
by segment.
To close
Tilt top part of cover backward and latch
into position.

56 Seats, Interior
Picture no: 15272s.tif

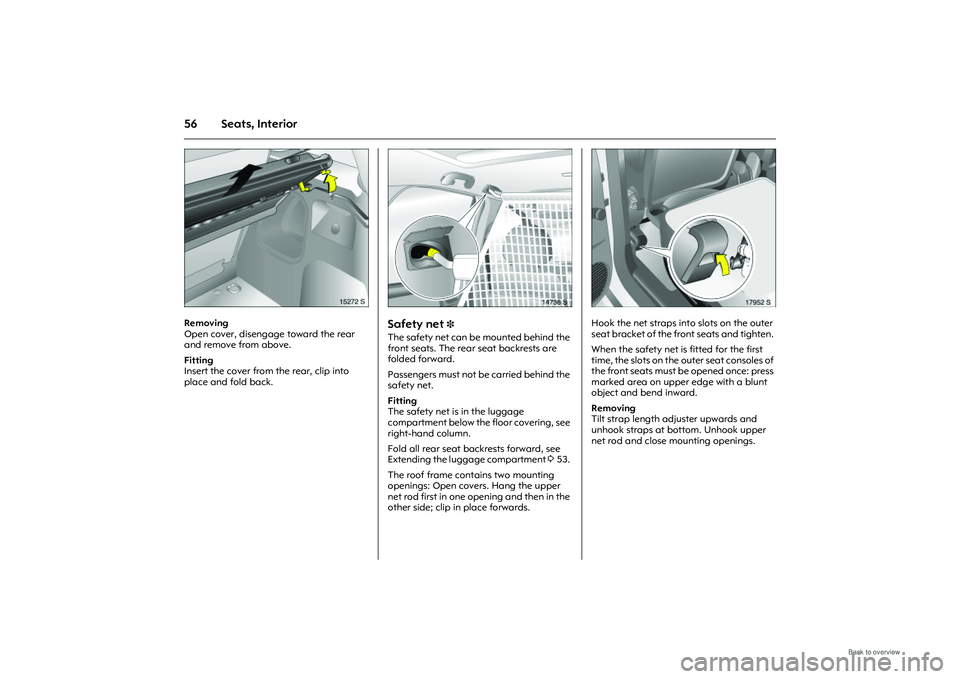

Removing
Open cover, disengage toward the rear
and remove from above.
Fitting
Insert the cover from the rear, clip into
place and fold back.
Picture no: 14736s.tif
Safety net
3
The safety net can be mounted behind the
front seats. The rear seat backrests are
folded forward.
Passengers must not be carried behind the
safety net.
Fitting
The safety net is in the luggage
compartment below the floor covering, see
right-hand column.
Fold all rear seat backrests forward, see
Extending the luggage compartment 353.
The roof frame contains two mounting
openings: Open covers. Hang the upper
net rod first in one opening and then in the
other side; clip in place forwards.
Picture no: 17952S.tif
Hook the net straps into slots on the outer
seat bracket of the front seats and tighten.
When the safety net is fitted for the first
time, the slots on the outer seat consoles of
the front seats must be opened once: press
marked area on upper edge with a blunt
object and bend inward.
Removing
Tilt strap length adjuster upwards and
unhook straps at bottom. Unhook upper
net rod and close mounting openings.

57
Seats, Interior
Picture no: 16145s.tif

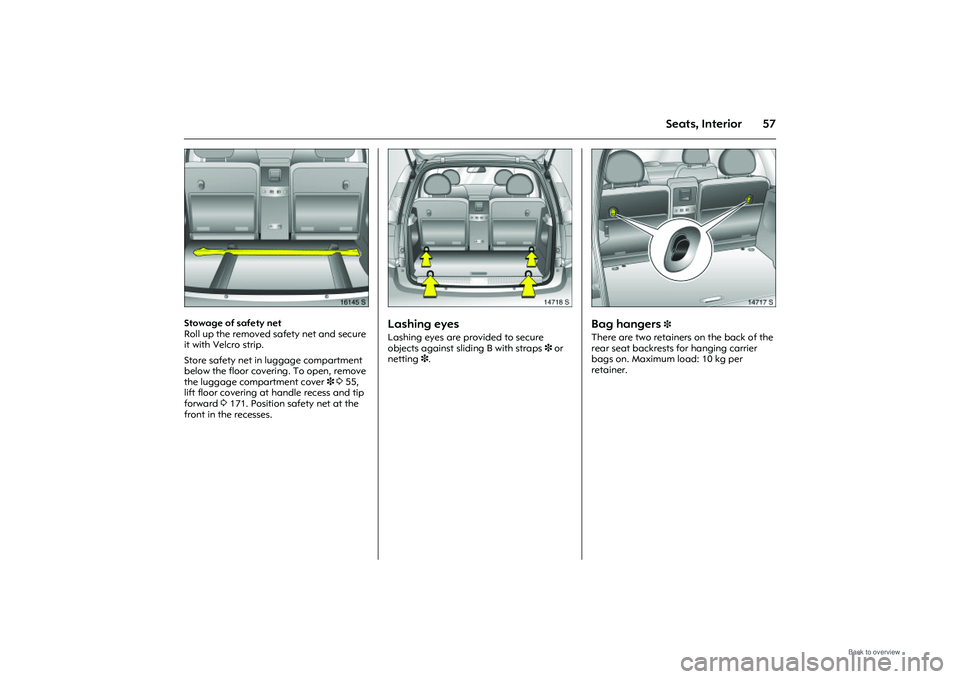

Stowage of safety net
Roll up the removed safety net and secure
it with Velcro strip.
Store safety net in luggage compartment
below the floor covering. To open, remove
the luggage compartment cover 3 3 55,
lift floor covering at handle recess and tip
forward 3171. Position safety net at the
front in the recesses.
Picture no: 14718s.tif
Lashing eyes Lashing eyes are provided to secure
objects against slid ing B with straps 3 or
netting 3.
Picture no: 14717s.tif
Bag hangers
3
There are two retainers on the back of the
rear seat backrests for hanging carrier
bags on. Maximum load: 10 kg per
retainer.

58 Seats, Interior
Picture no: 14110s.tif
Notes on loading the vehicle zHeavy objects in the luggage
compartment should be placed as far
forward as possible against the properly
engaged rear seat backrests or, if the
rear seat backrests are folded down,
against the front seat backrests. If
objects are to be stacked, the heavier
objects should be placed at the bottom.
z Secure heavy objects with lashing
straps 3 attached to lashing eyes 357.
z When transporting objects with rear seat
backrests tilted forward, fit the safety net
356. z
Close luggage compartment cover 3
3 55.
z If the backrests are not folded down
when transporting objects in the
luggage compartment, they must be
engaged in an upright position 355.
z Do not allow the load to protrude above
the upper edge of the backrests.
z The warning triangle 3 and first-aid kit
(cushion) 3 must always be freely
accessible.
z Do not place any objects on the luggage
compartment cover 3 or the instrument
panel.
z No objects must be placed in the airbag
inflation area, since they could cause
injury when the systems are triggered.
z Items loaded must not prevent operation
of the pedals, hand brake and gears or
obstruct the freedom of movement of
the driver. Do not place loose objects in
the interior.
z Do not drive with luggage compartment
open when transporting bulky objects,
for example, since toxic exhaust fumes
could penetrate the interior.
z The payload is the difference between
the permitted gross vehicle weight (see
identification plate 3218) and the EC
kerb weight. z
To calculate the EC kerb weight, enter
the data for your vehicle on page 3 226.
z The EC kerb weight includes allowances
for the driver (68 kg), luggage (7 kg) and
all fluids (tank 90 % full).
z Optional equipment and accessories
increase the kerb weight.
z Weights and loads 3226.
z Driving with a roof load increases the
sensitivity of the vehicle to cross-winds
and has a detrimental effect on vehicle
handling due to the vehicle’s higher
centre of gravity. Distribute the load
evenly and secure it properly with
retaining straps. Adjust the tyre pressure
to the load conditions. Do not drive
faster than 120 km/h. Check and re-
tighten the straps frequently. Observe
country-specific regulations.
z The permissible roof load is 100 kg. The
roof load consists of the weight of the
roof rack plus the load carried.

59
Seats, Interior

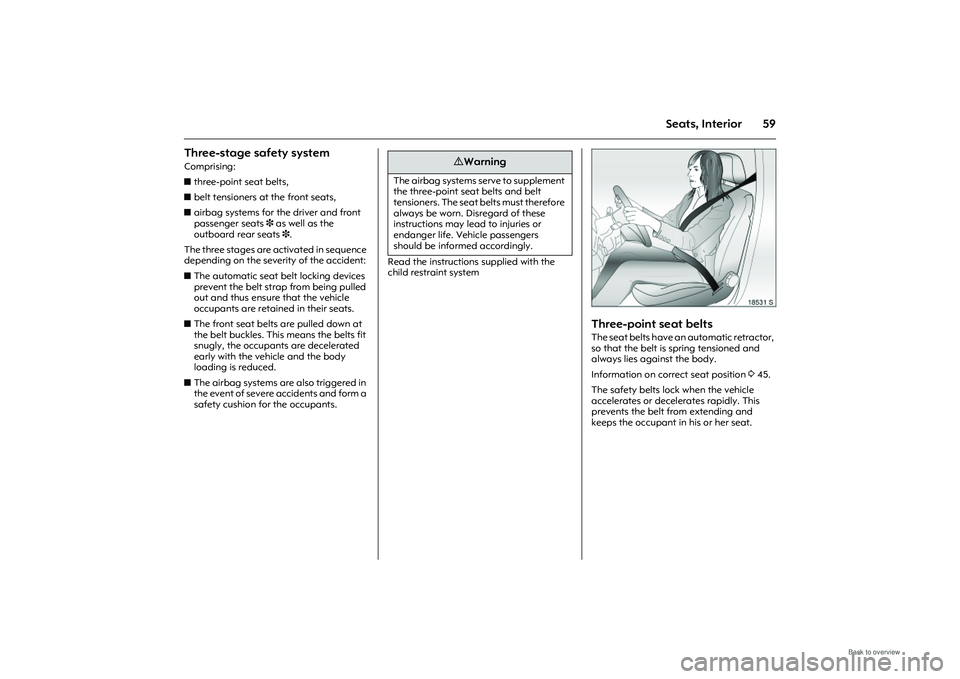

Three-stage safety system Comprising:
zthree-point seat belts,
z belt tensioners at the front seats,
z airbag systems for the driver and front
passenger seats 3 as well as the
outboard rear seats 3.
The three stages are activated in sequence
depending on the severity of the accident:
z The automatic seat belt locking devices
prevent the belt strap from being pulled
out and thus ensure that the vehicle
occupants are retained in their seats.
z The front seat belts are pulled down at
the belt buckles. This means the belts fit
snugly, the occupants are decelerated
early with the vehicle and the body
loading is reduced.
z The airbag systems are also triggered in
the event of severe accidents and form a
safety cushion for the occupants. Read the instructions supplied with the
child restraint system
Picture no: 18531s.tif
Three-point seat belts The seat belts have an automatic retractor,
so that the belt is spring tensioned and
always lies against the body.
Information on correct seat position
345.
The safety belts lock when the vehicle
accelerates or decelerates rapidly. This
prevents the belt from extending and
keeps the occupant in his or her seat.
9 Warning
The airbag systems serve to supplement
the three-point seat belts and belt
tensioners. The seat belts must therefore
always be worn. Disregard of these
instructions may lead to injuries or
endanger life. Vehicle passengers
should be informed accordingly.

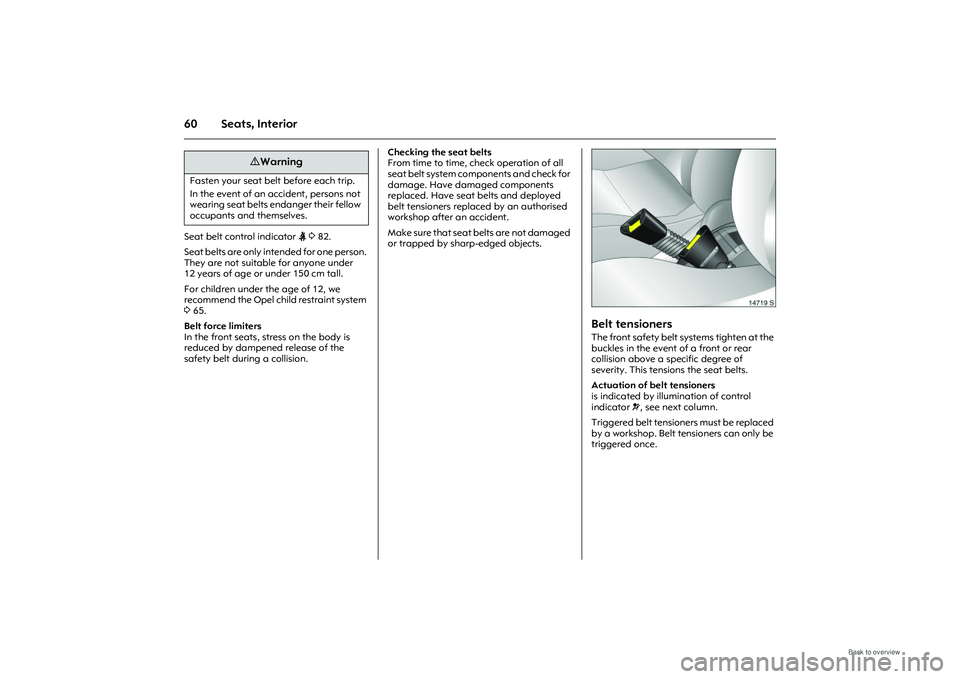

60 Seats, InteriorSeat belt control indicator X 3 82.
Seat belts are only intended for one person.
They are not suitable for anyone under
12 years of age or under 150 cm tall.
For children under the age of 12, we
recommend the Opel ch ild restraint system
3 65.
Belt force limiters
In the front seats, stress on the body is
reduced by dampened release of the
safety belt during a collision. Checking the seat belts
From time to time, ch
eck operation of all
seat belt system components and check for
damage. Have damaged components
replaced. Have seat belts and deployed
belt tensioners replaced by an authorised
workshop after an accident.
Make sure that seat belts are not damaged
or trapped by sharp-edged objects.
Picture no: 14719s.tif
Belt tensioners The front safety belt systems tighten at the
buckles in the event of a front or rear
collision above a specific degree of
severity. This tensions the seat belts.
Actuation of belt tensioners
is indicated by illumination of control
indicator v, see next column.
Triggered belt tensioners must be replaced
by a workshop. Belt tensioners can only be
triggered once.
9 Warning
Fasten your seat belt before each trip.
In the event of an accident, persons not
wearing seat belts endanger their fellow
occupants and themselves.

61
Seats, Interior
Picture no: 17885s.tif

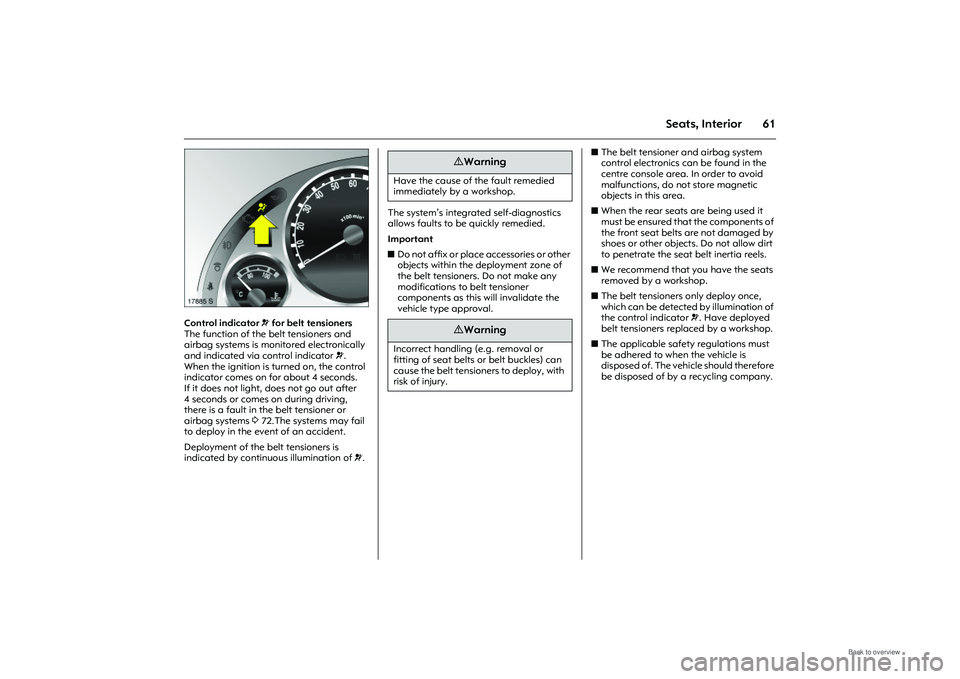

Control indicator v for belt tensioners
The function of the belt tensioners and
airbag systems is monitored electronically
and indicated via control indicator v.
When the ignition is turned on, the control
indicator comes on for about 4 seconds.
If it does not light, does not go out after
4 seconds or comes on during driving,
there is a fault in the belt tensioner or
airbag systems 372.The systems may fail
to deploy in the event of an accident.
Deployment of the belt tensioners is
indicated by continuous illumination of v . The system’s integrated self-diagnostics
allows faults to be quickly remedied.
Important
z
Do not affix or place accessories or other
objects within the deployment zone of
the belt tensioners. Do not make any
modifications to belt tensioner
components as this will invalidate the
vehicle type approval. z
The belt tensioner and airbag system
control electronics can be found in the
centre console area. In order to avoid
malfunctions, do not store magnetic
objects in this area.
z When the rear seats are being used it
must be ensured that the components of
the front seat belts are not damaged by
shoes or other objects. Do not allow dirt
to penetrate the seat belt inertia reels.
z We recommend that you have the seats
removed by a workshop.
z The belt tensioners only deploy once,
which can be detected by illumination of
the control indicator v . Have deployed
belt tensioners replaced by a workshop.
z The applicable safety regulations must
be adhered to when the vehicle is
disposed of. The vehicle should therefore
be disposed of by a recycling company.
9 Warning
Have the cause of the fault remedied
immediately by a workshop.
9 Warning
Incorrect handling (e.g. removal or
fitting of seat belts or belt buckles) can
cause the belt tensioners to deploy, with
risk of injury.

62 Seats, Interior
Picture no: 14120s.tif
Using the belts Fitting seat belts
The seat belt must not be twisted and must
lie snugly against the body. The backrest
must not be tilted back too far (maximum
approx. 25).
Adjust the height so that the belt lies across
the shoulder. It must not lie across the
throat or upper arm.
Pull the belt out of the reel, guide it across
the body (making certain it is not twisted)
and engage the latch plate in the buckle.
Tension the lap belt frequently whilst
driving by tugging the shoulder belt.
Picture no: 14121s.tif
Loose or bulky clothing prevents the belt
from fitting snugly. Do not place objects
such as handbags or mobile phones
between the belt and your body.
9 Warning
On pregnant women in particular, the
lap belt must be positioned as low as
possible across the pelvis so as not to
put too much pressure on the abdomen.
9 Warning
The belt must not rest against hard or
fragile objects in the pockets of your
clothing.

63
Seats, Interior
Picture no: 14122s.tif

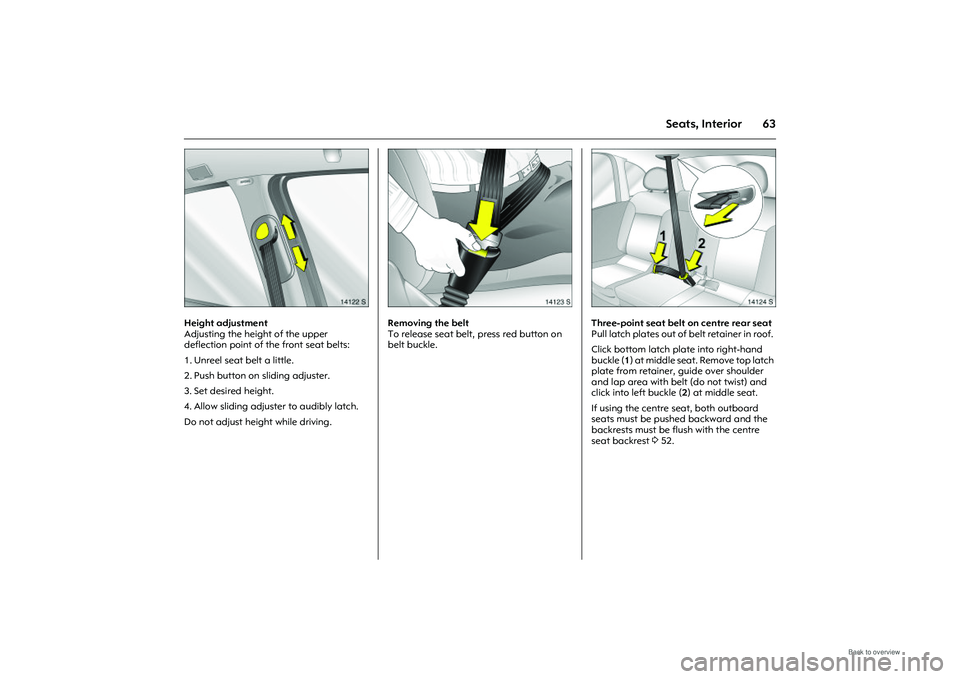

Height adjustment
Adjusting the height of the upper
deflection point of the front seat belts:
1. Unreel seat belt a little.
2. Push button on sliding adjuster.
3. Set desired height.
4. Allow sliding adjuster to audibly latch.
Do not adjust height while driving.
Picture no: 14123s.tif
Removing the belt
To release seat belt, press red button on
belt buckle.
Picture no: 14124S.tif
Three-point seat belt on centre rear seat
Pull latch plates out of belt retainer in roof.
Click bottom latch plate into right-hand
buckle ( 1) at middle seat. Remove top latch
plate from retainer, guide over shoulder
and lap area with belt (do not twist) and
click into left buckle ( 2) at middle seat.
If using the centre seat, both outboard
seats must be pushed backward and the
backrests must be flush with the centre
seat backrest 352.

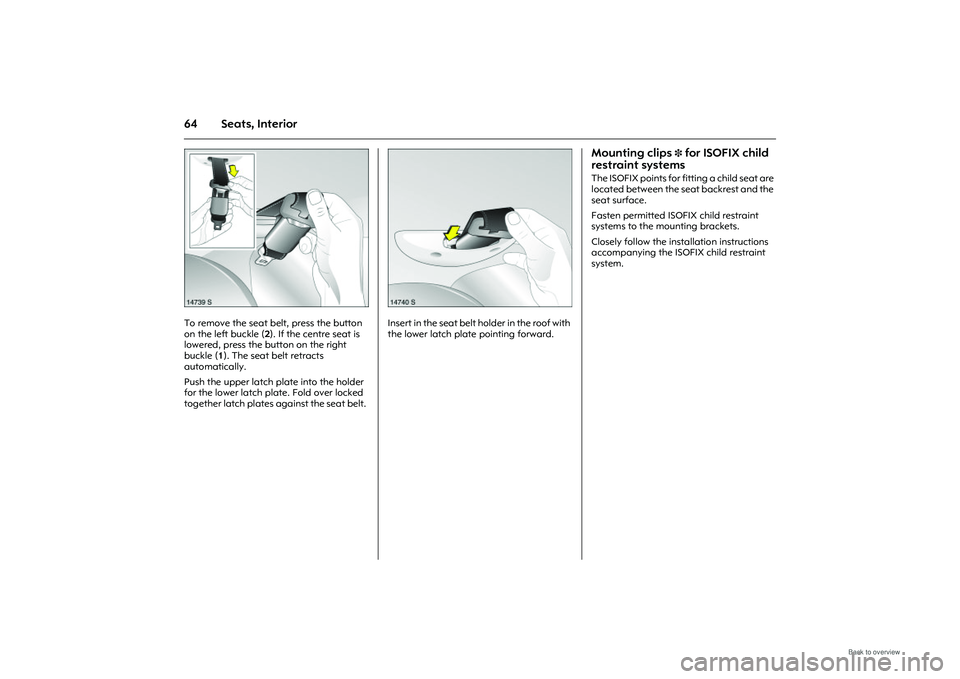

64 Seats, Interior
Picture no: 14739S.tif
To remove the seat belt, press the button
on the left buckle (2). If the centre seat is
lowered, press the button on the right
buckle ( 1). The seat belt retracts
automatically.
Push the upper latch pl ate into the holder
for the lower latch plate. Fold over locked
together latch plates against the seat belt.
Picture no: 14740S.tif
Insert in the seat belt holder in the roof with
the lower latch plate pointing forward.
Mounting clips
3 for ISOFIX child
restraint systems
The ISOFIX points for fitting a child seat are
located between the seat backrest and the
seat surface.
Fasten permitted ISOF IX child restraint
systems to the mounting brackets.
Closely follow the installation instructions
accompanying the ISOFIX child restraint
system.
