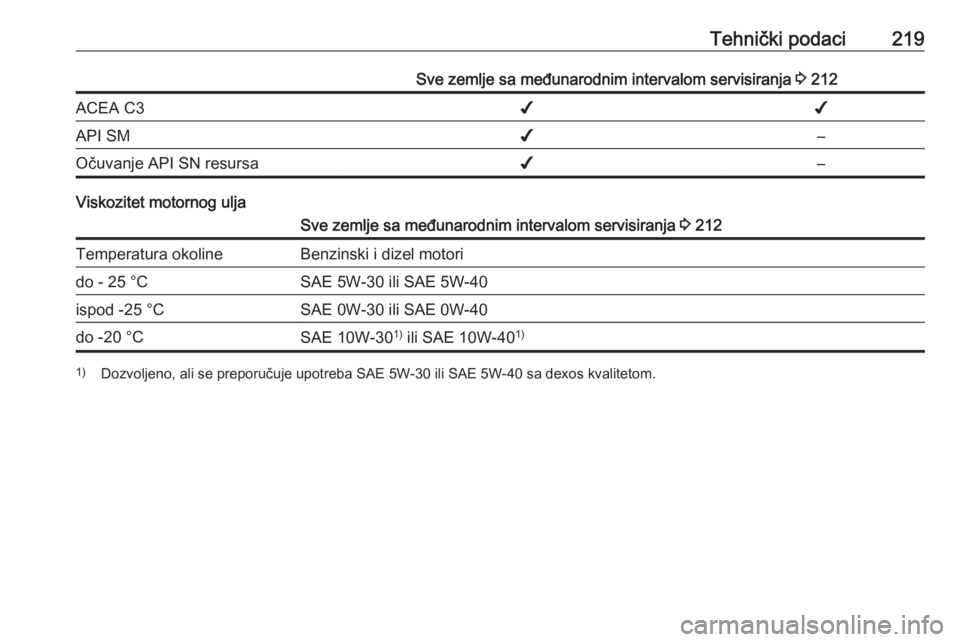

Tehnički podaci219Sve zemlje sa međunarodnim intervalom servisiranja 3 212ACEA C3✔✔API SM✔–Očuvanje API SN resursa✔–
Viskozitet motornog ulja
Sve zemlje sa međunarodnim intervalom servisiranja 3 212Temperatura okolineBenzinski i dizel motorido - 25 °CSAE 5W-30 ili SAE 5W-40ispod -25 °CSAE 0W-30 ili SAE 0W-40do -20 °CSAE 10W-30 1)
ili SAE 10W-40 1)1)
Dozvoljeno, ali se preporučuje upotreba SAE 5W-30 ili SAE 5W-40 sa dexos kvalitetom.

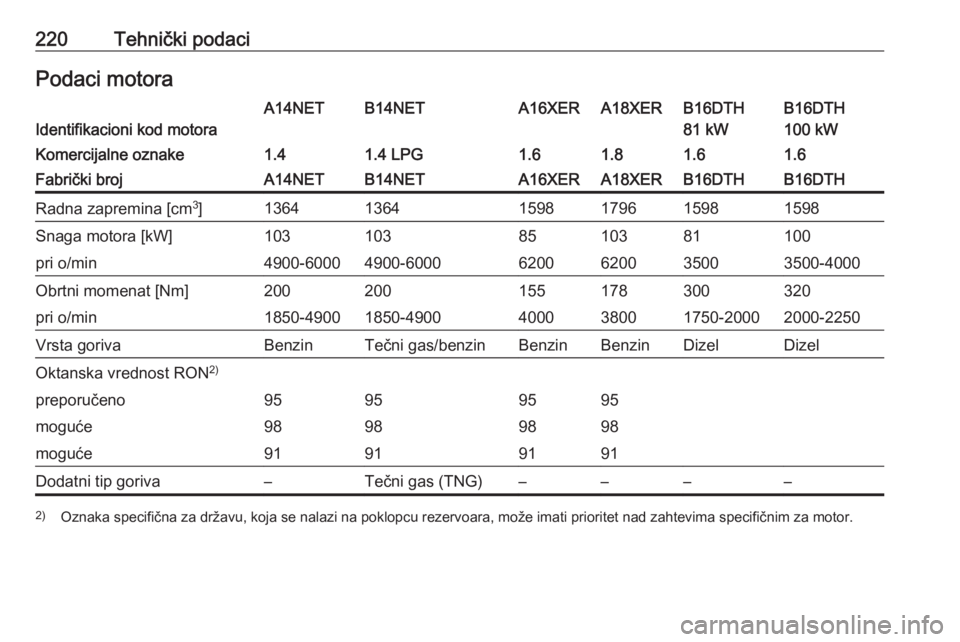

220Tehnički podaciPodaci motoraIdentifikacioni kod motora
A14NETB14NETA16XERA18XERB16DTH
100 kWB16DTH
81 kWKomercijalne oznake1.41.4 LPG1.61.81.61.6Fabrički brojA14NETB14NETA16XERA18XERB16DTHB16DTHRadna zapremina [cm 3
]136413641598179615981598Snaga motora [kW]1031038510310081pri o/min4900-60004900-6000620062003500-40003500Obrtni momenat [Nm]200200155178320300pri o/min1850-49001850-4900400038002000-22501750-2000Vrsta gorivaBenzinTečni gas/benzinBenzinBenzinDizelDizelOktanska vrednost RON 2)preporučeno95959595moguće98989898moguće91919191Dodatni tip goriva–Tečni gas (TNG)––––2)
Oznaka specifična za državu, koja se nalazi na poklopcu rezervoara, može imati prioritet nad zahtevima specifičnim za motor.

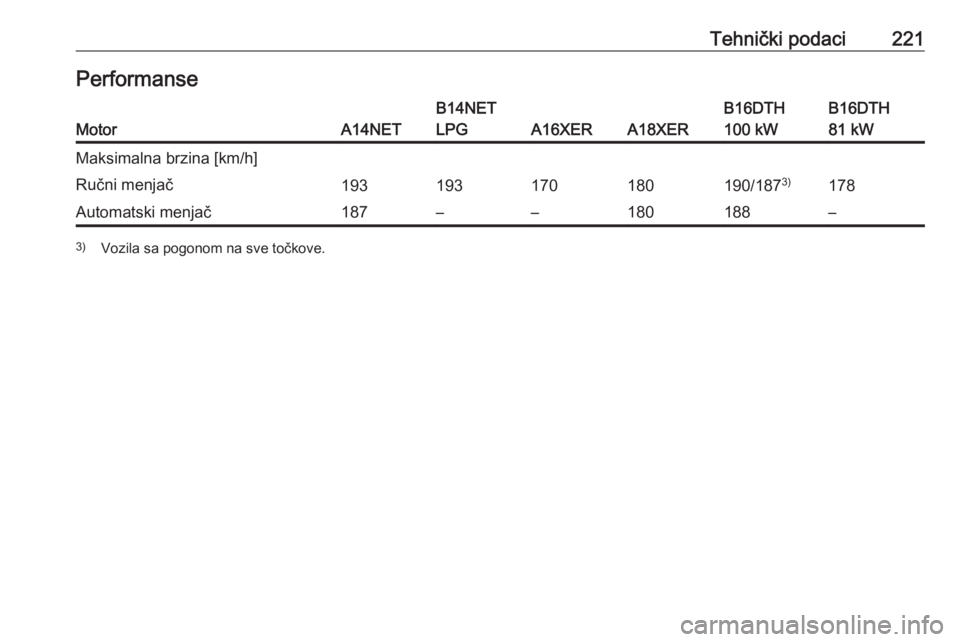

Tehnički podaci221PerformanseMotorA14NET
B14NET
LPG
A16XERA18XER
B16DTH
100 kWB16DTH
81 kWMaksimalna brzina [km/h]Ručni menjač193193170180190/187 3)178Automatski menjač187––180188–3)
Vozila sa pogonom na sve točkove.

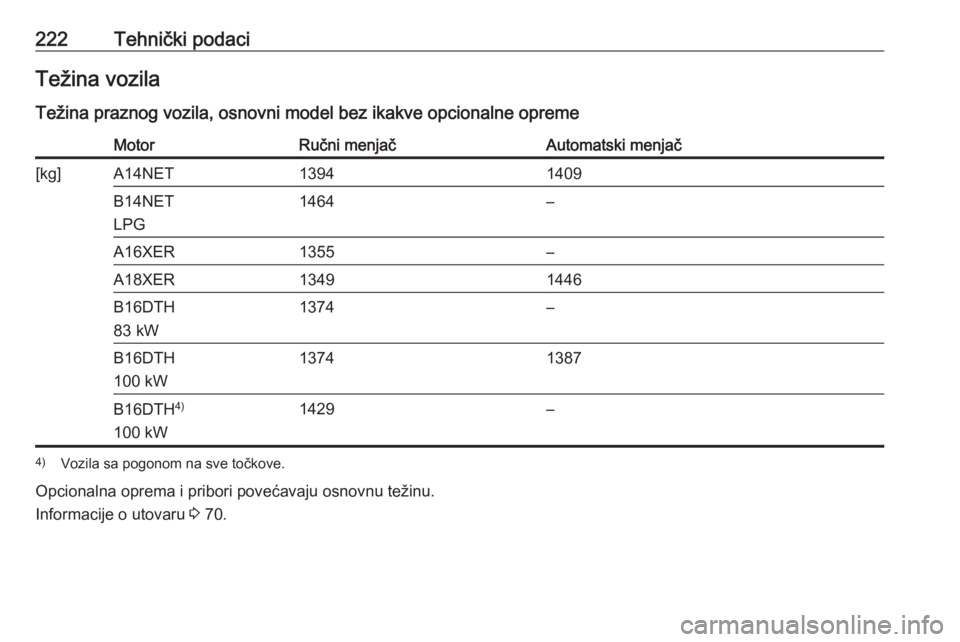

222Tehnički podaciTežina vozila
Težina praznog vozila, osnovni model bez ikakve opcionalne opremeMotorRučni menjačAutomatski menjač[kg]A14NET13941409B14NET
LPG1464–A16XER1355–A18XER13491446B16DTH
83 kW1374–B16DTH
100 kW13741387B16DTH 4)
100 kW1429–4) Vozila sa pogonom na sve točkove.
Opcionalna oprema i pribori povećavaju osnovnu težinu.
Informacije o utovaru 3 70.

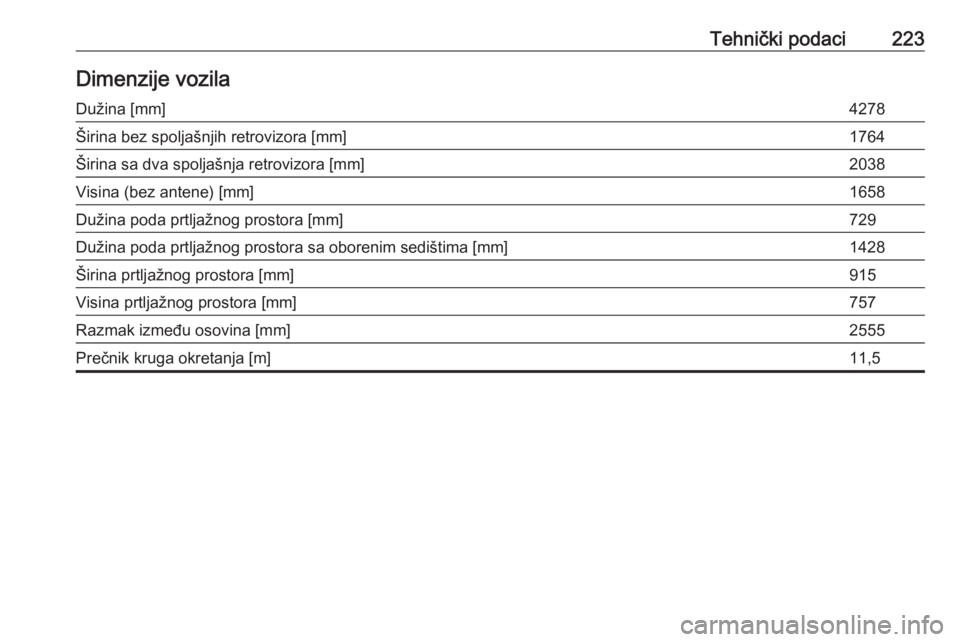

Tehnički podaci223Dimenzije vozilaDužina [mm]4278Širina bez spoljašnjih retrovizora [mm]1764Širina sa dva spoljašnja retrovizora [mm]2038Visina (bez antene) [mm]1658Dužina poda prtljažnog prostora [mm]729Dužina poda prtljažnog prostora sa oborenim sedištima [mm]1428Širina prtljažnog prostora [mm]915Visina prtljažnog prostora [mm]757Razmak između osovina [mm]2555Prečnik kruga okretanja [m]11,5

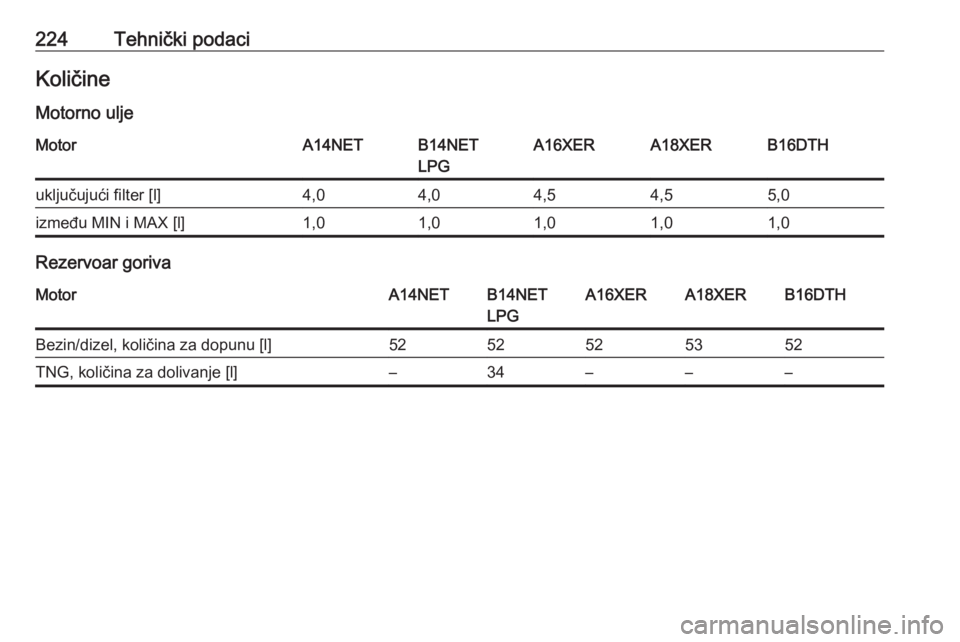

224Tehnički podaciKoličineMotorno uljeMotorA14NETB14NET
LPGA16XERA18XERB16DTHuključujući filter [l]4,04,04,54,55,0između MIN i MAX [l]1,01,01,01,01,0
Rezervoar goriva
MotorA14NETB14NET
LPGA16XERA18XERB16DTHBezin/dizel, količina za dopunu [l]5252525352TNG, količina za dolivanje [l]–34–––

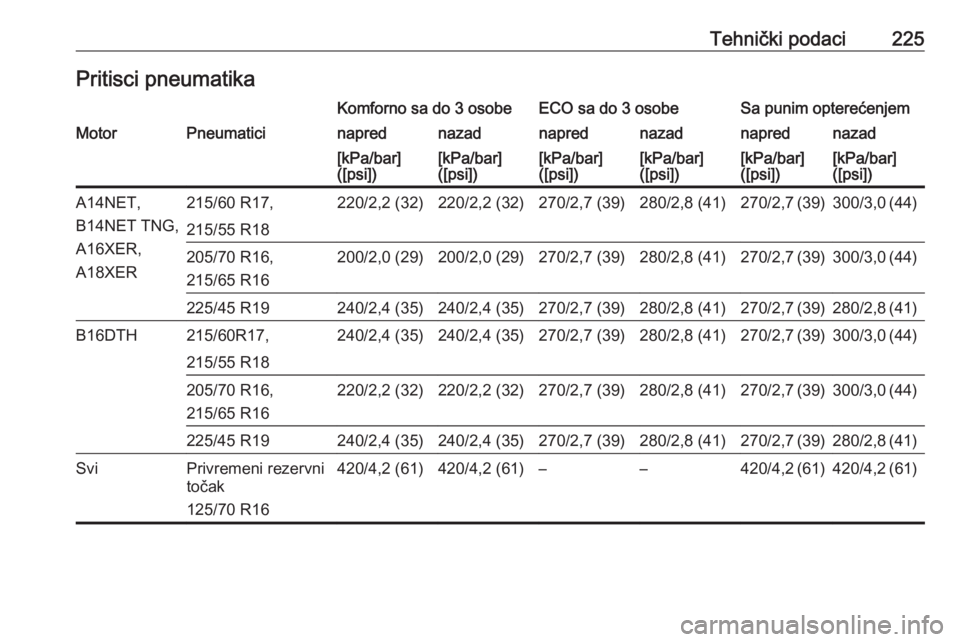

Tehnički podaci225Pritisci pneumatikaKomforno sa do 3 osobeECO sa do 3 osobeSa punim opterećenjemMotorPneumaticinaprednazadnaprednazadnaprednazad[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A14NET,
B14NET TNG,
A16XER,
A18XER215/60 R17,220/2,2 (32)220/2,2 (32)270/2,7 (39)280/2,8 (41)270/2,7 (39)300/3,0 (44)215/55 R18205/70 R16,
215/65 R16200/2,0 (29)200/2,0 (29)270/2,7 (39)280/2,8 (41)270/2,7 (39)300/3,0 (44)225/45 R19240/2,4 (35)240/2,4 (35)270/2,7 (39)280/2,8 (41)270/2,7 (39)280/2,8 (41)B16DTH215/60R17,240/2,4 (35)240/2,4 (35)270/2,7 (39)280/2,8 (41)270/2,7 (39)300/3,0 (44)215/55 R18205/70 R16,
215/65 R16220/2,2 (32)220/2,2 (32)270/2,7 (39)280/2,8 (41)270/2,7 (39)300/3,0 (44)225/45 R19240/2,4 (35)240/2,4 (35)270/2,7 (39)280/2,8 (41)270/2,7 (39)280/2,8 (41)SviPrivremeni rezervni točak
125/70 R16420/4,2 (61)420/4,2 (61)––420/4,2 (61)420/4,2 (61)

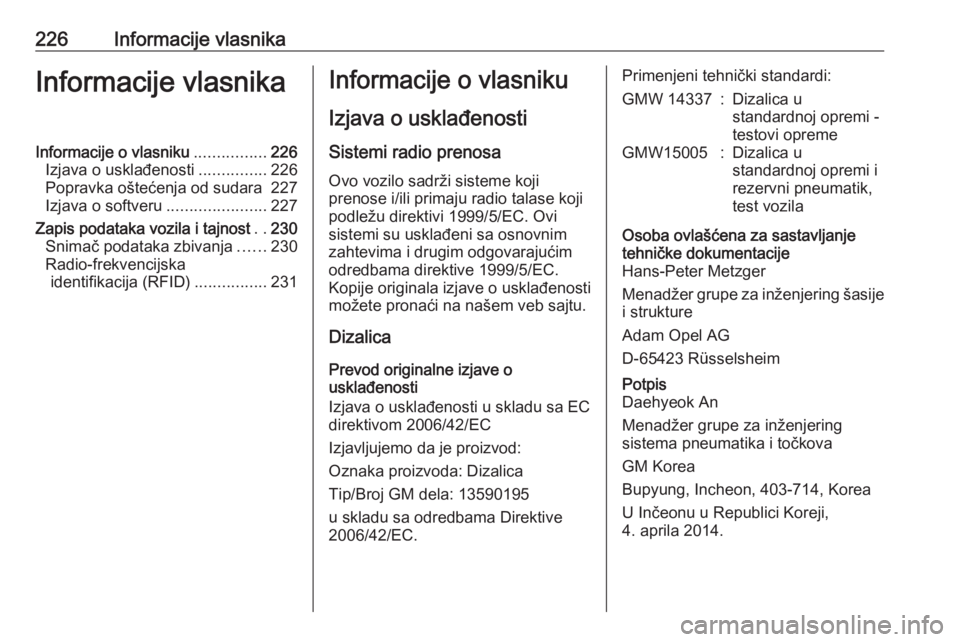

226Informacije vlasnikaInformacije vlasnikaInformacije o vlasniku................226
Izjava o usklađenosti ...............226
Popravka oštećenja od sudara 227
Izjava o softveru ......................227
Zapis podataka vozila i tajnost ..230
Snimač podataka zbivanja ......230
Radio-frekvencijska identifikacija (RFID) ................231Informacije o vlasniku
Izjava o usklađenosti
Sistemi radio prenosa Ovo vozilo sadrži sisteme koji
prenose i/ili primaju radio talase koji
podležu direktivi 1999/5/EC. Ovi
sistemi su usklađeni sa osnovnim
zahtevima i drugim odgovarajućim
odredbama direktive 1999/5/EC.
Kopije originala izjave o usklađenosti
možete pronaći na našem veb sajtu.
Dizalica
Prevod originalne izjave o
usklađenosti
Izjava o usklađenosti u skladu sa EC direktivom 2006/42/EC
Izjavljujemo da je proizvod:
Oznaka proizvoda: Dizalica
Tip/Broj GM dela: 13590195
u skladu sa odredbama Direktive
2006/42/EC.Primenjeni tehnički standardi:GMW 14337:Dizalica u
standardnoj opremi -
testovi opremeGMW15005:Dizalica u
standardnoj opremi i
rezervni pneumatik,
test vozilaOsoba ovlašćena za sastavljanje
tehničke dokumentacije
Hans-Peter Metzger
Menadžer grupe za inženjering šasije
i strukture
Adam Opel AG
D-65423 RüsselsheimPotpis
Daehyeok An
Menadžer grupe za inženjering
sistema pneumatika i točkova
GM Korea
Bupyung, Incheon, 403-714, Korea
U Inčeonu u Republici Koreji,
4. aprila 2014.

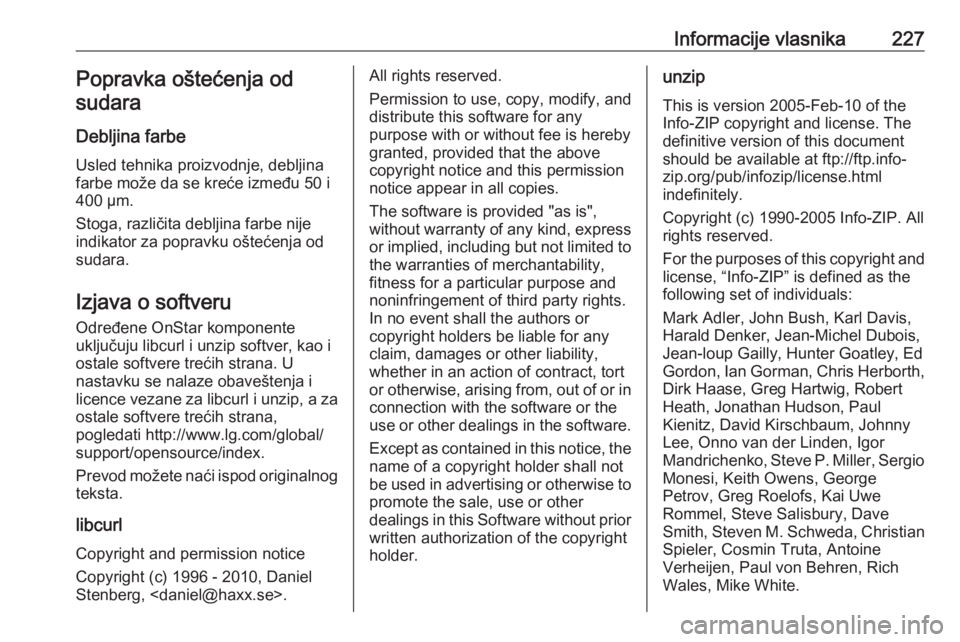

Informacije vlasnika227Popravka oštećenja odsudara
Debljina farbe Usled tehnika proizvodnje, debljina
farbe može da se kreće između 50 i
400 µm.
Stoga, različita debljina farbe nije
indikator za popravku oštećenja od
sudara.
Izjava o softveru
Određene OnStar komponente
uključuju libcurl i unzip softver, kao i
ostale softvere trećih strana. U
nastavku se nalaze obaveštenja i
licence vezane za libcurl i unzip, a za
ostale softvere trećih strana,
pogledati http://www.lg.com/global/ support/opensource/index.
Prevod možete naći ispod originalnog teksta.
libcurl Copyright and permission notice
Copyright (c) 1996 - 2010, Daniel
Stenberg, .All rights reserved.
Permission to use, copy, modify, and
distribute this software for any
purpose with or without fee is hereby
granted, provided that the above
copyright notice and this permission
notice appear in all copies.
The software is provided "as is",
without warranty of any kind, express or implied, including but not limited to
the warranties of merchantability,
fitness for a particular purpose and
noninfringement of third party rights.
In no event shall the authors or
copyright holders be liable for any
claim, damages or other liability,
whether in an action of contract, tort
or otherwise, arising from, out of or in connection with the software or the
use or other dealings in the software.
Except as contained in this notice, the
name of a copyright holder shall not
be used in advertising or otherwise to
promote the sale, use or other
dealings in this Software without prior
written authorization of the copyright
holder.unzip
This is version 2005-Feb-10 of theInfo-ZIP copyright and license. The
definitive version of this document
should be available at ftp://ftp.info-
zip.org/pub/infozip/license.html
indefinitely.
Copyright (c) 1990-2005 Info-ZIP. All
rights reserved.
For the purposes of this copyright and
license, “Info-ZIP” is defined as the
following set of individuals:
Mark Adler, John Bush, Karl Davis,
Harald Denker, Jean-Michel Dubois,
Jean-loup Gailly, Hunter Goatley, Ed
Gordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, Robert
Heath, Jonathan Hudson, Paul
Kienitz, David Kirschbaum, Johnny
Lee, Onno van der Linden, Igor
Mandrichenko, Steve P. Miller, Sergio
Monesi, Keith Owens, George
Petrov, Greg Roelofs, Kai Uwe
Rommel, Steve Salisbury, Dave
Smith, Steven M. Schweda, Christian Spieler, Cosmin Truta, Antoine
Verheijen, Paul von Behren, Rich
Wales, Mike White.

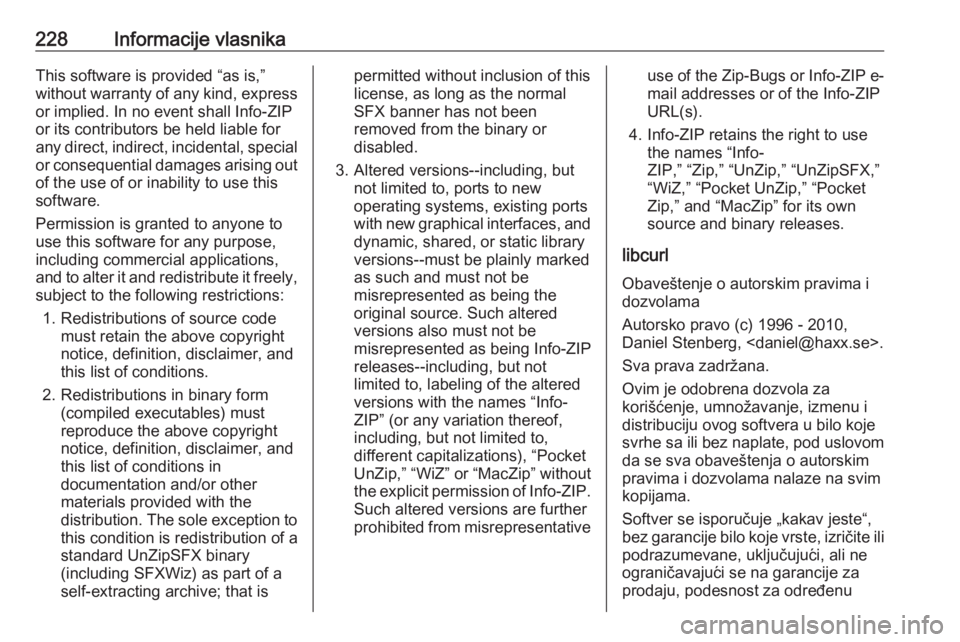

228Informacije vlasnikaThis software is provided “as is,”without warranty of any kind, express
or implied. In no event shall Info-ZIP
or its contributors be held liable for
any direct, indirect, incidental, special
or consequential damages arising out of the use of or inability to use this
software.
Permission is granted to anyone to
use this software for any purpose,
including commercial applications,
and to alter it and redistribute it freely,
subject to the following restrictions:
1. Redistributions of source code must retain the above copyright
notice, definition, disclaimer, and
this list of conditions.
2. Redistributions in binary form (compiled executables) must
reproduce the above copyright
notice, definition, disclaimer, and
this list of conditions in
documentation and/or other
materials provided with the
distribution. The sole exception to
this condition is redistribution of a
standard UnZipSFX binary
(including SFXWiz) as part of a
self-extracting archive; that ispermitted without inclusion of this
license, as long as the normal
SFX banner has not been
removed from the binary or
disabled.
3. Altered versions--including, but not limited to, ports to new
operating systems, existing ports
with new graphical interfaces, and dynamic, shared, or static library
versions--must be plainly marked
as such and must not be
misrepresented as being the
original source. Such altered
versions also must not be
misrepresented as being Info-ZIP
releases--including, but not
limited to, labeling of the altered
versions with the names “Info-
ZIP” (or any variation thereof,
including, but not limited to,
different capitalizations), “Pocket
UnZip,” “WiZ” or “MacZip” without
the explicit permission of Info-ZIP. Such altered versions are further
prohibited from misrepresentativeuse of the Zip-Bugs or Info-ZIP e- mail addresses or of the Info-ZIP
URL(s).
4. Info-ZIP retains the right to use the names “Info-
ZIP,” “Zip,” “UnZip,” “UnZipSFX,”
“WiZ,” “Pocket UnZip,” “Pocket
Zip,” and “MacZip” for its own
source and binary releases.
libcurl Obaveštenje o autorskim pravima i
dozvolama
Autorsko pravo (c) 1996 - 2010,
Daniel Stenberg, .
Sva prava zadržana.
Ovim je odobrena dozvola za
korišćenje, umnožavanje, izmenu i
distribuciju ovog softvera u bilo koje
svrhe sa ili bez naplate, pod uslovom
da se sva obaveštenja o autorskim
pravima i dozvolama nalaze na svim
kopijama.
Softver se isporučuje „kakav jeste“,
bez garancije bilo koje vrste, izričite ili
podrazumevane, uključujući, ali ne
ograničavajući se na garancije za
prodaju, podesnost za određenu
