display OPEL MOKKA 2017 Owners Manual

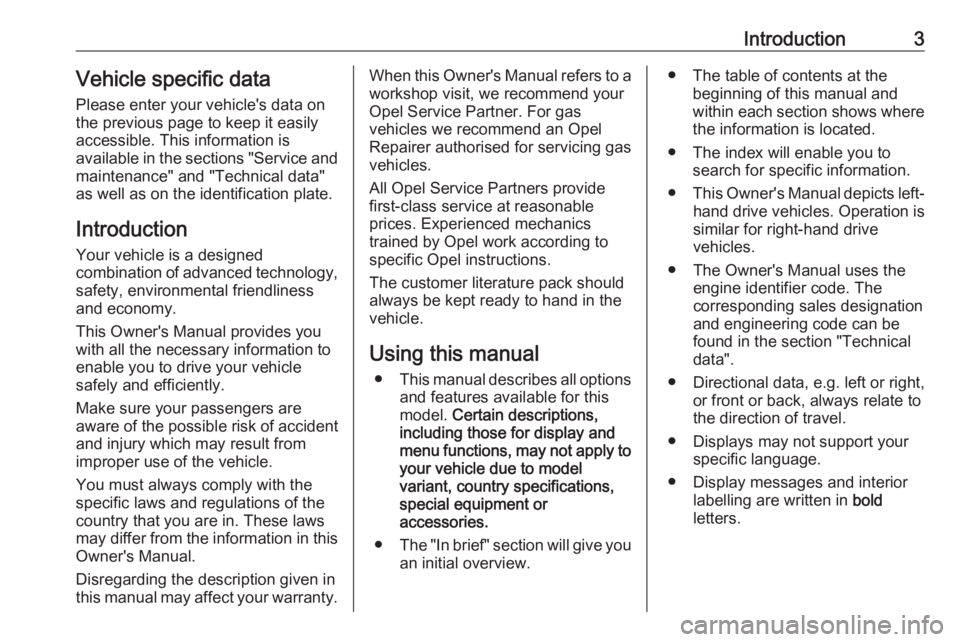

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner. For gas
vehicles we recommend an Opel
Repairer authorised for servicing gas
vehicles.
All Opel Service Partners provide first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

In brief111Central locking system ..........22
2 Power windows .....................31
3 Exterior mirrors .....................28
4 Light switch ......................... 107
5 Cruise control ...................... 140
Speed limiter ....................... 141
Forward collision alert .........142
6 Side air vents ...................... 122
7 Turn and lane-change
signals ................................. 113
Headlight flash ....................109
Low beam and high beam ..108
Buttons for Driver
Information Centre ................89
8 Instruments ........................... 78
9 Steering wheel controls .......72
10 Windscreen wiper,
windscreen washer system ...73
Rear window wiper, rear
window washer system .........75
11 Centre air vents ................... 12212Electronic Stability Control
(ESC) .................................. 138
Hazard warning flashers ....112
Control indicator for airbag deactivation .......................... 84
13 Anti-theft alarm system
status LED ........................... 26
14 Info-Display .......................... 93
15 Instrument panel storage ......55
16 Glovebox .............................. 56
17 Infotainment system
18 Climate control system ........ 117
19 Stop-start system ................127
Fuel selector ......................... 79
20 AUX input, USB input, SD
card slot
21 Selector lever, manual
transmission ....................... 134
Automatic transmission ......131
22 Parking brake ......................136
23 Power outlet .......................... 77
24 Parking assist ..................... 144
Descent control system ......... 8625 Ignition switch with
steering wheel lock ............126
26 Horn ..................................... 73
Driver airbag ........................ 46
27 Steering wheel adjustment ..72
28 Bonnet release lever ..........165
29 Instrument panel storage ......55
Fuse box ............................ 181

Keys, doors and windows21Key with foldaway key section
Press button to extend.
To fold the key, first press the button.
Radio remote control
Used to operate: ● central locking system
● anti-theft alarm system
The radio remote control has a range of approx. 30 metres. It can be
restricted by external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot be operated with the radio remote
control, it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the radio remote control while not
in range, which will require re-
synchronisation.
● Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Unlocking 3 22.
Basic settings Some settings can be changed in the
menu Settings in the Info-Display.
Vehicle personalisation 3 100.
Radio remote control battery
replacement
Replace the battery as soon as the
range reduces.

22Keys, doors and windows
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Key with foldaway key section
Extend the key and open the unit.
Replace the battery (battery type CR 2032), paying attention to the
installation position. Close the unit
and synchronise.
Radio remote control
synchronisation
After replacing the battery, unlock the
door with the key in the driver's door
lock. The radio remote control is
synchronised when the ignition is
switched on.
Memorised settings
Whenever the key is removed from
the ignition switch, the following
settings are automatically memorised by the key:
● lighting
● infotainment system
● central locking system
The saved settings are automatically
used the next time the memorised key
is inserted into the ignition switch and
turned to position 1 3 126.
A precondition is that Personalization
by driver is activated in the personal
settings of the Graphic-Info-Display.
This must be set for each key used.
On vehicles equipped withColour-Info-Display, the
personalisation is permanently
activated.
Vehicle personalisation 3 100.
Central locking system
Unlocks and locks doors, load
compartment and fuel filler flap.
A pull on an interior door handle
unlocks the respective door. Pulling the handle again opens the door.
Note
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.
Note
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened.

Keys, doors and windows23UnlockingRadio remote control
Press c.
Two settings are selectable: ● To unlock only the driver's door, load compartment and fuel filler
flap, press c once. To unlock all
doors, press c twice.
● Press c once to unlock all doors,
load compartment and fuel filler
flap.
The setting can be changed in the
Settings menu in the Info-Display.
Vehicle personalisation 3 100.
The setting can be saved for the key
being used. Memorised settings
3 22.
Locking
Close doors, load compartment and
fuel filler flap.
Press e
.
If the driver's door is not closed
properly, the central locking system will not work.
Central locking buttons Locks or unlocks all doors, the load
compartment and fuel filler flap from
inside the passenger compartment.
The central locking buttons are
located in the driver's door.
Press e to lock.
Press c to unlock.

Keys, doors and windows25Settings can be changed in the menu
Settings in the Info-Display. Vehicle
personalisation 3 100.
The settings can be saved for the key being used 3 22.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Using a key or suitable screwdriver,
turn the child lock in the rear door to
the horizontal position. The door
cannot be opened from the inside. For
deactivation turn the child lock to the
vertical position.Doors
Load compartment Tailgate
Opening
After unlocking, push the touchpad
switch and open the tailgate.
Closing
Use one of the interior handles.
Do not push the touchpad switch or
the brand emblem whilst closing as
this will unlock the tailgate again.
Central locking system 3 22.

Seats, restraints37
● Sit with buttocks as far backagainst the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when fully
pressing the pedals. Slide the
front passenger seat as far back
as possible.
● Set seat height high enough to have a clear field of vision on all
sides and of all display
instruments. There should be at
least one hand of clearance
between head and the
headlining. Your thighs should
rest lightly on the seat without
pressing into it.
● Sit with shoulders as far back against the backrest as possible.
Set the backrest rake so that it is possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do
not tilt the backrest too far back.
We recommend a maximum rake of approx. 25°.
● Adjust seat and steering wheel in
a way that the wrist rests on top
of the steering wheel while the
arm is fully extended and
shoulders on the backrest.
● Adjust the steering wheel 3 72.
● Adjust the head restraint 3 35.
● Adjust the height of the seat belt 3 41.
● Adjust the thigh support so that there is a space approx. two
fingers wide between the edge of the seat and the hollow of the
knee.
● Adjust the lumbar support so that
it supports the natural shape of
the spine.Seat adjustment
Drive only with engaged seats and backrests.
Longitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.

Instruments and controls71Instruments and
controlsControls ....................................... 72
Steering wheel adjustment ........72
Steering wheel controls .............72
Heated steering wheel ...............72
Horn ........................................... 73
Windscreen wiper/washer .........73
Rear window wiper/washer .......75
Outside temperature ..................75
Clock ......................................... 76
Power outlets ............................. 77
Warning lights, gauges and indi‐
cators ........................................... 78
Speedometer ............................. 78
Odometer .................................. 78
Trip odometer ............................ 78
Tachometer ............................... 79
Fuel gauge ................................ 79
Fuel selector .............................. 79
Engine coolant temperature gauge ....................................... 80
Service display .......................... 80
Control indicators ......................81
Turn signal ................................. 84
Seat belt reminder .....................84Airbag and belt tensioners .........84
Airbag deactivation ....................84
Charging system .......................85
Malfunction indicator light ..........85
Service vehicle soon .................85
Brake and clutch system ...........85
Operate pedal ............................ 85
Antilock brake system (ABS) .....85
Upshift ....................................... 86
Descent control system .............86
Power steering .......................... 86
Lane departure warning ............86
Ultrasonic parking assist ...........86
Electronic Stability Control off ...86
Electronic Stability Control and Traction Control system ...........87
Traction Control system off .......87
Preheating ................................. 87
Diesel particle filter ....................87
Tyre pressure monitoring system ...................................... 87
Engine oil pressure ....................87
Low fuel ..................................... 88
Immobiliser ................................ 88
Exterior light .............................. 88
High beam ................................. 88
Adaptive forward lighting ...........88
Fog light ..................................... 89
Rear fog light ............................. 89
Cruise control ............................ 89Vehicle detected ahead .............89
Bonnet open .............................. 89
Door open .................................. 89
Information displays .....................89
Driver Information Centre ..........89
Graphic-Info-Display, Colour- Info-Display .............................. 93
Vehicle messages ........................94
Warning chimes .........................96
Battery voltage .......................... 96
Trip computer ............................... 97
Vehicle personalisation ..............100
OnStar ....................................... 103

Instruments and controls75Rear window wiper/washer
Press the rocker switch to activate the
rear window wiper:
upper switch:continuous
operationlower switch:intermittent
operationmiddle position:off
Push lever. Washer fluid is sprayed
onto the rear window and the wiper
wipes a few times.
Do not use if the rear window is
frozen.
Switch off in car washes.
The rear window wiper comes on
automatically when the windscreen
wiper is switched on and reverse gear
is engaged.
Activation or deactivation of this
function can be changed in the menu
Settings in the Info-Display.
Washer fluid 3 168
Vehicle personalisation 3 100.
Outside temperature
A drop in temperature is indicated
immediately and a rise in temperature
after a time delay.
If outside temperature drops to
0.5 °C, a warning message is
displayed in the Driver Information
Centre with Uplevel-Display or
Uplevel-Combi-Display.
9 Warning
The road surface may already be
icy even though the display
indicates a few degrees above
0 °C.

76Instruments and controlsClockDate and time are shown in the
Info-Display.
Set date and time
CD 400
Press CONFIG . The menu Settings is
displayed.
Select Time Date .
Selectable setting options:
● Set time : Changes the time
shown on the display.
● Set date : Changes the date
shown on the display.
● Set time format : Changes
indication of hours between 12 h
and 24 h.
● Set date format : Changes
indication of date between MM/
DD/YYYY and DD/MM/YYYY .
● Display clock : Switches on/off
indication of time on the display.
● RDS clock synchronization : The
RDS signal of most VHF
transmitters automatically sets
the time. RDS time
synchronisation can take a few
minutes. Some transmitters do not send a correct time signal. In
such cases, it is recommended to
switch off automatic time
synchronisation.
Vehicle personalisation 3 100.
Time and date settings
CD 600/Navi 950
Press CONFIG and then select the
Time and Date menu item to display
the respective submenu.
Note
If RDS Auto Time Adjust is activated,
time and date are automatically set by the system.
See Infotainment manual for further information.
Set time
To adjust the time settings, select the Set Time menu item. Turn the
multifunction knob to adjust the first
setting.
Press the multifunction knob to
confirm the input. The coloured
background moves to the next
setting.
Adjust all settings.
