OPEL ZAFIRA 2009 Owners Manual

Lighting
111
Hazard warning flashers Operated with the ¨ button.
The hazard warning flashers activate
automatically if the airbags deploy. Turn and lane-change
signals
Lever up = Right indicator
Lever down = Left indicator
The lever always springs back to its
original position.
If the lever is moved past the
resistance point, the indicator is
switched on constantly. When the
steering wheel moves back, the
indicator
is automatically deactivated.
For three flashes, e. g. when
changing lanes, press the lever until
resistance is felt and then release. Move the lever to the resistance point
and hold for longer indication.
Switch the indicator off manually by
moving the lever slightly.
Front fog lights
The front fog lights can only be
switched on when both the ignition
and headlights or parking lights are
on.
Operated with the > button.

112
Lighting
Rear fog lights The rear fog light can only be
switched on when both the ignition
and headlights or parking lights (with
front fog lights) are on.
Operated with the r button.
The vehicle rear fog light is
deactivated when towing. Parking lights
When parked, the parking lights on
one side can be activated:
1. Set light switch to 7 or AUTO .
2.
Ignition off.
3. Move turn signal lever all the way up (right parking lights) or down
(left parking lights).
Confirmed by a signal and the
corresponding turn signal control
indicator.
To switch it off, switch on the ignition
or move the turn signal lever in the
opposite direction. Reversing lights
The reversing lights come on when
the ignition is on and reverse gear is
selected.
Misted light covers
The

inside of the light covers may mist
up briefly in poor, wet and cold
weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself; to help, switch on the
headlights.

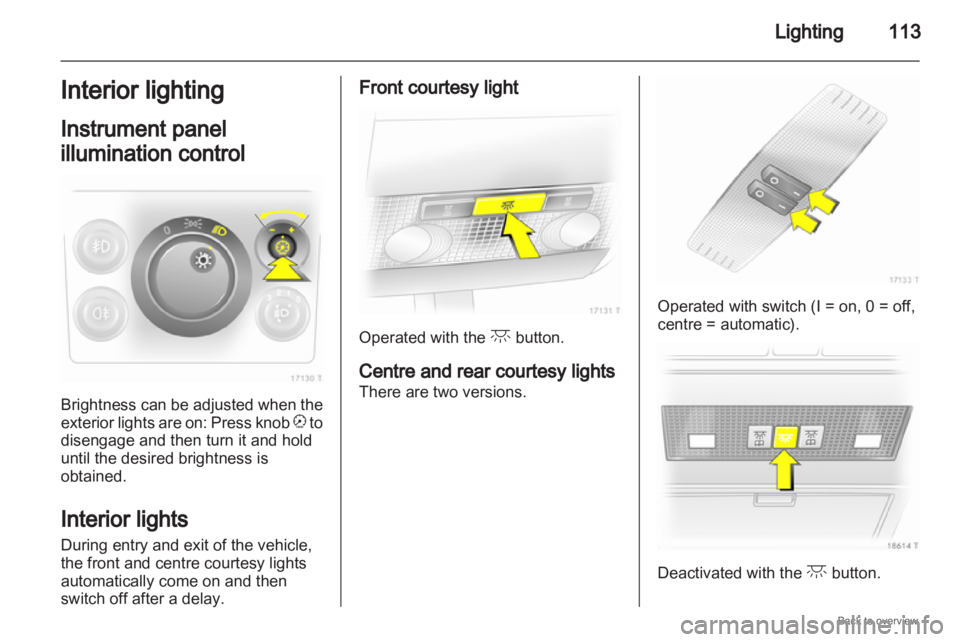

Lighting
113
Interior lighting
Instrument panel
illumination control Brightness can be adjusted when the
exterior
lights are on: Press knob k to
disengage and then turn it and hold
until the desired brightness is
obtained.
Interior lights
During entry and exit of the vehicle,
the front and centre courtesy lights
automatically come on and then
switch off after a delay. Front courtesy light
Operated with the c button.
Centre and rear courtesy lights
There are two versions. Operated with switch (I = on, 0 = off,
centre = automatic).
Deactivated with the
c button.

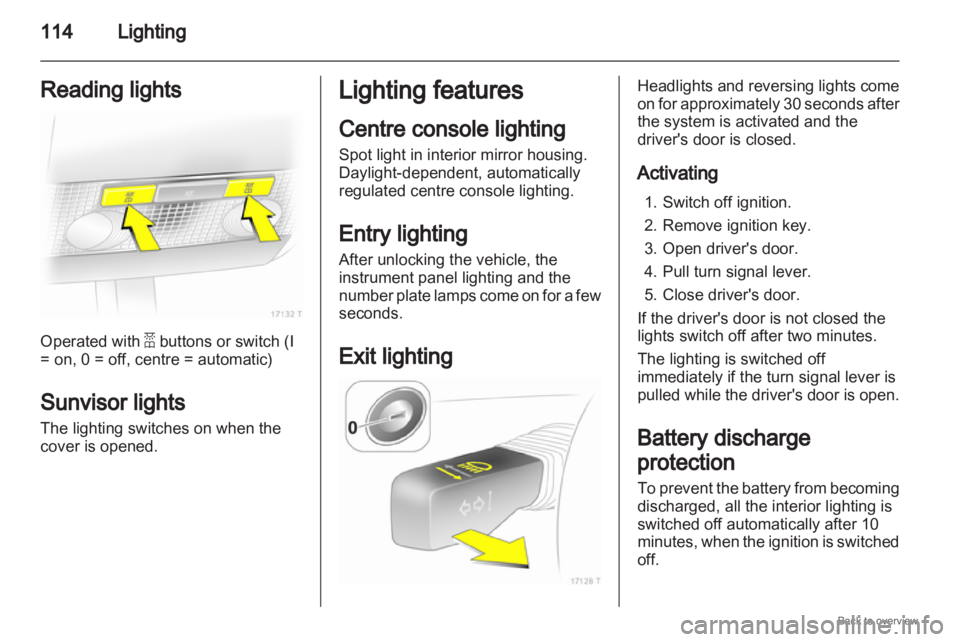

114
Lighting
Reading lights Operated with a buttons or switch (I
= on, 0 = off, centre = automatic)
Sunvisor lights
The lighting switches on when the
cover is opened. Lighting features
Centre console lighting
Spot light in interior mirror housing.
Daylight-dependent, automatically
regulated centre console lighting.
Entry lighting
After unlocking the vehicle, the
instrument panel lighting and the
number
plate lamps come on for a few
seconds.
Exit lighting Headlights and reversing lights come
on
for approximately 30 seconds after
the system is activated and the
driver's door is closed.
Activating
1. Switch off ignition.
2. Remove ignition key.
3. Open driver's door.
4. Pull turn signal lever.
5. Close driver's door.
If the driver's door is not closed the
lights switch off after two minutes.
The lighting is switched off
immediately if the turn signal lever is
pulled while the driver's door is open.
Battery discharge
protection
To prevent the battery from becoming
discharged, all the interior lighting is
switched off automatically after 10
minutes, when the ignition is switched
off.

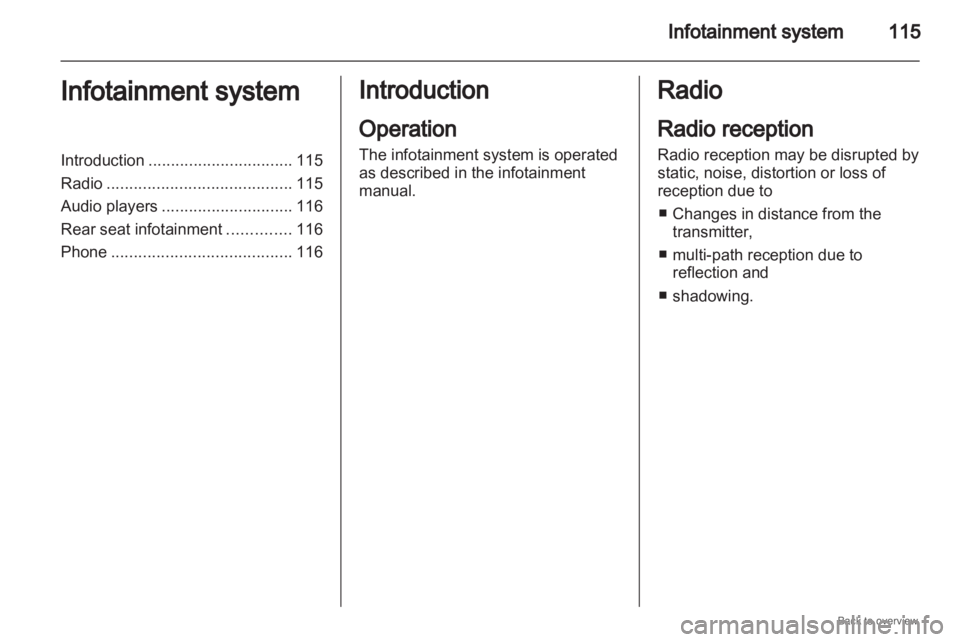

Infotainment system
115
Infotainment system
Introduction ................................ 115
Radio ......................................... 115
Audio players ............................. 116
Rear seat infotainment ..............116
Phone ........................................ 116 Introduction
Operation
The infotainment system is operated
as described in the infotainment
manual. Radio
Radio reception
Radio reception may be disrupted by
static, noise, distortion or loss of
reception due to
■
Changes in distance from thetransmitter,
■ multi-path reception due to reflection and
■ shadowing.

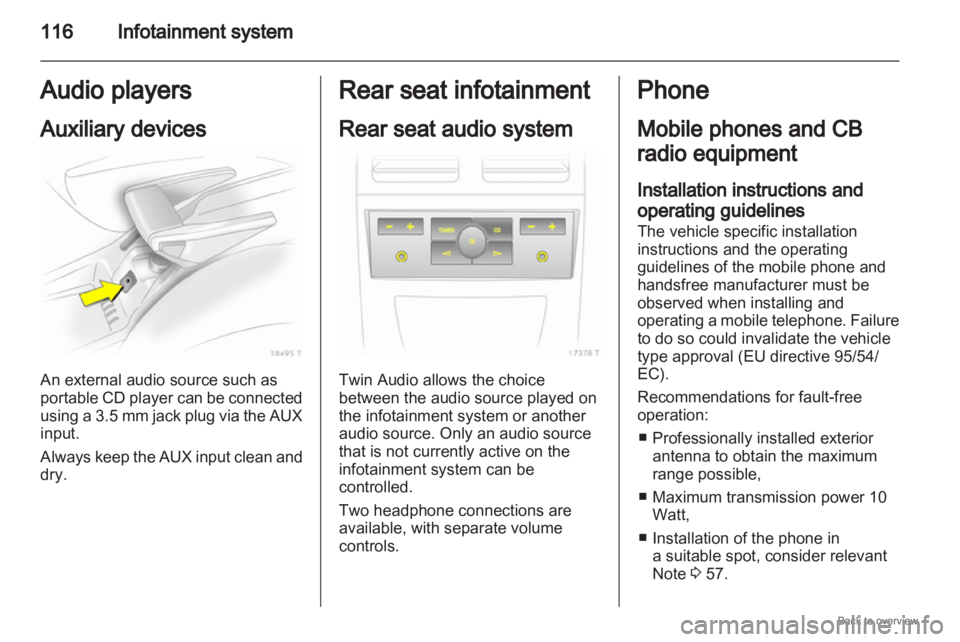

116
Infotainment system
Audio players
Auxiliary devices An external audio source such as
portable
CD player can be connected
using a 3.5 mm jack plug via the AUX
input.
Always keep the AUX input clean and
dry. Rear seat infotainment
Rear seat audio system
Twin Audio allows the choice
between the audio source played on
the infotainment system or another
audio source. Only an audio source
that is not currently active on the
infotainment system can be
controlled.
Two headphone connections are
available, with separate volume
controls. Phone
Mobile phones and CB
radio equipment
Installation instructions and
operating guidelines
The vehicle specific installation
instructions and the operating
guidelines of the mobile phone and
handsfree manufacturer must be
observed when installing and
operating

a mobile telephone. Failure
to do so could invalidate the vehicle
type approval (EU directive 95/54/
EC).
Recommendations for fault-free
operation:
■ Professionally installed exterior antenna to obtain the maximum
range possible,
■ Maximum transmission power 10 Watt,
■ Installation of the phone in a suitable spot, consider relevant
Note 3 57.

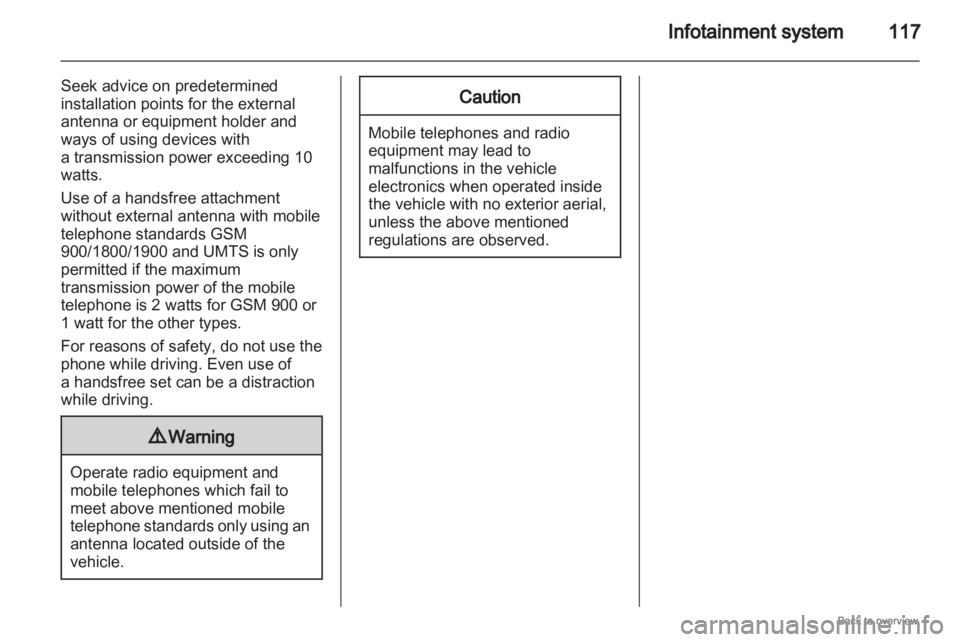

Infotainment system
117
Seek advice on predetermined
installation points for the external
antenna or equipment holder and
ways of using devices with
a transmission power exceeding 10
watts.
Use of a handsfree attachment
without external antenna with mobile
telephone standards GSM
900/1800/1900 and UMTS is only
permitted if the maximum
transmission power of the mobile
telephone is 2 watts for GSM 900 or
1 watt for the other types.
For reasons of safety, do not use the
phone while driving. Even use of
a handsfree set can be a distraction
while driving. 9
Warning Operate radio equipment and
mobile telephones which fail to
meet above mentioned mobile
telephone
standards only using an
antenna located outside of the
vehicle. Caution
Mobile telephones and radio
equipment may lead to
malfunctions in the vehicle
electronics when operated inside
the vehicle with no exterior aerial,
unless the above mentioned
regulations are observed.

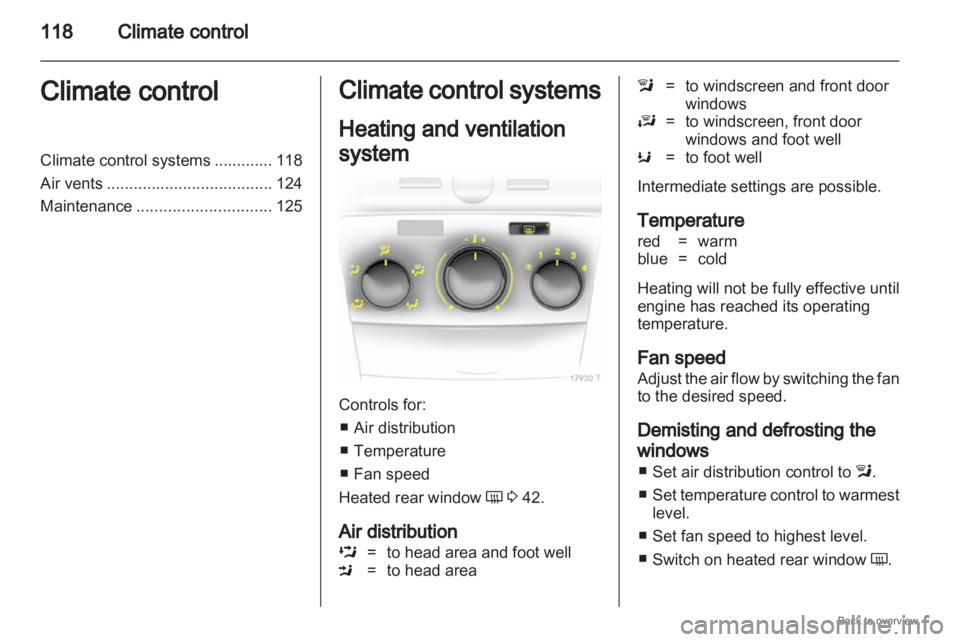

118
Climate control
Climate control
Climate control systems ............. 118
Air vents ..................................... 124
Maintenance .............................. 125 Climate control systems
Heating and ventilation
system
Controls for:
■ Air distribution
■ Temperature
■ Fan speed
Heated rear window Ü 3 42.
Air distribution
L =
to head area and foot well
M = to head area l
= to windscreen and front door
windows
J = to windscreen, front door
windows and foot well
K = to foot well
Intermediate settings are possible.
Temperature
red = warm
blue = cold
Heating will not be fully effective until
engine has reached its operating
temperature.
Fan speed
Adjust

the air flow by switching the fan
to the desired speed.
Demisting and defrosting the
windows
■ Set air distribution control to l.
■ Set temperature control to warmest level.
■ Set fan speed to highest level.
■ Switch on heated rear window Ü.

Climate control
119
■ Open side air vents as required and
direct them towards door windows.
■ For simultaneous warming of the foot well, set air distribution control
to J.
Air conditioning system Additional to the heating and
ventilation system, the air
conditioning system has:
n
= Cooling
4 = Air recirculation Cooling n
Operated with the n button and is
functional only when the engine and
fan are running.
The air condition system cools and
dehumidifies (dries) when outside
temperature
is above a specific level.
Therefore condensation may form
and drip from under the vehicle.
If no cooling or drying is required,
switch the cooling system off to save
fuel.
Air recirculation system 4
The air recirculation mode is operated
with the 4 button. 9
Warning The exchange of fresh air is
reduced in air recirculation mode.
In

operation without cooling the air
humidity increases, so the
windows may mist up. The quality
of the passenger compartment air
deteriorates, which may cause the
vehicle occupants to feel drowsy. Air distribution to
l: Air recirculation
is deactivated.
Maximum cooling
Briefly open the windows so that hot
air can disperse quickly.
■ Cooling n on.
■ Air circulation system 4 on,
■ Set air distribution control to M.
■

Set temperature control to coldestlevel.
■ Set fan speed to highest level.
■ Open all vents.
Demisting and defrosting the
windows ■ Cooling n on.
■ Set air distribution control to l.
■ Set temperature control to warmest level.
■ Set fan speed to highest level.
■ Switch on heated rear window Ü.

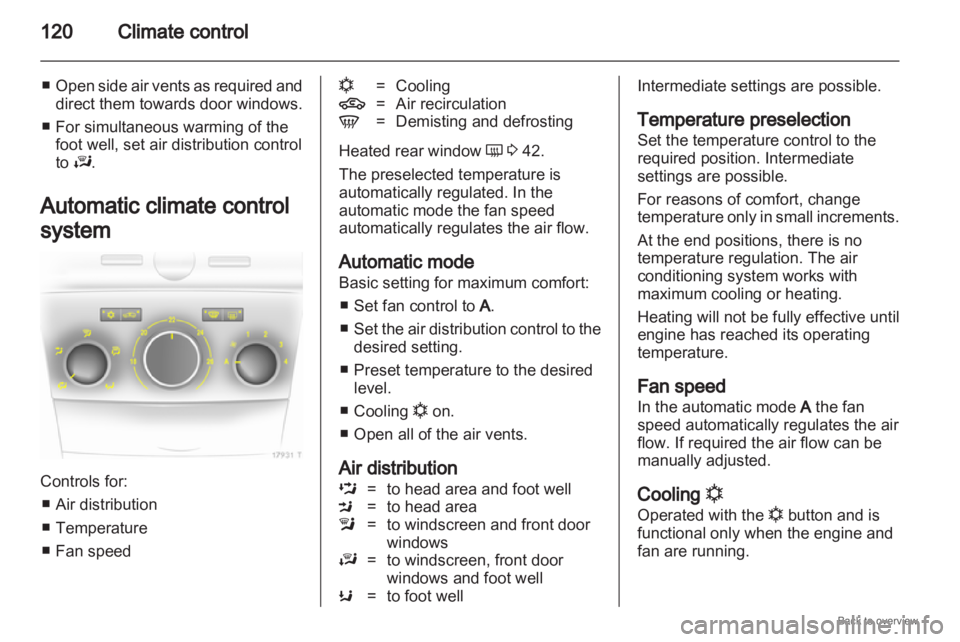

120
Climate control
■ Open side air vents as required and
direct them towards door windows.
■ For simultaneous warming of the foot well, set air distribution control
to J.
Automatic climate control
system Controls for:
■
Air distribution
■ Temperature
■ Fan speed n
= Cooling
4 = Air recirculation
V = Demisting and defrosting
Heated rear window Ü 3 42.
The preselected temperature is
automatically regulated. In the
automatic mode the fan speed
automatically regulates the air flow.
Automatic mode
Basic setting for maximum comfort: ■

Set fan control to A.
■ Set the air distribution control to the desired setting.
■ Preset temperature to the desired level.
■ Cooling n on.
■ Open all of the air vents.
Air distribution
L =
to head area and foot well
M = to head area
l = to windscreen and front door
windows
J = to windscreen, front door
windows and foot well
K = to foot well Intermediate settings are possible.
Temperature preselection
Set the temperature control to the
required position. Intermediate
settings are possible.
For reasons of comfort, change
temperature

only in small increments.
At the end positions, there is no
temperature regulation. The air
conditioning system works with
maximum cooling or heating.
Heating will not be fully effective until
engine has reached its operating
temperature.
Fan speed
In the automatic mode A the fan
speed automatically regulates the air
flow. If required the air flow can be
manually adjusted.
Cooling n
Operated with the n button and is
functional only when the engine and
fan are running.
