OPEL ZAFIRA C 2019 User Guide

In brief9Exterior mirrors
Select the relevant exterior mirror by
turning the control to the left (L) or
right (R). Adjust respective mirror by
tilting the four-way control.
Convex exterior mirrors 3 29,
Electric adjustment 3 29, Folding
exterior mirrors 3 29, Heated
exterior mirrors 3 30.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 49, Ignition
positions 3 182.

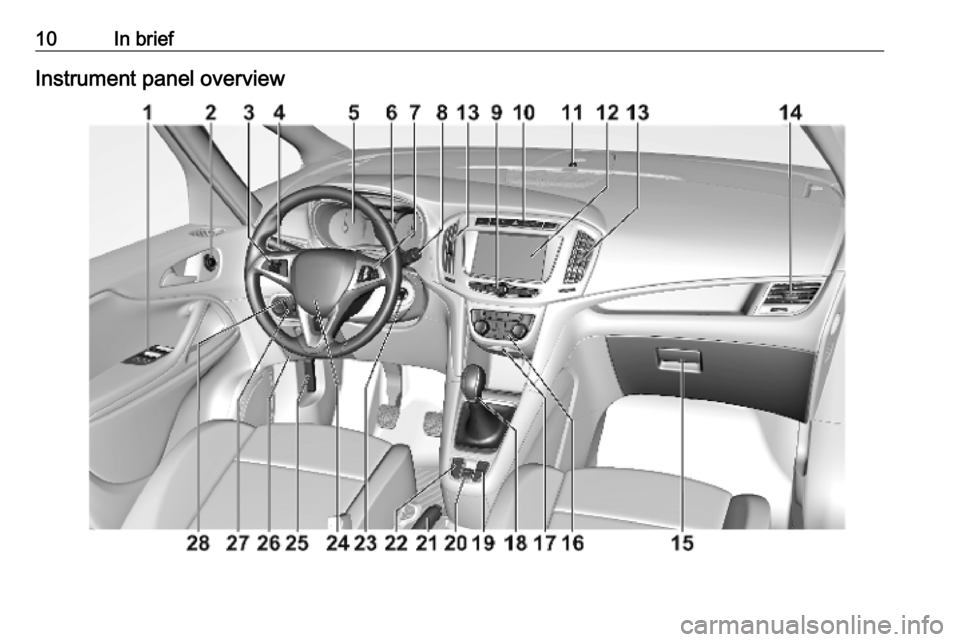

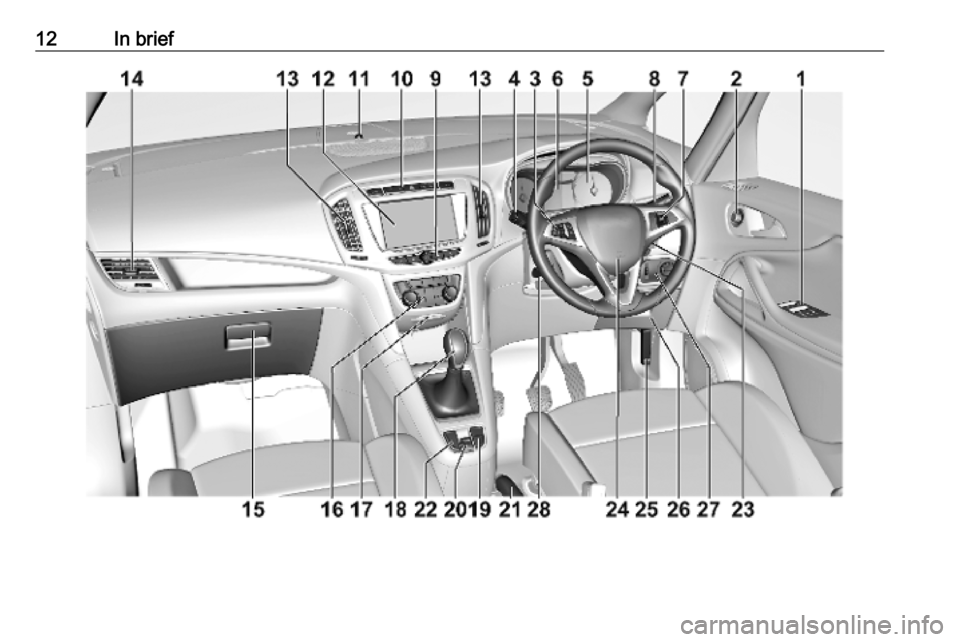

10In briefInstrument panel overview

In brief111Power windows .....................31
2 Exterior mirrors .....................29
3 Cruise control .....................203
Speed limiter ....................... 204
Adaptive cruise control .......206
Forward collision alert .........212
4 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist ................119
Exit lighting ......................... 122
Parking lights ...................... 120
Buttons for Driver
Information Centre ..............101
5 Instruments .......................... 89
6 Driver Information Centre .... 101
7 Steering wheel controls .......83
8 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ......................84
9 Controls for Info-Display
operation ............................. 10510Central locking system ..........22
Hazard warning flashers ....119
Sport mode ........................ 201
Tour mode .......................... 201
Control indicator for airbag deactivation .......................... 96
11 Anti-theft alarm system
status LED ........................... 26
12 Info-Display ........................ 105
13 Centre air vents .................. 179
14 Side air vents ...................... 179
15 Glovebox .............................. 62
16 Climate control system ........ 173
17 USB input .............................. 10
Power outlet .......................... 87
18 Selector lever, manual
transmission ....................... 196
Automatic transmission ......192
19 Traction Control system .....199
Electronic Stability Control . 200
Lane departure warning .....227
20 Electric parking brake .........19721Manual parking brake .........197
22 Parking assist systems .......218
Eco button for stop-start
system ................................. 185
23 Ignition switch with
steering wheel lock ............182
24 Horn ..................................... 84
Driver airbag ........................ 53
25 Bonnet release lever ..........240
26 Fuse box ............................ 258
Storage compartment ...........64
27 Light switch ........................ 114
Headlight range
adjustment ......................... 116
Front fog lights ...................119
Rear fog light ...................... 120
Instrument illumination .......121
28 Steering wheel adjustment ..83

12In brief

In brief13Exterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 115.
Fog lights
Press light switch:
>:front fog lightsr:rear fog light
Lighting 3 114.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 115.
Headlight flash 3 116.
LED headlights 3 118.
High beam assist 3 118.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 119, Parking lights 3 120.

14In briefHazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 119.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping or automatic
wiping with rain sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 84, Wiper
blade replacement 3 246.

In brief15Windscreen washer
Pull lever.
Windscreen washer system 3 84,
Washer fluid 3 244.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch:continuous
operationlower switch:intermittent
operationmiddle position:offRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 85.

16In briefClimate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 33.
Demisting and defrosting the
windows
Press V.
Set the temperature control to the
highest level.
Heated rear window Ü on.
Climate control system 3 173.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
Manual transmission 3 196.

In brief17Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
The selector lever can only be movedout of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 192.
Starting off
Check before starting off ● Tyre pressure and condition 3 262, 3 297.
● Engine oil level and fluid levels 3 241.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 29, 3 38,
3 46.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake pedal. ● Automatic transmission: operate brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.

18In brief● Diesel engines: turn the key toposition 2 for preheating and wait
until control indicator !
extinguishes.
● Turn key to position 3 and
release.
Starting the engine 3 183.
To turn the key back from position 2
to 1 or 0, first push the key all the way
in towards the steering column.Stop-start system
If the vehicle is at a low speed or at a standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● Depress the clutch pedal.
● Engage neutral gear.
● Release the clutch pedal.
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again. A restart is
indicated by the needle at the idle
speed position in the tachometer.
Stop-start system 3 185.
