FAMILIARISATION

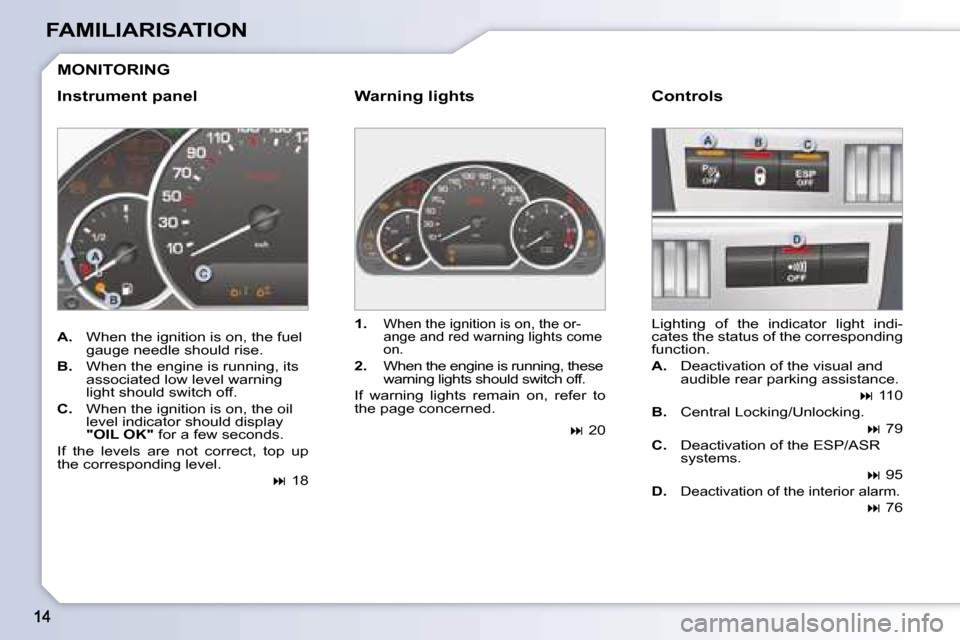

MONITORING
Warning lights Controls
1.
When the ignition is on, the or-
ange and red warning lights come
o n .
2. When the engine is running, these
w a r n i n g l i g h t s s h o u l d s w i t c h o f f .
If warning lights remain on, refer to
t h e p a g e c o n c e r n e d . Lighting of the indicator light indi-
cates the status of the corresponding
f u n c t i o n .
A. Deactivation of the visual and
a u d i b l e r e a r p a r k i n g a s s i s t a n c e .
110
B. C e n t r a l L o c k i n g / U n l o c k i n g .
79
C. Deactivation of the ESP/ASR
s y s t e m s .
95
D. D e a c t i v a t i o n o f t h e i n t e r i o r a l a r m .
76
20
Instrument panel
A. When the ignition is on, the fuel
g a u g e n e e d l e s h o u l d r i s e .
B. When the engine is running, its
associated low level warning
l i g h t s h o u l d s w i t c h o f f .
C. When the ignition is on, the oil
level indicator should display
"OIL OK" f o r a f e w s e c o n d s .
If the levels are not correct, top up
t h e c o r r e s p o n d i n g l e v e l .
18
Page 12 of 194
FAMILIARISATION
1. O p e n i n g o f t h e g l o v e b o x .
2. I n s e r t i o n o f t h e k e y .
3. Selection of the "OFF" p o s i t i o n .
4. Removal of the key keeping the
s w i t c h i n t h i s p o s i t i o n .
1. Stop p o s i t i o n .
2. Ignition p o s i t i o n .
3. Starting p o s i t i o n .
A. Driver's seat belt not fastened
or unfastened warning light, lit in
r e d .
B. Passenger seat belt not fastened
o r u n f a s t e n e d w a r n i n g l i g h t .
1: f r o n t .
2: r e a r r i g h t .
3: r e a r l e f t .
96
C. Passenger air bag warning light;
l i t i f t h e a i r b a g i s d i s a r m e d .
D. Air bags warning light; off after
t h e i g n i t i o n i s s w i t c h e d o n .
99

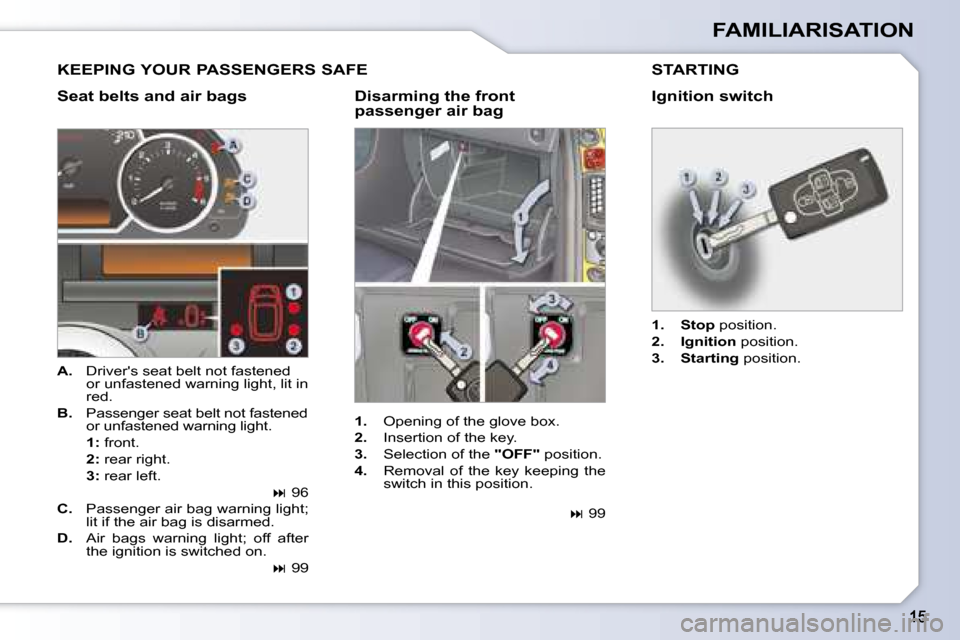

KEEPING YOUR PASSENGERS SAFE
Seat belts and air bags Disarming the front
passenger air bag Ignition switch
STARTING
99
Page 13 of 194
FAMILIARISATION
DRIVING SAFELY
Speed limiter Cruise control
1. Speed limiter mode Selection/
O f f .
2. Decreasing of the programmed
v a l u e .
3. Increasing of the programmed
v a l u e .
4. S p e e d l i m i t e r O n / O f f .
1. Cruise control mode Selection/
O f f .
2. Decreasing of the programmed
v a l u e .
3. Increasing of the programmed
v a l u e .
4. C r u i s e c o n t r o l O n / O f f .
In order to be programmed or activat-
ed, the vehicle speed must be above
25 mph (40 km/h), with at least fourth
gear engaged on the manual gear-
box (second gear for the "2 Tronic"
g e a r b o x ) .
107 Display on the instrument panel
The cruise control or speed limiter
mode appears on the instrument
p a n e l w h e n i t i s s e l e c t e d .
Cruise control
Speed limiter
The values must be set with the
e n g i n e r u n n i n g .
105
Page 14 of 194
FAMILIARISATION
DRIVING SAFELY
"2 Tronic" gearbox Display on the instrument panel
The gear or the mode selected ap-
p e a r s o n t h e i n s t r u m e n t p a n e l d i s p l a y .
Normal driving
Two driving modes are offered:
- sequential mode for manual
changing of the gears by the
driver,
- automatic mode for automatic
management of the gears
b y t h e g e a r b o x . I n a u t o m a t i c
mode, you can take control at
any time by
using the steering
wheel controls, when overtaking
for example
( auto sequential
m o d e ) .
102
T h i s fi v e - s p e e d p i l o t e d m a n u a l
gearbox offers a choice between
the comfort of fully automatic opera-
tion or the pleasure of manual gear
c h a n g i n g .
1. G e a r l e v e r .
2. "-" s t e e r i n g w h e e l c o n t r o l .
3. "+" s t e e r i n g w h e e l c o n t r o l .
N: n e u t r a l .
R: r e v e r s e .
1 2 3 4 5: g e a r s e n g a g e d .
Auto: a u t o m a t i c m o d e . Moving off
Select position N and press
t h e b r a k e p e d a l fi r m l y w h i l e
starting the engine.
E n g a g e fi r s t g e a r ( p o s i t i o n M
or A ) or reverse (position R ) using the
gear lever 1 .
Page 15 of 194
1
18
PETROL MANUAL GEARBOX AND "2 TRONIC" GEARBOX INSTRUMENT PANELS
1. Trip distance recorder zero
reset and total/trip distance
recorder display button.
2. Emission control system
warning light.
3. Service warning light.
4. Anti-lock braking system (ABS)
warning light.
5. Electronic stability control
(ESP/ASR) warning light.
6. H a n d b r a k e , b r a k e fl u i d l e v e l
and electronic brake force
distribution warning light.
7. Maximum coolant temperature
warning light.
8. Engine oil pressure warning
light.
9. Punctured wheel warning light.
10. Battery charge warning light.
11. Left direction indicator.
12. Fuel gauge.
13. Low fuel level warning light.
14. Central STOP warning light.
15. Speedometer.
16. Speed limiter/cruise control
indicator light.
17. Service indicator, engine oil
level gauge and total/trip
distance recorder.
18. "2 Tronic" gearbox indicator.
19. Foot on brake warning light
("2 Tronic" gearbox).
20. Rev counter.
21. Right direction indicator.
22. Dipped headlamps indicator
light.
23. Main beam headlamps indicator
light.
24. Front fog lamps indicator light.
25. Rear fog lamp indicator light.
26. Door open warning light.
27. Seat belt not fastened warning
light.
28. Passenger air bag disarmed
warning light.
29. Front, steering column, side and
curtain air bags warning light.
30. Lighting rheostat button.
Page 16 of 194
1
19
DIESEL MANUAL GEARBOX INSTRUMENT PANEL
1. Trip distance recorder zero
reset and total/trip distance
recorder display button.
2. Emission control system
warning light.
3. Service warning light.
4. Anti-lock braking system (ABS)
warning light.
5. Electronic stability control
(ESP/ASR) warning light.
6. H a n d b r a k e , b r a k e fl u i d l e v e l
and electronic brake force
distribution warning light.
7. Maximum coolant temperature
warning light.
8. Engine oil pressure warning
light.
9. Punctured wheel warning light.
10. Battery charge warning light.
11. Left direction indicator.
12. Fuel gauge.
13. Low fuel level warning light.
14. Central STOP warning light.
15. Speedometer.
16. Diesel engine pre-heat warning
light.
17. W a t e r i n d i e s e l fi l t e r w a r n i n g
light.
18. Speed limiter/cruise control
indicator light.
19. Service indicator, engine oil
level gauge and total/trip
distance recorder.
20. Rev counter.
21. Right direction indicator.
22. Dipped headlamps indicator
light.
23. Main beam headlamps indicator
light.
24. Front fog lamps indicator light.
25. Rear fog lamp indicator light.
26. Door open warning light.
27. Seat belt not fastened warning
light.
28. Passenger air bag disarmed
warning light.
29. Front, steering column, side and
curtain air bags warning light.
30. Lighting rheostat button.
Page 17 of 194
1
20
WARNING LIGHTS
A p e r m a n e n t l y l i t w a r n i n g l i g h t o r o n e fl a s h i n g , w i t h t h e e n g i n e r u n n i n g , i n d i c a t e s a n o p e r a t i n g f a u l t o f t h e u n i t
c o n c e r n e d . T h e i l l u m i n a t i o n o f c e r t a i n w a r n i n g l i g h t s m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n
t h e m u l t i f u n c t i o n d i s p l a y . D o n o t i g n o r e t h i s w a r n i n g : c o n s u l t a
PEUGEOT dealer.
I f t h e c e n t r a l S T O P w a r n i n g l i g h t c o m e s o n w h e n y o u a r e d r i v i n g , s t o p y o u r v e h i c l e i m m e d i a t e l y , w h e r e i t i s s a f e t o
d o s o .
Central STOP
warning light
This comes on for a few
seconds each time the
ignition is switched on.
Linked to the warning lights:
- ''engine oil pressure and tempera- ture'',
- "punctured wheel",
- "maximum coolant temperature",
- " h a n d b r a k e ' ' , ' ' l o w b r a k e fl u i d level'', and ''electronic brake
force distribution''.
Y o u m u s t s t o p i f t h e l i g h t c o m e s
o n w i t h t h e e n g i n e r u n n i n g .
Consult a PEUGEOT dealer. E n g i n e o i l p r e s s u r e a n d
t e m p e r a t u r e w a r n i n g
light
This comes on for a few seconds each
time the ignition is switched on.
Linked to the central STOP warning
light.
If this warning light comes on, with
the engine running, it indicates one
of the following:
- i n s u f fi c i e n t o i l p r e s s u r e ,
- a lack of oil in the lubrication circuit. Top up the level,
- an oil temperature which is too high. The warning light is accom-
panied by an audible signal. To
lower the oil temperature, reduce
your speed.
Y o u m u s t s t o p .
Consult a PEUGEOT dealer.
S e r v i c e w a r n i n g l i g h t
This comes on for a few se-
conds each time the ignition
is switched on.
If this warning light comes on, with the en-
gine running, accompanied by an audible
signal and a message on the multifunc-
tion display, it indicates the occurrence of
a problem in one of the systems which
d o e s n o t h a v e a s p e c i fi c w a r n i n g l i g h t .
Consult the message on the multi-
function display to identify the system
concerned.
Check:
- the remote control battery,
- the pressure of the tyres,
- the engine oil level,
- the screenwash level,
- the condition of the bulbs.
For all other cases, contact a PEUGEOT
dealer.
The lighting of this warning light may
also indicate the start of saturation of
t h e p a r t i c l e e m i s s i o n fi l t e r ( D i e s e l ) ,
due to exceptionally prolonged urban
driving conditions: low speed, long
t r a f fi c j a m s , . . .
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u
are advised to drive, as soon as traf-
fi c c o n d i t i o n s p e r m i t , a t a s p e e d o f
35 mph (60 km/h) or more for at least
fi v e m i n u t e s ( u n t i l t h e w a r n i n g l i g h t
switches off).
If the warning light remains on, contact
a PEUGEOT dealer.
Page 18 of 194
1
21
P u n c t u r e d w h e e l
warning light
This comes on for a few
seconds each time the ignition
is switched on.
Linked to the central STOP warning
light.
If this warning light comes on while
the vehicle is moving, it indicates that
one or more wheels are punctured.
It is accompanied by an audible
signal and a message on the multi-
function display locating the wheel
concerned.
Y o u m u s t s t o p .
Change the damaged wheel and
have it repaired by a PEUGEOT
dealer.
M a x i m u m c o o l a n t
t e m p e r a t u r e w a r n i n g
light
This comes on for a few seconds each
time the ignition is switched on.
Linked to the central STOP warning
light.
If this warning light comes on, with
the engine running, it indicates an
abnormal increase in the tempera-
ture of the coolant.
Y o u m u s t s t o p .
Consult a PEUGEOT dealer. A n t i - l o c k b r a k i n g
s y s t e m ( A B S ) w a r n i n g
light
This comes on for a few seconds each
time the ignition is switched on.
If the warning light remains on or
comes on above 8 mph (12 km/h),
this indicates an ABS malfunction. E l e c t r o n i c s t a b i l i t y
c o n t r o l s y s t e m ( E S P /
A S R ) w a r n i n g l i g h t
This comes on for a few seconds each
time the ignition is switched on.
While the engine is running and the
v e h i c l e i s m o v i n g , i t fl a s h e s i f t h e
system is activated.
It comes on permanently when it is
disarmed.
B a t t e r y c h a r g e w a r n i n g
light
This comes on for a few
seconds each time the ignition is
switched on.
If it comes on, with the engine running,
it indicates one of the following:
- faulty operation of the charging circuit,
- slack battery or starter terminals,
- a cut or slack alternator belt,
- an alternator failure.
Consult a PEUGEOT dealer.
H a n d b r a k e , l o w b r a k e
f l u i d l e v e l a n d E l e c t r o n i c
B r a k e F o r c e D i s t r i b u t i o n
warning light
This comes on for a few sec-
onds each time the ignition is
switched on.
Linked to the central STOP warning
light.
If this warning light comes on, with
the engine running, it indicates one
of the following:
- that the handbrake is applied or not fully released, if the vehicle is
moving,
- a n e x c e s s i v e d r o p i n b r a k e fl u i d level (if the warning light remains
on even when the handbrake is
released),
- a fault in the Electronic Brake Force Distribution.
Y o u m u s t s t o p .
Consult a PEUGEOT dealer. However, the vehicle retains conven-
tional servo-assisted braking.
Lighting of this warning light, accom-
panied by an audible signal, indicates
an ABS fault.
Consult a PEUGEOT dealer.
Page 19 of 194
1
22
L o w f u e l l e v e l w a r n i n g
light
This comes on for a few seconds each
time the ignition is switched on.
W h e n t h i s l i g h t fi r s t c o m e s o n , y o u
have enough fuel to drive approxi-
m a t e l y 3 0 m i l e s ( 5 0 k m ) (The tank
capacity is approximately 40 litres).
W a t e r i n d i e s e l f i l t e r
i n d i c a t o r
This comes on for a few seconds each
time the ignition is switched on.
If it comes on, with the engine run-
ning, this indicates that there is a risk
o f d a m a g e t o t h e i n j e c t i o n s y s t e m .
Consult a PEUGEOT dealer as soon
as possible.
D i e s e l e n g i n e p r e - h e a t
warning light
Wait until the warning light goes out
before starting the engine.
If the temperature is high enough,
the warning light comes on for less
than one second. You can start the
engine without waiting. P a s s e n g e r a i r b a g
d i s a r m e d w a r n i n g l i g h t
This comes on for a few seconds each
time the ignition is switched on.
If the passenger air bag is disarmed,
the warning light remains on.
Always consult a PEUGEOT dealer if
t h e w a r n i n g l i g h t fl a s h e s .
S e a t b e l t n o t f a s t e n e d
warning light
When the ignition is switched
on, this warning light comes
on if the driver (and/or a passenger)
has not fastened his seat belt.
Above 12 mph (20 km/h), this warning
l i g h t fl a s h e s f o r t w o m i n u t e s a c c o m -
panied by an audible signal which
becomes progressively louder. Once
the two minutes have elapsed, the
warning light remains on until the driver
(and/or passenger) fastens his seat
belt.
T h e d r i v e r m u s t e n s u r e t h a t a l l
p a s s e n g e r s f a s t e n a n d u s e t h e
s e a t b e l t s c o r r e c t l y . Door open warning
light
This comes on if a door, the bonnet
or the boot is still open.
Above 6 mph (10 km/h), this warning
light is accompanied by an audible
signal and a message on the multi-
function display.
" F o o t o n b r a k e " w a r n i n g
l i g h t ( " 2 T r o n i c " g e a r b o x )
When this warning light comes on,
you must put your foot on the brake
(example: when starting the engine).
If you do not put your foot on the
b r a k e , t h i s w a r n i n g l i g h t fl a s h e s . F r o n t , s t e e r i n g c o l u m n ,
s i d e a n d c u r t a i n a i r
b a g s w a r n i n g l i g h t
This comes on for a few seconds each
time the ignition is switched on.
With the engine running, illumination
of this warning light, accompanied
by an audible signal, indicates a fault
in the front, steering column, side or
curtain air bags.
Consult a PEUGEOT dealer.
E m i s s i o n c o n t r o l
s y s t e m w a r n i n g l i g h t
This comes on each time the ignition
is switched on and remains on until
the engine is started.
If it comes on, with the engine run-
ning, it indicates a malfunction of the
emission control system.
Consult a PEUGEOT dealer.
Page 20 of 194
1
23
L a c k o f o i l
If "OIL" fl a s h e s a n d t h e s e r v i c e w a r n -
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display, this indicates
a lack of oil which could damage the
engine.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a
check using the dipstick, it is essential
that the level is topped up.
E n g i n e o i l l e v e l i n d i c a t o r
When the ignition is switched on, the
engine oil level is indicated for approxi-
mately 5 seconds after the service indi-
cator display.
O i l l e v e l g a u g e f a u l t
Check the oil level using the dipstick.
If "OIL --" fl a s h e s , t h i s i n d i c a t e s a
malfunction of the engine oil level
gauge.
Consult a PEUGEOT dealer.
INSTRUMENT PANEL DISPLAY
After switching on the ignition, three
functions are shown in succession:
- service indicator,
- engine oil level indicator
- total distance recorder (total and trip distances).
The level read on the dipstick
will only be correct if the
vehicle is on level ground
and the engine has been off
for more than 15 minutes.
O i l l e v e l c o r r e c t
N o t e : the trip distance is displayed
for thirty seconds, when the ignition is
switched off, on opening and closing
the driver's door as well as on locking
the vehicle.
It also displays the "2 Tronic" gear-
box positions and operating modes
selected, as well as the information
relating to the cruise control or speed
limiter when one of these functions is
active.
