Peugeot 1007 Dag 2008.5 Owner's Guide

1
24

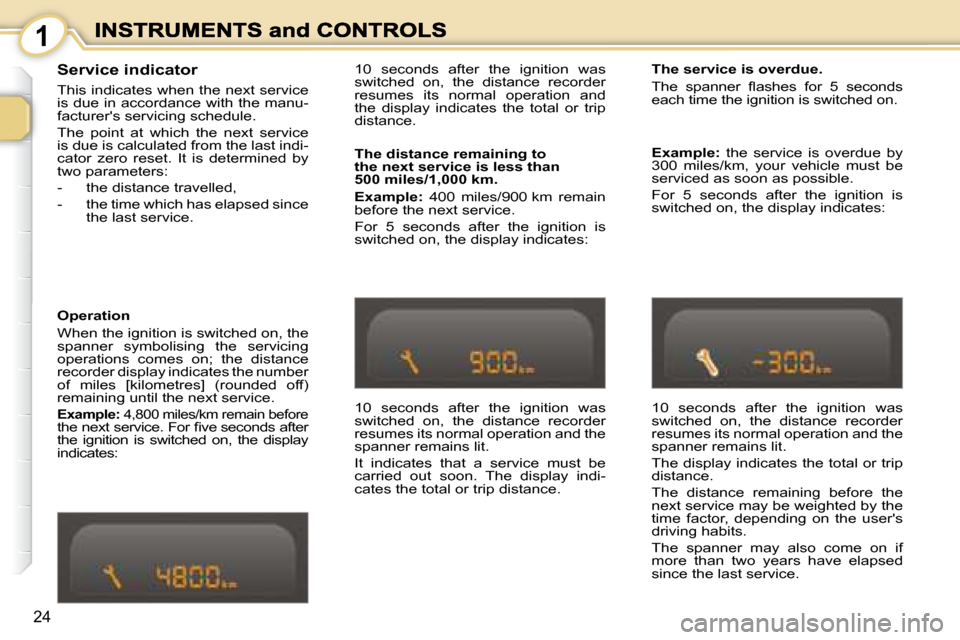

Service indicator
This indicates when the next service
is due in accordance with the manu-
facturer's servicing schedule.
The point at which the next service
is due is calculated from the last indi-
cator zero reset. It is determined by
two parameters:
- the distance travelled,
- the time which has elapsed since the last service.
Operation
When the ignition is switched on, the
spanner symbolising the servicing
operations comes on; the distance
recorder display indicates the number
of miles [kilometres] (rounded off)
remaining until the next service.

Example: 4,800 miles/km remain before
the next service. For fi ve seconds after
the ignition is switched on, the display
indicates: 10 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the display indicates the total or trip
distance.
10 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and the
spanner remains lit.
It indicates that a service must be
carried out soon. The display indi-
cates the total or trip distance. The service is overdue.
The spanner fl ashes for 5 seconds
each time the ignition is switched on.
10 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and the
spanner remains lit.
The display indicates the total or trip
distance.
The distance remaining before the
next service may be weighted by the
time factor, depending on the user's
driving habits.
The spanner may also come on if
more than two years have elapsed
since the last service.
The distance remaining to
the next service is less than
500 miles/1,000 km.

Example: 400 miles/900 km remain
before the next service.
For 5 seconds after the ignition is
switched on, the display indicates:
Example: the service is overdue by
300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:

1
25

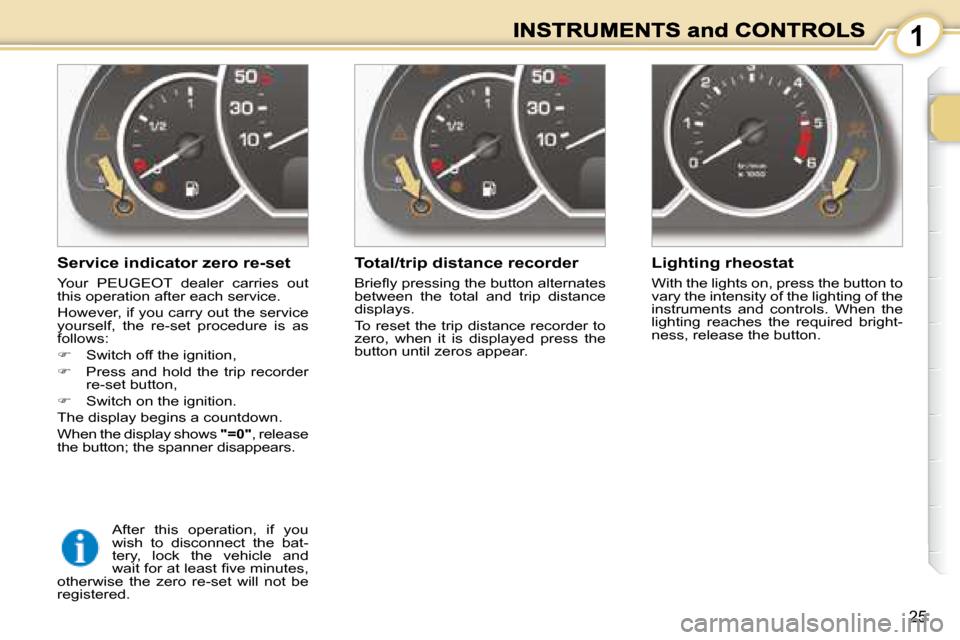

Service indicator zero re-set
Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:

 Switch off the ignition,

 Press and hold the trip recorder
re-set button,

 Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears. Total/trip distance recorder
Briefl y pressing the button alternates
between the total and trip distance
displays.
To reset the trip distance recorder to
zero, when it is displayed press the
button until zeros appear.
Lighting rheostat
With the lights on, press the button to
vary the intensity of the lighting of the
instruments and controls. When the
lighting reaches the required bright-
ness, release the button.
After this operation, if you
wish to disconnect the bat-
tery, lock the vehicle and
wait for at least fi ve minutes,
otherwise the zero re-set will not be
registered.

1
26

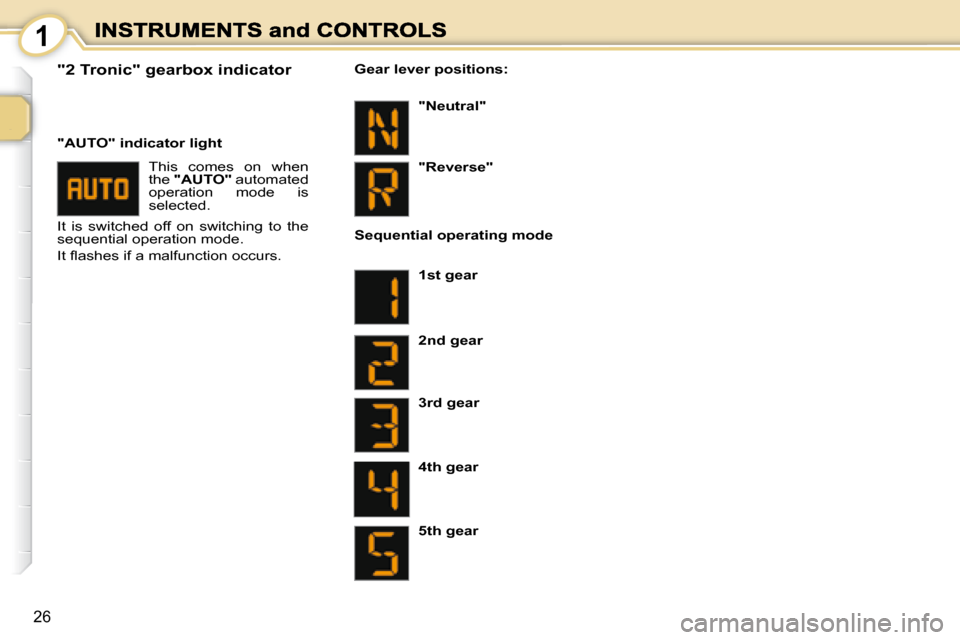

"2 Tronic" gearbox indicator This comes on when
the "AUTO" automated
operation mode is
selected.
It is switched off on switching to the
sequential operation mode.
It fl ashes if a malfunction occurs. Gear lever positions:

"Neutral"

"Reverse"
Sequential operating mode
1st gear

2nd gear

3rd gear

4th gear

5th gear
"AUTO" indicator light

1
27

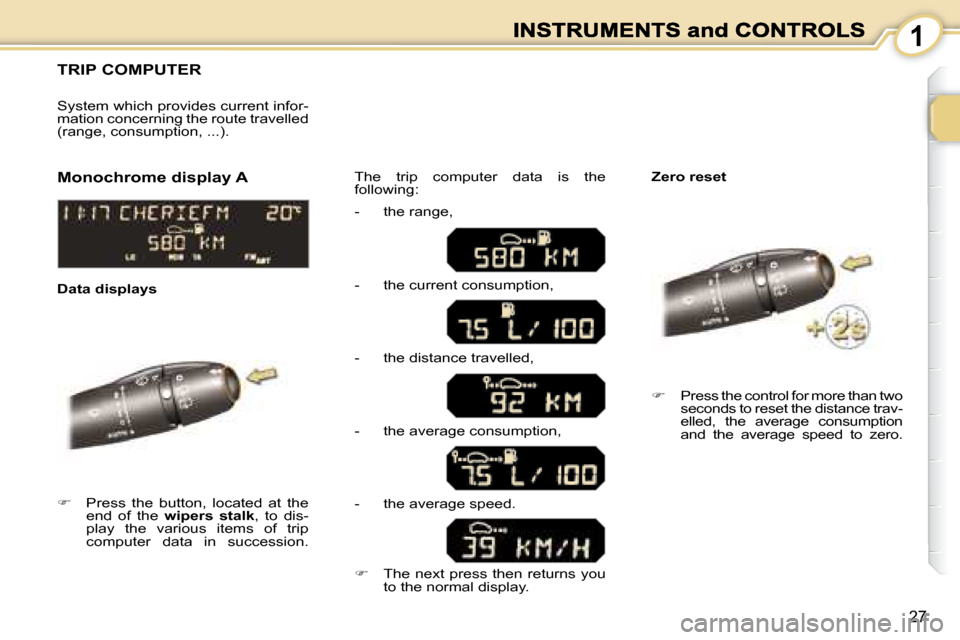

TRIP COMPUTER

 Press the button, located at the
end of the wipers stalk , to dis-
play the various items of trip
computer data in succession. The trip computer data is the
following:
System which provides current infor-
mation concerning the route travelled
(range, consumption, ...).

 Press the control for more than two
seconds to reset the distance trav-
elled, the average consumption
and the average speed to zero.
Monochrome display A
Zero reset
Data displays - the range,
- the current consumption,
- the distance travelled,
- the average consumption,
- the average speed.

 The next press then returns you
to the normal display.

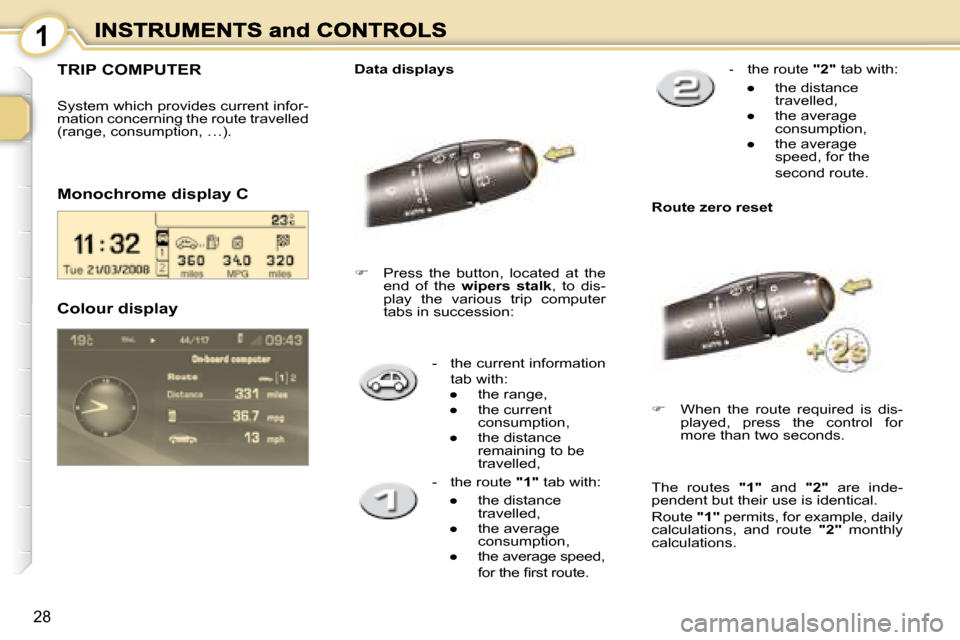

1
28
- the current information tab with:

1
29

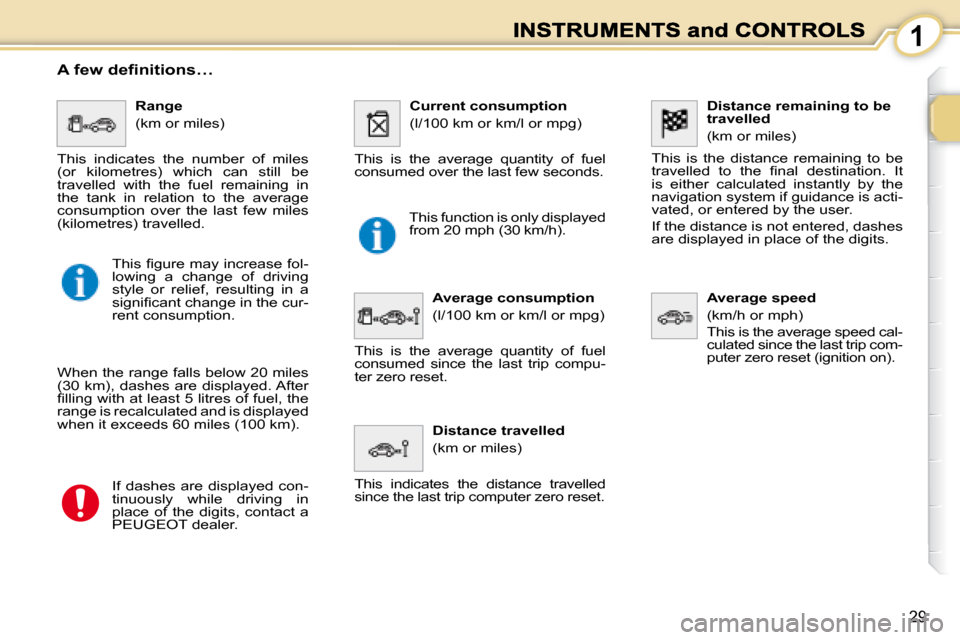

Distance remaining to be travelled
(km or miles)
This is the distance remaining to be travelled to the fi nal destination. It is either calculated instantly by the navigation system if guidance is acti-vated, or entered by the user.
If the distance is not entered, dashes are displayed in place of the digits.
Average speed
(km/h or mph)
This is the average speed cal-culated since the last trip com-puter zero reset (ignition on).
Range
(km or miles)
This indicates the number of miles (or kilometres) which can still be travelled with the fuel remaining in the tank in relation to the average consumption over the last few miles (kilometres) travelled.
Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed over the last few seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed since the last trip compu-ter zero reset.
Distance travelled
(km or miles)
This indicates the distance travelled since the last trip computer zero reset.
A few definitions…
When the range falls below 20 miles (30 km), dashes are displayed. After fi lling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
If dashes are displayed con-tinuously while driving in place of the digits, contact a PEUGEOT dealer.
This function is only displayed from 20 mph (30km/h).
This fi gure may increase fol-lowing a change of driving style or relief, resulting in a signifi cant change in the cur-rent consumption.

1
30

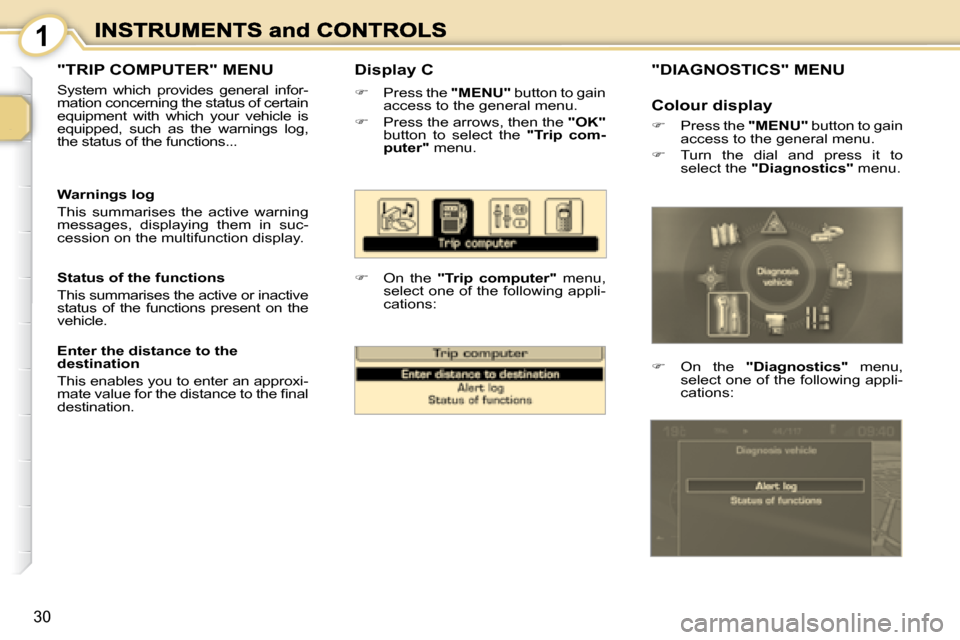

Display C
 Press the "MENU" button to gain access to the general menu.
 Press the arrows, then the "OK"button to select the "Trip com-puter" menu.
 On the "Trip computer" menu, select one of the following appli-cations:
Warnings log
This summarises the active warning messages, displaying them in suc-cession on the multifunction display.
Status of the functions
This summarises the active or inactive status of the functions present on the vehicle.
Enter the distance to the destination
This enables you to enter an approxi-mate value for the distance to the fi nal destination.
"TRIP COMPUTER" MENU
System which provides general infor-mation concerning the status of certain equipment with which your vehicle is equipped, such as the warnings log, the status of the functions...
"DIAGNOSTICS" MENU
 On the "Diagnostics" menu, select one of the following appli-cations:
Colour display
 Press the "MENU" button to gain access to the general menu.
 Turn the dial and press it to select the "Diagnostics" menu.

2
31

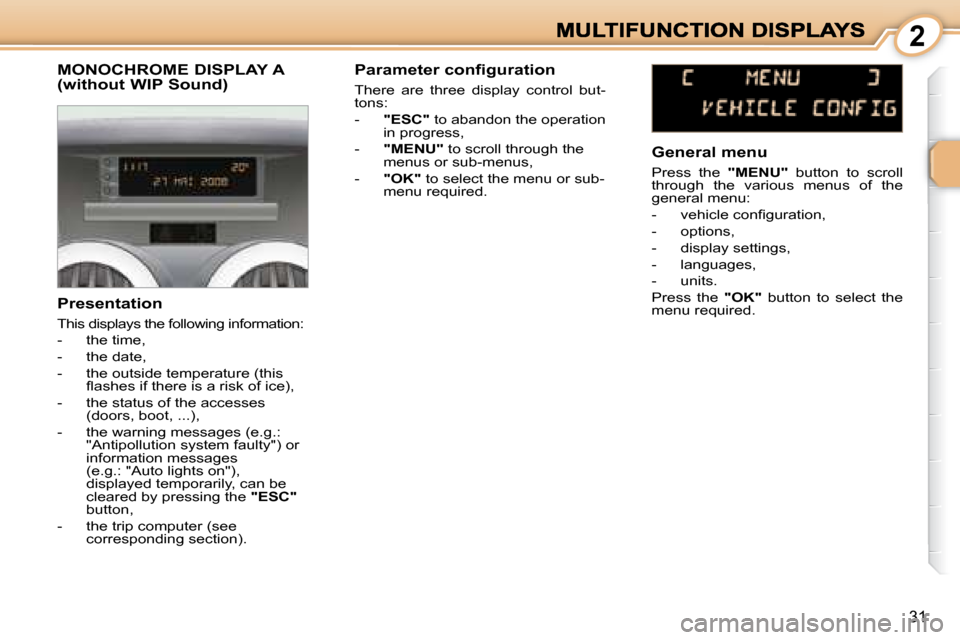

MONOCHROME DISPLAY A (without WIP Sound)
Presentation
This displays the following information:
- the time,
- the date,
- the outside temperature (this fl ashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the warning messages (e.g.: "Antipollution system faulty") or
information messages
(e.g.: "Auto lights on"),
displayed temporarily, can be
cleared by pressing the "ESC"
button,
- the trip computer (see corresponding section). Parameter configuration
There are three display control but-
tons:
-
"ESC" to abandon the operation
in progress,
- "MENU" to scroll through the
menus or sub-menus,
- "OK" to select the menu or sub-
menu required. General menu
Press the
"MENU" button to scroll
through the various menus of the
general menu:
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.

2
32

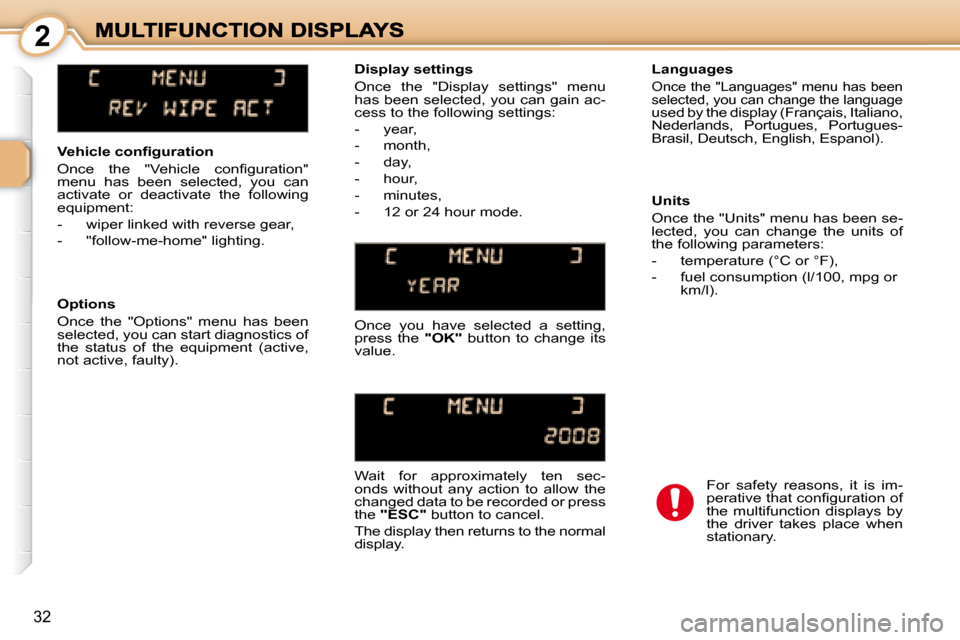

Vehicle confi guration
Once the "Vehicle confi guration"
menu has been selected, you can
activate or deactivate the following
equipment:
- wiper linked with reverse gear,
- "follow-me-home" lighting. Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu
has been selected, you can gain ac-
cess to the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active,
not active, faulty). Once you have selected a setting,
press the
"OK" button to change its
value.
Wait for approximately ten sec-
onds without any action to allow the
changed data to be recorded or press
the "ESC" button to cancel.
The display then returns to the normal
display. Units
Once the "Units" menu has been se-
lected, you can change the units of
the following parameters:
- temperature (°C or °F),
- fuel consumption (l/100, mpg or
km/l).
For safety reasons, it is im-
perative that confi guration of
the multifunction displays by
the driver takes place when
stationary.

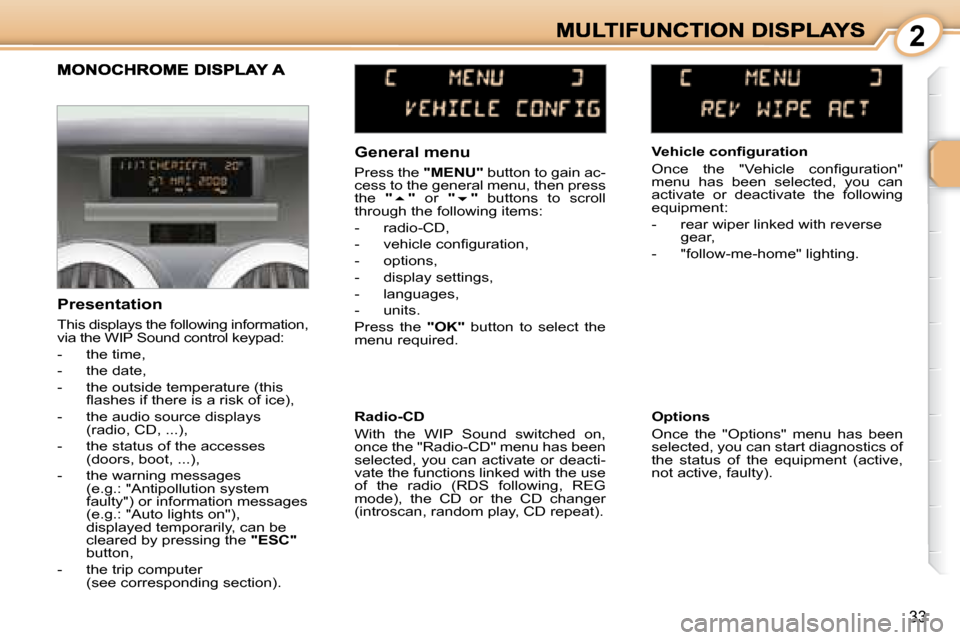

2
33
General menu
Press the "MENU" button to gain ac-
cess to the general menu, then press
the "

" or "

" buttons to scroll
through the following items:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required. Vehicle confi guration
Once the "Vehicle confi guration"
menu has been selected, you can
activate or deactivate the following
equipment:
- rear wiper linked with reverse
gear,
- "follow-me-home" lighting.
Presentation
This displays the following information,
via the WIP Sound control keypad:
- the time,
- the date,
- the outside temperature (this fl ashes if there is a risk of ice),
- the audio source displays (radio, CD, ...),
- the status of the accesses (doors, boot, ...),
- the warning messages (e.g.: "Antipollution system
faulty") or information messages
(e.g.: "Auto lights on"),
displayed temporarily, can be
cleared by pressing the "ESC"
button,
- the trip computer (see corresponding section).
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active,
not active, faulty).
Radio-CD
With the WIP Sound switched on,
once the "Radio-CD" menu has been
selected, you can activate or deacti-
vate the functions linked with the use
of the radio (RDS following, REG
mode), the CD or the CD changer
(introscan, random play, CD repeat).
