PEUGEOT 106 2001.5 Owners Manual

1 41 51 61 71 92 02 22 12 32 4

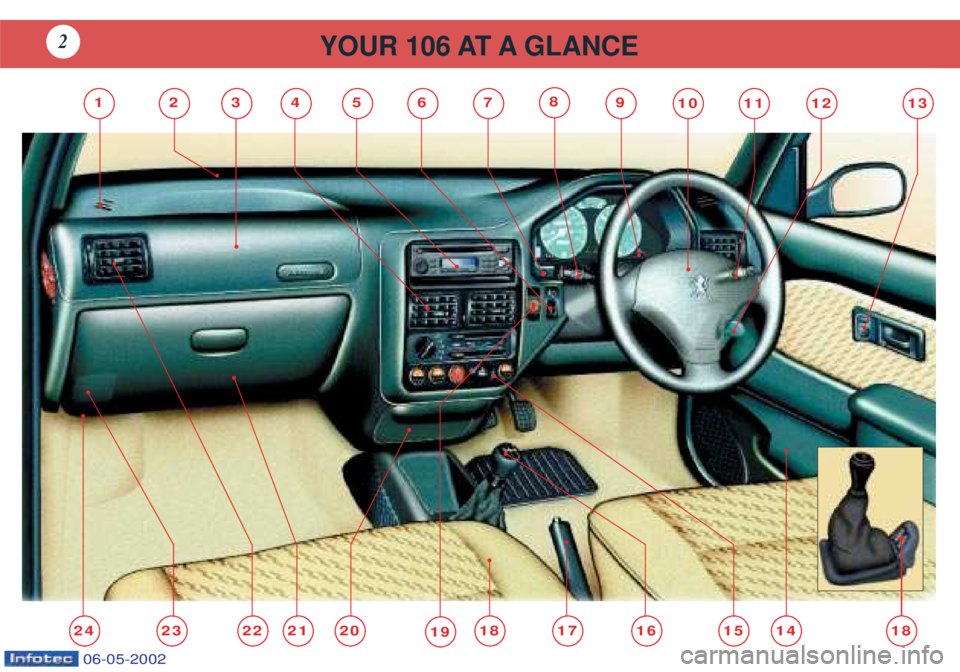

YOUR 106 AT A GLANCE2
1 8
123456791 01 11 21 38
1 8
06-05-2002

YOUR 106 AT A GLANCE3

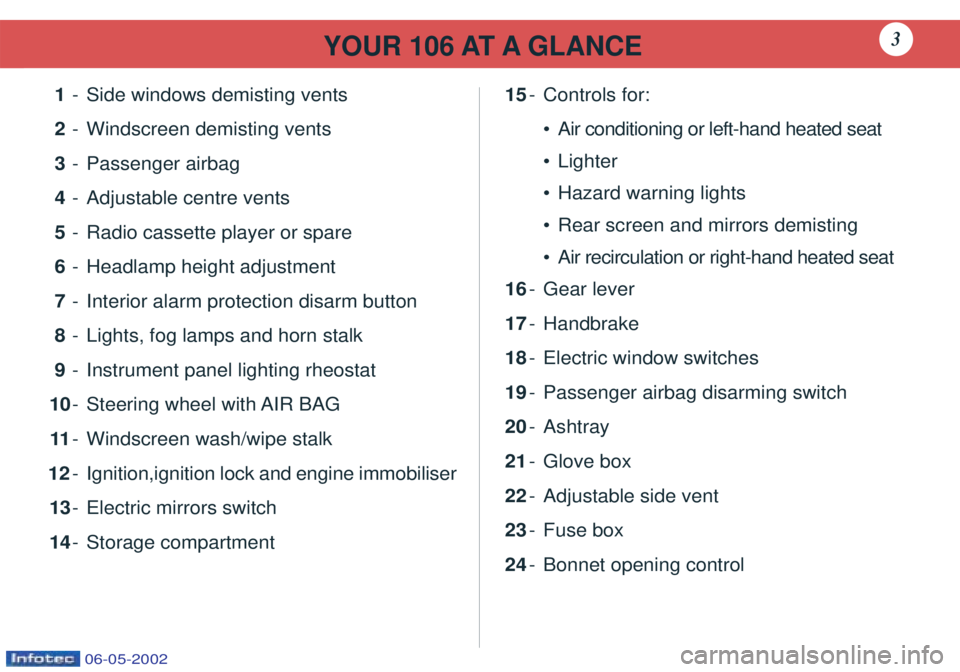

1-Side windows demisting vents
2 -Windscreen demisting vents
3 -Passenger airbag
4 -Adjustable centre vents
5 -Radio cassette player or spare
6 -Headlamp height adjustment
7 -Interior alarm protection disarm button
8 -Lights, fog lamps and horn stalk
9 -Instrument panel lighting rheostat
10 -Steering wheel with AIR BAG
11 -Windscreen wash/wipe stalk
12 -Ignition,ignition lock and engine immobiliser
13 -Electric mirrors switch
14 -Storage compartment 15
-Controls for: ¥Air conditioning or left-hand heated seat
¥ Lighter
¥ Hazard warning lights
¥ Rear screen and mirrors demisting
¥ Air recirculation or right-hand heated seat
16 -Gear lever
17 -Handbrake
18 -Electric window switches
19 -Passenger airbag disarming switch
20 -Ashtray
21 -Glove box
22 -Adjustable side vent
23 -Fuse box
24 -Bonnet opening control
06-05-2002

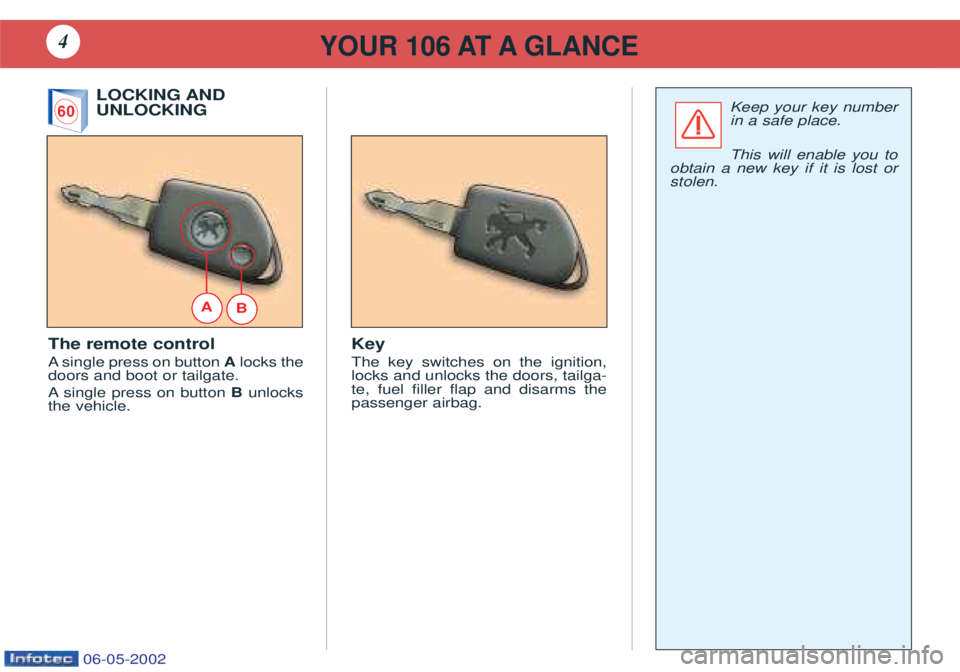

YOUR 106 AT A GLANCE4
The remote control Asingle press on button Alocks the
doors and boot or tailgate. A single press on button Bunlocks
the vehicle. Key The key switches on the ignition, locks and unlocks the doors, tailga-te, fuel filler flap and disarms thepassenger airbag.
Keep your key number in a safe place. This will enable you to
obtain a new key if it is lost or stolen.60LOCKING AND UNLOCKING
AB
06-05-2002

YOUR 106 AT A GLANCE5

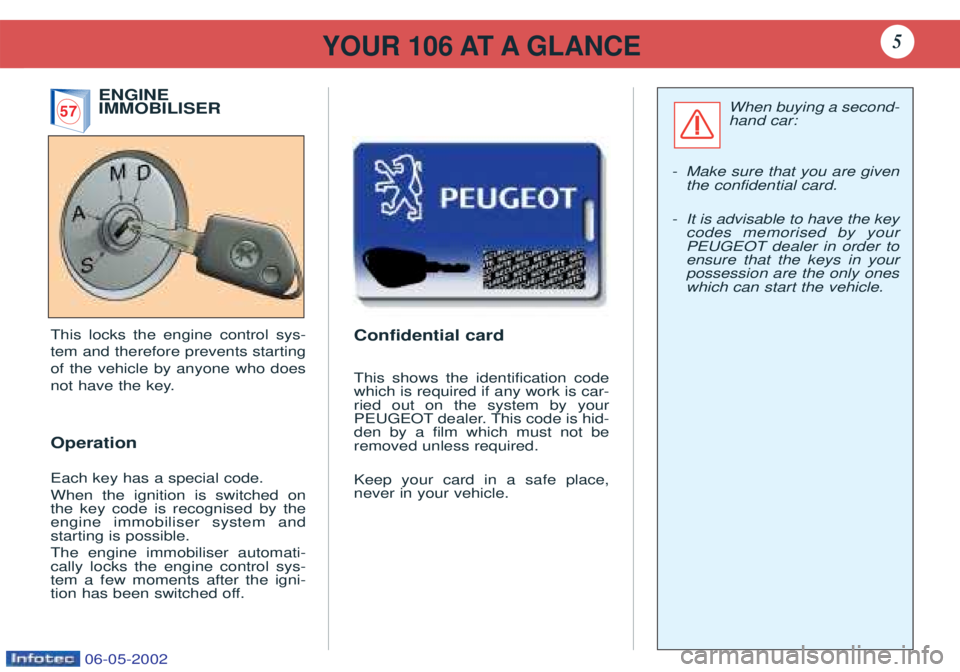

ENGINE IMMOBILISER
This locks the engine control sys- tem and therefore prevents startingof the vehicle by anyone who does
not have the key. Operation Each key has a special code. When the ignition is switched on the key code is recognised by theengine immobiliser system andstarting is possible. The engine immobiliser automati- cally locks the engine control sys-tem a few moments after the igni-
tion has been switched off. Confidential card This shows the identification code which is required if any work is car-ried out on the system by your
PEUGEOT dealer. This code is hid-den by a film which must not beremoved unless required. Keep your card in a safe place, never in your vehicle.When buying a second- hand car:
- Make sure that you are giventhe confidential card.
- It is advisable to have the keycodes memorised by yourPEUGEOT dealer in order toensure that the keys in yourpossession are the only oneswhich can start the vehicle.57
06-05-2002

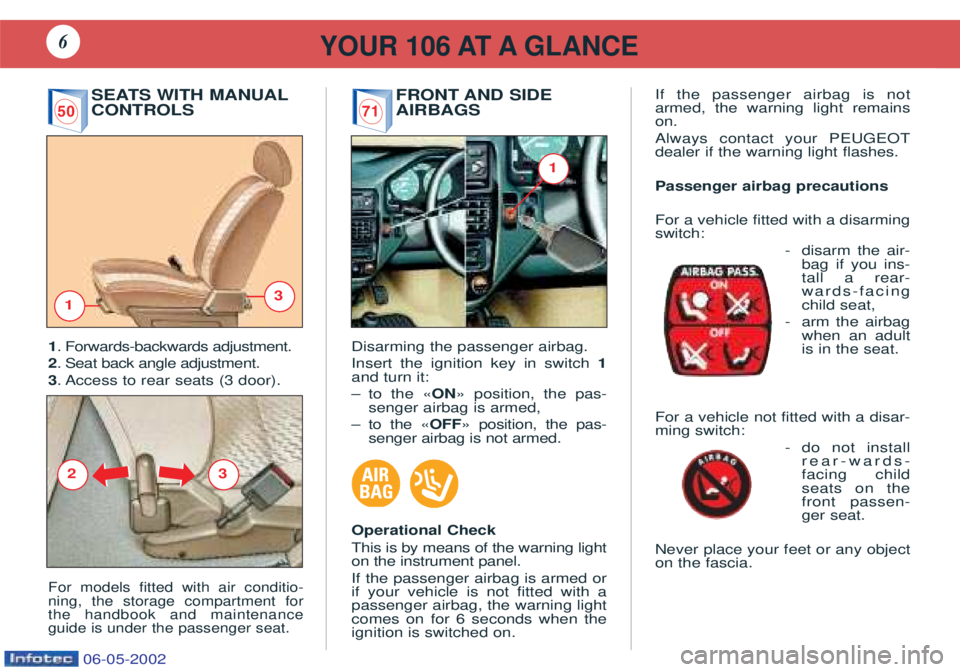

SEATS WITH MANUAL CONTROLS
1 .Forwards-backwards adjustment.
2 .Seat back angle adjustment.
3 .Access to rear seats (3 door).
For models fitted with air conditio- ning, the storage compartment forthe handbook and maintenanceguide is under the passenger seat.
FRONT AND SIDE AIRBAGS
Disarming the passenger airbag. Insert the ignition key in switch 1
and turn it:
Ðto t he ÇONÈ position, the pas-
senger airbag is armed,
Ð to the Ç OFFÈ position, the pas-
senger airbag is not armed.
Operational Check This is by means of the warning light on the instrument panel. If the passenger airbag is armed or if your vehicle is not fitted with apassenger airbag, the warning lightcomes on for 6 seconds when theignition is switched on. If the passenger airbag is notarmed, the warning light remainson. Always contact your PEUGEOT dealer if the warning light flashes. Passenger airbag precautionsFor a vehicle fitted with a disarming switch:
-disarm the air-bag if you ins-tall a rear-wards-facingchild seat,
-arm the airbag
when an adultis in the seat.
For a vehicle not fitted with a disar-ming switch: -do not installrear-wards-facing childseats on thefront passen-ger seat.
Never place your feet or any objecton the fascia.
YOUR 106 AT A GLANCE6
50
23
13
1
71
06-05-2002

Off Intermittent or continuous wipe Windscreen wash
Fog lamps off Front fog lamps on Front/rear fog lamps on

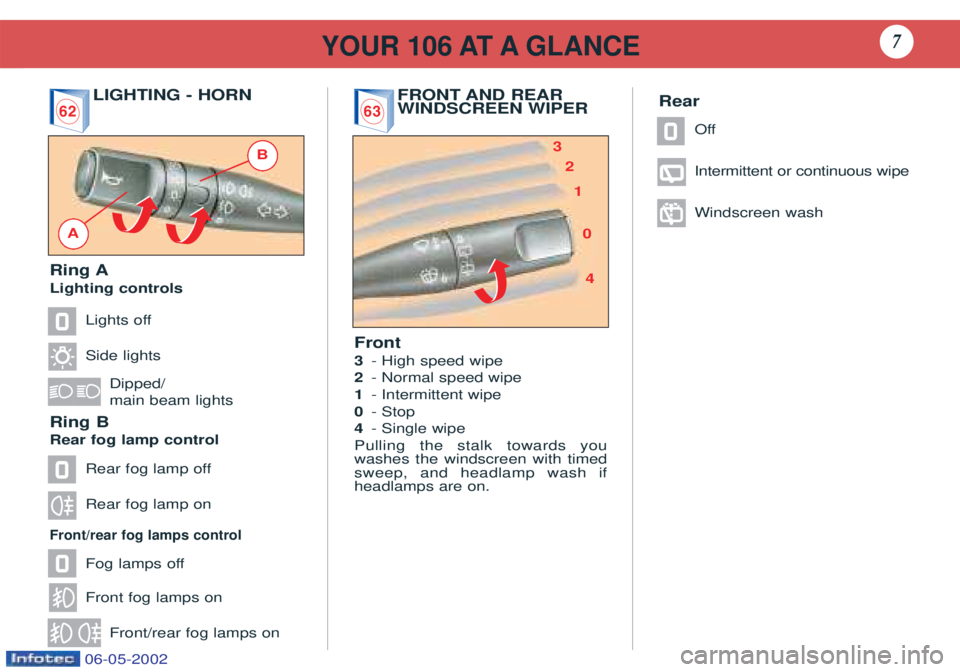

LIGHTING - HORN
Ring A Lighting controls Lights off Side lights
Rear fog lamp off Rear fog lamp onDipped/ main beam lights
Ring B Rear fog lamp control
Front/rear fog lamps control
FRONT AND REAR WINDSCREEN WIPER
Front 3 - High speed wipe
2 - Normal speed wipe
1 - Intermittent wipe
0 - Stop
4 - Single wipe
Pulling the stalk towards you washes the windscreen with timedsweep, and headlamp wash ifheadlamps are on.
YOUR 106 AT A GLANCE7
A
B
6263
3
2
1
0
4
Rear
06-05-2002

1 - Air flow adjustment
2 - Air distribution
To the central and
side vents
Footwells
Windscreens, side screens and footwells Windscreen and side windows 3
-T emperature control
4 - Air conditioning on/off
5 - Interior air recirculation
YOUR 106 AT A GLANCE8

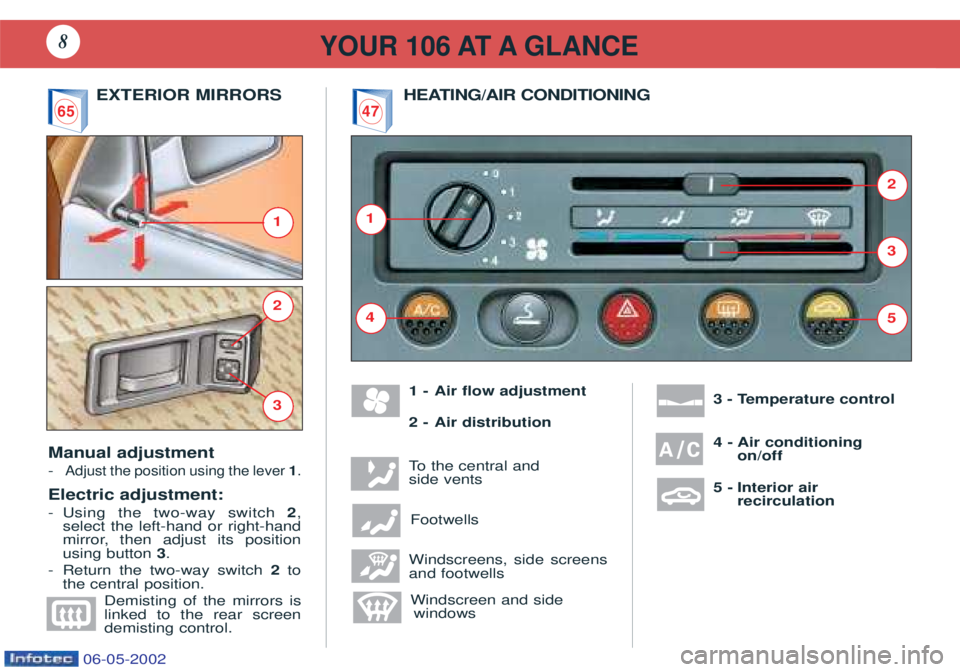

EXTERIOR MIRRORS
Manual adjustment -
Adjust the position using the lever 1.
Electric adjustment: - Using the two-way switch 2,
select the left-hand or right-hand
mirror, then adjust its positionusing button 3.
- Return the two-way switch 2to
the central position.
Demisting of the mirrors islinked to the rear screendemisting control.
HEATING/AIR CONDITIONING6547
3
24
11
2
3
5
06-05-2002

YOUR 106 AT A GLANCE9

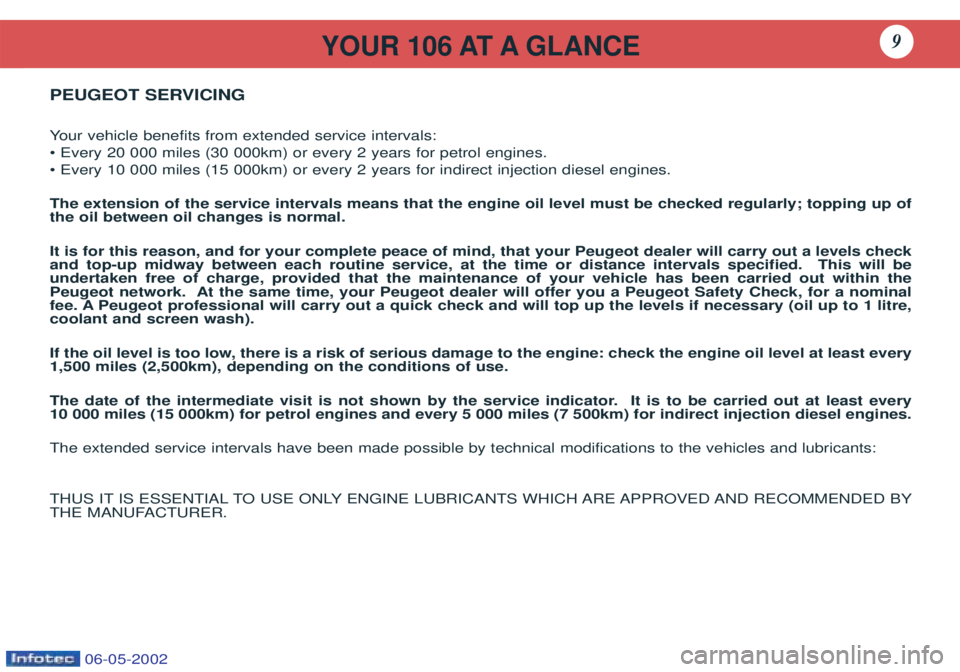

PEUGEOT SERVICING Your vehicle benefits from extended service intervals:
¥ Every 20 000 miles (30 000km) or every 2 years for petrol engines. ¥ Every 10 000 miles (15 000km) or every 2 years for indirect injection diesel engines. The extension of the service intervals means that the engine oil level must be checked regularly; topping up of the oil between oil changes is normal. It is for this reason, and for your complete peace of mind, that your Peugeot dealer will carry out a levels check and top-up midway between each routine service, at the time or distance intervals specified. This will be undertaken free of charge, provided that the maintenance of your vehicle has been carried out within the
Peugeot network. At the same time, your Peugeot dealer will offer you a Peugeot Safety Check, for a nominal
fee. A Peugeot professional will carry out a quick check and will top up the levels if necessary (oil up to 1 litre,coolant and screen wash).
If the oil level is too low, there is a risk of serious damage to the engine: check the engine oil level at least every 1,500 miles (2,500km), depending on the conditions of use.
The date of the intermediate visit is not shown by the service indicator. It is to be carried out at least every 10 000 miles (15 000km) for petrol engines and every 5 000 miles (7 500km) for indirect injection diesel engines. The extended service intervals have been made possible by technical modifications to the vehicles and lubricants:
THUS IT IS ESSENTIAL TO USE ONLY ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY
THE MANUFACTURER.
06-05-2002

PEUGEOT MAINTENANCE10

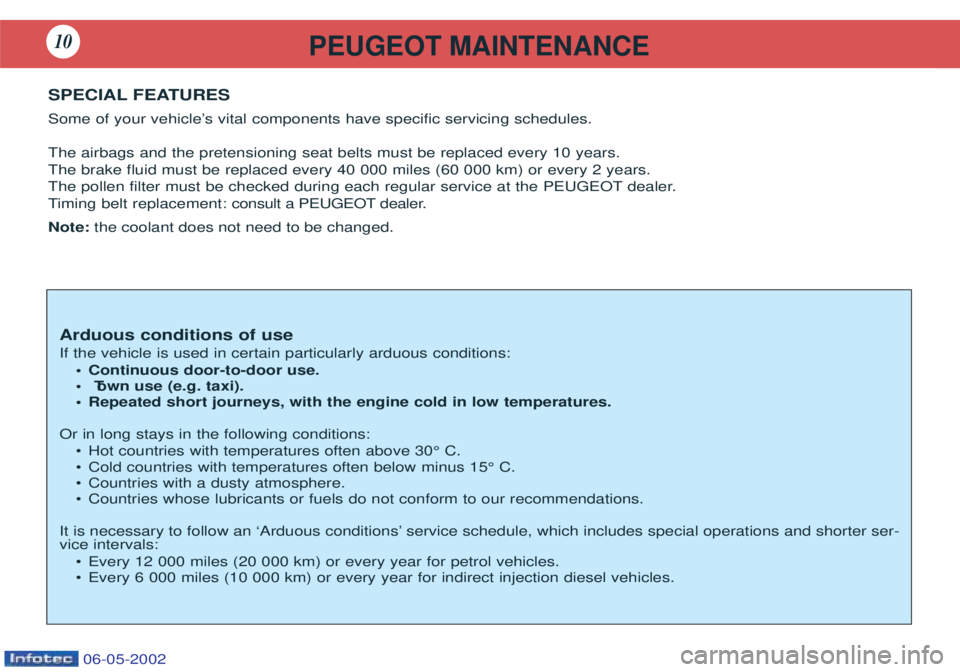

SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40 000 miles (60 000 km) or every 2 years.
The pollen filter must be checked during each regular service at the PEUGEOT dealer.Timing belt replacement: consult a PEUGEOT dealer.
Note: the coolant does not need to be changed.
Arduous conditions of use If the vehicle is used in certain particularly arduous conditions:

PEUGEOT MAINTENANCE11

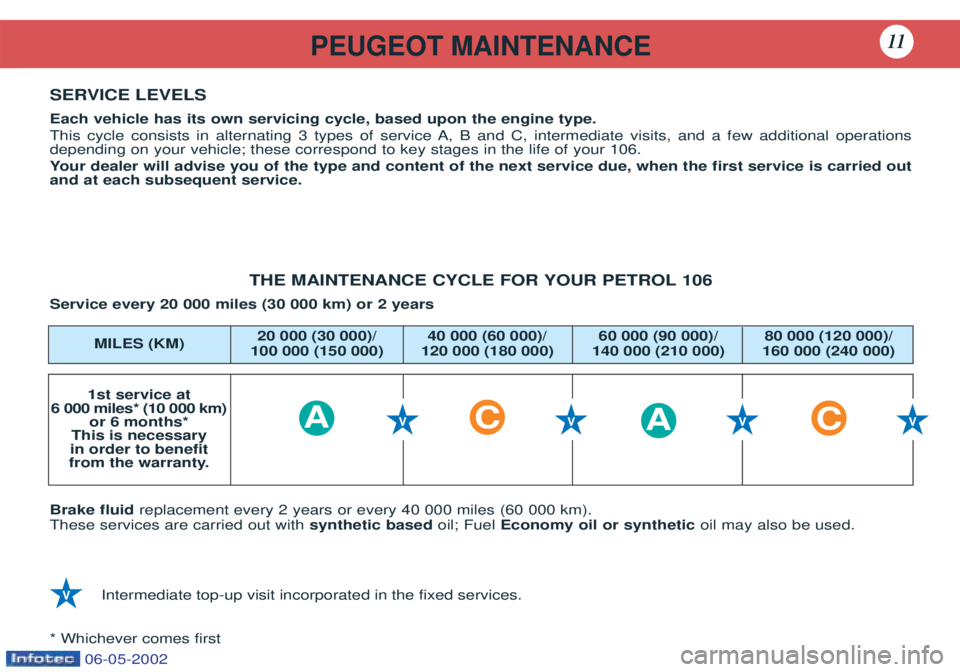

SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists in alternating 3 types of service A, B and C, intermediate visits, and a few additional operations depending on your vehicle; these correspond to key stages in the life of your 106. Your dealer will advise you of the type and content of the next service due, when the first service is carried out
and at each subsequent service.
1st service at
6 000 miles* (10 000 km) or 6 months*
This is necessary
in order to benefit
from the warranty. THE MAINTENANCE CYCLE FOR YOUR PETROL 106
Service every 20 000 miles (30 000 km) or 2 years
AACC
Intermediate top-up visit incorporated in the fixed services.
* Whichever comes first
Brake fluid
replacement every 2 years or every 40 000 miles (60 000 km).
These services are carried out with synthetic basedoil; Fuel Economy oil or synthetic oil may also be used.
20 000 (30 000)/ 40 000 (60 000)/ 60 000 (90 000)/ 80 000 (120 000)/
100 000 (150 000) 120 000 (180 000) 140 000 (210 000) 160 000 (240 000)
MILES (KM)
06-05-2002
