PEUGEOT 106 2001 Owner's Manual

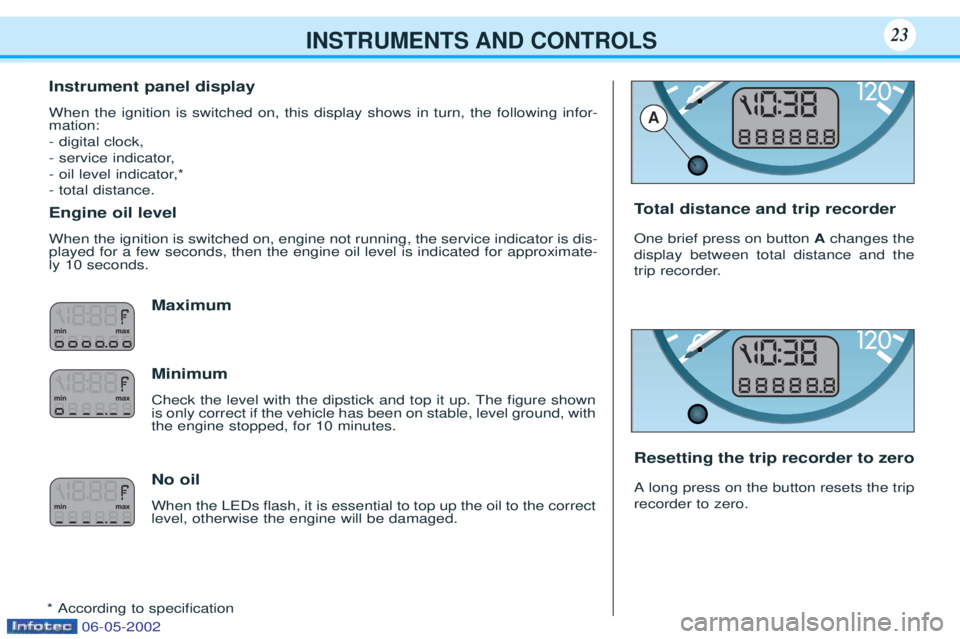

INSTRUMENTS AND CONTROLS23
Instrument panel display When the ignition is switched on, this display shows in turn, the following infor- mation: - digital clock,
- service indicator,
- oil level indicator,*- total distance. Engine oil level When the ignition is switched on, engine not running, the service indicator is dis- played for a few seconds, then the engine oil level is indicated for approximate-ly 10 seconds.Maximum Minimum Check the level with the dipstick and top it up. The Þgure shown is only correct if the vehicle has been on stable, level ground, withthe engine stopped, for 10 minutes. No oil When the LEDs ßash, it is essential to top up the oil to the correct level, otherwise the engine will be damaged.
* According to speciÞcation
T otal distance and trip recorder
One brief press on button Achanges the
display between total distance and the
trip recorder. Resetting the trip recorder to zero A long press on the button resets the trip recorder to zero.
A
06-05-2002

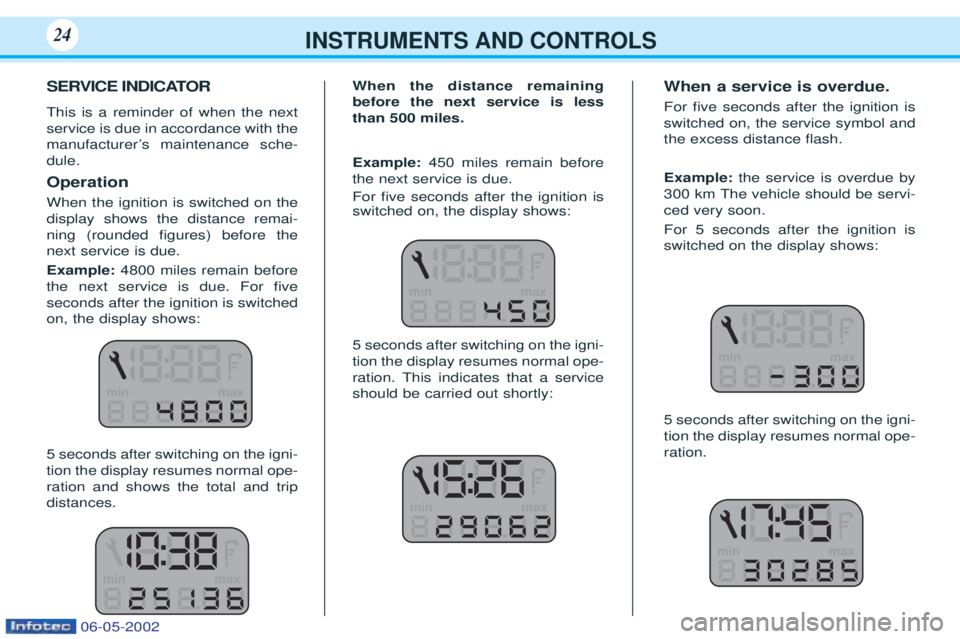

INSTRUMENTS AND CONTROLS24
SERVICE INDICATOR This is a reminder of when the next service is due in accordance with the
manufacturerÕs maintenance sche-dule. Operation When the ignition is switched on the display shows the distance remai-ning (rounded Þgures) before thenext service is due. Example:4800 miles remain before
the next service is due. For Þve seconds after the ignition is switchedon, the display shows: 5 seconds after switching on the igni- tion the display resumes normal ope-ration and shows the total and tripdistances. When the distance remainingbefore the next service is lessthan 500 miles. Example:
450 miles remain before
the next service is due. For Þve seconds after the ignition is switched on, the display shows: 5 seconds after switching on the igni- tion the display resumes normal ope-ration. This indicates that a serviceshould be carried out shortly: When a service is overdue. For Þve seconds after the ignition is switched on, the service symbol andthe excess distance ßash. Example:
the service is overdue by
300 km The vehicle should be servi- ced very soon. For 5 seconds after the ignition is switched on the display shows: 5 seconds after switching on the igni- tion the display resumes normal ope-ration.
06-05-2002

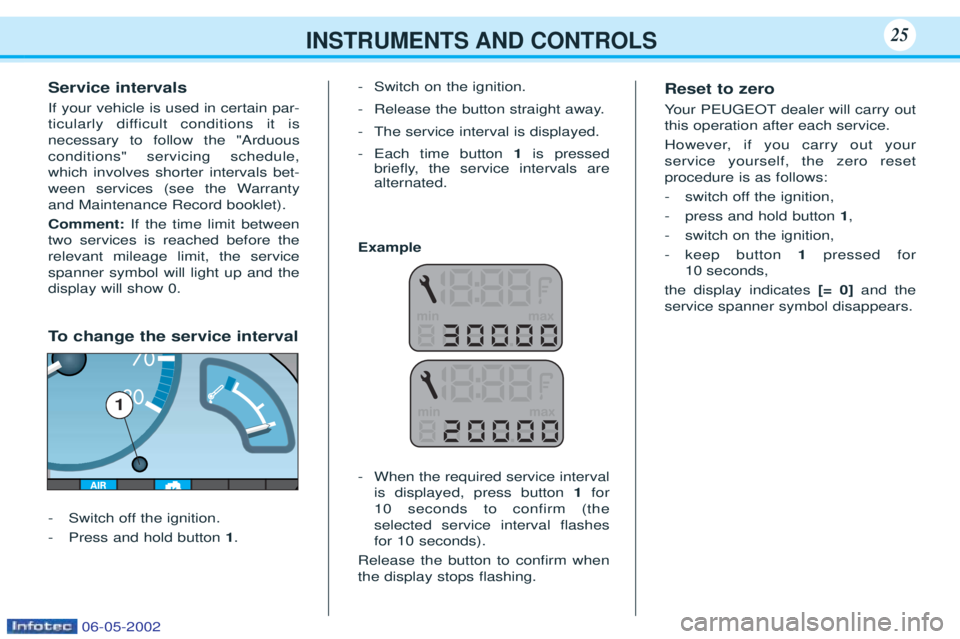

INSTRUMENTS AND CONTROLS25
Service intervals If your vehicle is used in certain par-
ticularly difficult conditions it isnecessary to follow the "Arduousconditions" servicing schedule,which involves shorter intervals bet-
ween services (see the Warrantyand Maintenance Record booklet). Comment:If the time limit between
two services is reached before the relevant mileage limit, the servicespanner symbol will light up and thedisplay will show 0.
To change the service interval
- Switch off the ignition.
- Press and hold button 1. -
Switch on the ignition.
- Release the button straight away.
- The service interval is displayed.
- Each time button 1is pressed
brießy, the service intervals are alternated.
Example - When the required service interval is displayed, press button 1for
10 seconds to confirm (theselected service interval ßashes
for 10 seconds).
Release the button to conÞrm whenthe display stops ßashing. Reset to zero Y
our PEUGEOT dealer will carry out
this operation after each service.
However, if you carry out your service yourself, the zero resetprocedure is as follows:
- switch off the ignition,
- press and hold button 1,
- switch on the ignition,- keep button 1pressed for
10 seconds,
the display indicates [= 0]and the
service spanner symbol disappears.
1
06-05-2002

INSTRUMENTS AND CONTROLS25
Service intervals If your vehicle is used in certain par-
ticularly difficult conditions it isnecessary to follow the "Arduousconditions" servicing schedule,which involves shorter intervals bet-
ween services (see the Warrantyand Maintenance Record booklet). Comment:If the time limit between
two services is reached before the relevant mileage limit, the servicespanner symbol will light up and thedisplay will show 0.
To change the service interval
- Switch off the ignition.
- Press and hold button 1. -
Switch on the ignition.
- Release the button straight away.
- The service interval is displayed.
- Each time button 1is pressed
brießy, the service intervals are alternated.
Example - When the required service interval is displayed, press button 1for
10 seconds to confirm (theselected service interval ßashes
for 10 seconds).
Release the button to conÞrm whenthe display stops ßashing. Reset to zero Y
our PEUGEOT dealer will carry out
this operation after each service.
However, if you carry out your service yourself, the zero resetprocedure is as follows:
- switch off the ignition,
- press and hold button 1,
- switch on the ignition,- keep button 1pressed for
10 seconds,
the display indicates [= 0]and the
service spanner symbol disappears.
1
06-05-2002

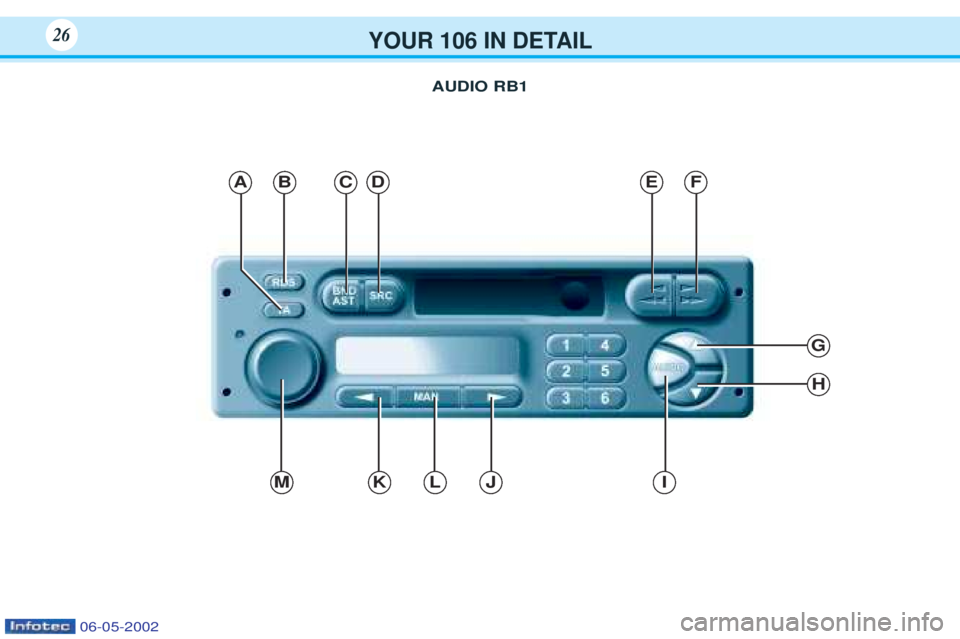

YOUR 106 IN DETAIL26
ABC
G
H
IJLKM
DEF
AUDIO RB1
06-05-2002

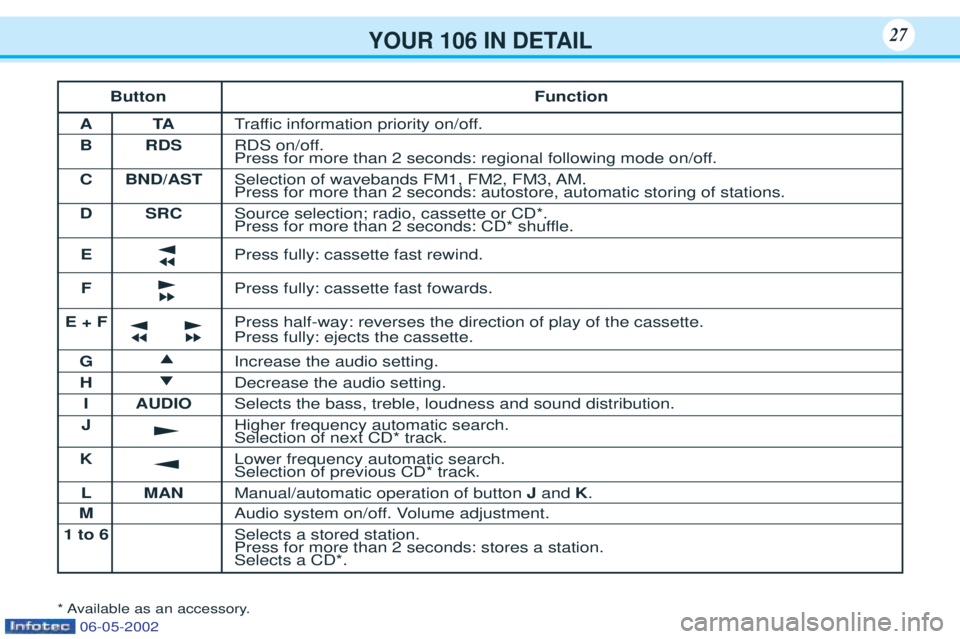

YOUR 106 IN DETAIL27
ButtonFunction
AT ATraffic information priority on/off.
B RDS RDS on/off.
Press for more than 2 seconds: regional following mode on/off.
C BND/AST Selection of wavebands FM1, FM2, FM3, AM.Press for more than 2 seconds: autostore, automatic storing of stations.
D SRC Source selection; radio, cassette or CD*.
Press for more than 2 seconds: CD* shuffle.
E Press fully: cassette fast rewind.
F Press fully: cassette fast fowards.
E + F Press half-way: reverses the direction of play of the cassette. Press fully: ejects the cassette.
G Increase the audio setting.
H Decrease the audio setting.
I AUDIO Selects the bass, treble, loudness and sound distribution.
J Higher frequency automatic search. Selection of next CD* track.
K Lower frequency automatic search.Selection of previous CD* track.
L MAN Manual/automatic operation of button J and K.
M Audio system on/off. Volume adjustment.
1 to 6 Selects a stored station.Press for more than 2 seconds: stores a station.Selects a CD*.
jjj
kkk
jjjkkk
▲
▼
k
j
* Available as an accessory.
06-05-2002

YOUR 106 IN DETAIL28
GENERAL FUNCTIONS On / off
With the ignition key in the ACCESSORIES or IGNITION position, press the "M"button to switch the set on or off.
ANTI-THEFT SYSTEM
The first time you use the set following disconnection of the set or the battery, you must enter the confidential code which was given to you on handover of your vehicle. Entering the code Switch the set on. The display shows "CODE"then the set changes over to code request mode and "- - - -"is displayed.
Enter your four-digitcode number using buttons "1"to "6" .
For example : if your code is 5345 press buttons "5", "3" , "4" and "5"in turn.
When the fourth number has been entered correctly, the radio starts automatically.
Error in entering the code
If an error is made when entering one of the first three digits, do not continue the operation and switch off the radio to prevent blocking it. Each incorrect code entry will result in the set being blocked for a period of from 5 seconds to 30 minutes, after
the 7th incorrect entry.
To unblock the set, leave it switched on during the waiting period. When "- - - -"is displayed, you can enter the
code again.
If the set is switched off during the waiting period, this waiting period will restart when the set is switched on again. After 14 incorrect code entries, the radio will be permanently blocked and the message “END”will be displayed.
ADJUSTING THE SOUND Adjusting the volume T urn the "M"button to increase or decrease the volume of the set.
If the radio overheats, the volume will reduce. Note: If you have a car-phone fitted with a ÒmuteÓsignal output connected to the set, the set will automatically
change to ÒmuteÓwhen the car-phone is used.
06-05-2002

YOUR 106 IN DETAIL29
AUDIO SETTINGS Press the “AUDIO”button several times in succession to access the bass (BASS), treble (TREB), loudness
(LOUD) , fader (FAD)and balance (BAL).
Exit from audio mode is automatic after a few seconds, without pressing any button or by pressing the “AUDIO”
button after adjusting the balance. Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, cassette
and CD.
Bass setting When “BASS” is displayed, press the “G”or “H” buttons to vary the setting.
Ð “BASS –9” for a minimum bass setting,
Ð “BASS 0” for a normal position,
Ð “BASS +9” for a maximum bass setting.
T reble setting
When “TREB” is displayed, press the “G”or “H” buttons to vary the setting.
Ð “TREB –9” for a minimum treble setting,
Ð “TREB 0” for a normal position,
Ð “TREB +9” for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low. Press the “G”or “H” buttons to switch this function on or off.
Setting the front/rear sound distribution (Fader) When “FAD” is displayed, press the “G”or “H” buttons to vary the setting.
The “G” button increases the volume at the front.
The “H”button increases the volume at the rear.
This function can be deactived by pressing buttons “M”and“I” simultaneously.
Setting the right/left sound distribution (Balance)When “BAL” is displayed, press the “G”or“H” buttons to vary the setting.
The “G” button increases the volume on the right-hand side.
The “H” button increases the volume on the left-hand side.
06-05-2002

YOUR 106 IN DETAIL30
RADIO Notes on radio reception Your radio is subject to phenomena which do not affect domestic sets. Both MW/LW and FM reception are subject
to various forms of interference which are no reflection on the quality of your set, but are due to the nature of the signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing underneath high voltage power lines or bridges or through tunnels.
On FM, interference may be the result of increasing distance from the transmitter, reflection of the signal by
obstacles (mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting the radio Press the "SRC"button, until the radio is selected.
Selecting a wavebandBy short presses on the “BND/AST”button, you can select the FM1, FM2, FM3 and AM wavebands.
Automatic station searchBriefly press button “J”or “K” to search for the station immediately above or below. By continuing to press the
button in the direction selected, you will obtain continous scrolling of the frequency. The scrolling stops at the first station found as soon as you release the button.
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.Searching for a station occurs first in “LO”sensitivity (selection of the most powerful transmitters) during
scanning of the waveband, then in “DX”sensitivity (selection of the weakest and most distant transmitters).
Manual station search Press the “MAN”button.
Briefly press button “J”or “K” respectively to increase or reduce the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. Scrolling stops as soon as you release the button.Pressing the “MAN”button again returns you to automatic station search.
06-05-2002

YOUR 106 IN DETAIL31
Manual storing of stations in the memory Select the station required. Press for more than two seconds one of the buttons “1”to “6” .
The sound stops then becomes audible again, confirming that the station has been stored in memory.
Automatic storing of FM stations in the memory (autostore) Press the “BND/AST” button for more than two seconds, to automatically store the 6 stations with the strongest
signal in FM. These stations are stored in the FM3 waveband. Ð If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory For each waveband, briefly pressing the buttons “1”to “6” recalls the corresponding stored station.
RDS FUNCTION Using the RDS (Radio Data System) function on FM RDS allows you to continue to listen to the same station, whatever frequency it is using for the region you are going through.
Switch the function on or off by briefly pressing the “RDS”button.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
06-05-2002
