Page 91 of 107

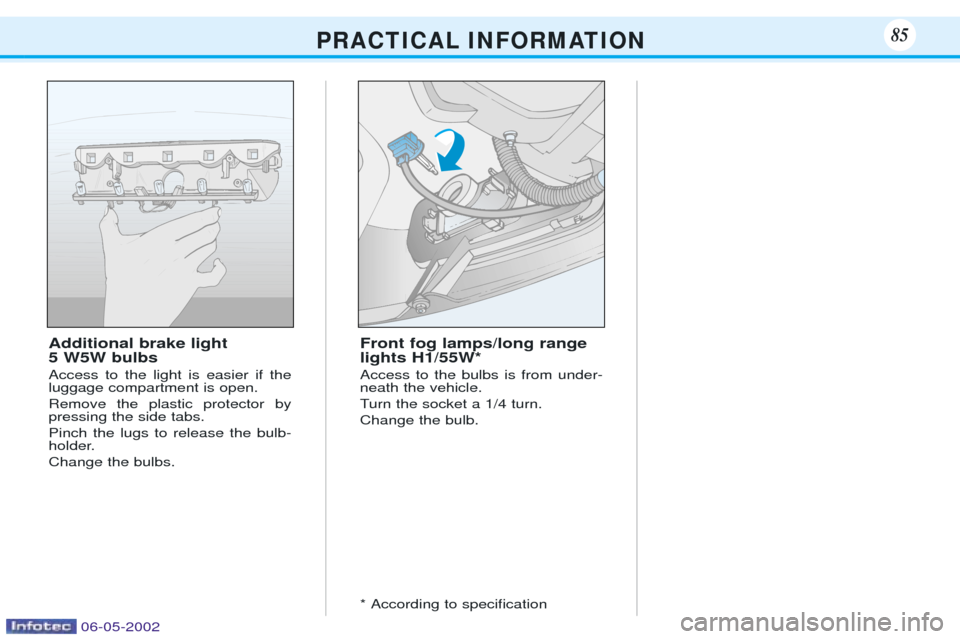

Additional brake light 5 W5W bulbs Access to the light is easier if the luggage compartment is open. Remove the plastic protector by pressing the side tabs. Pinch the lugs to release the bulb-
holder. Change the bulbs.Front fog lamps/long range lights H1/55W* Access to the bulbs is from under- neath the vehicle.
Turn the socket a 1/4 turn.Change the bulb. * According to speciÞcation
P R A C T I C A L I N F O R M AT I O N85
06-05-2002
Page 92 of 107
P R A C T I C A L I N F O R M AT I O N86
Beware of incompatible additional electrical acces-sories!
Your vehicleÕs electrical
circuit is designed to operate with standard or optional equip-ment. Before installing additionalelectrical equipment or accesso-ries, consult a PEUGEOT dea-
ler. Some electrical accessories, or the way in which they are Þtted,may adversely affect the opera-
tion of your vehicle, namely, theelectronic control circuits, theradio circuit and the electricalcharging circuit. PEUGEOT does not accept any responsibility for expensesincurred by repairs or for anyfaults resulting from the installa-tion of additional accessorieswhich are not supplied orrecommended by PEUGEOTand which were not installed inaccordance with the manufactu-
rerÕs instructions, in particularequipment with a consumptiongreater than 10 milliamps. Themaxi fuses provide additionalprotection for the electrical sys-tems. Any work must be carriedout by a specialist.
Before removing a fuse the cause of the fault must be found and corrected. The fuse numbers are on the fuse box.Always change a faulty fuse for one of the same rating.

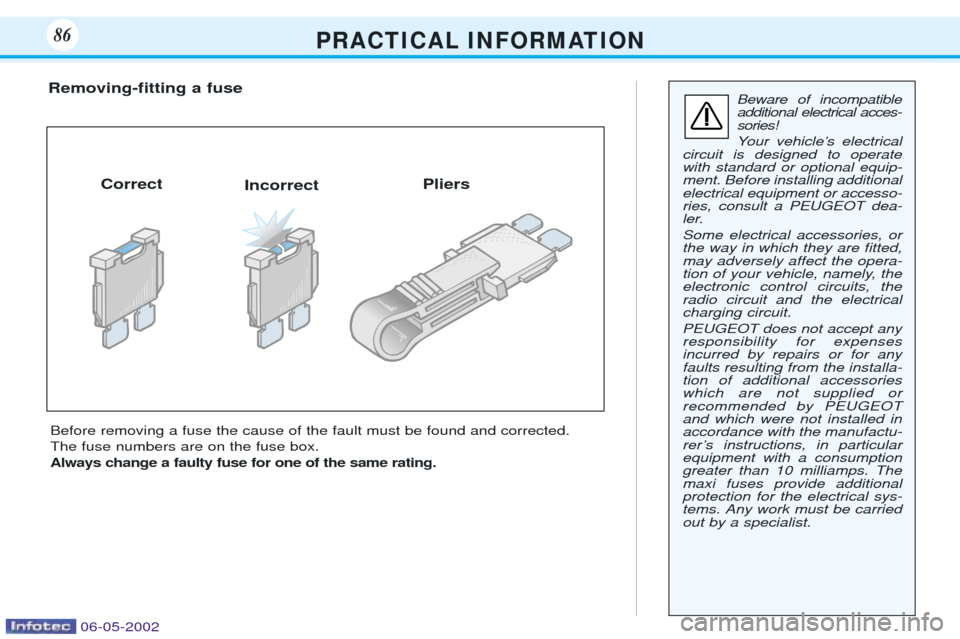

Removing-Þtting a fuse
Correct Incorrect Pliers
06-05-2002
Page 93 of 107

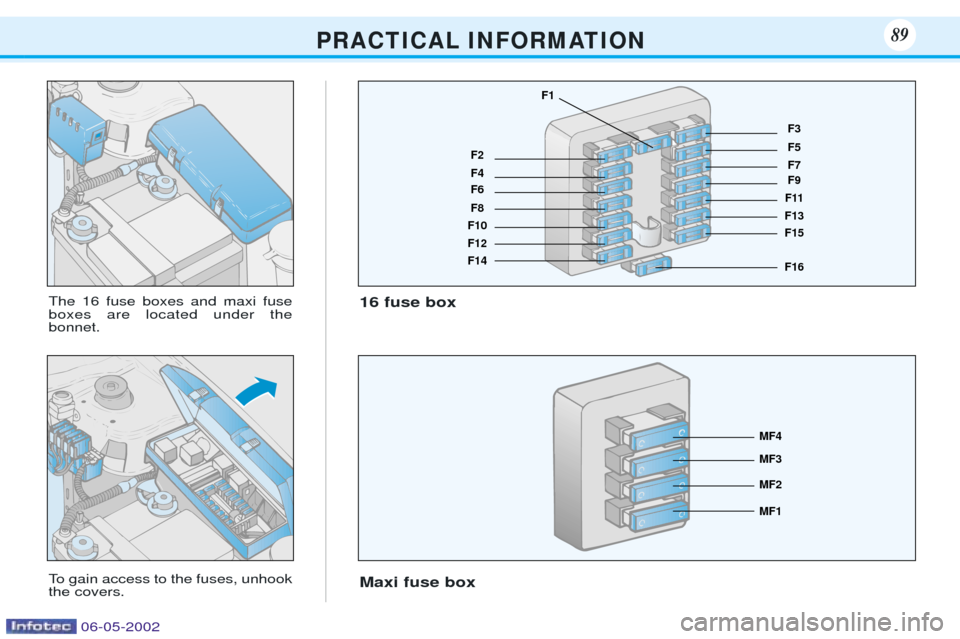

The 16 fuse boxes and maxi fuse boxes are located under thebonnet.
To gain access to the fuses, unhook the covers.16 fuse box Maxi fuse box
P R A C T I C A L I N F O R M AT I O N89
F2
F1
F4 F6 F8
F10 F12 F14
MF1
MF3
MF2
MF4 F3 F5 F7 F9
F11
F13 F15
F16
06-05-2002
Page 94 of 107
P R A C T I C A L I N F O R M AT I O N90

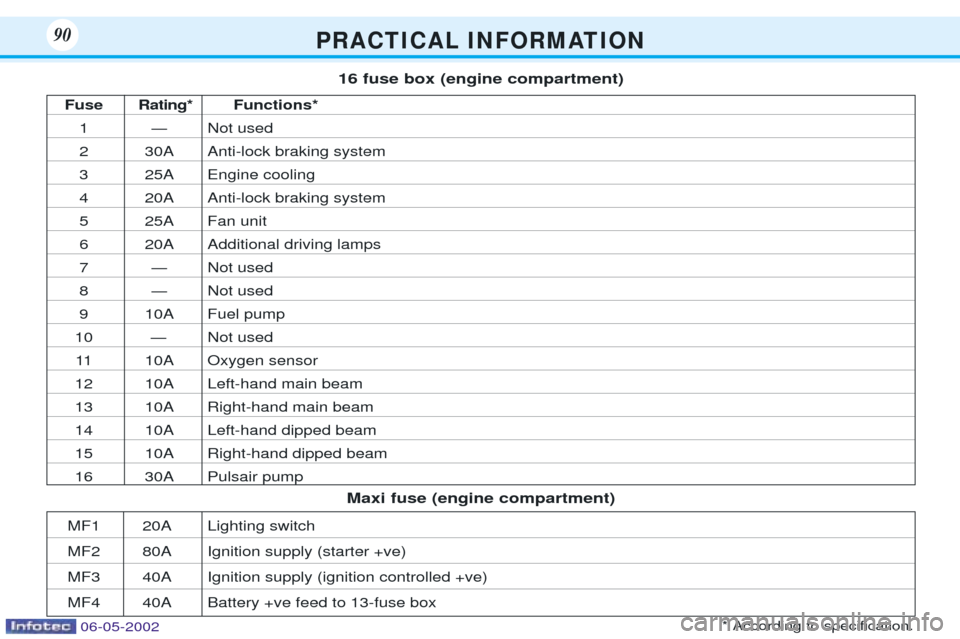

FuseRating* Functions*
1ÑNot used
2 30A Anti-lock braking system
3 25A Engine cooling
4 20A Anti-lock braking system
5 25A Fan unit
6 20A Additional driving lamps
7 ÑNot used
8 ÑNot used
9 10A Fuel pump
10 ÑNot used
11 10A Oxygen sensor
12 10A Left-hand main beam
13 10A Right-hand main beam
14 10A Left-hand dipped beam
15 10A Right-hand dipped beam
16 30A Pulsair pump
16 fuse box (engine compartment)
Maxi fuse (engine compartment)
MF1 20A Lighting switch
MF2 80A Ignition supply (starter +ve)
MF3 40A Ignition supply (ignition controlled +ve)
MF4 40A Battery +ve feed to 13-fuse box
* According to speciÞcation.06-05-2002
Page 95 of 107

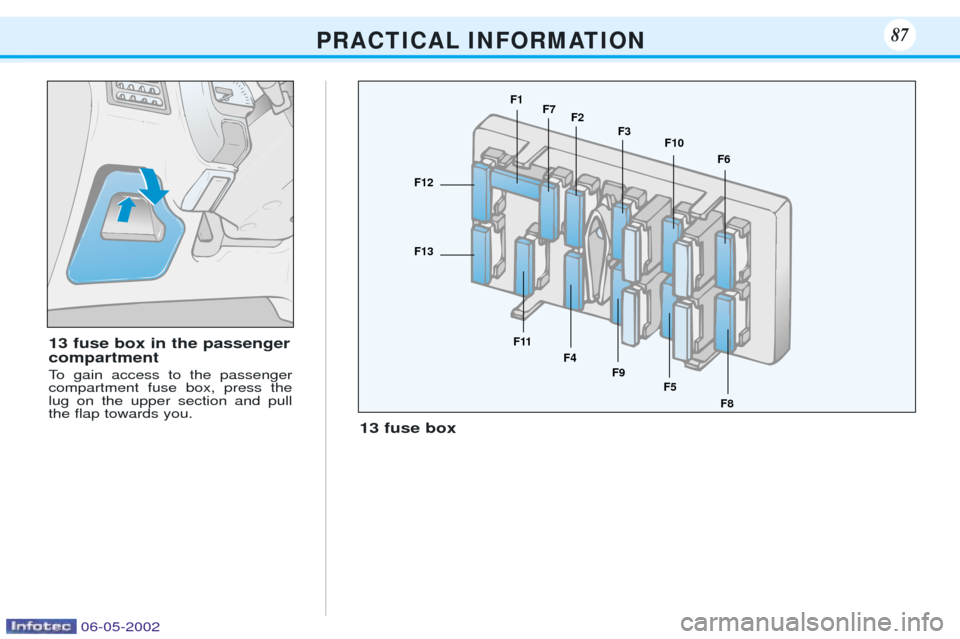

13 fuse box
13 fuse box in the passenger compartment
To gain access to the passenger compartment fuse box, press thelug on the upper section and pullthe ßap towards you.
P R A C T I C A L I N F O R M AT I O N87
F7
F2
F3F10
F11
F4F9F5
F8
F6
F1
F12 F13
06-05-2002
Page 96 of 107
P R A C T I C A L I N F O R M AT I O N88

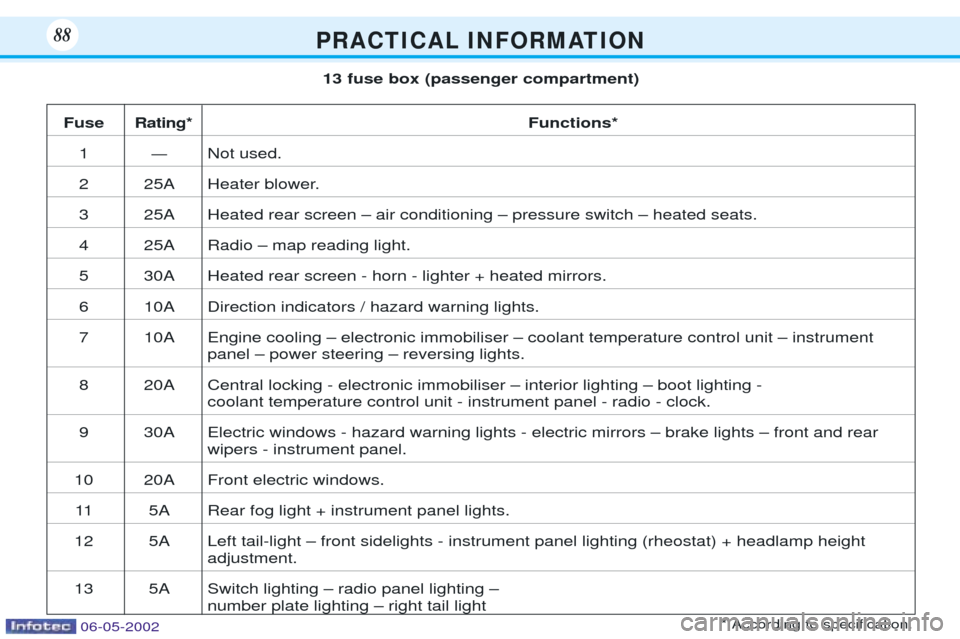

Fuse Rating*Functions*
1ÑNot used.
2 25A Heater blower.
3 25A Heated rear screen Ð air conditioning Ð pressure switch Ð heated seats.
4 25A Radio Ð map reading light.
5 30A Heated rear screen - horn - lighter + heated mirrors.
6 10A Direction indicators / hazard warning lights.
7 10A Engine cooling Ð electronic immobiliser Ð coolant temperature control unit Ð instrument
panel Ð power steering Ð reversing lights.
8 20A Central locking - electronic immobiliser Ð interior lighting Ð boot lighting - coolant temperature control unit - instrument panel - radio - clock.
9 30A Electric windows - hazard warning lights - electric mirrors Ð brake lights Ð front and rearwipers - instrument panel.
10 20A Front electric windows.
11 5A Rear fog light + instrument panel lights.
12 5A Left tail-light Ð front sidelights - instrument panel lighting (rheostat) + headlamp height adjustment.
13 5A Switch lighting Ð radio panel lighting Ð number plate lighting Ð right tail light
13 fuse box (passenger compartment)
* According to speciÞcation.
06-05-2002
Page 97 of 107

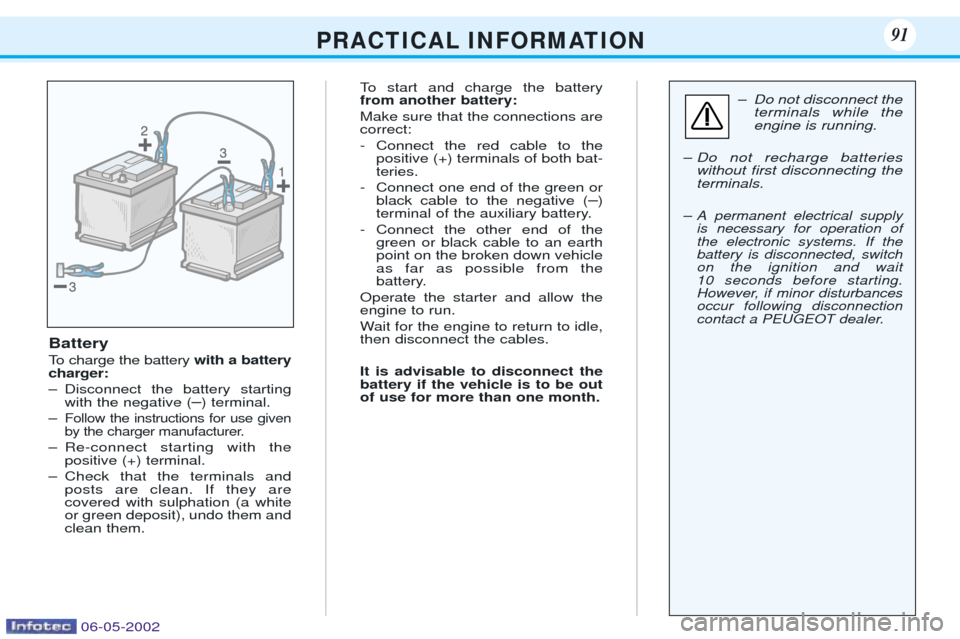

Battery
To charge the battery with a battery
charger:
Ð Disconnect the battery starting with the negative ( Ð) terminal.
Ð
Follow the instructions for use given
by the charger manufacturer.
Ð Re-connect starting with the positive (+) terminal.
Ð Check that the terminals and posts are clean. If they arecovered with sulphation (a whiteor green deposit), undo them andclean them. To start and charge the batteryfrom another battery: Make sure that the connections are correct:
- Connect the red cable to the
positive (+) terminals of both bat- teries.
- Connect one end of the green or black cable to the negative ( Ð
)
terminal of the auxiliary battery.
- Connect the other end of the green or black cable to an earthpoint on the broken down vehicleas far as possible from the
battery.
Operate the starter and allow theengine to run.
Wait for the engine to return to idle, then disconnect the cables. It is advisable to disconnect the battery if the vehicle is to be outof use for more than one month.
P R A C T I C A L I N F O R M AT I O N91
Ð Do not disconnect the terminals while the engine is running.
Ð Do not recharge batteries without Þrst disconnecting theterminals.
Ð
A permanent electrical supplyis necessary for operation ofthe electronic systems. If thebattery is disconnected, switchon the ignition and wait
10 seconds before starting.
However, if minor disturbancesoccur following disconnection
contact a PEUGEOT dealer.
06-05-2002
Page 98 of 107

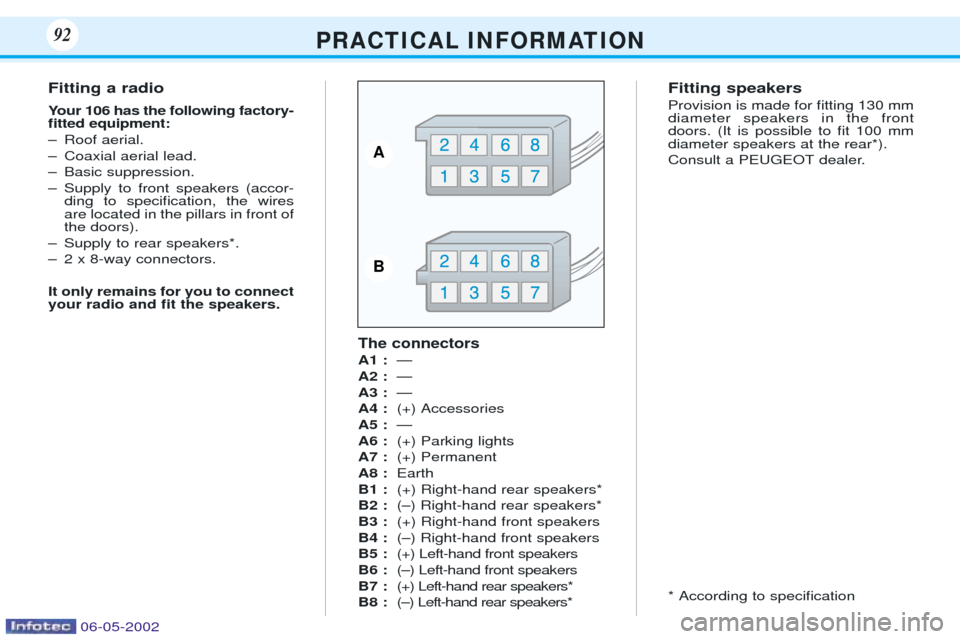

Fitting a radio
Your 106 has the following factory- Þtted equipment:
Ð Roof aerial.
Ð Coaxial aerial lead.
Ð Basic suppression.
Ð Supply to front speakers (accor-ding to speciÞcation, the wires are located in the pillars in front ofthe doors).
Ð Supply to rear speakers*.
Ð 2 x 8-way connectors. It only remains for you to connect your radio and Þt the speakers.
The connectors
A1 : Ñ
A2 : Ñ
A3 : Ñ
A4 : (+) Accessories
A5 : Ñ
A6 : (+) Parking lights
A7 : (+) Permanent
A8 : Earth
B1 : (+) Right-hand rear speakers*
B2 : (Ð) Right-hand rear speakers*
B3 : (+) Right-hand front speakers
B4 : (Ð) Right-hand front speakers
B5 : (+) Left-hand front speakers
B6 : (Ð) Left-hand front speakers
B7 : (+) Left-hand rear speakers*
B8 : (Ð) Left-hand rear speakers* Fitting speakers Provision is made for Þtting 130 mm diameter speakers in the frontdoors. (It is possible to Þt 100 mmdiameter speakers at the rear*).
Consult a PEUGEOT dealer. * According to speciÞcation
P R A C T I C A L I N F O R M AT I O N92
A
B
06-05-2002
Page 99 of 107
P R A C T I C A L I N F O R M AT I O N93

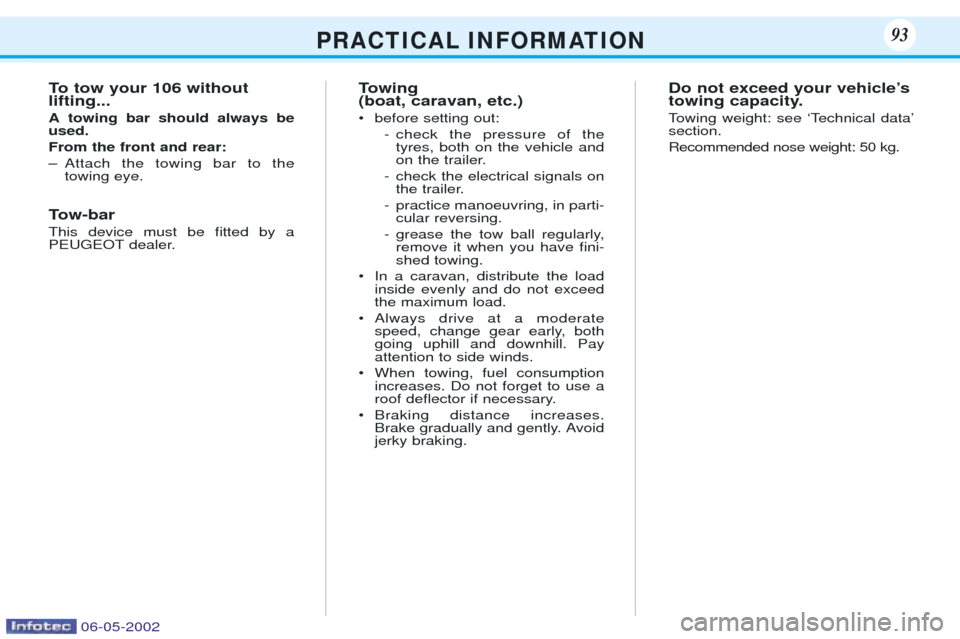

To tow your 106 without lifting... A towing bar should always be used. From the front and rear:
Ð Attach the towing bar to thetowing eye.
Tow-bar This device must be Þtted by a
PEUGEOT dealer. Towing (boat, caravan, etc.)
¥ before setting out:
- check the pressure of thetyres, both on the vehicle and
on the trailer.
- check the electrical signals on the trailer.
- practice manoeuvring, in parti- cular reversing.
- grease the tow ball regularly, remove it when you have Þni-shed towing.
¥ In a caravan, distribute the load inside evenly and do not exceedthe maximum load.
¥ Always drive at a moderate speed, change gear early, bothgoing uphill and downhill. Payattention to side winds.
¥ When towing, fuel consumption increases. Do not forget to use a
roof deßector if necessary.
¥ Braking distance increases. Brake gradually and gently. Avoidjerky braking. Do not exceed your vehicleÕs
towing capacity.
Towing weight: see ÔTechnical dataÕ section. Recommended nose weight: 50 kg.
06-05-2002
Page 100 of 107
T E C H N I C A L D ATA102

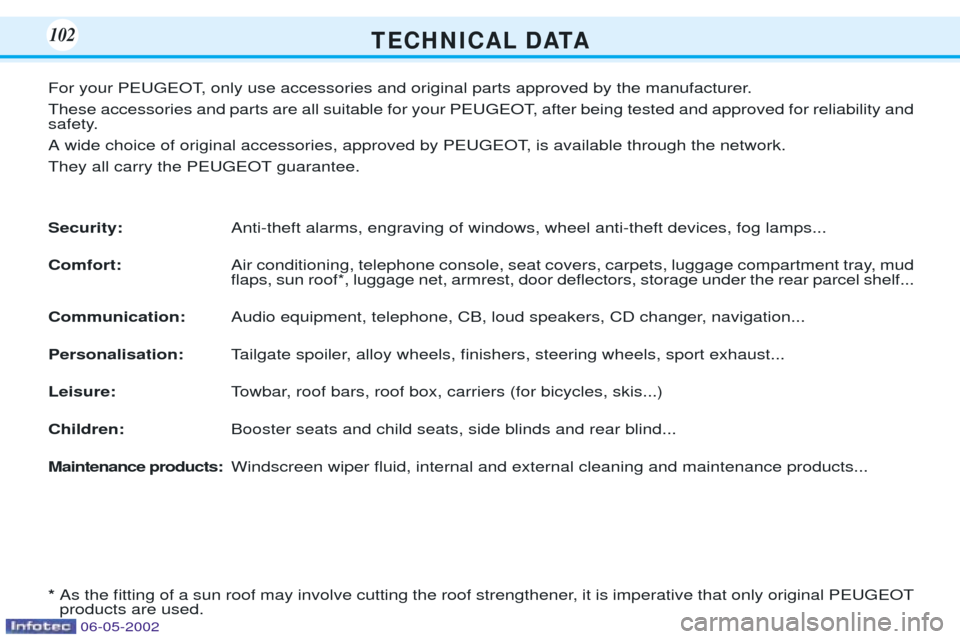

For your PEUGEOT, only use accessories and original parts approved by the manufacturer.
These accessories and parts are all suitable for your PEUGEOT, after being tested and approved for reliability and
safety.
A wide choice of original accessories, approved by PEUGEOT, is available through the network.They all carry the PEUGEOT guarantee. Security:Anti-theft alarms, engraving of windows, wheel anti-theft devices, fog lamps...
Comfort: Air conditioning, telephone console, seat covers, carpets, luggage compartment tray, mud ßaps, sun roof*, luggage net, armrest, door deßectors, storage under the rear parcel shelf...
Communication: Audio equipment, telephone, CB, loud speakers, CD changer, navigation...
Personalisation: Tailgate spoiler, alloy wheels, Þnishers, steering wheels, sport exhaust...
Leisure: Towbar, roof bars, roof box, carriers (for bicycles, skis...)
Children: Booster seats and child seats, side blinds and rear blind...
Maintenance products: Windscreen wiper ßuid, internal and external cleaning and maintenance products...
* As the Þtting of a sun roof may involve cutting the roof strengthener, it is imperative that only original PEUGEOTproducts are used.
