P R A C T I C A L I N F O R M AT I O N7777
4
1
3
5
6
87 2
1527 cm
3

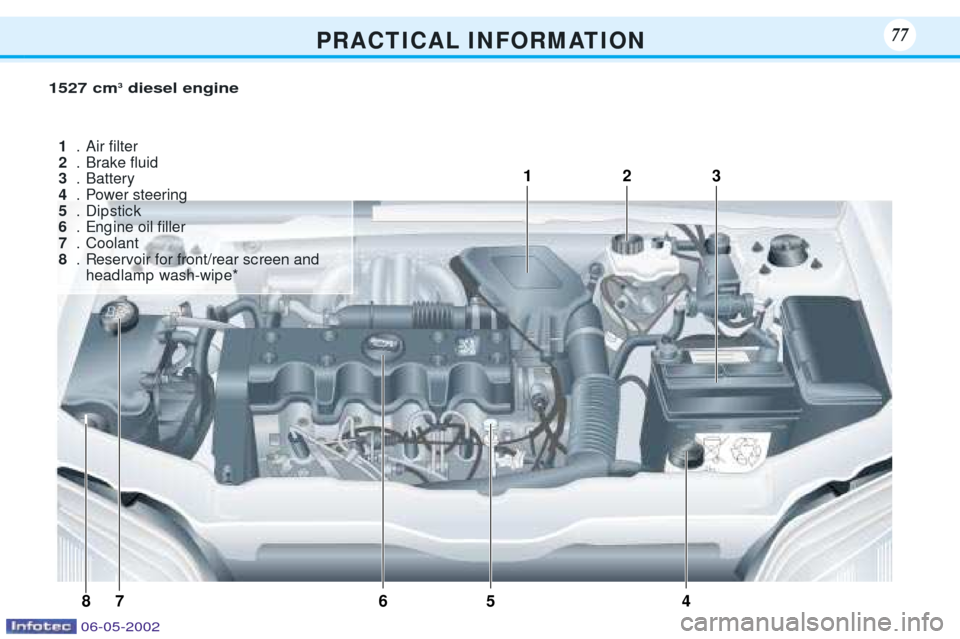

diesel engine
1 .Air Þlter
2 .Brake ßuid
3 .Battery
4 .Power steering
5 .Dip stic k
6 .Eng ine oil Þller
7 .Coolant
8 .Reservoir for front/rear sc reen and
head lamp wash-wip e*
06-05-2002
Page 82 of 107
P R A C T I C A L I N F O R M AT I O N7878
CHECKING THE LEVELS 1. Air Þlter The air filter element must be changed at the recommendedintervals. If you drive in a dustyatmosphere, change it twice asoften. Follow the recommendations given in the maintenance schedule. 2. Brake ßuid The level must always be above the
DANGER mark on the reservoir. Inthe event of a signiÞcant drop in theßuid level, consult a PEUGEOT
dealer immediately. Use fluids
approved by the manufacturer,which conform to DOT 3 or DOT 4standards. 3. Battery
At the beginning of winter, have the battery checked by a PEUGEOT
dealer. In summer (30¡C and above) or if the battery is in heavy use, checkthe level of electrolyte; it must coverthe separator plates at all times. If
necessary, top up with distilled
water.4. Power steering* When the engine is cold, the level must always be above the MINmark, close to the MAX mark. 5. Dipstick Check the oil level on ßat ground, with the engine cold and preferably
before the Þrst journey of the day. Never exceed the maximum level.
Check the level regularly.
6. Topping up with oil
Your oil must be changed in accor- dance with the maintenance sche-dule. The oil must be topped up between oil changes. Regularly check and top-up the oil level. Maximum oil consumption is 0.5 litres per 600 miles (1000 km). 7. Coolant Engine cold: the coolant level must be between the min and max marksin the expansion chamber with the
cap removed. To close, turn the capto the second notch*.
Cooling circuit Always use the coolant which is approved by the manufacturer
(PROCOR TM108 / GLYSANTING33 or REVKOGEL 2000). If this isnot possible, top up with distilledwater and have the protection level
checked by a PEUGEOT dealer. When the engine is hot, the coolant temperature is regulated by the fan.As the fan can operate with theignition key removed, and as thecooling circuit is pressurised,
do
not carry out any work for atleast an hour after switching offthe engine .
Note: the coolant does not need tobe renewed.
8. Front/rear screen and headlamp wash reservoir*
For optimum cleaning quality and
for your safety, it is best to use clea-ning products approved by PEU-GEOT (capacity 4.5 litres withoutheadlamp wash, 5.5 litres withheadlamp wash). * According to speciÞcation
06-05-2002
Page 83 of 107
P R A C T I C A L I N F O R M AT I O N7979

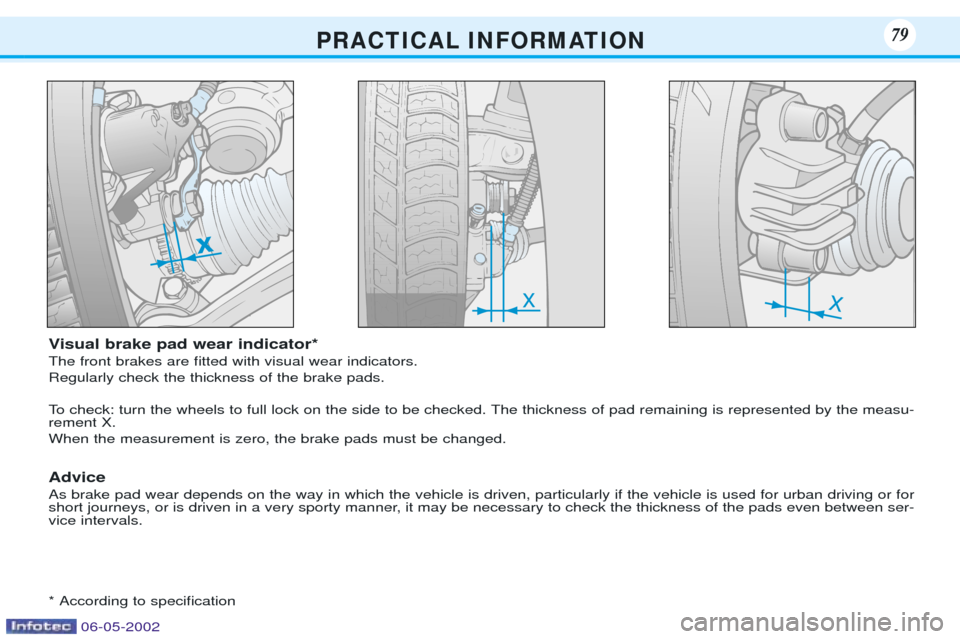

Visual brake pad wear indicator* The front brakes are Þtted with visual wear indicators. Regularly check the thickness of the brake pads.
To check: turn the wheels to full lock on the side to be checked. The thickness of pad remaining is represented by the measu- rement X. When the measurement is zero, the brake pads must be changed. Advice As brake pad wear depends on the way in which the vehicle is driven, particularly if the vehicle is used for urban driving or for
short journeys, or is driven in a very sporty manner, it may be necessary to check the thickness of the pads even between ser- vice intervals. * According to speciÞcation
06-05-2002
Page 84 of 107
P R A C T I C A L I N F O R M AT I O N8080
3
2
1

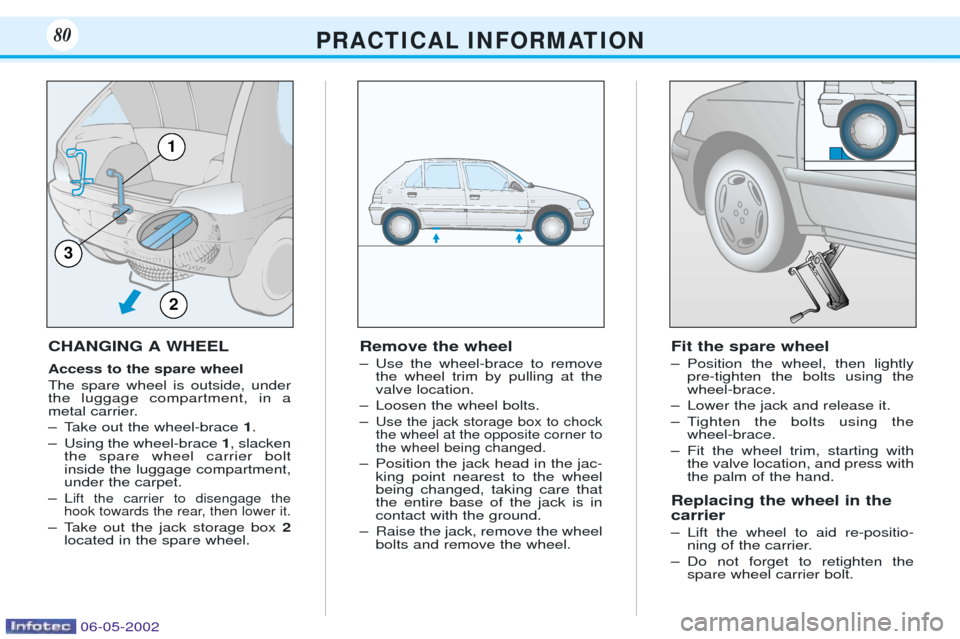

CHANGING A WHEEL Access to the spare wheel The spare wheel is outside, under the luggage compartment, in a
metal carrier.
Ð Take out the wheel-brace 1.
Ð Using the wheel-brace 1, slacken
the spare wheel carrier bolt inside the luggage compartment,under the carpet.
ÐL
ift the carrier to disengage the
hook towards the rear, then lower it.
Ð Take out the jack storage box 2
located in the spare wheel. Remove the wheel
Ð Use the wheel-brace to remove
the wheel trim by pulling at the valve location.
Ð Loosen the wheel bolts. Ð
Use the jack storage box to chock the wheel at the opposite corner tothe wheel being changed.
Ð Position the jack head in the jac- king point nearest to the wheelbeing changed, taking care thatthe entire base of the jack is incontact with the ground.
Ð Raise the jack, remove the wheel bolts and remove the wheel. Fit the spare wheel
Ð Position the wheel, then lightly
pre-tighten the bolts using the wheel-brace.
Ð Lower the jack and release it.
Ð Tighten the bolts using the wheel-brace.
Ð Fit the wheel trim, starting with the valve location, and press with the palm of the hand.
Replacing the wheel in the carrier
Ð Lift the wheel to aid re-positio- ning of the carrier.
Ð Do not forget to retighten the spare wheel carrier bolt.
06-05-2002
Page 85 of 107
P R A C T I C A L I N F O R M AT I O N8181
For your safety, always change a wheel:
Ð on level, solid, non-slippery ground,
Ð with the handbrake applied, Ð
with Þrst or reverse gear engaged,
Ð Chock the vehicle.
Ð Never position yourself under a vehicle which is supported only by a jack. Use a ramp.
After changing the wheel
Ð Have the wheel bolts and the tyre pressure checked as soon as possible.
Ð Have the damaged tyre repaired so that it can bereturned to the vehicle assoon as possible.
Ð The Òspace-savingÓ* type of spare wheel is Þtted with a
115/70R 15 tyre and is for
temporary use only.
- Pressure: 61 lbf. in 2
(4.2 bars).
- Maximum speed: 50 m.p.h. (80 km/h).
* According to speciÞcation
3

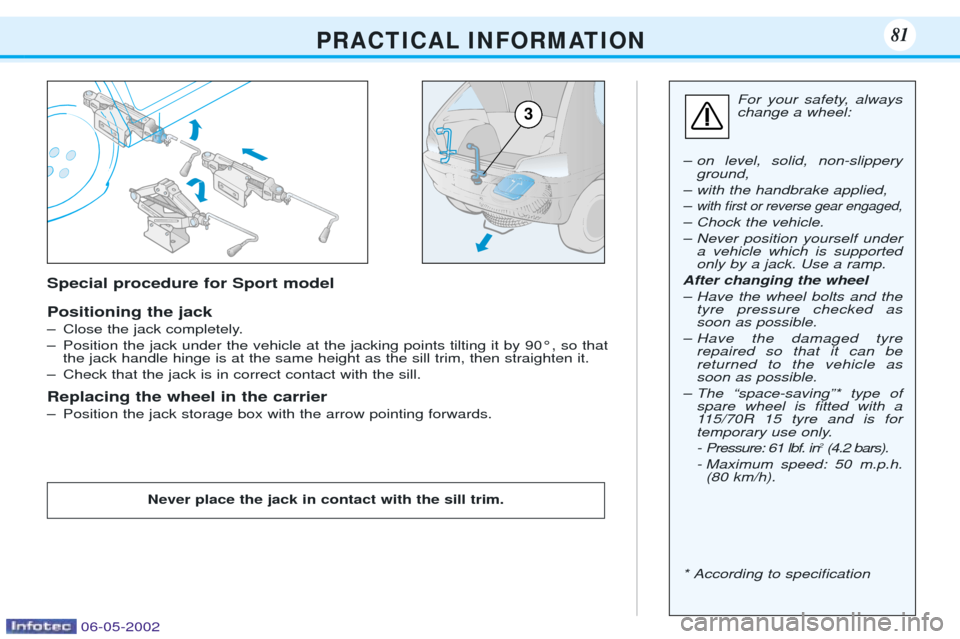

Special procedure for Sport model Positioning the jack
Ð Close the jack completely.
Ð Position the jack under the vehicle at the jacking points tilting it by 90¡, so that the jack handle hinge is at the same height as the sill trim, then straighten it.
Ð Check that the jack is in correct contact with the sill. Replacing the wheel in the carrier
Ð Position the jack storage box with the arrow pointing forwards.
Never place the jack in contact with the sill trim.
06-05-2002
Page 86 of 107

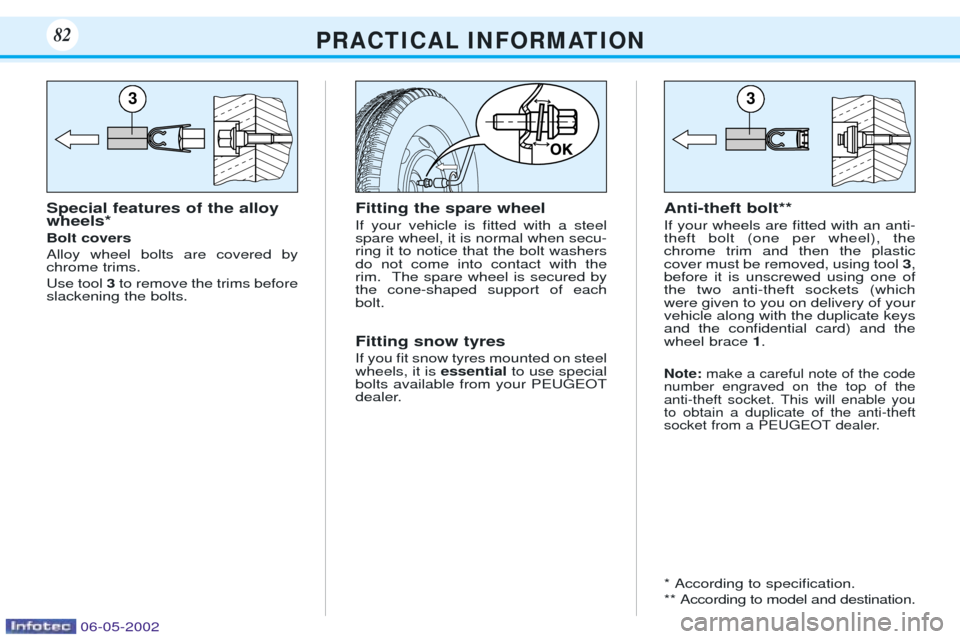

Special features of the alloy wheels* Bolt covers Alloy wheel bolts are covered by chrome trims. Use tool 3to remove the trims before
slackening the bolts. Anti-theft bolt** If your wheels are Þtted with an anti- theft bolt (one per wheel), thechrome trim and then the plasticcover must be removed, using tool
3,
before it is unscrewed using one ofthe two anti-theft sockets (whichwere given to you on delivery of yourvehicle along with the duplicate keysand the conÞdential card) and thewheel brace 1.
Note: make a careful note of the code
number engraved on the top of theanti-theft socket. This will enable youto obtain a duplicate of the anti-theft
socket from a PEUGEOT dealer.
* According to speciÞcation.
** According to model and destination.
Fitting the spare wheel If your vehicle is Þtted with a steel spare wheel, it is normal when secu-ring it to notice that the bolt washersdo not come into contact with therim. The spare wheel is secured bythe cone-shaped support of eachbolt. Fitting snow tyres If you Þt snow tyres mounted on steel wheels, it is
essentialto use special
bolts available from your PEUGEOT
dealer.
P R A C T I C A L I N F O R M AT I O N82
33
06-05-2002
Page 87 of 107

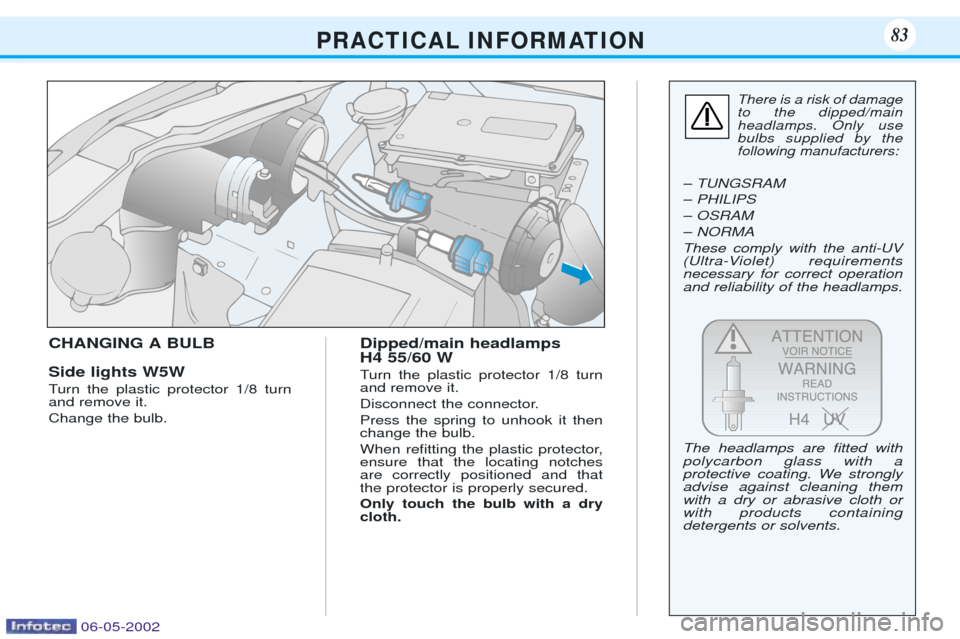

CHANGING A BULB Side lights W5W
Turn the plastic protector 1/8 turn and remove it. Change the bulb.Dipped/main headlamps H4 55/60 W
Turn the plastic protector 1/8 turn and remove it.
Disconnect the connector.Press the spring to unhook it then change the bulb.
When reÞtting the plastic protector, ensure that the locating notchesare correctly positioned and thatthe protector is properly secured. Only touch the bulb with a dry cloth.
P R A C T I C A L I N F O R M AT I O N83
There is a risk of damage to the dipped/mainheadlamps. Only usebulbs supplied by thefollowing manufacturers:
Ð TUNGSRAM
Ð PHILIPS
Ð OSRAM
Ð NORMAThese comply with the anti-UV
(Ultra-Violet) requirementsnecessary for correct operationand reliability of the headlamps. The headlamps are Þtted with polycarbon glass with a
protective coating. We stronglyadvise against cleaning themwith a dry or abrasive cloth orwith products containingdetergents or solvents.
06-05-2002
Page 88 of 107

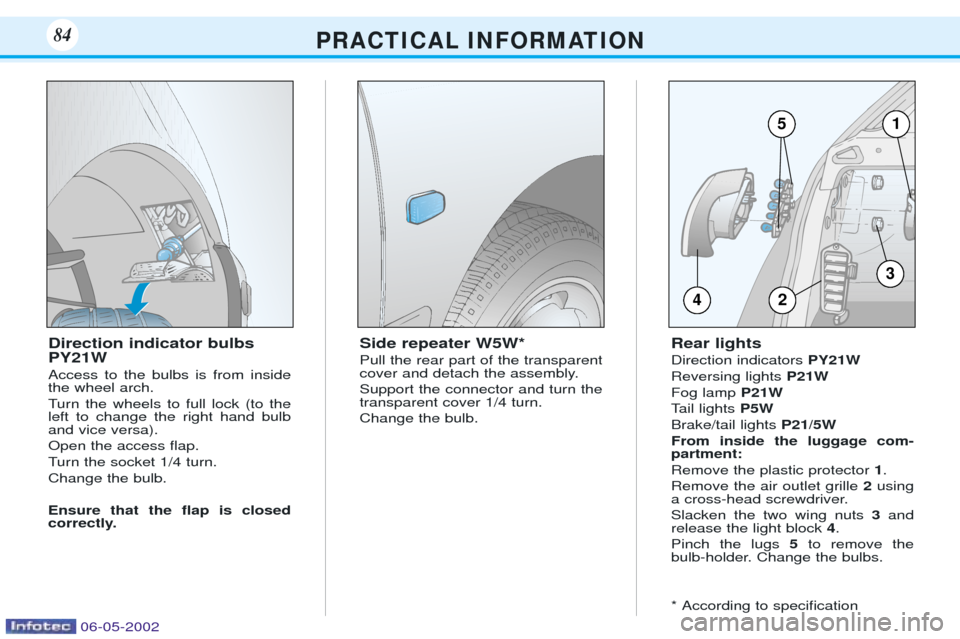

Direction indicator bulbs PY21W Access to the bulbs is from inside the wheel arch.
Turn the wheels to full lock (to the left to change the right hand bulband vice versa). Open the access ßap.
Turn the socket 1/4 turn.Change the bulb. Ensure that the ßap is closed
correctly.Side repeater W5W* Pull the rear part of the transparent
cover and detach the assembly. Support the connector and turn the transparent cover 1/4 turn. Change the bulb.
Rear lights Direction indicators
PY21W
Reversing lights P21W
Fog lamp P21W
Tail lights P5W
Brake/tail lights P21/5W
From inside the luggage com- partment: Remove the plastic protector 1.
Remove the air outlet grille 2using
a cross-head screwdriver. Slacken the two wing nuts 3and
release the light block 4.
Pinch the lugs 5to remove the
bulb-holder. Change the bulbs. * According to speciÞcation
P R A C T I C A L I N F O R M AT I O N84
4
3
1
2
5
06-05-2002
Page 89 of 107

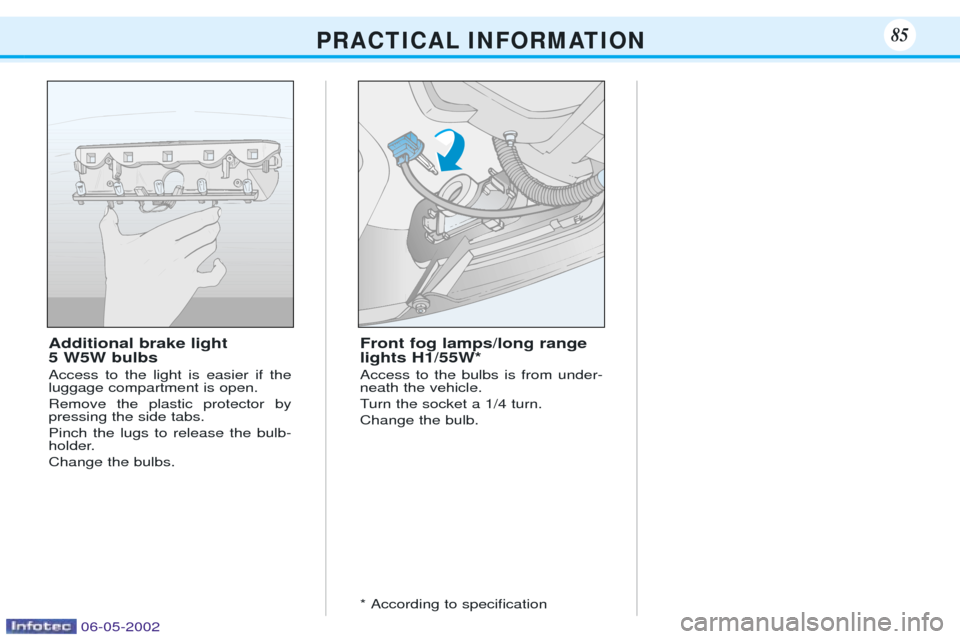

Additional brake light 5 W5W bulbs Access to the light is easier if the luggage compartment is open. Remove the plastic protector by pressing the side tabs. Pinch the lugs to release the bulb-
holder. Change the bulbs.Front fog lamps/long range lights H1/55W* Access to the bulbs is from under- neath the vehicle.
Turn the socket a 1/4 turn.Change the bulb. * According to speciÞcation
P R A C T I C A L I N F O R M AT I O N85
06-05-2002
Page 90 of 107
Direction indicator bulbs PY21W Access to the bulbs is from inside the wheel arch.
Turn the wheels to full lock (to the left to change the right hand bulband vice versa). Open the access ßap.
Turn the socket 1/4 turn.Change the bulb. Ensure that the ßap is closed
correctly.Side repeater W5W* Pull the rear part of the transparent
cover and detach the assembly. Support the connector and turn the transparent cover 1/4 turn. Change the bulb.
Rear lights Direction indicators
PY21W
Reversing lights P21W
Fog lamp P21W
Tail lights P5W
Brake/tail lights P21/5W
From inside the luggage com- partment: Remove the plastic protector 1.
Remove the air outlet grille 2using
a cross-head screwdriver. Slacken the two wing nuts 3and
release the light block 4.
Pinch the lugs 5to remove the
bulb-holder. Change the bulbs. * According to speciÞcation
P R A C T I C A L I N F O R M AT I O N84
4
3
1
2
5
