Peugeot 106 Dag 2001.5 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2001.5, Model line: 106 Dag, Model: Peugeot 106 Dag 2001.5Pages: 107, PDF Size: 2.96 MB
Page 31 of 107

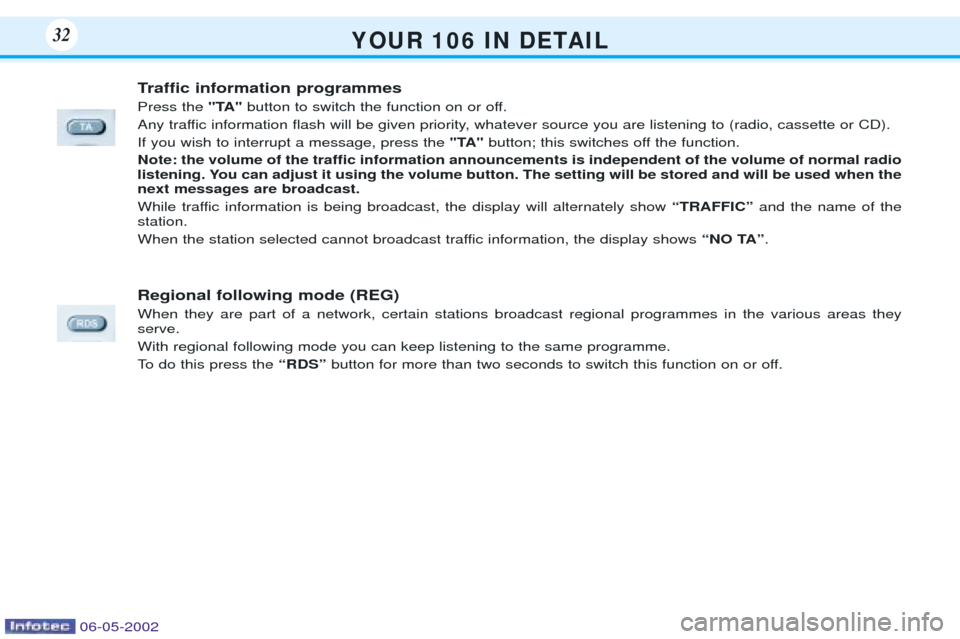

Y O U R 1 0 6 I N D E TA I L32
Traffic information programmes Press the "TA"button to switch the function on or off.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD). If you wish to interrupt a message, press the "TA"button; this switches off the function.
Note: the volume of the traffic information announcements is independent of the volume of normal radio
listening. You can adjust it using the volume button. The setting will be stored and will be used when thenext messages are broadcast.
While traffic information is being broadcast, the display will alternately show ÒTRAFFICÓand the name of the
station.
When the station selected cannot broadcast traffic information, the display shows ÒNO TAÓ.
Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme.
To do this press the ÒRDSÓbutton for more than two seconds to switch this function on or off.
06-05-2002
Page 32 of 107

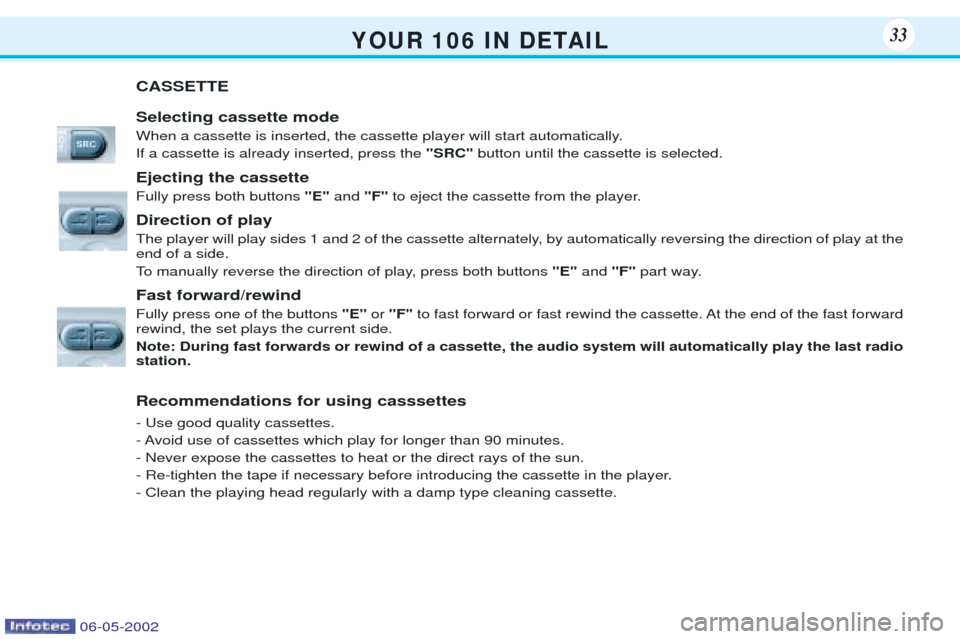

Y O U R 1 0 6 I N D E TA I L33
CASSETTE Selecting cassette mode
When a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, press the "SRC"button until the cassette is selected.
Ejecting the cassette Fully press both buttons "E"and "F"to eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a side.
To manually reverse the direction of play, press both buttons "E"and "F"part way.
Fast forward/rewind Fully press one of the buttons "E"or "F" to fast forward or fast rewind the cassette. At the end of the fast forward
rewind, the set plays the current side. Note: During fast forwards or rewind of a cassette, the audio system will automatically play the last radio station. Recommendations for using casssettes - Use good quality cassettes.
- Avoid use of cassettes which play for longer than 90 minutes.- Never expose the cassettes to heat or the direct rays of the sun.
- Re-tighten the tape if necessary before introducing the cassette in the player.- Clean the playing head regularly with a damp type cleaning cassette.
06-05-2002
Page 33 of 107

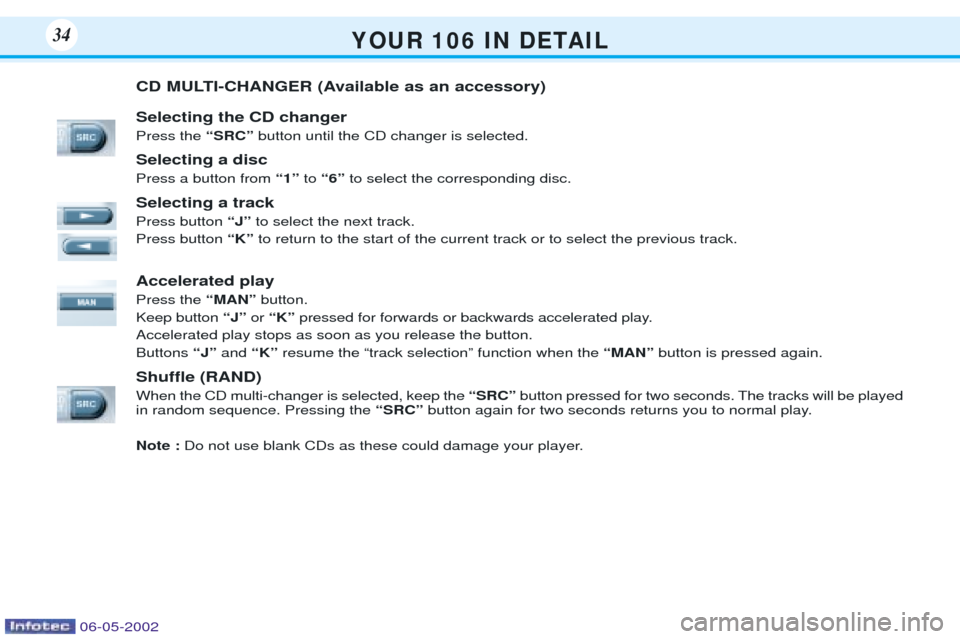

Y O U R 1 0 6 I N D E TA I L34
CD MULTI-CHANGER (Available as an accessory) Selecting the CD changer Press the ÒSRCÓ button until the CD changer is selected.
Selecting a discPress a button from Ò1Óto Ò6Ó to select the corresponding disc.
Selecting a trackPress button ÒJÓto select the next track.
Press button ÒKÓto return to the start of the current track or to select the previous track.
Accelerated playPress the ÒMANÓbutton.
Keep button ÒJÓor ÒKÓ pressed for forwards or backwards accelerated play.
Accelerated play stops as soon as you release the button. Buttons ÒJÓand ÒKÓ resume the Òtrack selectionÓ function when the ÒMANÓbutton is pressed again.
Shuffle (RAND) When the CD multi-changer is selected, keep the ÒSRCÓbutton pressed for two seconds. The tracks will be played
in random sequence. Pressing the ÒSRCÓbutton again for two seconds returns you to normal play.
Note : Do not use blank CDs as these could damage your player.
06-05-2002
Page 34 of 107

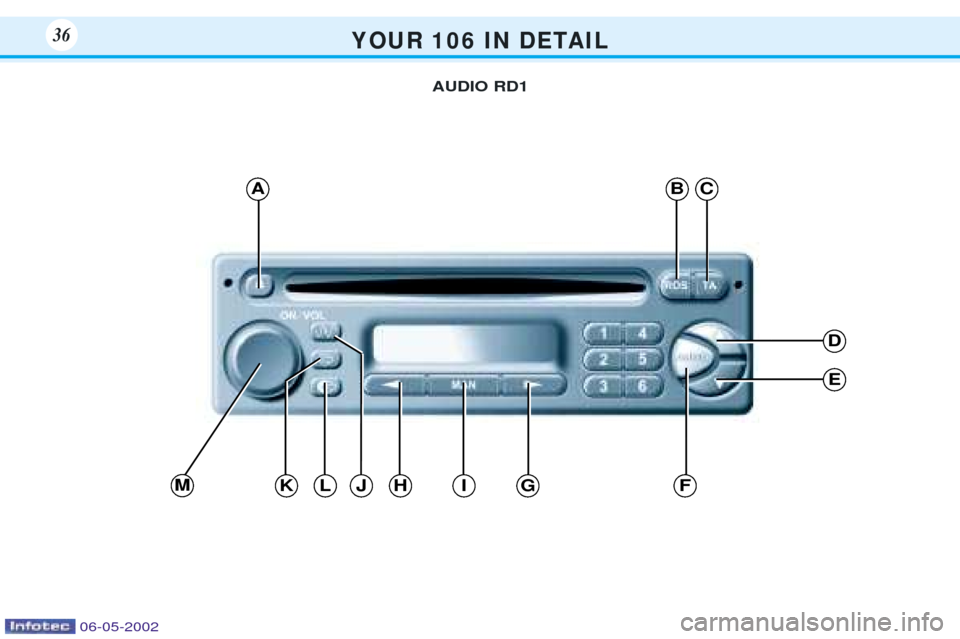

Y O U R 1 0 6 I N D E TA I L36
ABC
D
E
MJKFGIHL
AUDIO RD1
06-05-2002
Page 35 of 107

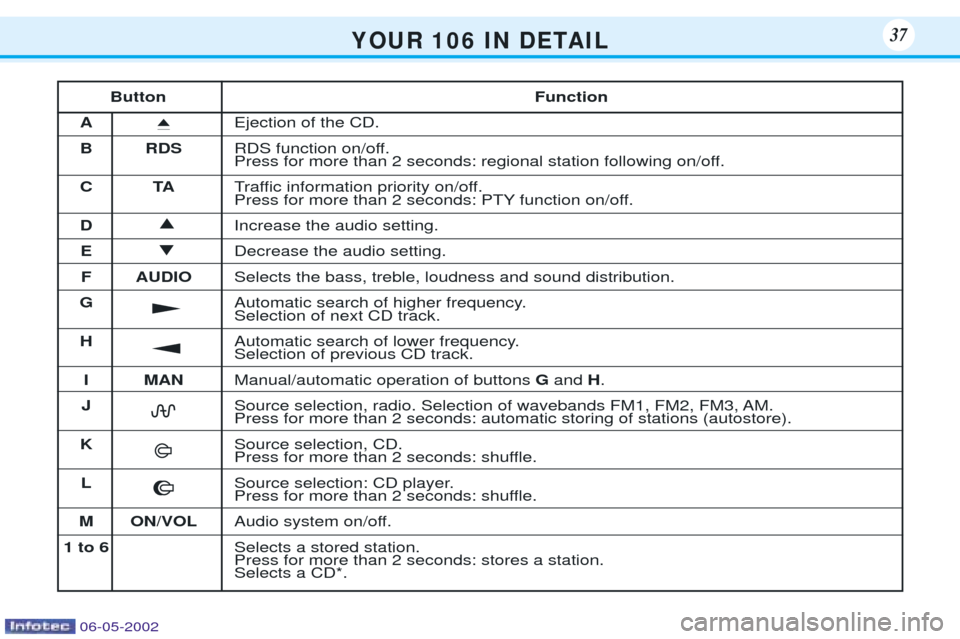

Y O U R 1 0 6 I N D E TA I L37
k
j
Button Function
A i
Ejection of the CD.
B RDS RDS function on/off.
Press for more than 2 seconds: regional station following on/off.
CT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
D Increase the audio setting.
E Decrease the audio setting.
F AUDIO Selects the bass, treble, loudness and sound distribution.
G Automatic search of higher frequency.Selection of next CD track.
H Automatic search of lower frequency.Selection of previous CD track.
I MAN Manual/automatic operation of buttons Gand H.
J Source selection, radio. Selection of wavebands FM1, FM2, FM3, AM.Press for more than 2 seconds: automatic storing of stations (autostore).
K Source selection, CD.
Press for more than 2 seconds: shuffle.
L Source selection: CD player.
Press for more than 2 seconds: shuffle.
M ON/VOL Audio system on/off.
1 to 6 Selects a stored station.Press for more than 2 seconds: stores a station.Selects a CD*.
06-05-2002
Page 36 of 107

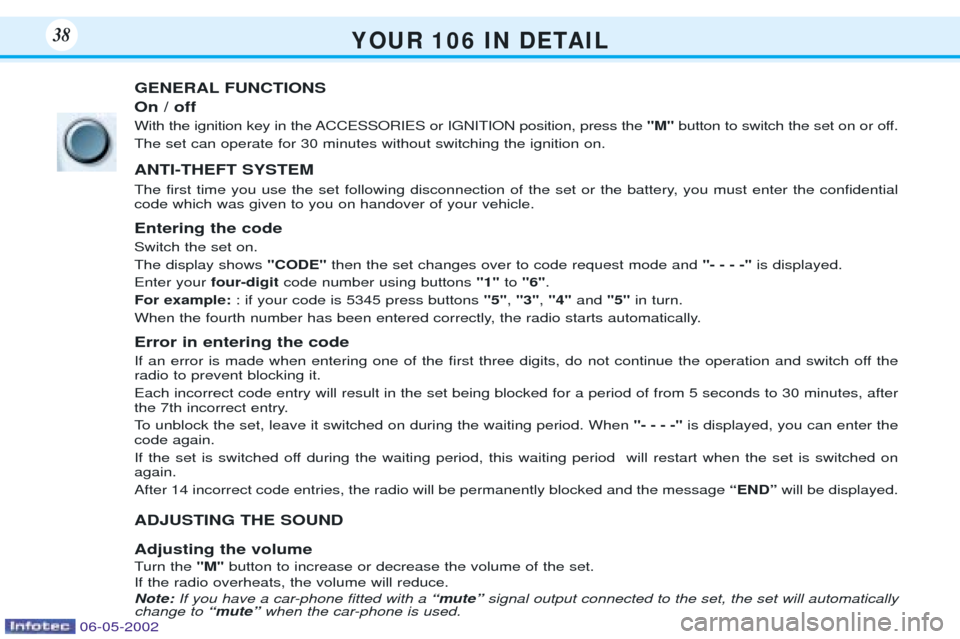

Y O U R 1 0 6 I N D E TA I L38
GENERAL FUNCTIONS On / off
With the ignition key in the ACCESSORIES or IGNITION position, press the "M"button to switch the set on or off.
The set can operate for 30 minutes without switching the ignition on. ANTI-THEFT SYSTEM
The first time you use the set following disconnection of the set or the battery, you must enter the confidential code which was given to you on handover of your vehicle. Entering the code Switch the set on. The display shows "CODE" then the set changes over to code request mode and "- - - -" is displayed.
Enter your four-digitcode number using buttons "1" to "6" .
For example: : if your code is 5345 press buttons "5", "3" , "4" and "5"in turn.
When the fourth number has been entered correctly, the radio starts automatically.
Error in entering the code
If an error is made when entering one of the first three digits, do not continue the operation and switch off the radio to prevent blocking it. Each incorrect code entry will result in the set being blocked for a period of from 5 seconds to 30 minutes, after
the 7th incorrect entry.
To unblock the set, leave it switched on during the waiting period. When "- - - -"is displayed, you can enter the
code again.
If the set is switched off during the waiting period, this waiting period will restart when the set is switched on again. After 14 incorrect code entries, the radio will be permanently blocked and the message ÒENDÓwill be displayed.
ADJUSTING THE SOUND Adjusting the volume
Turn the "M"button to increase or decrease the volume of the set.
If the radio overheats, the volume will reduce. Note: If you have a car-phone fitted with a ÒmuteÓsignal output connected to the set, the set will automatically
change to ÒmuteÓwhen the car-phone is used.
06-05-2002
Page 37 of 107

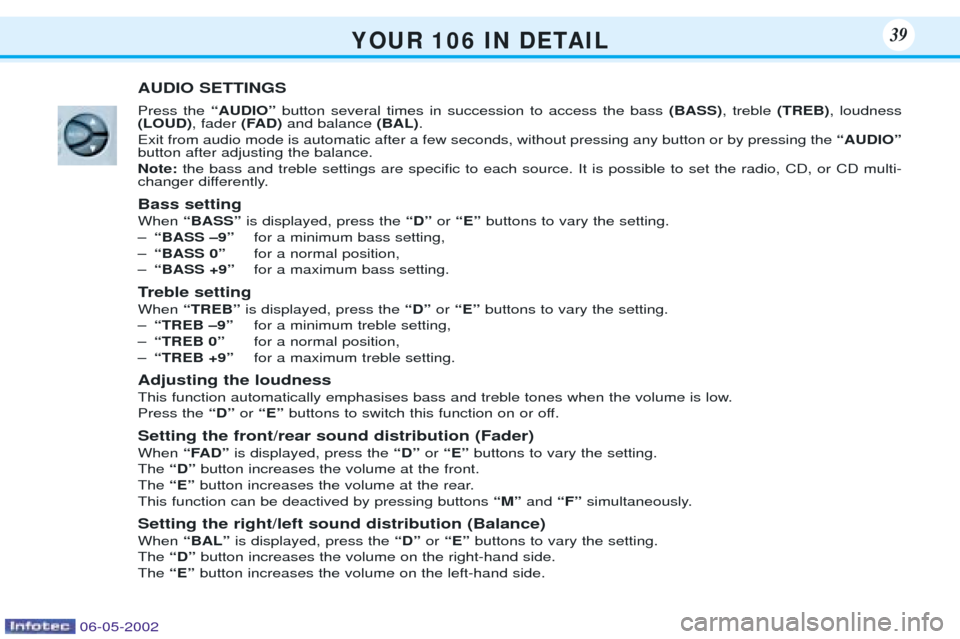

Y O U R 1 0 6 I N D E TA I L39
AUDIO SETTINGS Press the ÒAUDIOÓbutton several times in succession to access the bass (BASS), treble (TREB), loudness
(LOUD) , fader (FAD)and balance (BAL).
Exit from audio mode is automatic after a few seconds, without pressing any button or by pressing the ÒAUDIOÓ
button after adjusting the balance. Note: the bass and treble settings are specific to each source. It is possible to set the radio, CD, or CD multi-
changer differently.
Bass setting When ÒBASSÓ is displayed, press the ÒDÓor ÒEÓ buttons to vary the setting.
Ð ÒBASS Ð9Ó for a minimum bass setting,
Ð ÒBASS 0Ó for a normal position,
Ð ÒBASS +9Ó for a maximum bass setting.
Treble settingWhen ÒTREBÓ is displayed, press the ÒDÓor ÒEÓ buttons to vary the setting.
Ð ÒTREB Ð9Ó for a minimum treble setting,
Ð ÒTREB 0Ó for a normal position,
Ð ÒTREB +9Ó for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low. Press the ÒDÓor ÒEÓ buttons to switch this function on or off.
Setting the front/rear sound distribution (Fader) When ÒFADÓ is displayed, press the ÒDÓor ÒEÓ buttons to vary the setting.
The ÒDÓbutton increases the volume at the front.
The ÒEÓ button increases the volume at the rear.
This function can be deactived by pressing buttons ÒMÓand ÒFÓsimultaneously.
Setting the right/left sound distribution (Balance)When ÒBALÓ is displayed, press the ÒDÓor ÒEÓ buttons to vary the setting.
The ÒDÓbutton increases the volume on the right-hand side.
The ÒEÓbutton increases the volume on the left-hand side.
06-05-2002
Page 38 of 107

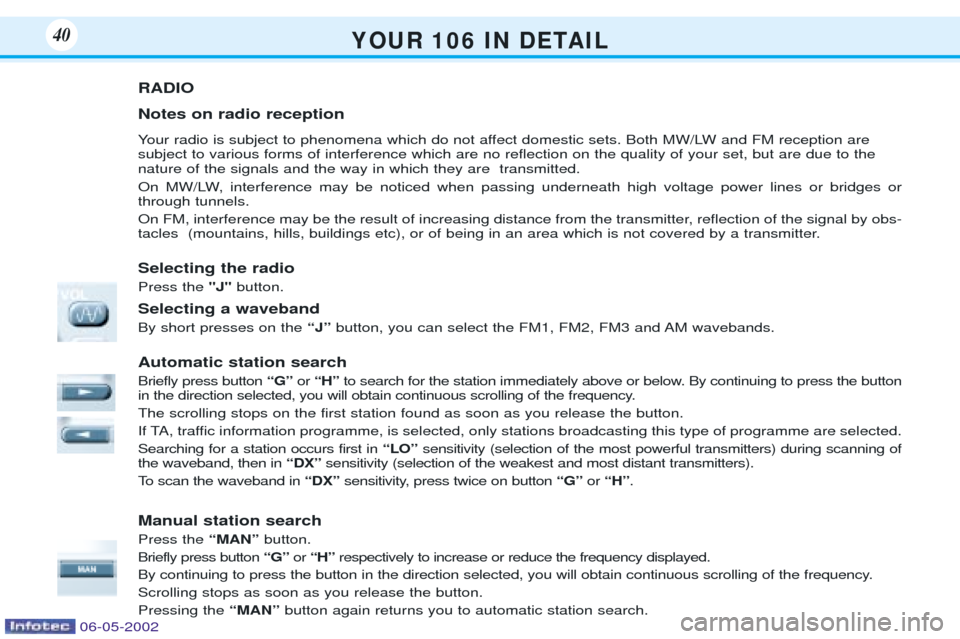

Y O U R 1 0 6 I N D E TA I L40
RADIO Notes on radio reception
Your radio is subject to phenomena which do not affect domestic sets. Both MW/LW and FM reception are subject to various forms of interference which are no reflection on the quality of your set, but are due to thenature of the signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing underneath high voltage power lines or bridges or through tunnels.
On FM, interference may be the result of increasing distance from the transmitter, reflection of the signal by obs-
tacles (mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting the radio Press the "J"button.
Selecting a wavebandBy short presses on the ÒJÓbutton, you can select the FM1, FM2, FM3 and AM wavebands.
Automatic station searchBriefly press button ÒGÓ or ÒHÓ to search for the station immediately above or below. By continuing to press the button
in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops on the first station found as soon as you release the button.
If TA, traffic information programme, is selected, only stations broadcasting this type of programme are selected.Searching for a station occurs first in ÒLOÓsensitivity (selection of the most powerful transmitters) during scanning of
the waveband, then in ÒDXÓ sensitivity (selection of the weakest and most distant transmitters).
To scan the waveband in ÒDXÓsensitivity, press twice on button ÒGÓor ÒHÓ .
Manual station search Press the ÒMANÓbutton.
Briefly press button ÒGÓ or ÒHÓ respectively to increase or reduce the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. Scrolling stops as soon as you release the button.Pressing the ÒMANÓbutton again returns you to automatic station search.
06-05-2002
Page 39 of 107

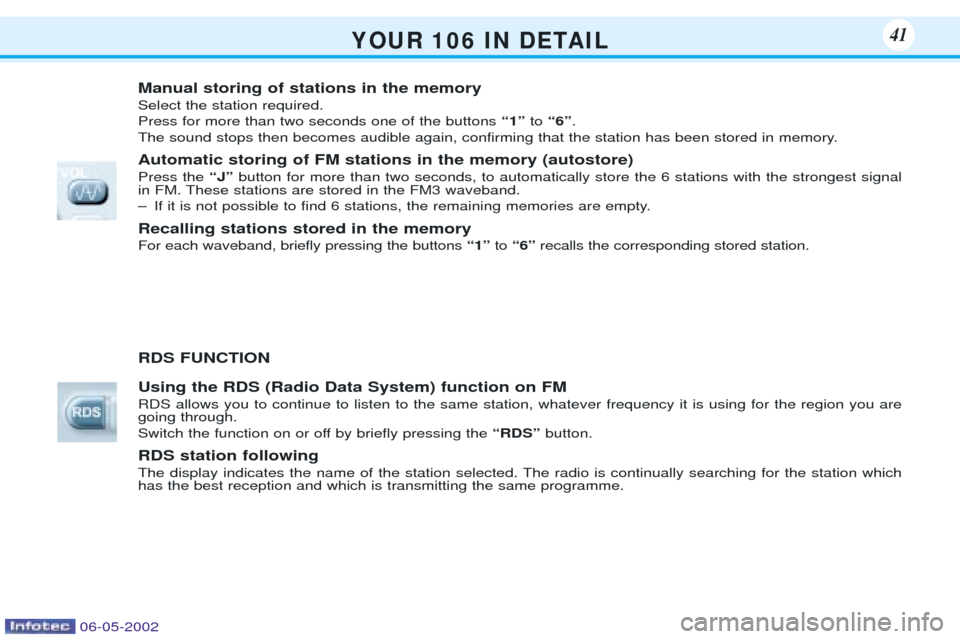

Y O U R 1 0 6 I N D E TA I L41
Manual storing of stations in the memory Select the station required. Press for more than two seconds one of the buttonsÒ1ÓtoÒ6Ó .
The sound stops then becomes audible again, confirming that the station has been stored in memory. Automatic storing of FM stations in the memory (autostore) Press the ÒJÓbutton for more than two seconds, to automatically store the 6 stations with the strongest signal
in FM. These stations are stored in the FM3 waveband.
Ð If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly pressing the buttons Ò1Óto Ò6Ó recalls the corresponding stored station.
RDS FUNCTION Using the RDS (Radio Data System) function on FM RDS allows you to continue to listen to the same station, whatever frequency it is using for the region you are going through.
Switch the function on or off by briefly pressing the ÒRDSÓbutton.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
06-05-2002
Page 40 of 107

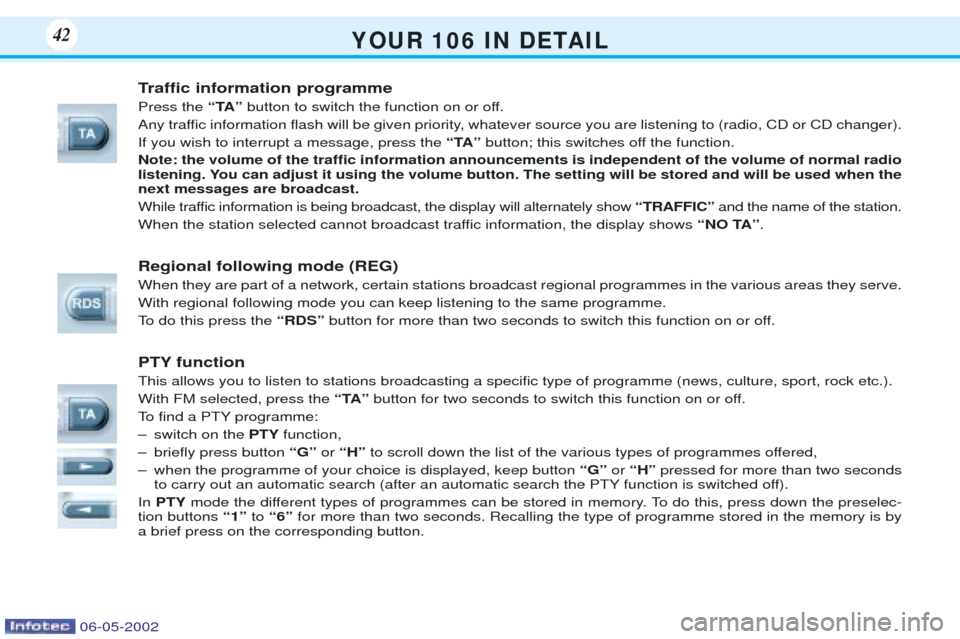

Y O U R 1 0 6 I N D E TA I L42
Traffic information programme Press theÒTAÓbutton to switch the function on or off.
Any traffic information flash will be given priority, whatever source you are listening to (radio, CD or CD changer). If you wish to interrupt a message, press the ÒTAÓbutton; this switches off the function.
Note: the volume of the traffic information announcements is independent of the volume of normal radio
listening. You can adjust it using the volume button. The setting will be stored and will be used when thenext messages are broadcast.
While traffic information is being broadcast, the display will alternately show ÒTRAFFICÓ and the name of the station.
When the station selected cannot broadcast traffic information, the display shows ÒNO TAÓ.
Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme.
To do this press the ÒRDSÓbutton for more than two seconds to switch this function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FM selected, press the ÒTAÓbutton for two seconds to switch this function on or off.
To find a PTY programme:
Ð switch on the PTYfunction,
Ð briefly press button ÒGÓor ÒHÓ to scroll down the list of the various types of programmes offered,
Ð when the programme of your choice is displayed, keep button ÒGÓor ÒHÓ pressed for more than two seconds
to carry out an automatic search (after an automatic search the PTY function is switched off).
In PTY mode the different types of programmes can be stored in memory. To do this, press down the preselec-
tion buttons Ò1Óto Ò6Ó for more than two seconds. Recalling the type of programme stored in the memory is by
a brief press on the corresponding button.
06-05-2002
