DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Good
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and
r e c t i fi e d .
Use the tweezer A located in the
fusebox under the bonnet.
Failed
Tweezer A Instrument panel fuseboxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 82 of 97
9
75
PRACTICAL INFORMATION

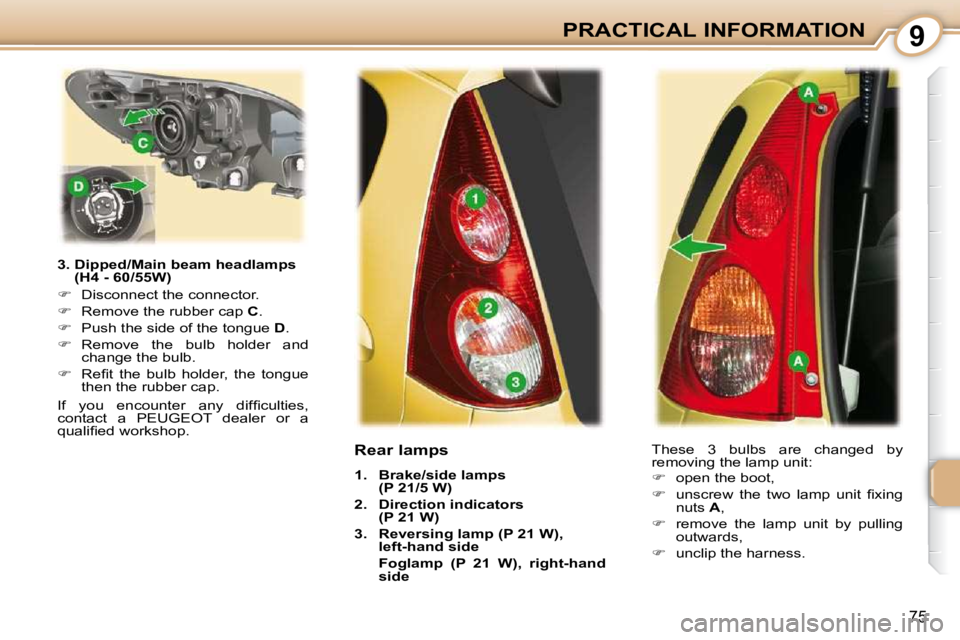

3. Dipped/Main beam headlamps (H4 - 60/55W)
Disconnect the connector.
Remove the rubber cap C .
Push the side of the tongue D .
Remove the bulb holder and
change the bulb.
R e fi t t h e b u l b h o l d e r , t h e t o n g u e
then the rubber cap.
I f y o u e n c o u n t e r a n y d i f fi c u l t i e s ,
contact a PEUGEOT dealer or a
q u a l i fi e d w o r k s h o p .
Rear lamps
1. Brake/side lamps
(P 21/5 W)
2. Direction indicators
(P 21 W)
3. Reversing lamp (P 21 W),
left-hand side
Foglamp (P 21 W), right-hand
side These 3 bulbs are changed by
removing the lamp unit:
open the boot,
u n s c r e w t h e t w o l a m p u n i t fi x i n g
nuts A ,
remove the lamp unit by pulling
outwards,
unclip the harness.
Page 83 of 97
9
76
PRACTICAL INFORMATION Third brake lamp
(Four W 5 W bulbs)

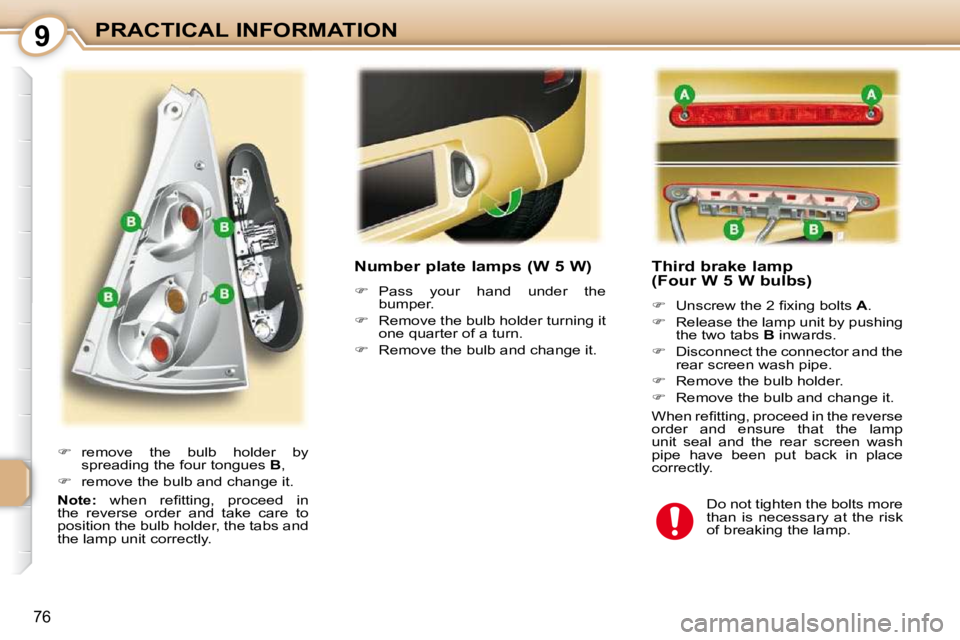

U n s c r e w t h e 2 fi x i n g b o l t s A .
Release the lamp unit by pushing
the two tabs B inwards.
Disconnect the connector and the
rear screen wash pipe.
Remove the bulb holder.
Remove the bulb and change it.
W h e n r e fi t t i n g , p r o c e e d i n t h e r e v e r s e
order and ensure that the lamp
unit seal and the rear screen wash
pipe have been put back in place
correctly.
Do not tighten the bolts more
than is necessary at the risk
of breaking the lamp.
remove the bulb holder by
spreading the four tongues B ,
remove the bulb and change it.
Note: w h e n r e fi t t i n g , p r o c e e d i n
the reverse order and take care to
position the bulb holder, the tabs and
the lamp unit correctly. Number plate lamps (W 5 W)
Pass your hand under the
bumper.
Remove the bulb holder turning it
one quarter of a turn.
Remove the bulb and change it.
Page 84 of 97
9
77
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Good
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and
r e c t i fi e d .
Use the tweezer A located in the
fusebox under the bonnet.
Failed
Tweezer A Instrument panel fuseboxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 85 of 97
9
77
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Good
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and
r e c t i fi e d .
Use the tweezer A located in the
fusebox under the bonnet.
Failed
Tweezer A Instrument panel fuseboxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 86 of 97
9
78
PRACTICAL INFORMATION

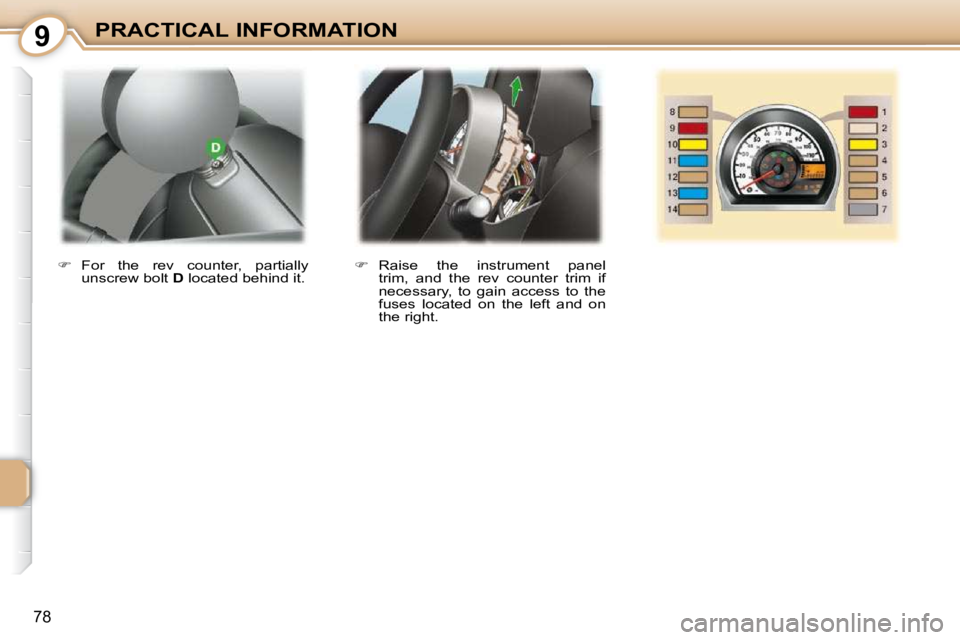

Raise the instrument panel
trim, and the rev counter trim if
necessary, to gain access to the
fuses located on the left and on
the right.
For the rev counter, partially
unscrew bolt D located behind it.
Page 87 of 97
9
79
PRACTICAL INFORMATION
* F u s e s l o c a t e d b e h i n d t h e i n s t r u m e n t p a n e l . T o c h a n g e t h e m , c o n t a c t a P E U G E O T d e a l e r o r a q u a l i fi e d w o r k s h o p .

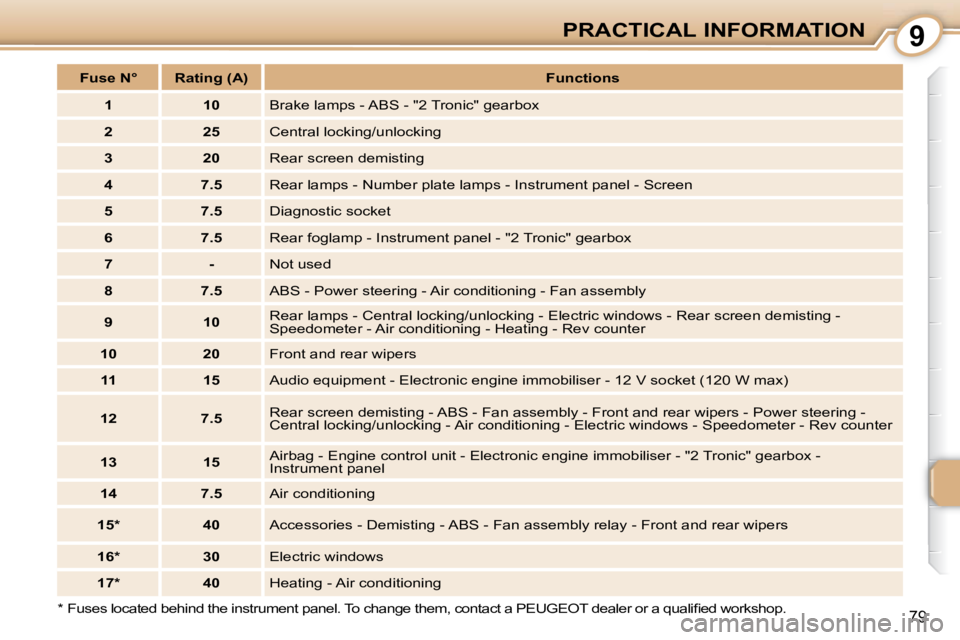

Fuse
N° Rating (A)
Functions
1 10 Brake lamps - ABS - "2 Tronic" gearbox
2 25 Central locking/unlocking
3 20 Rear screen demisting
4 7.5 Rear lamps - Number plate lamps - Instrument panel - Screen
5 7.5 Diagnostic socket
6 7.5 Rear foglamp - Instrument panel - "2 Tronic" gearbox
7 - Not used
8 7.5 ABS - Power steering - Air conditioning - Fan assembly
9 10 Rear lamps - Central locking/unlocking - Electric windows - Rear scree
n demisting -
Speedometer - Air conditioning - Heating - Rev counter
10 20 Front and rear wipers
11 15 Audio equipment - Electronic engine immobiliser - 12 V socket (120 W max)
12 7.5 Rear screen demisting - ABS - Fan assembly - Front and rear wipers - Powe
r steering -
Central locking/unlocking - Air conditioning - Electric windows - Speedometer - Rev counter
13 15 Airbag - Engine control unit - Electronic engine immobiliser - "2 T
ronic" gearbox -
Instrument panel
14 7.5 Air conditioning
15 * 40 Accessories - Demisting - ABS - Fan assembly relay - Front and rear wipe rs
16 * 30 Electric windows
17 * 40 Heating - Air conditioning
Page 88 of 97
9
80
PRACTICAL INFORMATION

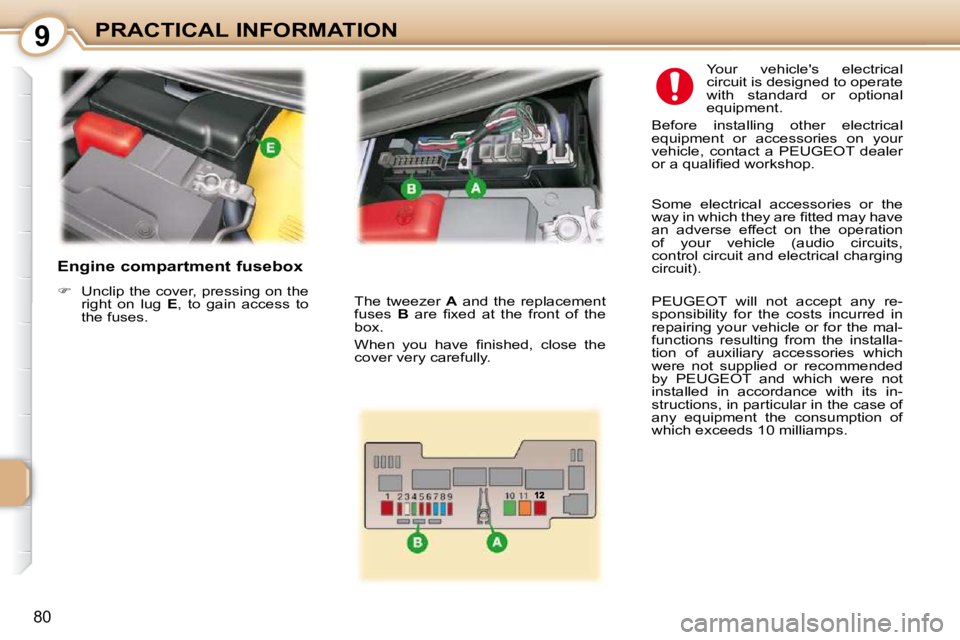

Engine compartment fusebox
Unclip the cover, pressing on the
right on lug E , to gain access to
the fuses. Your vehicle's electrical
circuit is designed to operate
with standard or optional
equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer
o r a q u a l i fi e d w o r k s h o p .
The tweezer A and the replacement
fuses B a r e fi x e d a t t h e f r o n t o f t h e
box.
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover very carefully. Some electrical accessories or the
w a y i n w h i c h t h e y a r e fi t t e d m a y h a v e
an adverse effect on the operation
of your vehicle (audio circuits,
control circuit and electrical charging
circuit).
PEUGEOT will not accept any re-
sponsibility for the costs incurred in
repairing your vehicle or for the mal-
functions resulting from the installa-
tion of auxiliary accessories which
were not supplied or recommended
by PEUGEOT and which were not
installed in accordance with its in-
structions, in particular in the case of
any equipment the consumption of
which exceeds 10 milliamps.
Page 89 of 97
9
81
PRACTICAL INFORMATION

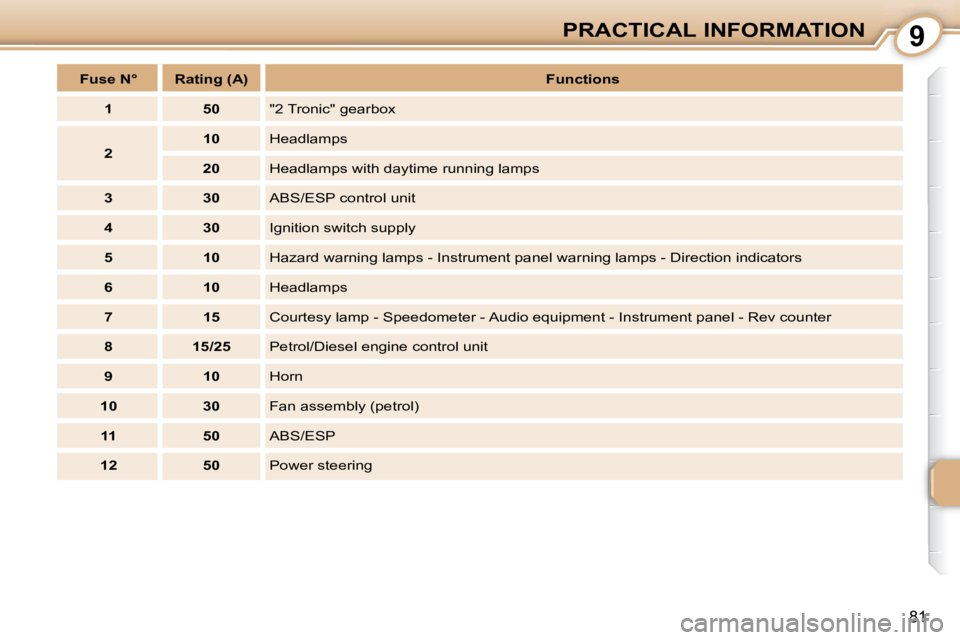

Fuse
N° Rating (A)
Functions
1 50 "2 Tronic" gearbox
2
10 Headlamps
20 Headlamps with daytime running lamps
3 30 ABS/ESP control unit
4 30 Ignition switch supply
5 10 Hazard warning lamps - Instrument panel warning lamps - Direct ion indicators
6 10 Headlamps
7 15 Courtesy lamp - Speedometer - Audio equipment - Instrument pan el - Rev counter
8 15/25 Petrol/Diesel engine control unit
9 10 Horn
10 30 Fan assembly (petrol)
11 50 ABS/ESP
12 50 Power steering
Page 90 of 97
9
82
PRACTICAL INFORMATION

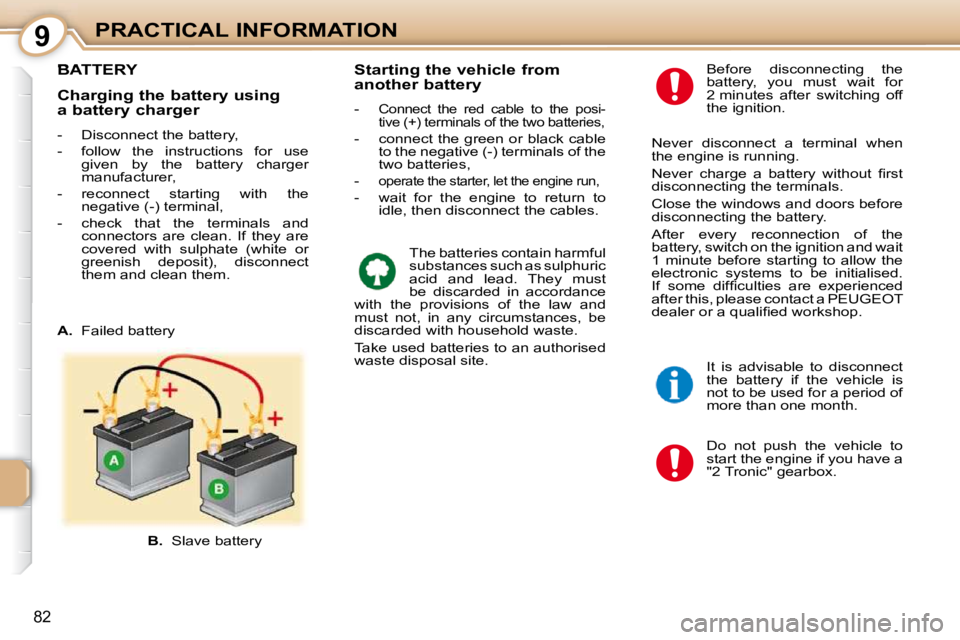

BATTERY
Do not push the vehicle to
start the engine if you have a
"2 Tronic" gearbox.
Before disconnecting the
battery, you must wait for
2 minutes after switching off
the ignition.
Starting the vehicle from
another battery
-
Connect the red cable to the posi-
tive (+) terminals of the two batteries,
- connect the green or black cable to the negative (-) terminals of the
two batteries,
-
operate the starter, let the engine run,
- wait for the engine to return to idle, then disconnect the cables.
It is advisable to disconnect
the battery if the vehicle is
not to be used for a period of
more than one month.
The batteries contain harmful
substances such as sulphuric
acid and lead. They must
be discarded in accordance
with the provisions of the law and
must not, in any circumstances, be
discarded with household waste.
Take used batteries to an authorised
waste disposal site.
Charging the battery using
a battery charger
- Disconnect the battery,
- follow the instructions for use
given by the battery charger
manufacturer,
- reconnect starting with the negative (-) terminal,
- check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect
them and clean them.
A. Failed battery
B. Slave battery Never disconnect a terminal when
the engine is running.
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
Close the windows and doors before
disconnecting the battery.
After every reconnection of the
battery, switch on the ignition and wait
1 minute before starting to allow the
electronic systems to be initialised.
I f s o m e d i f fi c u l t i e s a r e e x p e r i e n c e d
after this, please contact a PEUGEOT
d e a l e r o r a q u a l i fi e d w o r k s h o p .
