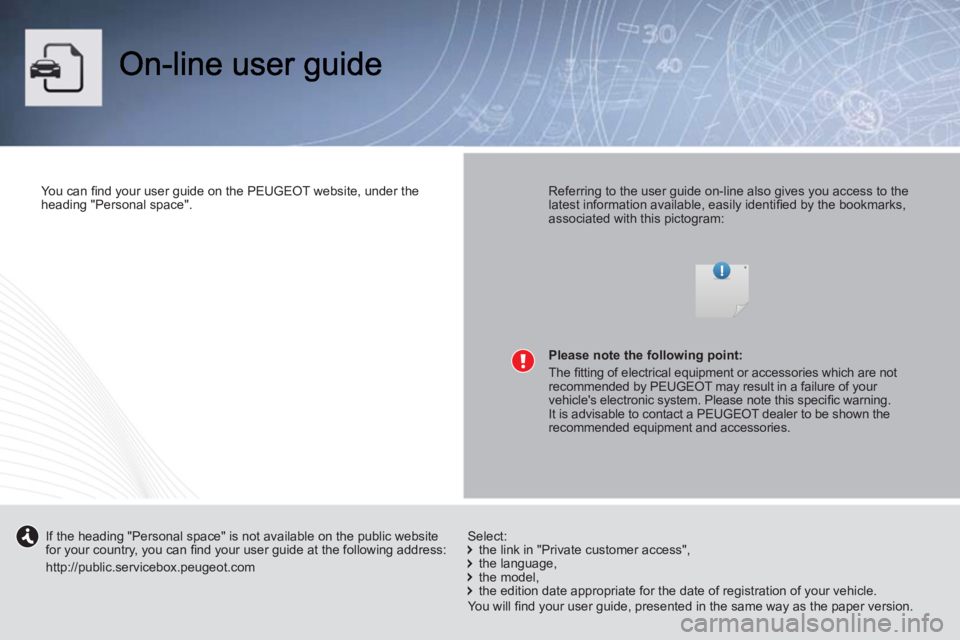

You can fi nd your user guide on the PEUGEOT website, under the
heading "Personal space".
Referring to the user guide on-line also gives you access to the
latest information available, easily identifi ed by the bookmarks,
associated with this pictogram:
If the heading "Personal space" is not available on the public website
for your country, you can fi nd your user guide at the following address:
http://public.servicebox.peugeot.com the link in "Private customer access",
the language,
the model,
the edition date appropriate for the date of registration of your vehicle.
Please note the following point:
The fi tting of electrical equipment or accessories which are not
recommended by PEUGEOT may result in a failure of your
vehicle's electronic system. Please note this specifi c warning.
It is advisable to contact a PEUGEOT dealer to be shown the
recommended equipment and accessories.
Select:
You will fi nd your user guide, presented in the same way as the paper version.
Page 3 of 140

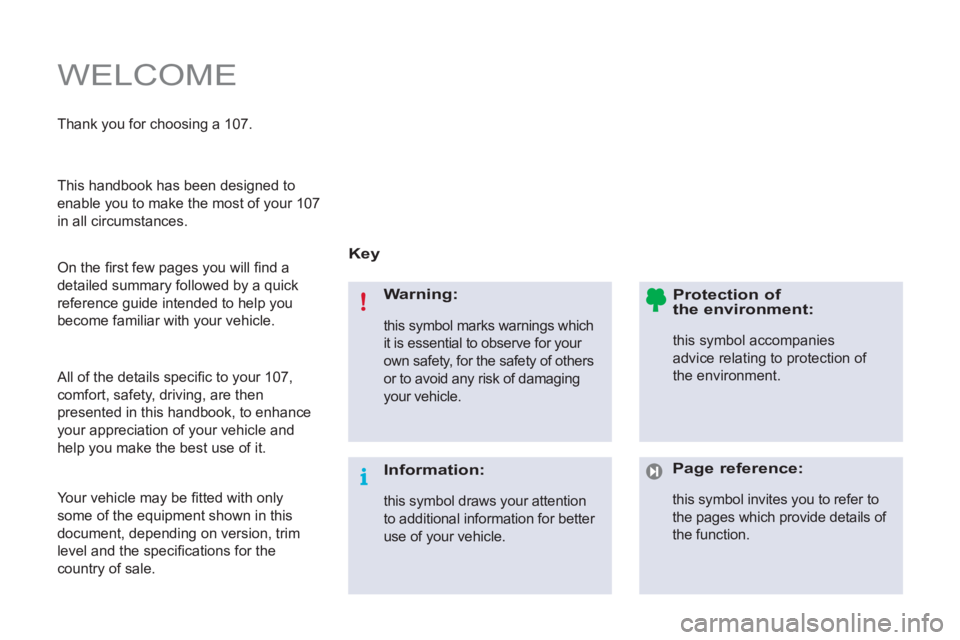

WELCOME
Key
Warning:
this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.
Information:
this symbol draws your attention
to additional information for better
use of your vehicle.
Protection of
the environment:
this symbol accompanies
advice relating to protection of
the environment.
Page reference:
this symbol invites you to refer to
the pages which provide details of
the function. Thank you for choosing a 107.
All of the details specifi c to your 107,
comfort, safety, driving, are then
presented in this handbook, to enhance
your appreciation of your vehicle and
help you make the best use of it. This handbook has been designed to
enable you to make the most of your 107
in all circumstances.
On the fi rst few pages you will fi nd a
detailed summary followed by a quick
reference guide intended to help you
become familiar with your vehicle.
Your vehicle may be fi tted with only
some of the equipment shown in this
document, depending on version, trim
level and the specifi cations for the
country of sale.
Page 4 of 140
.
.

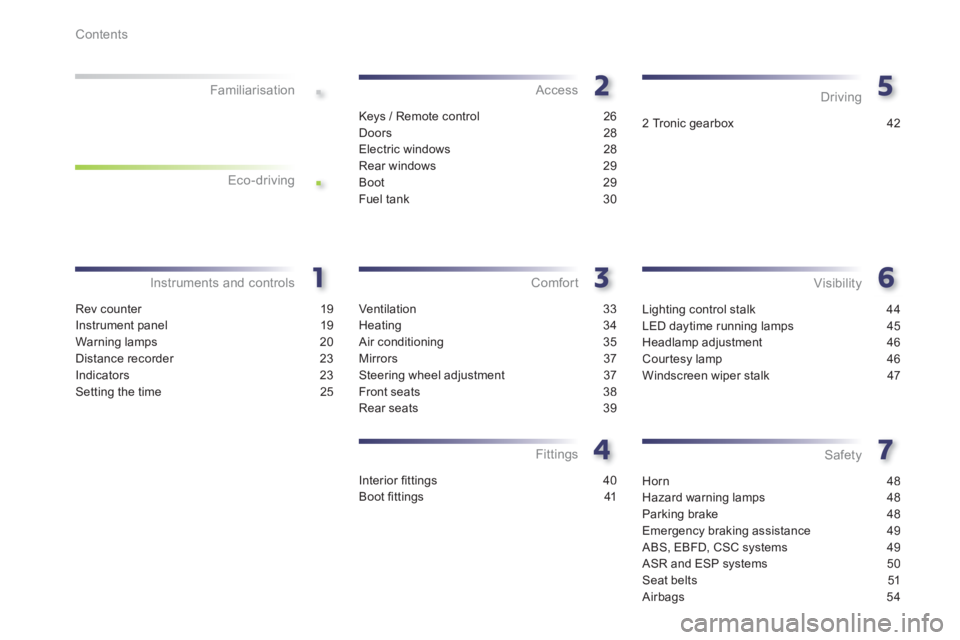

Contents
Horn 48
Hazard warning lamps 48
Parking brake 48
Emergency braking assistance 49
ABS, EBFD, CSC systems 49
ASR and ESP systems 50
Seat belts 51
Airbags 54
Safety
Rev counter 19
Instrument panel 19
Warning lamps 20
Distance recorder 23
Indicators 23
Setting the time 25
Instruments and controlsFamiliarisation
Keys / Remote control 26
Doors 28
Electric windows 28
Rear windows 29
Boot 29
Fuel tank 30
Access
Ventilation 33
Heating 34
Air conditioning 35
Mirrors 37
Steering wheel adjustment 37
Front seats 38
Rear seats 39
Comfort Eco-driving
Interior fi ttings 40
Boot fi ttings 41
Fittings
2 Tronic gearbox 42
Driving
Lighting control stalk 44
LED daytime running lamps 45
Headlamp adjustment 46
Courtesy lamp 46
Windscreen wiper stalk 47
Visibility
Page 5 of 140
.
.
Contents

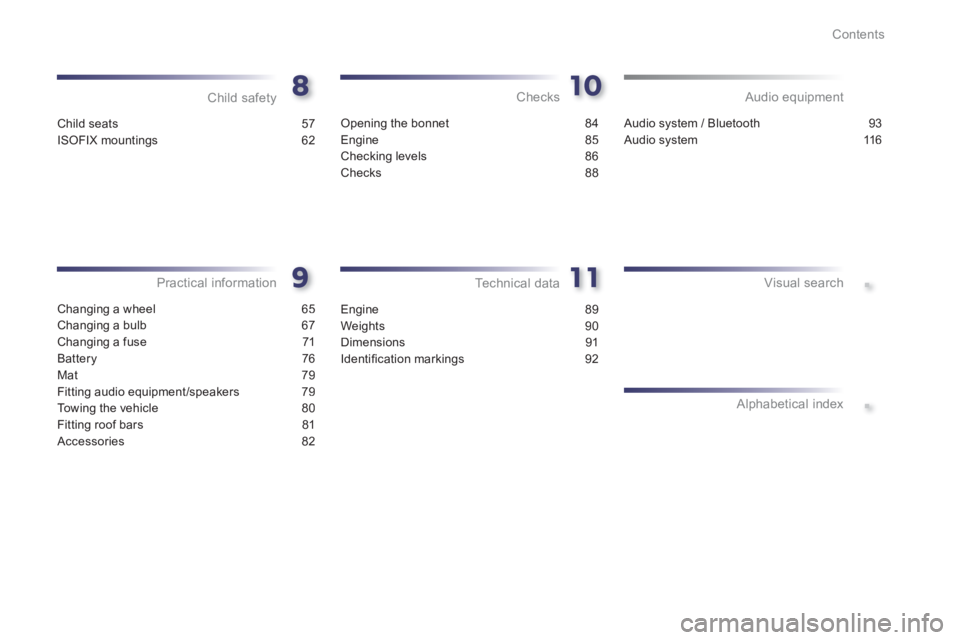

Child seats 57
ISOFIX mountings 62
Child safety
Changing a wheel 65
Changing a bulb 67
Changing a fuse 71
Battery 76
Mat 79
Fitting audio equipment/speakers 79
To w i ng the vehicle 80
Fitting roof bars 81
Accessories 82
Practical information
Audio system / Bluetooth 93
Audio system 116
Audio equipment
Alphabetical indexVisual search
Opening the bonnet 84
Engine 85
Checking levels 86
Checks 88
Checks
Engine 89
Weights 90
Dimensions 91
Identifi cation markings 92
Technical data
Page 6 of 140
Familiarisation
4

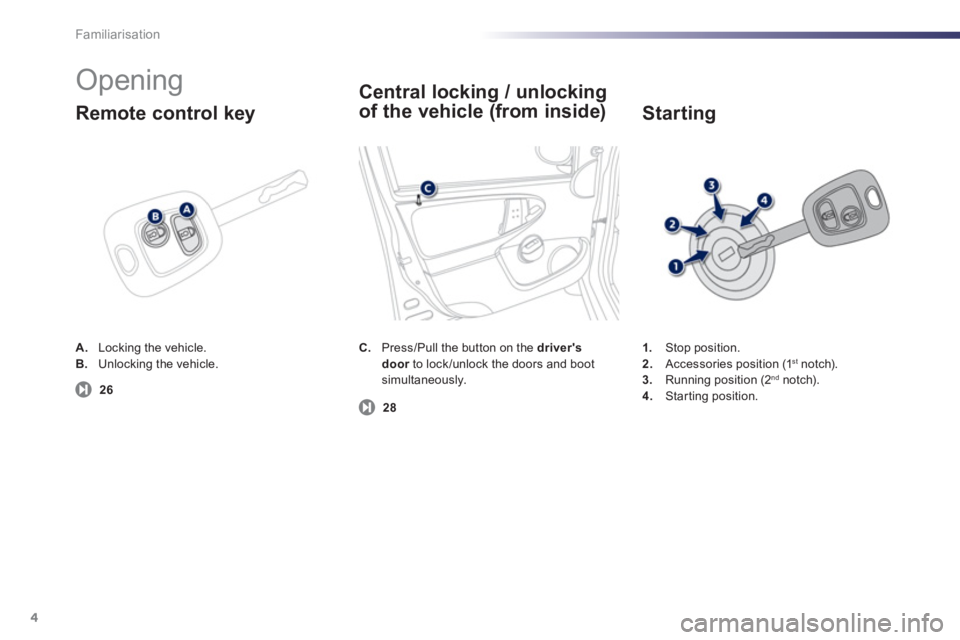

Opening
C.
Press/Pull the button on the driver's doorto lock /unlock the doors and bootrsimultaneously.
1.
Stop position. 2.Accessories position (1st
notch). 3.Running position (2 ndnotch).4.
Starting position.
A.
Locking the vehicle.B.Unlocking the vehicle.
Remote control key
Central lockin
g / unlocking
of the vehicle (from inside)Starting
26
28
Page 7 of 140
.Familiarisation
5
When this bar flashes,
accompanied by an audible signal,you have around 5litres of fuel
remaining.
1. Interior release lever.2.Exterior safety catch. 3.Bonnet stay.
Low fuel level
Unscrew the cap using the key.
After filling the fuel tank, screw the cap back on
fully to the right until it clicks and close the flap.
Fuel tank capacity: approximately35 litres.
After opening the flap, inser t the key in the filler cap, then turn it slightly to the left then return to
the right.
The key returns to its initial position and the cap is unlocked.

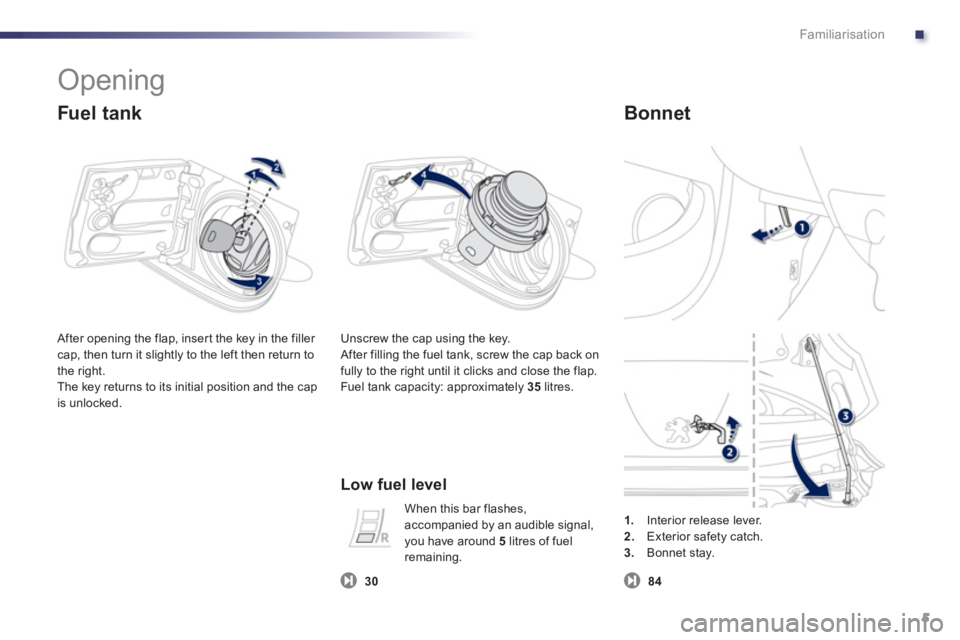

Opening
Fuel t ank
Bonnet
3084
Page 8 of 140
Familiarisation
6

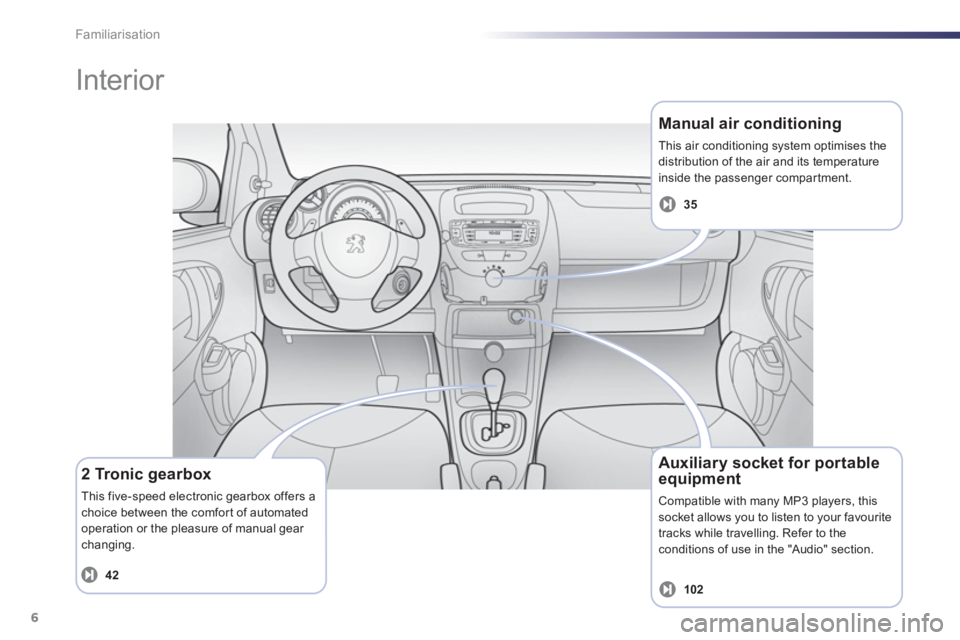

Manual air conditioning
This air conditioning system optimises the
distribution of the air and its temperatureinside the passenger compartment.
2 Tronic gearbox
This five-speed electronic gearbox offers achoice between the comfort of automatedoperation or the pleasure of manual gear
changing.
Auxiliary socket for portable equipment
Compatible with many MP3 players, this socket allows you to listen to your favourite
tracks while travelling. Refer to the conditions of use in the "Audio" section.
Interior
102
35
42
Page 9 of 140
.Familiarisation
7

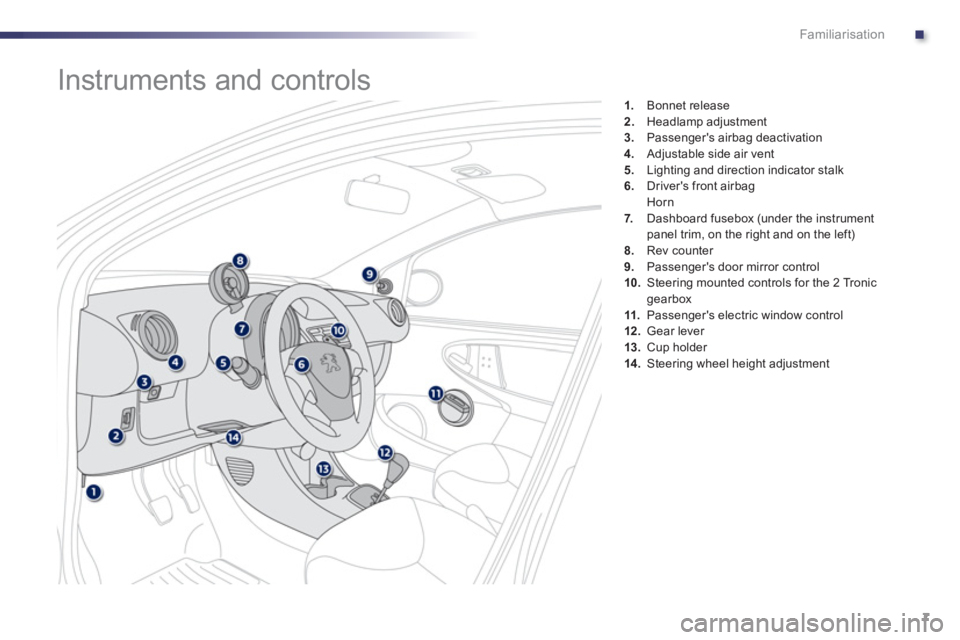

1. Bonnet release2.Headlamp adjustment 3.Passenger's airbag deactivation4.Adjustable side air vent
5.Lighting and direction indicator stalk
6. Driver's front airbag
Horn
7.Dashboard fusebox (under the instrument
panel trim, on the right and on the left)8. Rev counter 9.Passenger's door mirror control
10. Steering mounted controls for the 2 Tronicgearbox 11.
Passenger's electric window control12 .
Gear lever
13.Cup holder
14. Steering wheel height adjustment
Instruments and controls
Page 10 of 140
Familiarisation
8

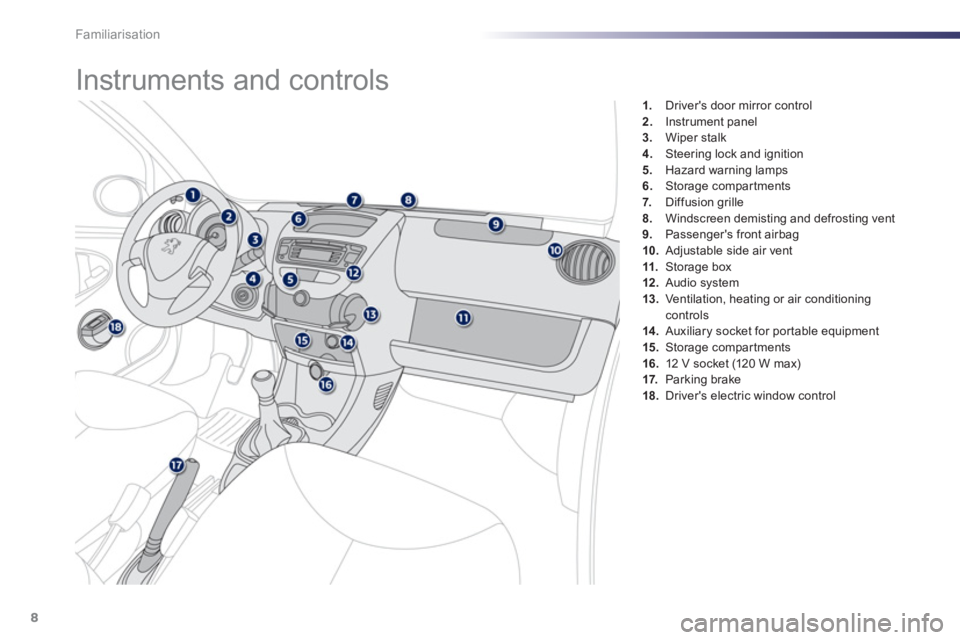

1. Driver's door mirror control 2.Instrument panel3.Wiper stalk 4.
Steering lock and ignition
5. Hazard warning lamps
6.Storage compar tments 7. Diffusion grille 8.Windscreen demisting and defrosting vent
9.
Passenger's front airbag10.Adjustable side air vent 11.
Storage box 12.
Audio system 13.Ventilation, heating or air conditioning controls14 .Auxiliary socket for por table equipment15.Storage compar tments 16.
12 V socket (120 W max)17.Parking brake18.Driver's electric window control
Instruments and controls
