Peugeot 107 Dag 2008 User Guide
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 107 Dag, Model: Peugeot 107 Dag 2008Pages: 97, PDF Size: 3.1 MB
Page 11 of 97
14
FAMILIARISATION
W h e n t h e i g n i t i o n i s o n , t h e o r a n g e
and red warning lights come on.
W h e n t h e e n g i n e i s r u n n i n g , t h e s e
warning lights should switch off.
I f w a r n i n g l i g h t s r e m a i n o n , r e f e r t o
the page concerned.
18
A. Rev counter
B. Display
C. Fuel gauge
17 The dynamic stability control system
(ASR/ESP) optimises the vehicle's
road holding.
F o r c o r r e c t o p e r a t i o n o f t h e s y s t e m ,
refer to the page concerned.
56
MONITOR THOROUGHLY
Instrument panel Warning lights ASR/ESP option
Page 12 of 97
15
FAMILIARISATION

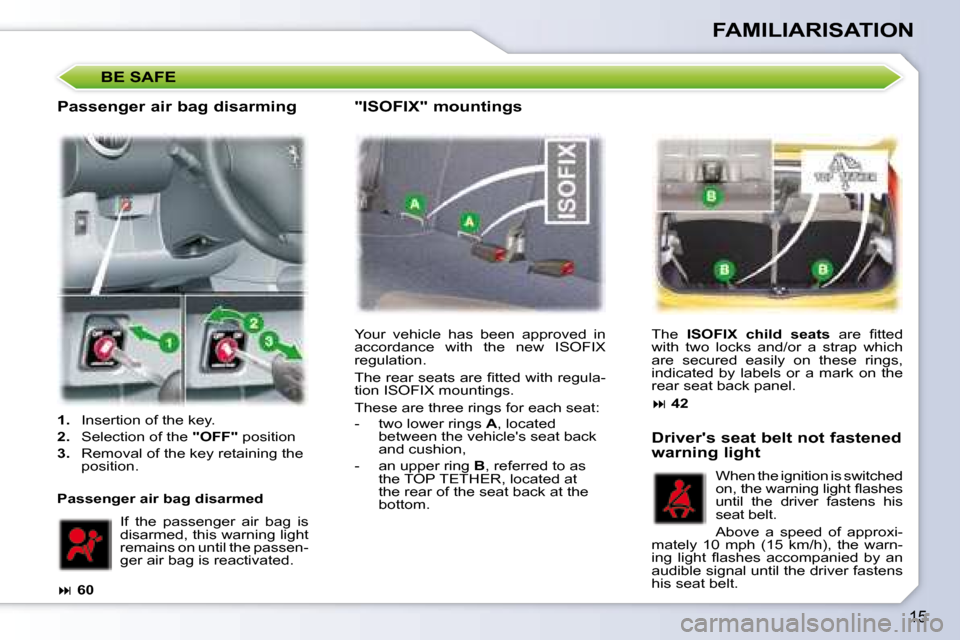

Your vehicle has been approved in
accordance with the new ISOFIX
regulation.
T h e r e a r s e a t s a r e fi t t e d w i t h r e g u l a -
tion ISOFIX mountings.
These are three rings for each seat:
- two lower rings A , l o c a t e d
between the vehicle's seat back
a n d c u s h i o n ,
- an upper ring B , r e f e r r e d t o a s
t h e T O P T E T H E R , l o c a t e d a t
the rear of the seat back at the
bottom. The
ISOFIX child seats a r e fi t t e d
with two locks and/or a strap which
a r e s e c u r e d e a s i l y o n t h e s e r i n g s ,
indicated by labels or a mark on the
rear seat back panel.
42
Passenger air bag disarmed
60 If the passenger air bag is
d i s a r m e d , t h i s w a r n i n g l i g h t
remains on until the passen-
ger air bag is reactivated. Driver's seat belt not fastened
warning light
1. Insertion of the key.
2. Selection of the "OFF" position
3. Removal of the key retaining the
position. When the ignition is switched
o n , t h e w a r n i n g l i g h t fl a s h e s
until the driver fastens his
seat belt.
Above a speed of approxi-
m a t e l y 1 0 m p h ( 1 5 k m / h ) , t h e w a r n -
i n g l i g h t fl a s h e s a c c o m p a n i e d b y a n
audible signal until the driver fastens
his seat belt.
BE SAFE
Passenger air bag disarming "ISOFIX" mountings
Page 13 of 97
16
FAMILIARISATION

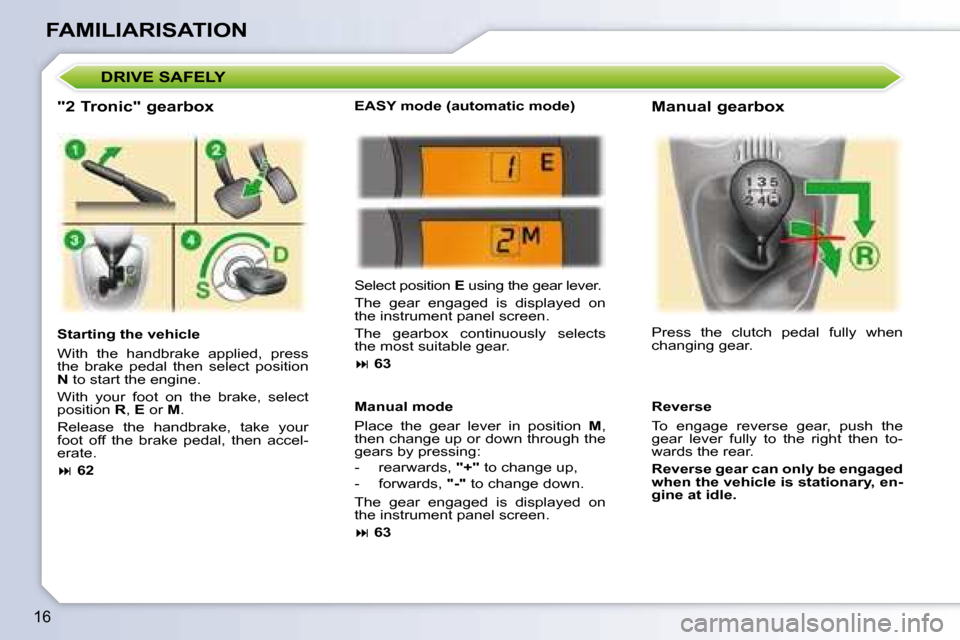

"2 Tronic" gearbox
Starting the vehicle
W i t h t h e h a n d b r a k e a p p l i e d , p r e s s
the brake pedal then select position
N to start the engine.
W i t h y o u r f o o t o n t h e b r a k e , s e l e c t
position R , E or M .
R e l e a s e t h e h a n d b r a k e , t a k e y o u r
f o o t o f f t h e b r a k e p e d a l , t h e n a c c e l -
erate.
62 Select position
E using the gear lever.
The gear engaged is displayed on
the instrument panel screen.
The gearbox continuously selects
the most suitable gear.
63
Manual mode
Place the gear lever in position M ,
then change up or down through the
gears by pressing:
- r e a r w a r d s , "+" t o c h a n g e u p ,
- f o r w a r d s , "-" to change down.
The gear engaged is displayed on
the instrument panel screen.
63 Press the clutch pedal fully when
changing gear.
Reverse
T o e n g a g e r e v e r s e g e a r , p u s h t h e
gear lever fully to the right then to-
wards the rear.
Reverse gear can only be engaged
when the vehicle is stationary, en-
gine at idle.
DRIVE SAFELY
EASY mode (automatic mode)
Manual gearbox
Page 14 of 97
1
17
INSTRUMENTS and CONTROLS

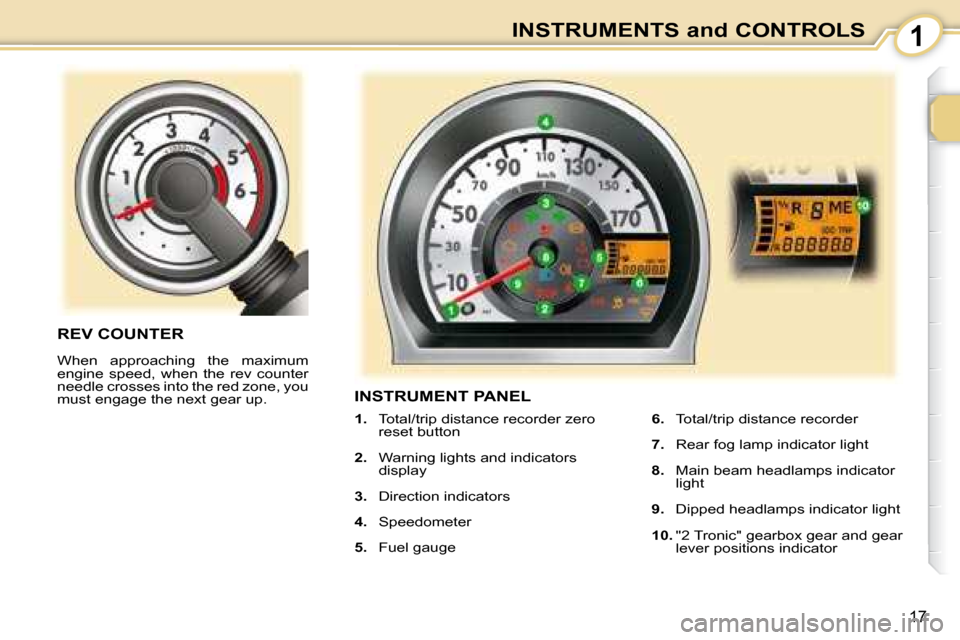

INSTRUMENT PANEL
1. Total/trip distance recorder zero
reset button
2. Warning lights and indicators
display
3. Direction indicators
4. Speedometer
5. Fuel gauge
6. Total/trip distance recorder
7. Rear fog lamp indicator light
8. Main beam headlamps indicator
light
9. Dipped headlamps indicator light
REV COUNTER
When approaching the maximum
engine speed, when the rev counter
needle crosses into the red zone, you
must engage the next gear up.
10. "2 Tronic" gearbox gear and gear
lever positions indicator
Page 15 of 97
1
18
INSTRUMENTS and CONTROLS

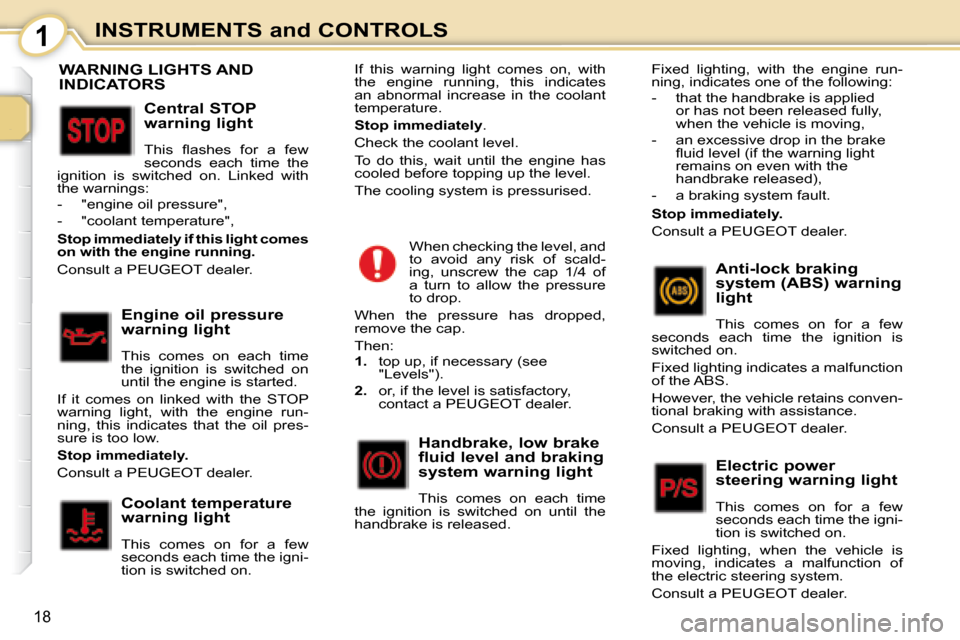

WARNING LIGHTS AND
INDICATORS
Central STOP
warning light
T h i s fl a s h e s f o r a f e w
seconds each time the
ignition is switched on. Linked with
the warnings:
- "engine oil pressure",
- "coolant temperature",
Stop immediately if this light comes
on with the engine running.
Consult a PEUGEOT dealer.
Engine oil pressure
warning light
This comes on each time
the ignition is switched on
until the engine is started.
If it comes on linked with the STOP
warning light, with the engine run-
ning, this indicates that the oil pres-
sure is too low.
Stop immediately.
Consult a PEUGEOT dealer.
Coolant temperature
warning light
This comes on for a few
seconds each time the igni-
tion is switched on. Anti-lock braking
system (ABS) warning
light
This comes on for a few
seconds each time the ignition is
switched on.
Fixed lighting indicates a malfunction
of the ABS.
However, the vehicle retains conven-
tional braking with assistance.
Consult a PEUGEOT dealer.
Handbrake, low brake
fluid level and braking
system warning light
This comes on each time
the ignition is switched on until the
handbrake is released. Electric power
steering warning light
This comes on for a few
seconds each time the igni-
tion is switched on.
Fixed lighting, when the vehicle is
moving, indicates a malfunction of
the electric steering system.
Consult a PEUGEOT dealer.
If this warning light comes on, with
the engine running, this indicates
an abnormal increase in the coolant
temperature.
Stop immediately .
Check the coolant level.
To do this, wait until the engine has
cooled before topping up the level.
The cooling system is pressurised.
When checking the level, and
to avoid any risk of scald-
ing, unscrew the cap 1/4 of
a turn to allow the pressure
to drop.
When the pressure has dropped,
remove the cap.
Then:
1. top up, if necessary (see
"Levels").
2. or, if the level is satisfactory,
contact a PEUGEOT dealer. Fixed lighting, with the engine run-
ning, indicates one of the following:
- that the handbrake is applied
or has not been released fully,
when the vehicle is moving,
- an excessive drop in the brake fl u i d l e v e l ( i f t h e w a r n i n g l i g h t
remains on even with the
handbrake released),
- a braking system fault.
Stop immediately.
Consult a PEUGEOT dealer.
Page 16 of 97
1
19
INSTRUMENTS and CONTROLS

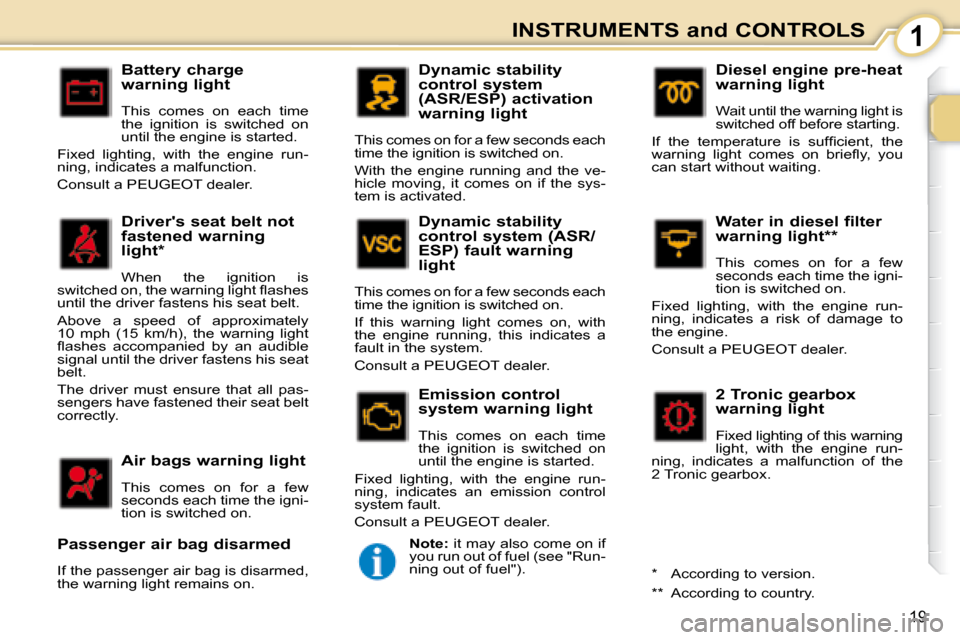

Battery charge
warning light
This comes on each time
the ignition is switched on
until the engine is started.
Fixed lighting, with the engine run-
ning, indicates a malfunction.
Consult a PEUGEOT dealer.
Driver's seat belt not
fastened warning
light *
When the ignition is
s w i t c h e d o n , t h e w a r n i n g l i g h t fl a s h e s
until the driver fastens his seat belt.
Above a speed of approximately
10 mph (15 km/h), the warning light
fl a s h e s a c c o m p a n i e d b y a n a u d i b l e
signal until the driver fastens his seat
belt.
The driver must ensure that all pas-
sengers have fastened their seat belt
correctly.
Air bags warning light
This comes on for a few
seconds each time the igni-
tion is switched on.
Passenger air bag disarmed
If the passenger air bag is disarmed,
the warning light remains on. 2 Tronic gearbox
warning light
Fixed lighting of this warning
light, with the engine run-
ning, indicates a malfunction of the
2 Tronic gearbox.
Emission control
system warning light
This comes on each time
the ignition is switched on
until the engine is started.
Fixed lighting, with the engine run-
ning, indicates an emission control
system fault.
Consult a PEUGEOT dealer. Diesel engine pre-heat
warning light
Wait until the warning light is
switched off before starting.
I f t h e t e m p e r a t u r e i s s u f fi c i e n t , t h e
w a r n i n g l i g h t c o m e s o n b r i e fl y , y o u
can start without waiting.
Water in diesel filter
warning light **
This comes on for a few
seconds each time the igni-
tion is switched on.
Fixed lighting, with the engine run-
ning, indicates a risk of damage to
the engine.
Consult a PEUGEOT dealer.
* According to version.
Note: it may also come on if
you run out of fuel (see "Run-
ning out of fuel").
** According to country.
Dynamic stability
control system
(ASR/ESP) activation
warning light
This comes on for a few seconds each
time the ignition is switched on.
With the engine running and the ve-
hicle moving, it comes on if the sys-
tem is activated. Dynamic stability
control system (ASR/
ESP) fault warning
light
This comes on for a few seconds each
time the ignition is switched on.
If this warning light comes on, with
the engine running, this indicates a
fault in the system.
Consult a PEUGEOT dealer.
Page 17 of 97
1
20
INSTRUMENTS and CONTROLS

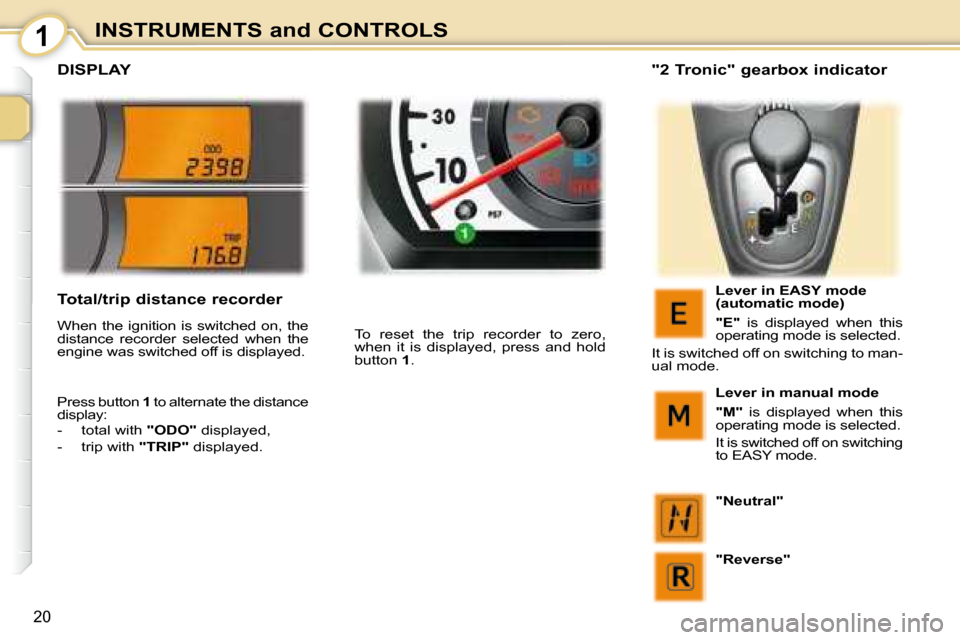

DISPLAY
To reset the trip recorder to zero,
when it is displayed, press and hold
button 1 . "2 Tronic" gearbox indicator
Lever in EASY mode
(automatic mode)
"E" is displayed when this
operating mode is selected.
It is switched off on switching to man-
ual mode.
Lever in manual mode
"M" is displayed when this
operating mode is selected.
It is switched off on switching
to EASY mode.
"Neutral"
"Reverse"
Total/trip distance recorder
When the ignition is switched on, the
distance recorder selected when the
engine was switched off is displayed.
Press button
1 to alternate the distance
display:
- total with "ODO" displayed,
- trip with "TRIP" displayed.
Page 18 of 97
1
20
INSTRUMENTS and CONTROLS
DISPLAY
To reset the trip recorder to zero,
when it is displayed, press and hold
button 1 . "2 Tronic" gearbox indicator
Lever in EASY mode
(automatic mode)
"E" is displayed when this
operating mode is selected.
It is switched off on switching to man-
ual mode.
Lever in manual mode
"M" is displayed when this
operating mode is selected.
It is switched off on switching
to EASY mode.
"Neutral"
"Reverse"
Total/trip distance recorder
When the ignition is switched on, the
distance recorder selected when the
engine was switched off is displayed.
Press button
1 to alternate the distance
display:
- total with "ODO" displayed,
- trip with "TRIP" displayed.
Page 19 of 97
1
21
INSTRUMENTS and CONTROLS

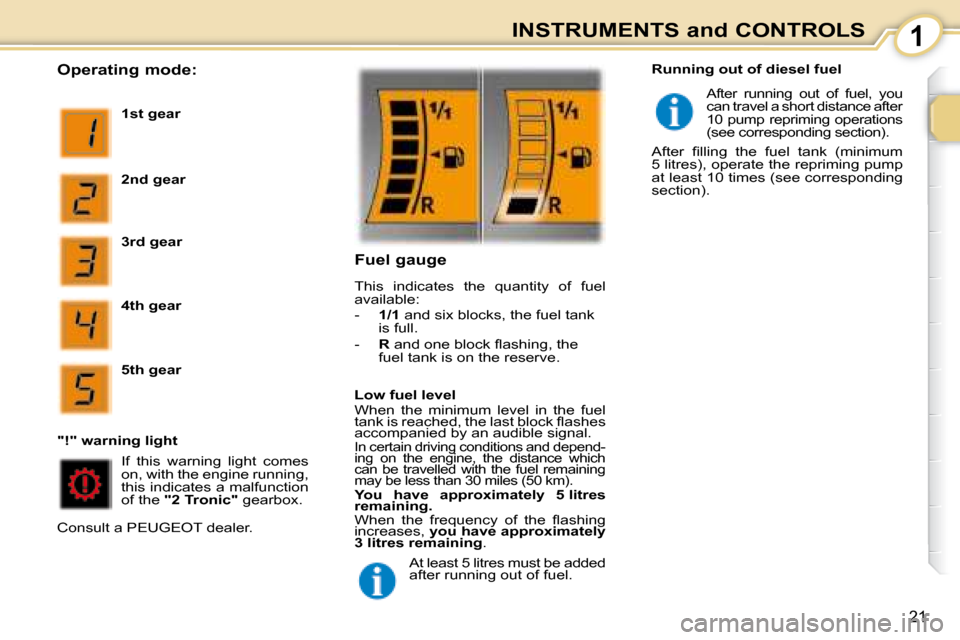

Operating mode:
1st gear
2nd gear
3rd gear
4th gear
5th gear
If this warning light comes
on, with the engine running,
this indicates a malfunction
of the "2 Tronic" gearbox. Fuel gauge
This indicates the quantity of fuel
available:
-
1/1 and six blocks, the fuel tank
is full.
- R a n d o n e b l o c k fl a s h i n g , t h e
fuel tank is on the reserve.
Low fuel level
When the minimum level in the fuel
t a n k i s r e a c h e d , t h e l a s t b l o c k fl a s h e s
accompanied by an audible signal.
In certain driving conditions and depend-
ing on the engine, the distance which
can be travelled with the fuel remaining
may be less than 30 miles (50 km).
You have approximately 5 litres
remaining.
W h e n t h e f r e q u e n c y o f t h e fl a s h i n g
increases, you have approximately
3 litres remaining .
At least 5 litres must be added
after running out of fuel. Running out of diesel fuel
After running out of fuel, you
can travel a short distance after
10 pump repriming operations
(see corresponding section).
A f t e r fi l l i n g t h e f u e l t a n k ( m i n i m u m
5 litres), operate the repriming pump
at least 10 times (see corresponding
section).
"!" warning light
Consult a PEUGEOT dealer.
Page 20 of 97
2
22

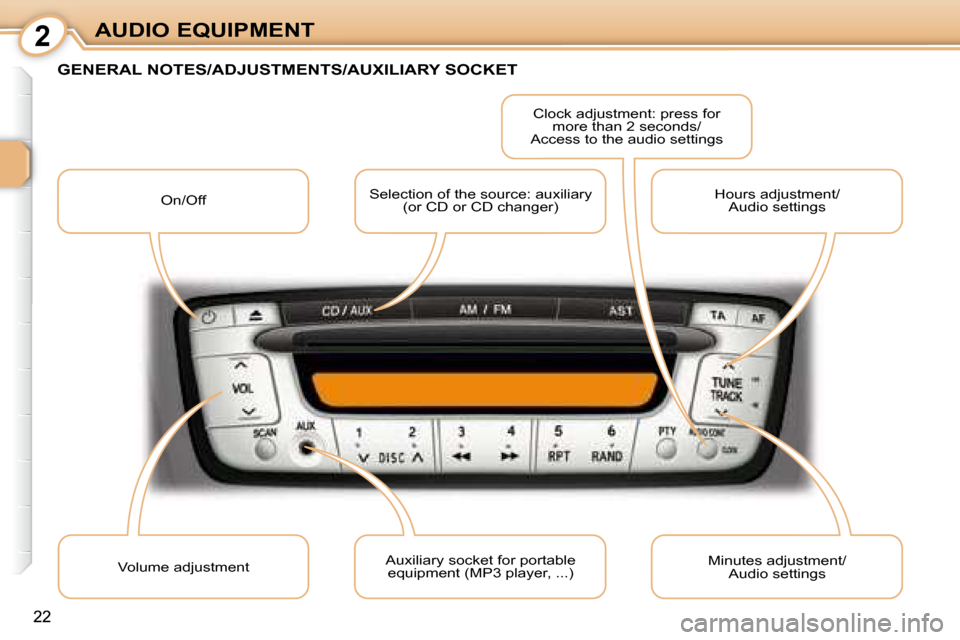

AUDIO EQUIPMENT
GENERAL NOTES/ADJUSTMENTS/AUXILIARY SOCKET
On/Off Selection of the source: auxiliary
(or CD or CD changer) Clock adjustment: press for
more than 2 seconds/
Access to the audio settings
Volume adjustment Auxiliary socket for portable
equipment (MP3 player, ...) Hours adjustment/
Audio settings
Minutes adjustment/ Audio settings
22
