Peugeot 107 Dag 2008 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 107 Dag, Model: Peugeot 107 Dag 2008Pages: 97, PDF Size: 3.1 MB

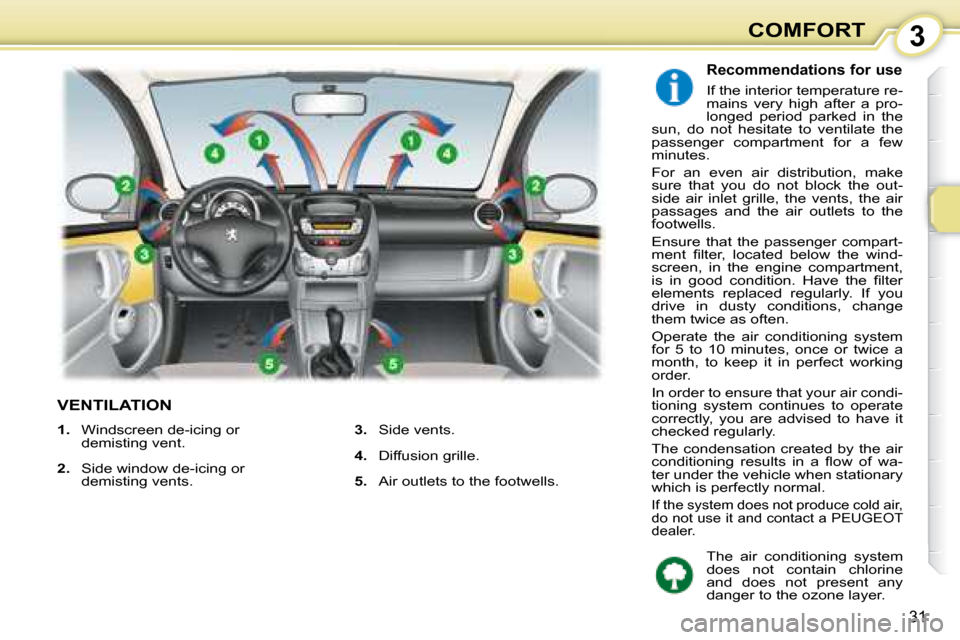

Page 31 of 97
3
31
COMFORT
VENTILATION
Recommendations for use
If the interior temperature re-
mains very high after a pro-
longed period parked in the
sun, do not hesitate to ventilate the
passenger compartment for a few
minutes.
For an even air distribution, make
sure that you do not block the out-
side air inlet grille, the vents, the air
passages and the air outlets to the
footwells.
Ensure that the passenger compart-
m e n t fi l t e r , l o c a t e d b e l o w t h e w i n d -
screen, in the engine compartment,
i s i n g o o d c o n d i t i o n . H a v e t h e fi l t e r
elements replaced regularly. If you
drive in dusty conditions, change
them twice as often.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
In order to ensure that your air condi-
tioning system continues to operate
correctly, you are advised to have it
checked regularly.
The condensation created by the air
c o n d i t i o n i n g r e s u l t s i n a fl o w o f w a -
ter under the vehicle when stationary
which is perfectly normal.
If the system does not produce cold air,
do not use it and contact a PEUGEOT
dealer.
3. Side vents.
4. Diffusion grille.
5. Air outlets to the footwells.
1. Windscreen de-icing or
demisting vent.
2. Side window de-icing or
demisting vents.
The air conditioning system
does not contain chlorine
and does not present any
danger to the ozone layer.
Page 32 of 97
3
32
COMFORT

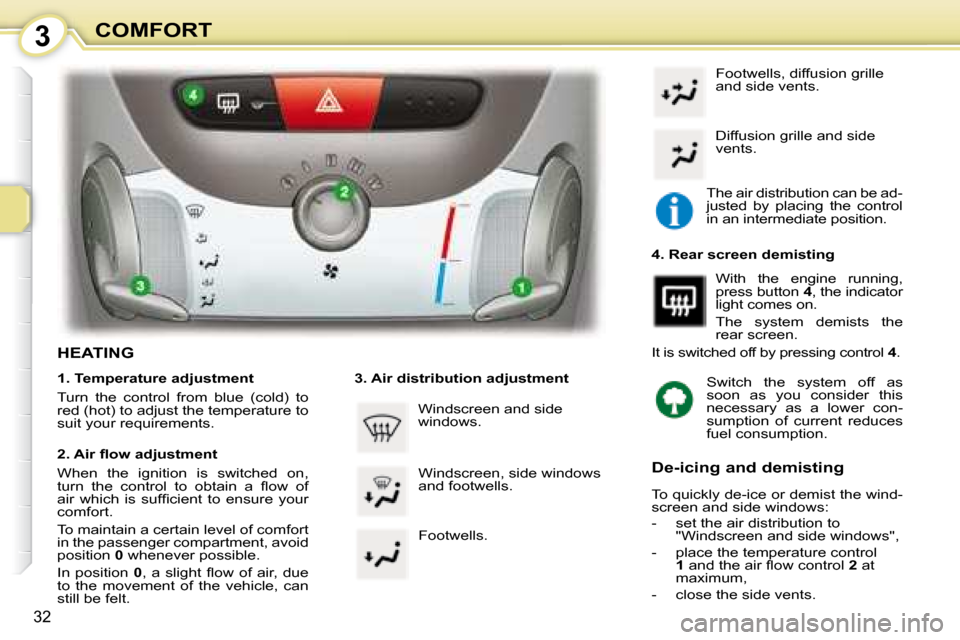

HEATING
1. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
2 . A i r fl o w a d j u s t m e n t
When the ignition is switched on,
t u r n t h e c o n t r o l t o o b t a i n a fl o w o f
a i r w h i c h i s s u f fi c i e n t t o e n s u r e y o u r
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 whenever possible.
In position 0 , a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can
still be felt. The air distribution can be ad-
justed by placing the control
in an intermediate position.
Footwells. 4. Rear screen demisting
With the engine running,
press button 4 , the indicator
light comes on.
The system demists the
rear screen.
It is switched off by pressing control 4 .
Windscreen, side windows
and footwells. Footwells, diffusion grille
and side vents.
Diffusion grille and side
vents.
3. Air distribution adjustment Windscreen and side
windows. Switch the system off as
soon as you consider this
necessary as a lower con-
sumption of current reduces
fuel consumption.
De-icing and demisting
To quickly de-ice or demist the wind-
screen and side windows:
- set the air distribution to "Windscreen and side windows",
- place the temperature control
1 a n d t h e a i r fl o w c o n t r o l 2 at
maximum,
- close the side vents.
Page 33 of 97
3
33
COMFORT
1. Air conditioning On/Off With the engine running,
press the button, the indi-
cator light comes on.
1. Air conditioning On/Off
2. Temperature adjustment
3. A i r fl o w a d j u s t m e n t

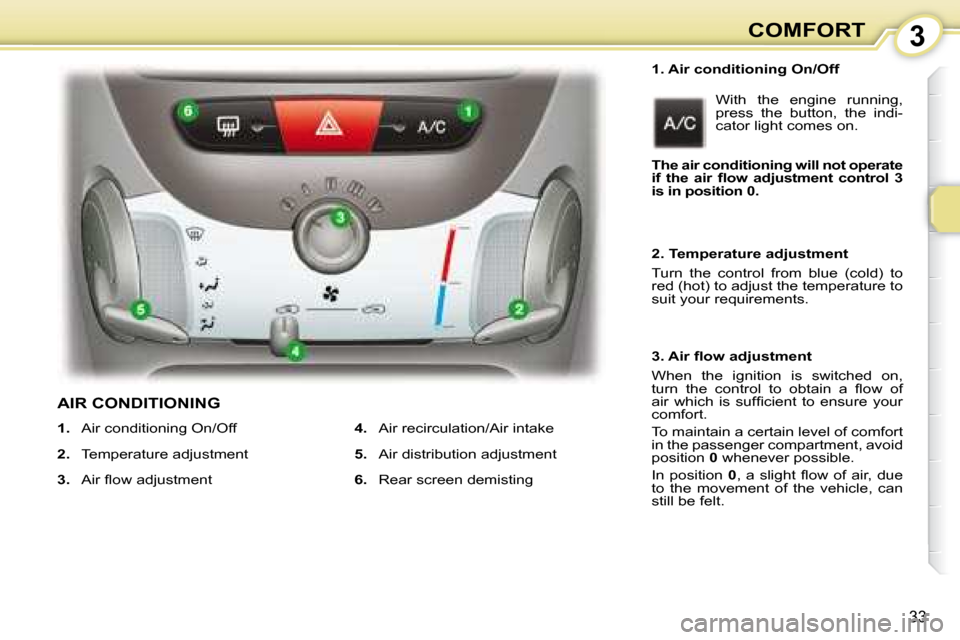

AIR CONDITIONING
2. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
4. Air recirculation/Air intake
5. Air distribution adjustment
6. Rear screen demisting 3 . A i r fl o w a d j u s t m e n t
When the ignition is switched on,
t u r n t h e c o n t r o l t o o b t a i n a fl o w o f
a i r w h i c h i s s u f fi c i e n t t o e n s u r e y o u r
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position
0 whenever possible.
In position 0 , a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can
still be felt.
T h e a i r c o n d i t i o n i n g w i l l n o t o p e r a t e
i f t h e a i r fl o w a d j u s t m e n t c o n t r o l 3
is in position 0.
Page 34 of 97
3
34
COMFORT Footwells.

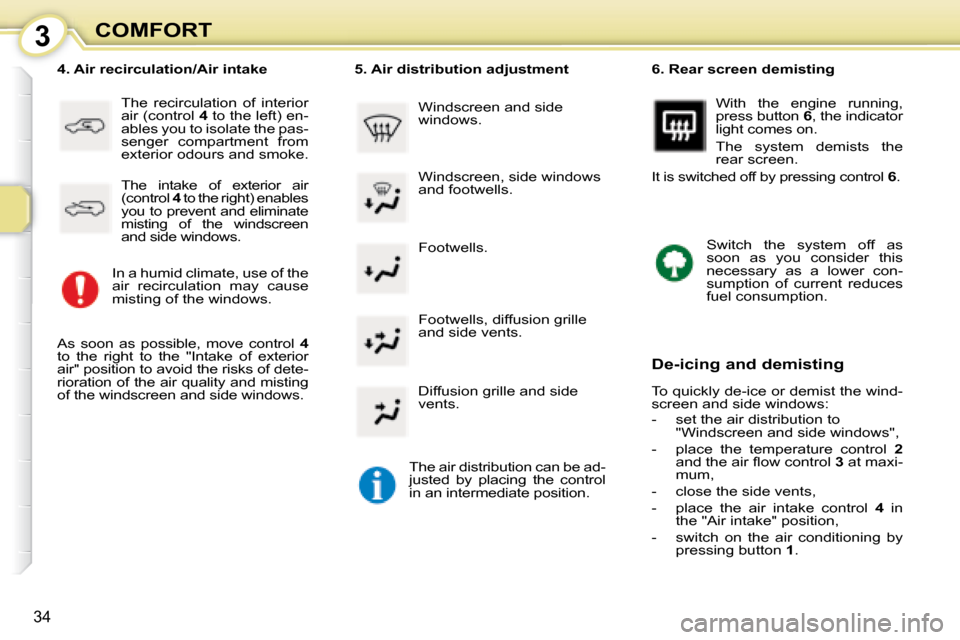

4 . A i r r e c i r c u l a t i o n / A i r i n t a k e
The recirculation of interior
air (control 4 to the left) en-
ables you to isolate the pas-
senger compartment from
exterior odours and smoke. 5. Air distribution adjustment
Windscreen and side
windows.
The air distribution can be ad-
justed by placing the control
in an intermediate position. Windscreen, side windows
and footwells.
Footwells, diffusion grille
and side vents.
Diffusion grille and side
vents. 6. Rear screen demisting
As soon as possible, move control 4
to the right to the "Intake of exterior
air" position to avoid the risks of dete-
rioration of the air quality and misting
of the windscreen and side windows. The intake of exterior air
(control
4 to the right) enables
you to prevent and eliminate
misting of the windscreen
and side windows. With the engine running,
press button
6 , the indicator
light comes on.
The system demists the
rear screen.
It is switched off by pressing control 6 .
In a humid climate, use of the
air recirculation may cause
misting of the windows. Switch the system off as
soon as you consider this
necessary as a lower con-
sumption of current reduces
fuel consumption.
De-icing and demisting
To quickly de-ice or demist the wind-
screen and side windows:
- set the air distribution to "Windscreen and side windows",
- place the temperature control 2
a n d t h e a i r fl o w c o n t r o l 3 at maxi-
mum,
- close the side vents,
- place the air intake control 4 in
the "Air intake" position,
- switch on the air conditioning by pressing button 1 .
Page 35 of 97
3
35
COMFORT

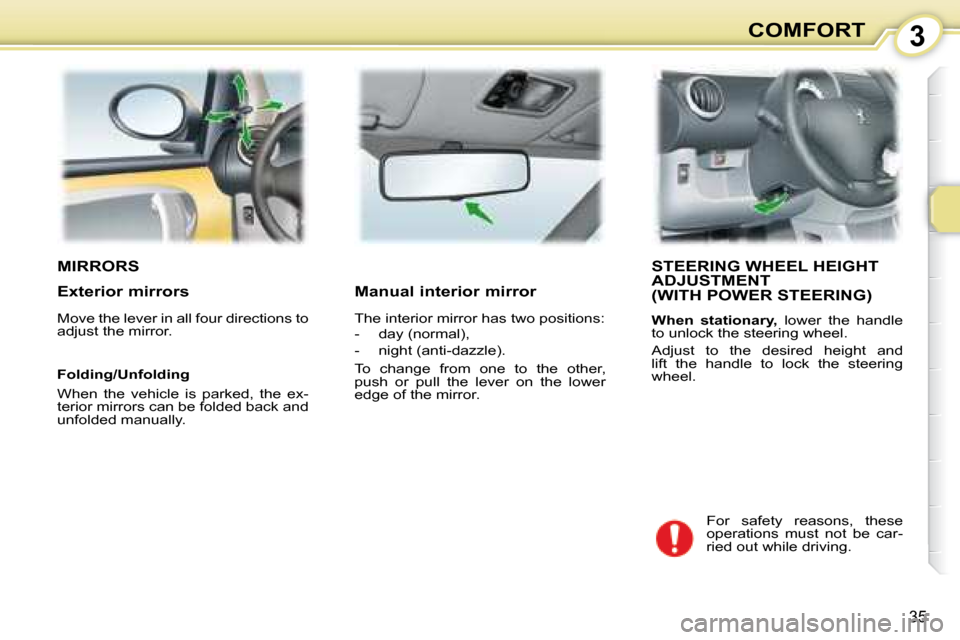

MIRRORS STEERING WHEEL HEIGHT
ADJUSTMENT
(WITH POWER STEERING)
When stationary, lower the handle
to unlock the steering wheel.
Adjust to the desired height and
lift the handle to lock the steering
wheel.
F o l d i n g / U n f o l d i n g
When the vehicle is parked, the ex-
terior mirrors can be folded back and
unfolded manually. M a n u a l i n t e r i o r m i r r o r
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.
Exterior mirrors
Move the lever in all four directions to
adjust the mirror.
For safety reasons, these
operations must not be car-
ried out while driving.
Page 36 of 97
3
36
COMFORT

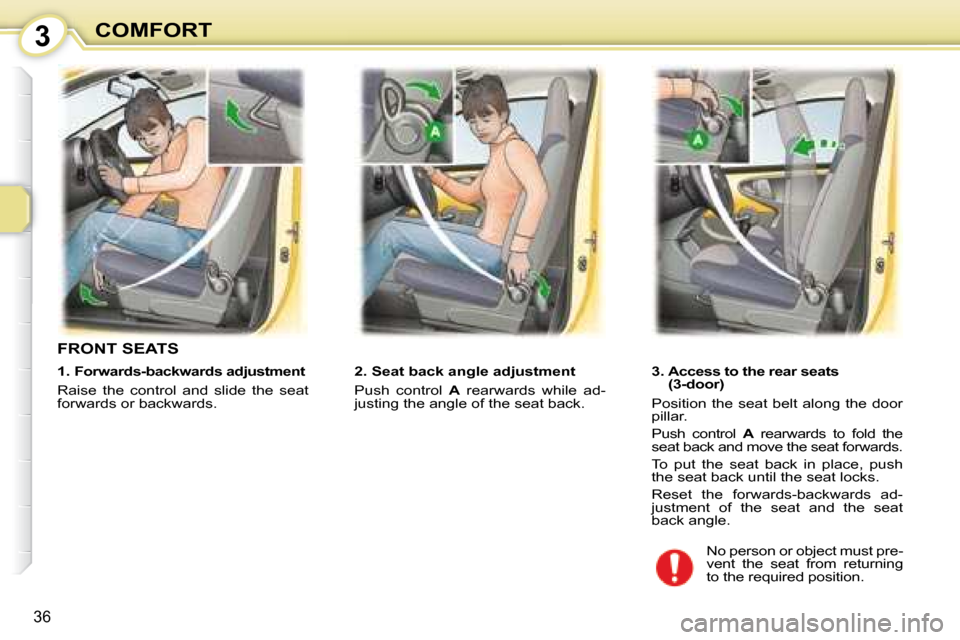

FRONT SEATS
2 . S e a t b a c k a n g l e a d j u s t m e n t
Push control A rearwards while ad-
justing the angle of the seat back. 3. Access to the rear seats
(3-door)
Position the seat belt along the door
pillar.
Push control A rearwards to fold the
seat back and move the seat forwards.
To put the seat back in place, push
the seat back until the seat locks.
Reset the forwards-backwards ad-
justment of the seat and the seat
back angle.
1 . F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Raise the control and slide the seat
forwards or backwards.
No person or object must pre-
vent the seat from returning
to the required position.
Page 37 of 97
3
37
COMFORT

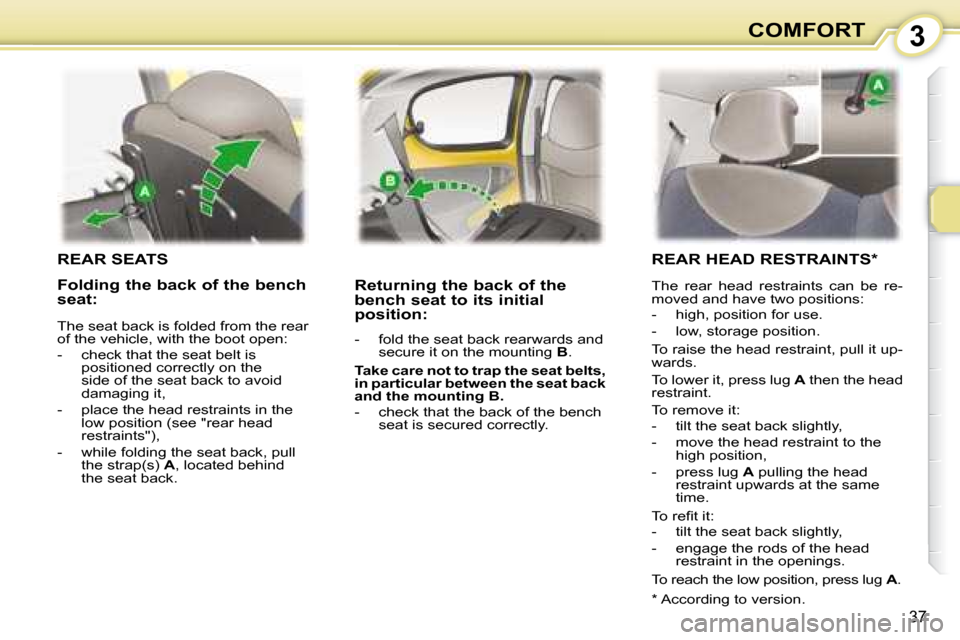

REAR SEATS
R e t u r n i n g t h e b a c k o f t h e
b e n c h s e a t t o i t s i n i t i a l
position:
- fold the seat back rearwards and secure it on the mounting B .
T a k e c a r e n o t t o t r a p t h e s e a t b e l t s ,
i n p a r t i c u l a r b e t w e e n t h e s e a t b a c k
and the mounting B.
- check that the back of the bench seat is secured correctly.
REAR HEAD RESTRAINTS *
The rear head restraints can be re-
moved and have two positions:
- high, position for use.
- low, storage position.
To raise the head restraint, pull it up-
wards.
To lower it, press lug A then the head
restraint.
To remove it:
- tilt the seat back slightly,
- move the head restraint to the high position,
- press lug A pulling the head
restraint upwards at the same
time.
T o r e fi t i t :
- tilt the seat back slightly,
- engage the rods of the head restraint in the openings.
To reach the low position, press lug A .
F o l d i n g t h e b a c k o f t h e b e n c h
seat:
The seat back is folded from the rear
of the vehicle, with the boot open:
- check that the seat belt is
positioned correctly on the
side of the seat back to avoid
damaging it,
- place the head restraints in the low position (see "rear head
restraints"),
- while folding the seat back, pull the strap(s) A , located behind
the seat back.
* According to version.

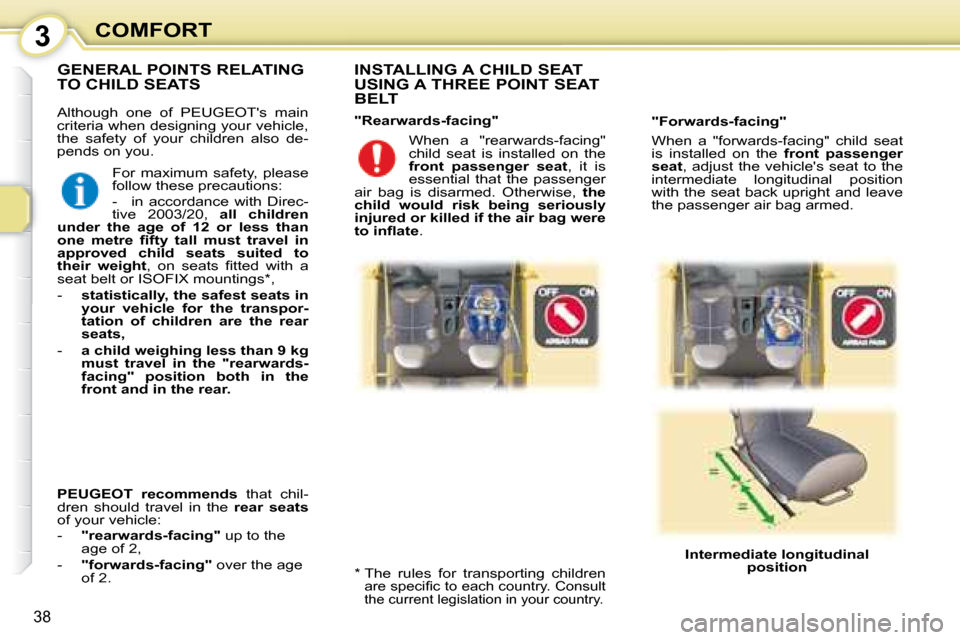

Page 38 of 97
3
38
COMFORT
Although one of PEUGEOT's main
criteria when designing your vehicle,
the safety of your children also de-
pends on you. INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
I n t e r m e d i a t e l o n g i t u d i n a l position
* The rules for transporting children
a r e s p e c i fi c t o e a c h c o u n t r y . C o n s u l t the current legislation in your country.
GENERAL POINTS RELATING
TO CHILD SEATS
" F o r w a r d s - f a c i n g "
When a "forwards-facing" child seat
is installed on the front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger air bag armed.
" R e a r w a r d s - f a c i n g "
For maximum safety, please
follow these precautions:
- in accordance with Direc-
tive 2003/20, a l l c h i l d r e n
u n d e r t h e a g e o f 1 2 o r l e s s t h a n
o n e m e t r e fi f t y t a l l m u s t t r a v e l i n
a p p r o v e d c h i l d s e a t s s u i t e d t o
t h e i r w e i g h t , o n s e a t s fi t t e d w i t h a
seat belt or ISOFIX mountings * ,
- s t a t i s t i c a l l y , t h e s a f e s t s e a t s i n
y o u r v e h i c l e f o r t h e t r a n s p o r -
t a t i o n o f c h i l d r e n a r e t h e r e a r
seats,
- a c h i l d w e i g h i n g l e s s t h a n 9 k g
m u s t t r a v e l i n t h e " r e a r w a r d s -
facing" position both in the
front and in the rear. When a "rearwards-facing"
child seat is installed on the
front passenger seat , it is
essential that the passenger
air bag is disarmed. Otherwise, the
c h i l d w o u l d r i s k b e i n g s e r i o u s l y
i n j u r e d o r k i l l e d i f t h e a i r b a g w e r e
t o i n fl a t e .
PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- " r e a r w a r d s - f a c i n g " up to the
age of 2,
- " f o r w a r d s - f a c i n g " over the age
of 2.
Page 39 of 97
3
39
COMFORT

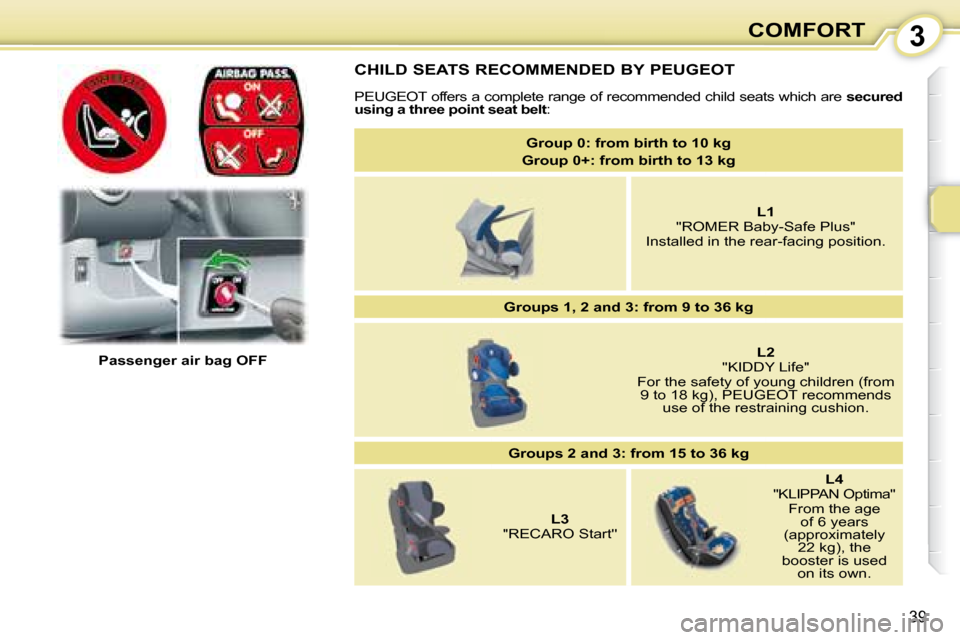

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended c hild seats which are secured
u s i n g a t h r e e p o i n t s e a t b e l t :
Passenger air bag OFF
G r o u p 0 : f r o m b i r t h t o 1 0 k g
G r o u p 0 + : f r o m b i r t h t o 1 3 k g
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
G r o u p s 2 a n d 3 : f r o m 1 5 t o 3 6 k g
L3
" R E C A R O S t a r t ' '
L4
"KLIPPAN Optima" From the age of 6 years
(approximately 22 kg), the
booster is used on its own.
Page 40 of 97
3
40
COMFORT

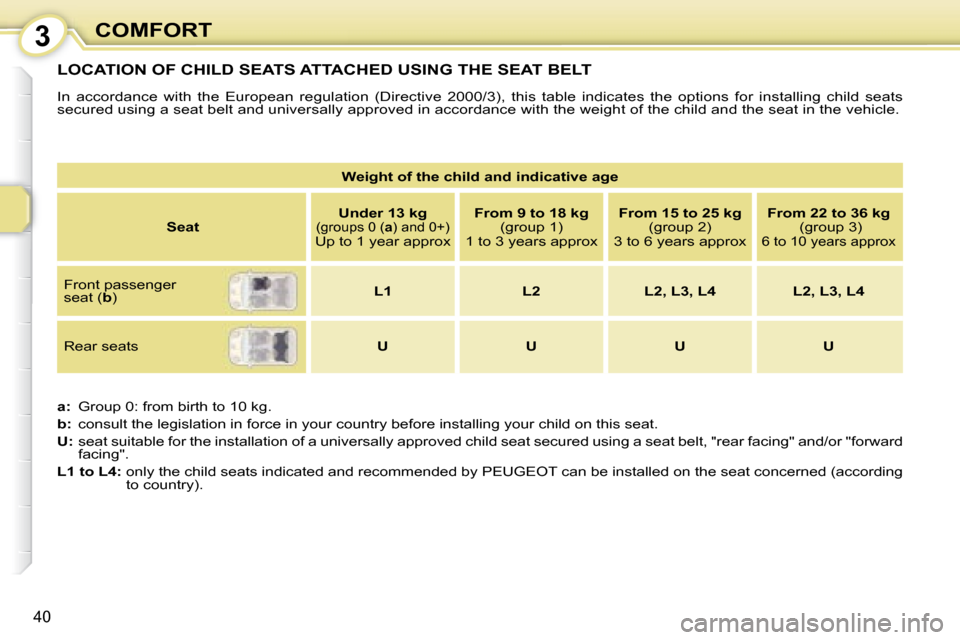

LOCATION OF CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with the European regulation (Directive 2000/3), this table indicates the options for installing child seats
secured using a seat belt and universally approved in accordance with the weight of the child and the seat in the vehicle.
a: Group 0: from birth to 10 kg.
b: consult the legislation in force in your country before insta lling your child on this seat.
U: seat suitable for the installation of a universally appro ved child seat secured using a seat belt, "rear facing" and/or "fo rward
facing".
L1 to L4: only the child seats indicated and recommended by PEUGEOT ca n be installed on the seat concerned (according
to country).
W e i g h t o f t h e c h i l d a n d i n d i c a t i v e a g e
Seat
U n d e r 1 3 k g
(groups 0 ( a ) and 0+) Up to 1 year approx
F r o m 9 t o 1 8 k g
(group 1)
1 to 3 years approx
F r o m 1 5 t o 2 5 k g
(group 2)
3 to 6 years approx
F r o m 2 2 t o 3 6 k g
(group 3) 6 to 10 years approx
Front passenger
seat ( b )
L1 L2 L2, L3, L4 L2, L3, L4
Rear seats U U U U
