Page 91 of 97
9
83
PRACTICAL INFORMATION

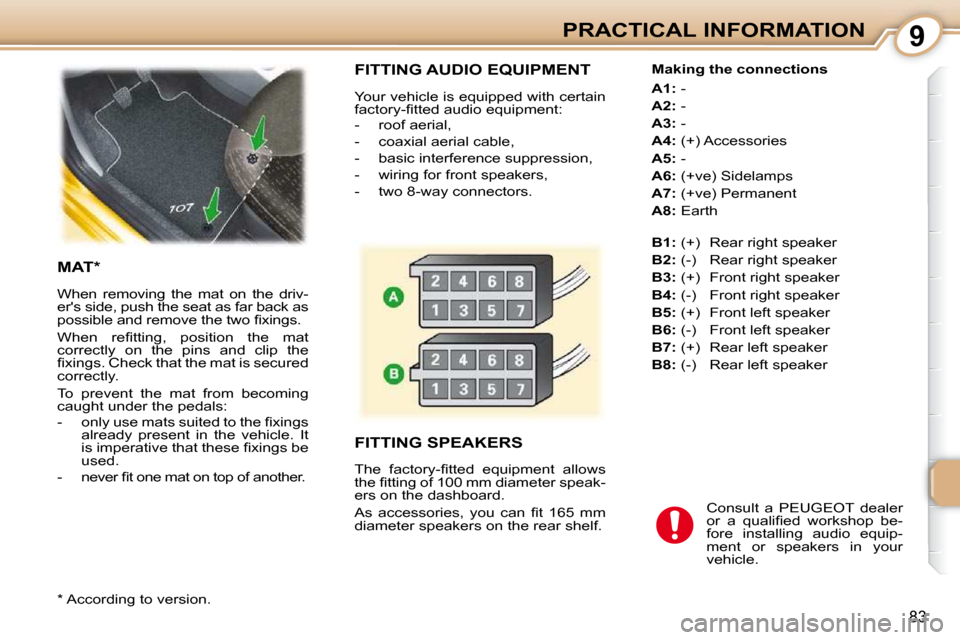

FITTING AUDIO EQUIPMENT
Your vehicle is equipped with certain
f a c t o r y - fi t t e d a u d i o e q u i p m e n t :
- roof aerial,
- coaxial aerial cable,
- basic interference suppression,
- wiring for front speakers,
- two 8-way connectors.
FITTING SPEAKERS
T h e f a c t o r y - fi t t e d e q u i p m e n t a l l o w s
t h e fi t t i n g o f 1 0 0 m m d i a m e t e r s p e a k -
ers on the dashboard.
A s a c c e s s o r i e s , y o u c a n fi t 1 6 5 m m
diameter speakers on the rear shelf. Making the connections
A1: -
A2: -
A3: -
A4: (+) Accessories
A5: -
A6: (+ve) Sidelamps
A7: (+ve) Permanent
A8: Earth
Consult a PEUGEOT dealer
o r a q u a l i fi e d w o r k s h o p b e -
fore installing audio equip-
ment or speakers in your
vehicle.
MAT *
When removing the mat on the driv-
er's side, push the seat as far back as
p o s s i b l e a n d r e m o v e t h e t w o fi x i n g s .
W h e n r e fi t t i n g , p o s i t i o n t h e m a t
correctly on the pins and clip the
fi x i n g s . C h e c k t h a t t h e m a t i s s e c u r e d
correctly.
To prevent the mat from becoming
caught under the pedals:
- o n l y u s e m a t s s u i t e d t o t h e fi x i n g s already present in the vehicle. It
i s i m p e r a t i v e t h a t t h e s e fi x i n g s b e
used.
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
* According to version.
B1: (+) Rear right speaker
B2: (-) Rear right speaker
B3: (+) Front right speaker
B4: (-) Front right speaker
B5: (+) Front left speaker
B6: (-) Front left speaker
B7: (+) Rear left speaker
B8: (-) Rear left speaker
Page 92 of 97
9
84
PRACTICAL INFORMATION

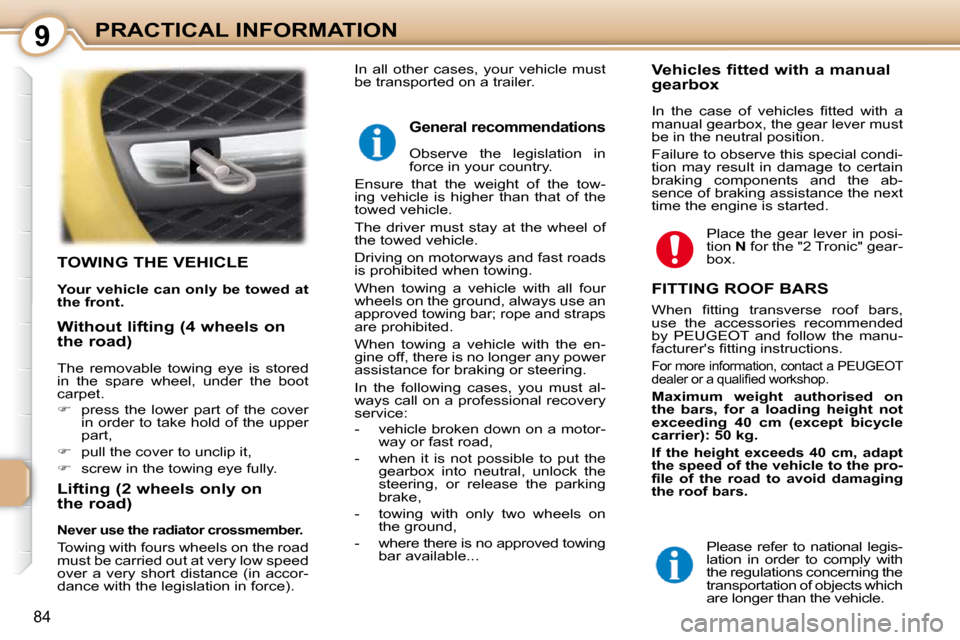

TOWING THE VEHICLE
Your vehicle can only be towed at
the front.
Lifting (2 wheels only on
the road)
Never use the radiator crossmember.
Towing with fours wheels on the road
must be carried out at very low speed
over a very short distance (in accor-
dance with the legislation in force).
Without lifting (4 wheels on
the road)
The removable towing eye is stored
in the spare wheel, under the boot
carpet.
press the lower part of the cover
in order to take hold of the upper
part,
pull the cover to unclip it,
screw in the towing eye fully. Place the gear lever in posi-
tion
N for the "2 Tronic" gear-
box.
FITTING ROOF BARS
Please refer to national legis-
lation in order to comply with
the regulations concerning the
transportation of objects which
are longer than the vehicle.
Vehicles fitted with a manual
gearbox
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
manual gearbox, the gear lever must
be in the neutral position.
Failure to observe this special condi-
tion may result in damage to certain
braking components and the ab-
sence of braking assistance the next
time the engine is started.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s ,
use the accessories recommended
by PEUGEOT and follow the manu-
f a c t u r e r ' s fi t t i n g i n s t r u c t i o n s .
For more information, contact a PEUGEOT
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Maximum weight authorised on
the bars, for a loading height not
exceeding 40 cm (except bicycle
carrier): 50 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g
the roof bars.
General recommendations
Observe the legislation in
force in your country.
Ensure that the weight of the tow-
ing vehicle is higher than that of the
towed vehicle.
The driver must stay at the wheel of
the towed vehicle.
Driving on motorways and fast roads
is prohibited when towing.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing bar; rope and straps are prohibited.
When towing a vehicle with the en-
gine off, there is no longer any power
assistance for braking or steering.
In the following cases, you must al-
ways call on a professional recovery
service:
- vehicle broken down on a motor- way or fast road,
- when it is not possible to put the gearbox into neutral, unlock the
steering, or release the parking
brake,
- towing with only two wheels on the ground,
- where there is no approved towing bar available...
In all other cases, your vehicle must
be transported on a trailer.
Page 93 of 97
9
85
PRACTICAL INFORMATION

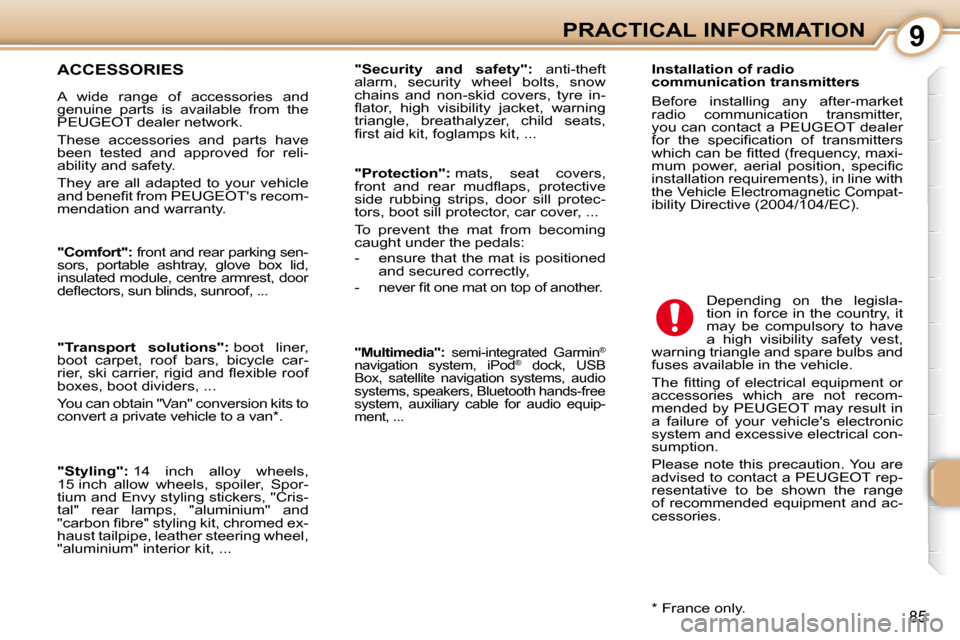

ACCESSORIES
A wide range of accessories and
genuine parts is available from the
PEUGEOT dealer network.
These accessories and parts have
been tested and approved for reli-
ability and safety.
They are all adapted to your vehicle
a n d b e n e fi t f r o m P E U G E O T ' s r e c o m -
mendation and warranty. Installation of radio
communication transmitters
Before installing any after-market
radio communication transmitter,
you can contact a PEUGEOT dealer
f o r t h e s p e c i fi c a t i o n o f t r a n s m i t t e r s
w h i c h c a n b e fi t t e d ( f r e q u e n c y , m a x i -
m u m p o w e r , a e r i a l p o s i t i o n , s p e c i fi c
installation requirements), in line with
the Vehicle Electromagnetic Compat-ibility Directive (2004/104/EC).
Depending on the legisla-
tion in force in the country, it
may be compulsory to have
a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t o r
accessories which are not recom-
mended by PEUGEOT may result in
a failure of your vehicle's electronic
system and excessive electrical con-
sumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.
* France only.
"Comfort": front and rear parking sen-
sors, portable ashtray, glove box lid,
insulated module, centre armrest, door
d e fl e c t o r s , s u n b l i n d s , s u n r o o f , . . .
"Transport solutions": boot liner,
boot carpet, roof bars, bicycle car-
r i e r , s k i c a r r i e r , r i g i d a n d fl e x i b l e r o o f
boxes, boot dividers, ...
You can obtain "Van" conversion kits to
convert a private vehicle to a van * .
"Styling": 14 inch alloy wheels,
15 inch allow wheels, spoiler, Spor-
tium and Envy styling stickers, "Cris-
tal" rear lamps, "aluminium" and
" c a r b o n fi b r e " s t y l i n g k i t , c h r o m e d e x -
haust tailpipe, leather steering wheel,
"aluminium" interior kit, ...
"Security and safety": anti-theft
alarm, security wheel bolts, snow
chains and non-skid covers, tyre in-
fl a t o r , h i g h v i s i b i l i t y j a c k e t , w a r n i n g
triangle, breathalyzer, child seats,
fi r s t a i d k i t , f o g l a m p s k i t , . . .
"Protection": mats, seat covers,
f r o n t a n d r e a r m u d fl a p s , p r o t e c t i v e
side rubbing strips, door sill protec-
tors, boot sill protector, car cover, ...
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
"
Multimedia
": semi-integrated Garmin ®
navigation system, iPod ®
dock, USB
Box, satellite navigation systems, audio
systems, speakers, Bluetooth hands-free
system, auxiliary cable for audio equip-
ment, ...
Page 94 of 97
1010
86
TECHNICAL DATA
PETROL ENGINES
Model codes PM, PN CFB0/CFB4 CFB0/P
Engines
1 . 0 l i t r e ( ≈ 6 8 h p )
Cubic capacity (cc) 998
Bore x stroke (mm) 71 x 84
EU standard maximum power (kW) 50
Max power engine speed (rpm) 6 000
EU standard max torque (Nm) 93
Max torque engine speed (rpm) 3 600
Fuel Unleaded
Catalytic converter Yes
Gearbox Manual (5-speed) "2 Tronic" (5-speed)
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.2
Page 95 of 97
1010
87
TECHNICAL DATA

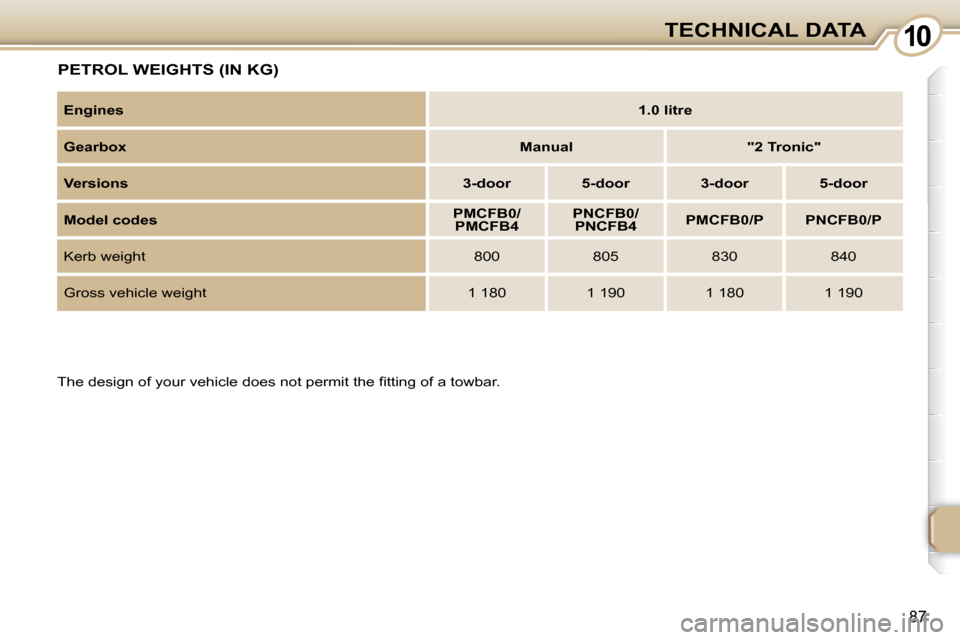

P E T R O L W E I G H T S ( I N K G )
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
Engines
1.0 litre
Gearbox
Manual " 2 Tronic "
Versions
3-door 5-door 3-door 5-door
Model codes
PMCFB0/
PMCFB4
PNCFB0
/
PNCFB4
PMCFB0
/P PNCFB0/P
Kerb weight 800 805 830 840
Gross vehicle weight 1 180 1 190 1 180 1 190
Page 96 of 97
1010
88
TECHNICAL DATA

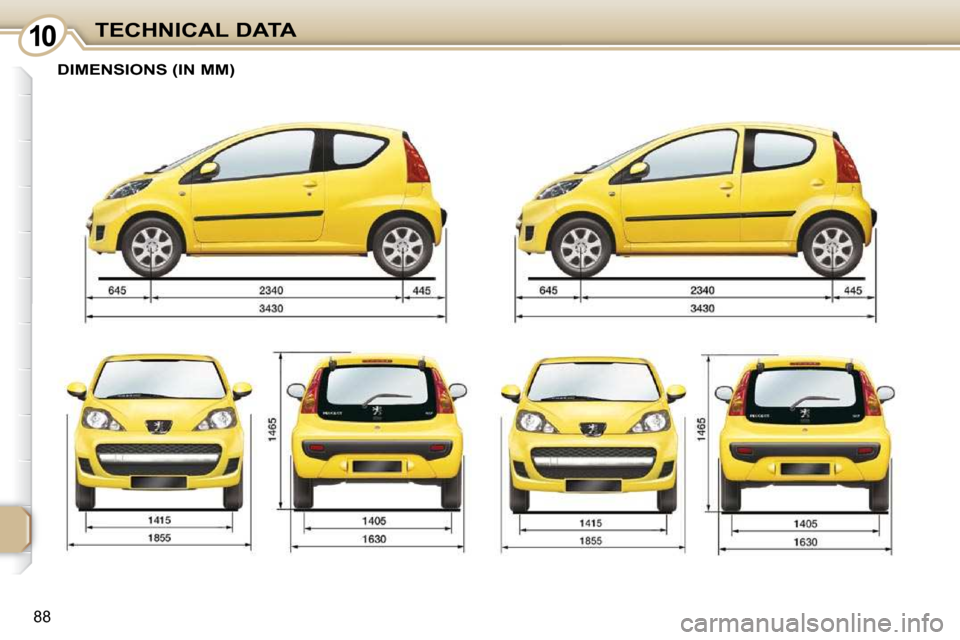

D I M E N S I O N S ( I N M M )
Page 97 of 97
1010
89
TECHNICAL DATA

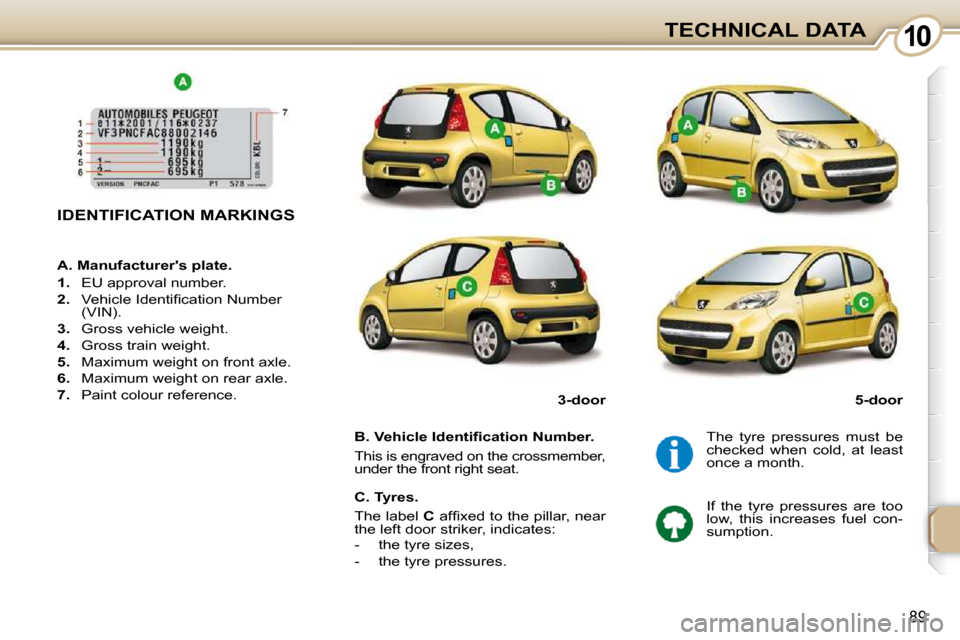

IDENTIFICATION MARKINGS
B . V e h i c l e I d e n t i fi c a t i o n N u m b e r .
This is engraved on the crossmember,
under the front right seat. The tyre pressures must be
checked when cold, at least
once a month.
A . M a n u f a c t u r e r ' s p l a t e .
1. EU approval number.
2. V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN).
3. Gross vehicle weight.
4. Gross train weight.
5. Maximum weight on front axle.
6 . Maximum weight on rear axle.
7. Paint colour reference.
5-door
3-door
If the tyre pressures are too
low, this increases fuel con-
sumption.
C. Tyres.
The label
C a f fi x e d t o t h e p i l l a r , n e a r
the left door striker, indicates:
- the tyre sizes,
- the tyre pressures.
