PEUGEOT 108 2014 Repair Manual

59
For maximum cooling or heating of the
cabin, it is possible to go beyond the
minimum 14 or maximum 28 value.
F
P
ress the temperature adjustment
button down or up until "LO" or
"HI" is displayed.
A setting around 21
gives optimum comfort.
However, depending on your requirements, a
setting between 18 and 24 is normal.
On entering the vehicle, if the interior is very
cold or hot, there is no need to change the
value displayed in order to reach the required
level of comfort. t
h
e system corrects the
temperature difference automatically and as
quickly as possible.

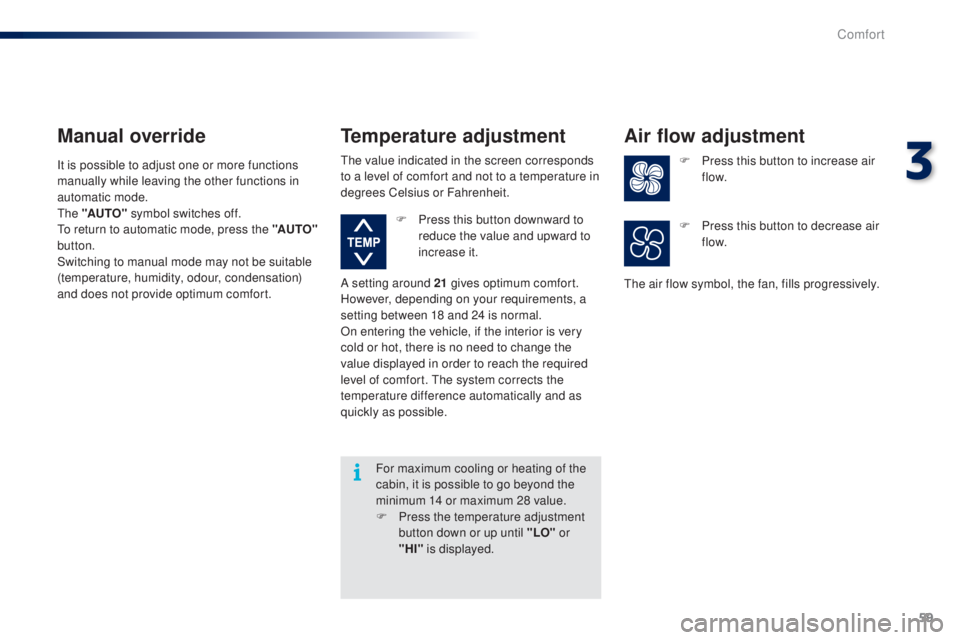

Temperature adjustment
F Press this button downward to reduce the value and upward to
increase it.
Manual override
It is possible to adjust one or more functions
manually while leaving the other functions in
automatic mode.
th

e "AUTO" symbol switches off.
to r

eturn to automatic mode, press the "AUTO"
button.
Switching to manual mode may not be suitable
(temperature, humidity, odour, condensation)
and does not provide optimum comfort.th e value indicated in the screen corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
Air flow adjustment
F Press this button to increase air f low.
th

e air flow symbol, the fan, fills progressively. F

P
ress this button to decrease air
f low.
3
Comfort

60

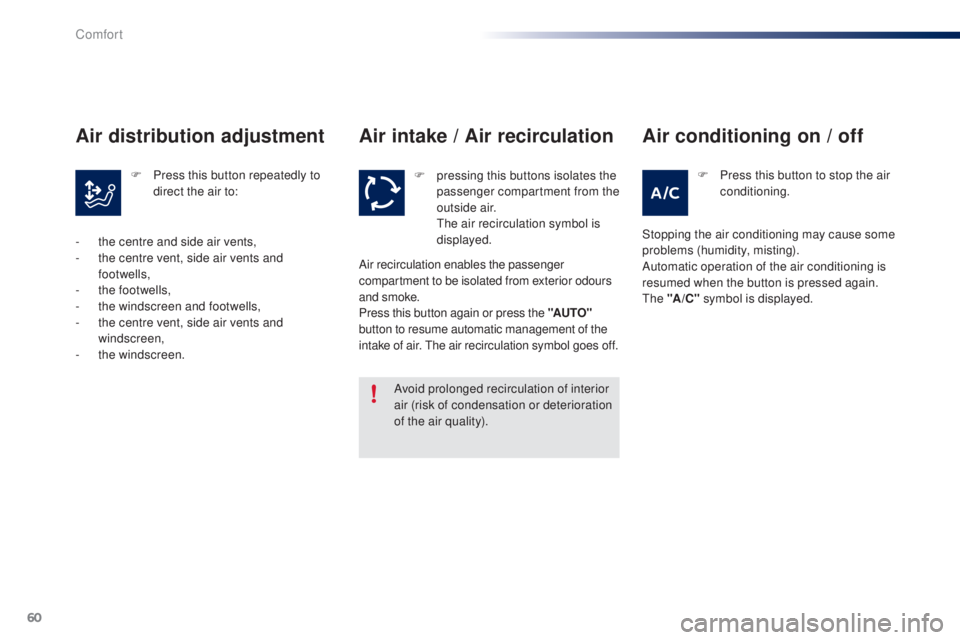

Air intake / Air recirculation
Avoid prolonged recirculation of interior
air (risk of condensation or deterioration
of the air quality).F

p
ressing this buttons isolates the
passenger compartment from the
outside air.

t
h
e air recirculation symbol is
displayed.
Air recirculation enables the passenger
compartment to be isolated from exterior odours
and smoke.
Press this button again or press the "AUTO"
button to resume automatic management of the
intake of air. t
h
e air recirculation symbol goes off. F
P
ress this button to stop the air
conditioning.
Air distribution adjustment
- the centre and side air vents,
- t he centre vent, side air vents and
footwells,
-

t
he footwells,
-

t
he windscreen and footwells,
-

t
he centre vent, side air vents and
windscreen,
-
t

he windscreen. F

P
ress this button repeatedly to
direct the air to:
Air conditioning on / off
Stopping the air conditioning may cause some
problems (humidity, misting).
Automatic operation of the air conditioning is
resumed when the button is pressed again.
th

e "A /C " symbol is displayed.
Comfort

61
Avoid driving for long periods with the air
conditioning switched off (risk of misting
and reduction of the air quality in the cabin).
th

is action switches off all of the functions of
the air conditioning system.
th

ermal comfort is no longer controlled. A
slight flow of air resulting from the movement of
the vehicle, remains perceptible however.
Pressing the "AUTO" button again reactivates
the system with the values set before it was
switched off.

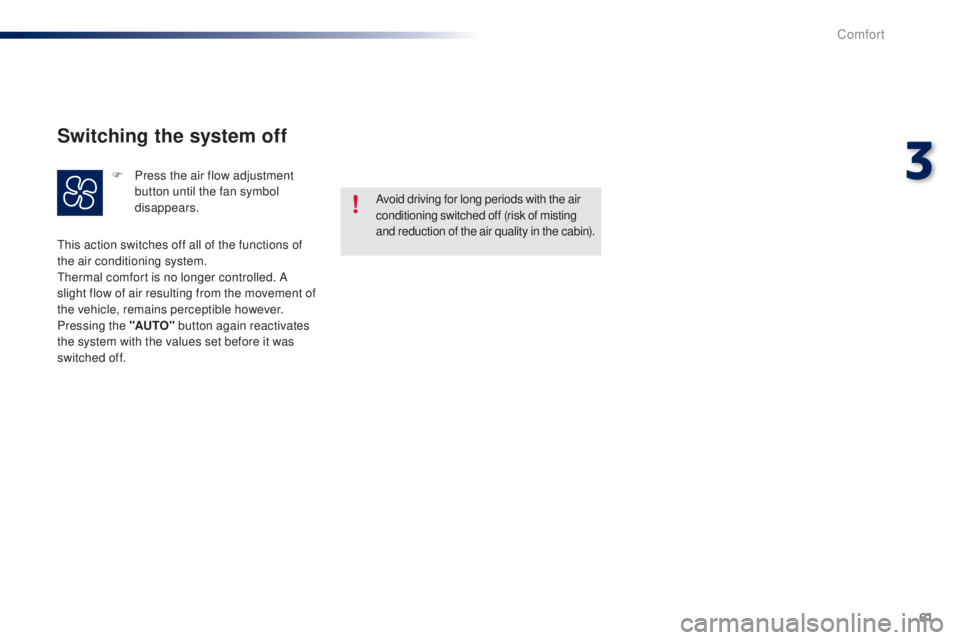

Switching the system off
F Press the air flow adjustment button until the fan symbol
disappears.
3
Comfort

62

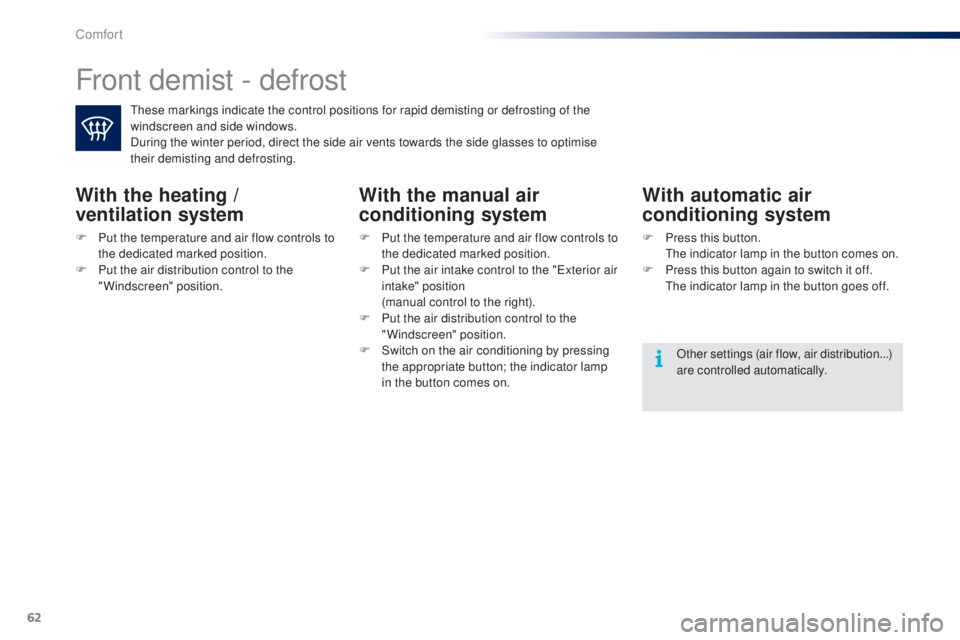

Front demist - defrost
these markings indicate the control positions for rapid demisting or defrosting of the
windscreen and side windows.
During the winter period, direct the side air vents towards the side glasses to optimise
their demisting and defrosting.
With the heating /
ventilation system
F Put the temperature and air flow controls to the dedicated marked position.
F

P
ut the air distribution control to the
"Windscreen" position.
With the manual air
conditioning system
F Put the temperature and air flow controls to the dedicated marked position.
F

P
ut the air intake control to the "
ex
terior air
intake" position
(

manual control to the right).
F

P
ut the air distribution control to the
"Windscreen" position.
F

S
witch on the air conditioning by pressing
the appropriate button; the indicator lamp
in the button comes on.
With automatic air
conditioning system
F Press this button. th e indicator lamp in the button comes on.
F

P
ress this button again to switch it off.


t
h
e indicator lamp in the button goes off.
Other settings (air flow, air distribution...)
are controlled automatically.
Comfort

63

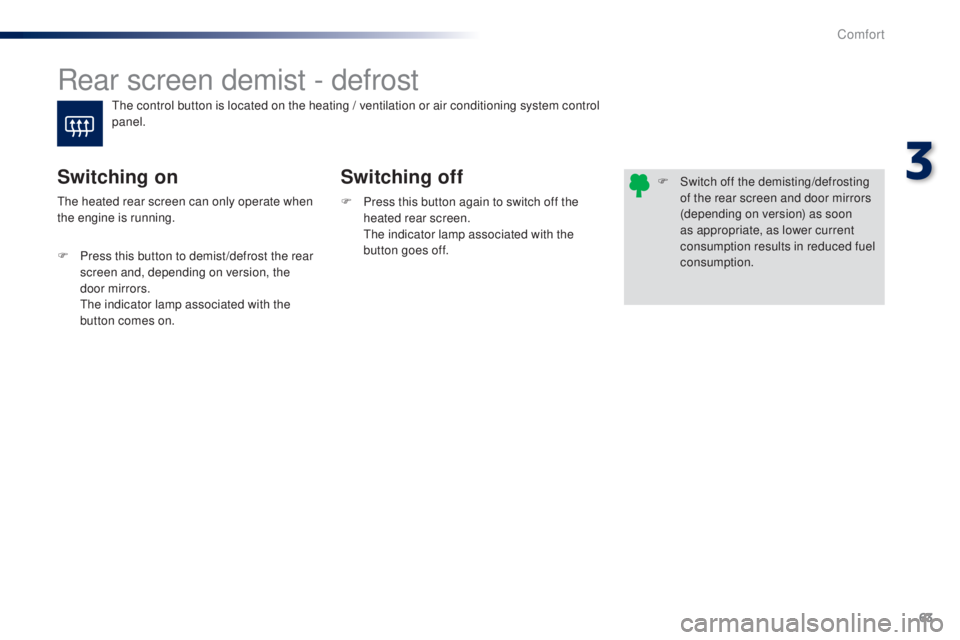

Rear screen demist - defrost
Switching off
Switching on
F Press this button again to switch off the
heated rear screen.


t
h
e indicator lamp associated with the
button goes off.th
e heated rear screen can only operate when
the engine is running. F

S
witch off the demisting/defrosting
of the rear screen and door mirrors
(depending on version) as soon
as appropriate, as lower current
consumption results in reduced fuel
consumption.
F

P

ress this button to demist /defrost the rear
screen and, depending on version, the
door mirrors.


t
h

e indicator lamp associated with the
button comes on.
th

e control button is located on the heating / ventilation or air conditioning system control
panel.
3
Comfort

64

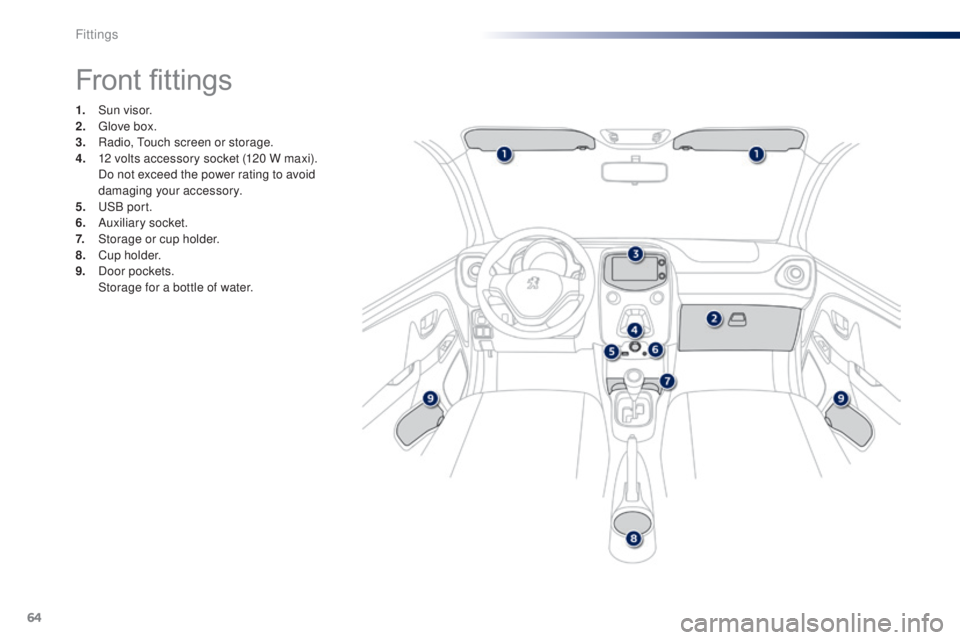

Front fittings
1. Sun visor.
2. gl ove box.
3.
R

adio, t
o
uch screen or storage.
4.
1

2 volts accessory socket (120 W maxi).
D

o not exceed the power rating to avoid
damaging your accessory.
5.


u
S
B port.
6.
Au

xiliary socket.
7.
St

orage or cup holder.
8.
C

u p h o l d e r.
9.
D

oor pockets.
S

torage for a bottle of water.
Fittings

65

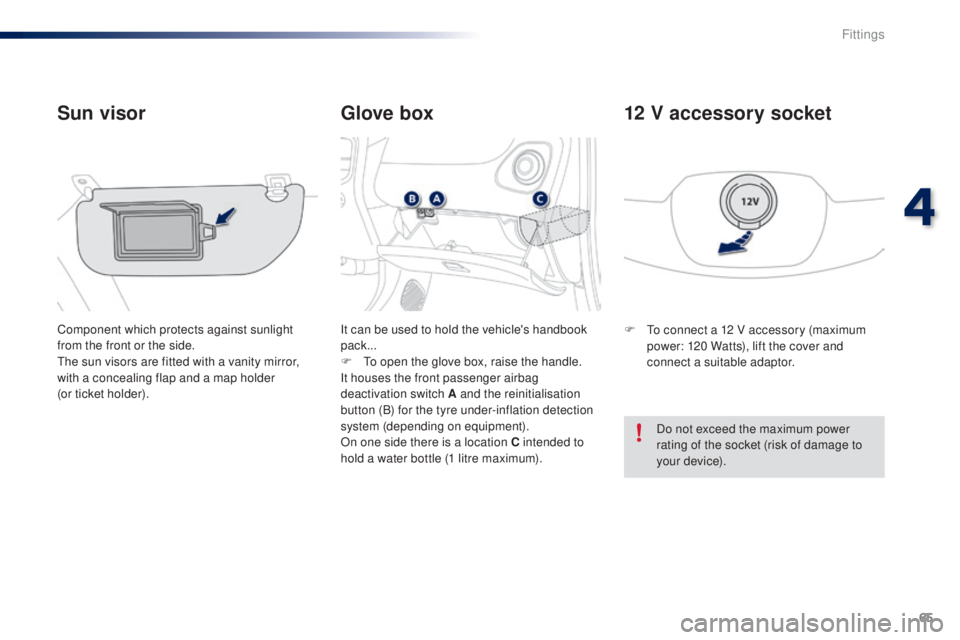

Glove box
Sun visor
Component which protects against sunlight
from the front or the side.
th

e sun visors are fitted with a vanity mirror,
with a concealing flap and a map holder
(or ticket holder). It can be used to hold the vehicle's handbook
pack...
F
t
o o
pen the glove box, raise the handle.
It houses the front passenger airbag
deactivation switch A and the reinitialisation
button (B) for the tyre under-inflation detection
system (depending on equipment).
On one side there is a location C
intended to
hold a water bottle (1 litre maximum). F
to c onnect a 12 V accessory (maximum
power: 120 Watts), lift the cover and
connect a suitable adaptor.
12 V accessory socket
Do not exceed the maximum power
rating of the socket (risk of damage to
your device).
4
Fittings

66

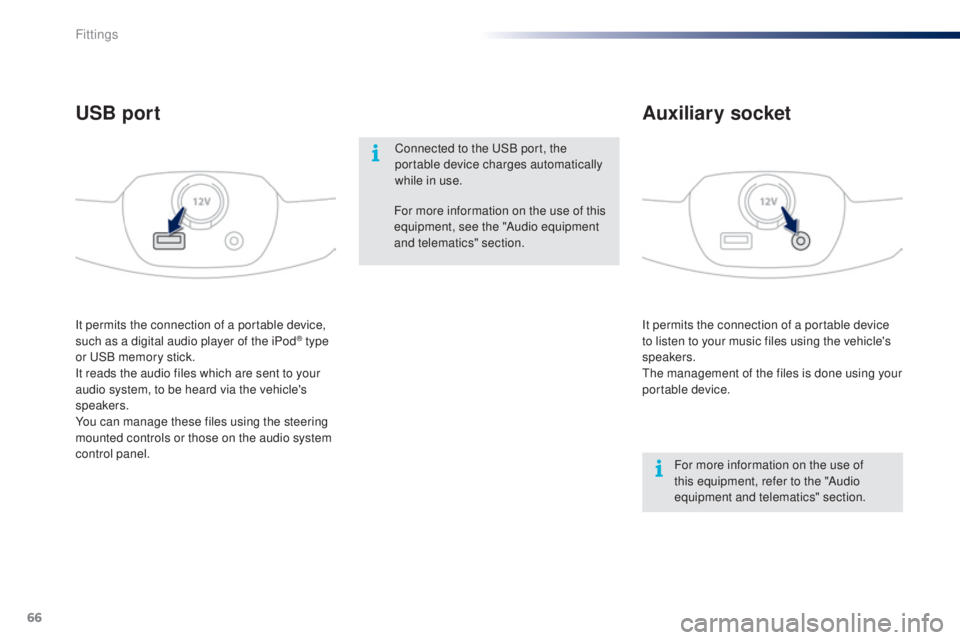

It permits the connection of a portable device
to listen to your music files using the vehicle's
speakers.
th
e management of the files is done using your
portable device.
It permits the connection of a portable device,
such as a digital audio player of the iPod® type
or
uS
B memory stick.
It reads the audio files which are sent to your
audio system, to be heard via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or those on the audio system
control panel.
Auxiliary socket
USB port
For more information on the use of
this equipment, refer to the "Audio
equipment and telematics" section.
For more information on the use of this
equipment, see the "Audio equipment
and telematics" section.
Connected to the
u
S

B port, the
portable device charges automatically
while in use.
Fittings

67

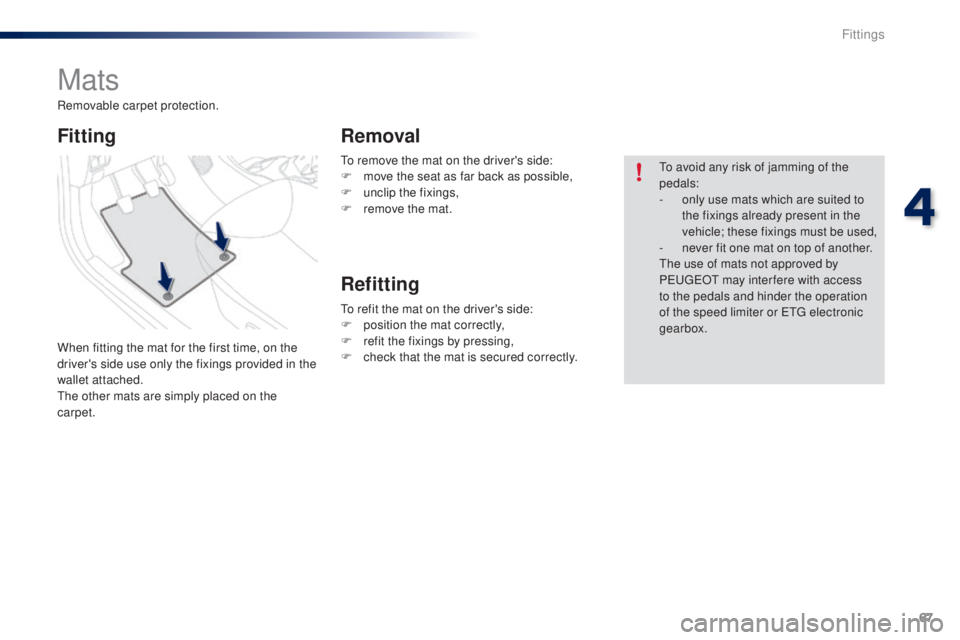

to remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

un
clip the fixings,
F

r
emove the mat.
Mats
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
th
e other mats are simply placed on the
carpet.
to a
void any risk of jamming of the
pedals:
-
o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-
n
ever fit one mat on top of another.
th

e use of mats not approved by
P
e
uge
Ot
may inter fere with access
to the pedals and hinder the operation
of the speed limiter or etg electronic
gearbox.
to r
efit the mat on the driver's side:
F
p
osition the mat correctly,
F r efit the fixings by pressing,
F c heck that the mat is secured correctly.
FittingRemoval
Refitting
Removable carpet protection.
4
Fittings

68

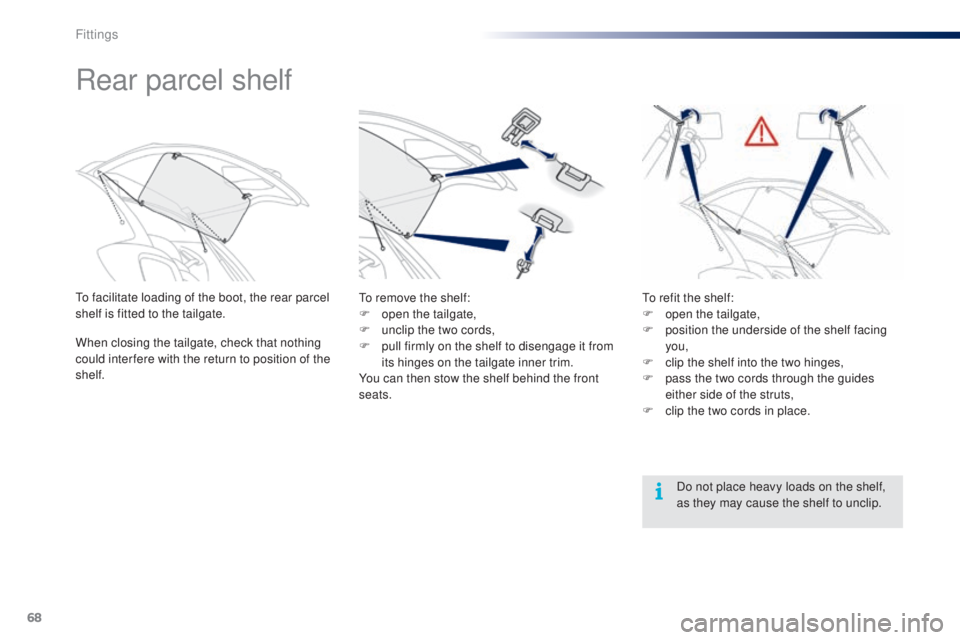

Rear parcel shelf
to facilitate loading of the boot, the rear parcel
shelf is fitted to the tailgate.
When closing the tailgate, check that nothing
could inter fere with the return to position of the
shelf.Do not place heavy loads on the shelf,
as they may cause the shelf to unclip.to remove the shelf:
F

o
pen the tailgate,
F

u
nclip the two cords,
F

p
ull firmly on the shelf to disengage it from
its hinges on the tailgate inner trim.
You can then stow the shelf behind the front
seats.to r efit the shelf:
F

o
pen the tailgate,
F

p
osition the underside of the shelf facing
you,
F

c
lip the shelf into the two hinges,
F

p
ass the two cords through the guides
either side of the struts,
F

c
lip the two cords in place.
Fittings
