PEUGEOT 2008 2013 Owners Manual

9
199
Technical data

*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced b
y 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

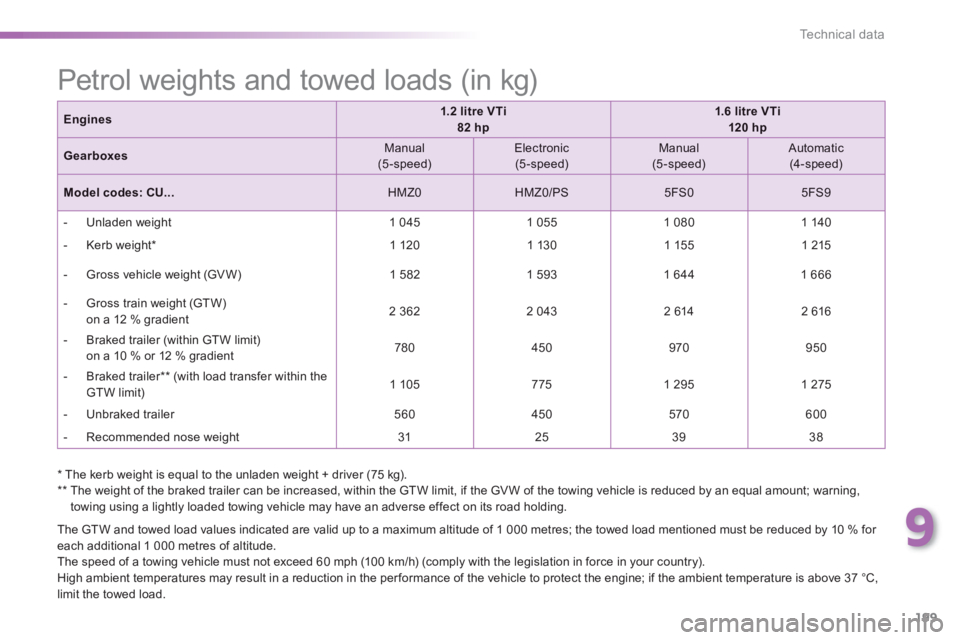

Petrol weights and towed loads (in kg)
Engines1.2 litre VTi82 hp1.6 litre VTi120 hp
Gearboxes
Manual(5-speed)

Electronic(5-speed)Manual
(5-speed)
Automatic
(4-speed)
Model codes: CU...

HMZ0


HMZ0/PS


5FS0

5FS9


- Unladen wei
ght 1 0451 055
1 0801 140



- Kerb weight * 1 120
1 13 0
1 155 1 215


- Gross vehicle wei
ght (GV W)

1 582 1 593
1 644 1 666



- Gross train weight (GTW)

on a 12 % gradient 2 3622 043
2 614 2 616



- Braked trailer
(within GTW limit) on a 10 % or 12 % gradient780450 970950



- Braked trailer **
(with load transfer within the GTW limit)

1 105
775

1 295

1 275



-
Unbraked trailer 560
450
570
600



- Recommended nose wei
ght 31
25
39
38

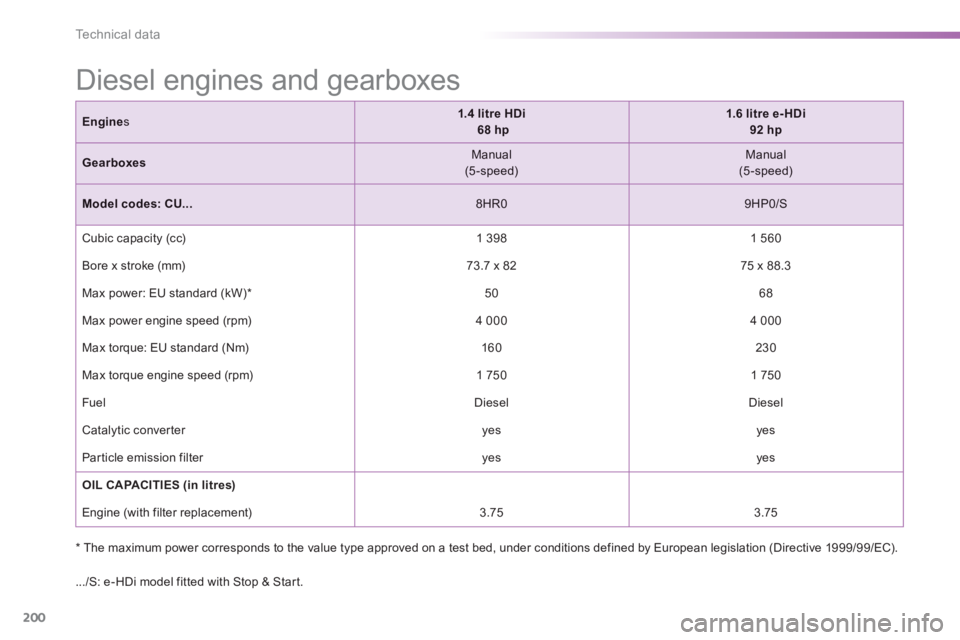

200
Technical data
*
The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).














Diesel engines and gearboxes
Engine s 1.4 litre HDi68 hp1.6 litre e- HDi92 hp
Gearboxes

Manual(5-speed)
Manual (5-speed)
Model codes: CU...8HR0

9HP0/S


Cubic capacity (cc)
1 398

1 560

Bore x stroke (mm)73.7 x 82
75 x 88.3

Max power: EU standard
(kW)
*
5068

Max power engine speed
(rpm) 4 000
4 000
Max torque: EU standard
(Nm)
160230

Max torque engine speed (rpm) 1 750

1 750

F
uel
Diesel Diesel

Catalytic conver ter yesyes

P
article emission filter yesyes

OIL CAPACITIES
(in litres)
Engine (with filter replacement) 3.753.75
.../S: e-HDi model fitted with Stop & Start.

9

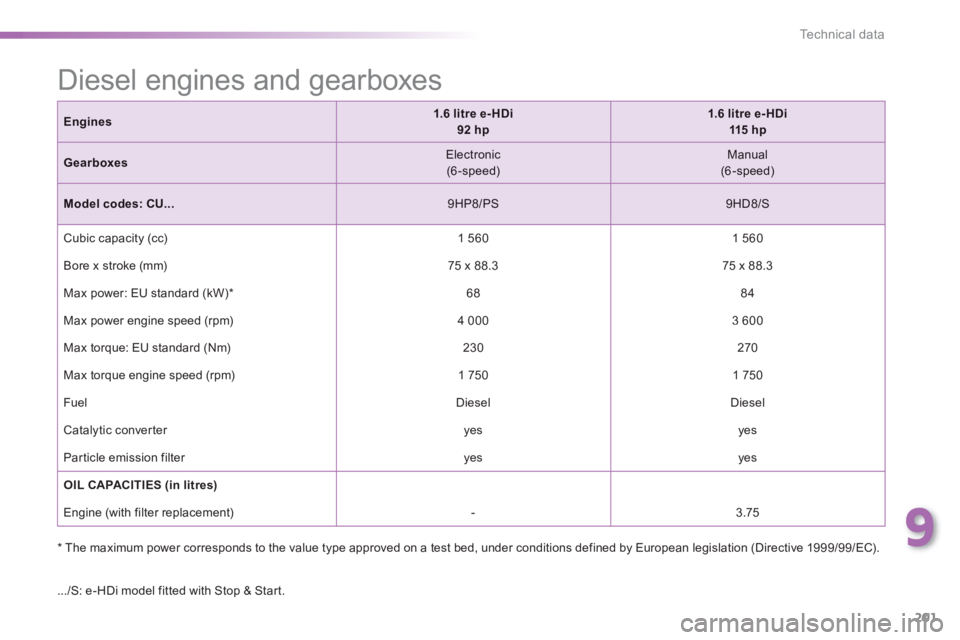

201
Technical data
Engines1.6 litree-HDi 92 hp1.6 litre e- HDi 115 h p
Gearboxes

Electronic
(6-speed)

Manual(6-speed)
Model codes: CU...9HP8/PS
9HD8/S


Cubic capacity (cc)
1 560
1 560

Bore x stroke (mm) 75 x 88.3

75 x 88.3

Max power: EU standard
(kW)
* 6884
Max power engine speed
(rpm) 4 000 3 600
Max torque: EU standard
(Nm)

230
270

Max torque engine speed (rpm) 1 750

1 750

F
uel
Diesel Diesel

Catalytic converter yes
yes

Particle emission filter yes
yes
OIL CAPACITIES (in litres)

Engine (with filter replacement) -3.75

.../S: e-HDi model fitted with Stop & Start.
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

Diesel engines and gearboxes

202
Technical data
*
The kerb weight is equal to the unladen weight + driver (75 kg).
**

The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.


















Diesel weights and towed loads (in kg)
Engines1.4 litre HDi 68 hp
Gearboxes
Manual(5-speed)

Model codes: CU...8HR0



- Unladen wei
ght1 090



- Kerb weight *

1 165


- Gross vehicle wei
ght (GV W)

1 622


- Gross train wei
ght (GT W)
on a 12% gradient 1 972



- Braked trailer
(within GTW limit) on a 10% or 12% gradient 350



- Braked trailer
**
(with load transfer with the GTW limit)
675



- Unbraked trailer
350



- Recommended nose wei
ght
25

The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

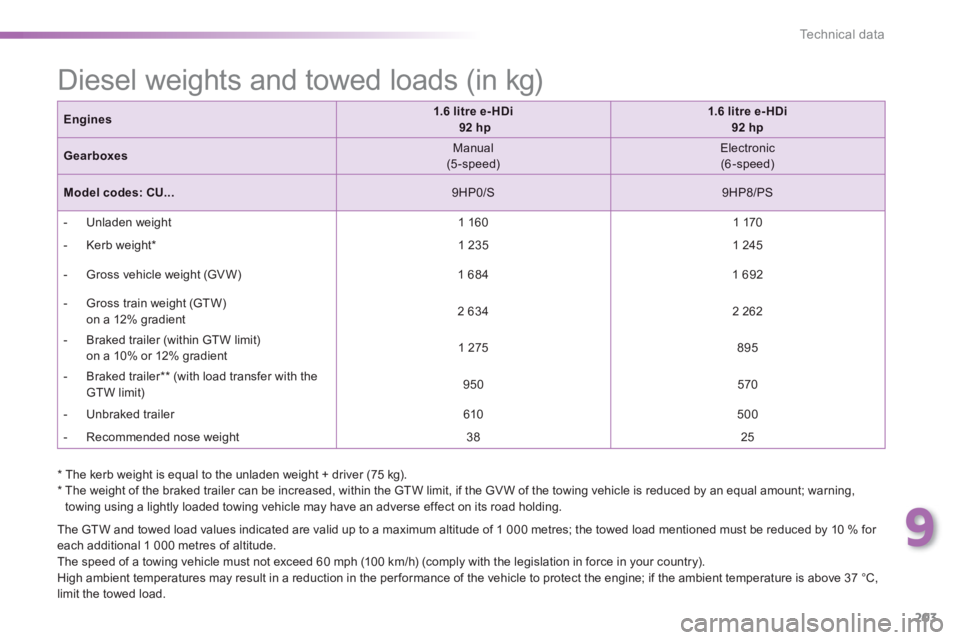

9
203
Technical data

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

* The kerb wei
ght is equal to the unladen weight + driver (75 kg).

* The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Engines1.6 litre e-HDi92 hp1.6 litre e- HDi 92 hp
Gearboxes
Manual(5-speed)
Electronic(6-speed)
Model codes: CU...9HP0/S

9HP8/PS



- Unladen wei
ght 1 160
1 170



- Kerb wei
ght *1 235 1 245


- Gross vehicle wei
ght (GV W)

1 684
1 692


- Gross train wei
ght (GTW)
on a 12% gradient 2 634 2 262



- Braked trailer
(within GTW limit) on a 10% or 12% gradient
1 275
895



- Braked trailer **
(with load transfer with theGTW limit)
950570



- Unbraked trailer 610
500



- Recommended nose wei
ght 38

25


Diesel weights and towed loads (in kg)

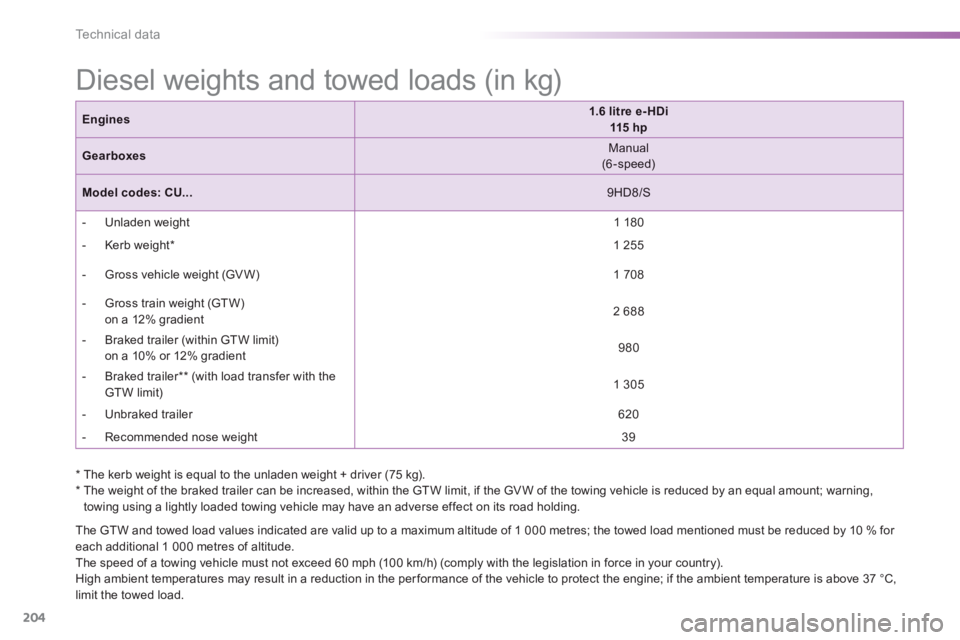

204
Technical data
* The kerb weight is equal to the unladen weight + driver (75 kg).
* The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Diesel weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

Engines1.6 litre e- HDi 115 hp
Gearboxes
Manual(6-speed)
Model codes: CU...

9HD8/S



- Unladen wei
ght
1 18 0



- Kerb wei
ght *

1 255


- Gross vehicle wei
ght (GV W)

1 708



- Gross train wei
ght (GT W)
on a 12% gradient2 688


- Braked trailer (within GTW limit) on a 10% or 12% gradient 980



- Braked trailer **
(with load transfer with the GTW limit)
1 305


-
Unbraked trailer

620



- Recommended nose weight 39

9
205
Technical data

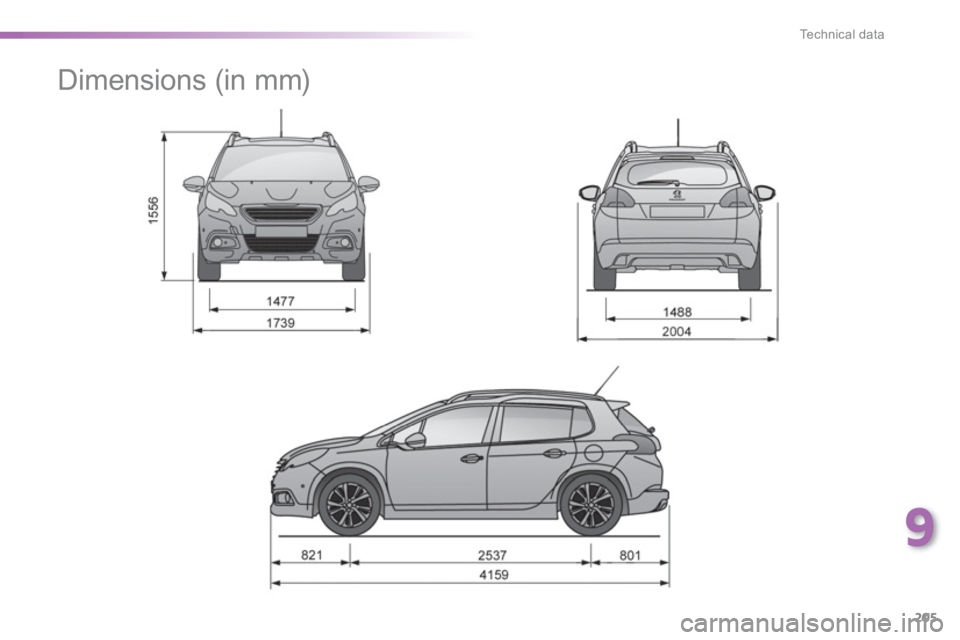

Dimensions (in mm)

206
Technical data

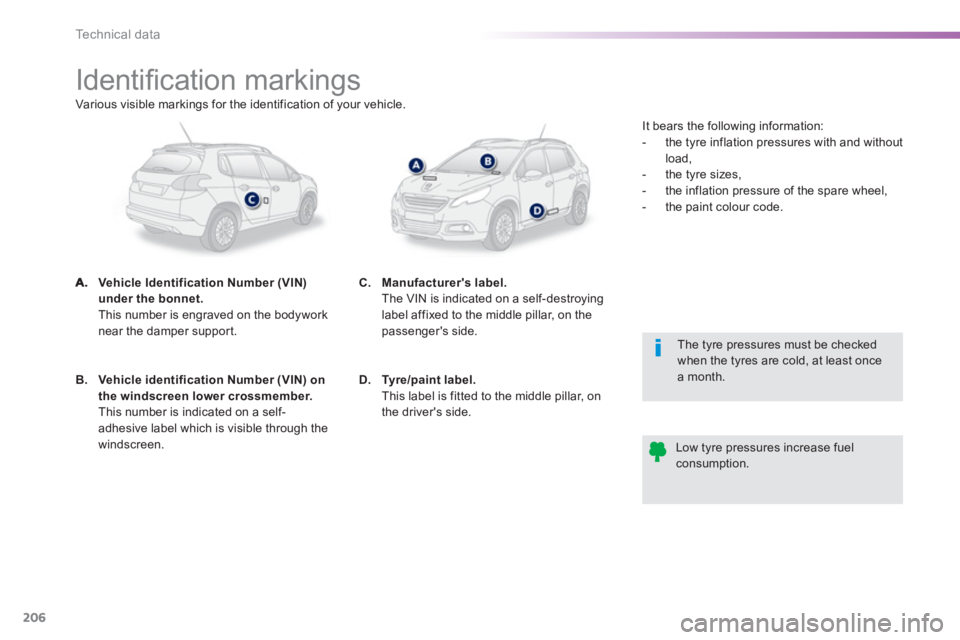

Identifi cation markings
Vehicle Identification Number (VIN) under the bonnet.This number is engraved on the bodyworknear the damper suppor t.
The tyre pressures must be checked when the tyres are cold, at least oncea month.


Low tyre pressures increase fuelconsumption.

B.Vehicle identification Number (VIN) on
the windscreen lower crossmember.This number is indicated on a self-adhesive label which is visible through the
win
dscreen.
C.Manufacturer's label. The VIN is indicated on a self-destroyinglabel affixed to the middle pillar, on the
passenger's side.
D.Tyre/paint label. This label is fitted to the middle pillar, on
the driver's side. It bears the
following information:


- the tyre inflation pressures with and without
load,

- the tyre sizes,

- the in
flation pressure of the spare wheel,

- the paint colour code. Various visible markin
gs for the identification of your vehicle.

207

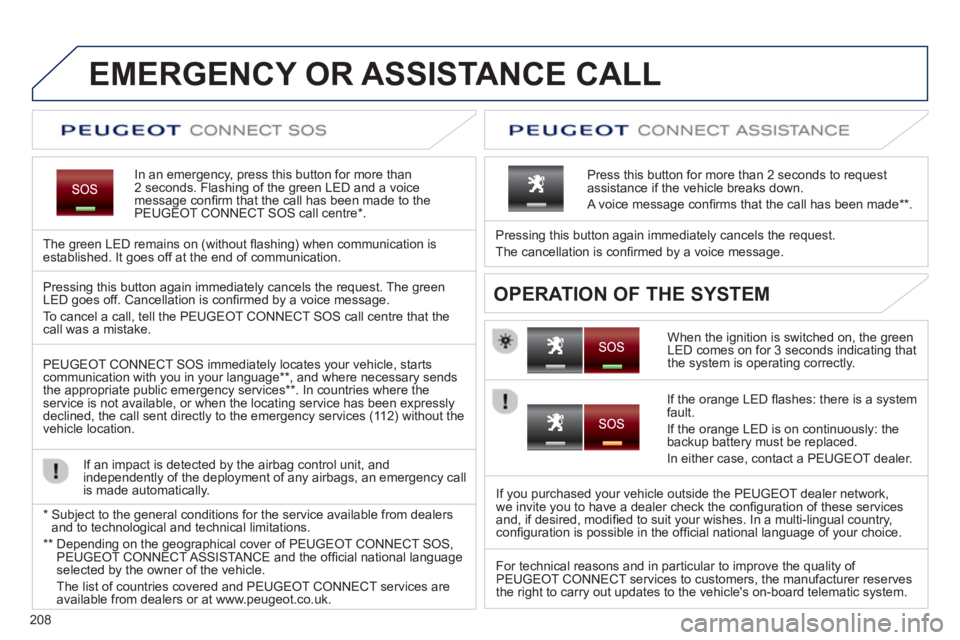

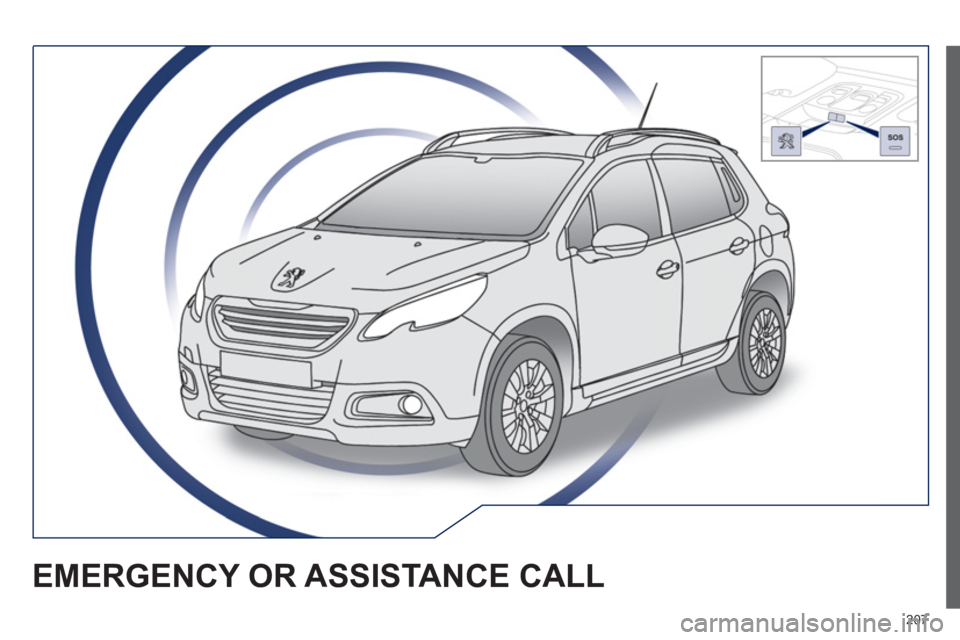

EMERGENCY OR ASSISTANCE CALL

208
EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
PEUGEOT CONNECT SOS call centre * .
The
green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made **
.


OPERATION OF THE SYSTEM Pressing this button again immediately cancels the request. The green LED goes off. Cancellation is confi rmed by a voice message .
To cancel a call, tell the PEUGE
OT CONNECT SOS call centre that thecall was a mistake.
PEUGE
OT CONNECT SOS immediately locates your vehicle, starts communication with you in your language ** , and where necessary sends
the appropriate public emergency services ** . In countries where theservice is not available, or when the locating service has been expresslydeclined, the call sent directly to the emergency services (11 2) without the
vehicle location.

If an impact is detected b
y the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
*
Sub
ject to the general conditions for the service available from dealersand to technological and technical limitations.
**

Depending on the geographical cover of PEUGEOT CONNECT SOS,
PEUGEOT CONNECT ASSISTA NCE and the offi cial national languageselected by the owner of the vehicle.
Th
e list of countries covered and PEUGEOT CONNECT services are available from dealers or at www.peugeot.co.uk.
If the oran
ge LED fl ashes: there is a system
fault.
If the oran
ge LED is on continuously: the backup battery must be replaced.
In either case, contact a PEU
GEOT dealer.

I
f you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,confi guration is possible in the offi cial national language of your choice.

For technical reasons and in particular to improve the qualit
y of PEUGEOT CONNECT services to customers, the manufacturer reserves
the right to carry out updates to the vehicle's on-board telematic system.
