PEUGEOT 2008 2014 Owners Manual

03
309
AUDIO
CD

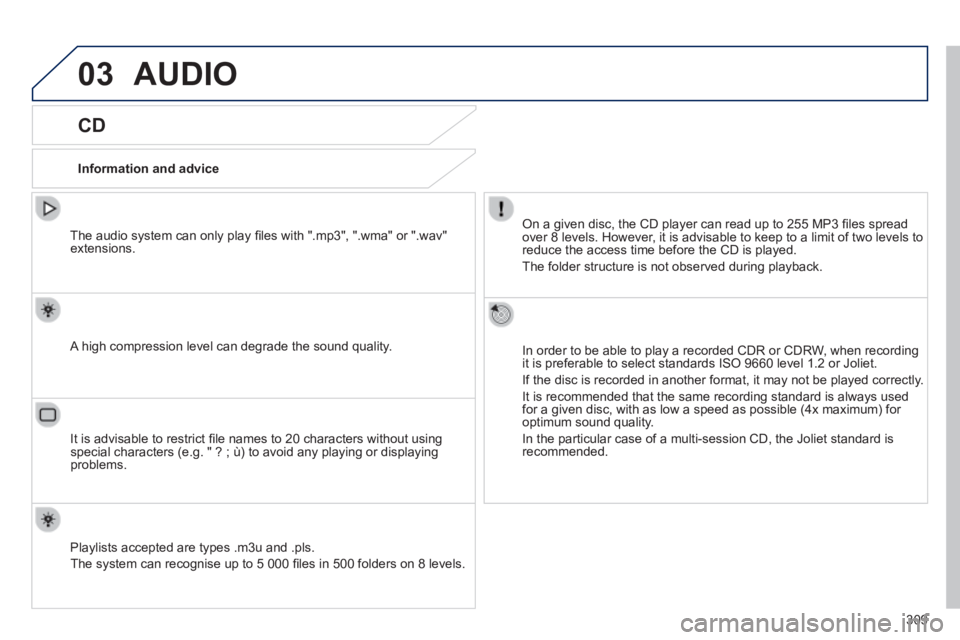

Information and advice
On a given disc, the CD player can read up to 255 MP3 fi les spread over 8 levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played.
The folder structure is not observed during playback.
In order to be able to play a recorded CDR or CDRW, when recording it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played correctl\
y.
It is recommended that the same recording standard is always used for a given disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio system can only play fi les with ".mp3", ".wma" or ".wav" extensions.
A high compression level can degrade the sound quality.
Playlists accepted are types .m3u and .pls.
The system can recognise up to 5 000 fi les in 500 folders on 8 levels.
It is advisable to restrict fi le names to 20 characters without using special characters (e.g. " ? ; ù) to avoid any playing or displayin\
g problems.

03
310
CD
AUDIO

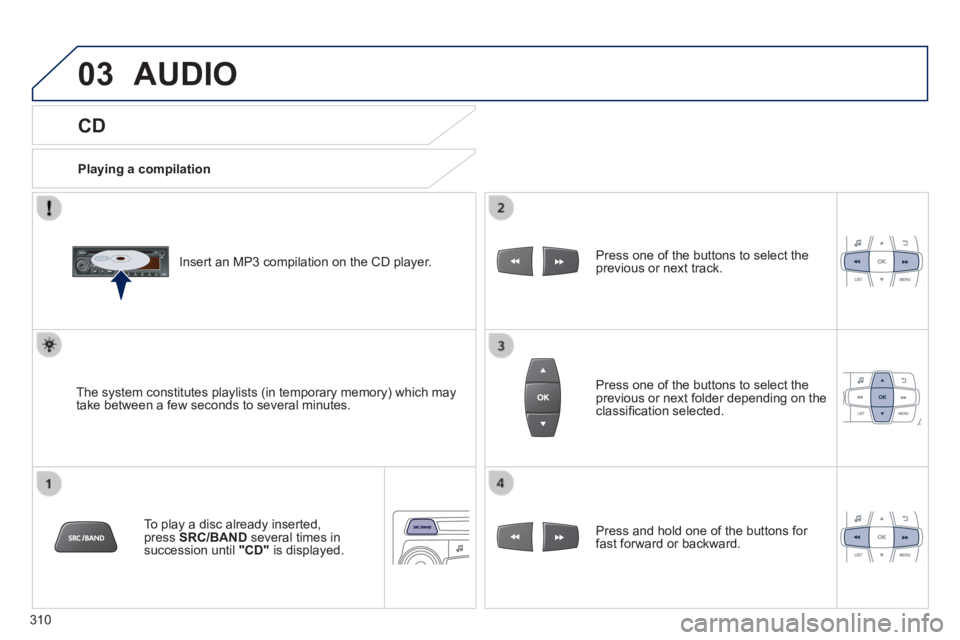

Playing a compilation
Insert an MP3 compilation on the CD player.
The system constitutes playlists (in temporary memory) which may take between a few seconds to several minutes.
To play a disc already inserted, press SRC/BAND several times in succession until "CD" is displayed.
Press one of the buttons to select the previous or next track.
Press one of the buttons to select the previous or next folder depending on the classifi cation selected.
Press and hold one of the buttons for fast forward or backward.

03
3 11

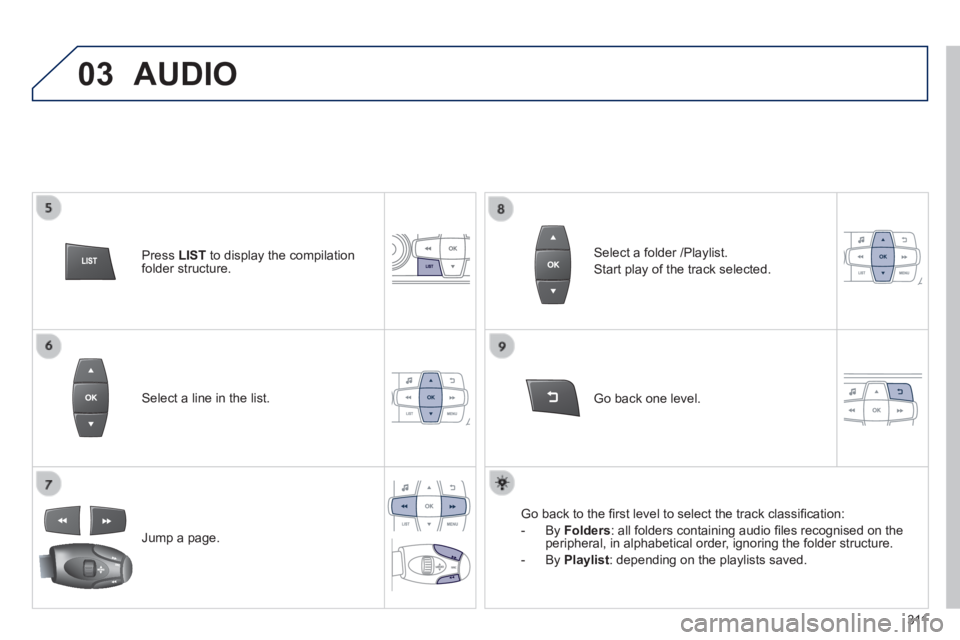

Select a line in the list.
Jump a page.
Go back one level.
Select a folder /Playlist.
Start play of the track selected.
Go back to the fi rst level to select the track classifi cation:
- By Folders : all folders containing audio fi les recognised on the peripheral, in alphabetical order, ignoring the folder structure.
- By Playlist : depending on the playlists saved.
Press LIST to display the compilation folder structure.
AUDIO

03
312
AUDIO

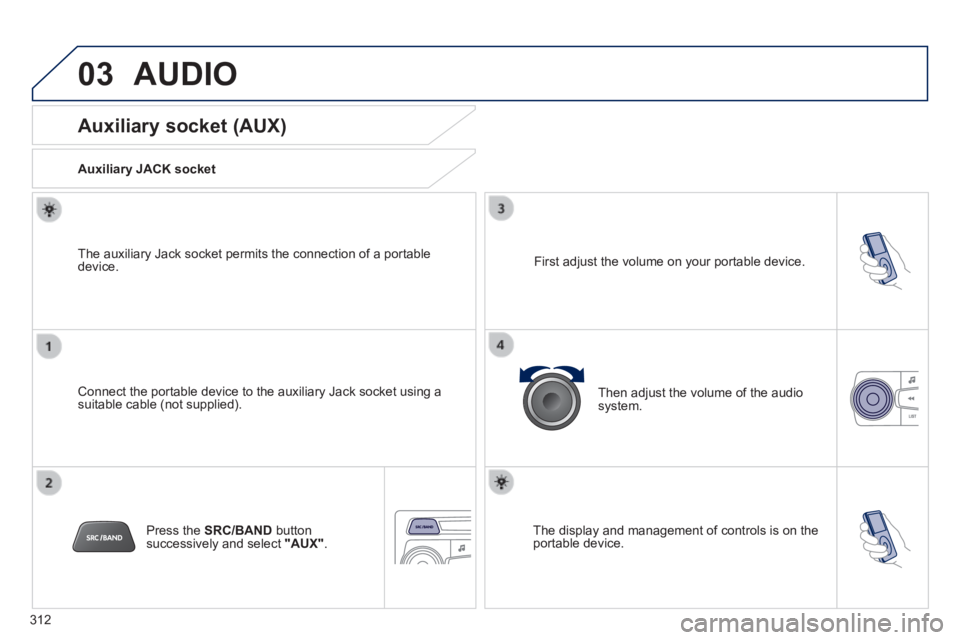

Auxiliary socket (AUX)
Auxiliary JACK socket
Connect the portable device to the auxiliary Jack socket using a suitable cable (not supplied).
The auxiliary Jack socket permits the connection of a portable device.
Press the SRC/BAND button successively and select "AUX" .
First adjust the volume on your portable device.
Then adjust the volume of the audio system.
The display and management of controls is on the portable device.

03
313
AUDIO

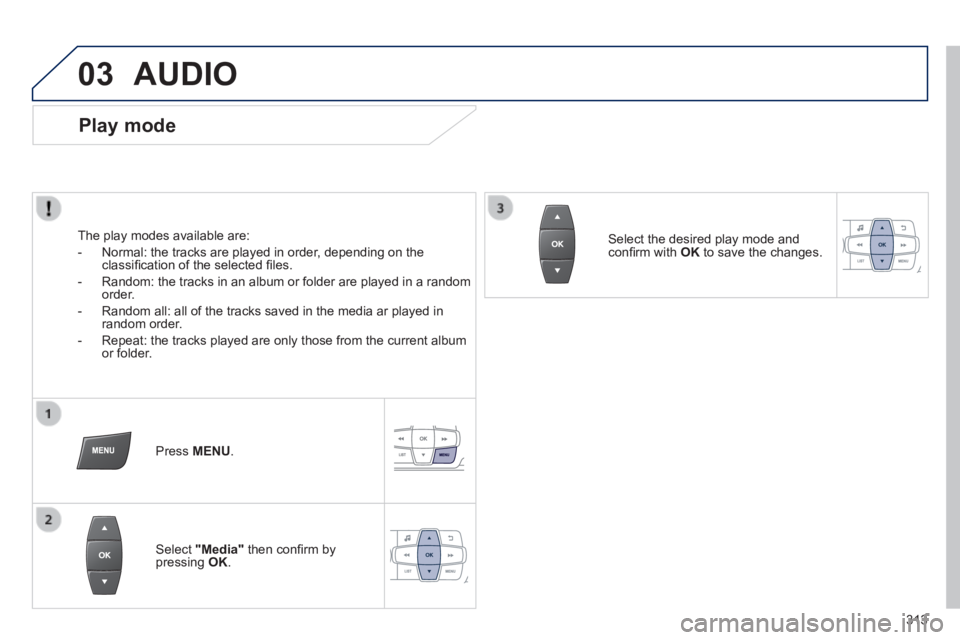

Play mode
The play modes available are:
- Normal: the tracks are played in order, depending on the classifi cation of the selected fi les.
- Random: the tracks in an album or folder are played in a random order.
- Random all: all of the tracks saved in the media ar played in random order.
- Repeat: the tracks played are only those from the current album or folder.
Press MENU .
Select "Media" then confi rm by pressing OK .
Select the desired play mode and confi rm with OK to save the changes.

04

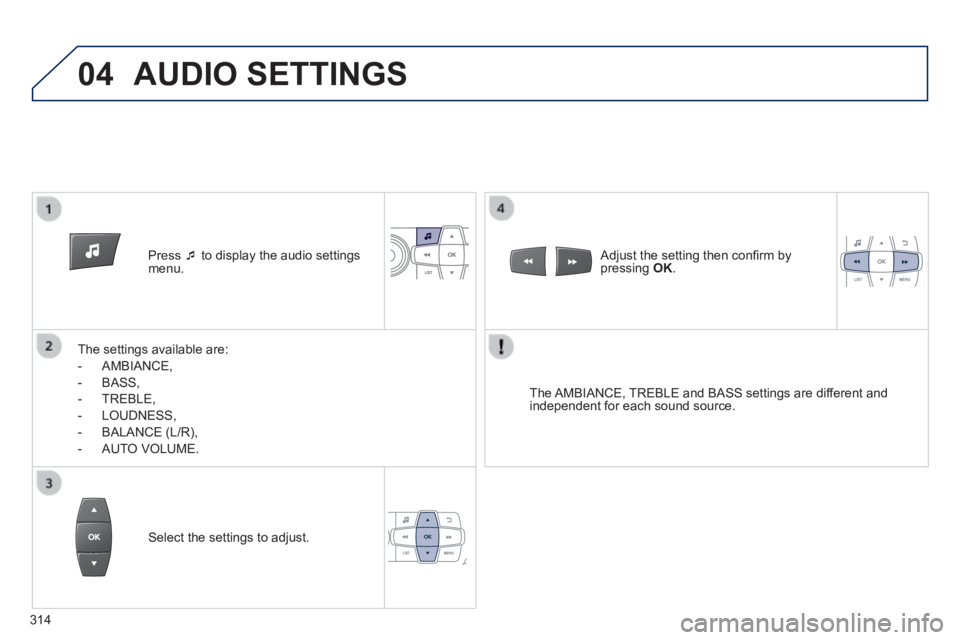

Press  to display the audio settings menu.
The settings available are:
- AMBIANCE,
- BASS,
- TREBLE,
- LOUDNESS,
- BALANCE (L/R),
- AUTO VOLUME.
The AMBIANCE, TREBLE and BASS settings are different and independent for each sound source.
Select the settings to adjust.
Adjust the setting then confi rm by pressing OK .
AUDIO SETTINGS
314

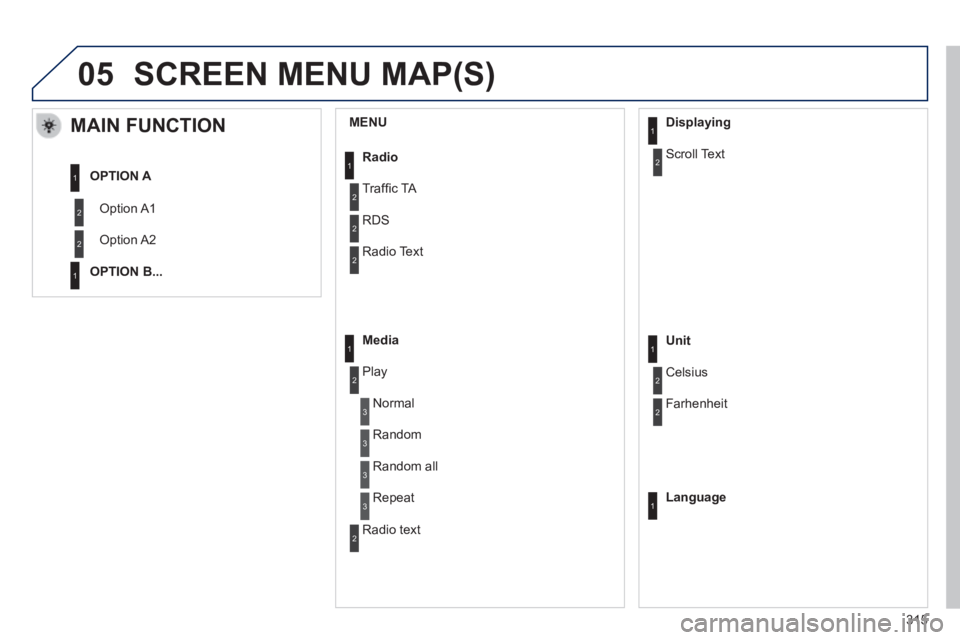

05
MENU
MAIN FUNCTION
Option A1
Option A2
OPTION A
OPTION B ...
Radio
Traffi c TA
RDS
Radio Text
Media
Play
Normal
Random
Displaying
Scroll Text 1
2
2
2
1
2
3
3
1
21
2
2
1
Random all
Repeat
3
3
Unit
Celsius
Farhenheit
1
2
2
SCREEN MENU MAP(S)
Radio text 2
Language1
315

316

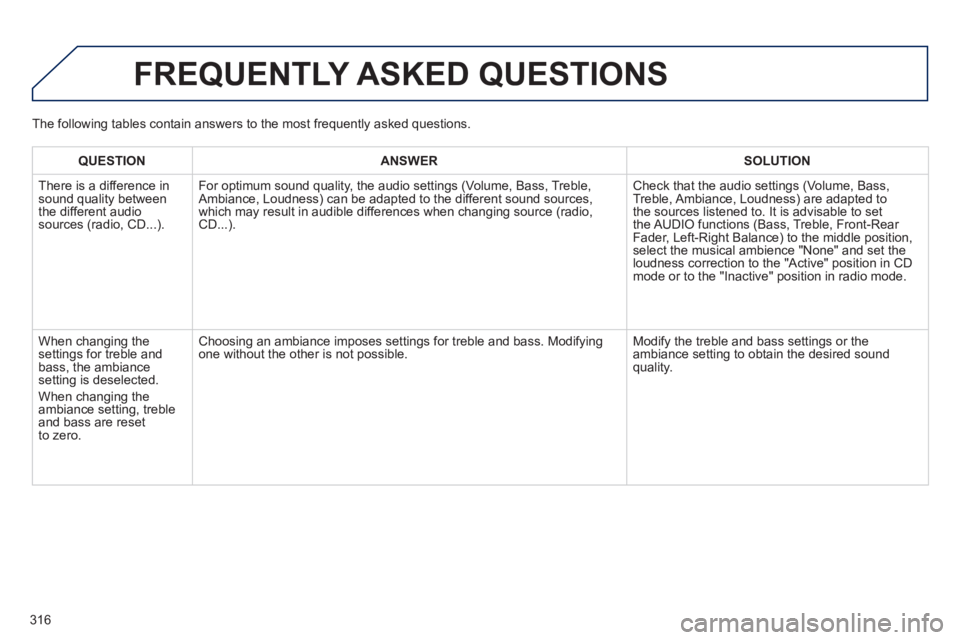

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambiance, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambiance, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Fader, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
When changing the settings for treble and bass, the ambiance setting is deselected.
When changing the ambiance setting, treble and bass are reset to zero.
Choosing an ambiance imposes settings for treble and bass. Modifying one without the other is not possible. Modify the treble and bass settings or the ambiance setting to obtain the desired sound quality.
The following tables contain answers to the most frequently asked questi\
ons.

317

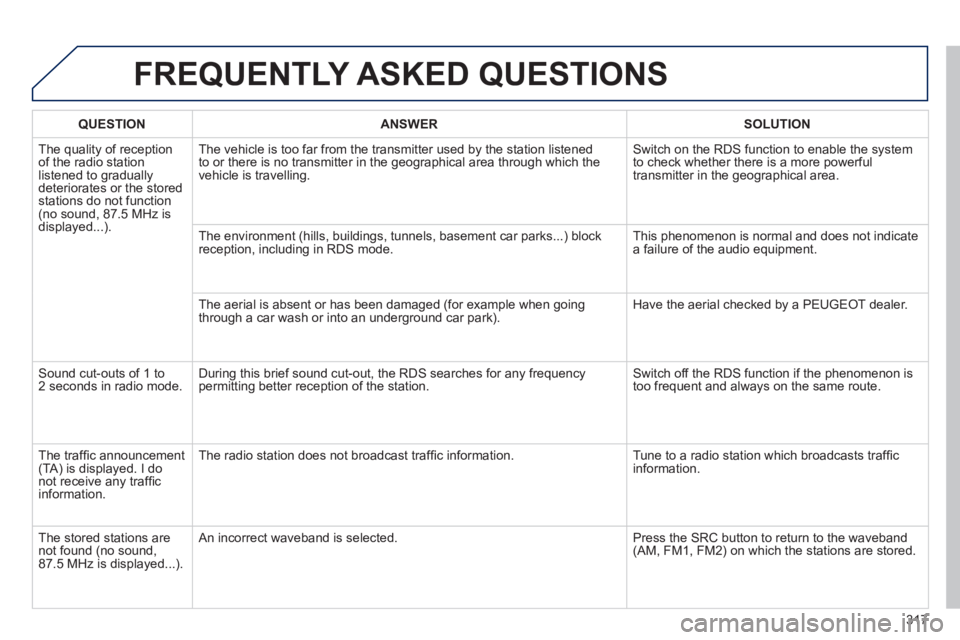

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 MHz is displayed...).
The vehicle is too far from the transmitter used by the station listened\
to or there is no transmitter in the geographical area through which the\
vehicle is travelling.
Switch on the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Switch off the RDS function if the phenomenon is too frequent and always on the same route.
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
The radio station does not broadcast traffi c information. Tune to a radio station which broadcasts traffi c information.
The stored stations are not found (no sound, 87.5 MHz is displayed...).
An incorrect waveband is selected. Press the SRC button to return to the waveband (AM, FM1, FM2) on which the stations are stored.

318

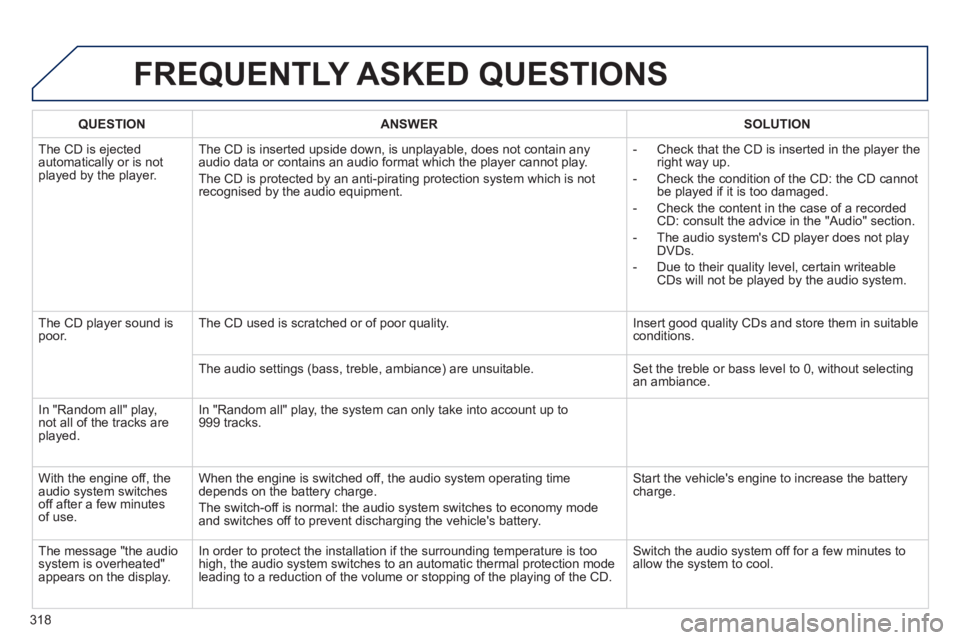

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio system's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio settings (bass, treble, ambiance) are unsuitable. Set the treble or bass level to 0, without selecting an ambiance.
In "Random all" play, not all of the tracks are played.
In "Random all" play, the system can only take into account up to 999 tracks.
With the engine off, the audio system switches off after a few minutes of use.
When the engine is switched off, the audio system operating time depends on the battery charge.
The switch-off is normal: the audio system switches to economy mode and switches off to prevent discharging the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is t\
oo high, the audio system switches to an automatic thermal protection mode \
leading to a reduction of the volume or stopping of the playing of the C\
D.
Switch the audio system off for a few minutes to allow the system to cool.
