PEUGEOT 2008 2014 Owners Manual

299

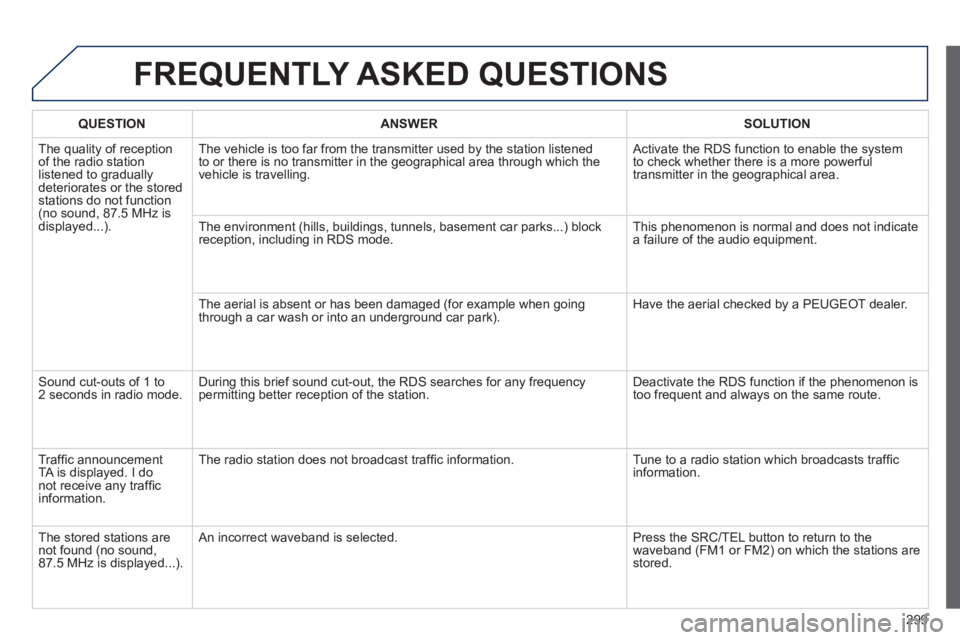

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 MHz is displayed...).
The vehicle is too far from the transmitter used by the station listened\
to or there is no transmitter in the geographical area through which the\
vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
Traffi c announcement TA is displayed. I do not receive any traffi c information.
The radio station does not broadcast traffi c information. Tune to a radio station which broadcasts traffi c information.
The stored stations are not found (no sound, 87.5 MHz is displayed...).
An incorrect waveband is selected. Press the SRC/TEL button to return to the waveband (FM1 or FM2) on which the stations are stored.

300

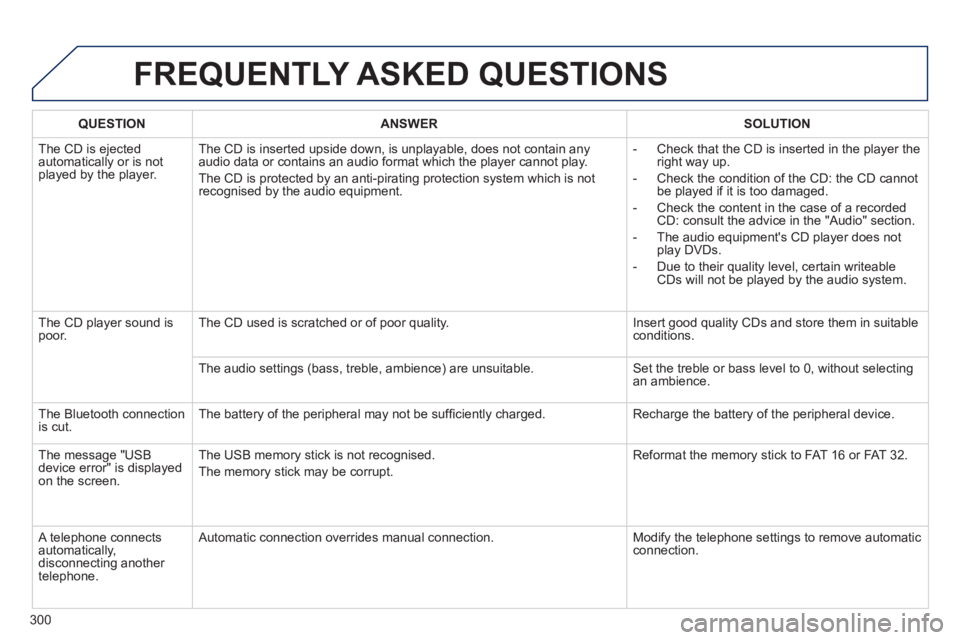

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio settings (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
The Bluetooth connection is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The message "USB device error" is displayed on the screen.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick to FAT 16 or FAT 32.
A telephone connects automatically, disconnecting another telephone.
Automatic connection overrides manual connection. Modify the telephone settings to remove automatic connection.

301

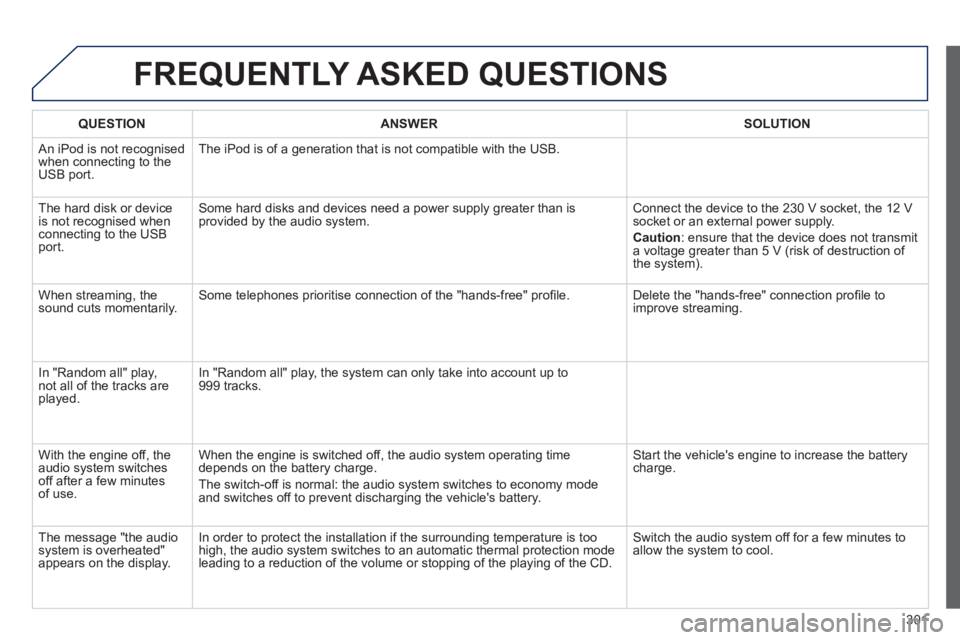

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
An iPod is not recognised when connecting to the USB port.
The iPod is of a generation that is not compatible with the USB.
The hard disk or device is not recognised when connecting to the USB port.
Some hard disks and devices need a power supply greater than is provided by the audio system. Connect the device to the 230 V socket, the 12 V socket or an external power supply.
Caution : ensure that the device does not transmit a voltage greater than 5 V (risk of destruction of the system).
When streaming, the sound cuts momentarily. Some telephones prioritise connection of the "hands-free" profi le. Delete the "hands-free" connection profi le to improve streaming.
In "Random all" play, not all of the tracks are played.
In "Random all" play, the system can only take into account up to 999 tracks.
With the engine off, the audio system switches off after a few minutes of use.
When the engine is switched off, the audio system operating time depends on the battery charge.
The switch-off is normal: the audio system switches to economy mode and switches off to prevent discharging the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is t\
oo high, the audio system switches to an automatic thermal protection mode \
leading to a reduction of the volume or stopping of the playing of the C\
D.
Switch the audio system off for a few minutes to allow the system to cool.

302

303

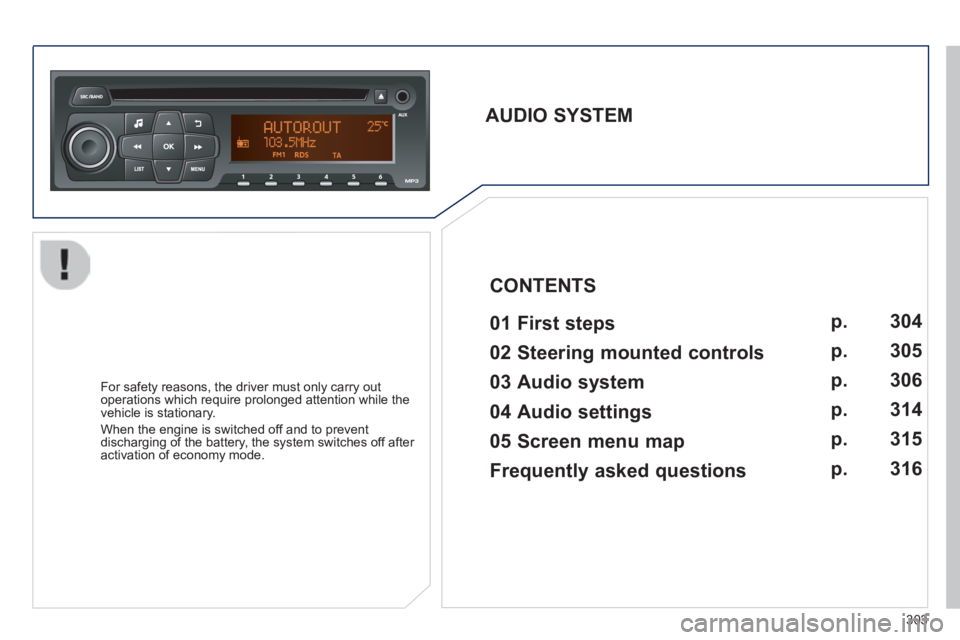

AUDIO SYSTEM 01 First steps
For safety reasons, the driver must only carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the system switches off after activation of economy mode.
CONTENTS
02 Steering mounted controls
03 Audio system
04 Audio settings
05 Screen menu map
Frequently asked questions p.
p.
p.
p.
p.
p.
304
305
306
314
315
316

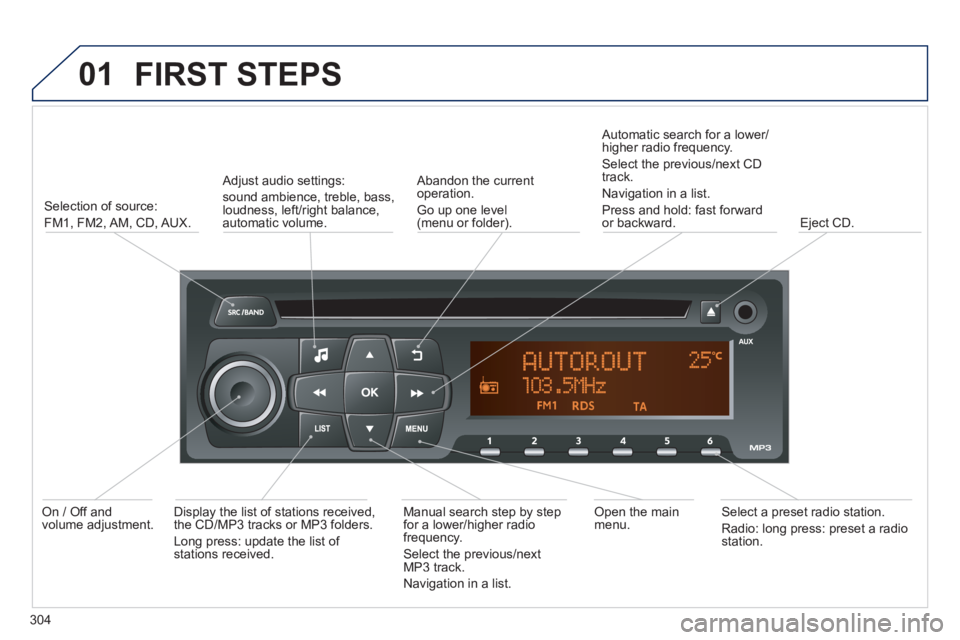

01 FIRST STEPS
304
Selection of source:
FM1, FM2, AM, CD, AUX.
Adjust audio settings:
sound ambience, treble, bass, loudness, left/right balance, automatic volume.
Abandon the current operation.
Go up one level(menu or folder).
Automatic search for a lower/higher radio frequency.
Select the previous/next CD track.
Navigation in a list.
Press and hold: fast forward or backward. Eject CD.
Manual search step by step for a lower/higher radio frequency.
Select the previous/next MP3 track.
Navigation in a list.
Open the main menu. Select a preset radio station.
Radio: long press: preset a radio station.
Display the list of stations received, the CD/MP3 tracks or MP3 folders.
Long press: update the list of stations received.
On / Off and volume adjustment.

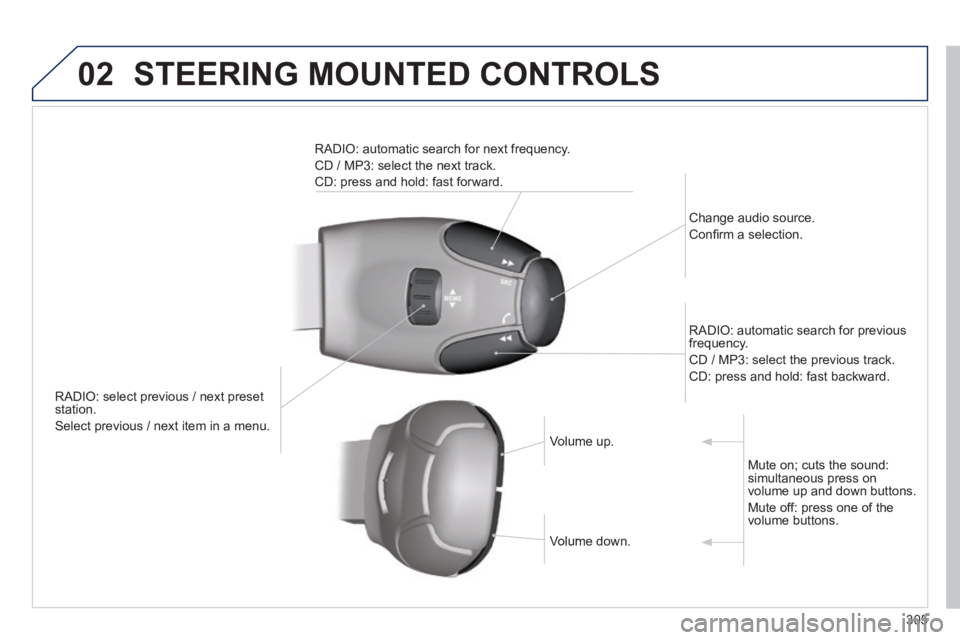

02 STEERING MOUNTED CONTROLS
305
RADIO: select previous / next preset station.
Select previous / next item in a menu.
Change audio source.
Confi rm a selection.
RADIO: automatic search for previous frequency.
CD / MP3: select the previous track.
CD: press and hold: fast backward.
RADIO: automatic search for next frequency.
CD / MP3: select the next track.
CD: press and hold: fast forward.
Volume up. Volume up.
Volume down. Volume down.
Mute on; cuts the sound: simultaneous press on volume up and down buttons.
Mute off: press one of the volume buttons.

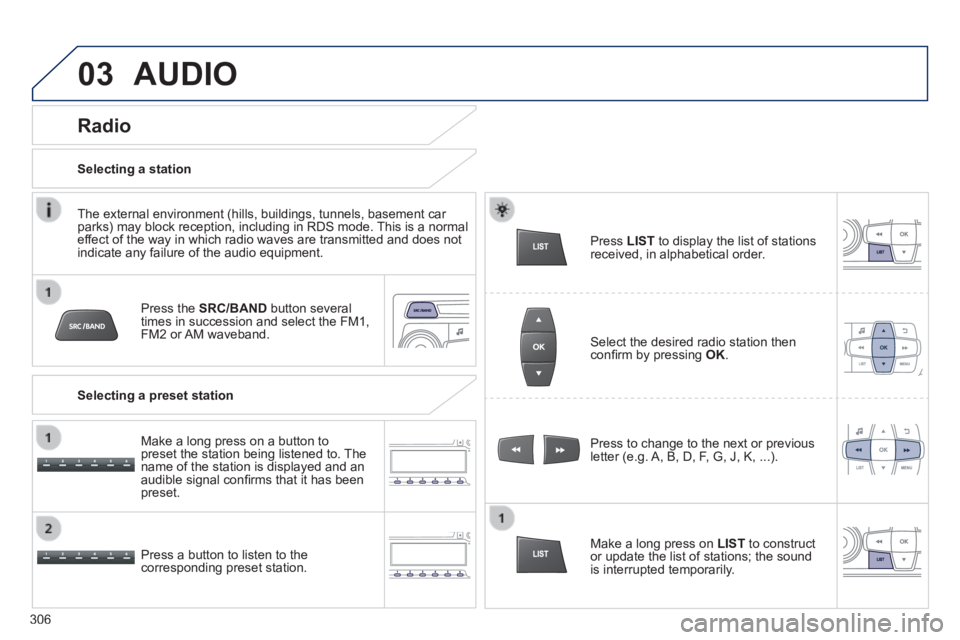

03 AUDIO
Press the SRC/BAND button several times in succession and select the FM1, FM2 or AM waveband.
Press a button to listen to the corresponding preset station.
Press to change to the next or previous letter (e.g. A, B, D, F, G, J, K, ...).
Radio
Select the desired radio station then confi rm by pressing OK .
Selecting a station
Make a long press on LIST to construct or update the list of stations; the sound is interrupted temporarily.
The external environment (hills, buildings, tunnels, basement car parks) may block reception, including in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
Selecting a preset station
Make a long press on a button to preset the station being listened to. The name of the station is displayed and an audible signal confi rms that it has been preset.
Press LIST to display the list of stations received, in alphabetical order.
306

03

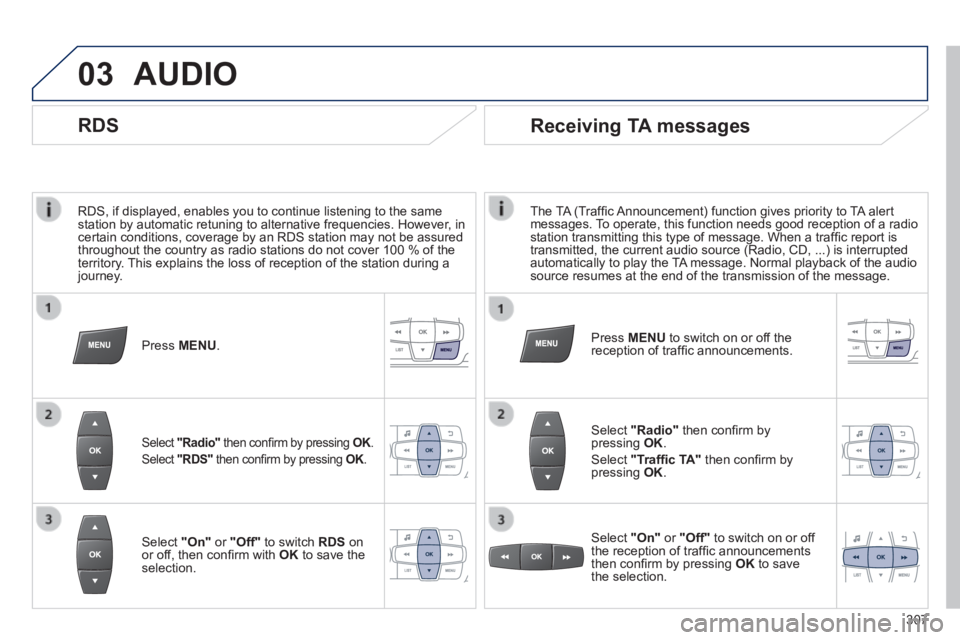

RDS, if displayed, enables you to continue listening to the same station by automatic retuning to alternative frequencies. However, in certain conditions, coverage by an RDS station may not be assured throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
AUDIO
RDS
Press MENU .
Select "Radio" then confi rm by pressing OK . OK . OK
Select "RDS" then confi rm by pressing OK . OK . OK
Select "On" or "Off" to switch RDS on or off, then confi rm with OK to save the selection.
307
Receiving TA messages
The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report is transmitted, the current audio source (Radio, CD, ...) is interrupted \
automatically to play the TA message. Normal playback of the audio source resumes at the end of the transmission of the message.
Select "Radio" then confi rm by pressing OK .
Select "Traffi c TA" then confi rm by pressing OK .
Select "On" or "Off" to switch on or off the reception of traffi c announcements then confi rm by pressing OK to save the selection.
Press MENU to switch on or off the reception of traffi c announcements.

03 AUDIO

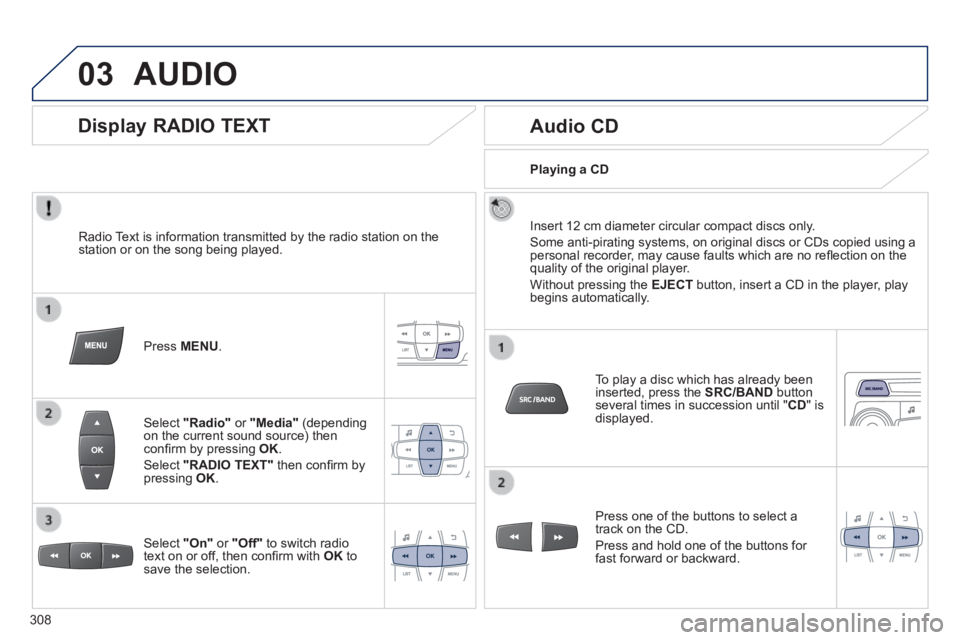

Radio Text is information transmitted by the radio station on the station or on the song being played.
Press MENU .
Select "Radio" or "Media" (depending on the current sound source) then confi rm by pressing OK .
Select "RADIO TEXT" then confi rm by pressing OK .
Display RADIO TEXT Audio CD
Insert 12 cm diameter circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may cause faults which are no refl ection on the quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play begins automatically.
To play a disc which has already been inserted, press the SRC/BAND button several times in succession until " CD " is displayed.
Press one of the buttons to select a track on the CD.
Press and hold one of the buttons for fast forward or backward.
Playing a CD
Select "On" or "Off" to switch radio text on or off, then confi rm with OK to save the selection.
