PEUGEOT 2008 2015 Owners Manual

109
2008_en_Chap05_conduite_ed01-2015

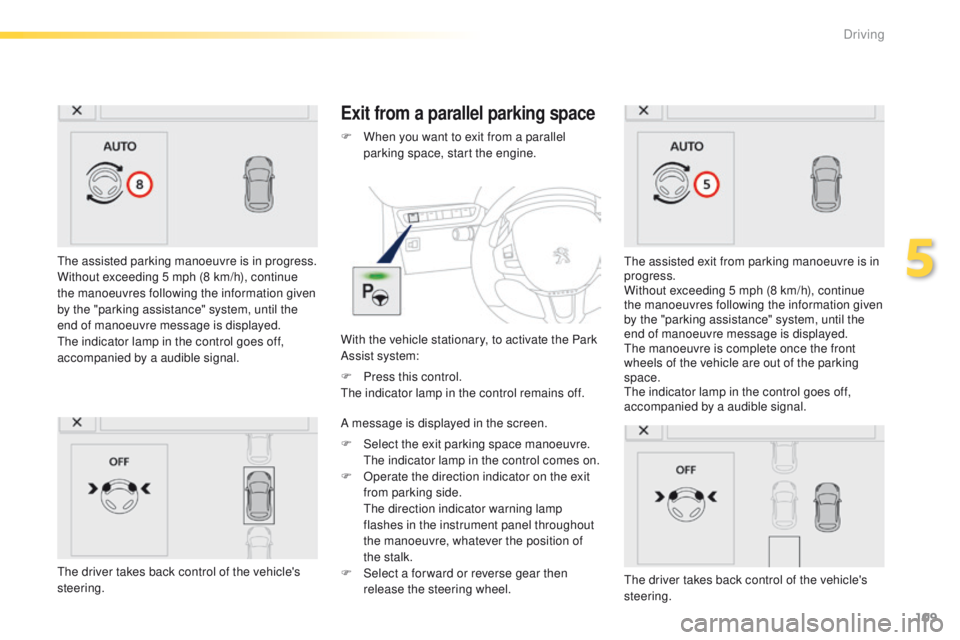

The assisted parking manoeuvre is in progress.
Without exceeding 5 mph (8 km/h), continue
the manoeuvres following the information given
by the "parking assistance" system, until the
end of manoeuvre message is displayed.
The indicator lamp in the control goes off,
accompanied by a audible signal.
Exit from a parallel parking space
With the vehicle stationary, to activate the Park
Assist system: F
W
hen you want to exit from a parallel
parking space, start the engine.
The assisted exit from parking manoeuvre is in
progress.
Without exceeding 5 mph (8 km/h), continue
the manoeuvres following the information given
by the "parking assistance" system, until the
end of manoeuvre message is displayed.
The manoeuvre is complete once the front
wheels of the vehicle are out of the parking
space.
The indicator lamp in the control goes off,
accompanied by a audible signal.
The driver takes back control of the vehicle's
steering.
F

P
ress this control.
The indicator lamp in the control remains off.
A message is displayed in the screen.
F

S
elect the exit parking space manoeuvre.
T

he indicator lamp in the control comes on.
F

O
perate the direction indicator on the exit
from parking side.
T

he direction indicator warning lamp
flashes in the instrument panel throughout
the manoeuvre, whatever the position of
the stalk.
F

S
elect a for ward or reverse gear then
release the steering wheel.
The driver takes back control of the vehicle's
steering.
5
Driving

110
2008_en_Chap05_conduite_ed01-2015
In bad weather and in winter, ensure
that the sensors are not covered by
road dirt, ice or snow.
In the event of a fault, have the system
checked by a PEUGEOT dealer or a
qualified workshop.
If the system is deactivated during a
manoeuvre, the drive should reactivate
it manually to repeat the measurement. If the lateral distance between your vehicle
and the space is too great, the system may
not be able to measure the space.
Anything projecting beyond the envelope
of the vehicle (long or wide load) is not
taken into account by the Park Assist
system during a manoeuvre.

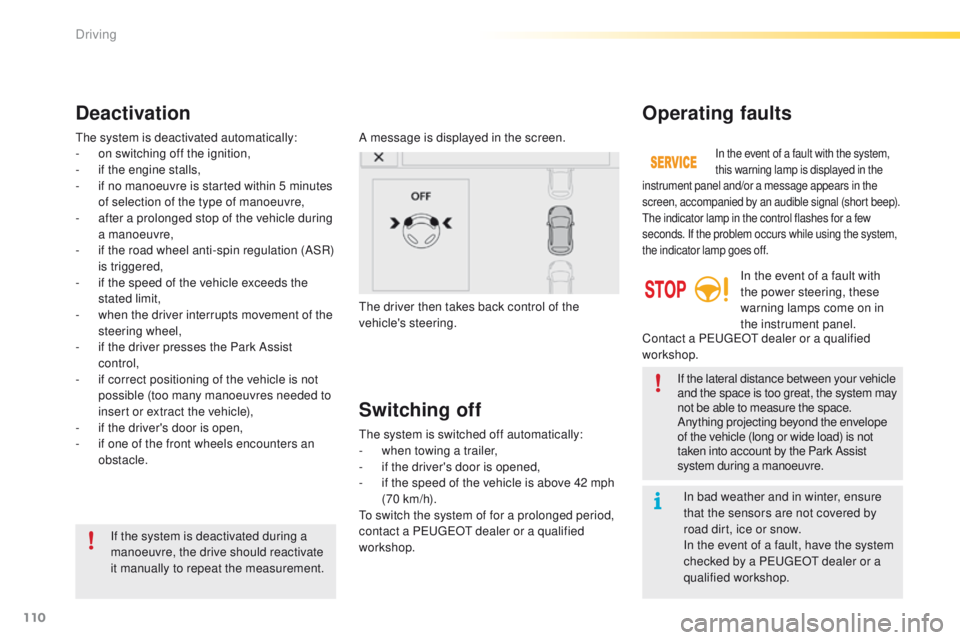

Deactivation
A message is displayed in the screen.
The driver then takes back control of the
vehicle's steering.
The system is deactivated automatically:
-
o
n switching off the ignition,
-

i

f the engine stalls,
-

i

f no manoeuvre is started within 5 minutes
of selection of the type of manoeuvre,
-

a

fter a prolonged stop of the vehicle during
a manoeuvre,
-

i

f the road wheel anti-spin regulation (ASR)
is triggered,
-

i

f the speed of the vehicle exceeds the
stated limit,
-

w

hen the driver interrupts movement of the
steering wheel,
-

i

f the driver presses the Park Assist
control,
-

i

f correct positioning of the vehicle is not
possible (too many manoeuvres needed to
insert or extract the vehicle),
-

i

f the driver's door is open,
-

i

f one of the front wheels encounters an
obstacle.
Switching off
The system is switched off automatically:
- w hen towing a trailer,
-

i
f the driver's door is opened,
-

i
f the speed of the vehicle is above 42 mph
(70 km/h).
To switch the system of for a prolonged period,
contact a PEUGEOT dealer or a qualified
workshop.
Operating faults
In the event of a fault with the system,
this warning lamp is displayed in the
instrument panel and/or a message appears in the
screen, accompanied by an audible signal (short beep).
The indicator lamp in the control flashes for a few
seconds. If the problem occurs while using the system,
the indicator lamp goes off.
In the event of a fault with
the power steering, these
warning lamps come on in
the instrument panel.
Contact a PEUGEOT dealer or a qualified
workshop.
Driving

111
2008_en_Chap06_visibilite_ed01-2015

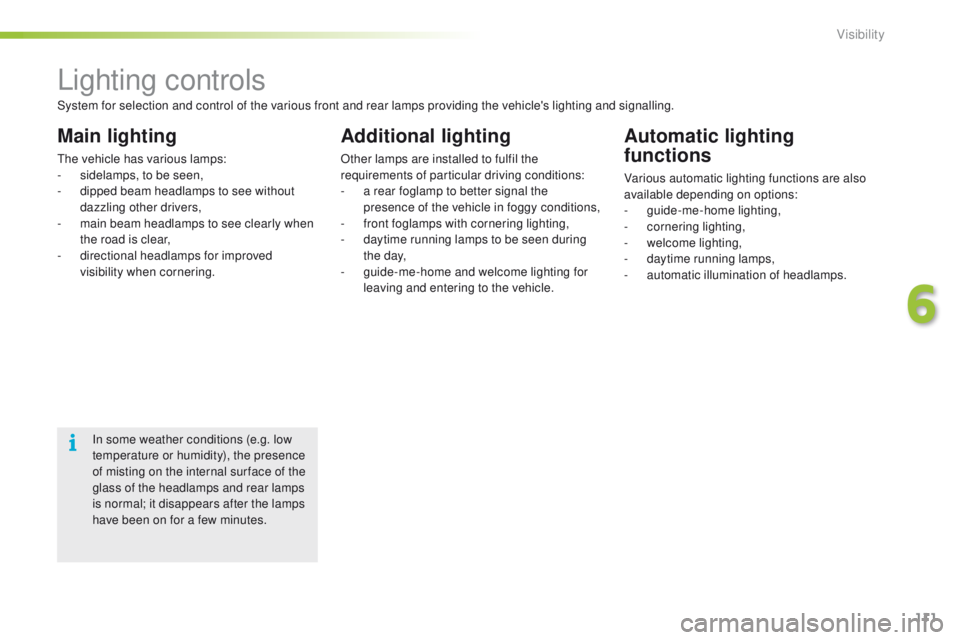

Lighting controls
Main lighting
The vehicle has various lamps:
- s idelamps, to be seen,
-

d
ipped beam headlamps to see without
dazzling other drivers,
-

m
ain beam headlamps to see clearly when
the road is clear,
-
d

irectional headlamps for improved
visibility when cornering.
Additional lighting
Other lamps are installed to fulfil the
requirements of particular driving conditions:
-

a r
ear foglamp to better signal the
presence of the vehicle in foggy conditions,
-
f

ront foglamps with cornering lighting,
-

d
aytime running lamps to be seen during
t h e d ay,
-

g
uide-me-home and welcome lighting for
leaving and entering to the vehicle.
Automatic lighting
functions
Various automatic lighting functions are also
available depending on options:
-
gu

ide-me-home lighting,
-
c

ornering lighting,
-

w
elcome lighting,
-
d

aytime running lamps,
-

a
utomatic illumination of headlamps.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.
6
Visibility

112
2008_en_Chap06_visibilite_ed01-2015

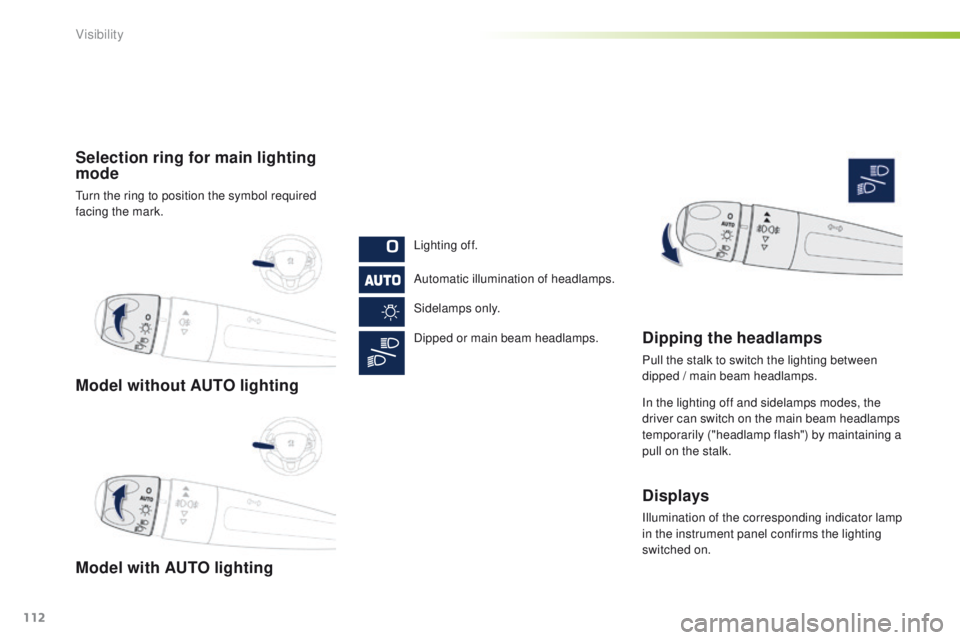

Model without AUTO lighting
Model with AUTO lighting Selection ring for main lighting
mode
Turn the ring to position the symbol required
facing the mark.Lighting off.
Automatic illumination of headlamps.
Sidelamps only.
Dipped or main beam headlamps.
Dipping the headlamps
Pull the stalk to switch the lighting between
dipped / main beam headlamps.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Displays
Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting
switched on.
Visibility

113
2008_en_Chap06_visibilite_ed01-2015

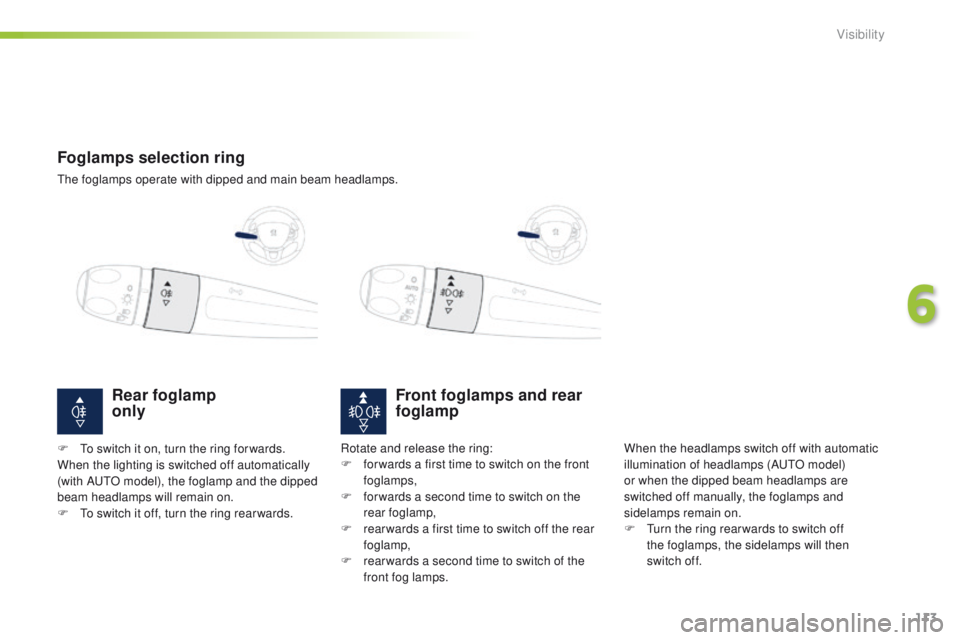

Foglamps selection ring
The foglamps operate with dipped and main beam headlamps.
Front foglamps and rear
foglamp
When the headlamps switch off with automatic
illumination of headlamps (AUTO model)
or when the dipped beam headlamps are
switched off manually, the foglamps and
sidelamps remain on.
F
T
urn the ring rear wards to switch off
the foglamps, the sidelamps will then
switch


off.
Rotate and release the ring:
F
f
or wards a first time to switch on the front
foglamps,
F

f

or wards a second time to switch on the
rear foglamp,
F

r

ear wards a first time to switch off the rear
foglamp,
F

r

ear wards a second time to switch of the
front fog lamps.
Rear foglamp
only
F To switch it on, turn the ring for wards.
When the lighting is switched off automatically
(with AUTO model), the foglamp and the dipped
beam headlamps will remain on.
F

T
o switch it off, turn the ring rear wards.
6
Visibility

114
2008_en_Chap06_visibilite_ed01-2015

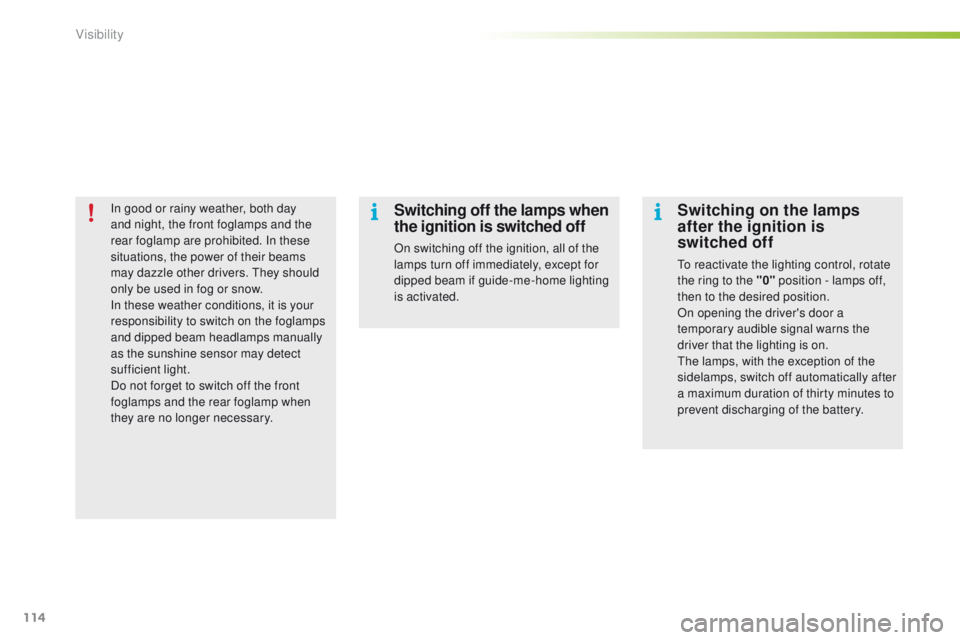

In good or rainy weather, both day
and night, the front foglamps and the
rear foglamp are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped beam headlamps manually
as the sunshine sensor may detect
sufficient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.Switching on the lamps
after the ignition is
switched off
To reactivate the lighting control, rotate
the ring to the "0" position - lamps off,
then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically after
a maximum duration of thirty minutes to
prevent discharging of the battery.
Switching off the lamps when
the ignition is switched off
On switching off the ignition, all of the
lamps turn off immediately, except for
dipped beam if guide-me-home lighting
is activated.
Visibility

115
2008_en_Chap06_visibilite_ed01-2015

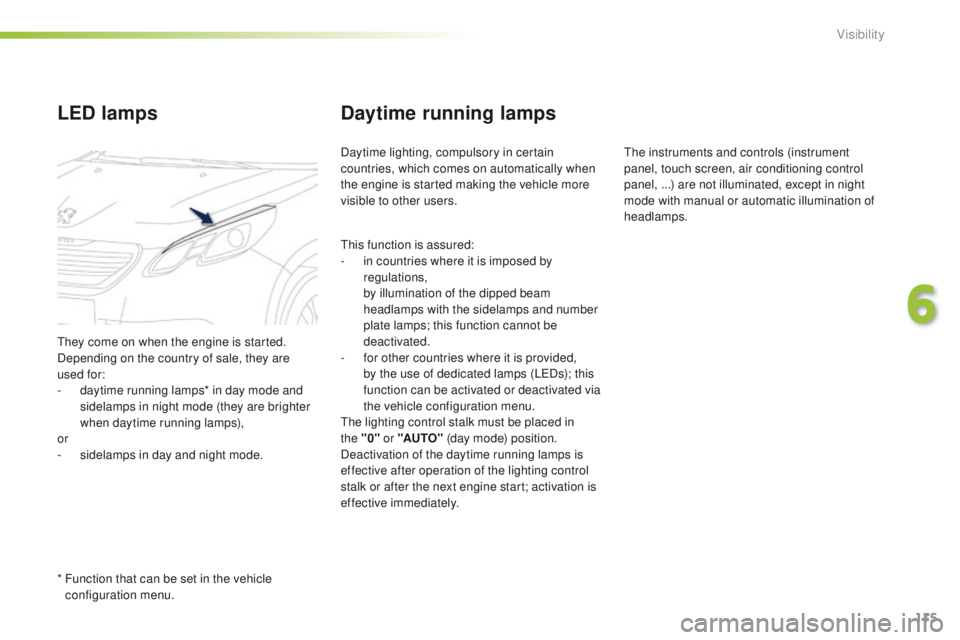

Daytime running lamps
Daytime lighting, compulsory in certain
countries, which comes on automatically when
the engine is started making the vehicle more
visible to other users.
LED lamps
They come on when the engine is started.
Depending on the country of sale, they are
used for:
-
d
aytime running lamps* in day mode and
sidelamps in night mode (they are brighter
when daytime running lamps),
or
-

s
idelamps in day and night mode.
*

F
unction that can be set in the vehicle
configuration menu. This function is assured:
-

i
n countries where it is imposed by
regulations,
b
y illumination of the dipped beam
headlamps with the sidelamps and number
plate lamps; this function cannot be
deactivated.
- f or other countries where it is provided,
b

y the use of dedicated lamps (LEDs); this
function can be activated or deactivated via
the vehicle configuration menu.
The lighting control stalk must be placed in
the
"0"

or "AUTO" (day mode) position.
Deactivation of the daytime running lamps is
effective after operation of the lighting control
stalk or after the next engine start; activation is
effective immediately. The instruments and controls (instrument
panel, touch screen, air conditioning control
panel, ...) are not illuminated, except in night
mode with manual or automatic illumination of
headlamps.
6
Visibility

116
2008_en_Chap06_visibilite_ed01-2015

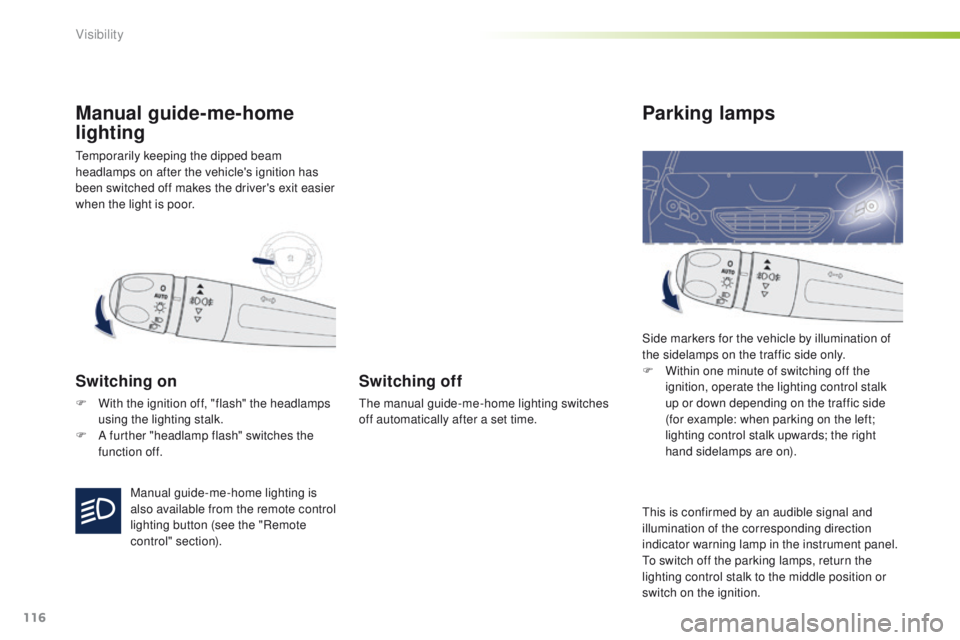

Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has
been switched off makes the driver's exit easier
when the light is poor.
Manual guide-me-home
lighting
Switching on
F With the ignition off, "flash" the headlamps using the lighting stalk.
F

A f
urther "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
Parking lamps
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F

W
ithin one minute of switching off the
ignition, operate the lighting control stalk
up or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).
Manual guide-me-home lighting is
also available from the remote control
lighting button (see the "Remote
control" section). This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position or
switch on the ignition.
Visibility

117
2008_en_Chap06_visibilite_ed01-2015

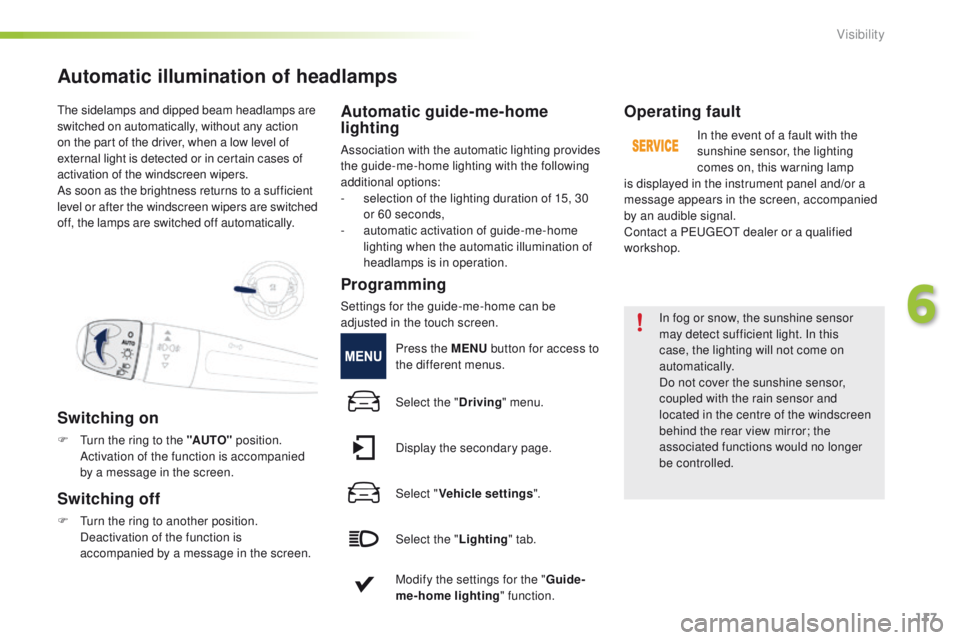

The sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver, when a low level of
external light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automatically.
Automatic illumination of headlamps
Switching on
F Turn the ring to the "AUTO" position.
Activation of the function is accompanied
by a message in the screen.
Switching off
F Turn the ring to another position. Deactivation of the function is
accompanied by a message in the screen.
Automatic guide-me-home
lighting
Association with the automatic lighting provides
the guide-me-home lighting with the following
additional options:
-

s
election of the lighting duration of 15, 30
or 60 seconds,
-

a
utomatic activation of guide-me-home
lighting when the automatic illumination of
headlamps is in operation.
Operating fault
In the event of a fault with the
sunshine sensor, the lighting
comes on, this warning lamp
is displayed in the instrument panel and/or a
message appears in the screen, accompanied
by an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop.
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
Programming
Settings for the guide-me-home can be
adjusted in the touch screen. Press the MENU button for access to
the different menus.
Select the " Driving" menu.
Display the secondary page.
Select " Vehicle settings ".
Select the " Lighting" tab.
Modify the settings for the " Guide-
me-home lighting " function.
6
Visibility

118
2008_en_Chap06_visibilite_ed01-2015

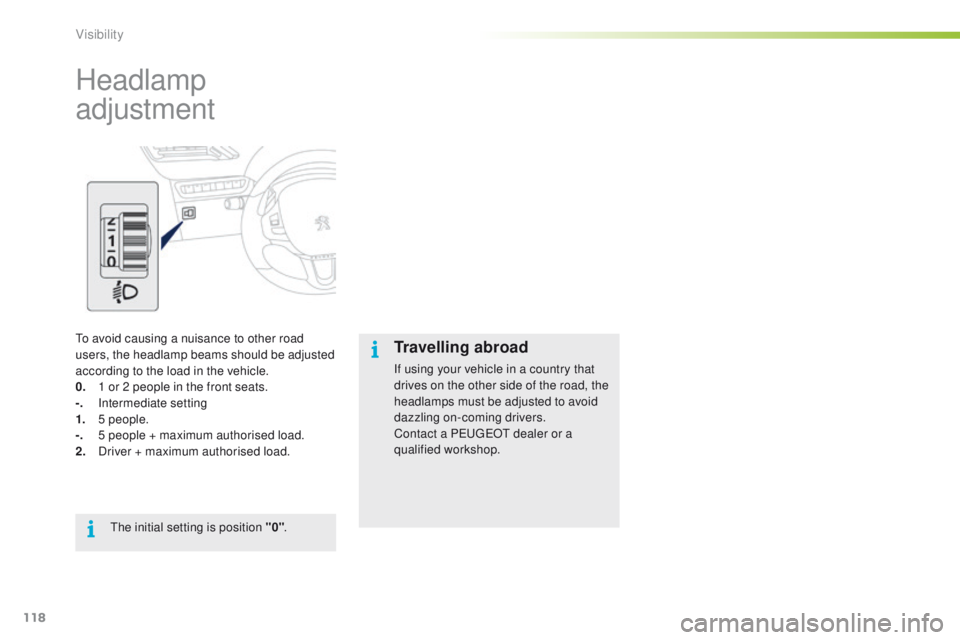

Headlamp
adjustment
To avoid causing a nuisance to other road
users, the headlamp beams should be adjusted
according to the load in the vehicle.
0.
1 o
r 2 people in the front seats.
-.

I
ntermediate setting
1.
5

people.
-.

5 p
eople + maximum authorised load.
2.
D

river + maximum authorised load.The initial setting is position "0" .Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a PEUGEOT dealer or a
qualified workshop.
Visibility
