39
2008_en_Chap01_controle-de-marche_ed01-2015
Stop & Start time
counter
(minutes / seconds or hours /
minutes)
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualified workshop. This function is only displayed from
20 mph (30 km/h).
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
Trip computer, a few definitions
Range
(miles or km)
The distance which can still be
travelled with the fuel remaining
in the tank (related to the
average fuel consumption over
the last few miles (kilometres)
travelled).
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
Calculated over the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
Calculated since the last trip
computer reset.
Average speed
(mph or km/h)
Calculated since the last trip
computer reset.
Distance travelled
(miles or km)
Calculated since the last trip
computer reset.
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on with the key.
1
Monitoring

40
System that measures the distance travelled
(daily, for example) since it was last reset by
the driver.
The trip recorder is displayed in zone B of the
instrument panel screen.
Trip recorder
System that measures the total distance
travelled by the vehicle during its life.
The total distance is displayed in zone A of the
instrument panel screen.
Distance recorders
Odometer
Resetting the trip recorder
With the trip mileage displayed, press this
button for a few seconds.
Monitoring

41
2008_en_Chap01_controle-de-marche_ed01-2015

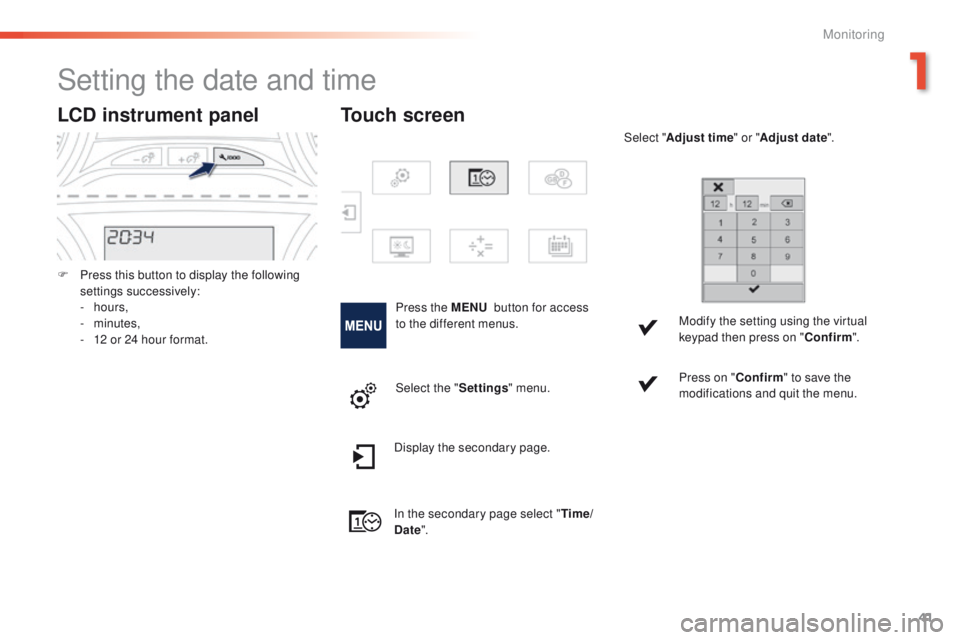

LCD instrument panel
F Press this button to display the following settings successively:
-
hours,
-


minutes,
-

1
2 or 24 hour format.
Setting the date and time
Press the MENU button for access
to the different menus. Select "
Adjust time " or "Adjust date".
Modify the setting using the virtual
keypad then press on " Confirm".
Touch screen
Select the " Settings" menu. Press on "
Confirm" to save the
modifications and quit the menu.
Display the secondary page.
In the secondary page select " Time/
Date ".
1
Monitoring

42
2008_en_Chap02_ouvertures_ed01-2015

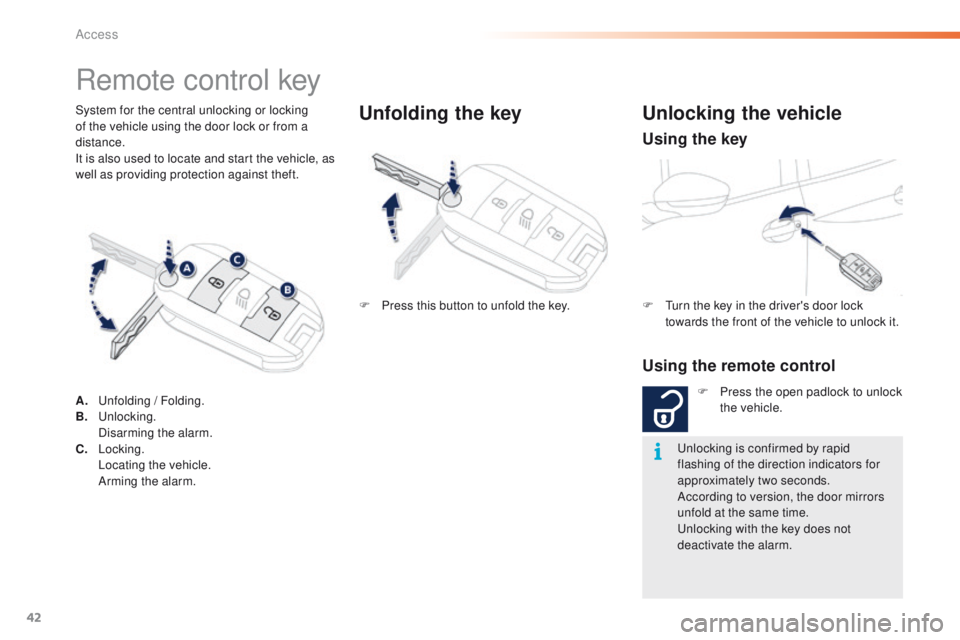

System for the central unlocking or locking
of the vehicle using the door lock or from a
distance.
It is also used to locate and start the vehicle, as
well as providing protection against theft.
Remote control key
Unlocking the vehicle
F Turn the key in the driver's door lock towards the front of the vehicle to unlock it.
Using the remote control
F Press the open padlock to unlock the vehicle.
Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time.
Unlocking with the key does not
deactivate the alarm.
F

P

ress this button to unfold the key.
A. U
nfolding / Folding.
B.


Unlocking.
D

isarming the alarm.
C.


Locking.
L

ocating the vehicle.
A

rming the alarm.
Unfolding the key
Using the key
Access

43
2008_en_Chap02_ouvertures_ed01-2015

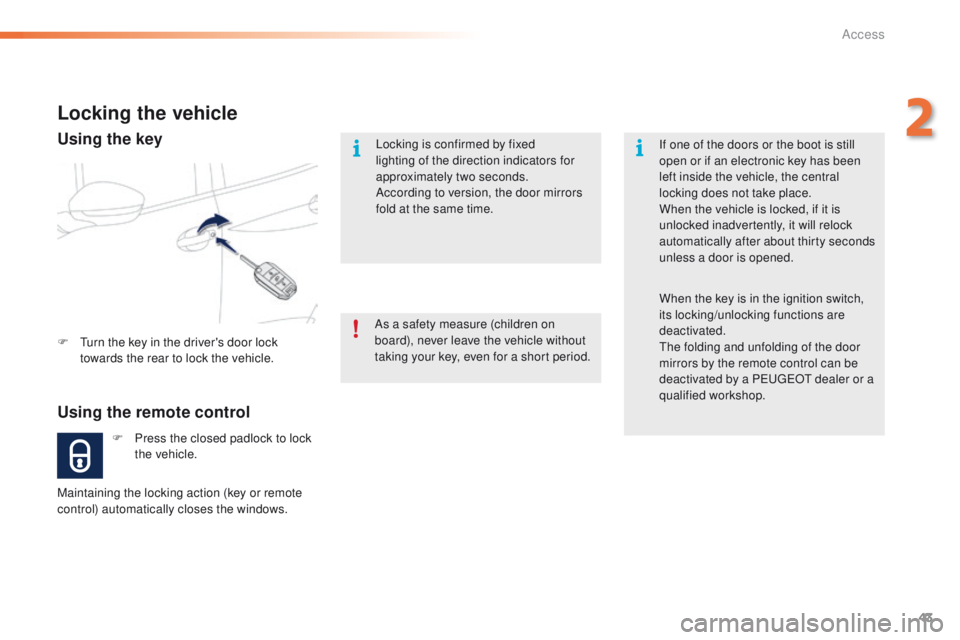

Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.
As a safety measure (children on
board), never leave the vehicle without
taking your key, even for a short period.
Locking the vehicle
Using the remote control
F Press the closed padlock to lock the vehicle.
F

T

urn the key in the driver's door lock
towards the rear to lock the vehicle.
Maintaining the locking action (key or remote
control) automatically closes the windows. If one of the doors or the boot is still
open or if an electronic key has been
left inside the vehicle, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after about thirty seconds
unless a door is opened.
When the key is in the ignition switch,
its locking/unlocking functions are
deactivated.
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
Using the key
2
Access

44
2008_en_Chap02_ouvertures_ed01-2015

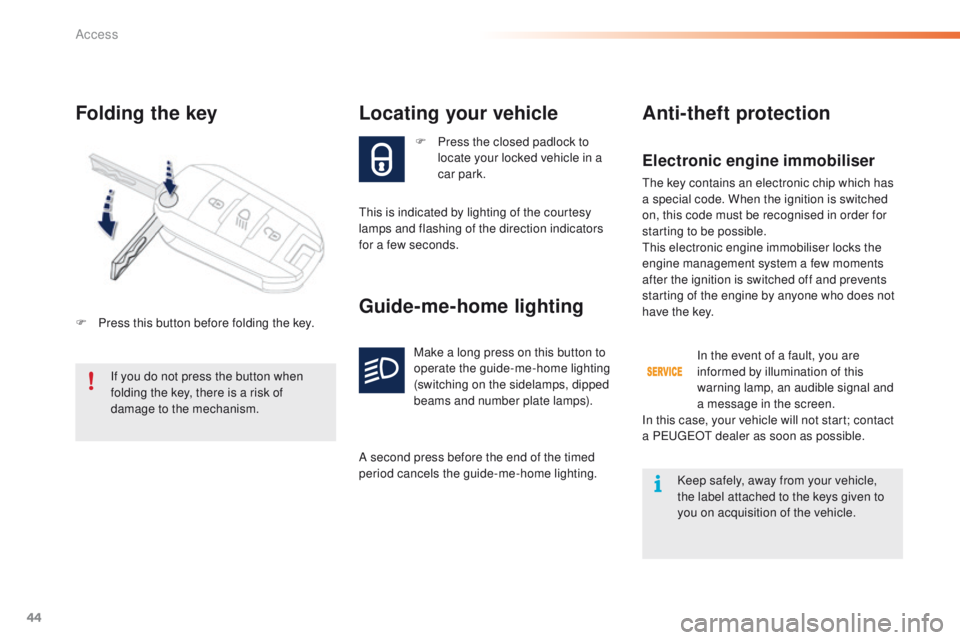

Folding the key
F Press the closed padlock to locate your locked vehicle in a
car park.
Locating your vehicle
This is indicated by lighting of the courtesy
lamps and flashing of the direction indicators
for a few seconds.
If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
Guide-me-home lighting
Make a long press on this button to
operate the guide-me-home lighting
(switching on the sidelamps, dipped
beams and number plate lamps).
A second press before the end of the timed
period cancels the guide-me-home lighting.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
In this case, your vehicle will not start; contact
a PEUGEOT dealer as soon as possible.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
F

P

ress this button before folding the key.
Access

45
2008_en_Chap02_ouvertures_ed01-2015
Changing the battery
Battery ref.: CR1620 / 3 volts.Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Remote control problem
Reinitialisation
F Switch off the ignition.
F
T urn the key to position 2 (Ignition) .
F

P
ress the closed padlock immediately for a
few seconds.
F

S
witch off the ignition and remove the key
from the ignition switch.
The remote control is fully operational again. Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F
F
irst of all, use the key in the lock to unlock
or lock your vehicle.
F
T
hen, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.
If the battery is flat, you are informed
by lighting of this warning lamp in the
instrument panel, an audible signal
and a message in the screen.
F
U
nclip the cover using a screwdriver in the
cutout.
F
R
emove the cover.
F
E
xtract the flat battery from its location.
F P lace the new battery into its location
observing the original direction.
F

C
lip the cover in place.
2
Access

46
2008_en_Chap02_ouvertures_ed01-2015

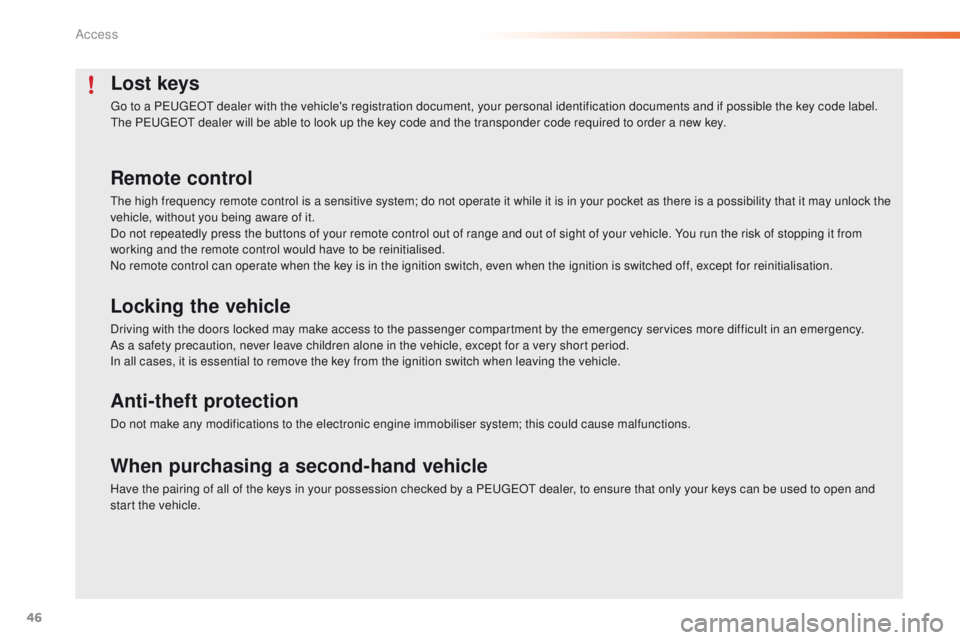

Lost keys
Go to a PEUGEOT dealer with the vehicle's registration document, your personal identification documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transponder code required to order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT dealer, to ensure that only your keys can be used to open and
start the vehicle.
Access

47
2008_en_Chap02_ouvertures_ed01-2015

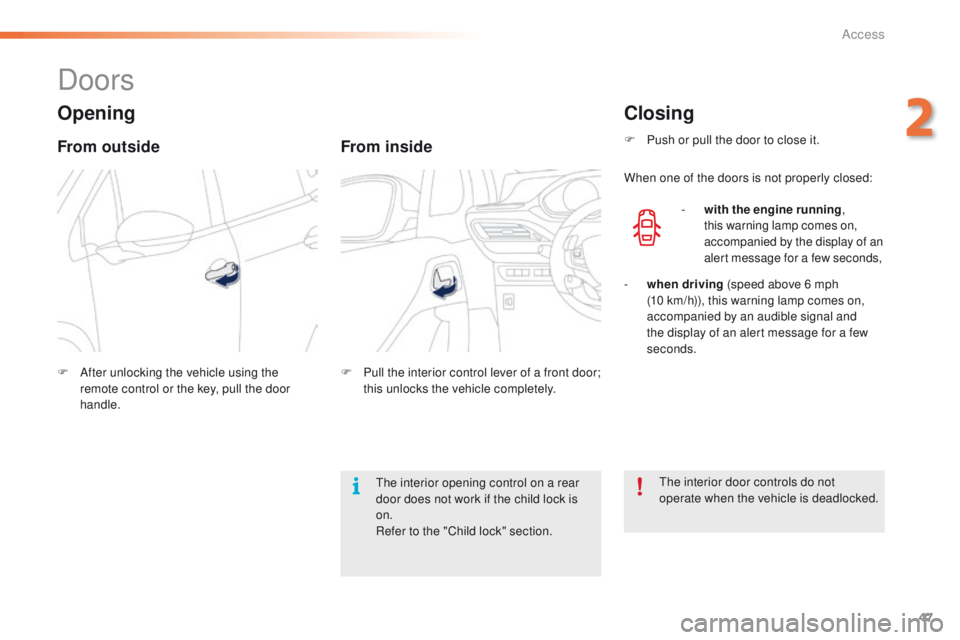

Doors
Opening
From outside
F After unlocking the vehicle using the remote control or the key, pull the door
handle.
From inside
F Pull the interior control lever of a front door; this unlocks the vehicle completely.
Closing
F Push or pull the door to close it.
When one of the doors is not properly closed:
-

w
ith the engine running ,
this warning lamp comes on,
accompanied by the display of an
alert message for a few seconds,
-

wh
en driving (speed above 6 mph
(10
km/h)), this warning lamp comes on,
accompanied by an audible signal and
the display of an alert message for a few
seconds.
The interior door controls do not
operate when the vehicle is deadlocked.
The interior opening control on a rear
door does not work if the child lock is
on.
Refer to the "Child lock" section.
2
Access

48
2008_en_Chap02_ouvertures_ed01-2015
Back-up control
For mechanically locking and unlocking the
doors in the event of a fault with the central
locking system or a battery failure.Driver's door
Insert the key in the lock to lock or unlock
the door.
Passenger doors
Locking
F On the rear doors, check that the child lock is not on.
F

R
emove the black cap located on the edge
of the door, using the key.
F

I
nsert the key into the aperture without
forcing, then without turning, move the
latch sideways towards the inside of the
d o o r.
F

R
emove the key and refit the cap.
Unlocking
F Pull the interior door lever.
In the event of a fault with the central
locking, it is essential to disconnect the
battery to lock the boot and so assure
the complete locking of the vehicle.
Access
