PEUGEOT 206 2003 Owner's Manual

26-05-2003
TYPES OF SERVICE Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating two types of service, A and C, intermediate visits and a few additional operations depend- ing on your vehicle; these correspond to key stages in the life of your vehicle. When the first service is carried out and at each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
THE MAINTENANCE CYCLE FOR YOUR SALOON and 206 SW PETROL
Service every 20,000 miles (30,000 km) or 2 years.
1st service at
6,000 miles (10,000 km) or 6 months*.
This is necessary
in order to benefit from the warranty
These services are to be carried with at least 10W40 synthetic based oil.
They can also be carried out with 5W30 Fuel Economy oilor with 5W40 synthetic oil .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit included in the Servicing Schedule.
MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000)
80,000 (120,000) 100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000)

26-05-2003
TYPES OF SERVICE Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating two types of service, A and C, intermediate visits and a few additional operations depend- ing on your vehicle; these correspond to key stages in the life of your vehicle. When the first service is carried out and at each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
THE MAINTENANCE CYCLE FOR YOUR SALOON and 206 SW PETROL
Service every 20,000 miles (30,000 km) or 2 years.
1st service at
6,000 miles (10,000 km) or 6 months*.
This is necessary
in order to benefit from the warranty
These services are to be carried with at least 10W40 synthetic based oil.
They can also be carried out with 5W30 Fuel Economy oilor with 5W40 synthetic oil .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit included in the Servicing Schedule.
MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000)
80,000 (120,000) 100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000)

26-05-2003
PEUGEOT SERVICING23
THE MAINTENANCE CYCLE FOR YOUR 206 GTi 180**
Service every 12,000 miles (20,000 km) or 2 years.
1st service at
6,000 miles (10,000 km) or 6 months*.
This is necessary in order to benefit
from the warranty
These services are to be carried with 5W40 synthetic based oilonly.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
** During the year, according to destination.
Intermediate top-up visit included in the Servicing Schedule.
MILES (KM) 12,000 (20,000) 24,000 (40,000) 36,000 (60,000) 48,000 (80,000) 60,000 (100,000)
72,000 (120,000) 84,000 (140,000) 96,000 (160,000) 108,000(180,000) 120,000 (200,000) 132,000 (220,000) 144,000 (240,000)

26-05-2003
PEUGEOT SERVICING
24
Intermediate top-up visit incorporated in the Servicing Schedule.
THE MAINTENANCE CYCLE FOR YOUR 206 TURBO DIESEL HDI
Service every 12,000 miles (20,000 km) or 2 years.
1st Service at
6,000 miles (10,000 km) or 6 months*.
This is necessary
in order to benefit
from the warranty.
These services are to be carried out with 10W40 synthetically based oilminimum.
They can also be carried out with 5W30 Fuel Economy oilor with 5W40 synthetic oil .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
MILES (KM)12,000 (20,000) 24,000 (40,000) 36,000 (60,000) 48,000 (80,000) 60,000 (100,000)
72,000 (120,000) 84,000 (140,000) 96,000 (160,000) 108,000 (180,000) 120,000 (200,000) 132,000 (220,000) 144,000 (240,000)

26-05-2003
PEUGEOT SERVICING25
Intermediate top-up visit incorporated in the Servicing Schedule.
THE MAINTENANCE CYCLE FOR YOUR 206 INDIRECT INJECTION DIESEL
Service every 10,000 miles (15,000 km) or 2 years.
1st Service at
6,000 miles 10,000 km or 6 months*.
This is necessary
in order to benefit
from the warranty.
These services are to be carried out with 10W40 synthetically based oilminimum.
They can also be carried out with 5W30 Fuel Economy oilor with 5W40 synthetic oil .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
MILES (KM) 10,000 (15,000) 20,000 (30,000) 30,000 (45,000) 40,000 (60,000)
50,000 (75,000) 60,000 (90,000) 70,000 (105,000) 80,000 (120,000) 90,000 (135,000) 100,000 (150,000)
110,000 (165,000) 120,000 (180,000) 130,000 (195,000) 140,000 (210,000) 150,000 (225,000) 160,000 (240,000)

PEUGEOT SERVICING
26
A & C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation1st serviceACIntermediate
DRAIN/REFILL- Engine oil- Bleed fuel filter (diesel)- Oil filter- Fuel filter* (petrol)REPLACE- Fuel filter element (diesel)- Air filter element- Spark plugs (petrol)- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if cap is removableLEVEL- Screen wash front/rear (check + top-up)- Coolant (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top up according to specification)- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Windscreen washer jets- Condition of wiper blades- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers)CHECK- Condition of rubber boots and gaiters- Brake pads o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel)- Emission control check as per current legislation (petrol)- Smoke opacity (diesel)- Passenger compartment filter (according to specification)o- Visual check of the whole vehicle
SERVICE*- Courtesy vehicle
ROAD TEST
: All driving conditionso: Arduous conditions * According to destination.26-05-2003

26-05-2003
DIESEL
DIESEL
PETROL PETROL

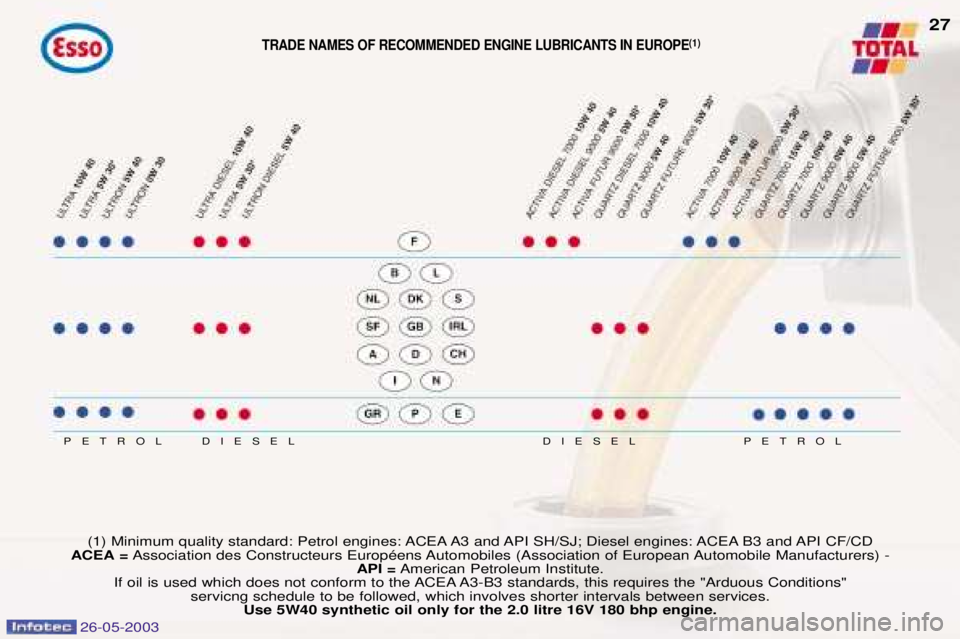

(1) Minimum quality standard: Petrol engines: ACEA A3 and API SH/SJ; Diesel engines: ACEA B3 and API CF/CD
ACEA = Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) -
API =American Petroleum Institute.
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous Conditions" servicng schedule to be followed, which involves shorter intervals between services.Use 5W40 synthetic oil only for the 2.0 litre 16V 180 bhp engine.
TRADE NAMES OF RECOMMENDED ENGINE LUBRICANTS IN EUROPE (1)
27

26-05-2003
Recommended lubricants The oils which appear in the previous table are suitable for most purposes. The diagram opposite states the optimum range of viscosity dependingon the temperatures at which the oilsare to be used. It is also possible to use "superior quality" synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ quality (for petrol engines), or CD/CFquality (for diesel engines) may beused by following the "ArduousConditions" servicing schedule whichspecifies shorter intervals. Do not hesitate to ask for advice from
a PEUGEOT dealer to maintain driving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
PEUGEOT SERVICING
28
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W80 PR 9736.41 75W80
ONLY
Automatic ATF 4HP20-AL4
Gearbox PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Other recommended products
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ONLY protection to minus 35 ¡C

26-05-2003
INSTRUMENTS AND CONTROLS29

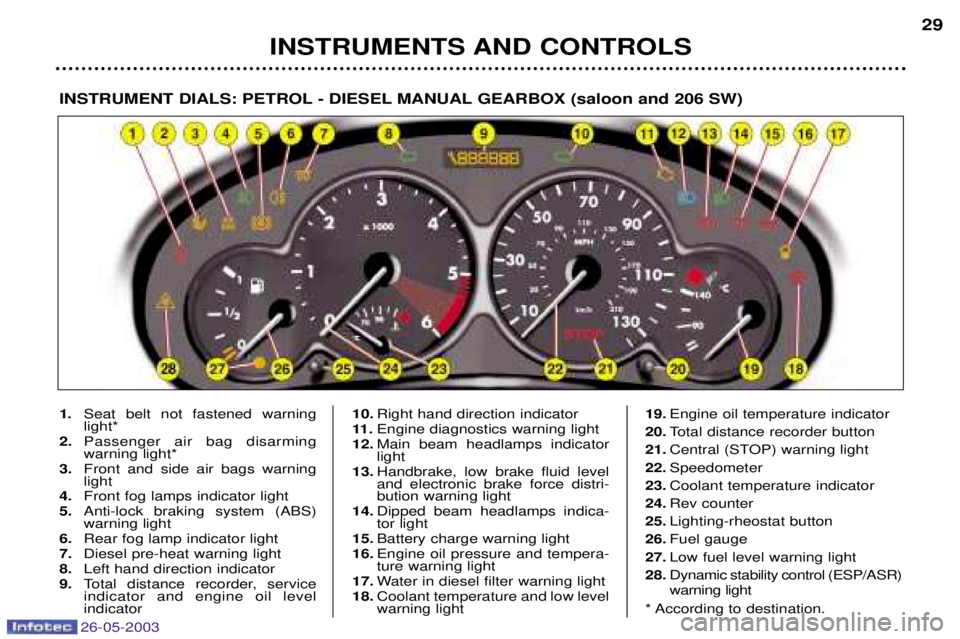

INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX (saloon and 206 SW)
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator
9. Total distance recorder, serviceindicator and engine oil level indicator 10.
Right hand direction indicator
11 . Engine diagnostics warning light
12. Main beam headlamps indicatorlight
13. Handbrake, low brake fluid leveland electronic brake force distri-bution warning light
14. Dipped beam headlamps indica-tor light
15. Battery charge warning light
16. Engine oil pressure and tempera-ture warning light
17. Water in diesel filter warning light
18. Coolant temperature and low levelwarning light 19.
Engine oil temperature indicator
20. Total distance recorder button
21. Central (STOP) warning light
22. Speedometer
23. Coolant temperature indicator
24. Rev counter
25. Lighting-rheostat button
26. Fuel gauge
27. Low fuel level warning light
28. Dynamic stability control (ESP/ASR) warning light
* According to destination.

26-05-2003
INSTRUMENTS AND CONTROLS
30

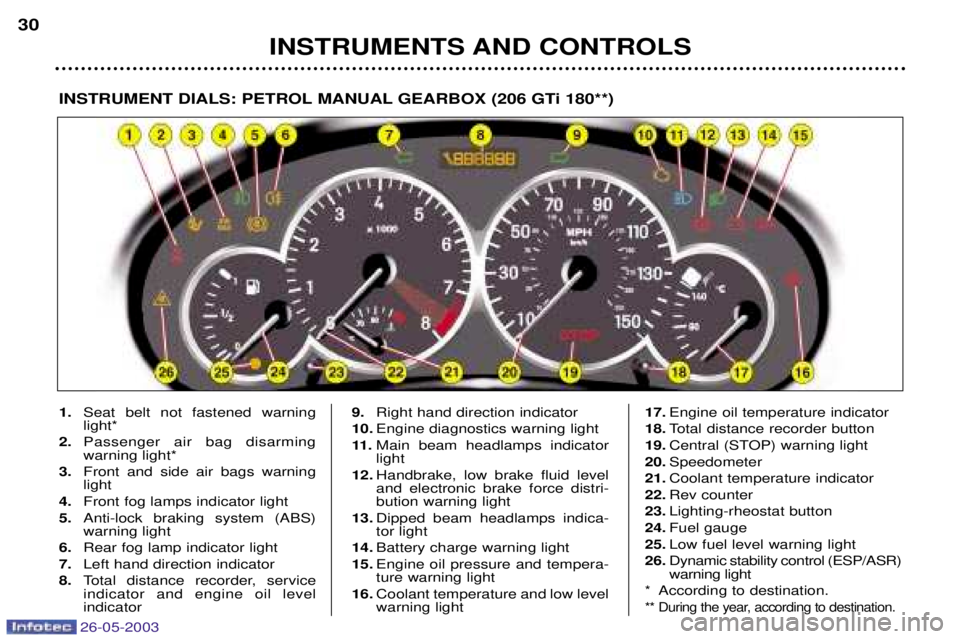

INSTRUMENT DIALS: PETROL MANUAL GEARBOX (206 GTi 180**)
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right hand direction indicator
10. Engine diagnostics warning light
11 . Main beam headlamps indicator light
12. Handbrake, low brake fluid leveland electronic brake force distri-bution warning light
13. Dipped beam headlamps indica-tor light
14. Battery charge warning light
15. Engine oil pressure and tempera-ture warning light
16. Coolant temperature and low level warning light 17.
Engine oil temperature indicator
18. Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting-rheostat button
24. Fuel gauge
25. Low fuel level warning light
26. Dynamic stability control (ESP/ASR) warning light
* According to destination.
** During the year, according to destination.
