YOUR 206 CC IN DETAIL
62

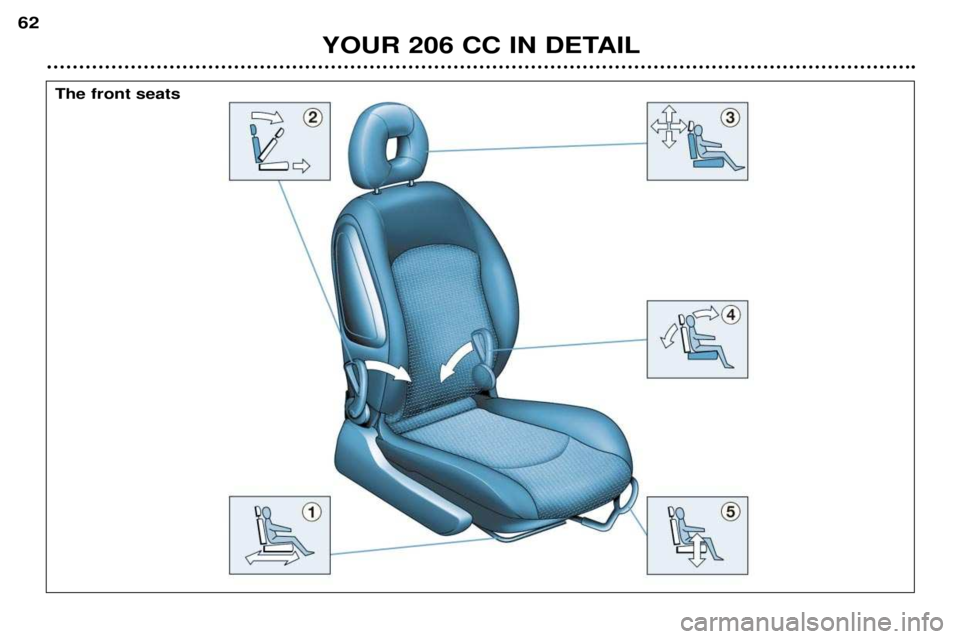

The front seats
Page 62 of 123
YOUR 206 CC IN DETAIL63
1 - Forwards/backwards adjustment
Lift the lever and slide the seat forwards or backwards.
2 - Access to the rear seats Place your fingers in one of the twohandles and push towards the frontto fold down the seat backt andmove the seat forwards. When putback, the seat returns to its initialposition.It is impossible to access the rearseats if the front seat is in areclining position.
No person nor object mustprevent the seat from returningto its initial position. Returning tothis position is necessary for it tobe locked.
3 - Adjusting the height of the head restraint
To raise the head restraint, push it upwards.
The setting is correct when theupper edge of the head restraintis level with the top of the head.
The head restraint has a frame withnotches which prevents the headrestraint from dropping down (safetydevice in case of impact).
To lower the head restraint you must simultaneously:- press the knob on the left-hand side at its base,
- press downwards. The angle of the head restraint can also be adjusted.
To remove the head restraint, press the tab.
4 - Adjusting the seat back angle Push one of the two controls
towards the rear.
5 - Driver's seat height adjustment Pull the handle upwards. Remove your weight from the seat to raise, or press on the seat to
lower.
Never drive with the head restraints removed. Theseshould be correctly fittedand adjusted.
Page 63 of 123
YOUR 206 CC IN DETAIL
64

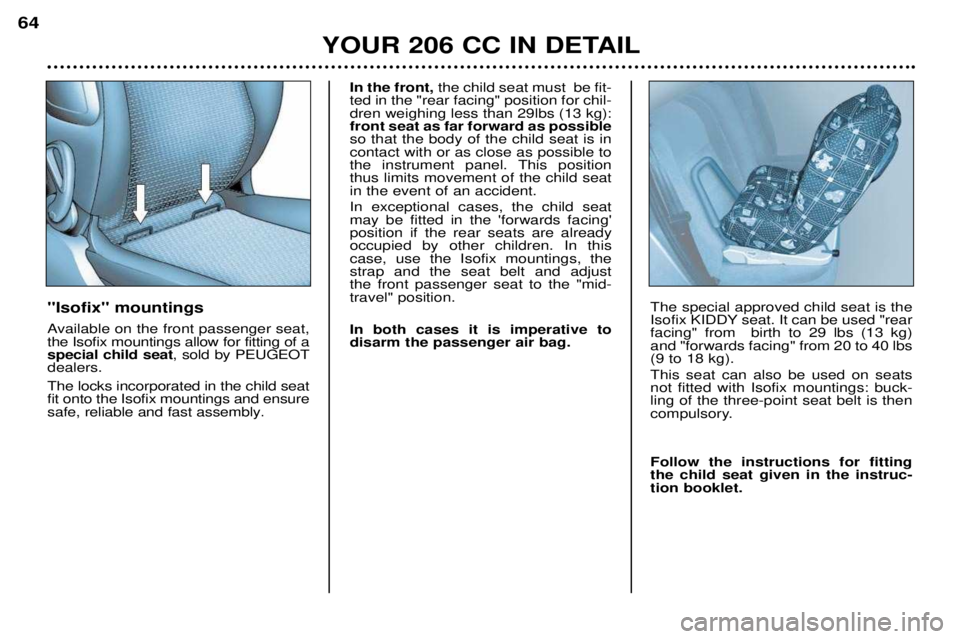

''Isofix'' mountings
Available on the front passenger seat, the Isofix mountings allow for fitting of aspecial child seat
, sold by PEUGEOT
dealers. The locks incorporated in the child seat fit onto the Isofix mountings and ensuresafe, reliable and fast assembly
.
In the front, the child seat must be fit-
ted in the "rear facing" position for chil-dren weighing less than 29lbs (13 kg):front seat as far forward as possibleso that the body of the child seat is incontact with or as close as possible to
the instrument panel. This positionthus limits movement of the child seatin the event of an accident. In exceptional cases, the child seat may be fitted in the 'forwards facing'position if the rear seats are alreadyoccupied by other children. In thiscase, use the Isofix mountings, thestrap and the seat belt and adjust the front passenger seat to the "mid-travel" position. In both cases it is imperative to disarm the passenger air bag. The special approved child seat is the
Isofix KIDDY seat. It can be used "rearfacing" from birth to 29 lbs (13 kg)and "forwards facing" from 20 to 40 lbs(9 to 18 kg). This seat can also be used on seats not fitted with Isofix mountings: buck-ling of the three-point seat belt is then
compulsory. Follow the instructions for fitting the child seat given in the instruc-tion booklet.
Page 64 of 123
YOUR 206 CC IN DETAIL65
CHILD SEATS Child safety was one of PEUGEOT's main concerns when designing your vehicle; however the safety of your children also depends on you.
For maximum safety, please observe the following precautions:
- All children under the age of 10 are required to travel in approved restraining devices*, suited to their weight, in the seats
fit-
ted with seat belts.
- front passenger seat*: children under the age of 10 must not be transported in the "forwards facing" position, unless the rear seats are already occupied by other children. In this case adjust the front passenger seat to the mid-position. The "rear fac -
ing" position is permitted when the air bag is disarmed.

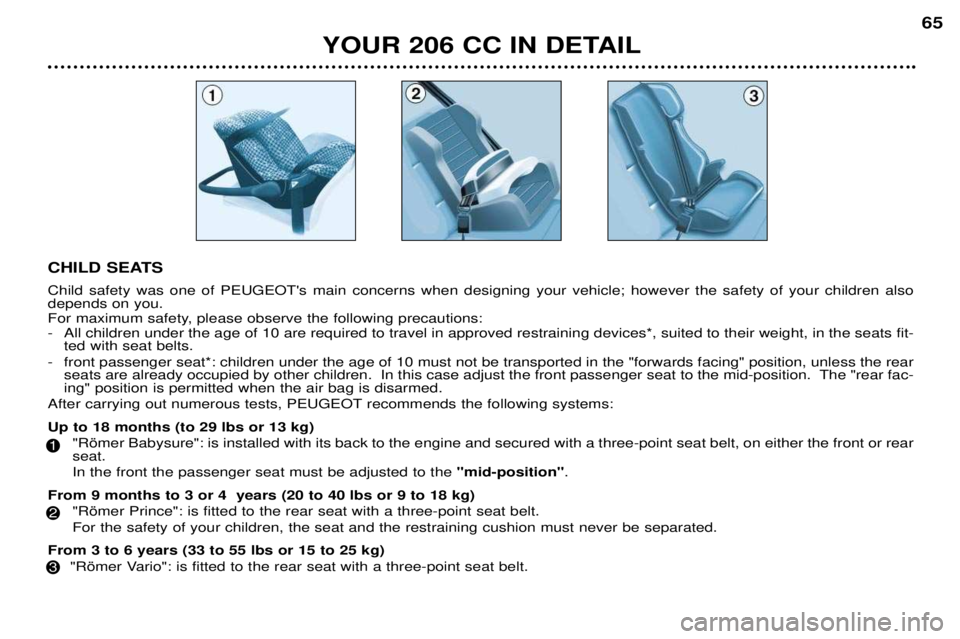

After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (to 29 lbs or 13 kg) "Ršmer Babysure": is installed with its back to the engine and secured with a three-point seat belt, on either the front or rea r
seat. In the front the passenger seat must be adjusted to the "mid-position".
From 9 months to 3 or 4 years (20 to 40 lbs or 9 to 18 kg) "Ršmer Prince": is fitted to the rear seat with a three-point seat belt.For the safety of your children, the seat and the restraining cushion must never be separated.
From 3 to 6 years (33 to 55 lbs or 15 to 25 kg) "Ršmer Vario": is fitted to the rear seat with a three-point seat belt.
1
2
3
Page 65 of 123
YOUR 206 CC IN DETAIL
66
From 3 to 10 years (33 to 80 lbs or 15 to 36 kg)
''Recaro Start': is fitted to the rear seat with a three-point seat belt. The seat height, width and length must be adjusted depending on the age andbuild of your child. "Klippan Optima": is fitted to the rear seat with a three-point seat belt. From the age of 6 years (approximately 49 lbs or 22 kgs), only the booster seatis used.
Make sure you fasten the three-point seat belts or the child seat straps so that theslack in relation to the child's body is kept to a minimum, even for short journeys.
* According to current legal requirements.Never leave a child or an animal in a vehicle expo-sed to the sun, with thewindows closed.
Never leave the keys within reach
of children inside the car. Strap children into their child seats even on short journeys. Observe the precautions concer- ning the passenger air bag. Observe strictly the recommenda- tions for fitting and fastening thechild seat straps as detailed in theinstructions.4
5
Page 66 of 123
YOUR 206 CC IN DETAIL67
Seat belts
To lock the seat belts Pull the strap, then insert the buckle into the stalk.Pre-tensioning and force-limitingfront seat belts Safety in the event of a frontal impact has been improved by the introductionof pre-tensioning and force-limitingfront seat belts. Depending on theseriousness of the impact, the pre-ten-sioning system instantly tightens theseat belts firmly against the body ofthe occupant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt against theoccupant's body in the event of anaccident. Rear seat belts The rear seats are fitted with two three-point inertia reel seatbelts.

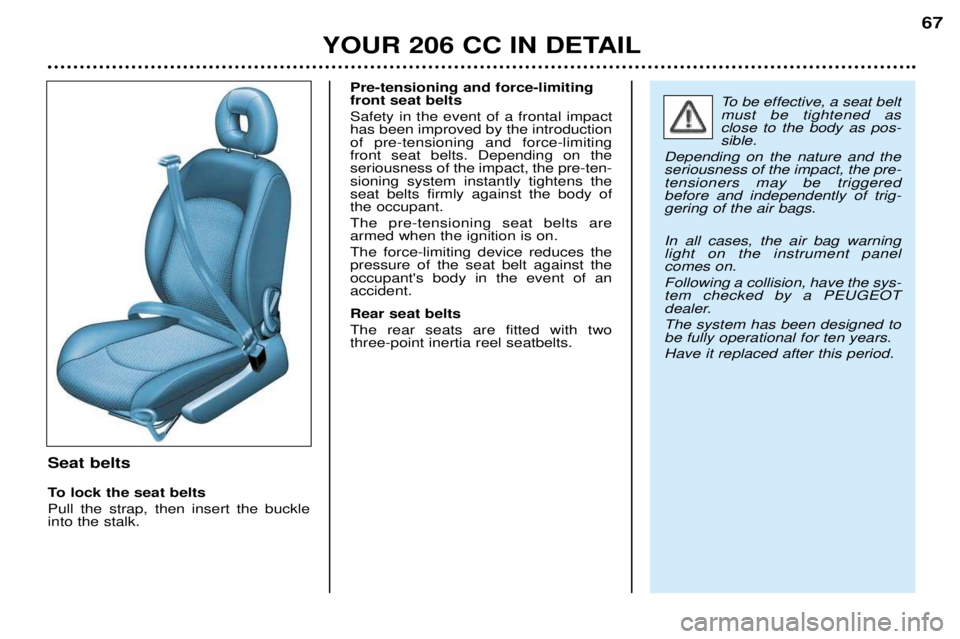

To be effective, a seat belt must be tightened asclose to the body as pos-sible.
Depending on the nature and theseriousness of the impact, the pre-tensioners may be triggeredbefore and independently of trig-gering of the air bags. In all cases, the air bag warning light on the instrument panelcomes on. Following a collision, have the sys- tem checked by a PEUGEOT
dealer. The system has been designed to be fully operational for ten years. Have it replaced after this period.
Page 67 of 123
YOUR 206 CC IN DETAIL
68
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompanied by the message
"Remote control
battery low" on the multifunction dis-
play.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to
independently
operate the locks on the doors, the tailgate (opening), the fuel filler cap,the steering lock, the glove box andthe passenger air bag disarming con-trol and to switch on the ignition. Central locking From the driver's door the keys allow you:
Ðto lock or unlock the doors and tail-
gate simultaneously,
Ð to unlock simultaneously just thedoors
Unlocking the boot is possible only
by using the boot key. If one of the doors is open, the central locking does not work. The remote control This fulfils the same functions as the

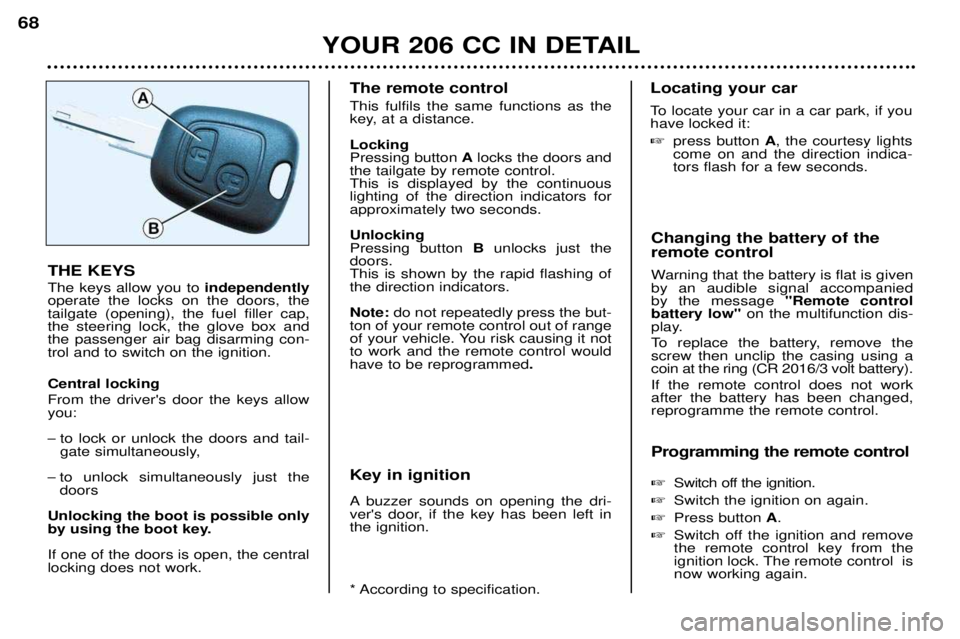

key, at a distance. Locking Pressing button
Alocks the doors and
the tailgate by remote control.This is displayed by the continuouslighting of the direction indicators forapproximately two seconds. Unlocking Pressing button Bunlocks just the
doors.This is shown by the rapid flashing ofthe direction indicators. Note: do not repeatedly press the but-
ton of your remote control out of range
of your vehicle. You risk causing it notto work and the remote control wouldhave to be reprogrammed .Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy lights
come on and the direction indica- tors flash for a few seconds.Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
* According to specification.
Programming the remote control Switch off the ignition.
Switch the ignition on again.
Press button A.
Switch off the ignition and remove the remote control key from the
ignition lock. The remote control isnow working again.
Page 68 of 123
YOUR 206 CC IN DETAIL69
Make a careful note of the
number on each key. The keynumber is coded on the label
attached to the key.
If the keys are lost, your PEUGEOT dea-ler can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your poc- ket as there is a possibility that it mayunlock your vehicle, without you beingaware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off, exceptfor reprogramming. As a safety precaution (with children on board), remove the ignition key whenyou leave the vehicle, even for a shorttime. Do not repeatedly press the button of your remote control out of range of your
vehicle. You risk causing it not to workand the remote control would have to bereprogrammed. When purchasing a second-hand vehicle:
- ensure that you are given the confiden- tial card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dea-
ler on the system. This code is hiddenby a film which should be removed
only if necessary. Keep your card in a safe place, never inside the vehicle.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system a few moments as soon as the ignition
has been switched off and thereforeprevents starting of the vehicle by
anyone who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function correctly , an audible signal sounds,
accompanied by a message on themultifunction display*.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. * According to specification.
Page 69 of 123
YOUR 206 CC IN DETAIL69
Make a careful note of the
number on each key. The keynumber is coded on the label
attached to the key.
If the keys are lost, your PEUGEOT dea-ler can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your poc- ket as there is a possibility that it mayunlock your vehicle, without you beingaware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off, exceptfor reprogramming. As a safety precaution (with children on board), remove the ignition key whenyou leave the vehicle, even for a shorttime. Do not repeatedly press the button of your remote control out of range of your
vehicle. You risk causing it not to workand the remote control would have to bereprogrammed. When purchasing a second-hand vehicle:
- ensure that you are given the confiden- tial card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dea-
ler on the system. This code is hiddenby a film which should be removed
only if necessary. Keep your card in a safe place, never inside the vehicle.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system a few moments as soon as the ignition
has been switched off and thereforeprevents starting of the vehicle by
anyone who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function correctly , an audible signal sounds,
accompanied by a message on themultifunction display*.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. * According to specification.
Page 70 of 123
YOUR 206 CC IN DETAIL
70
Doors Opening the doors from outside Opening the doors from inside

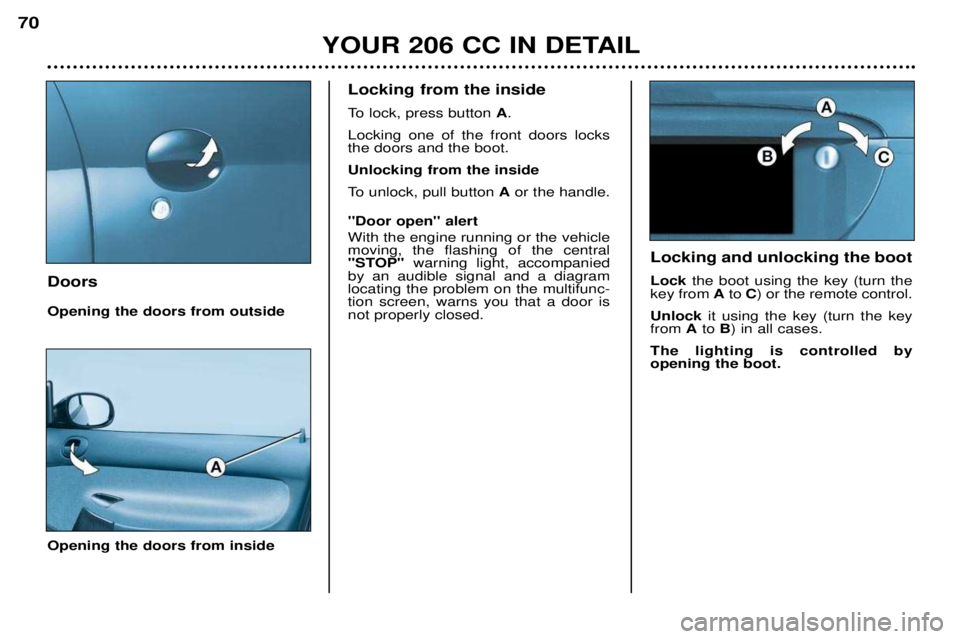

Locking and unlocking the boot Lock
the boot using the key (turn the
key from Ato C) or the remote control.
Unlock it using the key (turn the key
from Ato B) in all cases.
The lighting is controlled by opening the boot.
Locking from the inside
To lock, press button A.
Locking one of the front doors locks the doors and the boot. Unlocking from the inside
To unlock, pull button Aor the handle.
''Door open'' alert With the engine running or the vehicle moving, the flashing of the central
"STOP" warning light, accompanied
by an audible signal and a diagramlocating the problem on the multifunc-tion screen, warns you that a door isnot properly closed.
