headlamp PEUGEOT 206 CC DAG 2002 User Guide

PRACTICAL ASPECTS OF YOUR VEHICLE
96
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 2,8 litres or 6,6 litres withheadlamp wash). Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer. Air filter Regular replacement of the filter ele- ment is essential. If you drive in verydusty conditions, change it twice asoften. Brake pads Brake pad wear depends on the style of driving, in particular for vehiclesused in town, for short journeys. It maybe necessary to check the thicknessof the pads even between services. Manual gearbox This does not need an oil change. Check the level according to the man-ufacturer's servicing schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a
PEUGEOT dealer according to themanufacturer's servicing schedule.Only use products
approved by PEUGEOT.
To ensure best perfor- mance from components
as important as the power steer-ing and the braking system,PEUGEOT selects and offersquite specific products.
07-10-2002

07-10-2002
PRACTICAL INFORMATION101
Ð Pull tab
Aupwards and remove the protective cover.
Ð Disconnect the connector.
Ð Press the end of the securing clip to remove it. Change the faulty bulb.
Ð On fitting, ensure that the direction notches are in the cor- rect position and that the clip is secured correctly.
Ð Reconnect the connector.
Ð Replace the protective cover.
CHANGING A BULB Dipped/main headlamps H7 55 WSide lights W 5 W
Turn the pin connector Ba quarter turn and remove it.
Change the bulb.
Remarks
Ð Only touch the bulbs with a dry cloth.
Ð To replace the bulbs on the right side, remove the wash-wipe reservoir filler pipe first.
Ð Condensation may form inside the headlamps. It will disappear when they are used.

07-10-2002
PRACTICAL INFORMATION
102

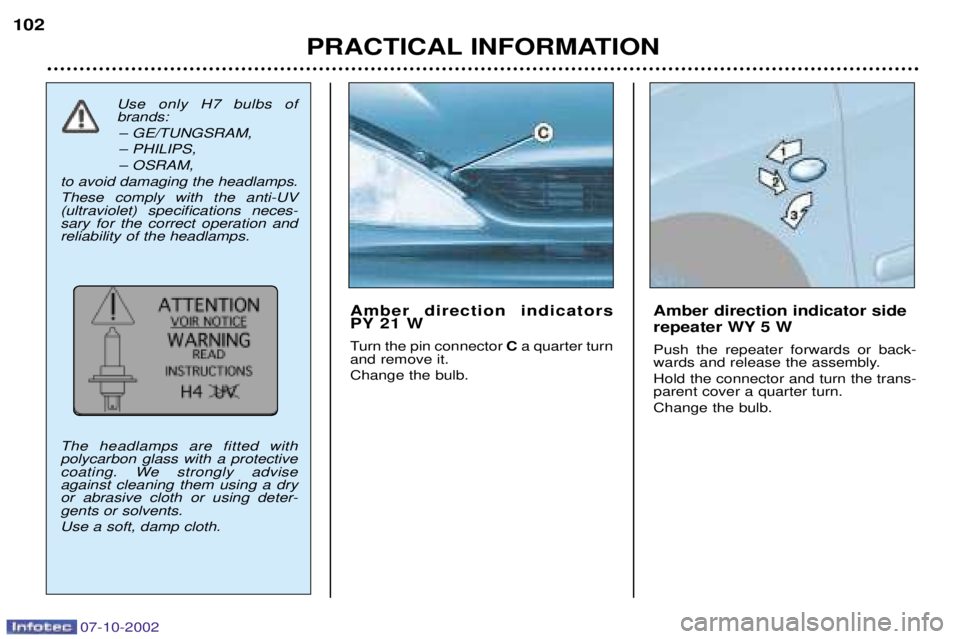

Amber direction indicators
PY 21 W
Turn the pin connector
Ca quarter turn
and remove it. Change the bulb. Amber direction indicator side
repeater WY 5 W Push the repeater forwards or back-
wards and release the assembly. Hold the connector and turn the trans- parent cover a quarter turn. Change the bulb.
Use only H7 bulbs of brands:
Ð GE/TUNGSRAM,
Ð PHILIPS,
Ð OSRAM,
to avoid damaging the headlamps.These comply with the anti-UV (ultraviolet) specifications neces-sary for the correct operation andreliability of the headlamps. The headlamps are fitted with polycarbon glass with a protective
coating. We strongly adviseagainst cleaning them using a dryor abrasive cloth or using deter-gents or solvents. Use a soft, damp cloth.

07-10-2002
PRACTICAL ASPECTS OF YOUR VEHICLE113
BODYWORK MAINTENANCE
To preserve the paintwork and the plastic trim on your vehicle, we recom-
mend that you wash them regularly.
Ð by hand: there are no specific pre-
cautions to take;
Ð using an automatic car wash: repeated use of poorly maintained automatic car washes can lead to
the appearance of microscopicscratches which give the paintworka matt appearance (especially visi-ble on dark colours);
Ð using a high pressure washer: always follow the recommendationson the equipment (pressure andspraying distance). If there are damaged areas on the vehicle (painted bumpers, or head-lamps), it is not recommended todirect the high pressure jet onto
them. Wash these areas by hand. Also avoid the entry of water into the locks.
For all questions relating to the main-tenance of your vehicle, contact anapproved dealer who can advise youon quality products selected by ourdepartments. Ð Clean off bird droppings,
resinous deposits, tarstains and grease marksas soon as possible;
(these all contain sub-
stances which can cause seriousdamage to the paintwork).
Ð Do not use a dry or abrasive cloth, or detergent or solvent products toclean the double lens, complexsurface headlamps as they are fit-ted with polycarbonate glass cov-ered in a protective finish.
Ð Do not use petrol, oil or cloth stain removers to clean the bodyworkand plastic parts of your vehicle.
Ð To prevent the development of bodywork corrosion as a result ofaccidental damage (stone chips,scratches etc.), have them
repaired swiftly.
