PEUGEOT 206 CC DAG 2002 Owners Manual

2
YOUR AT A GLANCE
07-10-2002

1Driver's air bag Horn
2 Lights and direction indicators stalk
3 Passenger air bag disarmingswitch*
4 Heated seats control
5 Dynamic stability control(ESP/ASR) button
6 Instrument panel lightingrheostat
7 Windscreen wipers/wind-screen wash/trip computerstalk
8 Audio equipment steeringcolumn stalk
9 Hazard warning lights switch
10 Multifunction display
11 Windscreen demisting vents 12
Side windows demisting vents
13 Adjustable central vent
14 Passenger air bag
15 Adjustable central vents
16 Glove compartment
17 RD3 audio equipment
18 Heating/ventilation/air conditioning controls
Rear screen and mirrorsdemisting
19 Front ashtray
20 Gear lever
21 Lighter
22 Electric mirror controls
23 Electric retractable roof control 24
Electric window switches
25 Handbrake
26 Bonnet release control
27 Steering lock
28 Fuse box
29 Storage compartment
30 Steering wheel height adjustment control
31 Headlamp height adjustment
* According to destination. 3
YOUR AT
A GLANCE
07-10-2002

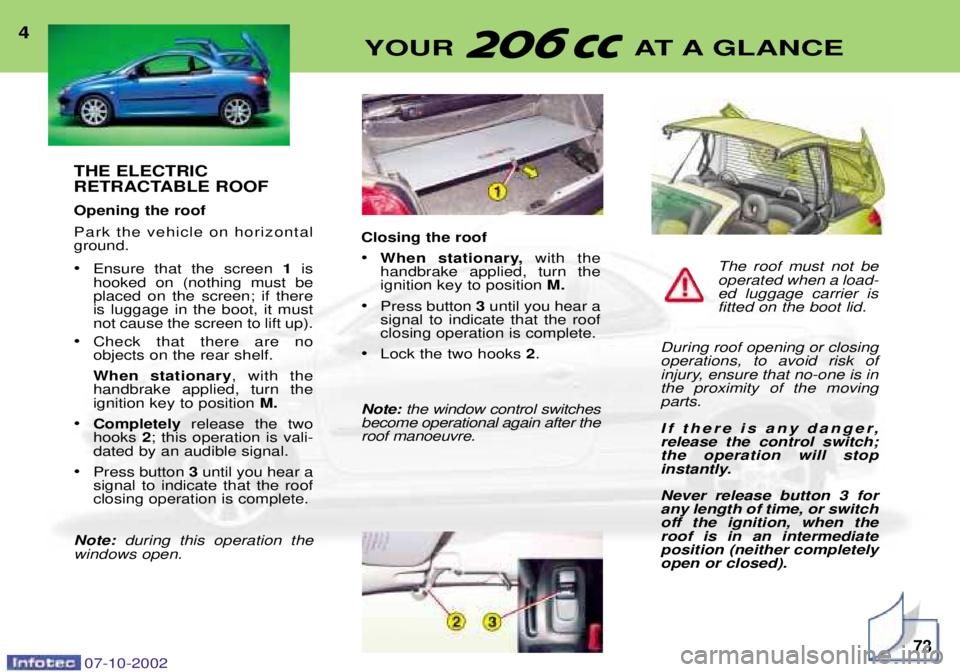

THE ELECTRIC
RETRACTABLE ROOF Opening the roof
Park the vehicle on horizontal ground. ¥Ensure that the screen 1is
hooked on (nothing must be placed on the screen; if thereis luggage in the boot, it mustnot cause the screen to lift up).
¥ Check that there are noobjects on the rear shelf. When stationary , with the
handbrake applied, turn the ignition key to position M.
¥ Completely release the two
hooks 2; this operation is vali-
dated by an audible signal.
¥ Press button 3until you hear a
signal to indicate that the roofclosing operation is complete.
Note: during this operation the
windows open. Closing the roof ¥
When stationary, with the
handbrake applied, turn the ignition key to position M.
¥ Press button 3until you hear a
signal to indicate that the roofclosing operation is complete.
¥ Lock the two hooks 2.
Note: the window control switches
become operational again after theroof manoeuvre.
YOUR AT A GLANCE
The roof must not be operated when a load-ed luggage carrier isfitted on the boot lid.
During roof opening or closingoperations, to avoid risk of
injury, ensure that no-one is inthe proximity of the movingparts.
If there is any danger, release the control switch;the operation will stop
instantly. Never release button 3 for any length of time, or switch
off the ignition, when theroof is in an intermediateposition (neither completelyopen or closed).
4
07-10-200273

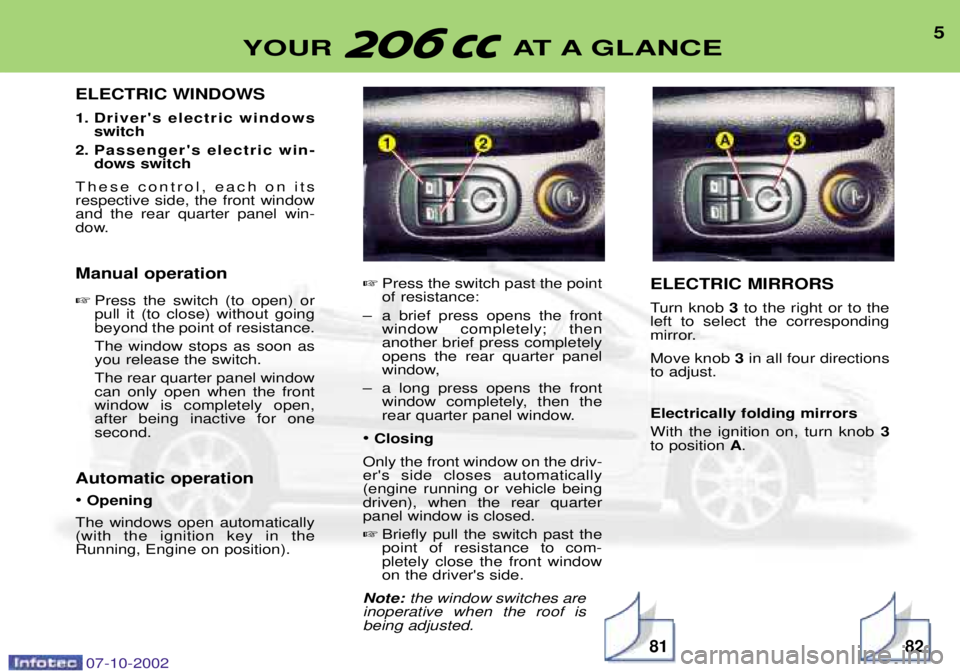

ELECTRIC WINDOWS
1. Driver's electric windowsswitch
2. Passenger's electric win- dows switch
These control, each on its respective side, the front windowand the rear quarter panel win-
dow. Manual operation  Press the switch (to open) or pull it (to close) without goingbeyond the point of resistance. The window stops as soon as you release the switch. The rear quarter panel window can only open when the frontwindow is completely open,after being inactive for onesecond.
Automatic operation ¥ Opening
The windows open automatically (with the ignition key in theRunning, Engine on position).
Press the switch past the pointof resistance:
Ð a brief press opens the front window completely; thenanother brief press completelyopens the rear quarter panel
window,
Ð a long press opens the front window completely, then the
rear quarter panel window.
¥ Closing
Only the front window on the driv-er's side closes automatically(engine running or vehicle beingdriven), when the rear quarterpanel window is closed.  Briefly pull the switch past the point of resistance to com-pletely close the front windowon the driver's side.
Note: the window switches are
inoperative when the roof isbeing adjusted. ELECTRIC MIRRORS
Turn knob
3to the right or to the
left to select the corresponding
mirror. Move knob 3in all four directions
to adjust. Electrically folding mirrors With the ignition on, turn knob 3
to position A. 5
YOUR AT
A GLANCE
07-10-20028281

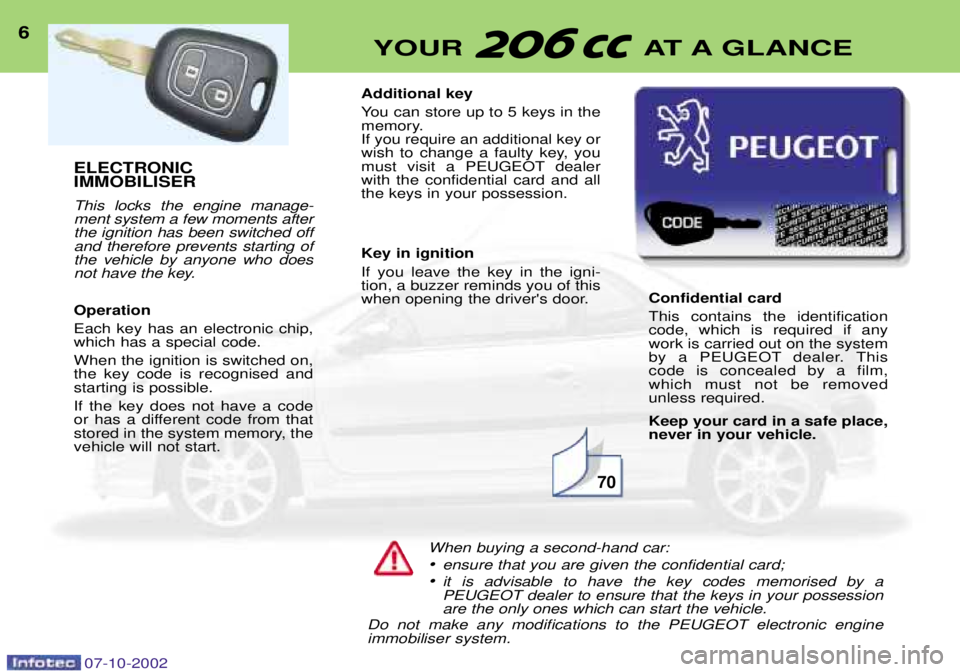

ELECTRONIC IMMOBILISER This locks the engine manage- ment system a few moments afterthe ignition has been switched offand therefore prevents starting ofthe vehicle by anyone who does
not have the key. Operation Each key has an electronic chip, which has a special code. When the ignition is switched on, the key code is recognised andstarting is possible. If the key does not have a code
or has a different code from that
stored in the system memory, thevehicle will not start.Additional key
You can store up to 5 keys in the
memory.If you require an additional key or
wish to change a faulty key, you
must visit a PEUGEOT dealerwith the confidential card and allthe keys in your possession. Key in ignition If you leave the key in the igni- tion, a buzzer reminds you of this
when opening the driver's door.
Confidential card This contains the identification code, which is required if anywork is carried out on the system
by a PEUGEOT dealer. Thiscode is concealed by a film,which must not be removedunless required. Keep your card in a safe place, never in your vehicle.
6
YOUR AT
A GLANCE
When buying a second-hand car: ¥ensure that you are given the confidential card;
¥ it is advisable to have the key codes memorised by a PEUGEOT dealer to ensure that the keys in your possessionare the only ones which can start the vehicle.
Do not make any modifications to the PEUGEOT electronic engineimmobiliser system.
07-10-2002
6
70

7
YOUR AT A GLANCE
STARTING The four positions of the key in the ignition:
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the acces-sories can be used. 2nd notch, Running position: the ignition is on. Starting position:
operates the starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently tur-ning the steering wheel at the
same time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier. Starting the engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engineturns.
THE KEYS The keys operate independently the locks for the doors, the boot(opening), the fuel filler flap, thesteering lock, the glove box andthe passenger air bag disarmingswitch. Central locking
From the driverÕs door, the keys allow you to:
Ð simultaneously lock the doors
and the boot,
Ð simultaneously unlock just the doors.
You can only unlock the boot by using the lock. The remote control Pressing button A
allows you to lock the doors and boot. This is displayed by the continuous light-ing of the direction
indicators forapproximately twoseconds. Pressing button B
allows you to unlock the doors
only. This is indicated by the quick flashing of the direc-tion indicators for approxi-mately two seconds.
Never race a coldengine.
Never run the engine in anenclosed space. Do not make any modications to the steering lock.
07-10-200269

8
YOUR AT A GLANCE

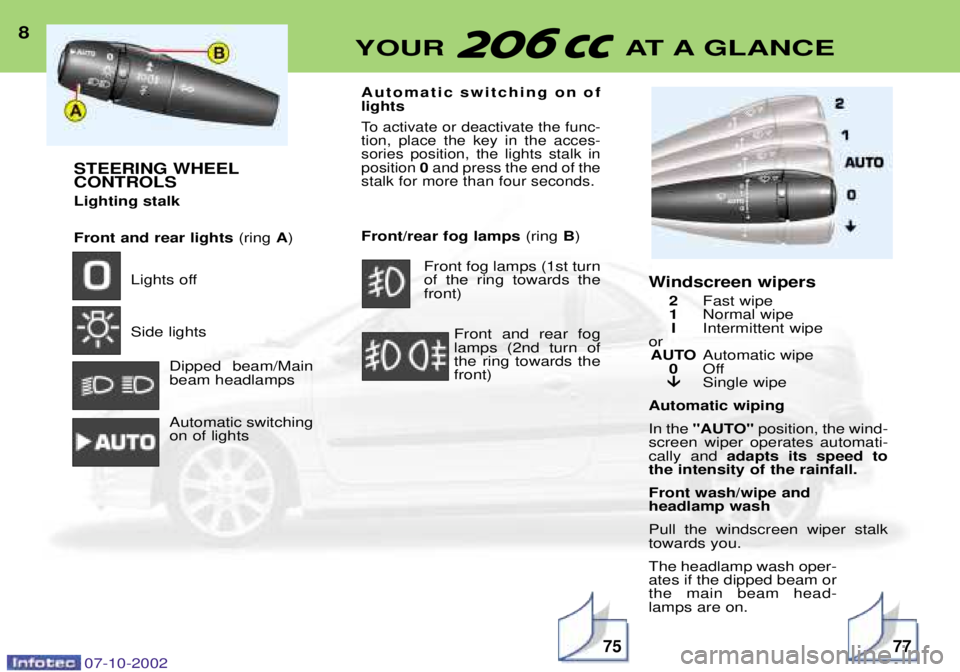

STEERING WHEEL CONTROLS Lighting stalk Front and rear lights(ring A)
Lights off Side lights Dipped beam/Main beam headlamps Automatic switching on of lights Automatic switching on oflights
To activate or deactivate the func-tion, place the key in the acces-sories position, the lights stalk inposition
0and press the end of the
stalk for more than four seconds.
Front/rear fog lamps (ring B)
Front fog lamps (1st turnof the ring towards thefront)
Front and rear foglamps (2nd turn ofthe ring towards thefront) Windscreen wipers
2 Fast wipe
1 Normal wipe
I Intermittent wipe
or AUTO Automatic wipe
0 Off


Single wipe
Automatic wiping In the "AUTO" position, the wind-
screen wiper operates automati- cally and adapts its speed to
the intensity of the rainfall. Front wash/wipe and headlamp wash Pull the windscreen wiper stalk towards you. The headlamp wash oper- ates if the dipped beam orthe main beam head-lamps are on.
07-10-20027577

9
YOUR AT A GLANCE

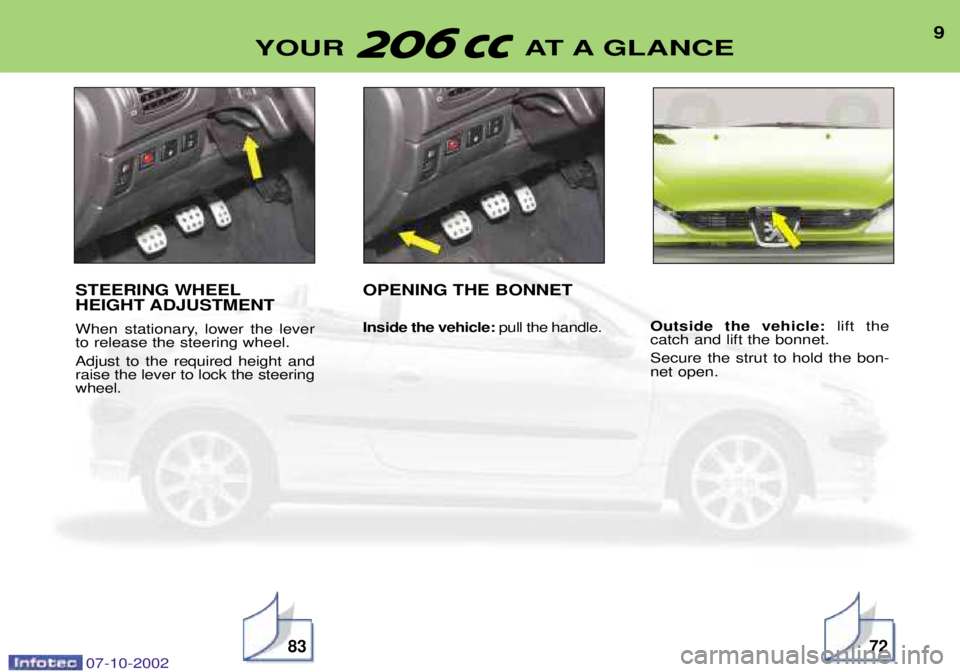

STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the lever to release the steering wheel. Adjust to the required height and raise the lever to lock the steeringwheel. OPENING THE BONNET Inside the vehicle:
pull the handle. Outside the vehicle:
lift the
catch and lift the bonnet. Secure the strut to hold the bon- net open.
07-10-20028372

10
YOUR AT A GLANCE
FRONT SEATS
1 - Forwards/backwards
adjustment
2 - Access to the rear seats
3 - Head restraint height and
angle adjustment
Never travel with the head restraints removed.
4 - Seat back angle adjustment
5 - Driver's seat height adjustment
6 - Heated seats control
07-10-200262

11
YOUR AT A GLANCE

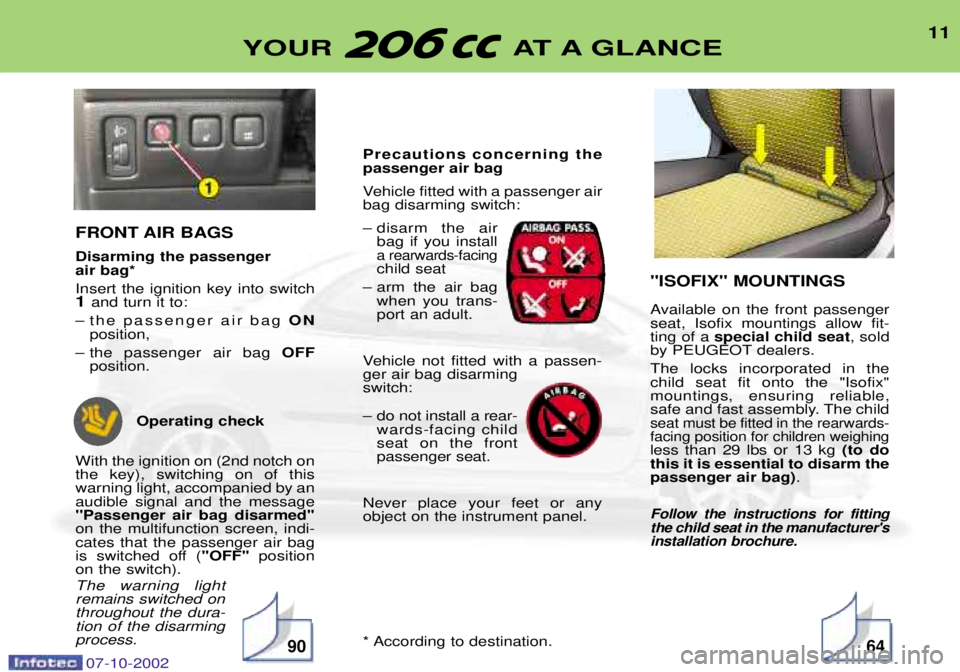

FRONT AIR BAGS Disarming the passenger air bag* Insert the ignition key into switch 1 and turn it to:
Ð the passenger air bag ON
position,
Ð the passenger air bag OFF
position.
Operating check
With the ignition on (2nd notch onthe key), switching on of thiswarning light, accompanied by anaudible signal and the message''Passenger air bag disarmed''on the multifunction screen, indi-cates that the passenger air bag
is switched off ( ''OFF''position
on the switch). The warning light remains switched onthroughout the dura-tion of the disarmingprocess. Precautions concerning thepassenger air bag
Vehicle fitted with a passenger air bag disarming switch:
Ð disarm the air
bag if you install
a rearwards-facingchild seat
Ð arm the air bag when you trans- port an adult.
Vehicle not fitted with a passen-ger air bag disarmingswitch:
Ð do not install a rear- wards-facing child seat on the frontpassenger seat.
Never place your feet or anyobject on the instrument panel.
* According to destination. "ISOFIX" MOUNTINGS
Available on the front passenger seat, Isofix mountings allow fit-ting of a
special child seat , sold
by PEUGEOT dealers. The locks incorporated in the child seat fit onto the "Isofix"mountings, ensuring reliable,
safe and fast assembly. The child
seat must be fitted in the rearwards-facing position for children weighingless than 29 lbs or 13 kg (to do
this it is essential to disarm thepassenger air bag) .
Follow the instructions for fittingthe child seat in the manufacturer'sinstallation brochure.
07-10-20029064
