1Driver's air bag Horn
2 Lights and direction indicators stalk
3 Passenger air bag disarmingswitch*
4 Heated seats control
5 Dynamic stability control(ESP/ASR) button
6 Instrument panel lightingrheostat
7 Windscreen wipers/wind-screen wash/trip computerstalk
8 Audio equipment steeringcolumn stalk
9 Hazard warning lights switch
10 Multifunction display
11 Windscreen demisting vents 12
Side windows demisting vents
13 Adjustable central vent
14 Passenger air bag
15 Adjustable central vents
16 Glove compartment
17 RD3 audio equipment
18 Heating/ventilation/air conditioning controls
Rear screen and mirrorsdemisting
19 Front ashtray
20 Gear lever
21 Lighter
22 Electric mirror controls
23 Electric retractable roof control 24
Electric window switches
25 Handbrake
26 Bonnet release control
27 Steering lock
28 Fuse box
29 Storage compartment
30 Steering wheel height adjustment control
31 Headlamp height adjustment
* According to destination. 3
YOUR AT
A GLANCE
07-10-2002

8
YOUR AT A GLANCE
STEERING WHEEL CONTROLS Lighting stalk Front and rear lights(ring A)
Lights off Side lights Dipped beam/Main beam headlamps Automatic switching on of lights Automatic switching on oflights
To activate or deactivate the func-tion, place the key in the acces-sories position, the lights stalk inposition
0and press the end of the
stalk for more than four seconds.
Front/rear fog lamps (ring B)
Front fog lamps (1st turnof the ring towards thefront)
Front and rear foglamps (2nd turn ofthe ring towards thefront) Windscreen wipers
2 Fast wipe
1 Normal wipe
I Intermittent wipe
or AUTO Automatic wipe
0 Off


Single wipe
Automatic wiping In the "AUTO" position, the wind-
screen wiper operates automati- cally and adapts its speed to
the intensity of the rainfall. Front wash/wipe and headlamp wash Pull the windscreen wiper stalk towards you. The headlamp wash oper- ates if the dipped beam orthe main beam head-lamps are on.
07-10-20027577

PEUGEOT SERVICING23
- Engine oil
Level

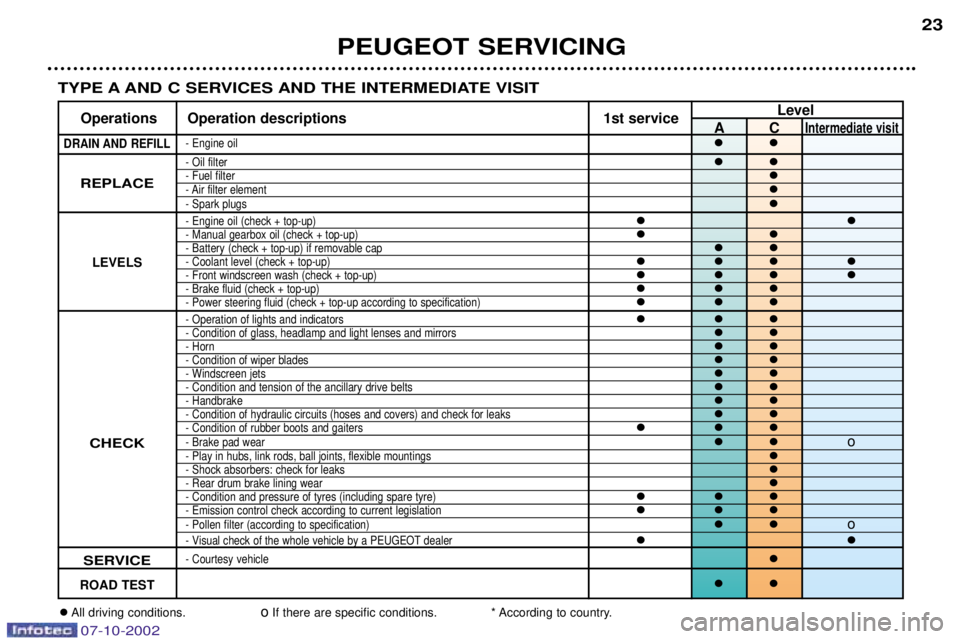

Operations Operation descriptions 1st service
AC
Intermediate visit
- Oil filter- Fuel filter- Air filter element- Spark plugs
- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if removable cap- Coolant level (check + top-up)- Front windscreen wash (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top-up according to specification)
- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Condition of wiper blades- Windscreen jets- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers) and check for leaks- Condition of rubber boots and gaiters- Brake pad wear o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers: check for leaks- Rear drum brake lining wear- Condition and pressure of tyres (including spare tyre)- Emission control check according to current legislation- Pollen filter (according to specification)o- Visual check of the whole vehicle by a PEUGEOT dealer
- Courtesy vehicle

All driving conditions. oIf there are specific conditions. * According to country.
DRAIN AND REFILL
REPLACE
LEVELS
CHECK
SERVICE
ROAD TEST
TYPE A AND C SERVICES AND THE INTERMEDIATE VISIT
07-10-2002

INSTRUMENTS AND CONTROLS
26

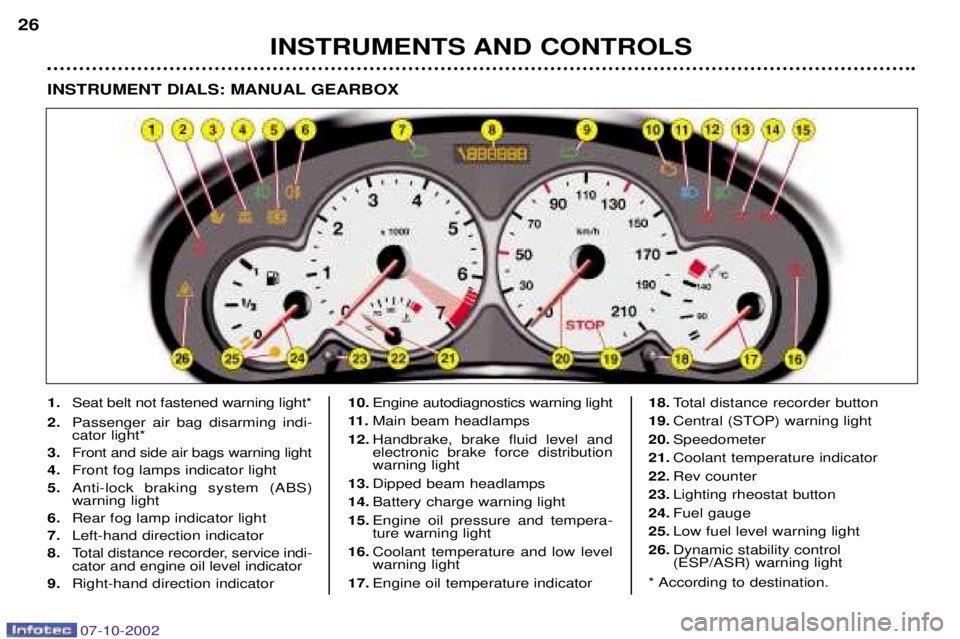

1.Seat belt not fastened warning light*
2. Passenger air bag disarming indi- cator light*
3. Front and side air bags warning light
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator
9. Right-hand direction indicator 10.
Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure and tempera-ture warning light
16. Coolant temperature and low levelwarning light
17. Engine oil temperature indicator 18.
Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat button
24. Fuel gauge
25. Low fuel level warning light
26. Dynamic stability control(ESP/ASR) warning light
* According to destination.
INSTRUMENT DIALS: MANUAL GEARBOX
07-10-2002

INSTRUMENTS AND CONTROLS27

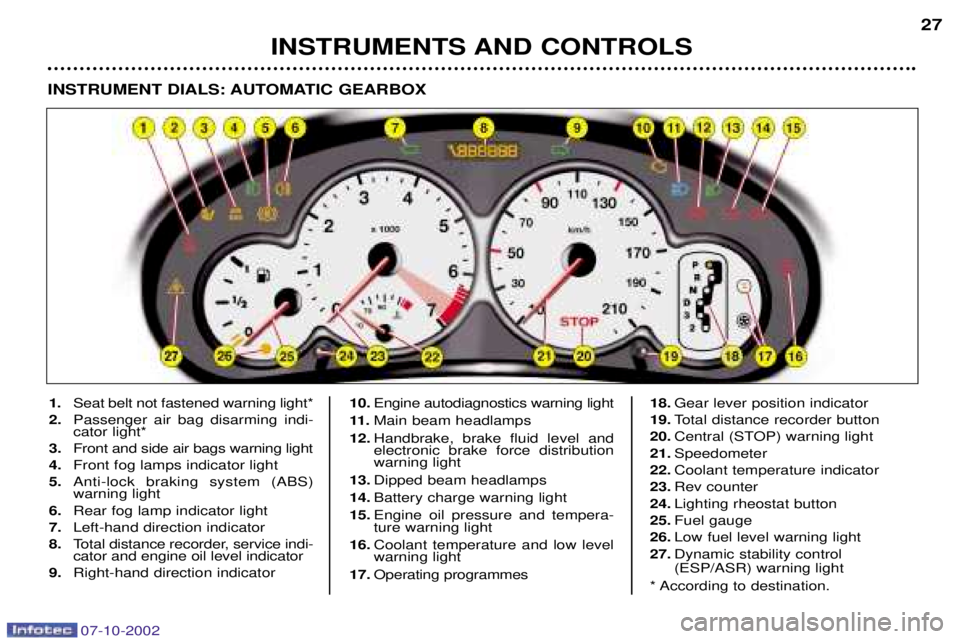

1. Seat belt not fastened warning light*
2. Passenger air bag disarming indi- cator light*
3. Front and side air bags warning light
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator
9. Right-hand direction indicator 10.
Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure and tempera-ture warning light
16. Coolant temperature and low levelwarning light
17. Operating programmes 18.
Gear lever position indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat button
25. Fuel gauge
26. Low fuel level warning light
27. Dynamic stability control (ESP/ASR) warning light
* According to destination.
INSTRUMENT DIALS: AUTOMATIC GEARBOX
07-10-2002

07-10-2002
YOUR 206 CC IN DETAIL75

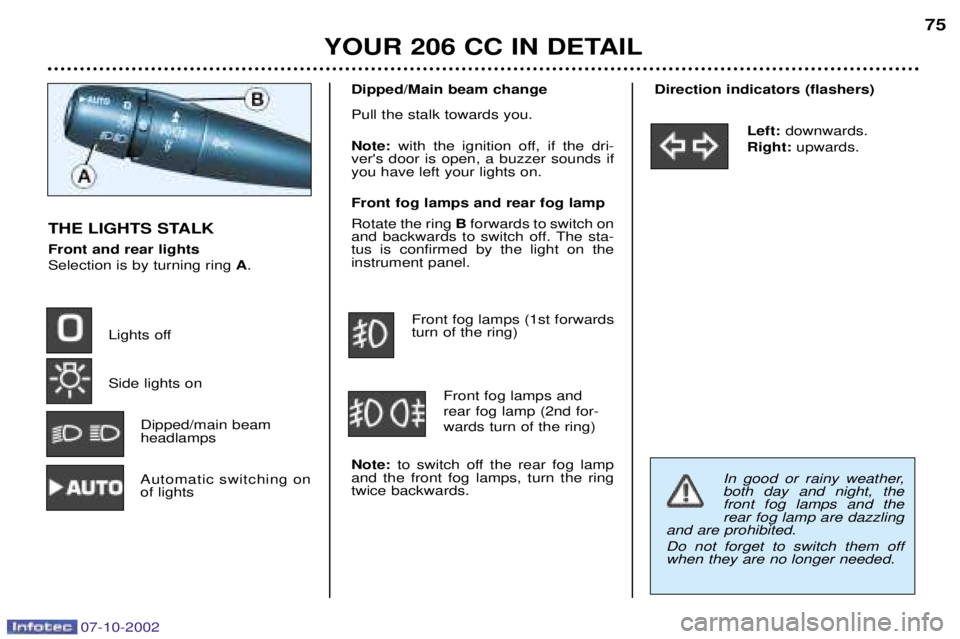

THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights on Dipped/main beam headlamps
Automatic switching onof lights Direction indicators (flashers)
Left:downwards.
Right: upwards.
Dipped/Main beam change Pull the stalk towards you. Note:
with the ignition off, if the dri-
ver's door is open, a buzzer sounds if you have left your lights on. Front fog lamps and rear fog lamp Rotate the ring Bforwards to switch on
and backwards to switch off. The sta- tus is confirmed by the light on theinstrument panel.
Front fog lamps (1st forwardsturn of the ring)
Front fog lamps and rear fog lamp (2nd for-wards turn of the ring)
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring twice backwards. In good or rainy weather,both day and night, thefront fog lamps and therear fog lamp are dazzling
and are prohibited. Do not forget to switch them off when they are no longer needed.

07-10-2002
YOUR 206 CC IN DETAIL77
Windscreen and headlamp wash
Pull the wiper stalk towards you. The windscreen wash, then the wind-screen wipers, operate for a specifiedtime. The windscreen and the headlamp
wash operate simultaneously for twoseconds,
only if the dipped beam
lights or the headlamps areswitched on.
Operation In position
1or 2, when the vehicle
stops, the windscreen wiper changes to a lower wiping speed, then resumesits initial speed when the vehicle startsagain. In the Intermittent position, the wiping
speed is proportional to the speed of the vehicle.
In the AUTO position, the wiping
speed is proportional to the heaviness of the rain fall.
When the ignition has been switched off for more than oneminute with the stalk in the wipeposition, it is necesary to reactivatethis function. To do this, move the
stalk to any position, then move it backto the required position.

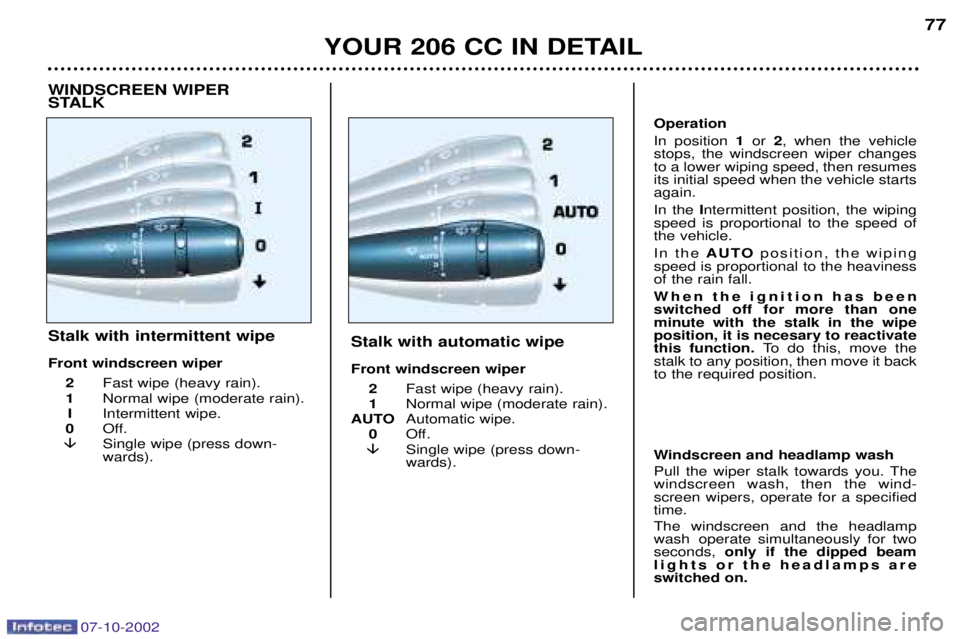

WINDSCREEN WIPER
STALK Stalk with intermittent wipe Front windscreen wiper
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press down- wards). Stalk with automatic wipe Front windscreen wiper
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe.
0 Off.
Single wipe (press down- wards).

07-10-2002
YOUR 206 CC IN DETAIL83
Headlamp adjustment
Depending on the load in your vehicle, adjusting the beam of the headlamps isrecommended as follows.
0.
1 or 2 people in the front seats.
Ð. 3 people.
1. 4 people.
2. 4 people + maximum authorisedload.
3. Driver + maximum authorised load.
Initial setting is position 0. STEERING WHEEL HEIGHTADJUSTMENT

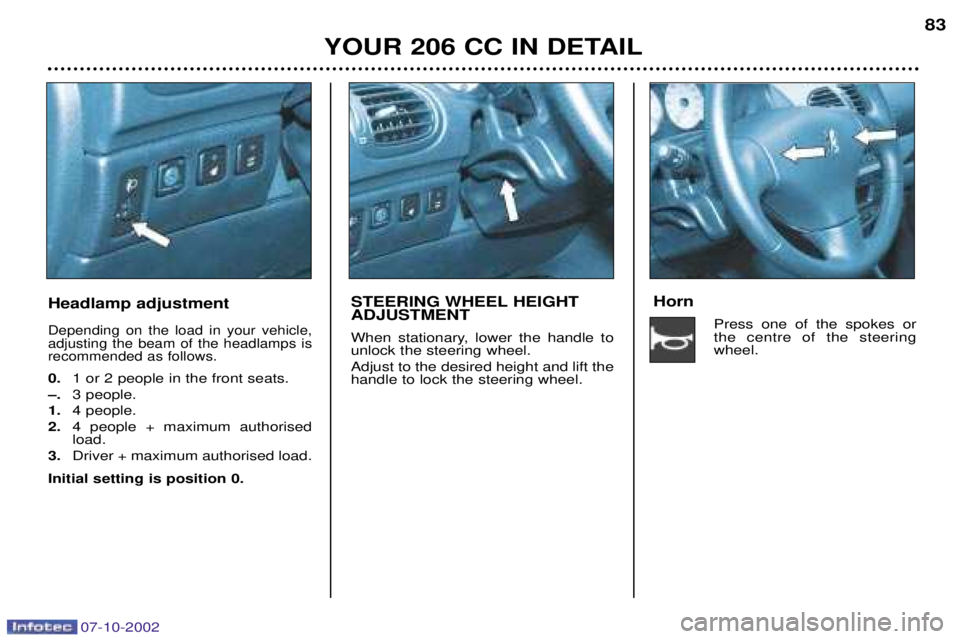

When stationary, lower the handle to unlock the steering wheel. Adjust to the desired height and lift the handle to lock the steering wheel.
Horn
Press one of the spokes orthe centre of the steeringwheel.

PRACTICAL ASPECTS OF YOUR VEHICLE93

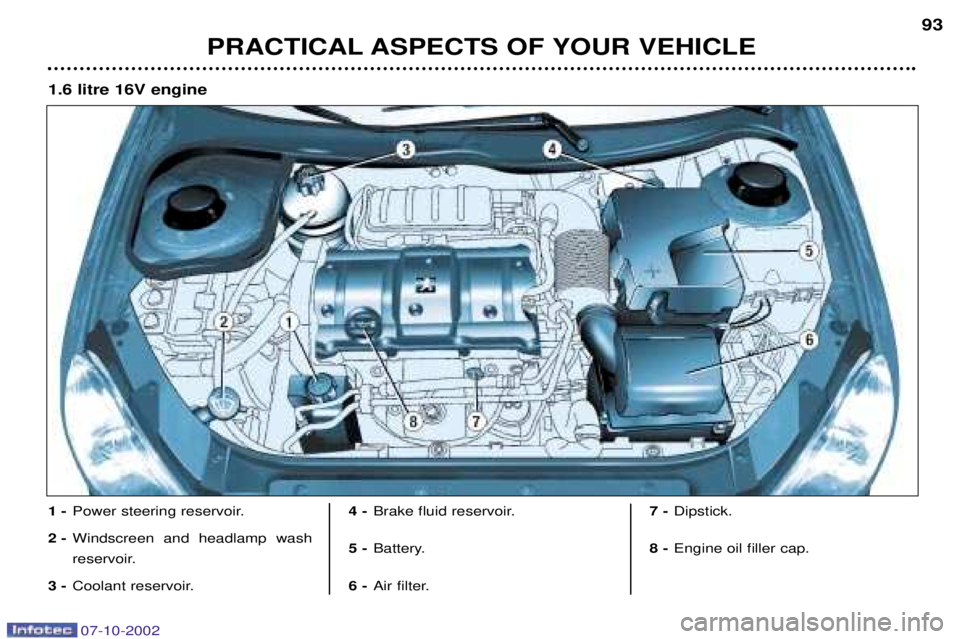

1 -
Power steering reservoir.
2 - Windscreen and headlamp wash
reservoir.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Battery.
6 - Air filter. 7 -
Dipstick.
8 - Engine oil filler cap.
1.6 litre 16V engine
07-10-2002

PRACTICAL ASPECTS OF YOUR VEHICLE
94
1 -
Power steering reservoir.
2 - Windscreen and headlamp wash
reservoir.
3 - Coolant reservoir. 4 -
Brake fluid reservoir.
5 - Battery.
6 - Air filter. 7 -
Dipstick.
8 - Engine oil filler cap.
2 litre 16V engine
