Peugeot 206 Dag 2002 Owner's Manual

17-06-2002
PRACTICAL INFORMATION123
Direction indicator side repeater W5W amber Push the repeater forwards or back-
wards and release the assembly. Hold the connector and turn the transparent cover a quarter turn. Change the bulb.
Direction indicators PY21W amber
Turn the pin connector Ca quarter
turn and remove it. Change the bulb.
Only use H4 bulbs of brands:
- GE/TUNGSRAM,
- PHILIPS,
- OSRAM,
to avoid damaging the head- lamps. These comply with the anti-UV (ultraviolet) specifications neces-sary for the correct operation andreliability of the headlamps. The headlamps are fitted with polycarbon glass with a protecti-
ve coating. We strongly adviseagainst cleaning them using a dryor abrasive cloth or using deter-gents or solvents. Use a soft, damp cloth.

17-06-2002
PRACTICAL INFORMATION125
Front fog lamps H1 55W Press under the access flap to release it. Open the flap.
Turn the cover to remove it.Disconnect the bulb.Press the two ends of the securing clip to release the bulb.
Third brake light 5 bulbs W5W (saloon)
Using a 10 mm spanner, unscrew the 2 nuts A.
Release the light unit. Squeeze the two tabs Bto release
the bulb holder.Change the faulty bulb. Third brake light (206 SW) This is fitted with electroluminescent diodes. In the event of a fault, consult a
PEUGEOT dealer.

17-06-2002
PRACTICAL INFORMATION
124
Rear lights (saloon) Release the top of the boot side trim. Unscrew the wing bolt inside the boot using the wheelbrace if neces-
sary. Disconnect the connector
A.
Release the light unit. Release spanner Bfrom the bulb
holder. Unscrew nut Cusing spanner Band
remove the bulb holder. Change the faulty bulb.When refitting, stow spanner Bon
support Dand refit the light.
Saloon 206 SW
1. Direction indicators PY21W (saloon) P21W (206 SW).
2. Reversing lights P21W.
3. Brake lights / side lights P21/5W.
The amber bulbs must be replaced by bulbs ofidentical specification
and colour. Rear lights (206 SW) Unclip the top of the boot trim using a coin. Unscrew the two wing bolts using
the wheelbrace if necessary. Release the light unit.
Disconnect the connector.Move aside the tabs
1and remove
the bulb holder 2.
Change the faulty bulb.When refitting, refit the boot trim by engaging it from the bottom thenclipping the top.

17-06-2002
PRACTICAL INFORMATION125
Front fog lamps H1 55W Press under the access flap to release it. Open the flap.
Turn the cover to remove it.Disconnect the bulb.Press the two ends of the securing clip to release the bulb.
Third brake light 5 bulbs W5W (saloon)
Using a 10 mm spanner, unscrew the 2 nuts A.
Release the light unit. Squeeze the two tabs Bto release
the bulb holder.Change the faulty bulb. Third brake light (206 SW) This is fitted with electroluminescent diodes. In the event of a fault, consult a
PEUGEOT dealer.

17-06-2002
PRACTICAL INFORMATION
126
Rear fog lamp P21W Unclip the lamp and release the
assembly.
Turn the pin connector a quarter turn and remove it. Change the bulb. Number plate lights W5W Insert a thin screwdriver into one of the outer holes of the transparent
cover. Push it outwards to unclip it.
Remove the transparent cover.Change the faulty bulb.

17-06-2002
PRACTICAL INFORMATION127

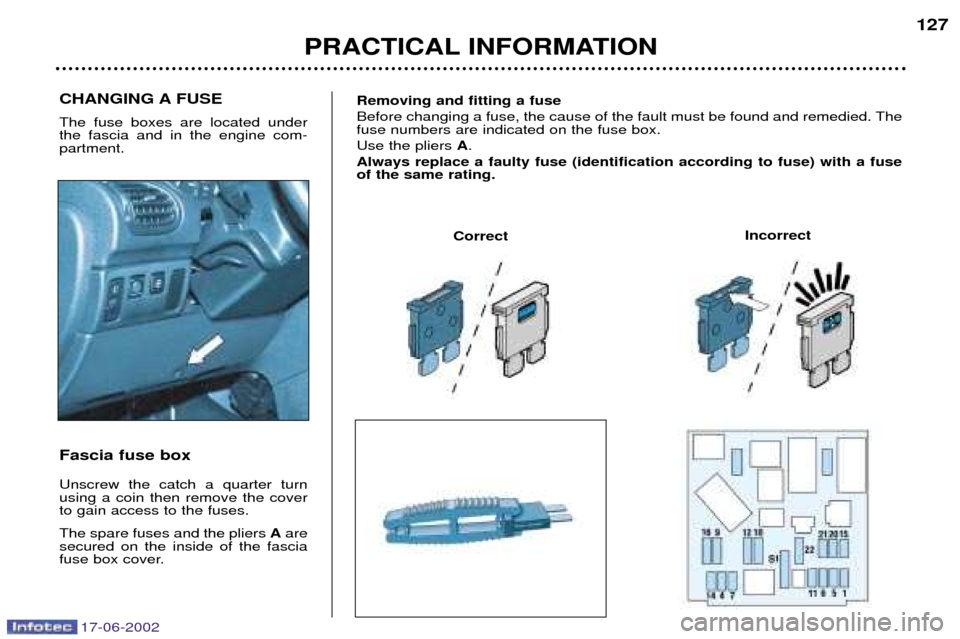

CHANGING A FUSE The fuse boxes are located under the fascia and in the engine com-partment. Fascia fuse box Unscrew the catch a quarter turn using a coin then remove the coverto gain access to the fuses. The spare fuses and the pliers Aare
secured on the inside of the fascia
fuse box cover. Removing and fitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Use the pliers
A.
Always replace a faulty fuse (identification according to fuse) with a fuse of the same rating.
Correct Incorrect

17-06-2002
PRACTICAL INFORMATION129
Engine compartment fuse box
To gain access to the box in the engine compartment (next to the
battery), unclip the cover. After carrying out work, close the
cover very carefully.The electrical circuit of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories in yourvehicle, consult a PEUGEOT
dealer. Some electrical accessories or the way in which they are fittedmay have an adverse effect onthe operation of your vehicle (itselectronic control circuits, theaudio circuit and the electricalcharging circuit). PEUGEOT declines any respon- sibility for expenses incurredthrough the repair of your vehicleor for any malfunctions resultingfrom the installation of auxiliaryaccessories, not supplied andnot recommended by PEUGEOTand not installed in accordancewith PEUGEOT's instructions, inparticular for any equipment thepower consumption of whichexceeds 10 milliamps.
* The maxi fuses provide additional protection for the electrical systems. Any work on these fuses must be carried out by a PEUGEOT dealer.
Fuse No. Rating Functions
1* 20A Fan unit
2* 60A ABS
3* 30A ABS
4* 70A Built-in systems interface supply
5* 70A Built-in systems interface supply
6* Ñ Not used
7* 30A Ignition switch supply
8* Ñ Not used

17-06-2002
PRACTICAL INFORMATION
130
Fuse No. Rating
Functions
1 10A Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights switch - Speed sensor - Air flow sensor (diesel)
2 15A Canister solenoid valve - Fuel pump
3 10A ABS control unit
4 10A Automatic gearbox control unit - Engine control unit
5 Ñ Not used
7 20A Headlamp wash pump
8 20A Fan assembly relay - Engine control unit - Diesel injection pump - Diesel high pressure regulator - Engine management solenoid valve
9 15A Left-hand dipped beam
10 15A Right-hand dipped beam 11 10A Left-hand main beam
12 15A Right-hand main beam
13 15A Horns
14 10A Front and rear windscreen wash pumps
15 30A Throttle housing heater - Diesel injection pump - Oxygen sensor - Engine control unit - Air flow sensor - Ignition coil - Engine management solenoid valve - Diesel heater - Injectors
16 30A Air pump relay
17 30A High and low speed windscreen wiper
18 40A Air conditioning fan

17-06-2002
PRACTICAL INFORMATION127
CHANGING A FUSE The fuse boxes are located under the fascia and in the engine com-partment. Fascia fuse box Unscrew the catch a quarter turn using a coin then remove the coverto gain access to the fuses. The spare fuses and the pliers Aare
secured on the inside of the fascia
fuse box cover. Removing and fitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Use the pliers
A.
Always replace a faulty fuse (identification according to fuse) with a fuse of the same rating.
Correct Incorrect

17-06-2002
PRACTICAL INFORMATION
128
Fuse No. Rating
Functions
1 15A Heated seat - Alarm
4 20A Multi-function display - Navigation control unit - Boot lighting - Audio equipment
5 15A Automatic gearbox diagnostics
6 10A Coolant level - Automatic gearbox - Audio equipment
7 15A Driving school accessory - Alarm fitted as an accessory
9 30A Rear electric windows
10 40A Rear screen amd mirror demisting 11 15A Rear windscreen wiper
12 30A Front windscreen wiper - Sunroof
14 10A Engine fuse box - Air bags - Steering wheel controls - Rain sensor
15 15A Instrument panel - Multi-function display - Navigation control unit - Air conditioning - Audio equipment
16 30A Locking/unlocking controls for doors, bonnet and boot - Deadlocking controls
20 10A Right-hand brake light
21 15A Left-hand brake light - 3rd brake light
22 30A Front courtesy light and rear courtesy light (206 SW) - Map reading light - Glove box lighting - Lighter - Rear 12 volt socket (206 SW)
S1 Shunt PARC shunt
