Page 19 of 119
ii

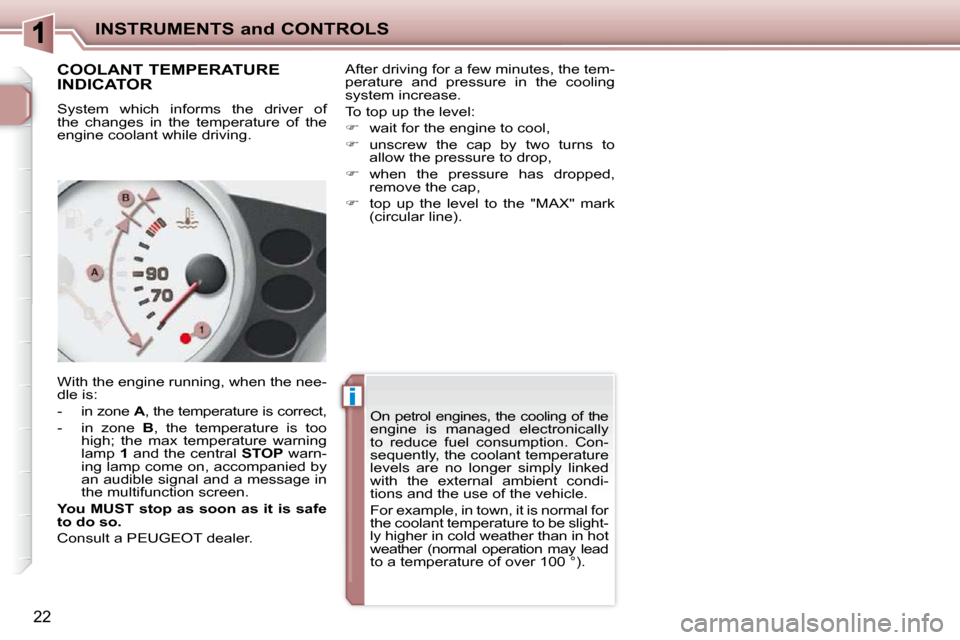

INSTRUMENTS and CONTROLS
22
COOLANT TEMPERATURE
INDICATOR
System which informs the driver of
the changes in the temperature of the
engine coolant while driving.
With the engine running, when the nee-
dle is:
- in zone A , the temperature is correct,
- in zone B , the temperature is too
high; the max temperature warning
lamp 1 and the central STOP warn-
ing lamp come on, accompanied by
an audible signal and a message in
the multifunction screen.
You MUST stop as soon as it is safe
to do so.
Consult a PEUGEOT dealer. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:
wait for the engine to cool,
unscrew the cap by two turns to
allow the pressure to drop,
when the pressure has dropped,
remove the cap,
top up the level to the "MAX" mark
(circular line).
On petrol engines, the cooling of the
engine is managed electronically
to reduce fuel consumption. Con-
sequently, the coolant temperature
levels are no longer simply linked
with the external ambient condi-
tions and the use of the vehicle.
For example, in town, it is normal for
the coolant temperature to be slight-
ly higher in cold weather than in hot
weather (normal operation may lead
to a temperature of over 100 °).
Page 25 of 119

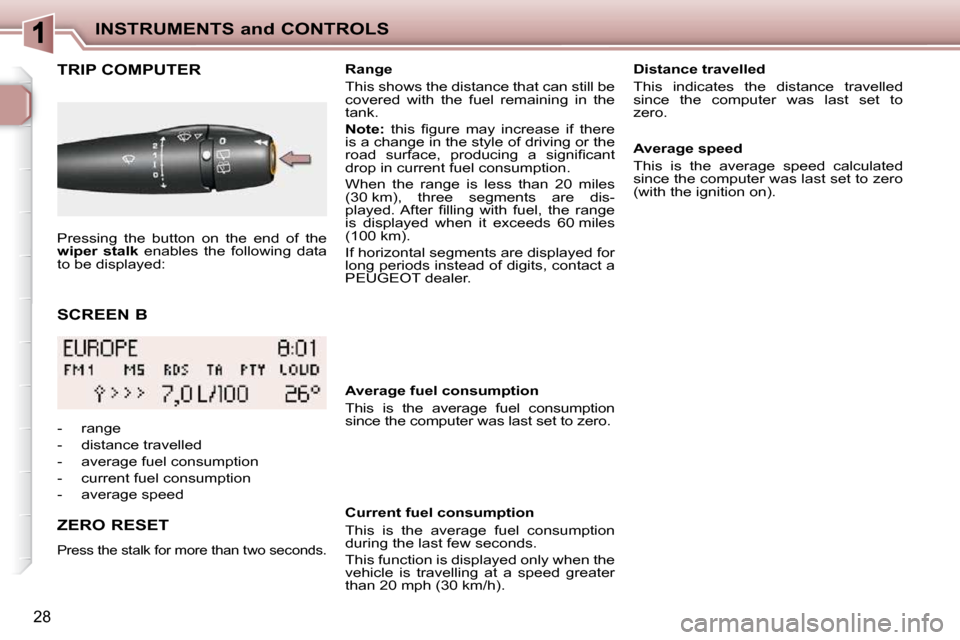

INSTRUMENTS and CONTROLS
28
SCREEN B
TRIP COMPUTER
ZERO RESET
Press the stalk for more than two seconds.
Range
This shows the distance that can still be
covered with the fuel remaining in the
tank.
Note: t h i s fi g u r e m a y i n c r e a s e i f t h e r e
is a change in the style of driving or the
r o a d s u r f a c e , p r o d u c i n g a s i g n i fi c a n t
drop in current fuel consumption.
When the range is less than 20 miles
(30 km), three segments are dis-
p l a y e d . A f t e r fi l l i n g w i t h f u e l , t h e r a n g e
is displayed when it exceeds 60 miles
(100 km).
If horizontal segments are displayed for
long periods instead of digits, contact a
PEUGEOT dealer.
Pressing the button on the end of the
wiper
stalk enables the following data
to be displayed:
- range
- distance travelled
- average fuel consumption
- current fuel consumption
- average speed Average fuel consumption
This is the average fuel consumption
since the computer was last set to zero.
Current fuel consumption
This is the average fuel consumption
during the last few seconds.
This function is displayed only when the
vehicle is travelling at a speed greater
than 20 mph (30 km/h). Distance travelled
This indicates the distance travelled
since the computer was last set to
zero.
Average speed
This is the average speed calculated
since the computer was last set to zero
(with the ignition on).

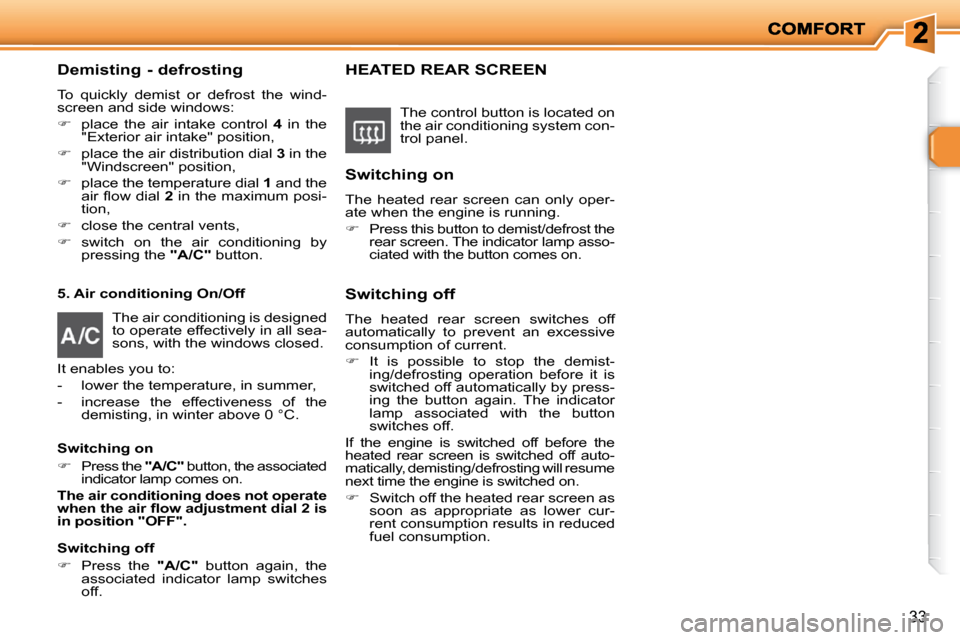

Page 30 of 119
33
Demisting - defrosting
To quickly demist or defrost the wind-
screen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ,
place the air distribution dial 3 in the
" W i n d s c r e e n " p o s i t i o n ,
place the temperature dial 1 and the
a i r fl o w d i a l 2 in the maximum posi-
tion,
close the central vents,
switch on the air conditioning by
pressing the "A/C" button.
5. Air conditioning On/Off
S w i t c h i n g o n
Press the "A/C" button, the associated
indicator lamp comes on.
The air conditioning does not operate
w h e n t h e a i r fl o w a d j u s t m e n t d i a l 2 i s
in position "OFF".
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator lamp switches
off.
HEATED REAR SCREEN
S w i t c h i n g o n
The heated rear screen can only oper-
ate when the engine is running.
Press this button to demist/defrost the
rear screen. The indicator lamp asso-
ciated with the button comes on.
S w i t c h i n g o f f
The heated rear screen switches off
automatically to prevent an excessive
consumption of current.
It is possible to stop the demist-
ing/defrosting operation before it is
switched off automatically by press-
ing the button again. The indicator
lamp associated with the button
switches off.
If the engine is switched off before the
heated rear screen is switched off auto-
matically, demisting/defrosting will resume
next time the engine is switched on.
Switch off the heated rear screen as
soon as appropriate as lower cur-
rent consumption results in reduced
fuel consumption. The control button is located on
the air conditioning system con-
trol panel.
The air conditioning is designed
to operate effectively in all sea-
sons, with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting, in winter above 0 °C.
Page 31 of 119
33
Demisting - defrosting
To quickly demist or defrost the wind-
screen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ,
place the air distribution dial 3 in the
" W i n d s c r e e n " p o s i t i o n ,
place the temperature dial 1 and the
a i r fl o w d i a l 2 in the maximum posi-
tion,
close the central vents,
switch on the air conditioning by
pressing the "A/C" button.
5. Air conditioning On/Off
S w i t c h i n g o n
Press the "A/C" button, the associated
indicator lamp comes on.
The air conditioning does not operate
w h e n t h e a i r fl o w a d j u s t m e n t d i a l 2 i s
in position "OFF".
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator lamp switches
off.
HEATED REAR SCREEN
S w i t c h i n g o n
The heated rear screen can only oper-
ate when the engine is running.
Press this button to demist/defrost the
rear screen. The indicator lamp asso-
ciated with the button comes on.
S w i t c h i n g o f f
The heated rear screen switches off
automatically to prevent an excessive
consumption of current.
It is possible to stop the demist-
ing/defrosting operation before it is
switched off automatically by press-
ing the button again. The indicator
lamp associated with the button
switches off.
If the engine is switched off before the
heated rear screen is switched off auto-
matically, demisting/defrosting will resume
next time the engine is switched on.
Switch off the heated rear screen as
soon as appropriate as lower cur-
rent consumption results in reduced
fuel consumption. The control button is located on
the air conditioning system con-
trol panel.
The air conditioning is designed
to operate effectively in all sea-
sons, with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting, in winter above 0 °C.
