Peugeot 206 P Dag 2010 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2010, Model line: 206 P Dag, Model: Peugeot 206 P Dag 2010Pages: 107, PDF Size: 3.94 MB
Page 31 of 107
43

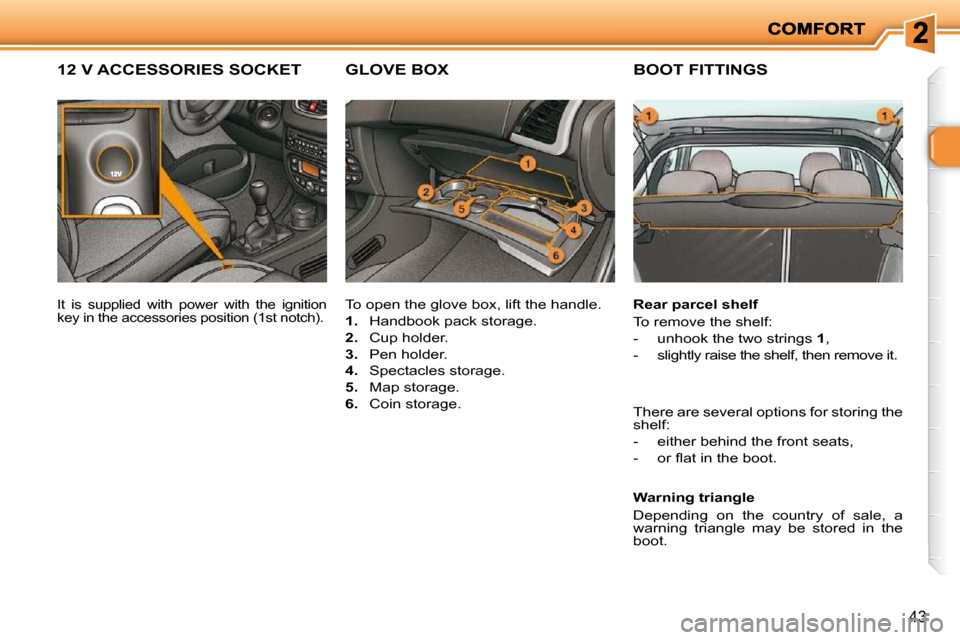

BOOT FITTINGS
Rear parcel shelf
To remove the shelf:
- unhook the two strings 1 ,
- slightly raise the shelf, then remove it.
Warning triangle
Depending on the country of sale, a
warning triangle may be stored in the
boot.
There are several options for storing the
shelf:
- either behind the front seats,
- o r fl a t i n t h e b o o t .
12 V ACCESSORIES SOCKET GLOVE BOX
To open the glove box, lift the handle.
1. Handbook pack storage.
2. Cup holder.
3. Pen holder.
4. Spectacles storage.
5. Map storage.
6. Coin storage. It is supplied with power with the ignition
key in the accessories position (1 st notch).
Page 32 of 107
43
BOOT FITTINGS
Rear parcel shelf
To remove the shelf:
- unhook the two strings 1 ,
- slightly raise the shelf, then remove it.
Warning triangle
Depending on the country of sale, a
warning triangle may be stored in the
boot.
There are several options for storing the
shelf:
- either behind the front seats,
- o r fl a t i n t h e b o o t .
12 V ACCESSORIES SOCKET GLOVE BOX
To open the glove box, lift the handle.
1. Handbook pack storage.
2. Cup holder.
3. Pen holder.
4. Spectacles storage.
5. Map storage.
6. Coin storage. It is supplied with power with the ignition
key in the accessories position (1 st notch).
Page 33 of 107
i
!
44
KEYS
Central locking and unlocking
From the front doors, the keys allow you
to lock and unlock the doors and boot.
If one of the doors is open, the central
locking does not work.
If the boot is open, the central locking
works.
Remote control
This carries out the same functions as
the key, from a distance. Locking
Press button
A to lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g o f t h e
d i r e c t i o n i n d i c a t o r s f o r a p p r o x i m a t e l y
two seconds.
Unlocking
Press button B to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators. Starting the vehicle
There are four possible positions of the
key in the ignition switch:
1. STOP position:
the ignition is off.
2. 1 st
notch, Accessories position:
the ignition is off but the accessories can operate.
3. 2nd
notch, On position:
the ignition is on.
4. Starting position:
the starter is operated.
Avoid pressing the buttons of your
remote control out of range of your
vehicle as this could stop it from
working. The remote control would
then have to be reinitialised (refer
to the corresponding section).
A heavy object (key ring, etc.), at-
tached to the key and weighing
down on its shaft in the switch,
may cause a malfunction.
Page 34 of 107
!
46
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
Remote control
The high frequency remote control is a sensitive system; do not o perate
it while it is in your pocket as there is a possibility that i t may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reprogrammed.
The remote control does not operate when the key is in the ignition, even
w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x c e p t f o r r e i n i t i a l i s a t i o n . Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Lost keys
V i s i t a P E U G E O T d e a l e r w i t h t h e v e h i c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The PEUGEOT network will be able to retrieve the key code and the
transponder code to order a replacement key.
Page 35 of 107
i
!
44
KEYS
Central locking and unlocking
From the front doors, the keys allow you
to lock and unlock the doors and boot.
If one of the doors is open, the central
locking does not work.
If the boot is open, the central locking
works.
Remote control
This carries out the same functions as
the key, from a distance. Locking
Press button
A to lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g o f t h e
d i r e c t i o n i n d i c a t o r s f o r a p p r o x i m a t e l y
two seconds.
Unlocking
Press button B to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators. Starting the vehicle
There are four possible positions of the
key in the ignition switch:
1. STOP position:
the ignition is off.
2. 1 st
notch, Accessories position:
the ignition is off but the accessories can operate.
3. 2nd
notch, On position:
the ignition is on.
4. Starting position:
the starter is operated.
Avoid pressing the buttons of your
remote control out of range of your
vehicle as this could stop it from
working. The remote control would
then have to be reinitialised (refer
to the corresponding section).
A heavy object (key ring, etc.), at-
tached to the key and weighing
down on its shaft in the switch,
may cause a malfunction.
Page 36 of 107
i
4545
Steering lock
Before starting, unlock the steering, if
necessary, by turning the steering wheel
slightly while turning the key.
It is advisable to press the clutch pedal
whle operating the starter to facilitate
the starting of the engine. ELECTRONIC ENGINE
IMMOBILISER
This locks the engine management sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
If the system does not function cor-
rectly, the central locking button in-
dicator lamp, situated on the centre
c o n s o l e , fl a s h e s r a p i d l y w h e n t h e i g n i -
tion is switched on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as
possible.
Key in ignition
If the key is left in the ignition, this
is indicated by an audible signal
when the driver's door is opened.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press button A , the courtesy lamps
come on and the direction indicators
fl a s h f o r a f e w s e c o n d s . Changing the remote control
battery
Battery ref.: CR2016/3 volts.
I f t h e r e m o t e c o n t r o l b a t t e r y i s fl a t , y o u
are warned by a message on display B.
To replace the battery, remove the
screw then unclip the casing using a
coin at the ring.
If the remote control does not work after
the battery has been changed, repro-
gramme the remote control.
Reinitialising the remote control
Switch off the ignition.
Switch the ignition on again.
Press button A immediately for a
few seconds.
Switch off the ignition and remove
the remote control key from the igni-
tion lock. The remote control is now
working again.
Page 37 of 107
!
46
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
Remote control
The high frequency remote control is a sensitive system; do not o perate
it while it is in your pocket as there is a possibility that i t may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reprogrammed.
The remote control does not operate when the key is in the ignition, even
w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x c e p t f o r r e i n i t i a l i s a t i o n . Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Lost keys
V i s i t a P E U G E O T d e a l e r w i t h t h e v e h i c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The PEUGEOT network will be able to retrieve the key code and the
transponder code to order a replacement key.
Page 38 of 107
i
!
44
KEYS
Central locking and unlocking
From the front doors, the keys allow you
to lock and unlock the doors and boot.
If one of the doors is open, the central
locking does not work.
If the boot is open, the central locking
works.
Remote control
This carries out the same functions as
the key, from a distance. Locking
Press button
A to lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g o f t h e
d i r e c t i o n i n d i c a t o r s f o r a p p r o x i m a t e l y
two seconds.
Unlocking
Press button B to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators. Starting the vehicle
There are four possible positions of the
key in the ignition switch:
1. STOP position:
the ignition is off.
2. 1 st
notch, Accessories position:
the ignition is off but the accessories can operate.
3. 2nd
notch, On position:
the ignition is on.
4. Starting position:
the starter is operated.
Avoid pressing the buttons of your
remote control out of range of your
vehicle as this could stop it from
working. The remote control would
then have to be reinitialised (refer
to the corresponding section).
A heavy object (key ring, etc.), at-
tached to the key and weighing
down on its shaft in the switch,
may cause a malfunction.
Page 39 of 107
i
4545
Steering lock
Before starting, unlock the steering, if
necessary, by turning the steering wheel
slightly while turning the key.
It is advisable to press the clutch pedal
whle operating the starter to facilitate
the starting of the engine. ELECTRONIC ENGINE
IMMOBILISER
This locks the engine management sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
If the system does not function cor-
rectly, the central locking button in-
dicator lamp, situated on the centre
c o n s o l e , fl a s h e s r a p i d l y w h e n t h e i g n i -
tion is switched on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as
possible.
Key in ignition
If the key is left in the ignition, this
is indicated by an audible signal
when the driver's door is opened.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press button A , the courtesy lamps
come on and the direction indicators
fl a s h f o r a f e w s e c o n d s . Changing the remote control
battery
Battery ref.: CR2016/3 volts.
I f t h e r e m o t e c o n t r o l b a t t e r y i s fl a t , y o u
are warned by a message on display B.
To replace the battery, remove the
screw then unclip the casing using a
coin at the ring.
If the remote control does not work after
the battery has been changed, repro-
gramme the remote control.
Reinitialising the remote control
Switch off the ignition.
Switch the ignition on again.
Press button A immediately for a
few seconds.
Switch off the ignition and remove
the remote control key from the igni-
tion lock. The remote control is now
working again.
Page 40 of 107
i
4747

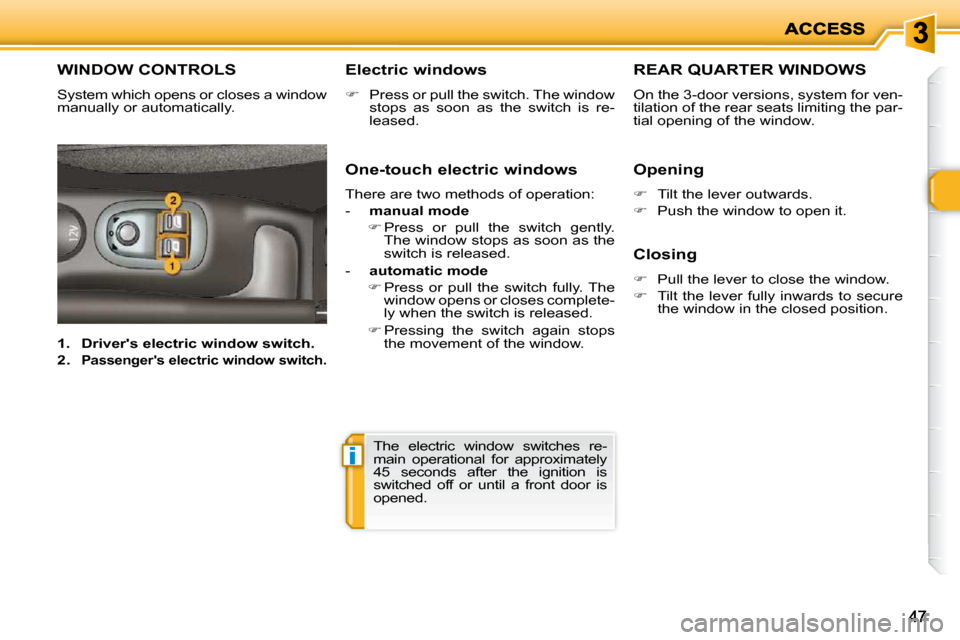

WINDOW CONTROLS
System which opens or closes a window
manually or automatically. Electric windows
Press or pull the switch. The window
stops as soon as the switch is re-
leased.
One-touch electric windows
There are two methods of operation:
- manual mode
Press or pull the switch gently.
The window stops as soon as the
switch is released.
- automatic mode
Press or pull the switch fully. The
window opens or closes complete-
ly when the switch is released.
Pressing the switch again stops
the movement of the window.
REAR QUARTER WINDOWS
On the 3-door versions, system for ven-
tilation of the rear seats limiting the par-
tial opening of the window.
Opening
Tilt the lever outwards.
Push the window to open it.
Closing
Pull the lever to close the window.
Tilt the lever fully inwards to secure
the window in the closed position.
1. Driver's electric window switch.
2.
Passenger's electric window switch.
The electric window switches re-
m a i n o p e r a t i o n a l f o r a p p r o x i m a t e l y
45 seconds after the ignition is
switched off or until a front door is
opened.
