48

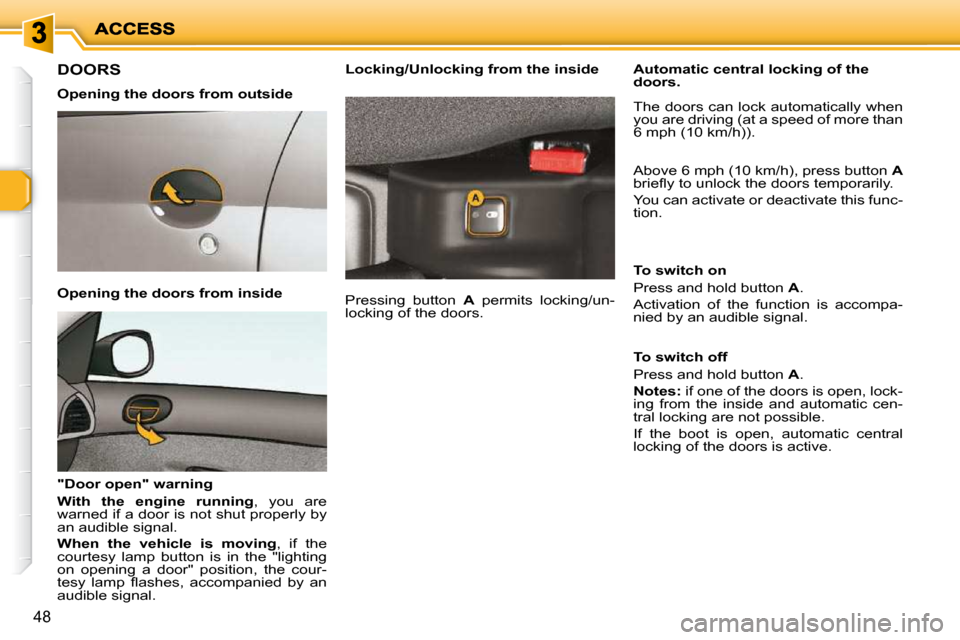

DOORS
Opening the doors from outside
Opening the doors from inside
"Door open" warning
With the engine running , you are
warned if a door is not shut properly by
an audible signal.
When the vehicle is moving , if the
courtesy lamp button is in the "lighting
on opening a door" position, the cour-
t e s y l a m p fl a s h e s , a c c o m p a n i e d b y a n
audible signal. Locking/Unlocking from the inside Automatic c
entral locking of the
doors.
Pressing button A permits locking/un-
locking of the doors. To switch on
Press and hold button
A .
Activation of the function is accompa-
nied by an audible signal.
To switch off
Press and hold button A .
Notes: if one of the doors is open, lock-
ing from the inside and automatic cen-
tral locking are not possible.
If the boot is open, automatic central
locking of the doors is active.
The doors can lock automatically when
you are driving (at a speed of more than
6 mph (10 km/h)).
Above 6 mph (10 km/h), press button
A
b r i e fl y t o u n l o c k t h e d o o r s t e m p o r a r i l y .
You can activate or deactivate this func-
tion.
Page 42 of 107
4949

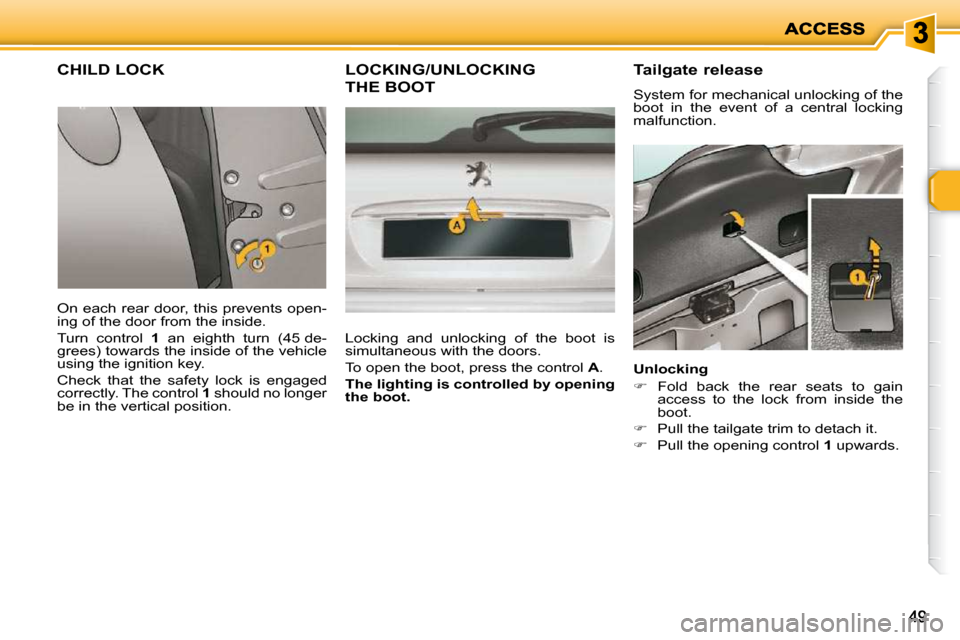

CHILD LOCK
On each rear door, this prevents open-
ing of the door from the inside.
Turn control 1 an eighth turn (45 de-
grees) towards the inside of the vehicle
using the ignition key.
Check that the safety lock is engaged
correctly. The control 1 should no longer
be in the vertical position.
LOCKING/UNLOCKING
THE BOOT
Locking and unlocking of the boot is
simultaneous with the doors.
To open the boot, press the control A .
The lighting is controlled by opening
the boot. Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Pull the tailgate trim to detach it.
Pull the opening control 1 upwards.
Page 43 of 107
50

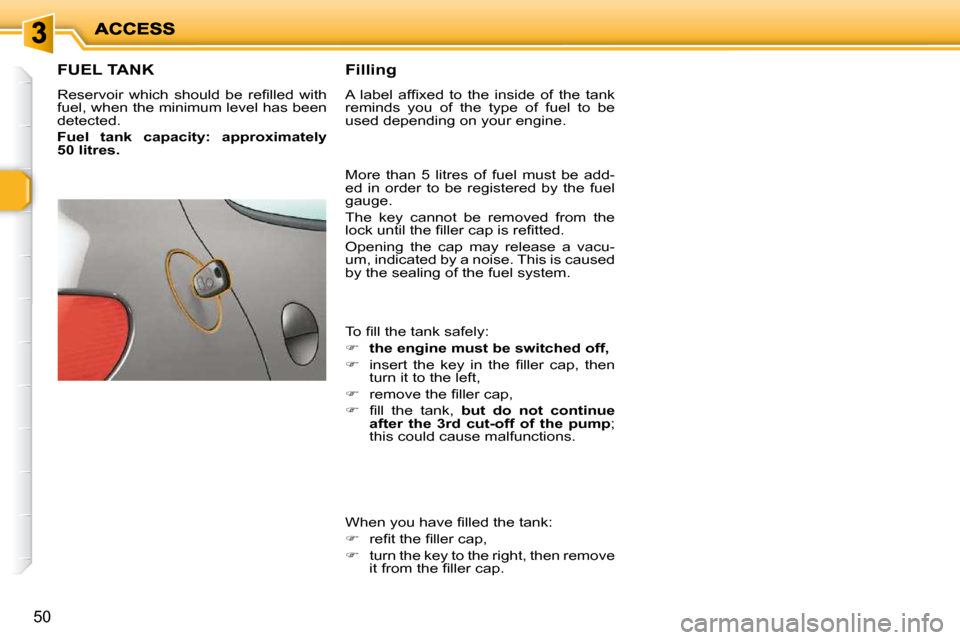

FUEL TANK
R e s e r v o i r w h i c h s h o u l d b e r e fi l l e d w i t h
fuel, when the minimum level has been
detected.
Fuel tank capacity: approximately
50 litres. Filling
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e t a n k
reminds you of the type of fuel to be
used depending on your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge.
The key cannot be removed from the
l o c k u n t i l t h e fi l l e r c a p i s r e fi t t e d .
Opening the cap may release a vacu-
um, indicated by a noise. This is caused
by the sealing of the fuel system.
T o fi l l t h e t a n k s a f e l y :
the engine
must be
switched off,
i n s e r t t h e k e y i n t h e fi l l e r c a p , t h e n
turn it to the left,
r e m o v e t h e fi l l e r c a p ,
fi l l t h e t a n k , but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
W h e n y o u h a v e fi l l e d t h e t a n k :
r e fi t t h e fi l l e r c a p ,
turn the key to the right, then remove
i t f r o m t h e fi l l e r c a p .
Page 44 of 107
5151

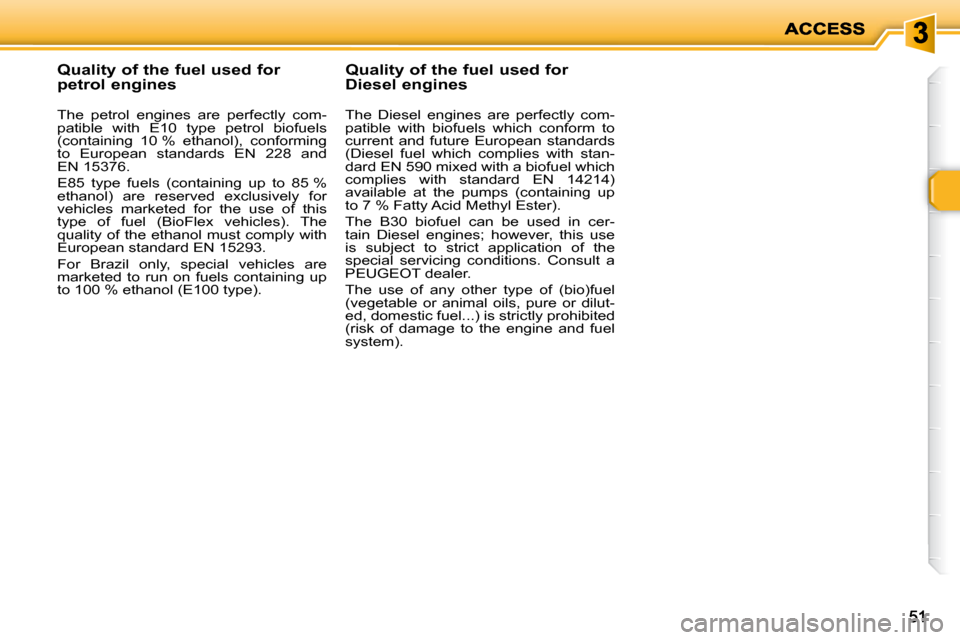

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
e t h a n o l ) a r e r e s e r v e d e x c l u s i v e l y f o r
vehicles marketed for the use of this
t y p e o f f u e l ( B i o F l e x v e h i c l e s ) . T h e
quality of the ethanol must comply with
European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
d a r d E N 5 9 0 m i x e d w i t h a b i o f u e l w h i c h
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
Page 45 of 107
i
52

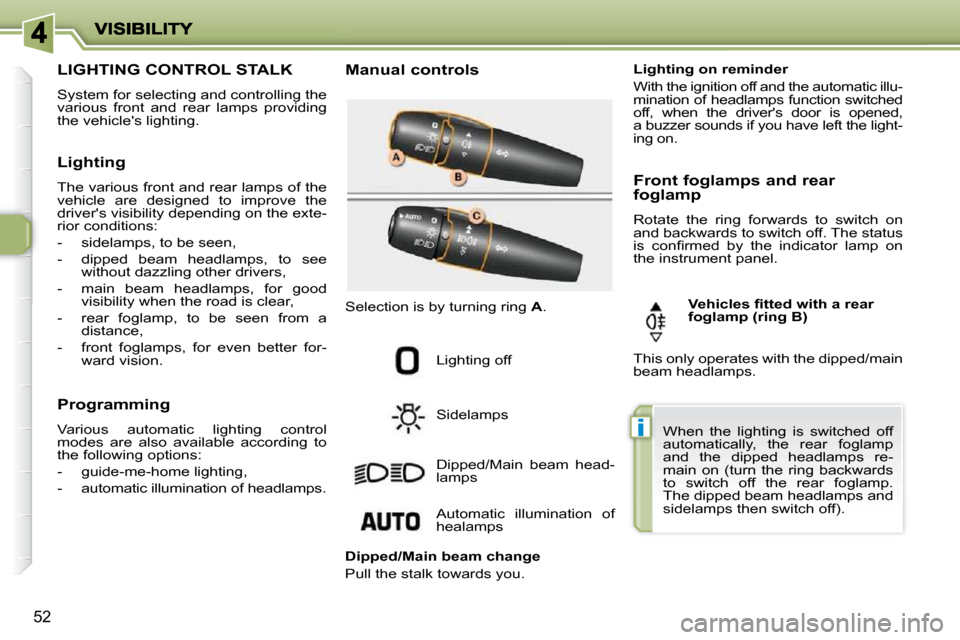

LIGHTING CONTROL STALK
System for selecting and controlling the
various front and rear lamps providing
the vehicle's lighting. Manual controls
Lighting off
Sidelamps
Dipped/Main beam head-
lamps
Lighting
The various front and rear lamps of the
vehicle are designed to improve the
driver's visibility depending on the exte-
rior conditions:
- sidelamps, to be seen,
- dipped beam headlamps, to see
without dazzling other drivers,
- main beam headlamps, for good visibility when the road is clear,
- rear foglamp, to be seen from a distance,
- front foglamps, for even better for- ward vision.
Programming
Various automatic lighting control
modes are also available according to
the following options:
- guide-me-home lighting,
- automatic illumination of headlamps. Selection is by turning ring
A .
Automatic illumination of
healamps Lighting on reminder
With the ignition off and the automatic illu-
mination of headlamps function switched
off, when the driver's door is opened,
a buzzer sounds if you have left the light-
ing on.
Front foglamps and rear
foglamp
Rotate the ring forwards to switch on
and backwards to switch off. The status
i s c o n fi r m e d b y t h e i n d i c a t o r l a m p o n
the instrument panel.
V e h i c l e s fi t t e d w i t h a r e a r
foglamp (ring B)
Dipped/Main beam change
Pull the stalk towards you. When the lighting is switched off
automatically, the rear foglamp
and the dipped headlamps re-
main on (turn the ring backwards
to switch off the rear foglamp.
The dipped beam headlamps and
sidelamps then switch off).
This only operates with the dipped/main
beam headlamps.
Page 46 of 107
!
i
i
53

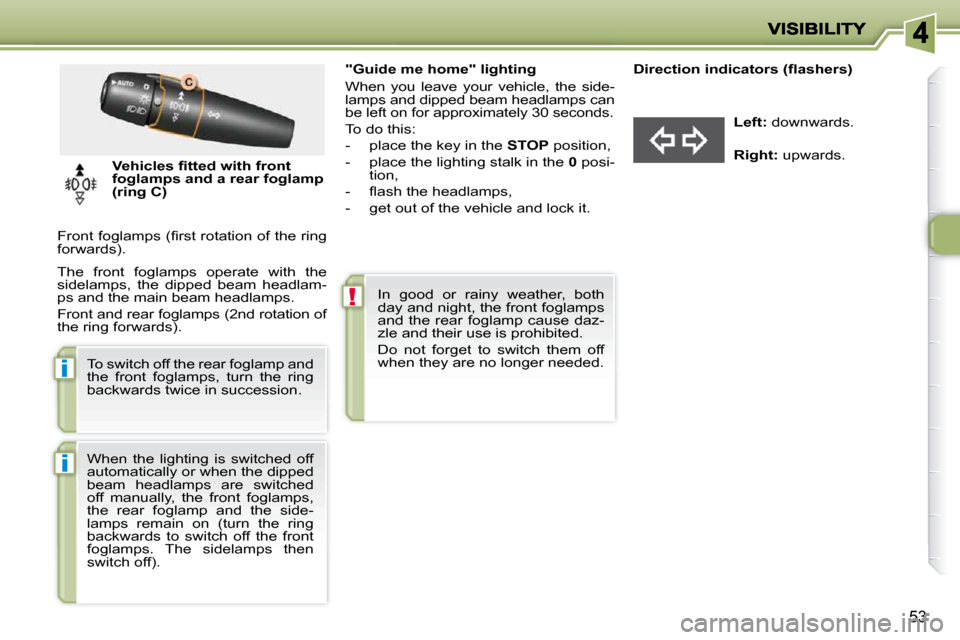

"Guide me home" lighting
When you leave your vehicle, the side-
lamps and dipped beam headlamps can
be left on for approximately 30 seconds.
To do this:
- place the key in the STOP position,
- place the lighting stalk in the 0 posi-
tion,
- fl a s h t h e h e a d l a m p s ,
- get out of the vehicle and lock it. D i r e c t i o n i n d i c a t o r s ( fl a s h e r s )
Left: downwards.
Right: upwards.
In good or rainy weather, both
day and night, the front foglamps
and the rear foglamp cause daz-
zle and their use is prohibited.
Do not forget to switch them off
when they are no longer needed.
V e h i c l e s fi t t e d w i t h f r o n t
foglamps and a rear foglamp
(ring C)
When the lighting is switched off
automatically or when the dipped
beam headlamps are switched
off manually, the front foglamps,
the rear foglamp and the side-
lamps remain on (turn the ring
backwards to switch off the front
foglamps. The sidelamps then
switch off).
F r o n t f o g l a m p s ( fi r s t r o t a t i o n o f t h e r i n g
forwards).
To switch off the rear foglamp and
the front foglamps, turn the ring
backwards twice in succession.
The front foglamps operate with the
sidelamps, the dipped beam headlam-
ps and the main beam headlamps.
Front and rear foglamps (2nd rotation of
the ring forwards).
Page 47 of 107
54
AUTOMATIC ILLUMINATION OF
HEADLAMPS
The sidelamps and dipped beam head-
lamps switch on automatically if the light
is poor and when the windscreen wip-
ers operate continuously and switch off
when the light becomes bright enough
or the windscreen wipers are switched
off.
I n f o g g y w e a t h e r o r i n s n o w , t h e
b r i g h t n e s s s e n s o r m a y d e t e c t s u f fi -
c i e n t l i g h t , t h e l i g h t i n g w i l l n o t c o m e
o n a u t o m a t i c a l l y . I f n e c e s s a r y , t h e
dipped beam headlamps must be
s w i t c h e d o n m a n u a l l y .
This function is active when the vehicle
is supplied to the customer.
To deactivate or activate the function:
- Place the key in the accessories po-sition (1st notch),
- Place the lighting stalk in the 0 posi-
tion,
- Press the end of the lighting stalk for more than four seconds.
D o n o t c o v e r t h e b r i g h t n e s s s e n s o r ,
c o u p l e d w i t h t h e r a i n s e n s o r , l o c a t e d
i n t h e c e n t r e o f t h e w i n d s c r e e n , b e -
hind the
r e a r v i e w
mirror. It is used
for
the
automatic
illumination
of
headlamps
. Operating check
Activation
Activation is accompanied by an audible
signal and a message on the multifunc-
tion screen.
Deactivation
Deactivation is accompanied by an au-
dible signal.
When the driver uses the manual light-
ing controls, the function is temporarily
deactivated.
If the brightness sensor does not
function correctly , the lighting come
on accompanied by an audible signal
and a message on the multifunction
screen.
Consult a PEUGEOT dealer.
HEADLAMP ADJUSTMENT
Depending on the load in your vehicle,
it is recommended that the headlamp
beam is adjusted.
0. 1 or 2 people in the front seats.
- . 3 people.
1. 5 people.
2. 5 people + maximum authorised
load.
3. Driver + maximum authorised load.
Initial setting is position 0.
Page 48 of 107
55

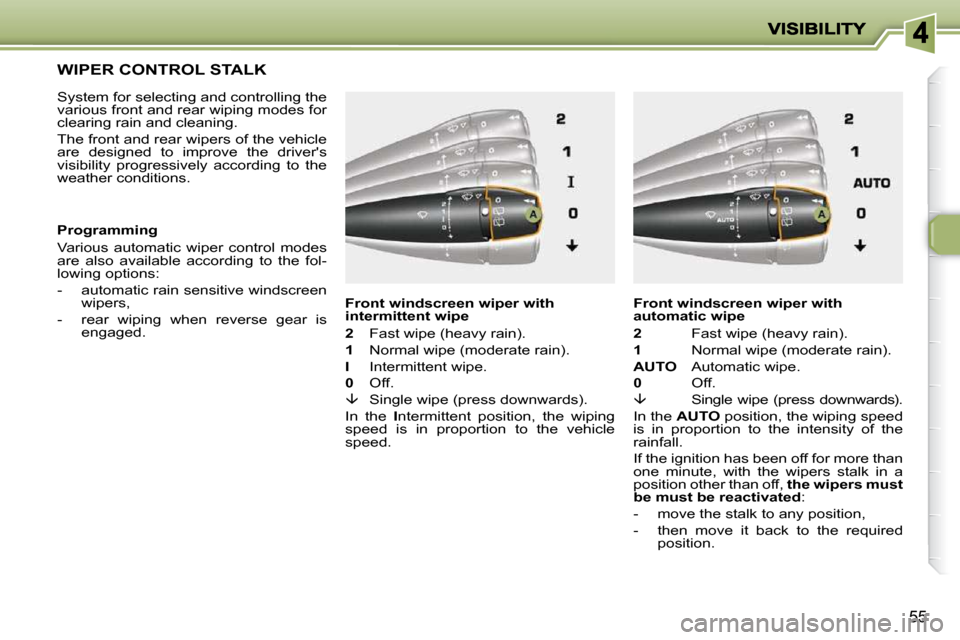

WIPER CONTROL STALK
System for selecting and controlling the
various front and rear wiping modes for
clearing rain and cleaning.
The front and rear wipers of the vehicle
are designed to improve the driver's
visibility progressively according to the
weather conditions.
Programming
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic rain sensitive windscreen wipers,
- rear wiping when reverse gear is engaged. F r o n t w i n d s c r e e n w i p e r w i t h
i n t e r m i t t e n t w i p e
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press downwards).
In the I ntermittent position, the wiping
speed is in proportion to the vehicle
speed. F r o n t w i n d s c r e e n w i p e r w i t h
a u t o m a t i c w i p e
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe.
0 Off.
Single wipe (press downwards).
In the AUTO position, the wiping speed
is in proportion to the intensity of the
rainfall.
If the ignition has been off for more than
one minute, with the wipers stalk in a
position other than off, the
w i p e r s m u s t
be
must be reactivated :
- move the stalk to any position,
- then move it back to the required position.
Page 49 of 107
i
56
A u t o m a t i c r a i n s e n s i t i v e w i n d s c r e e n
w i p e r s
In the AUTO position, the windscreen
wipers operate automatically and adapt
their speed to the intensity of the
rainfall .
Operating check
Activation
Activation of the function is accompa-
nied by a message on the multi-function
screen.
In the event of malfunction , the driver
is informed by an audible signal.
In the AUTO position, the windscreen
wiper will operate in intermittent mode.
Contact a PEUGEOT dealer to have the
system checked.
Do not cover the rain sensor located
on the windscreen behind the rear view
mirror.
When using an automatic car wash,
switch off the ignition or check that the
wiper stalk is not in the AUTO position.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic rain
sensitive wipers.
W i n d s c r e e n w a s h
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
w i p e r s , o p e r a t e f o r a s p e c i fi e d t i m e .
R e a r s c r e e n w i p e r
Turn ring A t o t h e fi r s t n o t c h f o r i n t e r m i t -
tent wiping.
I f t h e i g n i t i o n i s s w i t c h e d o f f , i t i s
necessary to reactivate the control
each time . To do this, move the stalk
to any position, then move it back to the
required position.
A u t o m a t i c r e a r s c r e e n w i p e r
When the windscreen wipers control is
activated and you engage reverse gear,
the rear screen wiper operates intermit-
tently.
R e a r s c r e e n w a s h
Turn ring A p a s t t h e fi r s t n o t c h ; t h e
screen wash then the wiper operate for
a fi x e d p e r i o d . If you use a bicycle carrier, con-
sult a PEUGEOT dealer to have
this function deactivated or install
a s p e c i fi c b i c y c l e c a r r i e r a p p r o v e d
by PEUGEOT. COURTESY LAMPS
System for selecting and controlling
the various passenger compartment
lamps.
Front courtesy lamp (button A)
- when the vehicle is unlocked,
- when a door is opened,
- when the ignition is switched off.
It switches off when the vehicle is
locked.
I t fl a s h e s w h i l e d r i v i n g i f a d o o r i s n o t
closed correctly.
Permanently off.
Permanently on, when the key
is in the accessories position or
with the ignition on.
In this position, the courtesy
lamp comes on for approxi-
mately 30 seconds:
Page 50 of 107
i
56
A u t o m a t i c r a i n s e n s i t i v e w i n d s c r e e n
w i p e r s
In the AUTO position, the windscreen
wipers operate automatically and adapt
their speed to the intensity of the
rainfall .
Operating check
Activation
Activation of the function is accompa-
nied by a message on the multi-function
screen.
In the event of malfunction , the driver
is informed by an audible signal.
In the AUTO position, the windscreen
wiper will operate in intermittent mode.
Contact a PEUGEOT dealer to have the
system checked.
Do not cover the rain sensor located
on the windscreen behind the rear view
mirror.
When using an automatic car wash,
switch off the ignition or check that the
wiper stalk is not in the AUTO position.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic rain
sensitive wipers.
W i n d s c r e e n w a s h
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
w i p e r s , o p e r a t e f o r a s p e c i fi e d t i m e .
R e a r s c r e e n w i p e r
Turn ring A t o t h e fi r s t n o t c h f o r i n t e r m i t -
tent wiping.
I f t h e i g n i t i o n i s s w i t c h e d o f f , i t i s
necessary to reactivate the control
each time . To do this, move the stalk
to any position, then move it back to the
required position.
A u t o m a t i c r e a r s c r e e n w i p e r
When the windscreen wipers control is
activated and you engage reverse gear,
the rear screen wiper operates intermit-
tently.
R e a r s c r e e n w a s h
Turn ring A p a s t t h e fi r s t n o t c h ; t h e
screen wash then the wiper operate for
a fi x e d p e r i o d . If you use a bicycle carrier, con-
sult a PEUGEOT dealer to have
this function deactivated or install
a s p e c i fi c b i c y c l e c a r r i e r a p p r o v e d
by PEUGEOT. COURTESY LAMPS
System for selecting and controlling
the various passenger compartment
lamps.
Front courtesy lamp (button A)
- when the vehicle is unlocked,
- when a door is opened,
- when the ignition is switched off.
It switches off when the vehicle is
locked.
I t fl a s h e s w h i l e d r i v i n g i f a d o o r i s n o t
closed correctly.
Permanently off.
Permanently on, when the key
is in the accessories position or
with the ignition on.
In this position, the courtesy
lamp comes on for approxi-
mately 30 seconds:
