86
Rear foglamp (P21W)
The foglamp is located on the rear
bumper, on the left-hand side.
Unscrew the lamp and release the
assembly.
Turn the pin connector a quarter turn
and remove it.
Change the bulb. Number plate lamps W5W
Insert a thin screwdriver into one of the
outer holes of the transparent cover.
Push it outwards to unclip it.
Remove the transparent cover.
Change the faulty bulb.
Page 82 of 107
87

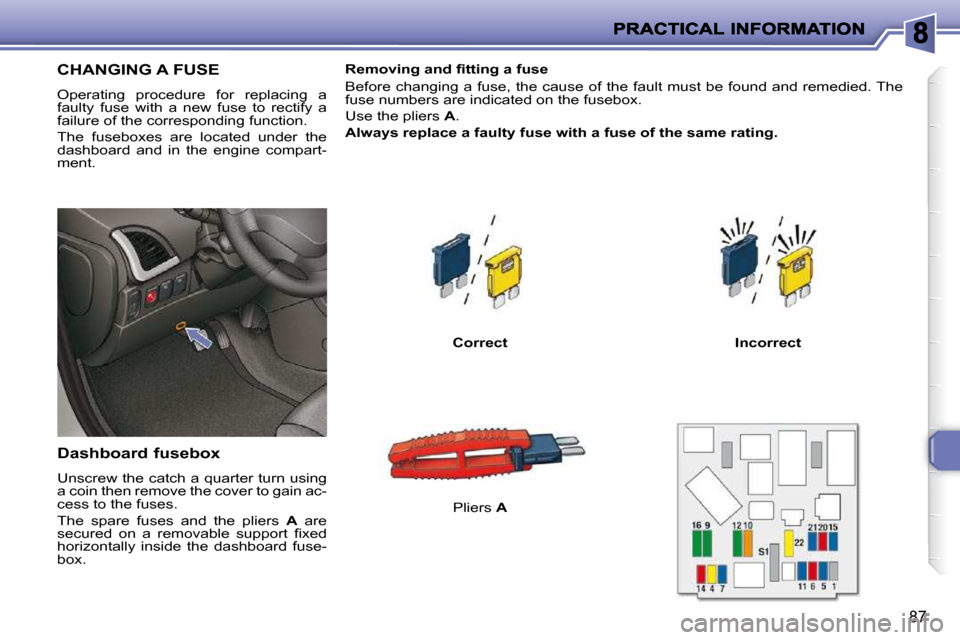

CHANGING A FUSE
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure of the corresponding function.
The fuseboxes are located under the
dashboard and in the engine compart-
ment.
Dashboard fusebox
Unscrew the catch a quarter turn using
a coin then remove the cover to gain ac-
cess to the fuses.
The spare fuses and the pliers A are
s e c u r e d o n a r e m o v a b l e s u p p o r t fi x e d
horizontally inside the dashboard fuse-
box. R e m o v i n g a n d fi t t i n g a f u s e
Before changing a fuse, the cause of the fault must be fou
nd and remedied. The
fuse numbers are indicated on the fusebox.
Use the pliers A .
Always replace a faulty fuse with a fuse of the same rating .
Pliers A
Correct Incorrect
Page 83 of 107
87
CHANGING A FUSE
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure of the corresponding function.
The fuseboxes are located under the
dashboard and in the engine compart-
ment.
Dashboard fusebox
Unscrew the catch a quarter turn using
a coin then remove the cover to gain ac-
cess to the fuses.
The spare fuses and the pliers A are
s e c u r e d o n a r e m o v a b l e s u p p o r t fi x e d
horizontally inside the dashboard fuse-
box. R e m o v i n g a n d fi t t i n g a f u s e
Before changing a fuse, the cause of the fault must be fou
nd and remedied. The
fuse numbers are indicated on the fusebox.
Use the pliers A .
Always replace a faulty fuse with a fuse of the same rating .
Pliers A
Correct Incorrect
Page 84 of 107
88
Fuse
N° Rating
Functions
1 - Not used
4 20 A Multifunction screen - Boot lamp - Audio equipme nt - Steering mounted controls - Trailer
5 - Not used
6 10 A Coolant level - Audio equipment
7 15 A D r i v i n g s c h o o l a c c e s s o r y - A l a r m fi t t e d a s a n a c c e s s o r y
9 - Not used
10 40 A Rear screen demisting 11 15 A Rear windscreen wiper
12 30 A Front electric windows
14 10 A Engine fusebox - Airbags - Steering mounted cont rols - Rain sensor
15 15 A Instrument panel - Multifunction screen - Air con ditioning - Audio equipment
16 30 A Locking/unlocking controls for doors, bonnet a nd boot
20 10 A Right-hand brake lamp
21 15 A Left-hand brake lamp - 3rd brake lamp
22 20 A Front courtesy lamp - 12 volt accessories socket
S1 Shunt PARC shunt
Page 85 of 107
89
or
Fuse N° Rating Functions
1 10 A Pre-heater unit (diesel) - Water in diesel sensor -
R e v e r s i n g l a m p s w i t c h - S p e e d s e n s o r - A i r fl o w
sensor (diesel)
2 15 A Canister electrovalve - Fuel pump
3 10 A ABS control unit
4 10 A Engine management unit
5 - Not used
6 15 A Front foglamps
7 - Not used
8 20 A Fan assembly relay - Engine management unit -
Diesel injection pump - Diesel high pressure
regulator - Engine management electrovalve
9 15 A Left-hand dipped beam
10 15 A Right-hand dipped beam 11 10 A Left-hand main beam
12 10 A Right-hand main beam
13 15 A Horn
14 10 A Front and rear windscreen wash pumps
15 30 A B u t t e r fl y h o u s i n g h e a t e r - D i e s e l i n j e c t i o n p u m p -
Oxygen sensor - Engine management unit - Air
fl o w s e n s o r - I g n i t i o n c o i l - E n g i n e m a n a g e m e n t
electrovalve - Diesel heater - Injectors
16 30 A Air pump relay
17 30 A High and low speed windscreen wiper
18 40 A Air conditioning fan
Engine compartment fuse box
To gain access to the box in the engine
compartment (next to the battery), un-
clip the cover.
A f t e r c a r r y i n g o u t w o r k , t a k e c a r e t o r e fi t
the cover correctly.
Page 86 of 107
!
90
The electrical circuit of your ve-
hicle is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories in your ve-
hicle, consult a PEUGEOT dealer.
Some electrical accessories or the
w a y i n w h i c h t h e y a r e fi t t e d m a y
have an adverse effect on the op-
eration of your vehicle (its elec-
tronic control circuits, the audio
circuit and the electrical charging
circuit).
PEUGEOT declines any respon-
sibility for expenses incurred
through the repair of your vehicle
or for any malfunctions resulting
from the installation of auxiliary
accessories, not supplied and not
recommended by PEUGEOT and
not installed in accordance with
PEUGEOT’s instructions, in par-
ticular when the combined con-
sumption of all of the additional
equipment connected exceeds
10 milliamps.
The maxi fuses present provide
additional protection for the elec-
trical systems. Any work on these
fuses must be carried out by a
PEUGEOT dealer.
Fuse N° Rating Functions
MF1 20 A/50 A Fan unit without/with air conditio ning
MF2 20 A/30 A ABS/ESP
MF3 20 A/30 A ABS/ESP
MF4 70 A Built-in systems interface (BSI) supply
MF5 70 A Built-in systems interface (BSI) supply
MF6 - Not used
MF7 30 A Ignition switch supply
MF8 - Not used
Page 87 of 107
i
!
91
BATTERY
Operating procedure for recharging
y o u r fl a t b a t t e r y o r f o r s t a r t i n g t h e e n -
gine from another battery.
To start the vehicle from another
battery:
- Connect the red cable to the positive (+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (-) termi-
nal of the slave battery,
- Connect the other end of the green or black cable to an earth point on
the broken down vehicle, as far as
possible from the battery (for exam-
ple, right-hand engine mounting),
- Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables.
To charge the battery using a battery
charger:
- Disconnect the battery,
- Follow the instructions for use given by the battery charger manufacturer,
- Reconnect starting with the nega- tive (-) terminal,
- Check that the terminals and connec- tors are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
It is advisable to disconnect the bat-
tery if the vehicle is not to be used for
a period of more than one month.
- Wait for 2 minutes after switch-
ing off the ignition before dis-
connecting the battery.
- Never disconnect a terminal when the engine is running.
- Never charge a battery without fi r s t d i s c o n n e c t i n g t h e t e r m i n a l s .
- Close the windows before dis- connecting the battery.
- After every reconnection of the battery, switch on the ignition
and wait 1 minute before start-
ing to allow the electronic sys-
tems to be initialised. If slight
d i f fi c u l t i e s a r e e x p e r i e n c e d
after this, please consult a
PEUGEOT dealer.
Page 88 of 107
!i
92
ECONOMY MODE FUNCTION
After the engine has stopped, with the
key in the accessories position, certain
functions (windscreen wiper, courtesy
lamps, audio equipment, dipped beam
headlamps, etc.) can only be used for
a maximum cumulative duration of ap-
p r o x i m a t e l y fi f t e e n m i n u t e s , t o p r e v e n t
discharging of the battery.
O n c e t h e fi f t e e n m i n u t e s a r e o v e r , t h e
message "Economy mode active" ap-
pears on the multifunction screen and
the active functions are put on standby.
These functions will be reactivated au-
tomatically the next time the vehicle is
used.
To resume the use of these functions
immediately, start the engine and let it
run for a few minutes.
The time available will then be double
the time for which the engine is left run-
ning. However, this time will always be
b e t w e e n fi v e a n d fi f t e e n m i n u t e s .
A fl a t b a t t e r y w i l l p r e v e n t t h e e n -
gine from starting.
TOWING THE VEHICLE
Procedure for having your vehicle towed.
Towing your vehicle
On the front bumper, unclip the cover
to gain access to the towing eye.
Switch on the hazard warning lamps
on the towed vehicle.
Place the gear lever in neutral. Towing another vehicle
Failure to comply with this special
requirement may result in damage
to certain braking components
and the absence of braking assis-
tance the next time the engine is
started.
Page 89 of 107
i
93
TOWING A TRAILER, A
CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
In the case of vehicles equipped with
an HDI engine, it is recommended that
the engine is left running at idle for ap-
proximately 20 seconds after intensive
use (towing on a motorway, prolonged
driving, ...) before the ignition is switched
off. This limits increases in the tempera-
ture of the engine after it is switched off.
Note: in certain cases of particularly ar-
duous use (towing the maximum load
in high temperatures), the engine lim-
its its power automatically. In this case,
switching off the air conditioning will
regain engine power and therefore in-
crease the towing capacity.
In all cases, pay attention to the coolant
temperature.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing load
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Side wind
Take into account the increased
sensitivity to side wind. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the
towing vehicle and of the trailer,
observing the recommended pres-
sures.
Lighting
Check the electrical lighting and sign-
alling on the trailer.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suited to the attachment of a
trailer or caravan with additional signal-
ling and lighting.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed.
We recommend the use of original
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage of
y o u r v e h i c l e a n d t h a t t h e fi t t i n g o f t h e
towbar is entrusted to a PEUGEOT
dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a P E U G E O T
d e a l e r , i t i s i m p e r a t i v e t h a t i t i s fi t t e d
using the electrical pre-equipment
installed at the rear of the vehicle, in
accordance with the manufacturer’s
instructions.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
Page 90 of 107
!
i
94
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle’s
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a rep-
resentative of the Marque to be
shown the range of recommended
equipment and accessories.
ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ’ s r e c o m m e n d a -
tion and warranty.
"Protection":
"Touring":
"In-car technology":
"Styling":
"Universal":
Depending on the country in which
the vehicle is sold, it is compulsory
to have a high visibilty jacket, warn-
ing triangle and spare bulbs avail-
able in the vehicle.
anti-theft alarm, window etch-
i n g , w h e e l s e c u r i t y b o l t s , fi r s t
aid kit, warning triangle, high
visibility jacket, ...
mats * , seat covers, boot tray,
central armrest, writing table,
passenger seat protector, cup
holder, CD storage, under
shelf storage (saloon), boost-
er seat and child seats, sun
blinds, ...
For leisure pursuits: roof bars, roof
boxes, ski carrier, bicycle carrier ** ,
show chains, ...
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network. audio/telephone, Bluetooth
system, satellite navigation
system, audio equipment,
speakers, audio equipment
t r i m , r e a r s h e l f fi t t e d w i t h
4 speakers (saloon), ...
alloy wheels, sunroof *** , front
foglamps, mud guards, tail-
gate spoiler (saloon), alumin-
ium and wood control panel
trim, door sills, body kit, wing
extenders, leather steering
wheel, ...
screenwash, interior and exte-
rior maintenance and cleaning
products.
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
* * D o n o t fi t t h e b i c y c l e c a r r i e r o n t h e spoiler or on the rear screen.
* * * W h e n fi t t i n g a s u n r o o f , i t i s i m p e r a - tive that only original PEUGEOT
products are used.
They are grouped together in 5 catego-
ries: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL:
