Peugeot 206 SW Dag 2008 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 206 SW Dag, Model: Peugeot 206 SW Dag 2008Pages: 123, PDF Size: 1.41 MB
Page 101 of 123
95
PRACTICAL INFORMATION
-
SPECIAL FEATURES OF
ALLOY WHEELSFitting the spare wheel
If your vehicle is equipped with a steel
s p a r e w h e e l , w h e n i t t i n g i t , i t i s nor-
mal to notice that the bolt washers
do not come into contact with the rim.
The spare wheel is secured by the
cone shape of each bolt. Wheel anti-theft bolts
I f y o u r w h e e l s a r e i t t e d w i t h a n t i - t h e f t
b o l t s ( o n e p e r w h e e l ) , t h e c h r o m e -
plated trim cap and then the plastic
cover on the wheel must be removed,
using the
yellow t o o l ( l o c a t e d i n t h e
b o x i x e d t o t h e l e f t - h a n d s i d e o f t h e
boot), before slackening the bolt us-
i n g t h e a n t i - t h e f t s o c k e t ( l o c a t e d i n
the glove box) and the wheelbrace,
located in the boot rear right inner
panel.
Note: take a careful note of the code
number engraved on the head of the
anti-theft socket. This will enable you
to obtain a duplicate anti-theft socket
from a PEUGEOT dealer.
Fitting snow tyres
I f y o u i t s n o w t y r e s t h a t a r e m o u n t e d
on steel rims onto your vehicle, it is
es-
sential that you use special bolts avail-
able from your PEUGEOT dealer.

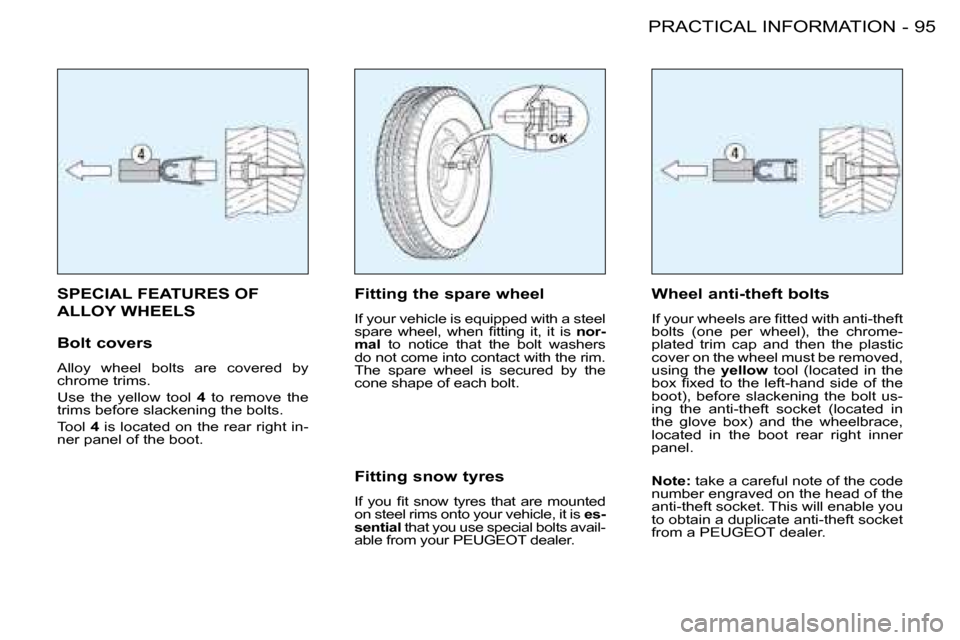

Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool
4 to remove the
trims before slackening the bolts.
Tool 4 is located on the rear right in-
ner panel of the boot.
Page 102 of 123
PRACTICAL INFORMATION
9 6 -

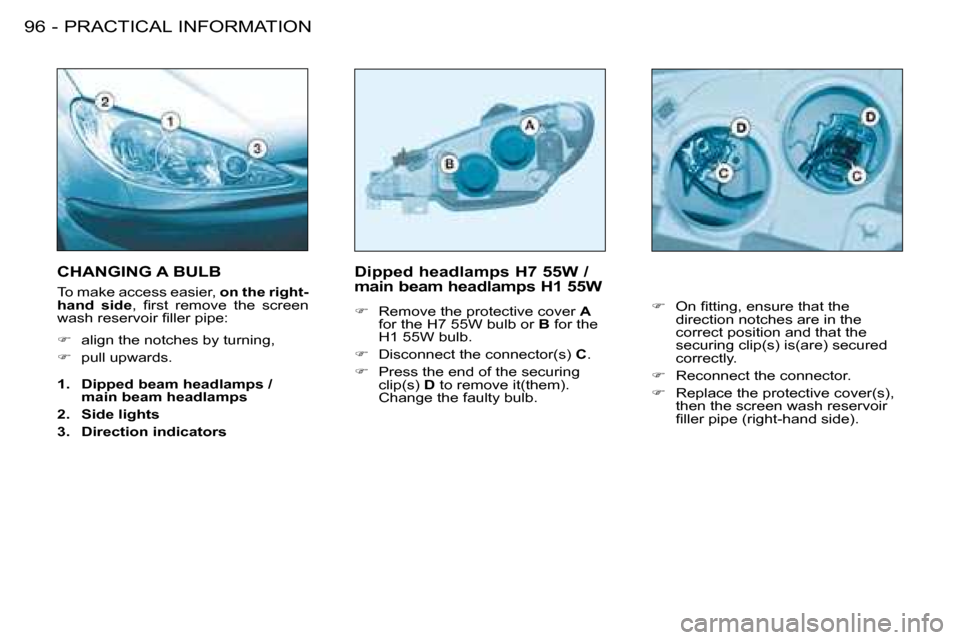

Dipped headlamps H7 55W /
main beam headlamps H1 55W
F Remove the protective cover A
for the H7 55W bulb or B for the
H1 55W bulb.
F D i s c o n n e c t t h e c o n n e c t o r ( s ) C.
F Press the end of the securing
c l i p ( s ) D t o r e m o v e i t ( t h e m ) .
Change the faulty bulb.CHANGING A BULB
To make access easier, on the right-
hand side , i r s t r e m o v e t h e s c r e e n
w a s h r e s e r v o i r i l l e r p i p e :
F align the notches by turning,
F pull upwards.
1. Dipped beam headlamps /
main beam headlamps
2. Side lights
3. Direction indicators F
O n i t t i n g , e n s u r e t h a t t h e
direction notches are in the
correct position and that the
s e c u r i n g c l i p ( s ) i s ( a r e ) s e c u r e d
correctly.
F Reconnect the connector.
F R e p l a c e t h e p r o t e c t i v e c o v e r ( s ) ,
then the screen wash reservoir
i l l e r p i p e ( r i g h t - h a n d s i d e ) .
Page 103 of 123
97
PRACTICAL INFORMATION
-

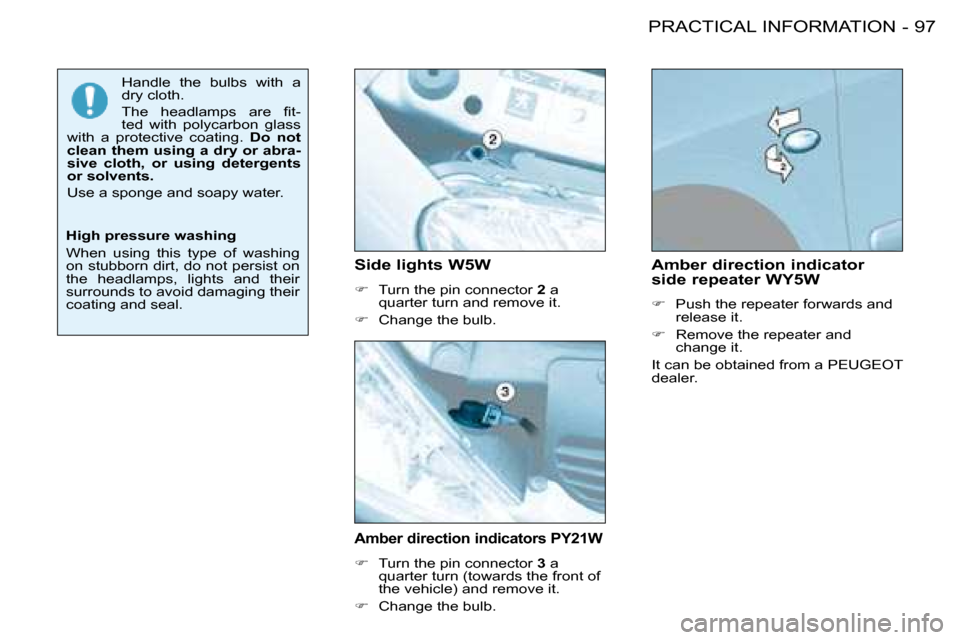

Amber direction indicators PY21W
F Turn the pin connector 3 a
q u a r t e r t u r n ( t o w a r d s t h e f r o n t o f
the vehicle) and remove it.
F Change the bulb. Amber direction indicator
side repeater WY5W
F
Push the repeater forwards and
release it.
F Remove the repeater and
change it.
It can be obtained from a PEUGEOT
dealer.
Side lights W5W
F
Turn the pin connector 2 a
quarter turn and remove it.
F Change the bulb.
Handle the bulbs with a
dry cloth.
T h e h e a d l a m p s a r e i t
-
ted with polycarbon glass
with a protective coating. Do not
clean them using a dry or abra-
sive cloth, or using detergents
or solvents.
Use a sponge and soapy water.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, lights and their
surrounds to avoid damaging their
coating and seal.
Page 104 of 123
PRACTICAL INFORMATION
9 8 -
Unclip the boot side trim.
Unclip the foam cover and reach
behind the cover to locate the wing
nut.
Remove the wing nut.
Release the light unit.
Press the lug A and disconnect the
connector.
Remove the foam.
Move aside the tabs B and remove
the bulb holder.
Change the faulty bulb.
W h e n r e i t t i n g , e n s u r e t h a t t h e b u l b
holder, the light and the foam cover
are repositioned correctly. Third brake light 5 bulbs
W5W
U s i n g a 1 0 m m s p a n n e r , u n s c r e w t h e
2 n u t s
A.
Release the light unit.
Squeeze the two tabs B to release
the bulb holder.
Change the faulty bulb.

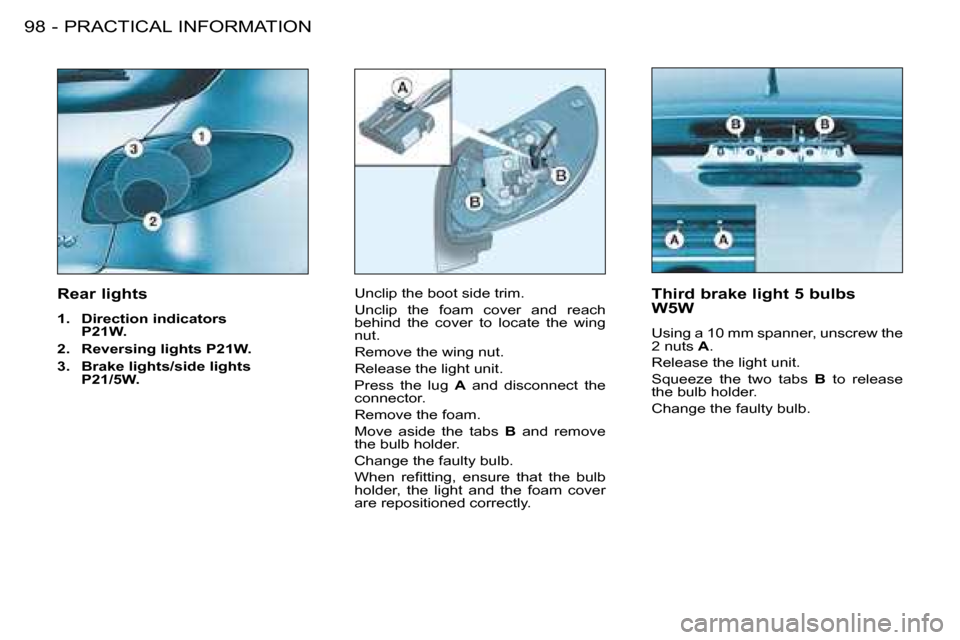

Rear lights
1.
Direction indicators
P21W.
2. Reversing lights P21W.
3. Brake lights/side lights
P21/5W.
Page 105 of 123
99
PRACTICAL INFORMATION
-
Front fog lamps
H1 55W
P r e s s u n d e r t h e a c c e s s l a p t o r e-
lease it.
O p e n t h e l a p .
Turn the cover to remove it.
Disconnect the bulb.
Press the two ends of the securing
clip to release the bulb. Rear fog lamp P21W
Unclip the lamp and release the as-
sembly.
Turn the pin connector a quarter turn
and remove it.
Change the bulb.
Number plate lights
W5W
Insert a thin screwdriver into one of the
outer holes of the transparent cover.
Push it outwards to unclip it.
Remove the transparent cover.
Change the faulty bulb.
Page 106 of 123
PRACTICAL INFORMATION
1 0 0 -

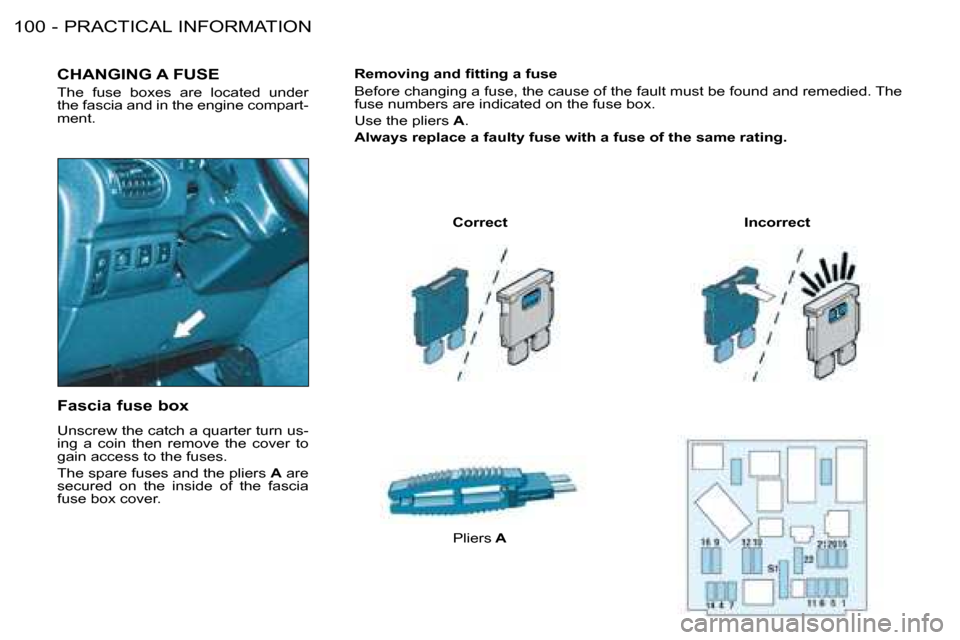

CHANGING A FUSE
The fuse boxes are located under
the fascia and in the engine compart-
ment.
Correct Incorrect
Pliers A
Fascia fuse box
Unscrew the catch a quarter turn us-
ing a coin then remove the cover to
gain access to the fuses.
The spare fuses and the pliers
A are
secured on the inside of the fascia
fuse box cover. R e m o v i n g a n d i t t i n g a f u s e
Before changing a fuse, the cause of the fault must be foun
d and remedied. The
fuse numbers are indicated on the fuse box.
Use the pliers A.
Always replace a faulty fuse with a fuse of the same rating .
Page 107 of 123
PRACTICAL INFORMATION
1 0 0 -
CHANGING A FUSE
The fuse boxes are located under
the fascia and in the engine compart-
ment.
Correct Incorrect
Pliers A
Fascia fuse box
Unscrew the catch a quarter turn us-
ing a coin then remove the cover to
gain access to the fuses.
The spare fuses and the pliers
A are
secured on the inside of the fascia
fuse box cover. R e m o v i n g a n d i t t i n g a f u s e
Before changing a fuse, the cause of the fault must be foun
d and remedied. The
fuse numbers are indicated on the fuse box.
Use the pliers A.
Always replace a faulty fuse with a fuse of the same rating .
Page 108 of 123
1 0 1
PRACTICAL INFORMATION
-

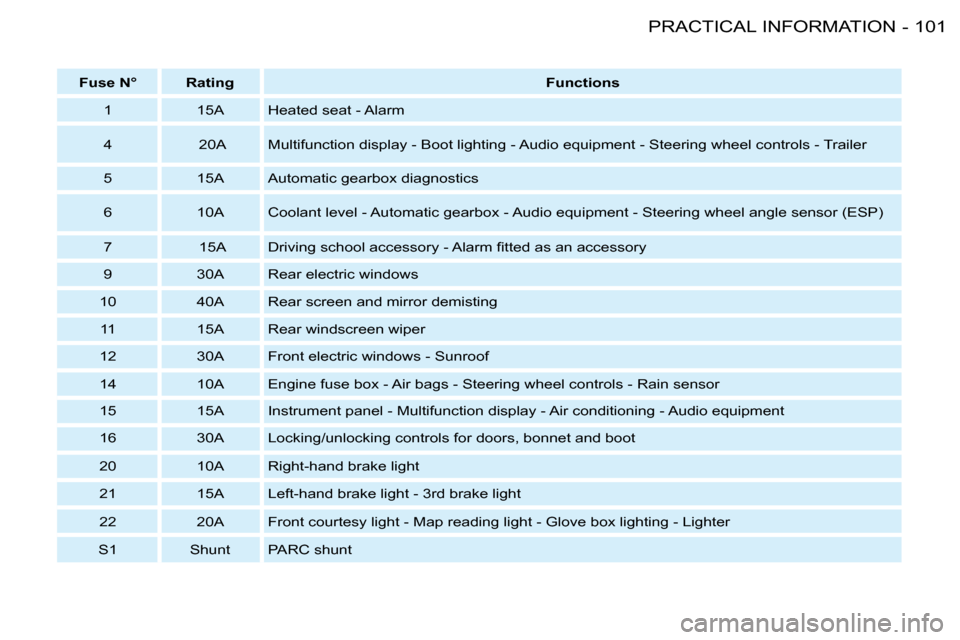

Fuse N° Rating Functions
1 15A Heated seat - Alarm
4 2 0 AMultifunction display - Boot lighting - Audio equipment - Stee ring wheel controls - Trailer
5 15A Automatic gearbox diagnostics
6 1 0 A C o o l a n t l e v e l - A u t o m a t i c g e a r b o x - A u d i o e q u i p m e n t - S t e e r i n g w h e e l a n g l e s e n s o r ( E S P )
7 15A D r i v i n g s c h o o l a c c e s s o r y - A l a r m i t t e d a s a n a c c e s s o r y
9 3 0 A Rear electric windows
1 0 4 0 A Rear screen and mirror demisting
11 15A Rear windscreen wiper
1 2 3 0 A Front electric windows - Sunroof
14 1 0 AEngine fuse box - Air bags - Steering wheel controls - Rain sensor
15 15A Instrument panel - Multifunction display - Air condition ing - Audio equipment
1 6 3 0 A L o c k i n g / u n l o c k i n g c o n t r o l s f o r d o o r s , b o n n e t a n d b o o t
2 0 1 0 A Right-hand brake light
2 1 15A Left-hand brake light - 3rd brake light
2 2 2 0 A Front courtesy light - Map reading light - Glove box lighting - Lighter
S1 Shunt PARC shunt
Page 109 of 123
PRACTICAL INFORMATION
1 0 2 -
or The electrical circuit of
your vehicle is designed
to operate with standard
or optional equipment.
Before installing other electri-
cal equipment or accessories in
your vehicle, consult a PEUGEOT
dealer.
Some electrical accessories or the
w a y i n w h i c h t h e y a r e i t t e d m a y
have an adverse effect on the op-
e r a t i o n o f y o u r v e h i c l e ( i t s e l e c -
tronic control circuits, the audio
circuit and the electrical charging
circuit).
PEUGEOT declines any respon-
sibility for expenses incurred
through the repair of your vehicle
or for any malfunctions resulting
from the installation of auxiliary
accessories, not supplied and not
recommended by PEUGEOT and
not installed in accordance with
PEUGEOT's instructions, in par-
ticular for any equipment the pow-
er consumption of which exceeds
1 0 m i l l i a m p s .

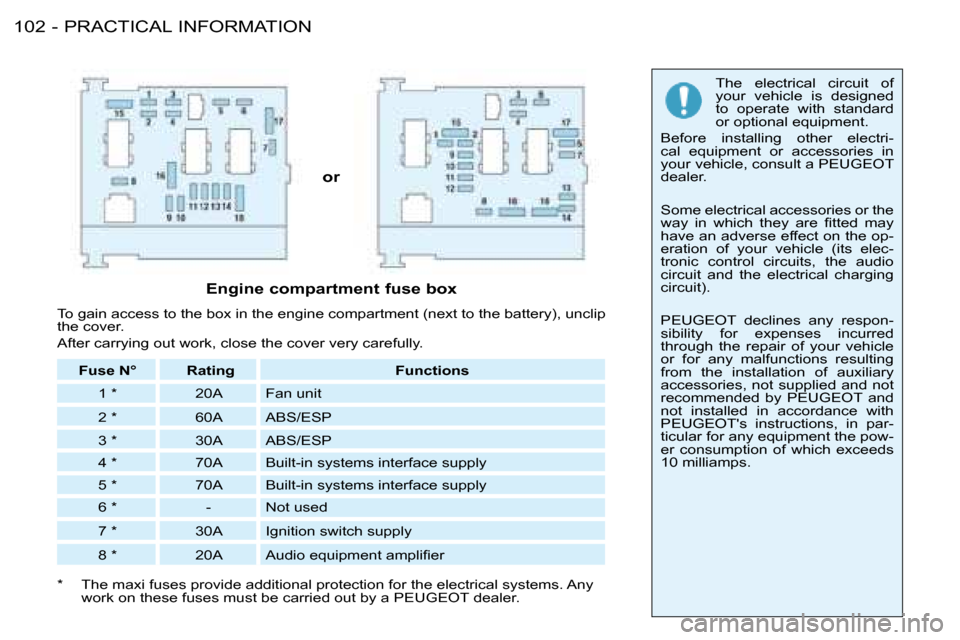

Fuse N° Rating Functions
1 * 2 0 AFan unit
2 * 6 0 A A B S / E S P
3 * 3 0 A A B S / E S P
4 * 7 0 ABuilt-in systems interface supply
5 * 7 0 ABuilt-in systems interface supply
6 * - Not used
7 * 3 0 A Ignition switch supply
8 * 2 0 A A u d i o e q u i p m e n t a m p l i i e r Engine compartment fuse box
T o g a i n a c c e s s t o t h e b o x i n t h e e n g i n e c o m p a r t m e n t ( n e x t t o t h e b a t t e r y ) , u n c l i p
the cover.
After carrying out work, close the cover very carefully.
* The maxi fuses provide additional protection for the electr ical systems. Any
work on these fuses must be carried out by a PEUGEOT dealer.
Page 110 of 123
1 0 3
PRACTICAL INFORMATION
-

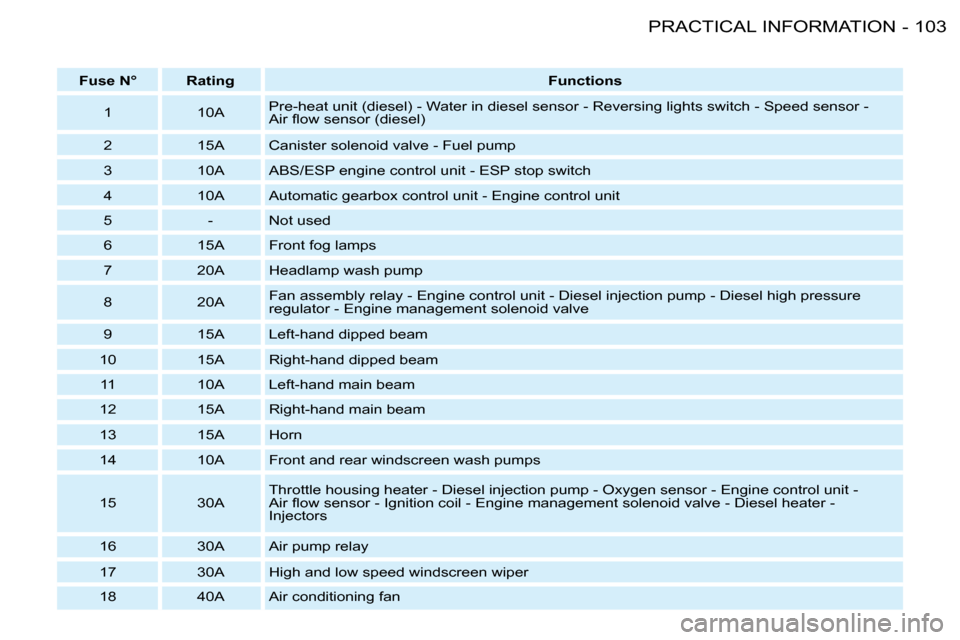

Fuse N° Rating Functions
1 1 0 A P r e - h e a t u n i t ( d i e s e l ) - W a t e r i n d i e s e l s e n s o r - R e v e r s i n g l i g h t s s w
i t c h - S p e e d s e n s o r -
A i r l o w s e n s o r ( d i e s e l )
2 15A Canister solenoid valve - Fuel pump
3 1 0 A A B S / E S P e n g i n e c o n t r o l u n i t - E S P s t o p s w i t c h
4 1 0 A Automatic gearbox control unit - Engine control unit
5 - Not used
6 15A Front fog lamps
7 2 0 AHeadlamp wash pump
8 2 0 A Fan assembly relay - Engine control unit - Diesel injection pump
- Diesel high pressure
regulator - Engine management solenoid valve
9 15A Left-hand dipped beam
1 0 15A Right-hand dipped beam
11 1 0 ALeft-hand main beam
1 2 15A Right-hand main beam
13 15A Horn
14 1 0 A Front and rear windscreen wash pumps
15 3 0 A Throttle housing heater - Diesel injection pump - Oxygen senso
r - Engine control unit -
A i r l o w s e n s o r - I g n i t i o n c o i l - E n g i n e m a n a g e m e n t s o l e n o i d v a l v e - D i e s e l h e a t e r -
Injectors
1 6 3 0 A Air pump relay
17 3 0 A High and low speed windscreen wiper
1 8 4 0 A Air conditioning fan
