ACCESS
58 -
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock the vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
o f f , e x c e p t f o r r e p r o g r a m m i n g .
Driving with the doors locked may
make access to the passenger
compartment by the emergency
s e r v i c e s m o r e d i f i c u l t i n a n e m e r -
gency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle, have the key codes mem-
orised by a PEUGEOT dealer, to
ensure that the keys in your pos-
session are the only ones which
can start the vehicle.
D o n o t m a k e a n y m o d i i c a t i o n s t o
the electronic engine immobiliser
system.
If the system does not function
correctly,
the central locking button
indicator light, situated in the centre
o f t h e f a s c i a , l a s h e s r a p i d l y w h e n t h e
ignition is switched on (2nd notch).
In this case your vehicle will not
start.
Contact a PEUGEOT dealer as soon
as possible. If the keys are lost
Visit a PEUGEOT dealer with the ve-
h i c l e ' s V 5 r e g i s t r a t i o n c e r t i i c a t e a n d
y o u r p e r s o n a l i d e n t i i c a t i o n d o c u
-
ments.
The PEUGEOT network will be able
to retrieve the key code and the
transponder code to order a replace-
ment key.
Page 62 of 123
59
ACCESS
-
DOORS
Opening the doors from
inside Locking / Unlocking from
inside
"Door open" warning
With the engine running, you are
warned if a door is not shut properly
by an audible signal and a message
or graphic on the multifunction dis-
play, indicating the door in question.
When the vehicle is moving , if the
courtesy light button is in the "light-
ing on opening a door" position, the
c o u r t e s y l i g h t l a s h e s .
Without central locking

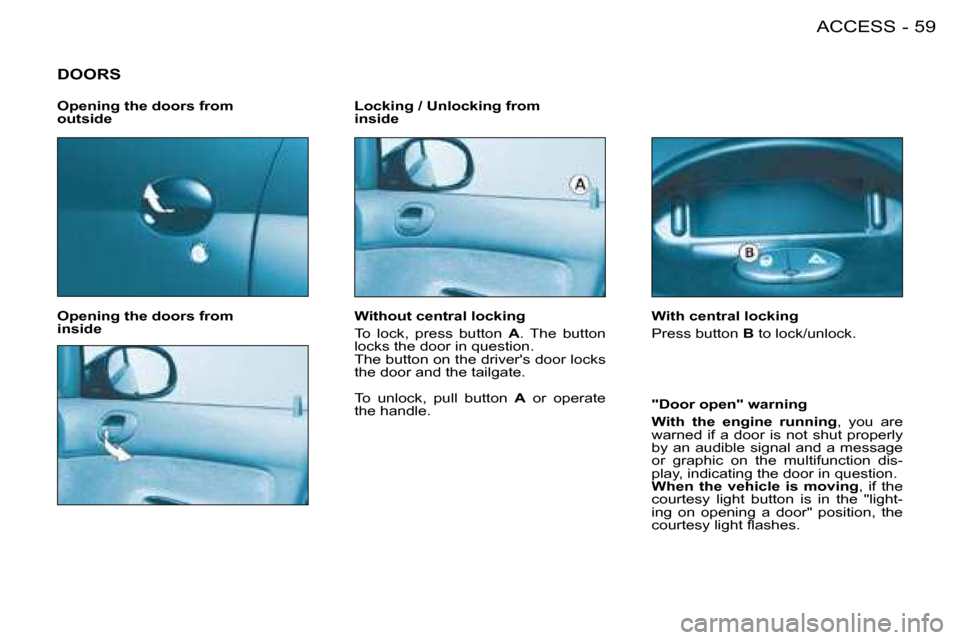

To lock, press button
A. The button
locks the door in question.
The button on the driver's door locks
the door and the tailgate.
To unlock, pull button A or operate
the handle. With central locking
Press button
B to lock/unlock.
Opening the doors from
outside
Page 63 of 123
ACCESS
60 -
CHILD SAFETY LOCK
On each rear door this prevents
opening of the door from the inside.

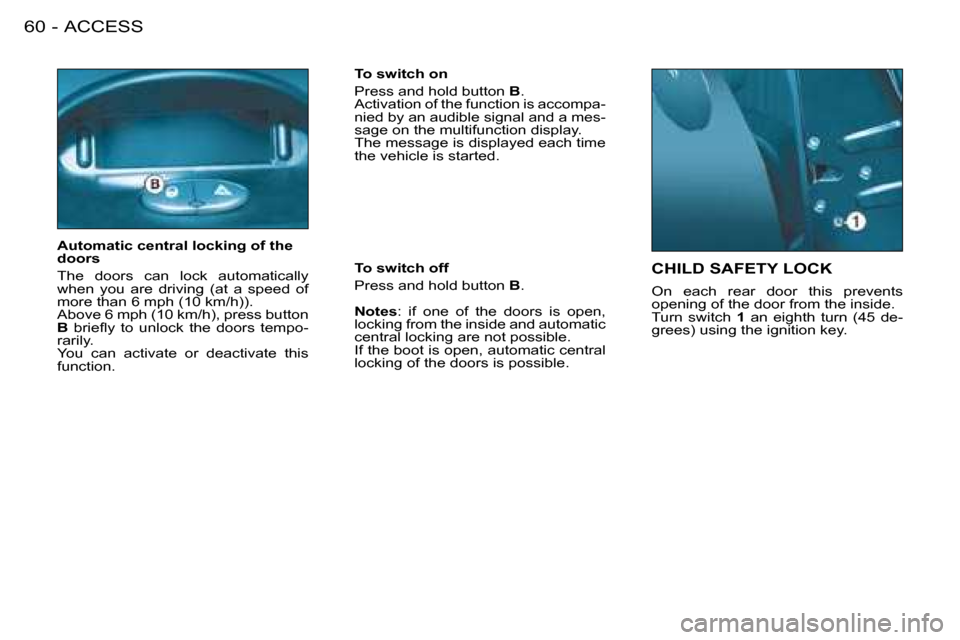

Turn switch 1 an eighth turn (45 de-
grees) using the ignition key.
Automatic central locking of the
doors
The doors can lock automatically
when you are driving (at a speed of
more than 6 mph (10 km/h)).
Above 6 mph (10 km/h), press button
B
b r i e l y t o u n l o c k t h e d o o r s t e m p o -
rarily.
You can activate or deactivate this
function. To switch off
Press and hold button
B.
Notes : if one of the doors is open,
locking from the inside and automatic
central locking are not possible.
If the boot is open, automatic central
locking of the doors is possible.
To switch on
Press and hold button
B.
Activation of the function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
The message is displayed each time
the vehicle is started.
Page 64 of 123
61
ACCESS
-
LOCKING / UNLOCKING THE
TAILGATE
Without central locking

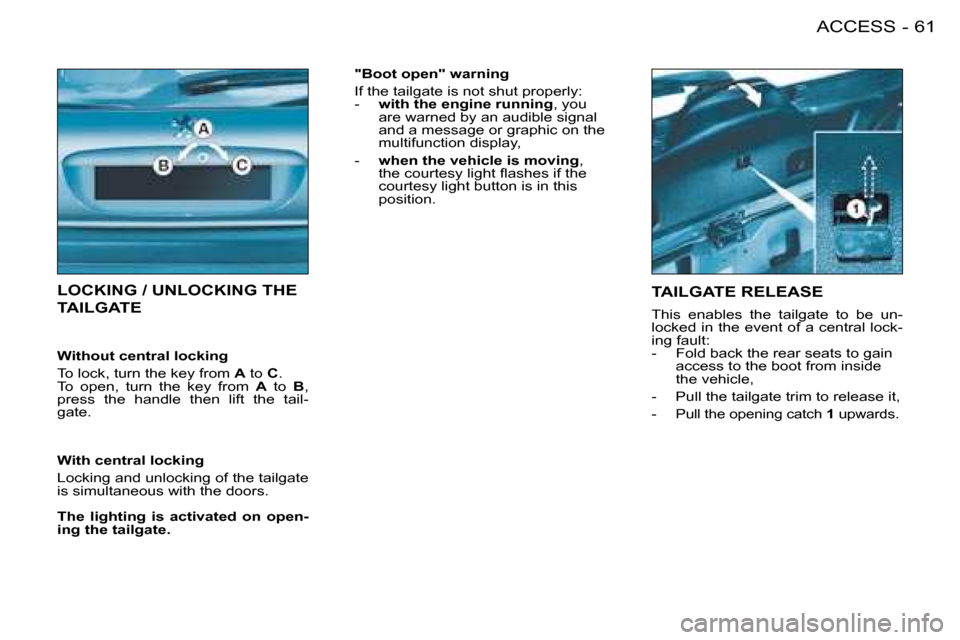

To lock, turn the key from A to C.
To open, turn the key from A to B,
press the handle then lift the tail-
gate.
TAILGATE RELEASE
This enables the tailgate to be un-
locked in the event of a central lock-
ing fault:
- Fold back the rear seats to gain access to the boot from inside
the vehicle,
- Pull the tailgate trim to release it,
- Pull the opening catch 1 upwards.
"Boot open" warning
If the tailgate is not shut properly:
- with the engine running , you
are warned by an audible signal
and a message or graphic on the
multifunction display,
- when the vehicle is moving ,
t h e c o u r t e s y l i g h t l a s h e s i f t h e
courtesy light button is in this
position.
With central locking
Locking and unlocking of the tailgate
is simultaneous with the doors.
The lighting is activated on open-
ing the tailgate.
Page 65 of 123
ACCESS
62 -
OPENING THE BONNET

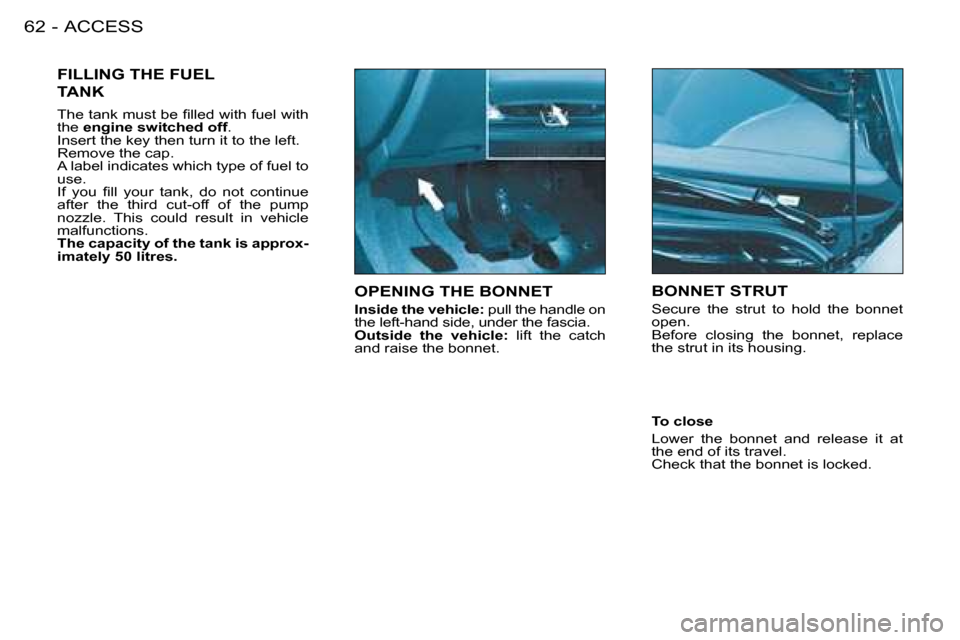

Inside the vehicle: pull the handle on
the left-hand side, under the fascia.
Outside the vehicle: lift the catch
and raise the bonnet.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
FILLING THE FUEL
TANK
T h e t a n k m u s t b e i l l e d w i t h f u e l w i t h
the engine switched off .
Insert the key then turn it to the left.
Remove the cap.
A label indicates which type of fuel to
use.
I f y o u i l l y o u r t a n k , d o n o t c o n t i n u e
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is approx-
imately 50 litres.
To close
Lower the bonnet and release it at
the end of its travel.
Check that the bonnet is locked.
Page 66 of 123
63
VISIBILITY
-
LIGHTS STALK
Dipped / Main beam
change
Pull the stalk towards you. V e h i c l e s i t t e d w i t h f r o n t
f o g l a m p s a n d a r e a r f o g l a m p
( r i n g C )
Side lights Dipped / Main beam
headlampsAutomatic switching
on of lights Rear fog lamp F r o n t f o g l a m p s ( i r s t r o t a t i o n
of the ring forwards)
Front and rear fog
lamps (2nd rotation of
the ring forwards).
N o t e : to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.
N o t e : when the lights are switched
off automatically or when the dipped
headlamps are switched off manu-
ally, the front fog lamps, the rear fog
lamp and the side lights remain on
(turn the ring backwards to switch off
the front fog lamps. The side lights
then switch off).
V e h i c l e s i t t e d w i t h a r e a r f o g
l a m p ( r i n g B )
This only operates with the dipped /
main beam headlamps.
N o t e : when the lights are switched
off automatically, the rear fog lamp
and the dipped headlamps remain on
(turn the ring backwards to switch off
the rear fog lamp. The dipped head-
lamps and side lights then switch off). The front fog lamps operate with
the side lights and the dipped head-
lamps.
Lights off F r o n t f o g l a m p s a n d r e a r
f o g l a m p
Rotate the ring forwards to switch on
and backwards to switch off. The sta-
t u s i s c o n i r m e d b y t h e i n d i c a t o r l i g h t
on the instrument panel.
L i g h t s o n r e m i n d e r
With the ignition off and the auto-
matic lighting function switched off,
when the driver's door is opened, a
buzzer sounds if you have left your
lights on.
F r o n t a n d r e a r l i g h t s
Selection is by turning ring A.
Page 67 of 123
VISIBILITY
64 -
" F o l l o w m e h o m e " l i g h t i n g
When you leave your vehicle, the
side lights and dipped headlamps
can be left on for approximately
30 seconds.
To do this:
- place the key in the STOP
position,
- place the lights stalk in the 0
position,
- l a s h t h e h e a d l a m p s ,
- get out of the vehicle and lock it. A U T O M A T I C S W I T C H I N G O N
OF LIGHTS
The side lights and dipped beam
headlamps switch on automatically if
the light is poor and when the wind-
screen wipers operate continuously
and switch off when the light becomes
bright enough or the windscreen wip-
ers are switched off.
I n f o g g y w e a t h e r o r i n s n o w , t h e
b r i g h t n e s s s e n s o r c a n d e t e c t s u f i -
c i e n t l i g h t , t h e l i g h t s w i l l n o t c o m e
o n a u t o m a t i c a l l y . I f n e c e s s a r y ,
t h e d i p p e d h e a d l a m p s m u s t b e
s w i t c h e d o n m a n u a l l y .
This function is active when the vehi-
cle is supplied to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Place the lights stalk in the AUTO/0 position,
- Press the end of the lights stalk for more than four seconds.
D o n o t c o v e r t h e b r i g h t n e s s s e n -
s o r , c o u p l e d w i t h t h e r a i n s e n s o r ,
l o c a t e d i n t h e c e n t r e o f t h e w i n d -
s c r e e n , b e h i n d t h e i n t e r i o r m i r r o r .
I t i s u s e d f o r a u t o m a t i c s w i t c h i n g
o n o f t h e l i g h t s . O p e r a t i n g c h e c k
In good or rainy weather,
both day and night, the
front fog lamps and the
rear fog lamp are dazzling
and are prohibited.
Do not forget to switch them off
when they are no longer needed.
D i r e c t i o n i n d i c a t o r s
( l a s h e r s )
L e f t : downwards.
R i g h t : upwards. D i s a r m i n g
The disarmed function is accompa-
nied by an audible signal.
When the driver uses the manual
lighting controls, the function is tem-
porarily disarmed.
I f t h e b r i g h t n e s s s e n s o r d o e s n o t
f u n c t i o n c o r r e c t l y
, the lights come
on accompanied by an audible signal
and a message on the multifunction
display.
Consult a PEUGEOT dealer.
A c t i v a t i o n
The activated function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
Page 68 of 123
VISIBILITY
64 -
" F o l l o w m e h o m e " l i g h t i n g
When you leave your vehicle, the
side lights and dipped headlamps
can be left on for approximately
30 seconds.
To do this:
- place the key in the STOP
position,
- place the lights stalk in the 0
position,
- l a s h t h e h e a d l a m p s ,
- get out of the vehicle and lock it. A U T O M A T I C S W I T C H I N G O N
OF LIGHTS
The side lights and dipped beam
headlamps switch on automatically if
the light is poor and when the wind-
screen wipers operate continuously
and switch off when the light becomes
bright enough or the windscreen wip-
ers are switched off.
I n f o g g y w e a t h e r o r i n s n o w , t h e
b r i g h t n e s s s e n s o r c a n d e t e c t s u f i -
c i e n t l i g h t , t h e l i g h t s w i l l n o t c o m e
o n a u t o m a t i c a l l y . I f n e c e s s a r y ,
t h e d i p p e d h e a d l a m p s m u s t b e
s w i t c h e d o n m a n u a l l y .
This function is active when the vehi-
cle is supplied to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Place the lights stalk in the AUTO/0 position,
- Press the end of the lights stalk for more than four seconds.
D o n o t c o v e r t h e b r i g h t n e s s s e n -
s o r , c o u p l e d w i t h t h e r a i n s e n s o r ,
l o c a t e d i n t h e c e n t r e o f t h e w i n d -
s c r e e n , b e h i n d t h e i n t e r i o r m i r r o r .
I t i s u s e d f o r a u t o m a t i c s w i t c h i n g
o n o f t h e l i g h t s . O p e r a t i n g c h e c k
In good or rainy weather,
both day and night, the
front fog lamps and the
rear fog lamp are dazzling
and are prohibited.
Do not forget to switch them off
when they are no longer needed.
D i r e c t i o n i n d i c a t o r s
( l a s h e r s )
L e f t : downwards.
R i g h t : upwards. D i s a r m i n g
The disarmed function is accompa-
nied by an audible signal.
When the driver uses the manual
lighting controls, the function is tem-
porarily disarmed.
I f t h e b r i g h t n e s s s e n s o r d o e s n o t
f u n c t i o n c o r r e c t l y
, the lights come
on accompanied by an audible signal
and a message on the multifunction
display.
Consult a PEUGEOT dealer.
A c t i v a t i o n
The activated function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
Page 69 of 123
65
VISIBILITY
-

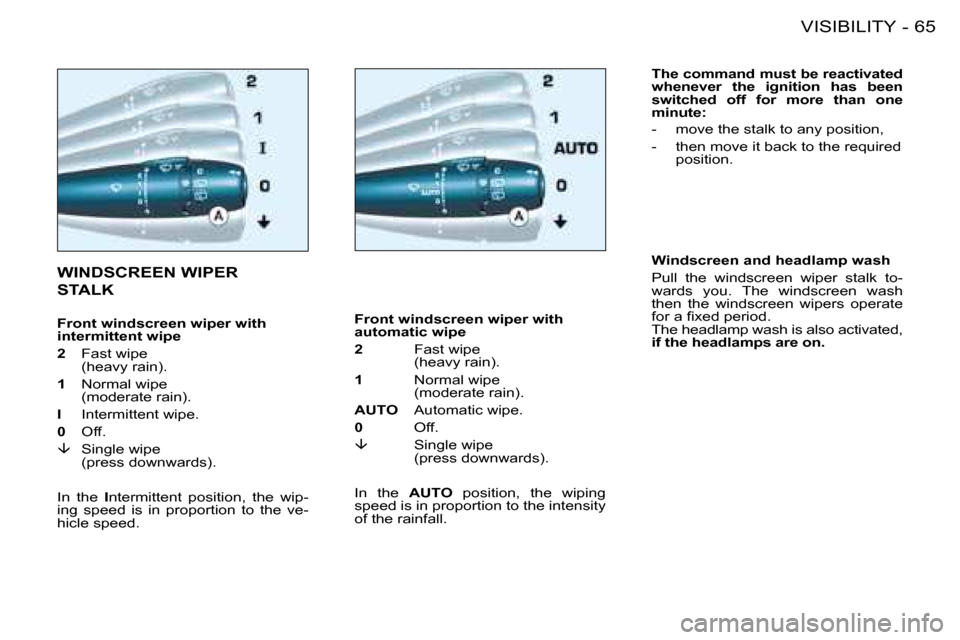

W I N D S C R E E N W I P E R
STALK
F r o n t w i n d s c r e e n w i p e r w i t h
a u t o m a t i c w i p e
2 Fast wipe
(heavy rain).
1 Normal wipe
(moderate rain).
AUTO Automatic wipe.
0 Off.
â Single wipe
(press downwards).
In the AUTO position, the wiping
speed is in proportion to the intensity
of the rainfall. T h e c o m m a n d m u s t b e r e a c t i v a t e d
w h e n e v e r t h e i g n i t i o n h a s b e e n
s w i t c h e d o f f f o r m o r e t h a n o n e
m i n u t e :
- move the stalk to any position,
- then move it back to the required
position.
W i n d s c r e e n a n d h e a d l a m p w a s h
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a i x e d p e r i o d .
The headlamp wash is also activated,
i f t h e h e a d l a m p s a r e o n .
F r o n t w i n d s c r e e n w i p e r w i t h
i n t e r m i t t e n t w i p e
2
Fast wipe
(heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe.
0 Off.
â Single wipe
(press downwards).
In the Intermittent position, the wip-
ing speed is in proportion to the ve-
hicle speed.
Page 70 of 123
VISIBILITY
66 -
A u t o m a t i c w i n d s c r e e n
w i p e r s
In the AUTO position, the windscreen
wipers operate automatically and
a d a p t t h e i r s p e e d t o t h e i n t e n s i t y
o f t h e r a i n f a l l . Do not cover the rain sen-
sor located on the wind-
screen behind the interior
mirror.
When using an automatic car
wash, switch off the ignition or
check that the wiper stalk is not in
the AUTO position.
In winter, it is advisable to wait
for the windscreen to completely
clear of ice before operating the
automatic wipe. R e a r s c r e e n w i p e r
R e a r s c r e e n w a s hTurn ring
A t o t h e i r s t n o t c h
for intermittent wiping.
I f t h e i g n i t i o n i s s w i t c h e d
o f f , i t i s n e c e s s a r y t o r e a c -
t i v a t e t h e c o n t r o l e a c h t i m e . To do
this, move the stalk to any position,
then move it back to the required po-
sition.
Turn ring A p a s t t h e i r s t
notch; the screen wash then
t h e w i p e r o p e r a t e f o r a i x e d
period.
O p e r a t i n g c h e c k
A c t i v a t i o n
Activation of the function is accom-
panied by a message on the multi-
function display.
I n t h e e v e n t o f m a l f u n c t i o n
, the
driver is informed by an audible sig-
nal.
In the AUTO position, the wind-
screen wiper will operate in intermit-
tent mode.
Contact a PEUGEOT dealer to have
the system checked. A u t o m a t i c r e a r s c r e e n w i p e r
When the windscreen wipers control
is activated and you engage reverse
gear, the rear screen wiper operates
intermittently.
N o t e :
if you use a bicycle carrier,
consult a PEUGEOT dealer to have
this function deactivated or install a
s p e c i i c b i c y c l e c a r r i e r a p p r o v e d b y
PEUGEOT.
