77
Opening

 After unlocking the vehicle using the
remote control or the key, with the
rear screen closed, pull on the handle

A and raise the tailgate.
- when the engine is running,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds.
Closing

 Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
REAR SCREEN (SW)
Opening

 After unlocking the vehicle using the
remote control or the key, with the
boot closed, press the control B and
raise the rear screen using the base

C of the wiper arm.
The boot and the rear screen cannot
both be open at the same time.

If the rear wiper is in a wiping position,
the rear screen will not open until the
end of the cycle.
Closing

 Close the rear screen by pressing at
the centre of the glass.
If the rear screen is not closed correctly:
- when the engine is running,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds.
BOOT (SW)
If the rear screen is open, the central
locking does not take place.

i
ACCESS
80
The key cannot be removed from
the lock until the cap is put back on
the tank.
FUEL TANK
Reservoir which should be refi lled with
fuel, when the minimum level has been
detected.

Fuel tank capacity: approximately 50 litres.
To fi ll the tank in complete safety:

 it is imperative that the engine is
switched off,

 open the fuel fi ller fl ap,

 insert the key in the cap, then turn it
to the left,
When you have fi lled the tank:

 put the cap back in place,

 turn the key to the right, then remove
it from the cap,

 close the fl ap.

 remove the cap and hook it onto
the clip located on the inside of the
fl ap,

 fi ll the tank, but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
Low fuel level
Filling
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used depending on your engine. When the fuel tank minimum
level is reached, this warning
light comes on on the instrument
panel.

The distance which can be travelled
with the fuel remaining is approxi-
mately 30 miles (50 km).
If you run out of fuel, refer also to the
"Practical information" section.

i
88
COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.

1. Front courtesy light

2. Map reading lights

3. Rear courtesy light Front and rear courtesy lights
In this position, the courtesy
light comes on gradually: Map reading lights

 With the ignition on, press the cor-
responding switch. In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
-
in energy economy mode, approxi-
mately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
-
when the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.

!
SAFETY
103
The ESP/ASR systems offer excep-
tional safety in normal driving, but
this should not encourage the driver
to take extra risks or drive at high
speed.
The correct functioning of these
systems depends on observation
of the manufacturer’s recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and operation
procedures.
After an impact, have these systems
checked by a PEUGEOT dealer.
Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
 Press the "ESP OFF" button, located
in the centre of the fascia.
If this warning light comes on on
the instrument panel and the in-
dicator light on the button comes
on, this indicates that the ASR
and ESP systems are disarmed.
Reactivation
These systems are reactivated auto-
matically each time the ignition is switched
back on or from 30 mph (50 km/h) (except
in the case of the 1.6 l 16V THP 175 bhp
petrol engine).

 Press the "ESP OFF" button again
to reactivate them manually.
Operating fault
If this warning light comes on,
accompanied by an audible sig-
nal and a message on the multi-
function display, this indicates a
malfunction of these systems.

Have them checked by a PEUGEOT dealer.
TRAJECTORY CONTROL
SYSTEMS
Activation

These systems are activated automatically
each time the vehicle is started.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation optimises
traction to prevent skidding of the
wheels, by acting on the brakes of the
driving wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver.
They come into operation in
the event of a grip or trajectory
problem.

This is indicated by fl ashing of this
warning light on the instrument
panel.
Steering/ESP coupling
system (SSP)
This system optimises the stability of
the vehicle and its braking capacity by
combining the actions of the ESP and
electric power steering when braking on
surfaces on which the grip of the right-
hand and left-hand wheel differs.
It permits increased braking of the wheels
which are in contact with the section of
road offering the higher level of grip and,
anticipating the instability of the vehicle,
the application of a slight correction to
the turning angle of the wheels to assist
the driver in maintaining his trajectory.

SAFETY
105

1. Front left seat belt warning light.

2. Front right seat belt warning light.

3. Rear left seat belt warning light.

4. Rear centre seat belt warning light ** .

5. Rear right seat belt warning light.
On the central bar, the corresponding
warning light 1 or 2 comes on in red if
the seat belt is not fastened or is unfas-
tened.
Seat belt not fastened/unfastened
warning lights bar
Rear seat belts
The rear seats are fi tted with three seat
belts ** , each with three anchoring points
and an inertia reel with force limiter.
Seat belt unfastened warning light
This warning light comes on on
the instrument panel if one or
more rear passengers unbuckle
their seat belt.
Fastening

 Pull the strap, then insert the tongue
in the buckle.

 Check that the seat belt is fastened
correctly by pulling the strap. Seat belt unfastened warning lights
bar
When the ignition is switched on, the
corresponding warning lights
3, 4 ** and

5 come on for approximately 30 seconds
in red if the seat belt is not fastened:
When the engine is running, the corre-
sponding warning light 3, 4 ** or 5 comes on
in red, accompanied by an audible signal
and a message on the multifunction dis-
play, if a rear passenger has unfastened his
seat belt
.
Unfastening

 Press the red button on the buckle.
**
Except GTi.

i
112
"2 TRONIC" GEARBOX
(SALOON)
Five-speed controlled manual gearbox
which offers a choice between the comfort
of automatic operation or the pleasure of
manual gear changing.
Three driving modes are offered:
- the automated mode for automatic
control of the gears by the gearbox,
- the sequential mode for manual
changing of the gears by the driver,
- the auto sequential mode for over-
taking, for example, remaining in
the automated mode while using the
functions of the sequential mode.
R. Reverse

 With your foot on the brake, move
the lever upwards to select this posi-
tion.

N. Neutral.

 With your foot on the brake, select
this position to start the engine.

A. Automated mode.

 Move the lever downwards to select
this mode.

M. +/- Sequential mode with manual
gear changing.

 Move the lever downwards, then to
the left to select this mode, then:
- push forwards to change up a gear,
- or push rearwards to change down a gear.
Gear lever

+. Change up control.

 Press the back of the steering wheel
control "+" to change up a gear.

-. Change down control.

 Press the back of the steering wheel
control "-" to change down a gear.
Steering wheel controls
The steering wheel controls do not
permit the selection of neutral or
the engaging and disengaging of
reverse gear.

i
i
i
113
Instrument panel displays
Gear lever positions

N. Neutral

R. Reverse

1, 2, 3, 4, 5. Gears in sequential mode

AUTO. This comes on when the au-
tomated mode is selected. It
switches off on changing to se-
quential mode.

 . In the automated mode, if the gear-
box detects poor grip, this warning
light comes on. Moving off Sequential mode

 After starting the vehicle, select
position M to change to sequential
mode.
Automated mode

 Following use of the sequential
mode, select position A to return to
the automated mode.
When stopping on a slope, do not
use the accelerator to immobilise
the vehicle; apply the handbrake.
When moving off on a slope, accel-
erate gradually while releasing the
handbrake.

 Place your foot on the
brake when this warning
light fl ashes (e.g.: starting
the engine).
 Select position N .

 Press the brake pedal.

 Start the engine.

N appears on the instrument panel.

N fl ashes on the instrument panel
display if the gear lever is not in po-
sition N on starting.

 Select fi rst gear (position M or A ) or
reverse (position R )

 Release the handbrake.

 Take your foot off the brake pedal,
then accelerate.

AUTO and 1 or R appear on
the instrument panel.
AUTO disappears and the gears
engaged appear in succession
on the instrument panel.
The gear change requests are only car-
ried out if the engine speed permits.
When driving at low speed, on ap-
proaching a stop sign or traffi c lights for
example, the gearbox changes down to
fi rst gear automatically.

AUTO and the gear engaged
appear on the instrument panel.
The gearbox then operates in auto-
adaptive mode, without any action on
the part of the driver. It continuously se-
lects the most suitable gear in relation
to the following parameters:
- driving style,
- road conditions,
- vehicle load.
When reverse gear is engaged, an
audible signal is triggered.

!
i
114
"Auto sequential" mode
In the automated mode, you can resume
control temporarily at any time using the
steering wheel controls.
The use of these controls permits man-
ual selection of the gears in situations
which require a more rapid change-down
than in the automated mode (arrival at
a roundabout, leaving a car park with a
steep gradient, overtaking...).
The gearbox engages the required gear if
the engine speed permits. AUTO remains
displayed on the instrument panel.
After a few minutes, the gearbox resumes
automatic control of the gears. "Snow" automated mode
In the automated mode, if the vehicle de-
tects poor grip, the gearbox will change
automatically to the "snow" automated
mode.
Stopping the vehicle
Before switching off the engine, you can
change to position
N to be in neutral.
In this case, it is imperative that you
apply the handbrake to immobilise the
vehicle.
Reinitialisation
Following disconnection of the battery,
the gearbox must be reinitialised.

 Switch on the ignition. Operating fault
With the ignition on, if this warn-
ing light comes on and AUTO
fl ashes, accompanied by an au-
dible signal and a message on
the multifunction display, this indicates
a gearbox malfunction.
Have it checked by a PEUGEOT dealer.
It is compulsory to press the brake
pedal while starting the engine.
Never select neutral N while the
vehicle is moving.
Only engage reverse gear R when
the vehicle is immobilised, with
your foot on the brake pedal.
In all cases, it is imperative that you
apply the handbrake to immobilise
the vehicle.
If you press the accelerator pedal
beyond the point of resistance, the
gearbox selects the gear below to
permit sharper acceleration.

AUTO and  appear on the
instrument panel.

AUTO,  and - appear on the
instrument panel.
 Select position N .

 Press the brake pedal.

 Wait approximately 30 seconds until

N or a gear appears on the instru-
ment panel.

 Release the brake pedal.
The gearbox is operational again.

115

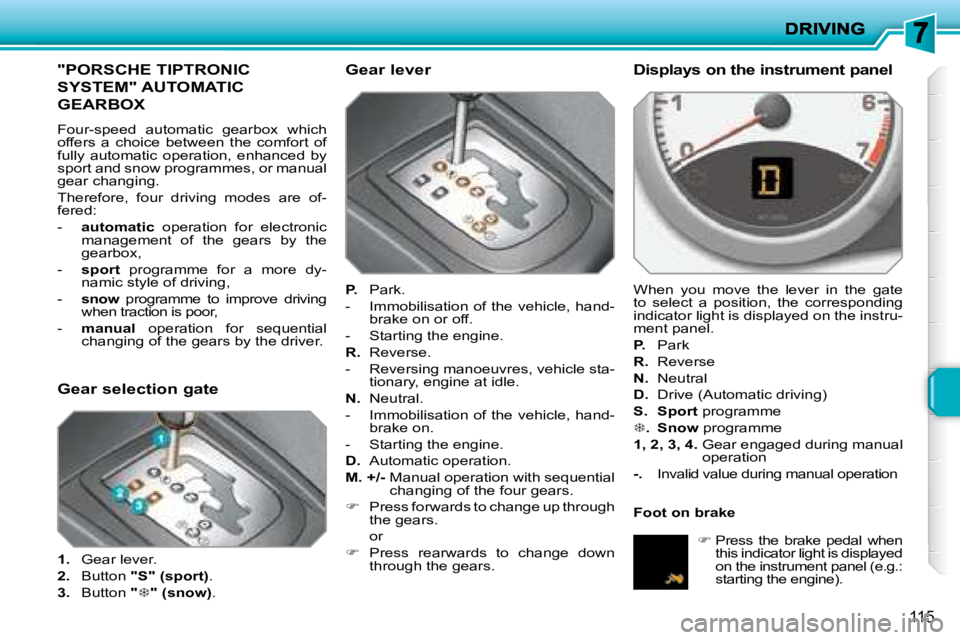

"PORSCHE TIPTRONIC
SYSTEM" AUTOMATIC
GEARBOX
Four-speed automatic gearbox which
offers a choice between the comfort of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Therefore, four driving modes are of-
fered:
- automatic operation for electronic
management of the gears by the
gearbox,
- sport programme for a more dy-
namic style of driving,
- snow programme to improve driving
when traction is poor,
- manual operation for sequential
changing of the gears by the driver. Gear lever

P. Park.
- Immobilisation of the vehicle, hand- brake on or off.
- Starting the engine.

R. Reverse.
- Reversing manoeuvres, vehicle sta- tionary, engine at idle.

N. Neutral.
- Immobilisation of the vehicle, hand- brake on.
- Starting the engine.

D. Automatic operation.

M. +/- Manual operation with sequential
changing of the four gears.

 Press forwards to change up through
the gears.
or

 Press rearwards to change down
through the gears. Displays on the instrument panel
When you move the lever in the gate
to select a position, the corresponding
indicator light is displayed on the instru-
ment panel.

P. Park

R. Reverse

N. Neutral

D. Drive (Automatic driving)

S. Sport programme


. Snow programme

1, 2, 3, 4 . Gear engaged during manual
operation

-. Invalid value during manual operation
Gear selection gate

1. Gear lever.

2. Button "S" (sport) .

3. Button "

" (snow) . Foot on brake

 Press the brake pedal when
this indicator light is displayed
on the instrument panel (e.g.:
starting the engine).

!
!
i
116
Moving off

 Apply the handbrake.

 Select position P or N .

 Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction display.

 With the engine running, press the
brake pedal.

 Release the handbrake.

 Select position R , D or M ,

 Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadvert-
ently while driving, allow the engine
to return to idle then engage posi-
tion D to accelerate. The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
ing to the style of driving, the profi le of
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide effi cient engine
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.
Automatic operation

 Select position D for automatic
changing of the four gears.

 appears on the instrument
panel.
Snow programme "
 "

 Press button "

" , after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"

 Press button "S" , after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R unless
the vehicle is completely stationary.
When the engine is running at idle,
with the brakes released, if position

R , D or M is selected, the vehicle
moves even without the accelera-
tor being pressed.
When the engine is running, never
leave children in the vehicle with-
out supervision.
When carrying out maintenance
with the engine running, apply the
handbrake and select position P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
specifi c conditions of use.
Return to automatic operation

 At any time, press the button select-
ed again to quit the programme en-
gaged and return to auto-adaptive
mode.
