PEUGEOT 207 2008 Workshop Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 207, Model: PEUGEOT 207 2008Pages: 255, PDF Size: 13.06 MB
Page 51 of 255
50
FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to adapt your position for
maximum ease of driving and comfort.
1. Forwards-backwards adjustment
Lift the control and slide the seat
forwards or backwards. 2. Driver’s or passenger’s seat
height adjustment
Pull the handle upwards or push it
downwards as many times as neces-
sary to obtain the required position. 3. Seat back angle adjustment
Push the handle towards the rear.
Page 52 of 255
!
!
51
No person or object must prevent
the seat slide from returning to its
initial position; return to this posi-
tion is necessary for the seat to
lock in place.
Take care not to trap the seat belt
to avoid hindering the passage of
the rear passengers.
4. Access to rear seats
(3-door)
Pull the handle to fold the seat back
and move the seat forwards. On re-
positioning, the seat returns to its
initial position. 5. Head restraint height and angle
adjustment
To raise the head restraint, pull it up-
wards.
To remove the head restraint, press
the lug A and pull the head restraint
upwards.
To put the head restraint back in po-
sition, locate the stems of the head
restraint in the holes, taking care
to keep them in line with the seat
back.
To lower the head restraint, press
the lug A and the head restraint at
the same time.
To tilt the head restraint, tilt the lower
part forwards or rearwards. The head restraint has a frame with
a notch which prevents the head
restraint from lowering; this is a
safety device which provides pro-
tection in the event of an impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Page 53 of 255
!
52

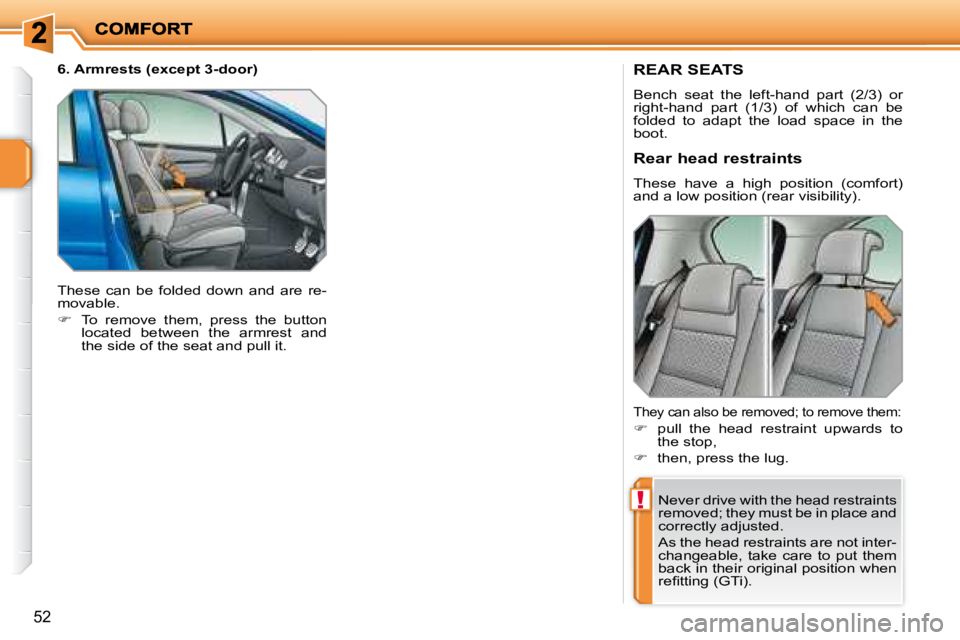

REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e fi t t i n g ( G T i ) .
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
They can also be removed; to remove them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3-door)
These can be folded down and are re-
movable.
To remove them, press the button
located between the armrest and
the side of the seat and pull it.
Page 54 of 255
!
52
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e fi t t i n g ( G T i ) .
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
They can also be removed; to remove them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3-door)
These can be folded down and are re-
movable.
To remove them, press the button
located between the armrest and
the side of the seat and pull it.
Page 55 of 255
!
i
53

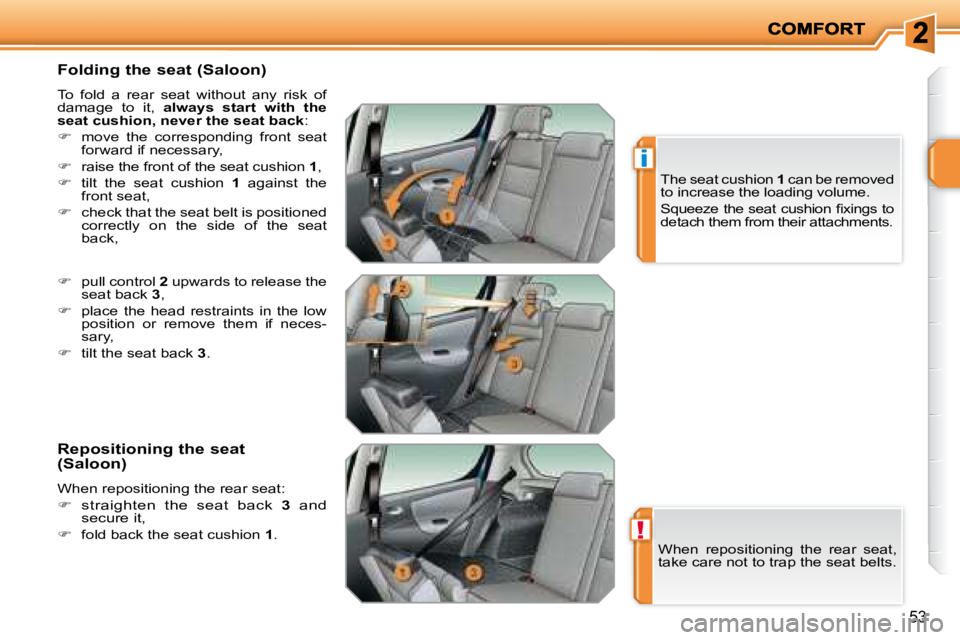

Folding the seat (Saloon)
To fold a rear seat without any risk of
damage to it, always start with the
seat cushion, never the seat back :
move the corresponding front seat
forward if necessary,
raise the front of the seat cushion 1 ,
tilt the seat cushion 1 against the
front seat,
check that the seat belt is positioned
correctly on the side of the seat
back,
Repositioning the seat
(Saloon)
When repositioning the rear seat:
straighten the seat back 3 and secure it,
fold back the seat cushion 1 .
pull control 2 upwards to release the
seat back 3 ,
place the head restraints in the low
position or remove them if neces-
sary,
tilt the seat back 3 .
When repositioning the rear seat,
take care not to trap the seat belts. The seat cushion
1 can be removed
to increase the loading volume.
S q u e e z e t h e s e a t c u s h i o n fi x i n g s t o
detach them from their attachments.
Page 56 of 255
!
52
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e fi t t i n g ( G T i ) .
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
They can also be removed; to remove them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3-door)
These can be folded down and are re-
movable.
To remove them, press the button
located between the armrest and
the side of the seat and pull it.
Page 57 of 255
!
i
54

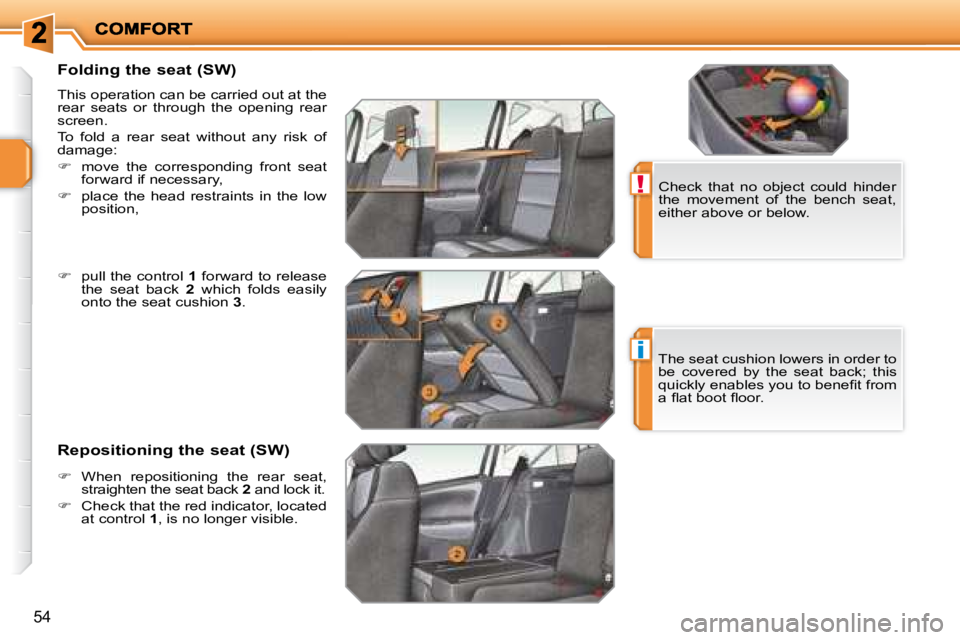

Folding the seat (SW)
This operation can be carried out at the
rear seats or through the opening rear
screen.
To fold a rear seat without any risk of
damage:
move the corresponding front seat
forward if necessary,
place the head restraints in the low
position, Check that no object could hinder
the movement of the bench seat,
either above or below.
Repositioning the seat (SW) The seat cushion lowers in order to
be covered by the seat back; this
q u i c k l y e n a b l e s y o u t o b e n e fi t f r o m
a fl a t b o o t fl o o r .
pull the control 1 forward to release
the seat back 2 which folds easily
onto the seat cushion 3 .
When repositioning the rear seat,
straighten the seat back 2 and lock it.
Check that the red indicator, located
at control 1 , is no longer visible.
Page 58 of 255
i
!
55

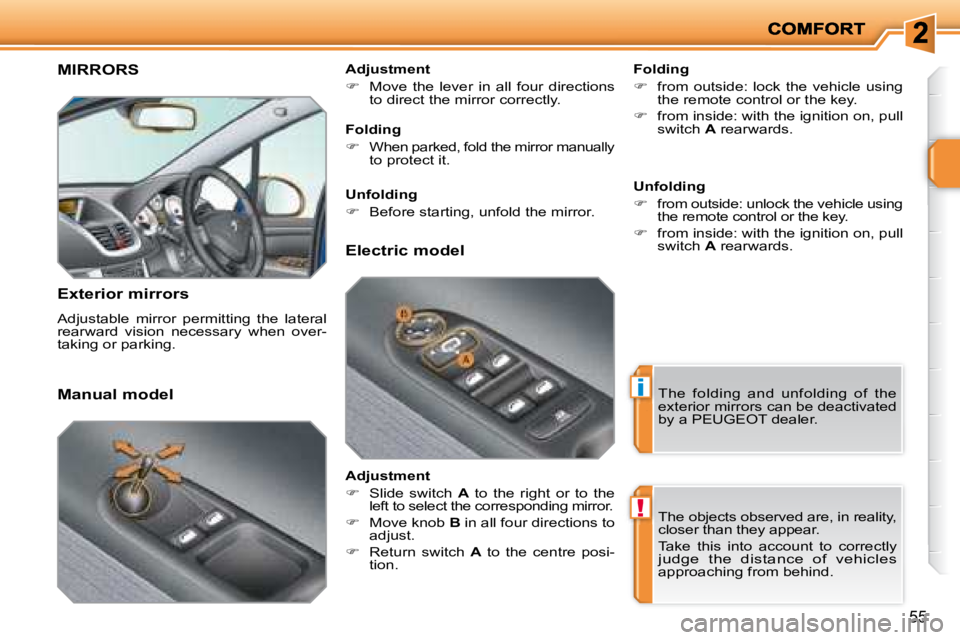

MIRRORS
Exterior mirrors
Adjustable mirror permitting the lateral
rearward vision necessary when over-
taking or parking. Folding
from outside: lock the vehicle using
the remote control or the key.
from inside: with the ignition on, pull
switch A rearwards.
Manual model Adjustment
Move the lever in all four directions
to direct the mirror correctly.
The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.
Folding
When parked, fold the mirror manually
to protect it.
Unfolding
Before starting, unfold the mirror.
Electric model
Adjustment
Slide switch A to the right or to the
left to select the corresponding mirror.
Move knob B in all four directions to
adjust.
Return switch A to the centre posi-
tion. Unfolding
from outside: unlock the vehicle using
the remote control or the key.
from inside: with the ignition on, pull
switch A rearwards.
The objects observed are, in reality,
closer than they appear.
Take this into account to correctly
judge the distance of vehicles approaching from behind.
Page 59 of 255
!
i
56

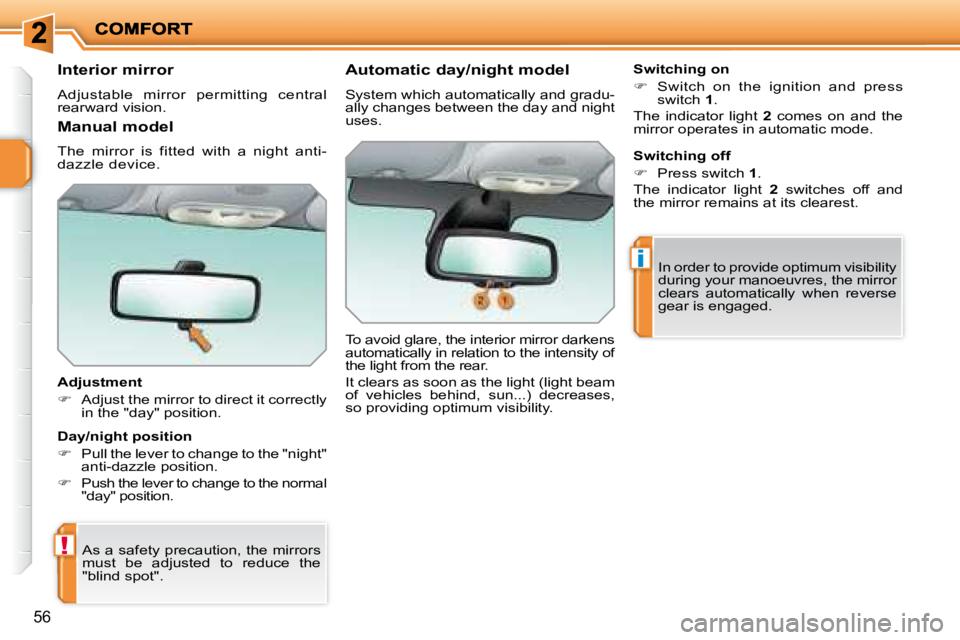

Interior mirror
Adjustable mirror permitting central
rearward vision.
Adjustment
Adjust the mirror to direct it correctly
in the "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot". Automatic day/night model
System which automatically and gradu-
ally changes between the day and night
uses.
To avoid glare, the interior mirror darkens
automatically in relation to the intensity of
the light from the rear.
It clears as soon as the light (light beam
of vehicles behind, sun...) decreases,
so providing optimum visibility.
Switching on
Switch on the ignition and press
switch 1 .
The indicator light 2 comes on and the
mirror operates in automatic mode.
Manual model
The mirror is fitted with a night anti-
dazzle device.
Day/night position
Pull the lever to change to the "night"
anti-dazzle position.
Push the lever to change to the normal "day" position. Switching off
Press switch 1 .
The indicator light 2 switches off and
the mirror remains at its clearest.
In order to provide optimum visibility
during your manoeuvres, the mirror
clears automatically when reverse
gear is engaged.
Page 60 of 255
!
i
57

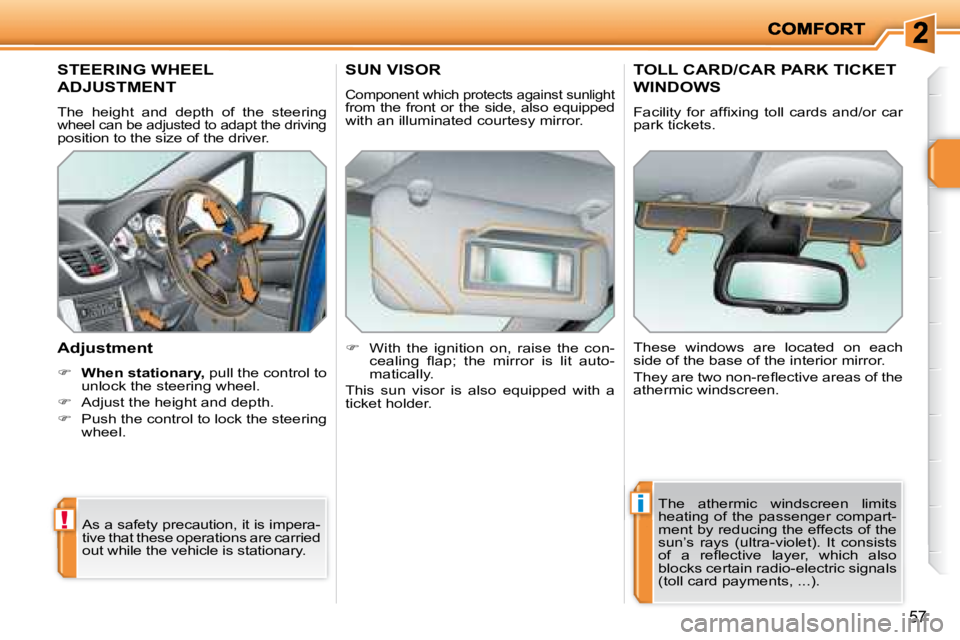

STEERING WHEEL
ADJUSTMENT
The height and depth of the steering wheel can be adjusted to adapt the driving position to the size of the driver.
Adjustment
When stationary, pull the control to
unlock the steering wheel.
Adjust the height and depth.
Push the control to lock the steering
wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
SUN VISOR
Component which protects against sunlight from the front or the side, also equipped
with an illuminated courtesy mirror.
With the ignition on, raise the con-
c e a l i n g fl a p ; t h e m i r r o r i s l i t a u t o -
matically.
This sun visor is also equipped with a
ticket holder.
TOLL CARD/CAR PARK TICKET
WINDOWS
F a c i l i t y f o r a f fi x i n g t o l l c a r d s a n d / o r c a r
park tickets.
These windows are located on each
side of the base of the interior mirror.
T h e y a r e t w o n o n - r e fl e c t i v e a r e a s o f t h e
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun’s rays (ultra-violet). It consists
o f a r e fl e c t i v e l a y e r , w h i c h a l s o
blocks certain radio-electric signals
(toll card payments, ...).
