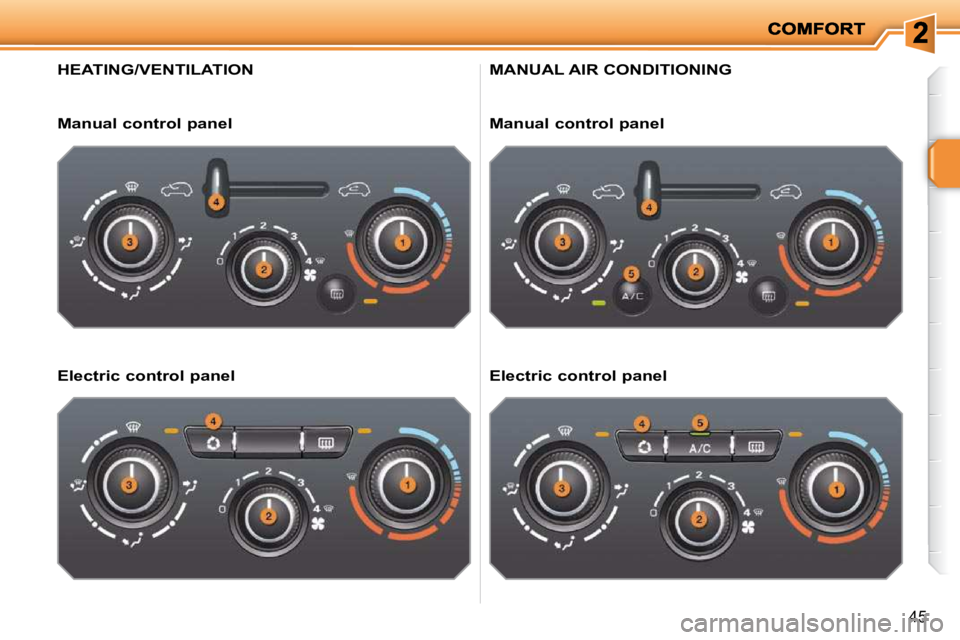

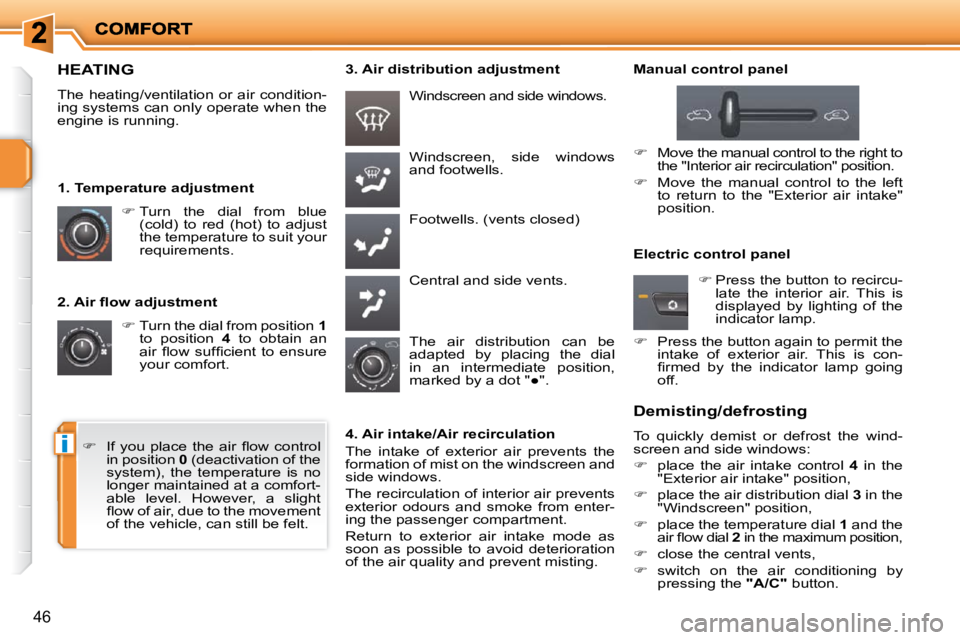

HEATING/VENTILATION
Manual control panel
Electric control panel
MANUAL AIR CONDITIONING
Manual control panel
Electric control panel
Page 32 of 218
i
46
2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1
to position 4 to obtain an
a i r fl o w s u f fi c i e n t t o e n s u r e
your comfort. Windscreen, side windows
and footwells.
Footwells. (vents closed)
Central and side vents.
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to suit your
requirements. Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t
The air distribution can be
adapted by placing the dial
in an intermediate position,
m a r k e d b y a d o t "
Page 33 of 218
i
47
5. Air conditioning On/Off The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed. The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DEMIST -
DEFROST
Switch off the demisting/
defrosting of the rear screen
and door mirrors as soon as
appropriate as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off be-
fore the demisting/defrosting is
switched off automatically, demist-
ing/defrosting will resume next time
the engine is switched on.

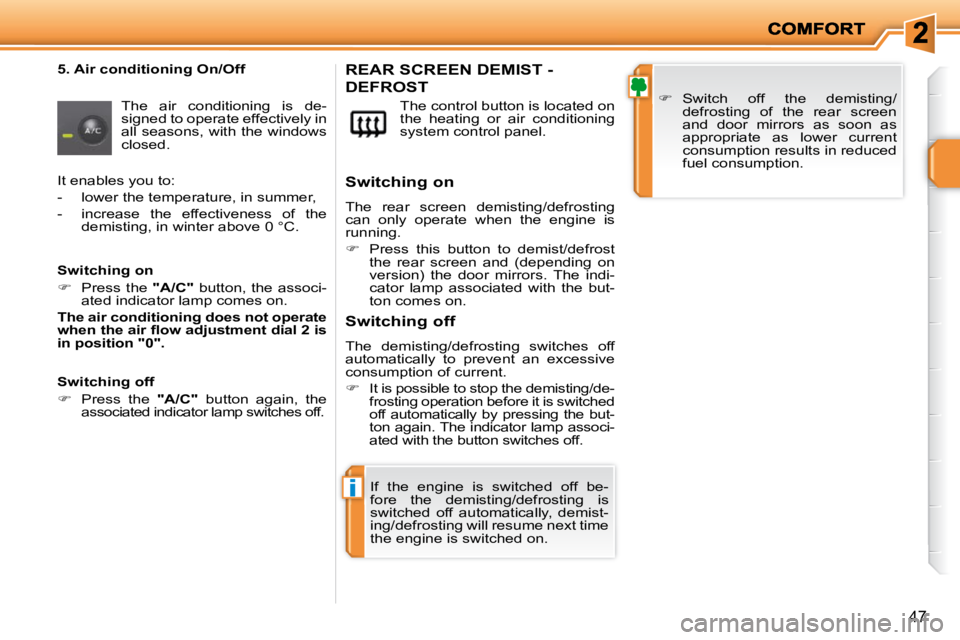

S w i t c h i n g o n
The rear screen demisting/defrosting
can only operate when the engine is
running.
Press this button to demist/defrost
the rear screen and (depending on
version) the door mirrors. The indi-
cator lamp associated with the but-
ton comes on.
S w i t c h i n g o f f
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
It is possible to stop the demisting/de-
frosting operation before it is switched
off automatically by pressing the but-
ton again. The indicator lamp associ-
ated with the button switches off.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting, in winter above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator lamp comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p e r a t e
w h e n t h e a i r fl o w a d j u s t m e n t d i a l 2 i s
in position "0".
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator lamp switches off.
Page 34 of 218
i
47
5. Air conditioning On/Off The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed. The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DEMIST -
DEFROST
Switch off the demisting/
defrosting of the rear screen
and door mirrors as soon as
appropriate as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off be-
fore the demisting/defrosting is
switched off automatically, demist-
ing/defrosting will resume next time
the engine is switched on.
S w i t c h i n g o n
The rear screen demisting/defrosting
can only operate when the engine is
running.
Press this button to demist/defrost
the rear screen and (depending on
version) the door mirrors. The indi-
cator lamp associated with the but-
ton comes on.
S w i t c h i n g o f f
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
It is possible to stop the demisting/de-
frosting operation before it is switched
off automatically by pressing the but-
ton again. The indicator lamp associ-
ated with the button switches off.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting, in winter above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator lamp comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p e r a t e
w h e n t h e a i r fl o w a d j u s t m e n t d i a l 2 i s
in position "0".
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator lamp switches off.
Page 35 of 218
i
i
48
When the engine is cold, to prevent
too great a distribution of cold air,
t h e a i r fl o w w i l l o n l y r e a c h i t s o p t i -
mum level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, the side windows and the
footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to alter the value
displayed in order to obtain the re-
quired level of comfort. The system
corrects the temperature differ-
ence automatically and as quickly
as possible.
The air conditioning can only operate
with the engine running.
The driver and his front
passenger can each set the
temperature to suit their re-
quirements.
Turn dial 2 or 3 to the left to reduce
the value or to the right to increase
it.
A setting around 21 enables you to ob-
tain an optimum level of comfort. De-
pending on your requirements, a setting
between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left/right setting difference of
more than 3.
4. Automatic visibility programme The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice...).
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
Press the "AUTO" button.
The "AUTO" symbol is dis-
played. 2 . D r i v e r ' s s i d e a d j u s t m e n t

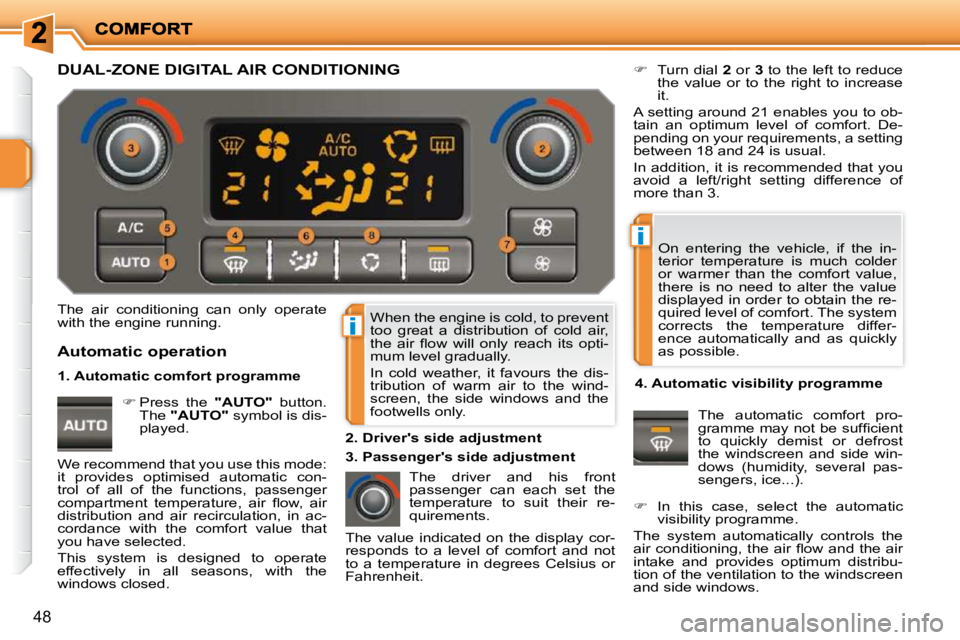

DUAL-ZONE DIGITAL AIR CONDITIONING
We recommend that you use this mode:
it provides optimised automatic con-
trol of all of the functions, passenger
c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w , a i r
distribution and air recirculation, in ac-
cordance with the comfort value that
you have selected.
This system is designed to operate
effectively in all seasons, with the
windows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
1. Automatic comfort programme
3 . P a s s e n g e r ' s s i d e a d j u s t m e n t
Page 36 of 218
!
!
i
49
To exit this programme, press the
"visibility" button again or the "AUTO"
button, the indicator lamp on the button
switches off and "AUTO" is displayed.

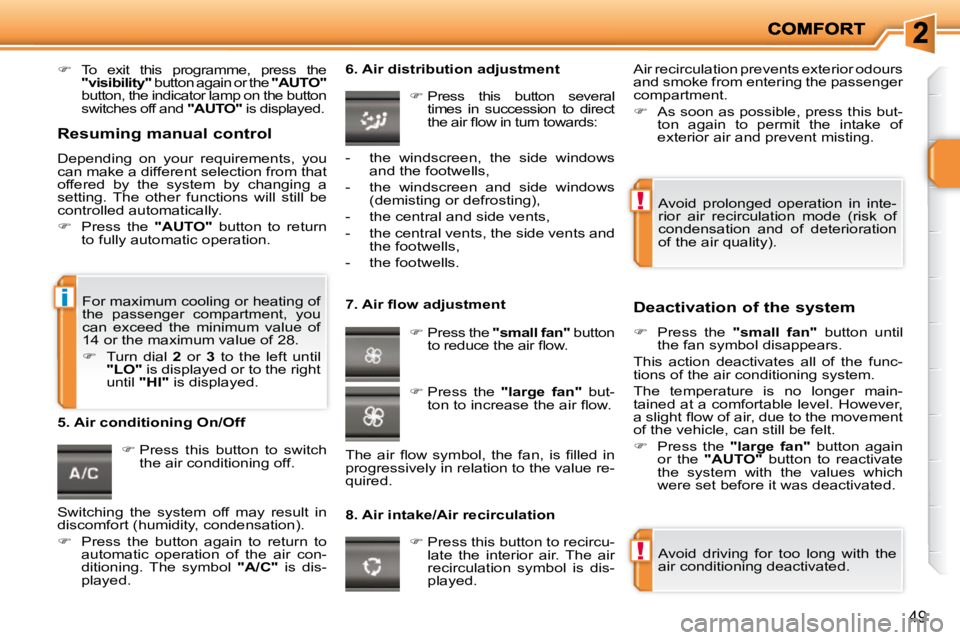

Press this button to switch
the air conditioning off. 6 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press this button several
times in succession to direct
t h e a i r fl o w i n t u r n t o w a r d s :
7 . A i r fl o w a d j u s t m e n t
Press the "small fan" button
t o r e d u c e t h e a i r fl o w .
8. Air intake/Air recirculation D e a c t i v a t i o n o f t h e s y s t e m
Press the "small fan" button until
the fan symbol disappears.
This action deactivates all of the func-
tions of the air conditioning system.
The temperature is no longer main-
tained at a comfortable level. However,
a s l i g h t fl o w o f a i r , d u e t o t h e m o v e m e n t
of the vehicle, can still be felt.
Press the "large fan" button again
or the "AUTO" button to reactivate
the system with the values which
were set before it was deactivated.
Press this button to recircu-
late the interior air. The air
recirculation symbol is dis-
played.
5. Air conditioning On/Off
Avoid driving for too long with the
air conditioning deactivated.
Avoid prolonged operation in inte-
rior air recirculation mode (risk of
condensation and of deterioration
of the air quality).
- the windscreen, the side windows
and the footwells,
- the windscreen and side windows (demisting or defrosting),
- the central and side vents,
- the central vents, the side vents and the footwells,
- the footwells.
Press the "large fan" but-
t o n t o i n c r e a s e t h e a i r fl o w .
T h e a i r fl o w s y m b o l , t h e f a n , i s fi l l e d i n
progressively in relation to the value re-
quired. Air recirculation prevents exterior odours
and smoke from entering the passenger
compartment.
As soon as possible, press this but-
ton again to permit the intake of
exterior air and prevent misting.
For maximum cooling or heating of
the passenger compartment, you
can exceed the minimum value of
14 or the maximum value of 28.
Turn dial 2 or 3 to the left until
"LO" is displayed or to the right
until "HI" is displayed.
Resuming manual control
Depending on your requirements, you
can make a different selection from that
offered by the system by changing a
setting. The other functions will still be
controlled automatically.
Press the "AUTO" button to return
to fully automatic operation.
Switching the system off may result in
discomfort (humidity, condensation).
Press the button again to return to
automatic operation of the air con-
ditioning. The symbol " A/C " is dis-
played.
Page 37 of 218
50

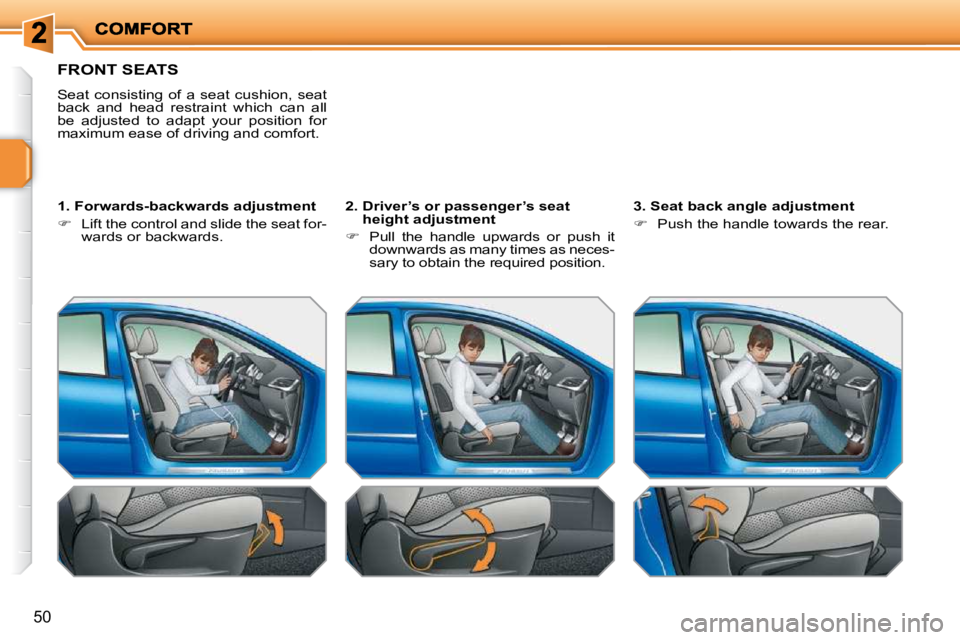

FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to adapt your position for
maximum ease of driving and comfort.
1 . F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Lift the control and slide the seat for-
wards or backwards. 2. Driver’s or passenger’s seat
h e i g h t a d j u s t m e n t
Pull the handle upwards or push it
downwards as many times as neces-
sary to obtain the required position. 3 . S e a t b a c k a n g l e a d j u s t m e n t
Push the handle towards the rear.
Page 38 of 218
!
!
51
No person or object must prevent
the seat slide from returning to its
initial position; return to this posi-
tion is necessary for the seat to
lock in place.
Take care not to trap the seat belt
to avoid hindering the passage of
the rear passengers.

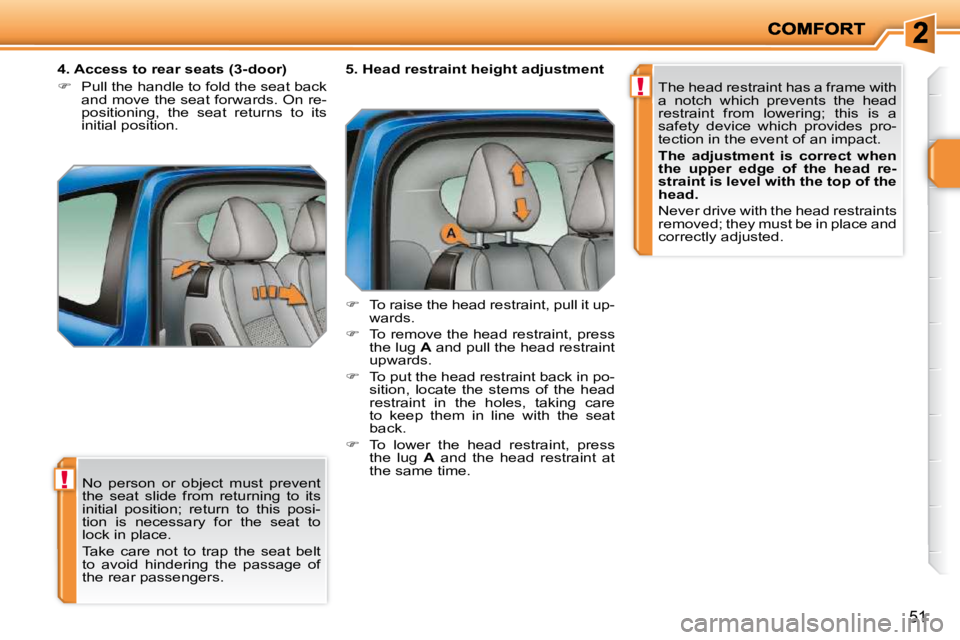

4. Access to rear seats (3-door)
Pull the handle to fold the seat back
and move the seat forwards. On re-
positioning, the seat returns to its
initial position. 5 . H e a d r e s t r a i n t h e i g h t a d j u s t m e n t
To raise the head restraint, pull it up-
wards.
To remove the head restraint, press
the lug A and pull the head restraint
upwards.
To put the head restraint back in po-
sition, locate the stems of the head
restraint in the holes, taking care
to keep them in line with the seat
back.
To lower the head restraint, press
the lug A and the head restraint at
the same time. The head restraint has a frame with
a notch which prevents the head
restraint from lowering; this is a
safety device which provides pro-
tection in the event of an impact.
T h e a d j u s t m e n t i s c o r r e c t w h e n
t h e u p p e r e d g e o f t h e h e a d r e -
s t r a i n t i s l e v e l w i t h t h e t o p o f t h e
h e a d .
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Page 39 of 218
!
52

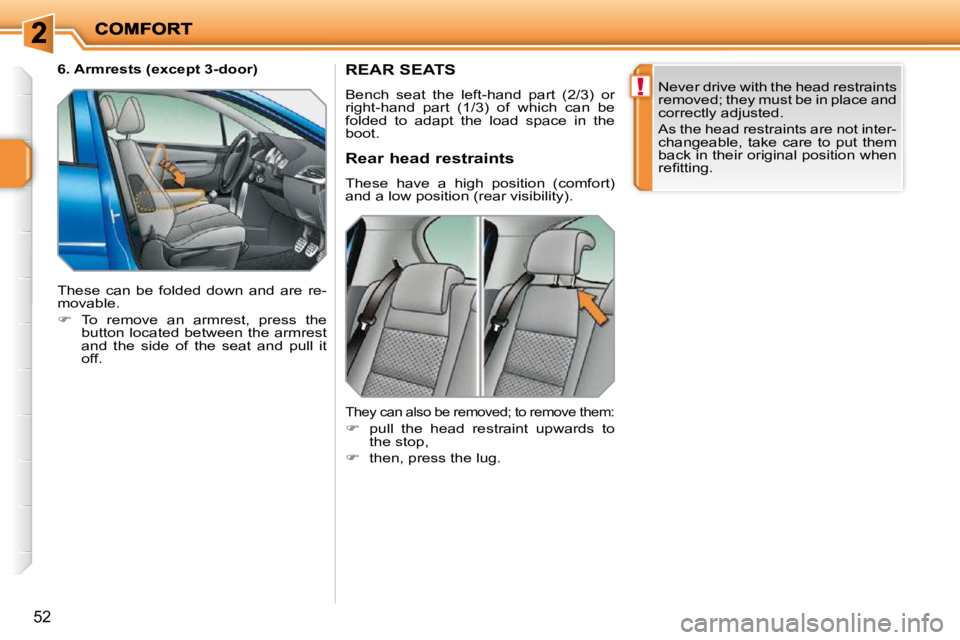

REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e fi t t i n g .
R e a r h e a d r e s t r a i n t s
These have a high position (comfort)
and a low position (rear visibility).
They can also be removed; to remove them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3-door)
These can be folded down and are re-
movable.
To remove an armrest, press the
button located between the armrest
and the side of the seat and pull it
off.
Page 40 of 218
!
52
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e fi t t i n g .
R e a r h e a d r e s t r a i n t s
These have a high position (comfort)
and a low position (rear visibility).
They can also be removed; to remove them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3-door)
These can be folded down and are re-
movable.
To remove an armrest, press the
button located between the armrest
and the side of the seat and pull it
off.
