PRACTICAL INFORMATION
138
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014

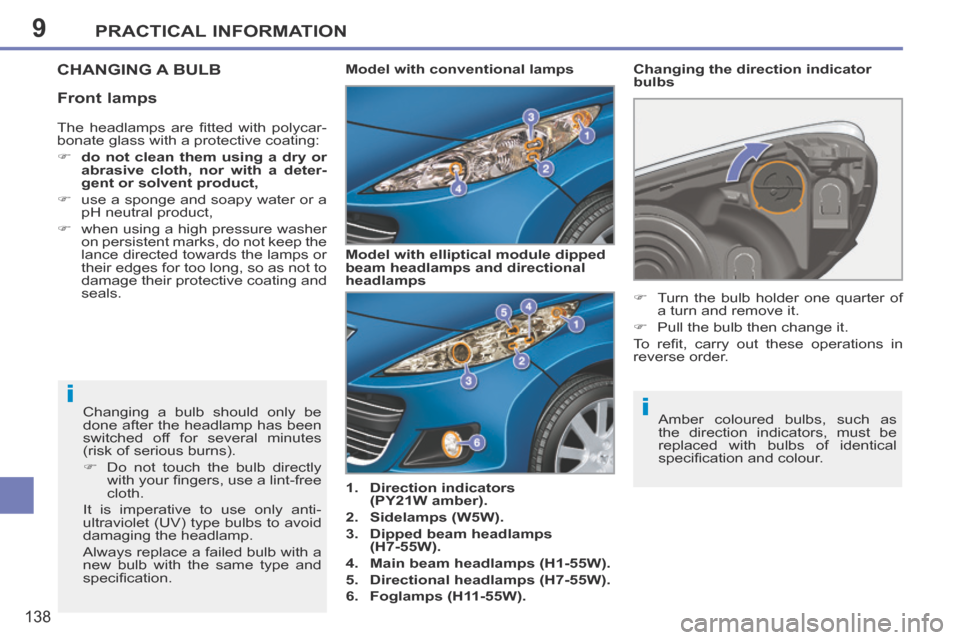

CHANGING A BULB
1. Direction indicators (PY21W amber).
2. Sidelamps (W5W).
3. Dipped beam headlamps (H7-55W).
4. Main beam headlamps (H1-55W).
5. Directional headlamps (H7-55W).
6. Foglamps (H11-55W). Changing the direction indicator
bulbs
Changing a bulb should only be
done after the headlamp has been
switched off for several minutes
(risk of serious burns).
 Do not touch the bulb directly with your fi ngers, use a lint-free
cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation. Model with conventional lamps
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cation and colour.
 Turn the bulb holder one quarter of
a turn and remove it.
 Pull the bulb then change it.
To refi t, carry out these operations in
reverse order.
The headlamps are fi tted with polycar-
bonate glass with a protective coating:
 do not clean them using a dry or
abrasive cloth, nor with a deter-
gent or solvent product,
 use a sponge and soapy water or a pH neutral product,
 when using a high pressure washer on persistent marks, do not keep the
lance directed towards the lamps or
their edges for too long, so as not to
damage their protective coating and
seals. Model with elliptical module dipped
beam headlamps and directional
headlamps
Front lamps

9PRACTICAL INFORMATION
139
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Changing the integrated direction
indicator side repeaters Changing the foglamp bulbs
For replacement of these bulbs, contact
a PEUGEOT dealer.
 Insert a screwdriver towards the centre of the repeater between the
repeater and the base of the mirror.
 Tilt the screwdriver to extract the repeater and remove the repeater.
 Disconnect the repeater connector.
To refi t, carry out these operations in
reverse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.

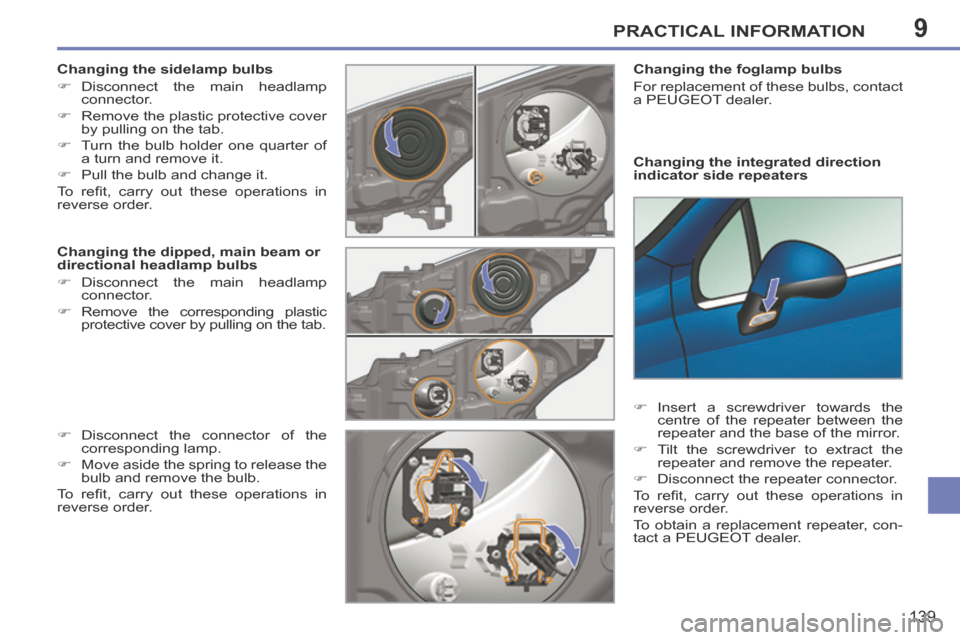

Changing the sidelamp bulbs
 Disconnect the main headlamp
connector.
 Remove the plastic protective cover by pulling on the tab.
 Turn the bulb holder one quarter of a turn and remove it.
 Pull the bulb and change it.
To refi t, carry out these operations in
reverse order.
Changing the dipped, main beam or
directional headlamp bulbs
 Disconnect the main headlamp connector.
 Remove the corresponding plastic protective cover by pulling on the tab.
 Disconnect the connector of the corresponding lamp.
 Move aside the spring to release the bulb and remove the bulb.
To refi t, carry out these operations in
reverse order.

9
!
PRACTICAL INFORMATION
141
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014

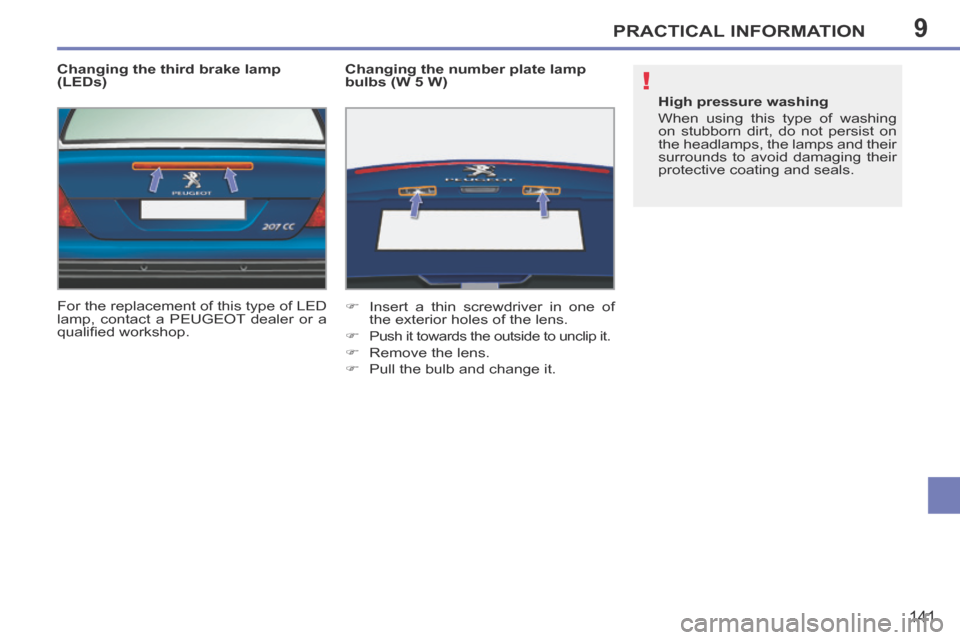

Changing the third brake lamp
(LEDs)
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop. Changing the number plate lamp
bulbs (W 5 W)
 Insert a thin screwdriver in one of
the exterior holes of the lens.

Push it towards the outside to unclip it.
 Remove the lens.
 Pull the bulb and change it. High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
surrounds to avoid damaging their
protective coating and seals.

9PRACTICAL INFORMATION
144
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Fuse N° Rating Functions
F8 20 A Audio/telephone, multifunction screen, steering
mounted controls, tyre under-infl ation detection,
trailer fusebox, alarm (accessory).
F9 30 A Front 12 V socket, front courtesy lamp, map
reading lamps, sun visor lighting, glove box lighting.
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F 11 15 A Diagnostic socket, low current ignition switch,
automatic gearbox control unit.
F12 15 A Sunshine sensor, trailer fusebox,
retractable roof.
F13 5 A Engine fusebox, ABS relay, dual-function brake
switch.
F14 15 A
Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, audio equipment,
Bluetooth system, rear parking sensors control unit.
F15 30 A Locking and deadlocking.
F17 40 A Heated rear screen and door mirrors.
SH - PARC shunt.

9PRACTICAL INFORMATION
145
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Engine compartment fuses
The fusebox is placed in the engine
compartment, near the battery (left-
hand side).
Access to the fuses
 Unclip the cover.
 Replace the fuse (refer to the cor-responding paragraph).
 When you have fi nished, close the cover carefully to ensure correct
sealing of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister electrovalves (1.6 l 16V THP),
air fl ow sensor (Diesel), injection pump
(Diesel), water in Diesel sensor (Diesel), EGR
electrovalves, air heating (Diesel).
F2 15 A Horn.
F3 10 A Front wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (petrol), Turbo electrovalves
(1.6 l 16V THP).
F6 10 A Vehicle speed sensor, automatic gearbox.
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
protection unit (Diesel).
F8 20 A Starter motor control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters,
electronic thermostat) (Diesel: electrovalves,
heaters).
F 11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
F13 40 A Built-in systems interface supply (ignition positive).

9PRACTICAL INFORMATION
146
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Fuse N° Rating Functions
F14 30 A Diesel heater (Diesel).
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
Maxi-fuse table
* The maxi-fuses provide additional pro- tection for the electrical systems. All
work on the maxi-fuses must be car-
ried out by a PEUGEOT dealer or a
qualifi ed workshop.
Fuse N° Rating Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A Additional fan assembly (1.6 l 16V THP).
MF7 * 80 A Dashboard fusebox.
MF8 * - Not used.
Box 2
MF9 * 80 A Heating unit (Diesel).
MF10 * 80 A Electric power steering.
MF11 * 40 A Valvetronic electric motor (1.6 l 16V THP).

9
!
i
PRACTICAL INFORMATION
149
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
If a roof operation is in progress,
it will be completed, but no further
operation is possible.

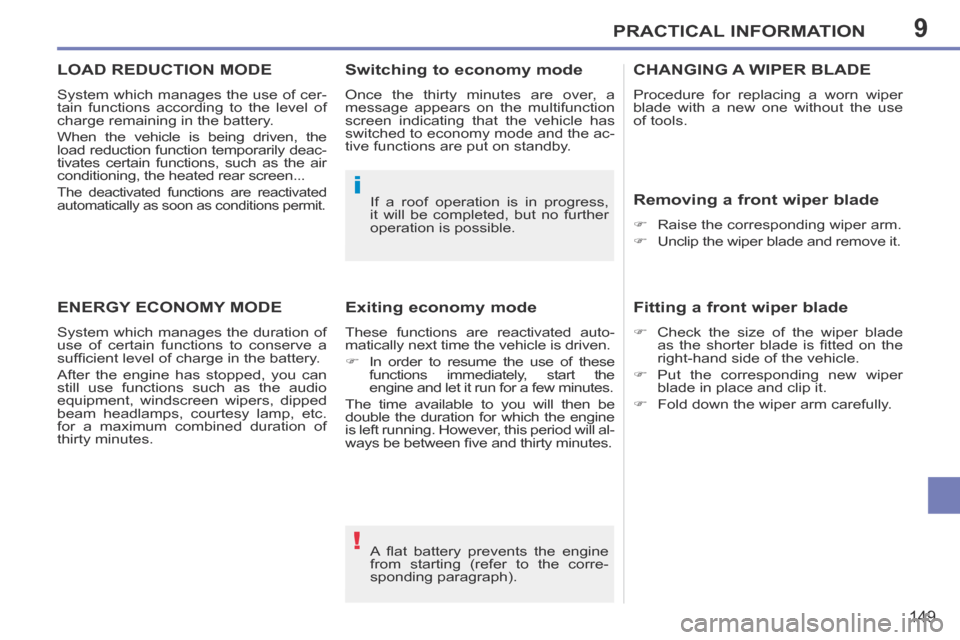

ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamp, etc.
for a maximum combined duration of
thirty minutes.
Exiting economy mode
These functions are reactivated auto-
matically next time the vehicle is driven.
 In order to resume the use of these
functions immediately, start the
engine and let it run for a few minutes.
The time available to you will then be
double the duration for which the engine
is left running. However, this period will al-
ways be between fi ve and thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front wiper blade
 Raise the corresponding wiper arm.
 Unclip the wiper blade and remove it.
Fitting a front wiper blade
 Check the size of the wiper blade as the shorter blade is fi tted on the
right-hand side of the vehicle.
 Put the corresponding new wiper blade in place and clip it.
 Fold down the wiper arm carefully.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

215
VISUAL SEARCH
207CC_EN_CHAP12_RECHERCHE VISUELLE_ED01-2014
EXTERIOR
Door mirrors ................................55
Lighting controls ....................
80-82
Static directional lighting ............. 83
Headlamp adjustment .................83
Changing bulbs ..................138-139
- front lamps
- foglamps
- direction indicator repeaters
Electric windows, quarter lights ........................ 71-72
Doors .....................................
73-75
- opening/closing
- central locking
- emergency control
Alarm ..................................... 69-70
Remote control key
................65-68
- opening/closing
- anti-theft protection
- starting
- battery
Accessories ..............................153
Retractable roof ......................... 6-7
Fuel tank ..................................... 77
Misfuel prevention ...................... 79 Boot ............................................
76
Changing a wheel .............. 133-136
- tools
- removal
Boot luggage carrier ................. 152
Visual and audible rear parking sensors ........ 118-119
Towbar ............................... 151-152
Towing ............................... 150-151
Changing bulbs
..................140-141
- rear lamps
- 3rd brake lamp
- number plate lamps
Braking assistance ................... 100
Trajectory control ...................... 101
Tyre under-infl ation detection ..... 99
Tyre pressure ............................ 159
Temporary puncture repair kit ........................... 128-132
Snow chains ............................. 137

217
VISUAL SEARCH
207CC_EN_CHAP12_RECHERCHE VISUELLE_ED01-2014
INSTRUMENTS AND CONTROLS Multifunction screens .............33-41
Seat belt warning lamps ........... 103
Hazard warning lamps ................ 98
Instrument panels ....................... 20
Warning lamps ....................... 21-27
Indicators ............................... 28-31
Gear shift indicator ................... 110
Buttons ....................................... 32
- trip distance recorder
- lighting dimmer
Lighting controls .................... 80-82
Headlamp adjustment .................83
Speed limiter ...................... 114-115
Cruise control .................... 116-117
Door mirrors ................................
55
Electric windows .................... 71-72
Dashboard fuses ................................ 142-144
Steering wheel adjustment ......... 54
Horn ............................................ 98 Courtesy lamp ............................
85
Rear view mirror ......................... 56
Sun visor ..................................... 57
Wiper controls ........................ 84-85
Changing a wiper blade ....................................... 149
Trip computer ........................ 42-44
PEUGEOT Connect Nav ... 163-194
PEUGEOT Connect Sound
(RD5) ............................... 195-214
Setting the date/time ..............33-41

Emergency or assistance call ....97, 162
Ventilation .............................. 45-46
Heating .................................. 47-48
Manual air conditioning ..........47-49
Digital air conditioning ......................... 50-51
Interior fi ttings ........................ 58-59
- glove box
- 12 V accessories socket / USB port
Central locking ....................... 74-75
Gearbox ..................... 109, 111-113
Parking brake ........................... 109
Retractable roof control ...................................... 6-7
Controls for all four windows ...... 72
Opening the bonnet ..................
121

218
VISUAL SEARCH
207CC_EN_CHAP12_RECHERCHE VISUELLE_ED01-2014
TECHNICAL DATA - MAINTENANCE
Running out of Diesel ...............121
Checking levels ................. 124-125
- oil
- brake fl uid
- coolant
- screenwash/headlamp wash fl uid
Changing bulbs ..................138-141
- front
- rear Petrol engines
........................... 154
Petrol weights ........................... 155
Diesel engine ............................ 156
Diesel weights .......................... 157
Dimensions ............................... 158
Identifi cation markings .............. 159
Opening the bonnet .................. 121
Under-bonnet layout, petrol ...... 122
Under-bonnet layout, Diesel ..... 123 Checking components .......
126-127
- air fi lter
- passenger compartment fi lter
- oil fi lter
- brake pads/discs
Engine compartment fuses ................................ 145-146
Battery ............................... 147-148
Load shedding /economy mode ...149
