FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Audio equipment steering mounted controls.
3. Wiper/wash-wipe/trip computer control stalk.
4. Hazard warning lamps switch.
5. Multifunction screen.
Seat belt fastening status warning lamps.
6. Sunshine sensor.
7. Passenger's airbag.
8. Glove box/Passenger's airbag deactivation/Audio/video sockets.
9. Heated seat control.
10. 12 V accessory socket.
11 . USB port.
12. Dynamic stability control (ESP/ASR) button.
Central locking button.
Alarm button.
13. Heating/air conditioning controls.
14. Storage compartment.
15. Audio and telematics system.
16. Central adjustable air vents.

!
16
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
Front passenger's airbag Ignition switch
1. Open the glove box.
2. Insert the key.
3. Select position:
"ON" (activation), with front passen-
ger or "forwards facing" child seat,
"OFF" (deactivation), with "rear fac-
ing" child seat.
4. Remove the key keeping the switch in the new position. 1. Stop position.
2. Ignition position.
3. Starting position.
A. Front left seat belt not fastened or
unfastened warning lamp on in red.
B. Front right seat belt not fastened or unfastened warning lamp on in red.
Front seat belts
A heavy object (key fob...), at-
tached to the key and weighing
down on its shaft in the ignition
switch, could cause a malfunction.
PASSENGER SAFETY STARTING
 106  103
 67

1MONITORING
23
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the mul\
tifunction screen. Warning lamp is on Cause Action/Observations
Passenger's
airbag
system fi xed. The control, located in the
glove box, is set to the
OFF position.
The passenger's front
airbag is deactivated.
You can install a "rearward
facing" child seat, unless
there is a fault with the
operation of the airbags
(Airbag warning lamp on). Set the control to the
ON position to activate the
passenger's front airbag.
In this case, do not fi t a child seat in the rearward
facing position.
ESP/ASR fi xed. The button, located
in the centre of
the dashboard,
is pressed. Its
indicator lamp is on.
The ESP/ASR is
deactivated.
ESP: electronic stability
programme.
ASR: anti-slip regulation. Press the button again to reactivate the ESP/
ASR manually. Its indicator lamp goes off.
From approximately 30 mph (50 km/h), the
system is reactivated automatically.
The ESP/ASR system is reactivated
automatically when the vehicle is started.

2COMFORT
58
207CC_EN_CHAP02_CONFORT_ED01-2014
INTERIOR FITTINGS
1. Illuminated glove box
(see details on following page)
2. Storage compartment with non-slip mat
3. Card /ticket holder
4. Door pocket
5. Storage compartment with non-slip mat
6. USB port
(see details on following page)
7. 12 V accessory socket
(see details on following page)
8. Cup holder

2
i
COMFORT
59
207CC_EN_CHAP02_CONFORT_ED01-2014

Illuminated glove box
This has an upper open storage com-
partment, a recess and locations for
storing a bottle of water, the vehicle's
handbook, ...
Its lid has locations for storing a pen, a pair
of spectacles, tokens, cards, a can, ...
It is fi tted with a lock.
 To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the front passenger airbag de-
activation switch A .
If the vehicle is fi tted with air condition-
ing, it provides access to the ventila-
tion nozzle B , which can be opened or
closed, distributing the same condi-
tioned air as the vents in the passenger
compartment.
12 V accessory socket
 To connect a 12 V accessory (maxi- mum power: 120 Watts), lift the cov-
er and connect a suitable adaptor.
PEUGEOT CONNECT USB
The "AUX" connection box, located in
the centre console, comprises an aux-
iliary JACK socket and/or a USB port.
It permits the connection of a portable
device, such as a digital audio player of
the iPod
® or USB memory stick type.
It reads certain audio fi le formats allow-
ing them to be heard via the vehicle's
speakers.
You can manage these fi les using the
steering mounted controls or the audio
system control panel and display them
in the multifunction screen.
Connected to the USB port, the porta-
ble device charges automatically while
in use.
For more information on the use of
this equipment, refer to the "Audio
equipment and telematics" sec-
tion.
Do not exceed the maximum power rat-
ing of the socket (risk of damage to your
device).

6
!
i
SAFETY
105
207CC_EN_CHAP06_SECURITE_ED01-2014
AIRBAGS
The airbags have been designed to
maximise the safety of the occupants in
the event of violent collisions. They sup-
plement the action of the force-limiting
seat belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detection
zones:
- in the event of a serious impact, the airbags are deployed instanta-
neously and contribute towards pro-
tecting the occupants of the vehicle;
immediately after the impact, the
airbags defl ate rapidly so that they
do not hinder the visibility of the oc-
cupants or their possible exit from
the vehicle,
- in the event of a minor impact or rear impact and in certain roll-over
conditions, the airbags will not be
deployed; the seat belt alone con-
tributes towards providing your pro-
tection in these situations.
The airbags do not operate when
the ignition is off.
This equipment only operates once.
If a second impact occurs (during
the same or a subsequent acci-
dent), the airbag will not operate. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Front airbags
Deployment
The airbags are deployed, except the
passenger's front airbag if it has been
deactivated, in the event of a serious
front impact applied to all or part of the
front impact zone
A , in the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the front to the
rear of the vehicle.
The front airbag infl ates between the
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
The deployment of one or more
airbags is accompanied by a slight
discharge of smoke and a noise,
due to the activation of the pyro-
technic cartridge incorporated in
the system.
This smoke is not harmful, but sen-
sitive individuals may experience
some irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.

9
i
PRACTICAL INFORMATION
133
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
* According to country.
CHANGING A WHEEL *
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
Access to the tools
The tools are installed in a box at the
bottom of the boot under the spare
wheel.
For access to them, refer to the para-
graph "Access to the spare wheel" on
the following page. List of tools
1. Wheelbrace.
For removal of the wheel trim and
removal of the wheel fi xing bolts.
2. Jack with integral handle.
For raising the vehicle.
3. "Bolt cover" tool.
For removal of the bolt protectors (covers) on alloy wheels.
4.
Socket for the security bolts (located
in the glove box).
For adaptation of the wheelbrace to the special "security" bolts. 5. Removable towing eye.
Refer to the paragraph "Towing the vehicle".
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
Other accessories
Wheel with trim
When removing the wheel ,
detach the trim fi rst using the
wheelbrace 1 pulling at the valve
passage hole.
When refi tting the wheel , re-
fi t the trim starting by placing its
notch facing the valve and press
around its edge with the palm of
your hand.

9PRACTICAL INFORMATION
143
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014

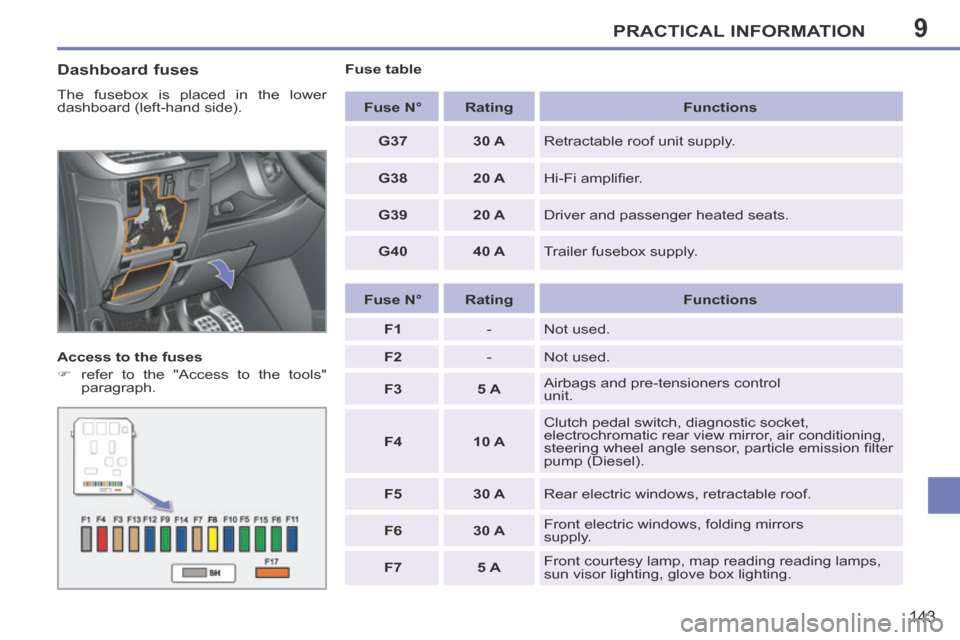

Dashboard fuses
The fusebox is placed in the lower
dashboard (left-hand side).
Access to the fuses
 refer to the "Access to the tools" paragraph. Fuse table
Fuse N° Rating Functions
G37 30 A Retractable roof unit supply.
G38 20 A Hi-Fi amplifi er.
G39 20 A Driver and passenger heated seats.
G40 40 A Trailer fusebox supply.
Fuse N° Rating Functions
F1 - Not used.
F2 - Not used.
F3 5 A Airbags and pre-tensioners control
unit.
F4 10 A Clutch pedal switch, diagnostic socket,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, particle emission fi lter
pump (Diesel).
F5 30 A Rear electric windows, retractable roof.
F6 30 A Front electric windows, folding mirrors
supply.
F7 5 A Front courtesy lamp, map reading reading lamps,
sun visor lighting, glove box lighting.

9PRACTICAL INFORMATION
144
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014

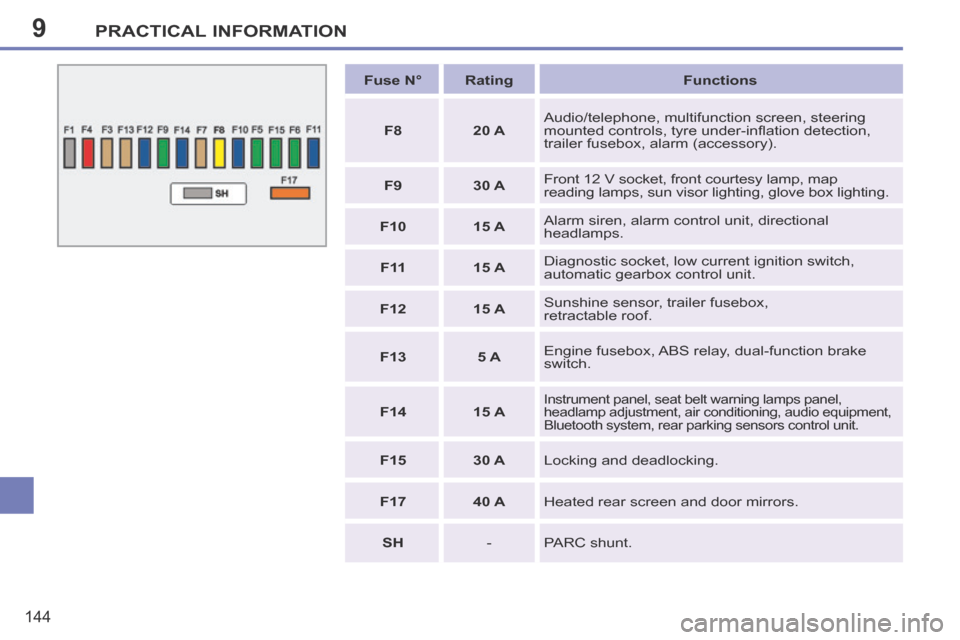

Fuse N° Rating Functions
F8 20 A Audio/telephone, multifunction screen, steering
mounted controls, tyre under-infl ation detection,
trailer fusebox, alarm (accessory).
F9 30 A Front 12 V socket, front courtesy lamp, map
reading lamps, sun visor lighting, glove box lighting.
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F 11 15 A Diagnostic socket, low current ignition switch,
automatic gearbox control unit.
F12 15 A Sunshine sensor, trailer fusebox,
retractable roof.
F13 5 A Engine fusebox, ABS relay, dual-function brake
switch.
F14 15 A
Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, audio equipment,
Bluetooth system, rear parking sensors control unit.
F15 30 A Locking and deadlocking.
F17 40 A Heated rear screen and door mirrors.
SH - PARC shunt.

216
VISUAL SEARCH
207CC_EN_CHAP12_RECHERCHE VISUELLE_ED01-2014

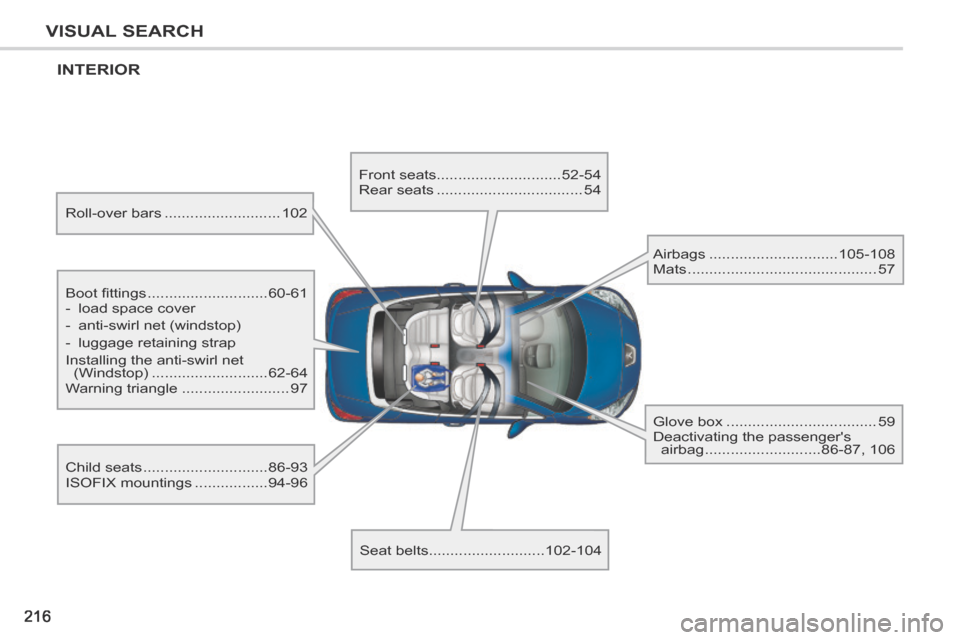

INTERIOR
Boot fi ttings ............................60-61
- load space cover
- anti-swirl net (windstop)
- luggage retaining strap
Installing the anti-swirl net (Windstop) ........................... 62-64
Warning triangle ......................... 97
Child seats ............................. 86-93
ISOFIX mountings ................. 94-96 Front seats
............................. 52-54
Rear seats .................................. 54
Seat belts ........................... 102-104 Airbags ..............................
105-108
Mats ............................................ 57
Glove box ................................... 59
Deactivating the passenger's airbag ........................... 86-87, 106
Roll-over bars ...........................
102
