1MONITORING
37
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
MONOCHROME SCREEN C
* With air conditioning only.
Displays in the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to correspond- ing section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "Back" button. From your
PEUGEOT Connect Sound
control panel, you can:
 press the "MENU" button to gain
access to the main menu ,
 press the "  " or "  " buttons to
scroll through the items on the
screen,
 press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
 press the "  " or "  " buttons to
change a setting value,
 press the "OK" button to confi rm,
or
 press the "Back" button to abandon
the operation in progress.  Press the
"MENU" button to gain
access to the main menu :
- audio functions,
- trip computer
- personalisation-confi guration,
- telephone (hands-free kit).
 Press the "  " or "  " buttons to se-
lect the menu required, then confi rm
by pressing the "OK" button.
Controls Main menu

1
!
MONITORING
39
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- directional headlamps (refer to the
"Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
- rear parking sensors (refer to the "Driving" section).
"Telephone" menu
With the PEUGEOT Connect Sound
switched on, once this menu has been
selected you can confi gure your Blue-
tooth hands-free system (pairing), con-
sult the various telephone directories
(calls log, services...) and manage your
communications (pick up, hang up, call
waiting, secret mode...).
For further details concerning the "Tele-
phone" application, refer to the PEUGEOT
Connect Sound section. Display confi guration
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, E spanol,
Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Türkçe ** ).
Example: setting of the duration of the
"guide-me-home" lighting
"Personalisation-Configuration"
menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.  Press the "
 " or "  " buttons, then
the "OK" button to select the menu
required.
 Press the "  " or "  " buttons,
then the "OK" button to select the
"Guide-me-home headlamps" line.
 Press the "  " or "  " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK" button
to confi rm.
 Press the "  " or "  " buttons, then
the "OK" button to select the "OK"
box and confi rm or press the "Back"
button to cancel.
** According to country.

1
i
MONITORING
40
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
16/9 COLOUR SCREEN (WITH
PEUGEOT CONNECT NAVIGATION)
Displays in the screen
This displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-played fl ashes if there is a risk of ice),
- openings check,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information,
- satellite navigation system informa- tion.
Controls
From the PEUGEOT Connect Naviga-
tion control panel, to select one of the
applications:
 press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button for
access to the corresponding menu,
 turn the navigator to move the se- lection,
 press the navigator to confi rm the selection,
or
 press the "Back" button to abandon
the current operation and return to
the previous display. For more information on these
applications, refer to the "Audio
equipment and telematics" sec-
tion or to the specifi c user guide
given to you with the other owner's
documents.

9PRACTICAL INFORMATION
144
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Fuse N° Rating Functions
F8 20 A Audio/telephone, multifunction screen, steering
mounted controls, tyre under-infl ation detection,
trailer fusebox, alarm (accessory).
F9 30 A Front 12 V socket, front courtesy lamp, map
reading lamps, sun visor lighting, glove box lighting.
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F 11 15 A Diagnostic socket, low current ignition switch,
automatic gearbox control unit.
F12 15 A Sunshine sensor, trailer fusebox,
retractable roof.
F13 5 A Engine fusebox, ABS relay, dual-function brake
switch.
F14 15 A
Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, audio equipment,
Bluetooth system, rear parking sensors control unit.
F15 30 A Locking and deadlocking.
F17 40 A Heated rear screen and door mirrors.
SH - PARC shunt.

163
207CC_EN_CHAP11B_RNEG_ED01-2014

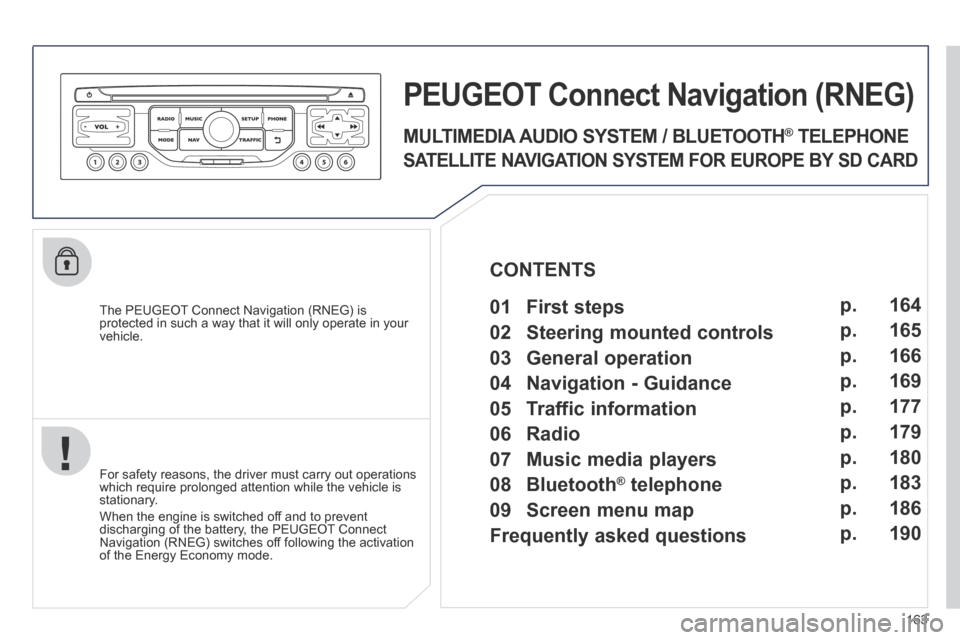

The PEUGEOT Connect Navigation (RNEG) is protected in such a way that it will only operate in your vehicle.
PEUGEOT Connect Nonnect Nonnectavigation (RNEG)
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the PEUGEOT Connect Navigation (RNEG) switches off following the activation of the Energy Economy mode.
MULTIMEDIA AUDIO SYSTEM / BLUETOOTH ® TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD
01 First steps CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Radio
07 Music media players
08 Bluetooth
® telephone
09 Screen menu map
Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
164
165
166
169
177
179
180
183
186
190

164
01
207CC_EN_CHAP11B_RNEG_ED01-2014
FIRST STEPS
Engine not running:
- Short press: on/off.
- Long press: pause with CD play, mute for radio.
Engine running:
- Short press: pause with CD play, mute for radio.
- Long press: reinitialise the system.
Access to the Radio Menu. Display the list of stations.
Access to the Music Menu. Display tracks.
Long press: audio settings: front/rear fader, left/right balance, bass/treble, musical ambience, loudness, automatic volume, reinitialise settings.
Selection dial for the screen display and according to the menu.
Short press: contextual menu or confi rm.
Long press: contextual menu specifi c to the list displayed.
Access to the "SETUP" menu.
Long press: GPS coverage and demonstration mode.
Access to the Phone Menu. Display the list of calls.
Eject CD.
Select previous/next radio station.
Select previous CD or MP3 track.
Select previous/next line in a list.
Select previous/next radio station in the list.
Select previous/next MP3 folder.
Select previous/next page in a list.
Abandon current operation. Access to the Traffi c Menu. Display the current traffi c alerts.
Reader for navigation SD card only.
Access to the Navigation Menu. Display recent destinations.
Access to the "MODE" menu.
Select successive display of:
Radio, Map, NAV (if navigation in progress), Telephone (if conversation in progress), Trip computer.
Long press: Black screen (DARK).
Buttons 1 to 6:
Select a pre-set radio station.
Long press: pre-set the current station.
Adjust volume (each source is independent, including navigation messages and alerts).

165
02
207CC_EN_CHAP11B_RNEG_ED01-2014
STEERING MOUNTED CONTROLS
RADIO: select the previous/next pre-set station.
Select the next entry in the address book.
RADIO: change to the next radio station in the list.
Long press: automatic search for a higher frequency.
CD: select the next track.
CD: continuous press: fast forward play.
Volume increase.
Change the audio source.
Start a call from the address book.
Call/End call on the telephone.
Press for more than 2 seconds: access to the address book.
Volume decrease.
RADIO: change to the previous radio station in the List.
Long press: automatic search for a lower frequency.
CD: select the previous track.
CD: continuous press: fast reverse.
Mute: press the volume increase and decrease buttons simultaneously.
Restore the sound by pressing one of the two volume buttons.

166
03
207CC_EN_CHAP11B_RNEG_ED01-2014

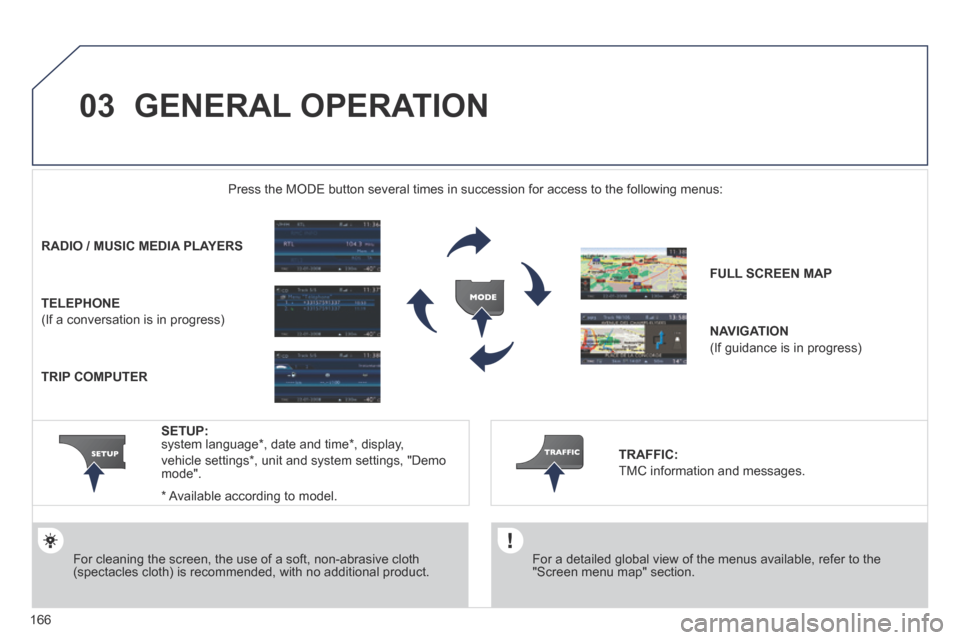

GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Screen menu map" section.
Press the MODE button several times in succession for access to the foll\
owing menus:
For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product.
RADIO / MUSIC MEDIA PLAYERS / MUSIC MEDIA PLAYERS
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION
(If guidance is in progress)
SETUP: system language * , date and time * , display,
vehicle settings * , unit and system settings, "Demo mode".
TRAFFIC:
TMC information and messages.
* Available according to model.
TRIP COMPUTER

167
03
207CC_EN_CHAP11B_RNEG_ED01-2014
GENERAL OPERATION
A press on the OK dial gives access to short-cut menus according to the display on the screen.

DISPLAY ACCORDING TO THE CONTEXT
NAVIGATION (IF GUIDANCE IS IN PROGRESS): TRIP COMPUTER:
Abort guidance
Repeat advice
Block road
Route info
Show destination
Trip info
Route type
Avoid
Satellites
Zoom/Scroll
Voice advice
Route options
Alert log
Status of functions
1
2
3
3
2
1
1
1
3
1
1
1
1
2
TELEPHONE:
End call
Hold call
Dial
DTMF-Tones
Private mode
Micro off
1
1
1
1
1
1

183
08
1
2
3
4
207CC_EN_CHAP11B_RNEG_ED01-2014

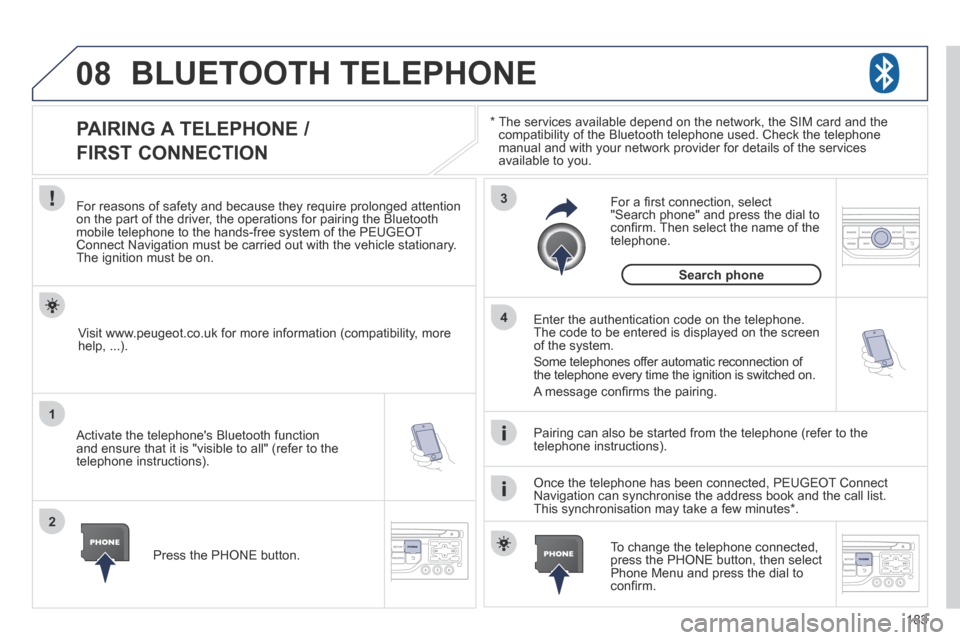

BLUETOOTH TELEPHONE
* The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services available to you.
PAIRING A TELEPHONE /
FIRST CONNECTION
For reasons of safety and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth mobile telephone to the hands-free system of the PEUGEOT Connect Navigation must be carried out with the vehicle stationary. The ignition must be on.
Activate the telephone's Bluetooth function and ensure that it is "visible to all" (refer to the telephone instructions).
Enter the authentication code on the telephone. The code to be entered is displayed on the screen of the system.
Some telephones offer automatic reconnection of the telephone every time the ignition is switched on.
A message confi rms the pairing.
To change the telephone connected, press the PHONE button, then select Phone Menu and press the dial to confi rm.
Once the telephone has been connected, PEUGEOT Connect Navigation can synchronise the address book and the call list. This synchronisation may take a few minutes * .
Pairing can also be started from the telephone (refer to the telephone instructions).
Visit www.peugeot.co.uk for more information (compatibility, more help, ...).
Press the PHONE button.
For a fi rst connection, select "Search phone" and press the dial to confi rm. Then select the name of the telephone.
Search phone
