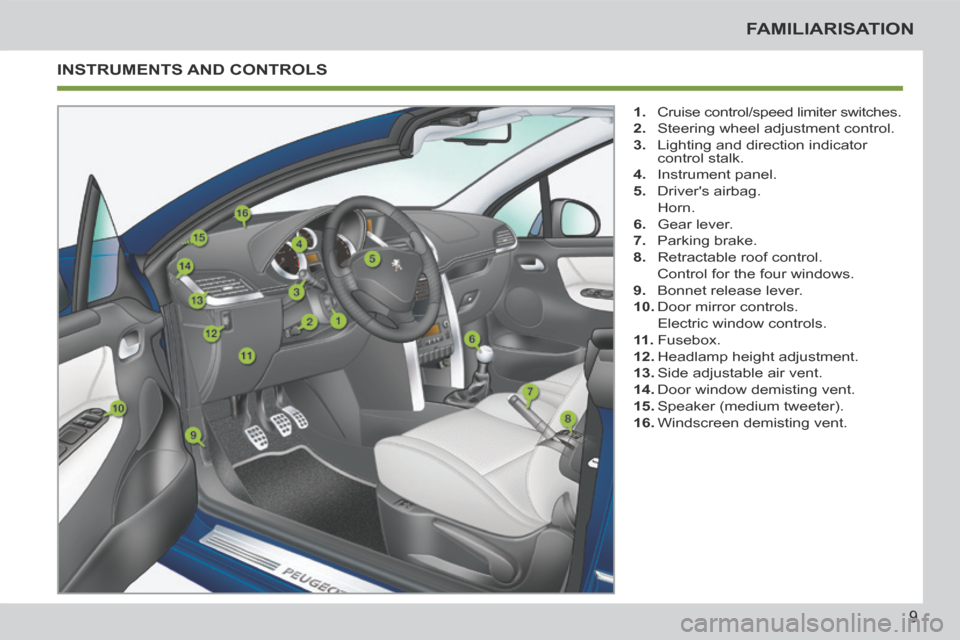

INSTRUMENTS AND CONTROLS
1. Cruise control/speed limiter switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. Retractable roof control.
Control for the four windows.
9. Bonnet release lever.
10. Door mirror controls.
Electric window controls.
11 . Fusebox.
12. Headlamp height adjustment.
13. Side adjustable air vent.
14. Door window demisting vent.
15. Speaker (medium tweeter).
16. Windscreen demisting vent.

i
!
11
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

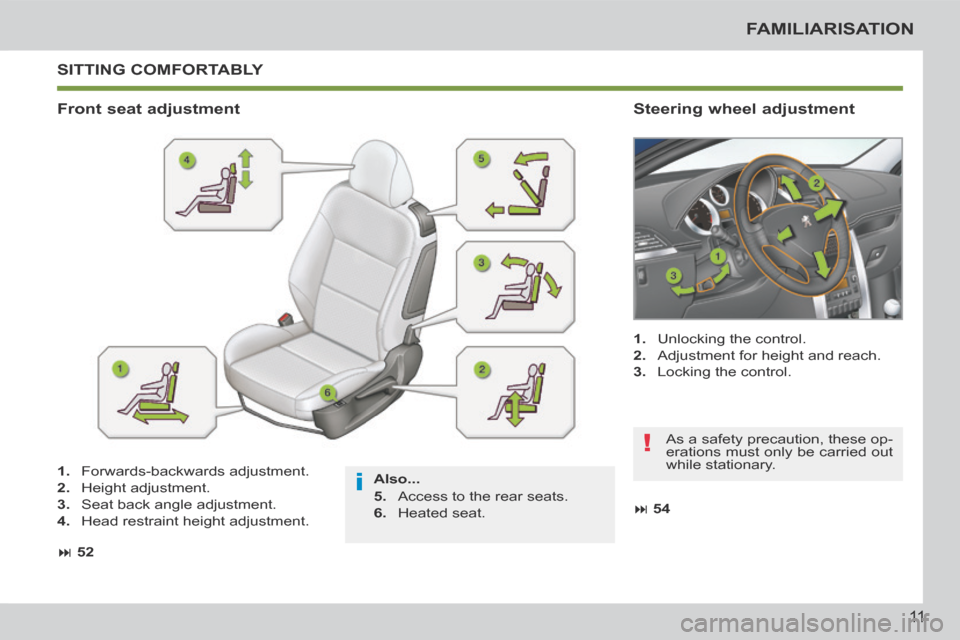

SITTING COMFORTABLY
Also...
5. Access to the rear seats.
6. Heated seat.
Front seat adjustment Steering wheel adjustment
1. Forwards-backwards adjustment.
2. Height adjustment.
3. Seat back angle adjustment.
4. Head restraint height adjustment. 1. Unlocking the control.
2. Adjustment for height and reach.
3. Locking the control.
As a safety precaution, these op-
erations must only be carried out
while stationary.
 52  54

2
!i!
COMFORT
54
207CC_EN_CHAP02_CONFORT_ED01-2014
REAR SEATS
Fixed two-seat bench fi tted with roll-
over bars to ensure your protection
should the vehicle roll over. Following an accident, have the roll-
over bars checked by a PEUGEOT
dealer.
STEERING WHEEL ADJUSTMENT
 When stationary , pull the control lever to release the adjustment
mechanism.
 Adjust the height and reach to suit your driving position.
 Push the control lever to lock the ad- justment mechanism.
As a safety precaution, these op-
erations should only be carried out
with the vehicle stationary.
6. Heated seats switch
With the engine running, the front seats
can be heated separately.
 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High
The seat heating switch settings
remain memorised for two min-
utes after the ignition has been
switched off.

4
i
83
VISIBILITY
207CC_EN_CHAP04_VISIBILITE_ED01-2014

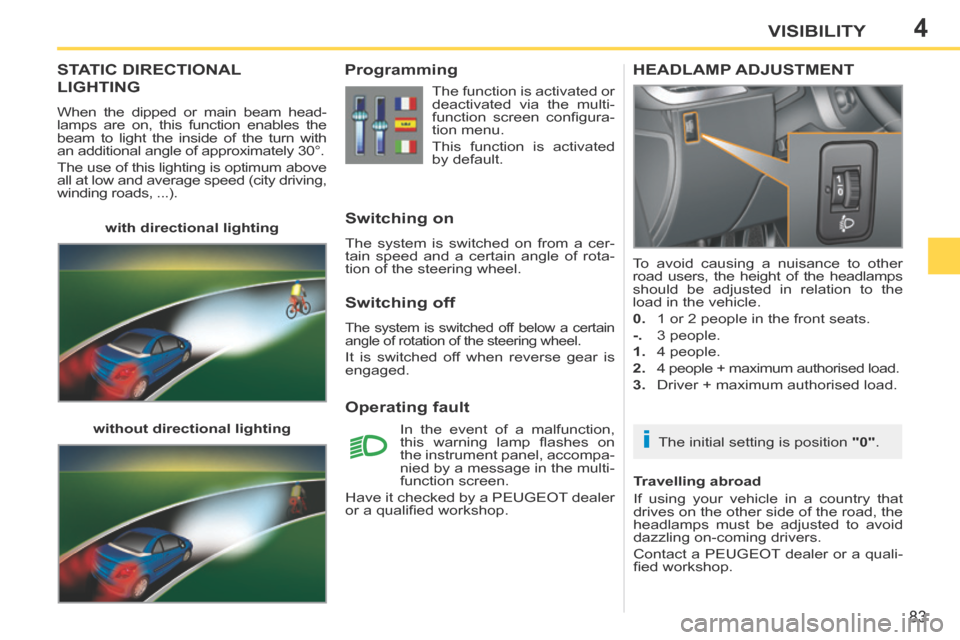

STATIC DIRECTIONAL
LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
beam to light the inside of the turn with
an additional angle of approximately 30°.
The use of this lighting is optimum above
all at low and average speed (city driving,
winding roads, ...). with directional lighting
without directional lighting
Programming Switching on
The system is switched on from a cer-
tain speed and a certain angle of rota-
tion of the steering wheel.
Operating fault
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default.
In the event of a malfunction,
this warning lamp fl ashes on
the instrument panel, accompa-
nied by a message in the multi-
function screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the
load in the vehicle.
0.
1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
2. 4 people + maximum authorised load.
3. Driver + maximum authorised load.
Switching off
The system is switched off below a certain
angle of rotation of the steering wheel.
It is switched off when reverse gear is
engaged.
Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
