Page 15 of 223
!
18
The indicator/warning light comes
o n c o n t i n u o u s l y o r l a s h e s .
Some indicator/warning lights may
light in two different ways. Only by
relating the type of lighting to the
vehicle operating status can it be
ascertained whether the situation
is normal or whether a fault has oc-
curred.
Indicator and warning lights
Visual indicators which inform the driver
when a system comes into operation (ope
ration or deactivation indicator lights)
or of the occurrence of a fault (warning
light).
Associated warnings
The lighting of certain indicator/warning
lights may be accompanied by an audible
signal and a message on the multifunc-
tion display. Operation indicator lights
The lighting of one of the following indi-
c a t o r l i g h t s c o n i r m s t h a t t h e c o r r e s p o n
ding system has come into operation.
Left-hand direction indicator.
Handbrake applied.
Right-hand direction indicator.
Main beam headlamps.
Dipped headlamps.
Diesel engine pre-heating.
Wait until this switches off before
operating the starter.
Front fog lamps.
Rear fog lamps.
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle ignition is
switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the text relating to the warning
light concerned.
Page 18 of 223
21
Air bags.
The lighting of this warning
light indicates the occurrence
of a fault in one of the air bags
(front, side or curtain) or pre-tensioning
seat belt systems.
Dynamic stability control
(ESP).
The ESP system is activated
automatically when the vehicle
is started.
Unless the system has been deactiva-
ted, continuous lighting of this warning
l i g h t a n d l a s h i n g o f t h e i n d i c a t o r l i g h t
on the button indicate the occurrence of
a fault in this system.
Engine autodiagnostics
system.
The lighting of this warning light
indicates the occurrence of a
fault in the engine management system.
Flashing of this warning light indicates
the occurrence of a fault in the emission
control system.
Engine oil pressure.
The lighting of this warning light
indicates the occurrence of a
fault in the engine lubrication
circuit. It is imperative that the vehicle is
stopped as soon as it is safe to do so. Battery charge.
The lighting of this warning light
indicates the occurrence of a
fault in the battery charging cir-
cuit (dirty or loose terminals, slack or
cut alternator belt, ...).
Braking.
The lighting of this warning light
indicates the occurrence of a fault
in one of the braking systems:
- significant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (if lit at the same time
as the ABS warning light).
It is imperative that the vehicle is
stopped as soon as it is safe to do so.
If the vehicle is moving, check that the
handbrake has been released fully.
Low fuel level.
The lighting of this warning light
indicates that there is enough
fuel left to drive approximately
30 miles (50 km).
The capacity of the fuel tank is approxi-
mately 50 litres.
Maximum coolant
temperature.
The lighting of this warning light
indicates an excessively high
temperature in the cooling system. It is
imperative that the vehicle is stopped
as soon as it is safe to do so. Door open.
A door, the boot, the rear screen
or the bonnet is still open:
- if the speed is below 6 mph (10 km/h), this warning light comes on continu-
ously,
-
if the speed is above 6 mph (10 km/h),
this warning light comes on continuous-
ly, accompanied by an audible sig
nal.
Seat belt not fastened /
unfastened.
The lighting of this warning light
indicates that the driver * and/or
the front passenger has not fastened
his seat belt or has unfastened it.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Power steering.
The lighting of this warning light
indicates the occurrence of a fault
in the electric power steering.
Presence of water in diesel * .
The lighting of this warning light
indicates the presence of water
i n t h e d i e s e l i l t e r .
There is a risk of damage to the injec-
tion system on Diesel engines.
Directional headlamps.
Flashing of this warning light
indicates the occurrence of a
fault in the directional head-
lamps system.
* According to country.
Page 25 of 223
!
28
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty). Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Wait for approximately ten sec-
onds without any action to allow
the changed data to be recorded or
press the "ESC" button to cancel.
The display then returns to the normal
display.
O n c e t h e " V e h i c l e c o n i g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- "follow-me-home" lighting (refer to the "Visibility" section).
For safety reasons, it is imperative
t h a t c o n i g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100km, mpg or
km/l).
V e h i c l e c o n i g u r a t i o n
Once you have selected a setting,
press the "OK" button to change its
value.
Page 27 of 223
!
30
For safety reasons, it is imperative
t h a t c o n i g u r a t i o n o f t h e m u l t i f u n c t i o n
displays by the driver takes place
when stationary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Neder lands , Por t ugues , Por t ugues -
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
or next setting.
Press the "OK" button to record the
change and return to the normal dis-
play or press the "ESC" button to
cancel.
V e h i c l e c o n i g u r a t i o n
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty).
O n c e t h e " V e h i c l e C o n i g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- "follow-me-home" lighting (refer to the "Visibility" section).
Page 28 of 223
31
MONOCHROME SCREEN C General menu
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s l a s h - es if there is a risk of ice),
- the status of the accesses (doors, boot,...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the " ESC " button. "Audio functions" menu
With the RD4 audio equipment switched
on, once this menu has been selected
you can activate or deactivate the func-
tions linked with use of the radio (RDS,
REG, RadioText), the CD or the CD
c h a n g e r ( i n t r o s c a n , s h u f l e , C D r e p e a t ) .
For further details concerning the "Au-
dio functions" application, refer to the
RD4 part of the "Audio and Telematics"
section. Controls
From the RD4 audio equipment control
panel, you can:
press the " MENU " button to gain ac-
cess to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the " MODE " button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the " OK " b u t t o n t o c o n i r m ,
or
press the " ESC" button to abandon
the operation in progress.
Press the " MENU " button to gain ac-
cess to the general menu :
- audio functions,
- trip computer (refer to the end of the section),
- p e r s o n a l i s a t i o n - c o n i g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n i r m
by pressing the " OK " button.
* With air conditioning only.
Page 30 of 223
!
33
D e i n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- "follow-me-home" lighting (refer to the "Visibility" section). D i s p l a y c o n i g u r a t i o n
Once this menu has been selected, you
can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Selection of the language
Once this menu has been selected, you
can change the screen display language
(Deutsch, English, Espanol, Français,
Italiano, Nederlands, Portugues, Portu-
gues-Brasil).

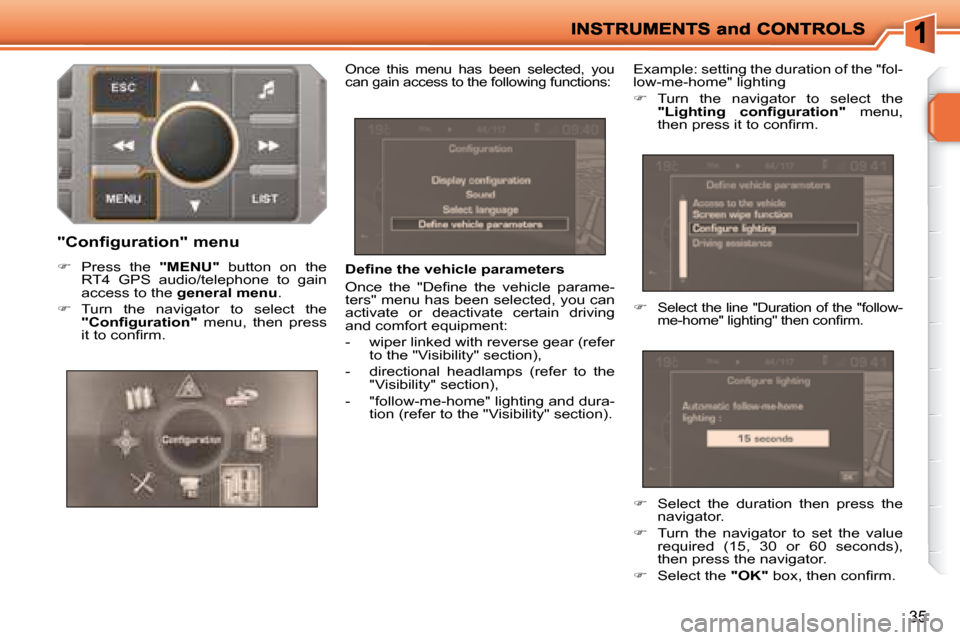

Example: setting of the duration of the
"follow-me-home" lighting
"Personalisation-Configuration"
menu
Once this menu has been selected, you
can gain access to the following functions:
- d e i n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n i g u r a t i o n ,
- selection of the language.
Press the " " or " " buttons, then
the " OK " button to select the menu
required.
Press the " " or " " buttons, then
the " OK " button to select the "Fol-
low-me-home lighting" line.
Press the " " or " " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the " OK " button to
c o n i r m .
Press the " " or " " buttons, then
the " OK " button to select the " OK "
b o x a n d c o n i r m o r p r e s s t h e " ESC "
button to cancel.
"Telephone" menu
With the RD4 audio equipment switched
on, once this menu has been select-
e d y o u c a n c o n i g u r e y o u r B l u e t o o t h
hands-free kit (matching), consult the
various telephone directories (calls log,
services, ...) and manage your commu-
nications (pick up, hang up, call waiting,
secret mode, ...).
For further details concerning the "Tele
phone" application, refer to the RD4 part
of the "Audio and Telematics" section.
For safety reasons, it is imperative
t h a t c o n i g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Page 31 of 223
34
COLOUR SCREEN 16/9
Displays on the screen When the RT4 GPS audio/telephone is
switched on, select the menu which cor-
responds to the following applications:
- the satellite navigation system,
- the guidance on the map,
- t h e t r a f i c i n f o r m a t i o n ,
- the audio sources (radio, CD, Juke-
box, ...),
- the phone books and the telephone functions,
- t h e c o n i g u r a t i o n o f t h e s c r e e n a n d the setting of the parameters of the
vehicle's equipment,
- the displaying of a video,
- the vehicle diagnostics. Controls
When the ignition is switched on, this
displays the following information auto-
matically and directly:
- the time,
- the date,
- the outside temperature (if there is a risk of ice, you are warned by a
message).
Warning messages (e.g.: "Fuel level
low") and vehicle function status mes-
sages (e.g.: "Automatic switching on of
the headlamps activated") may appear
temporarily. These can be cleared by
pressing the "ESC" button. From the RT4 GPS audio/telephone
control panel, to select one of the ap-
plications:
press the "MENU" button to gain
access to the general menu ,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n i r m t h e
selection,
or
press the "ESC" button to abandon
the operation in progress and return
to the previous display.
For further details concerning these ap-
plications, refer to the RT4 part of the
"Audio and Telematics" section.
General menu
Page 32 of 223
35
D e i n e t h e v e h i c l e p a r a m e t e r s
O n c e t h e " D e i n e t h e v e h i c l e p a r a m e -
ters" menu has been selected, you can
activate or deactivate certain driving
and comfort equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- "follow-me-home" lighting and dura- tion (refer to the "Visibility" section). Example: setting the duration of the "fol-
low-me-home" lighting
Turn the navigator to select the
" L i g h t i n g c o n i g u r a t i o n " menu,
t h e n p r e s s i t t o c o n i r m .
Select the line "Duration of the "follow-
m e - h o m e " l i g h t i n g " t h e n c o n i r m .
"Configuration" menu
Press the "MENU" button on the
RT4 GPS audio/telephone to gain
access to the general menu .
Turn the navigator to select the
" C o n i g u r a t i o n " menu, then press
i t t o c o n i r m .
Once this menu has been selected, you
can gain access to the following functions:
Select the duration then press the
navigator.
Turn the navigator to set the value
required (15, 30 or 60 seconds),
then press the navigator.
Select the "OK" b o x , t h e n c o n i r m .
Page 90 of 223

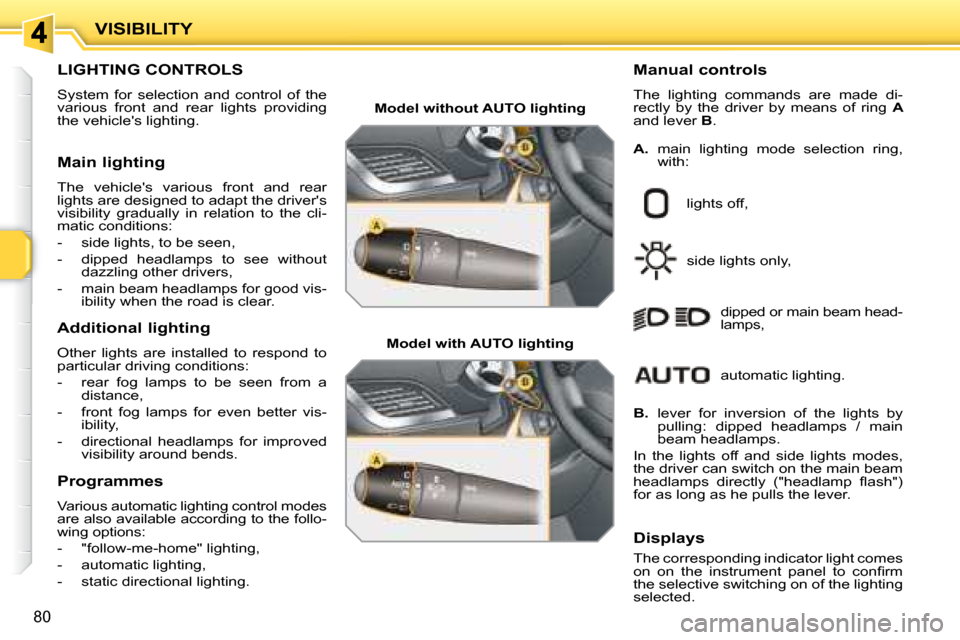

LIGHTING CONTROLS
System for selection and control of the
various front and rear lights providing
the vehicle's lighting. Manual controls
The lighting commands are made di-
rectly by the driver by means of ring
A
and lever B .
lights off,
side lights only, dipped or main beam head-
lamps,
B. lever for inversion of the lights by
pulling: dipped headlamps / main
beam headlamps.
In the lights off and side lights modes,
the driver can switch on the main beam
h e a d l a m p s d i r e c t l y ( " h e a d l a m p l a s h " )
for as long as he pulls the lever.
Displays
The corresponding indicator light comes
o n o n t h e i n s t r u m e n t p a n e l t o c o n i r m
the selective switching on of the lighting
selected.
Main lighting
The vehicle's various front and rear
lights are designed to adapt the driver's
visibility gradually in relation to the cli-
matic conditions:
- side lights, to be seen,
- dipped headlamps to see without
dazzling other drivers,
- main beam headlamps for good vis- ibility when the road is clear.
Additional lighting
Other lights are installed to respond to
particular driving conditions:
- rear fog lamps to be seen from a distance,
- front fog lamps for even better vis- ibility,
- directional headlamps for improved visibility around bends.
Programmes
Various automatic lighting control modes
are also available according to the follo-
wing options:
- "follow-me-home" lighting,
- automatic lighting,
- static directional lighting.
A. main lighting mode selection ring,
with:
Model without AUTO lighting
Model with AUTO lighting automatic lighting.
VISIBILITY
80
Page 91 of 223
!
i
81
Model with rear fog lamps only
Model with front and rear fog lamps front and rear fog lamps
rear fog lamps
C. fog lamps selection ring.
These operate with the dipped and main
beam headlamps.
To switch on the fog lamps, turn
push ring C forwards.
When the lights are switched off au-
t o m a t i c a l l y ( o n A U T O m o d e l ) , t h e f o g
lamps and the dipped headlamps will
remain on.
To switch off all of the lights, turn
push ring C rearwards.
To switch on the fog lamps, turn
push ring C forwards.
To switch off the rear fog lamps, turn
push ring C rearwards twice in suc-
cession.
When the lights are switched off auto-
m a t i c a l l y ( o n A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the fog lamps and the side
lights will remain on.
Turn the ring rearwards to switch
off the fog lamps, the side lights will
then switch off. In good weather or in rain, both day
and night, the front fog lamps and
the rear fog lamps are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
Do not forget to switch off the front
fog lamps and the rear fog lamps
when they are no longer neces-
sary.
Lights on reminder
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle's lights, with
the ignition off.
In this case, switching off the lights
will stop the audible signal.
When the ignition is switched off, if
the dipped headlamps remain on,
they will be switched off automati-
cally after thirty minutes to prevent
discharging of the battery.
