Peugeot 207 Dag 2007.5 Workshop Manual
Manufacturer: PEUGEOT, Model Year: 2007.5, Model line: 207 Dag, Model: Peugeot 207 Dag 2007.5Pages: 223, PDF Size: 9.01 MB
Page 51 of 223
!
!
50
No person or object must prevent
the seat slide from returning to its
initial position; return to this posi-
tion is necessary for the seat to
lock in place.
Take care not to trap the seat belt
to avoid hindering the passage of
the rear passengers.

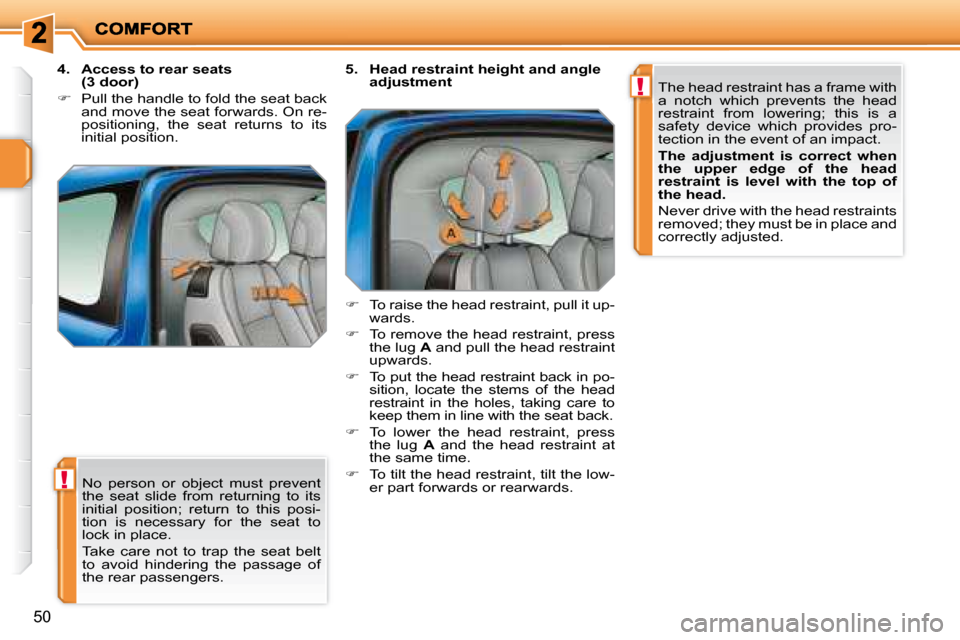

4. Access to rear seats
(3 door)
Pull the handle to fold the seat back
and move the seat forwards. On re-
positioning, the seat returns to its
initial position. 5. Head restraint height and angle
a d j u s t m e n t
To raise the head restraint, pull it up-
wards.
To remove the head restraint, press
the lug A and pull the head restraint
upwards.
To put the head restraint back in po-
sition, locate the stems of the head
restraint in the holes, taking care to
keep them in line with the seat back.
To lower the head restraint, press
the lug A and the head restraint at
the same time.
To tilt the head restraint, tilt the low-
er part forwards or rearwards. The head restraint has a frame with
a notch which prevents the head
restraint from lowering; this is a
safety device which provides pro-
tection in the event of an impact.
T h e a d j u s t m e n t i s c o r r e c t w h e n
the upper edge of the head
restraint is level with the top of
the head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Page 52 of 223
!
i
51

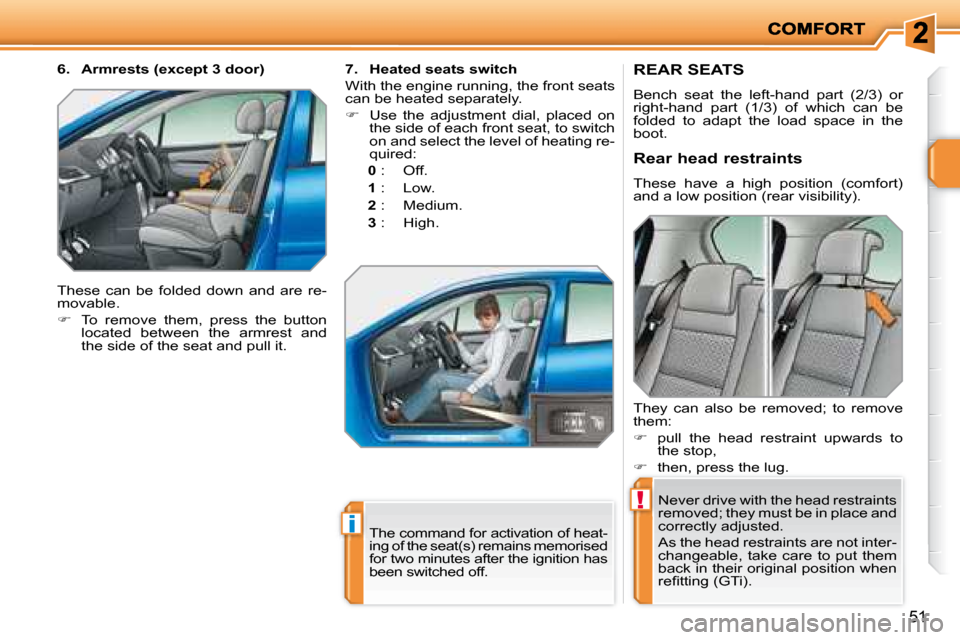

REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e i t t i n g ( G T i ) .
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
The command for activation of heat-
ing of the seat(s) remains memorised
for two minutes after the ignition has
been switched off.
7. Heated seats switch
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
They can also be removed; to remove
them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3 door)
These can be folded down and are re-
movable.
To remove them, press the button
located between the armrest and
the side of the seat and pull it.
Page 53 of 223
!
i
51
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e i t t i n g ( G T i ) .
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
The command for activation of heat-
ing of the seat(s) remains memorised
for two minutes after the ignition has
been switched off.
7. Heated seats switch
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
They can also be removed; to remove
them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3 door)
These can be folded down and are re-
movable.
To remove them, press the button
located between the armrest and
the side of the seat and pull it.
Page 54 of 223
!
i
52

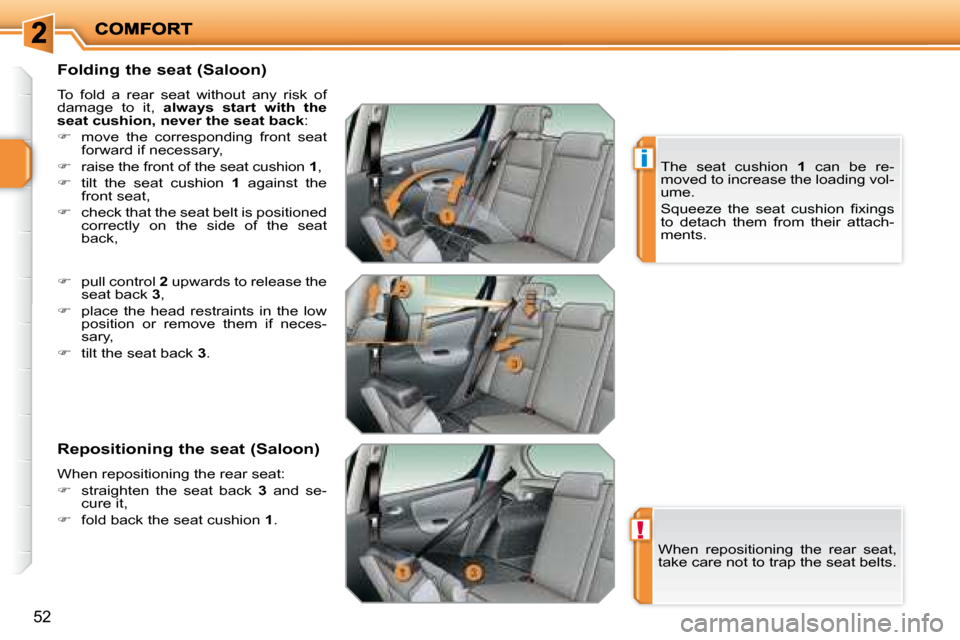

Folding the seat (Saloon)
To fold a rear seat without any risk of
damage to it, always start with the
seat cushion, never the seat back :
move the corresponding front seat
forward if necessary,
raise the front of the seat cushion 1 ,
tilt the seat cushion 1 against the
front seat,
check that the seat belt is positioned
correctly on the side of the seat
back,
Repositioning the seat (Saloon)
When repositioning the rear seat:
straighten the seat back 3 and se-
cure it,
fold back the seat cushion 1 .
pull control 2 upwards to release the
seat back 3 ,
place the head restraints in the low
position or remove them if neces-
sary,
tilt the seat back 3 .
When repositioning the rear seat,
take care not to trap the seat belts. The seat cushion
1 can be re-
moved to increase the loading vol-
ume.
S q u e e z e t h e s e a t c u s h i o n i x i n g s
to detach them from their attach-
ments.
Page 55 of 223
!
i
51
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
r e i t t i n g ( G T i ) .
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
The command for activation of heat-
ing of the seat(s) remains memorised
for two minutes after the ignition has
been switched off.
7. Heated seats switch
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
They can also be removed; to remove
them:
pull the head restraint upwards to
the stop,
then, press the lug.
6. Armrests (except 3 door)
These can be folded down and are re-
movable.
To remove them, press the button
located between the armrest and
the side of the seat and pull it.
Page 56 of 223
!
i
53

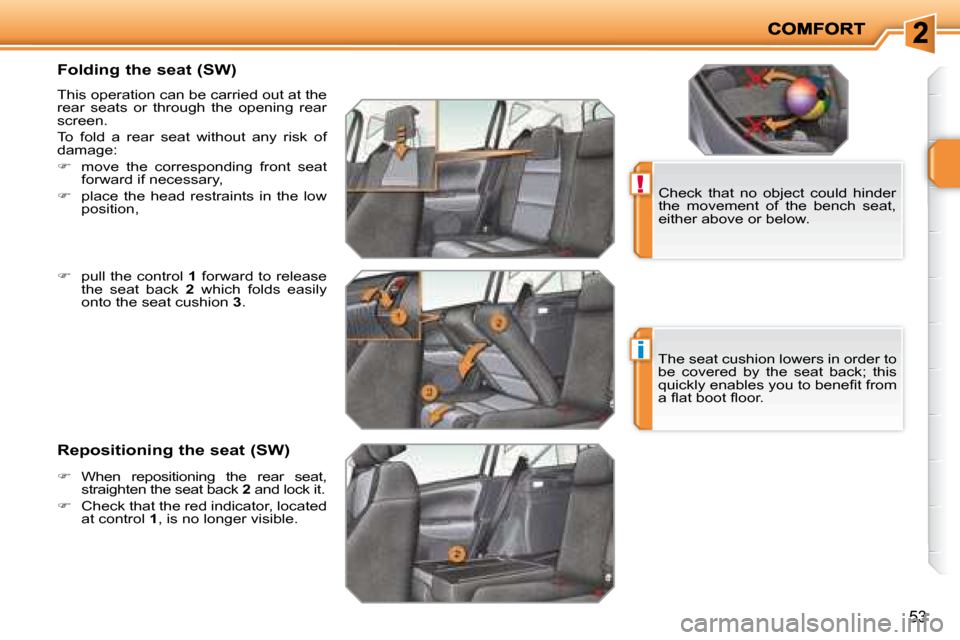

Folding the seat (SW)
This operation can be carried out at the
rear seats or through the opening rear
screen.
To fold a rear seat without any risk of
damage:
move the corresponding front seat
forward if necessary,
place the head restraints in the low
position, Check that no object could hinder
the movement of the bench seat,
either above or below.
Repositioning the seat (SW) The seat cushion lowers in order to
be covered by the seat back; this
q u i c k l y e n a b l e s y o u t o b e n e i t f r o m
a l a t b o o t l o o r .
pull the control 1 forward to release
the seat back 2 which folds easily
onto the seat cushion 3 .
When repositioning the rear seat,
straighten the seat back 2 and lock it.
Check that the red indicator, located
at control 1 , is no longer visible.
Page 57 of 223
i
!
54

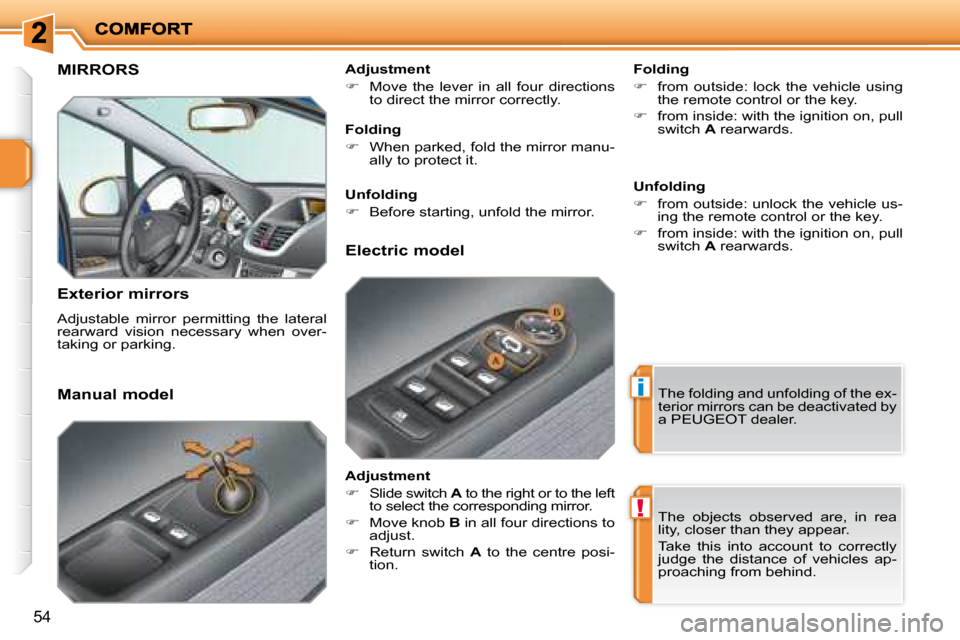

MIRRORS
Exterior mirrors
Adjustable mirror permitting the lateral
rearward vision necessary when over-
taking or parking. Folding
from outside: lock the vehicle using
the remote control or the key.
from inside: with the ignition on, pull
switch A rearwards.
Manual model A d j u s t m e n t
Move the lever in all four directions
to direct the mirror correctly.
The folding and unfolding of the ex-
terior mirrors can be deactivated by
a PEUGEOT dealer.
Folding
When parked, fold the mirror manu-
ally to protect it.
Unfolding
Before starting, unfold the mirror.
Electric model
A d j u s t m e n t
Slide switch A to the right or to the left
to select the corresponding mirror.
Move knob B in all four directions to
adjust.
Return switch A to the centre posi-
tion. Unfolding
from outside: unlock the vehicle us-
ing the remote control or the key.
from inside: with the ignition on, pull
switch A rearwards.
The objects observed are, in rea
lity, closer than they appear.
Take this into account to correctly
judge the distance of vehicles ap-
proaching from behind.
Page 58 of 223
!
i
55

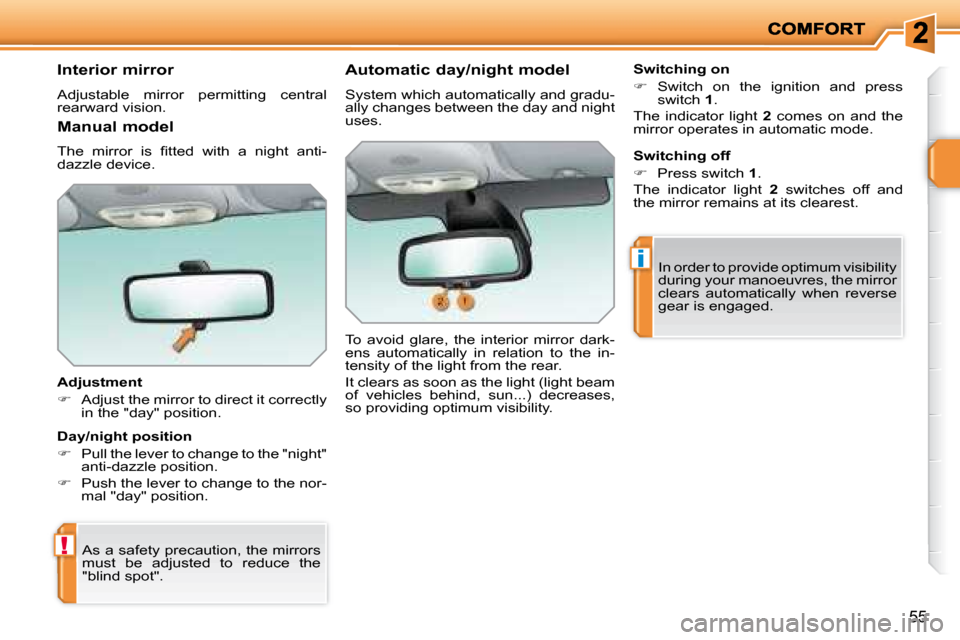

Interior mirror
Adjustable mirror permitting central
rearward vision.
A d j u s t m e n t
Adjust the mirror to direct it correctly
i n t h e " d a y " p o s i t i o n .
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " . Automatic day/night model
System which automatically and gradu-
ally changes between the day and night
uses.
To avoid glare, the interior mirror dark-
ens automatically in relation to the in-
tensity of the light from the rear.
It clears as soon as the light (light beam
of vehicles behind, sun...) decreases,
so providing optimum visibility.
Switching on
Switch on the ignition and press
switch 1 .
The indicator light 2 comes on and the
mirror operates in automatic mode.
Manual model
T h e m i r r o r i s i t t e d w i t h a n i g h t a n t i -
dazzle device.
Day/night position
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the nor-
m a l " d a y " p o s i t i o n . Switching off
Press switch 1 .
The indicator light 2 switches off and
the mirror remains at its clearest.
In order to provide optimum vi sibility
during your manoeuvres, the mirror
clears automatically when reverse
gear is engaged.
Page 59 of 223
!
i
56
STEERING WHEEL ADJUSTMENT
The height and depth of the steering
wheel can be adjusted to adapt the driv-
ing position to the size of the driver.
A d j u s t m e n t
When stationary , pull the control to
unlock the steering wheel.
Adjust the height and depth.
Push the control to lock the steering
wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
With the ignition on, raise the con-
c e a l i n g l a p ; t h e m i r r o r i s l i t a u t o m a t -
ically.
This sun visor is also equipped with a
ticket holder.
TOLL CARD / CAR PARK
TICKET WINDOWS
F a c i l i t y f o r a f i x i n g t o l l c a r d s a n d / o r c a r
park tickets.
These windows are located on each
side of the base of the interior mirror.
T h e y a r e t w o n o n - r e l e c t i v e a r e a s o f t h e
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
o f a r e l e c t i v e l a y e r , w h i c h a l s o
blocks certain radio-electric signals
(toll card payments, ...).
Page 60 of 223
!
57
To avoid any risk of jamming of the
pedals:
- only use mats which are suited t o t h e i x i n g s a l r e a d y p r e s e n t i n
the vehicle; it is imperative that
these are used.
- n e v e r i t o n e m a t o n t o p o f a n o - ther.
MAT
Removable component which protects
the carpet against exterior dirt. Refitting
T o r e i t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e i t t h e i x i n g s b y p r e s s i n g ,
check that the mat is secured correctly. Fitting
W h e n i t t i n g t h e m a t f o r t h e i r s t t i m e ,
u s e o n l y t h e i x i n g s p r o v i d e d i n t h e w a l -
let attached.
Removal
To remove the mat on the driver's side:
move the seat as far back as possible,
u n c l i p t h e i x i n g s ,
r e m o v e t h e i x i n g s , t h e n t h e m a t .
