Peugeot 207 Dag 2007.5 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2007.5, Model line: 207 Dag, Model: Peugeot 207 Dag 2007.5Pages: 223, PDF Size: 9.01 MB
Page 91 of 223
!
i
81
Model with rear fog lamps only
Model with front and rear fog lamps front and rear fog lamps
rear fog lamps
C. fog lamps selection ring.
These operate with the dipped and main
beam headlamps.
To switch on the fog lamps, turn
push ring C forwards.
When the lights are switched off au-
t o m a t i c a l l y ( o n A U T O m o d e l ) , t h e f o g
lamps and the dipped headlamps will
remain on.
To switch off all of the lights, turn
push ring C rearwards.
To switch on the fog lamps, turn
push ring C forwards.
To switch off the rear fog lamps, turn
push ring C rearwards twice in suc-
cession.
When the lights are switched off auto-
m a t i c a l l y ( o n A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the fog lamps and the side
lights will remain on.
Turn the ring rearwards to switch
off the fog lamps, the side lights will
then switch off. In good weather or in rain, both day
and night, the front fog lamps and
the rear fog lamps are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
Do not forget to switch off the front
fog lamps and the rear fog lamps
when they are no longer neces-
sary.
Lights on reminder
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle's lights, with
the ignition off.
In this case, switching off the lights
will stop the audible signal.
When the ignition is switched off, if
the dipped headlamps remain on,
they will be switched off automati-
cally after thirty minutes to prevent
discharging of the battery.
Page 92 of 223
!
82
In fog or snow, the brightness sensor
m a y d e t e c t s u f i c i e n t l i g h t . T h e r e f o r e ,
the lights will not come on automati-
cally.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters on the multifunction display
c o n i g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected (sensor behind the interior mir-
r o r ) o r w h e n t h e w i n d s c r e e n w i p e r s a r e
switched on.
As soon as the brightness returns to a
s u f i c i e n t l e v e l o r t h e w i n d s c r e e n w i p e r s
are switched off, the lights are switched
off automatically.
"Follow-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation
With the ignition off, activate a
" h e a d l a m p l a s h " u s i n g l e v e r B .
A s e c o n d " h e a d l a m p l a s h " s w i t c h e s
the function off again.
Switching off
The "follow-me-home" lighting is switched
off automatically following the door lock-
ing command, after a given time. Activation
Turn ring A to the " AUTO " position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on accompanied by the
service warning light, an audi-
ble signal and a message on the multi-
function display.
In this case, contact a PEUGEOT dealer.
Daytime lights *
O n v e h i c l e s i t t e d w i t h d a y t i m e l i g h t s ,
the dipped headlamps come on when
the vehicle is started.
This indicator light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
lit, unless the automatic switching on of
the lights mode is activated or the lights
are switched on manually.
Deactivation
Turn ring A to a position other than
" AUTO ". Deactivation is accompa-
nied by a message on the multifunc-
tion display.
* According to country.
Page 93 of 223
!
82
In fog or snow, the brightness sensor
m a y d e t e c t s u f i c i e n t l i g h t . T h e r e f o r e ,
the lights will not come on automati-
cally.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters on the multifunction display
c o n i g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected (sensor behind the interior mir-
r o r ) o r w h e n t h e w i n d s c r e e n w i p e r s a r e
switched on.
As soon as the brightness returns to a
s u f i c i e n t l e v e l o r t h e w i n d s c r e e n w i p e r s
are switched off, the lights are switched
off automatically.
"Follow-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation
With the ignition off, activate a
" h e a d l a m p l a s h " u s i n g l e v e r B .
A s e c o n d " h e a d l a m p l a s h " s w i t c h e s
the function off again.
Switching off
The "follow-me-home" lighting is switched
off automatically following the door lock-
ing command, after a given time. Activation
Turn ring A to the " AUTO " position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on accompanied by the
service warning light, an audi-
ble signal and a message on the multi-
function display.
In this case, contact a PEUGEOT dealer.
Daytime lights *
O n v e h i c l e s i t t e d w i t h d a y t i m e l i g h t s ,
the dipped headlamps come on when
the vehicle is started.
This indicator light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
lit, unless the automatic switching on of
the lights mode is activated or the lights
are switched on manually.
Deactivation
Turn ring A to a position other than
" AUTO ". Deactivation is accompa-
nied by a message on the multifunc-
tion display.
* According to country.
Page 94 of 223
i
83
STATIC DIRECTIONAL
LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
beam to light the inside of the turn with an
additional angle of approximately 30°.
The use of this lighting is optimum
above all at low and average speed
( c i t y d r i v i n g , w i n d i n g r o a d s , . . . ) .
with directional lighting Programming
Switching on
The system is switched on from a cer-
tain speed and a certain angle of rota-
tion of the steering wheel.
Operating fault The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n i g u r a -
tion menu.
By default, this function is
activated.
In the event of a malfunction,
t h i s w a r n i n g l i g h t l a s h e s o n t h e
instrument panel, accompanied
by a message on the multifunc-
tion display.
Contact a PEUGEOT dealer.
Switching off
The system is switched off below a
certain angle of rotation of the steering
wheel.
It is switched off when reverse gear is
engaged.
HEADLAMP ADJUSTMENT
The initial setting is position
"0" .
To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the
load in the vehicle.
0 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised
load.
3. Driver + maximum authorised load.
without directional lighting
Page 95 of 223
84

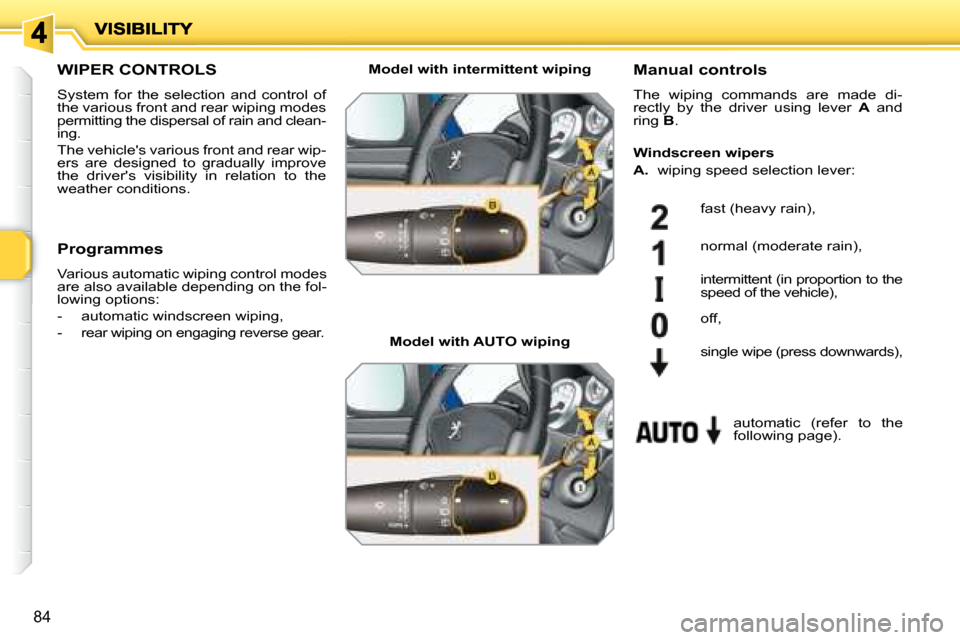

WIPER CONTROLS
System for the selection and control of
the various front and rear wiping modes
permitting the dispersal of rain and clean-
ing.
The vehicle's various front and rear wip-
ers are designed to gradually improve
the driver's visibility in relation to the
weather conditions. Manual controls
The wiping commands are made di-
rectly by the driver using lever
A and
ring B .
Model with intermittent wiping
Model with AUTO wiping f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (in proportion to the
s p e e d o f t h e v e h i c l e ) ,
automatic (refer to the
f o l l o w i n g p a g e ) .
off,
s i n g l e w i p e ( p r e s s d o w n w a r d s ) ,
Programmes
Various automatic wiping control modes
are also available depending on the fol-
lowing options:
- automatic windscreen wiping,
- rear wiping on engaging reverse gear. Windscreen wipers
A. wiping speed selection lever:
Page 96 of 223
!i
85
Windscreen and headlamp
wash
B. rear wiper selection ring:
off,
intermittent wipe,
w i p i n g w i t h s c r e e n w a s h ( i x e d
d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, if the
windscreen wipers are operating, the
rear wiper will start.
Programming
Pull the windscreen wiper stalk to-
wards you. The windscreen wash then
the windscreen wipers operate for a
i x e d p e r i o d .
The headlamp wash is also activated, if
the dipped headlamps are on .
Rear wiper
In the presence of snow or con-
siderable frost and when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
m u l t i f u n c t i o n d i s p l a y c o n i g u r a t i o n
menu. The function is activated or
switched off via the multi-
f u n c t i o n d i s p l a y c o n i g u r a -
tion menu.
By default, this function is
activated.
O n v e h i c l e s i t t e d w i t h a u t o m a t i c
air conditioning, any action on the
windscreen wash control results in
temporary closing of the air intake
to avoid odour inside the passen-
ger compartment.
Page 97 of 223
!
i
86

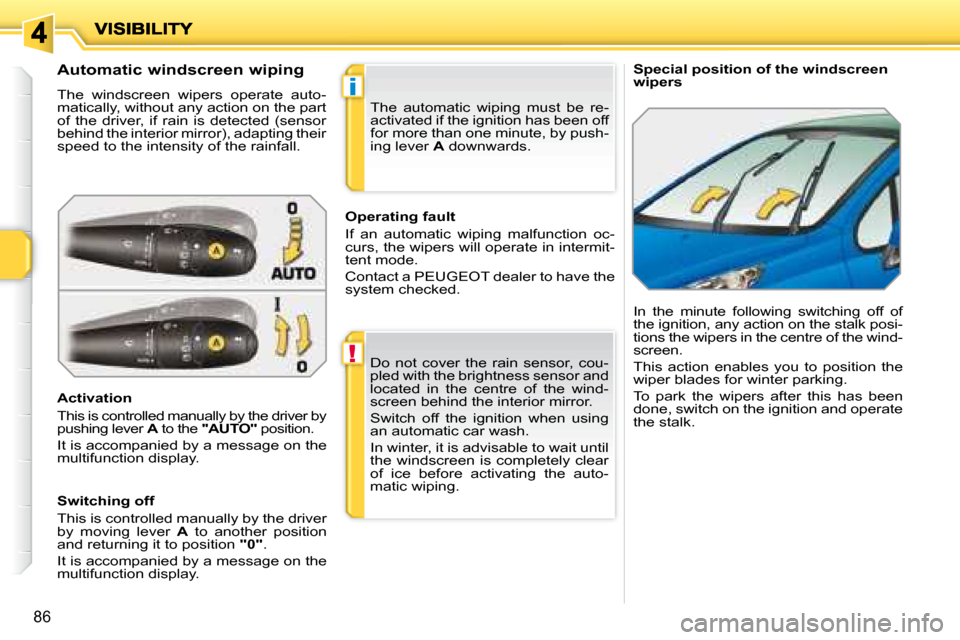

Special position of the windscreen
wipers
Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e i n t e r i o r m i r r o r ) , a d a p t i n g t h e i r
speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by
pushing lever
A to the "AUTO" position.
It is accompanied by a message on the
multifunction display. In the minute following switching off of
the ignition, any action on the stalk posi-
tions the wipers in the centre of the wind-
screen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
Do not cover the rain sensor, cou-
pled with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the ignition when using
an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing lever
A downwards.
Switching off
This is controlled manually by the driver
by moving lever A to another position
and returning it to position "0" .
It is accompanied by a message on the
multifunction display. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Contact a PEUGEOT dealer to have the
system checked.
Page 98 of 223
i
87
COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.
1. Front courtesy light
2. Map reading lights
3. Rear courtesy light Front and rear courtesy lights
In this position, the courtesy
light comes on gradually: Map reading lights
With the ignition on, press the cor-
responding switch. In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
-
when the key is removed from the ignition,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
-
30 seconds after the last door is closed.
Page 99 of 223
i
CHILD SAFETY
88
PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.
GENERAL POINTS RELATING
TO CHILD SEATS
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
air bag armed.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger air
bag is disarmed. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n l a t e .
Intermediate longitudinal position
* The rules for transporting children are s p e c i i c t o e a c h c o u n t r y . C o n s u l t t h e current legislation in your country.
Although one of PEUGEOT's main crite-
ria when designing your vehicle, the safe-
ty of your children also depends on you.
For maximum safety, please follow
these precautions:
- in accordance with Directive 2003/20, all children under the
age of 12 or less than one metre
i f t y t a l l m u s t t r a v e l i n a p p r o v e d
child seats suited to their weight ,
o n s e a t s i t t e d w i t h a s e a t b e l t o r
ISOFIX mountings * ,
- statistically, the safest seats in
y o u r v e h i c l e f o r t h e t r a n s p o r t a t i o n
of children are the rear seats,
- a child weighing less than 9 kg
m u s t t r a v e l i n t h e " r e a r w a r d s - f a c -
ing" position both in the front and
i n t h e r e a r .
Page 100 of 223
CHILD SAFETY
89
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately
22 kg), the booster is used on its own.
