Peugeot 207 Dag 2007 Manual PDF

!
73

!i
i
71

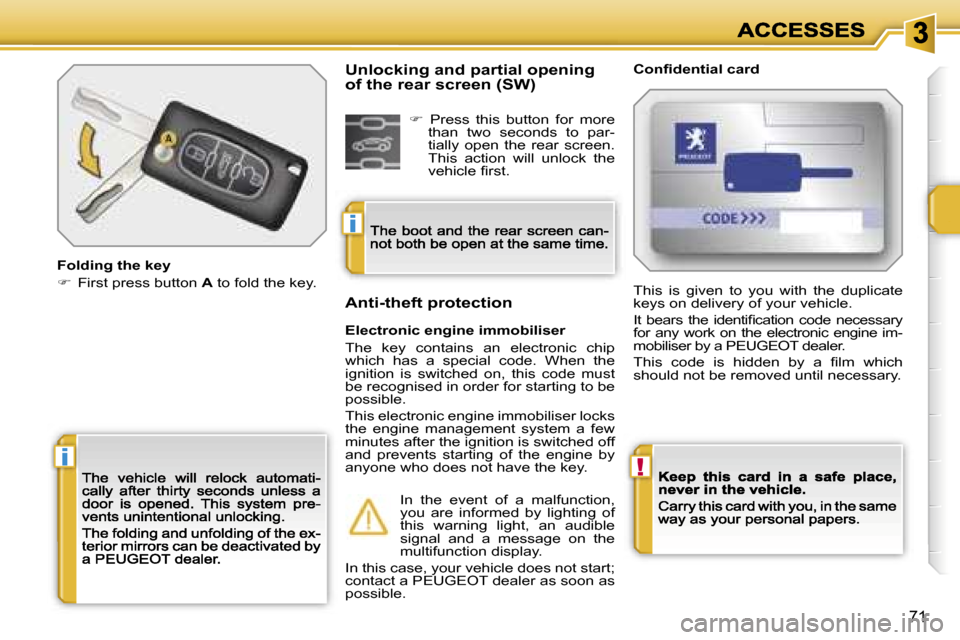

Folding the key
 First press button A to fold the key.
Confidential card
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible.
This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
Anti-theft protectionThis is given to you with the duplicate keys on delivery of your vehicle.
It bears the identification code necessary for any work on the electronic engine im-mobiliser by a PEUGEOT dealer.
This code is hidden by a film which should not be removed until necessary.
In the event of a malfunction, you are informed by lighting of this warning light, an audible signal and a message on the multifunction display.
In this case, your vehicle does not start; contact a PEUGEOT dealer as soon as possible.
Unlocking and partial opening of the rear screen (SW)
 Press this button for more than two seconds to par-tially open the rear screen. This action will unlock the vehicle first.

i
72

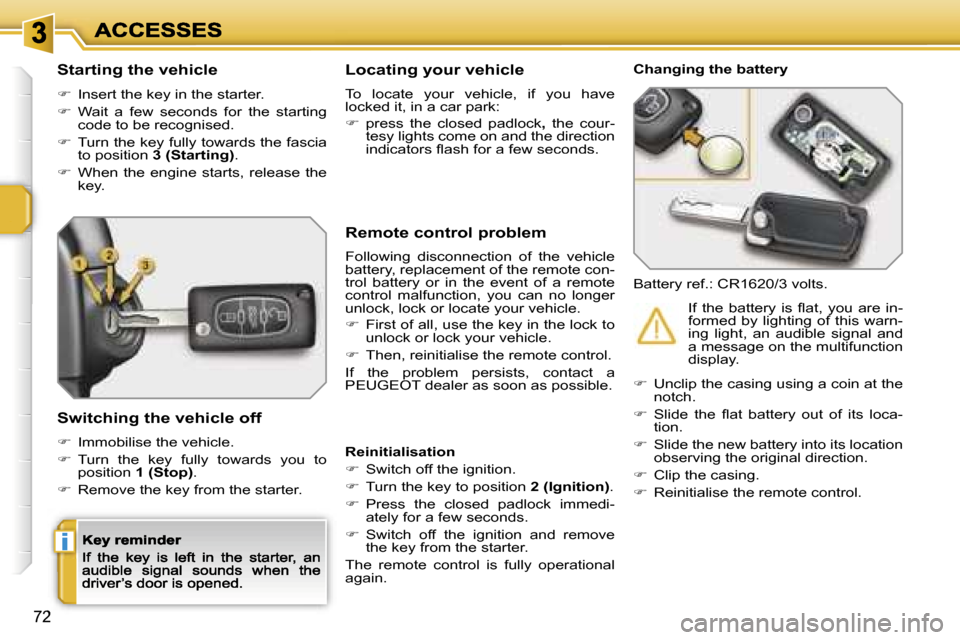

Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting code to be recognised.
 Turn the key fully towards the fascia to position 3 (Starting).
 When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote con-trol battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.
 First of all, use the key in the lock to unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immedi-ately for a few seconds.
 Switch off the ignition and remove the key from the starter.
The remote control is fully operational again.
 Unclip the casing using a coin at the notch.
 Slide the flat battery out of its loca-tion.
 Slide the new battery into its location observing the original direction.
 Clip the casing.
 Reinitialise the remote control.
If the battery is flat, you are in-formed by lighting of this warn-ing light, an audible signal and a message on the multifunction display.
Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
 press the closed padlock, the cour-tesy lights come on and the direction indicators flash for a few seconds.

!
73

i
72
Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting code to be recognised.
 Turn the key fully towards the fascia to position 3 (Starting).
 When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote con-trol battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.
 First of all, use the key in the lock to unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immedi-ately for a few seconds.
 Switch off the ignition and remove the key from the starter.
The remote control is fully operational again.
 Unclip the casing using a coin at the notch.
 Slide the flat battery out of its loca-tion.
 Slide the new battery into its location observing the original direction.
 Clip the casing.
 Reinitialise the remote control.
If the battery is flat, you are in-formed by lighting of this warn-ing light, an audible signal and a message on the multifunction display.
Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
 press the closed padlock, the cour-tesy lights come on and the direction indicators flash for a few seconds.

!
73

!
i
74

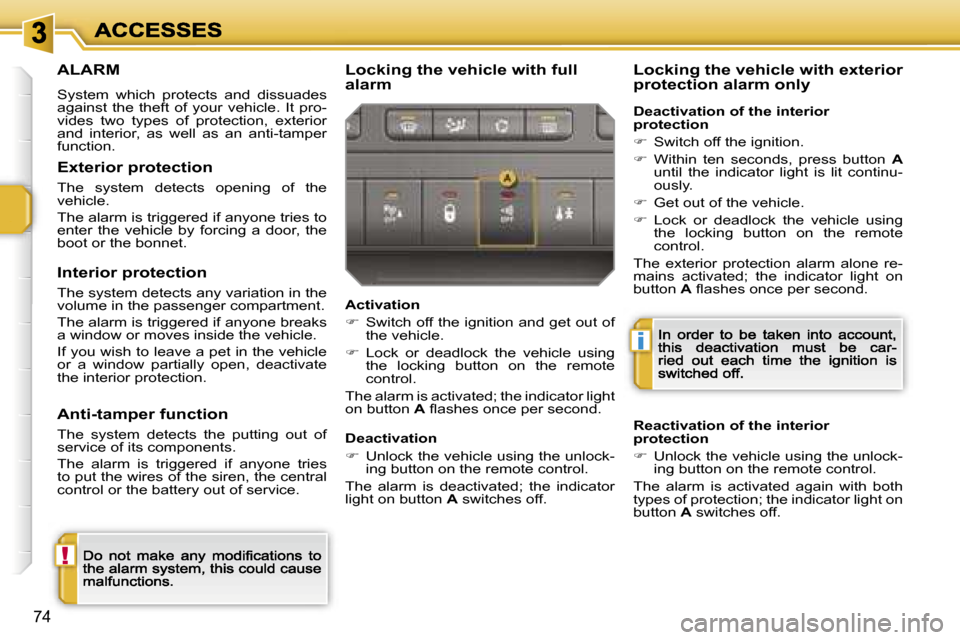

ALARM
System which protects and dissuades against the theft of your vehicle. It pro-vides two types of protection, exterior and interior, as well as an anti-tamper function.
Locking the vehicle with full alarm
Reactivation of the interior protection
 Unlock the vehicle using the unlock-ing button on the remote control.
The alarm is activated again with both types of protection; the indicator light on button A switches off.
Locking the vehicle with exterior protection alarm only
Deactivation of the interior protection
 Switch off the ignition.
 Within ten seconds, press button Auntil the indicator light is lit continu-ously.
 Get out of the vehicle.
 Lock or deadlock the vehicle using the locking button on the remote control.
The exterior protection alarm alone re-mains activated; the indicator light on button A flashes once per second.Activation
 Switch off the ignition and get out of the vehicle.
 Lock or deadlock the vehicle using the locking button on the remote control.
The alarm is activated; the indicator light on button A flashes once per second.
Exterior protection
The system detects opening of the vehicle.
The alarm is triggered if anyone tries to enter the vehicle by forcing a door, the boot or the bonnet.
Interior protection
The system detects any variation in the volume in the passenger compartment.
The alarm is triggered if anyone breaks a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle or a window partially open, deactivate the interior protection.
Anti-tamper function
The system detects the putting out of service of its components.
The alarm is triggered if anyone tries to put the wires of the siren, the central control or the battery out of service.
Deactivation
 Unlock the vehicle using the unlock-ing button on the remote control.
The alarm is deactivated; the indicator light on button A switches off.

!
75

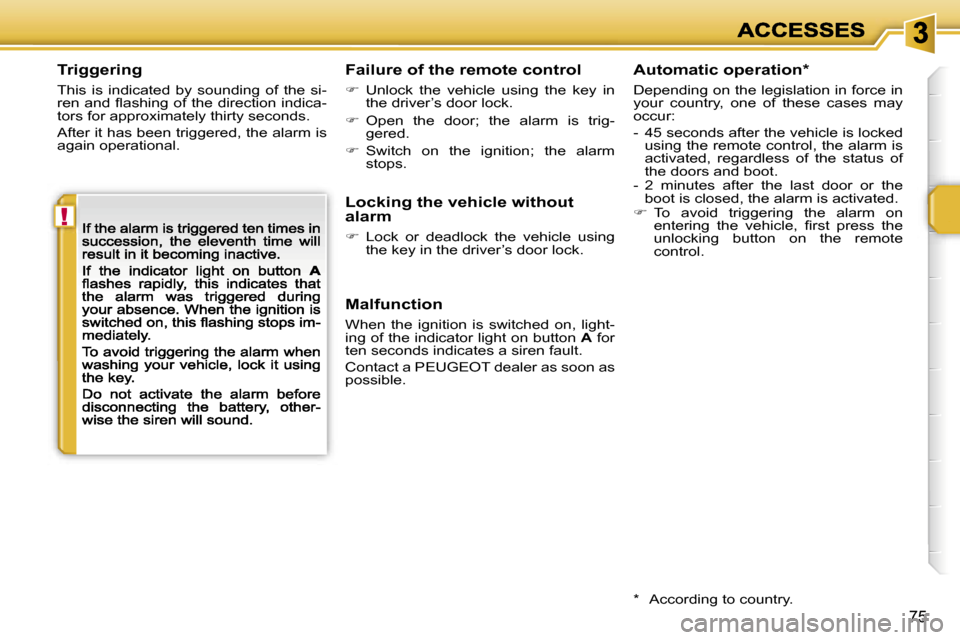

Triggering
This is indicated by sounding of the si-ren and flashing of the direction indica-tors for approximately thirty seconds.
After it has been triggered, the alarm is again operational.
Failure of the remote control
 Unlock the vehicle using the key in the driver’s door lock.
 Open the door; the alarm is trig-gered.
 Switch on the ignition; the alarm stops.
* According to country.
Malfunction
When the ignition is switched on, light-ing of the indicator light on button A for ten seconds indicates a siren fault.
Contact a PEUGEOT dealer as soon as possible.
Locking the vehicle without alarm
 Lock or deadlock the vehicle using the key in the driver’s door lock.
Automatic operation*
Depending on the legislation in force in your country, one of these cases may occur:
- 45 seconds after the vehicle is locked using the remote control, the alarm is activated, regardless of the status of the doors and boot.- 2 minutes after the last door or the boot is closed, the alarm is activated. To avoid triggering the alarm on entering the vehicle, first press the unlocking button on the remotecontrol.

i
i
i
76

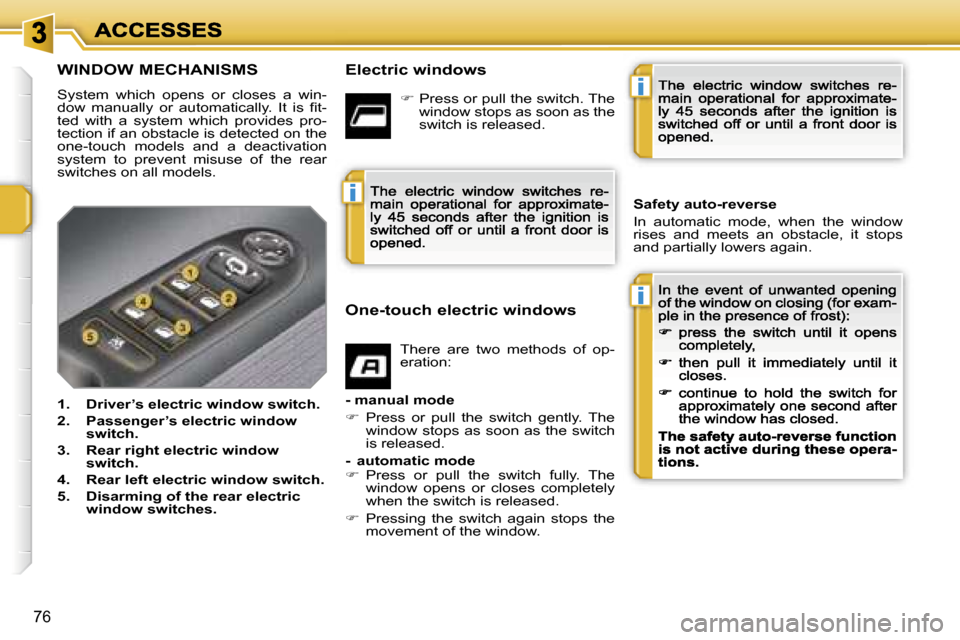

WINDOW MECHANISMS
System which opens or closes a win-dow manually or automatically. It is fit-ted with a system which provides pro-tection if an obstacle is detected on the one-touch models and a deactivation system to prevent misuse of the rear switches on all models.
1. Driver’s electric window switch.
2. Passenger’selectric window switch.
3.Rear right electric window switch.
4. Rear leftelectric window switch.
5. Disarming of the rear electric window switches.
Electric windows
Safety auto-reverse
In automatic mode, when the window rises and meets an obstacle, it stops and partially lowers again.
One-touch electric windows
There are two methods of op-eration:
- manual mode
 Press or pull the switch gently. The window stops as soon as the switch is released.
- automatic mode Press or pull the switch fully. The window opens or closes completely when the switch is released.
 Pressing the switch again stops the movement of the window.
 Press or pull the switch. The window stops as soon as the switch is released.

!
77

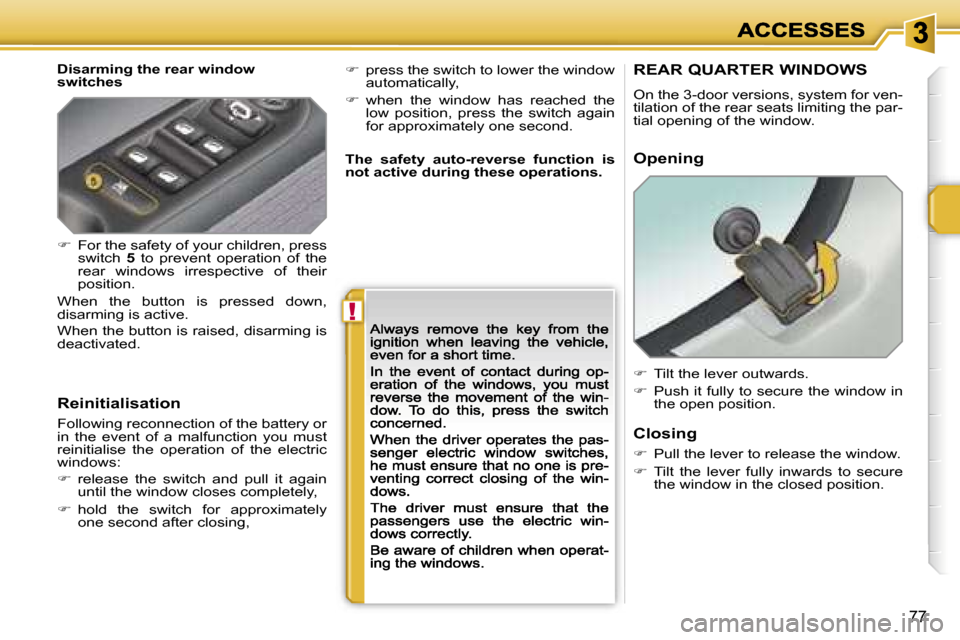

Disarming the rear windowswitches
Reinitialisation
Following reconnection of the battery or in the event of a malfunction you must reinitialise the operation of the electric windows:
 release the switch and pull it again until the window closes completely,
 hold the switch for approximately one second after closing,
REAR QUARTER WINDOWS
On the 3-door versions, system for ven-tilation of the rear seats limiting the par-tial opening of the window.
Opening
 For the safety of your children, press switch 5 to prevent operation of the rear windows irrespective of their position.
When the button is pressed down, disarming is active.
When the button is raised, disarming is deactivated.
Closing
 Pull the lever to release the window.
 Tilt the lever fully inwards to secure the window in the closed position.
 Tilt the lever outwards.
 Push it fully to secure the window in the open position.
 press the switch to lower the window automatically,
 when the window has reached the low position, press the switch again for approximately one second.
The safety auto-reverse function is not active during these operations.
