Peugeot 207 Dag 2007 Owner's Manual

!

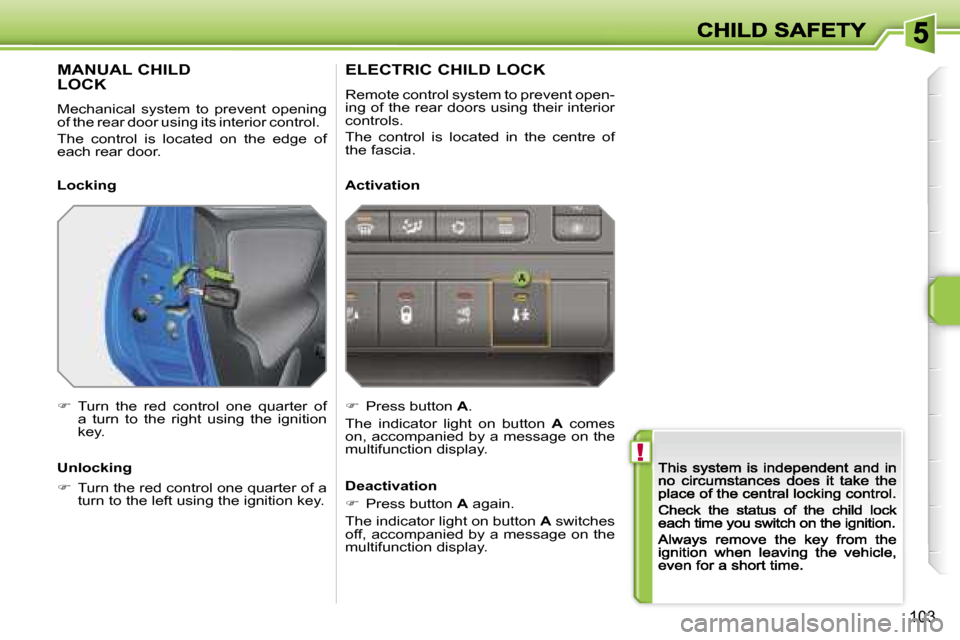

103
MANUAL CHILD
LOCK
Mechanical system to prevent opening of the rear door using its interior control.
The control is located on the edge of each rear door.
 Turn the red control one quarter of a turn to the right using the ignition key.
ELECTRIC CHILD LOCK
Remote control system to prevent open-ing of the rear doors using their interior controls.
The control is located in the centre of the fascia.
 Press button A.
The indicator light on button A comes on, accompanied by a message on the multifunction display.
Locking
Unlocking
 Turn the red control one quarter of a turn to the left using the ignition key.
Activation
Deactivation
 Press button A again.
The indicator light on button A switches off, accompanied by a message on the multifunction display.

i
i
i

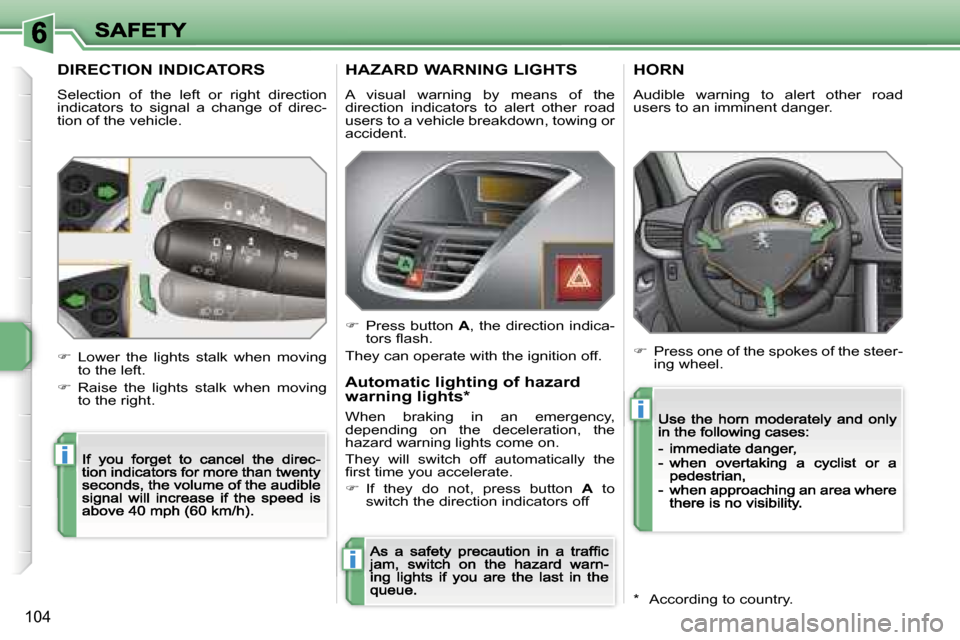

104
DIRECTION INDICATORS
Selection of the left or right direction indicators to signal a change of direc-tion of the vehicle.
 Lower the lights stalk when moving to the left.
 Raise the lights stalk when moving to the right.
HAZARD WARNING LIGHTS
A visual warning by means of the direction indicators to alert other road users to a vehicle breakdown, towing or accident.
 Press button A, the direction indica-tors flash.
They can operate with the ignition off.
Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the deceleration, the hazard warning lights come on.
They will switch off automatically the first time you accelerate.
 If they do not, press button A to switch the direction indicators off
HORN
Audible warning to alert other road users to an imminent danger.
 Press one of the spokes of the steer-ing wheel.
* According to country.

!
i
i
i

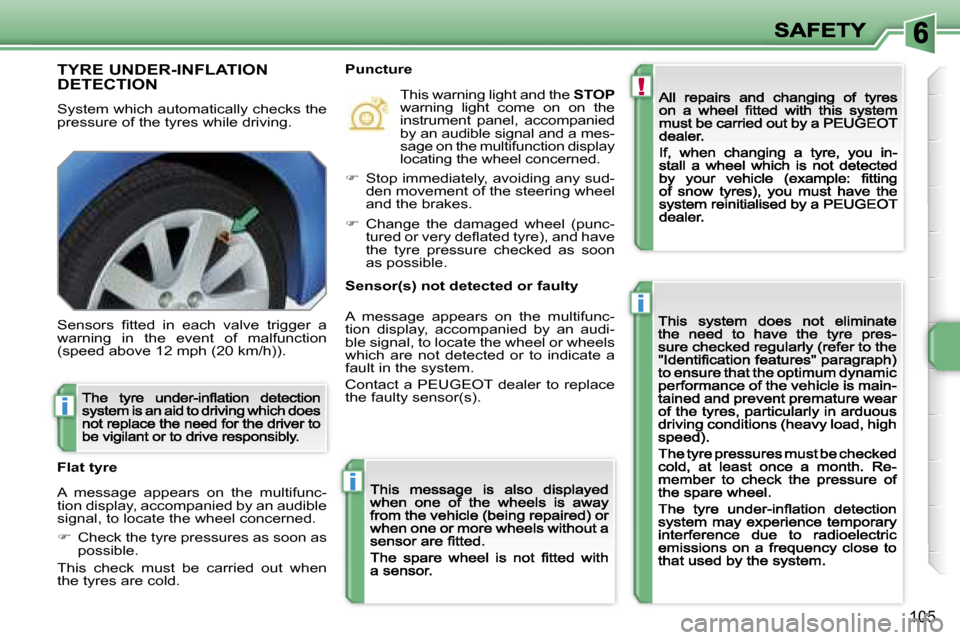

105
TYRE UNDER-INFLATION
DETECTION
System which automatically checks the pressure of the tyres while driving.
Sensors fitted in each valve trigger a warning in the event of malfunction (speed above 12 mph (20 km/h)).
A message appears on the multifunc-tion display, accompanied by an audible signal, to locate the wheel concerned.
 Check the tyre pressures as soon as possible.
This check must be carried out when the tyres are cold.
Flat tyre
This warning light and the STOPwarning light come on on the instrument panel, accompanied by an audible signal and a mes-sage on the multifunction display locating the wheel concerned.
 Stop immediately, avoiding any sud-den movement of the steering wheel and the brakes.
 Change the damaged wheel (punc-tured or very deflated tyre), and have the tyre pressure checked as soon as possible.
Puncture
Sensor(s) not detected or faulty
A message appears on the multifunc-tion display, accompanied by an audi-ble signal, to locate the wheel or wheels which are not detected or to indicate a fault in the system.
Contact a PEUGEOT dealer to replace the faulty sensor(s).

!
i

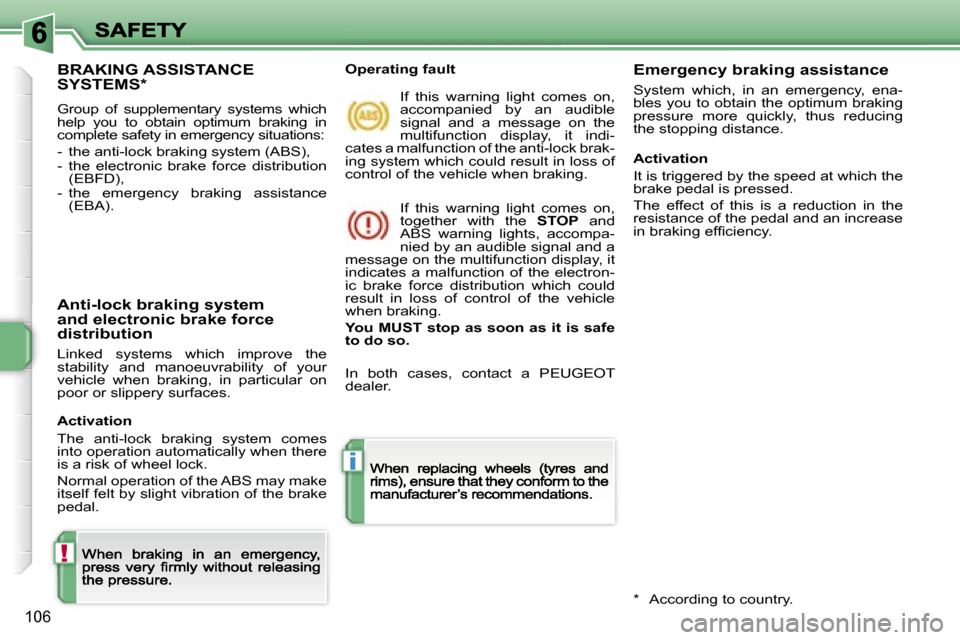

106
BRAKING ASSISTANCE
SYSTEMS*
Group of supplementary systems which help you to obtain optimum braking in complete safety in emergency situations:
- the anti-lock braking system (ABS),- the electronic brake force distribution (EBFD),- the emergency braking assistance (EBA).
Anti-lock braking system and electronic brake force distribution
Linked systems which improve the stability and manoeuvrability of your vehicle when braking, in particular on poor or slippery surfaces.
Operating fault
If this warning light comes on, accompanied by an audible signal and a message on the multifunction display, it indi-cates a malfunction of the anti-lock brak-ing system which could result in loss of control of the vehicle when braking.
If this warning light comes on, together with the STOP and ABS warning lights, accompa-nied by an audible signal and a message on the multifunction display, it indicates a malfunction of the electron-ic brake force distribution which could result in loss of control of the vehicle when braking.
You MUST stop as soon as it is safe to do so.
In both cases, contact a PEUGEOT dealer.
Emergency braking assistance
System which, in an emergency, ena-bles you to obtain the optimum braking pressure more quickly, thus reducing the stopping distance.
* According to country.
Activation
The anti-lock braking system comes into operation automatically when there is a risk of wheel lock.
Normal operation of the ABS may make itself felt by slight vibration of the brake pedal.
Activation
It is triggered by the speed at which the brake pedal is pressed.
The effect of this is a reduction in the resistance of the pedal and an increase in braking efficiency.

!
Disarming
In exceptional conditions (starting a vehicle which is bogged down, stuck in snow, on soft ground, ...), it may be advisable to disarm the ASR and ESP systems, so that the wheels can move freely and regain grip.
 Press the "ESP OFF" button, locat-ed in the centre of the fascia.
If this warning light comes on on the instru-ment panel and the indicator light on the button comes on, this indicates that the ASR and ESP systems are disarmed.
Reactivation
These systems are reactivated automat-ically each time the ignition is switched back on or from 30 mph (50 km/h) (ex-cept in the case of the 1.6 l 16V THP 175 bhp petrol engine).
 Press the "ESP OFF" button again to reactivate them manually.
Operating fault
If this warning light comes on, accompanied by an audible sig-nal and a message on the mul-tifunction display, this indicates a malfunction of these systems.
Contact a PEUGEOT dealer to have the systems checked.

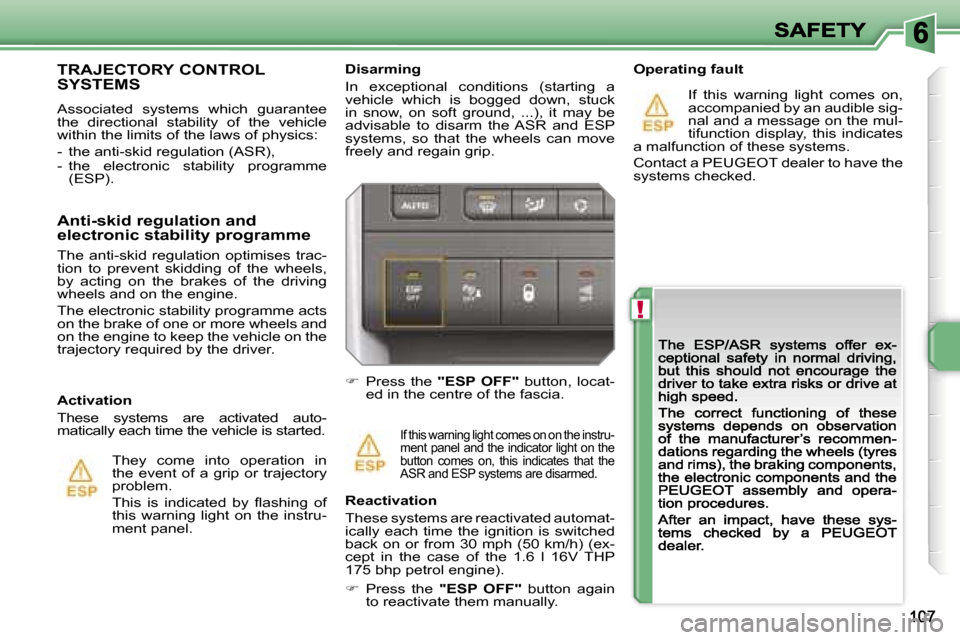

TRAJECTORY CONTROL
SYSTEMS
Associated systems which guarantee the directional stability of the vehicle within the limits of the laws of physics:
- the anti-skid regulation (ASR),- the electronic stability programme (ESP).
Activation
These systems are activated auto-matically each time the vehicle is started.
Anti-skid regulation and electronic stability programme
The anti-skid regulation optimises trac-tion to prevent skidding of the wheels, by acting on the brakes of the driving wheels and on the engine.
The electronic stability programme acts on the brake of one or more wheels and on the engine to keep the vehicle on the trajectory required by the driver.
They come into operation in the event of a grip or trajectory problem.
This is indicated by flashing of this warning light on the instru-ment panel.

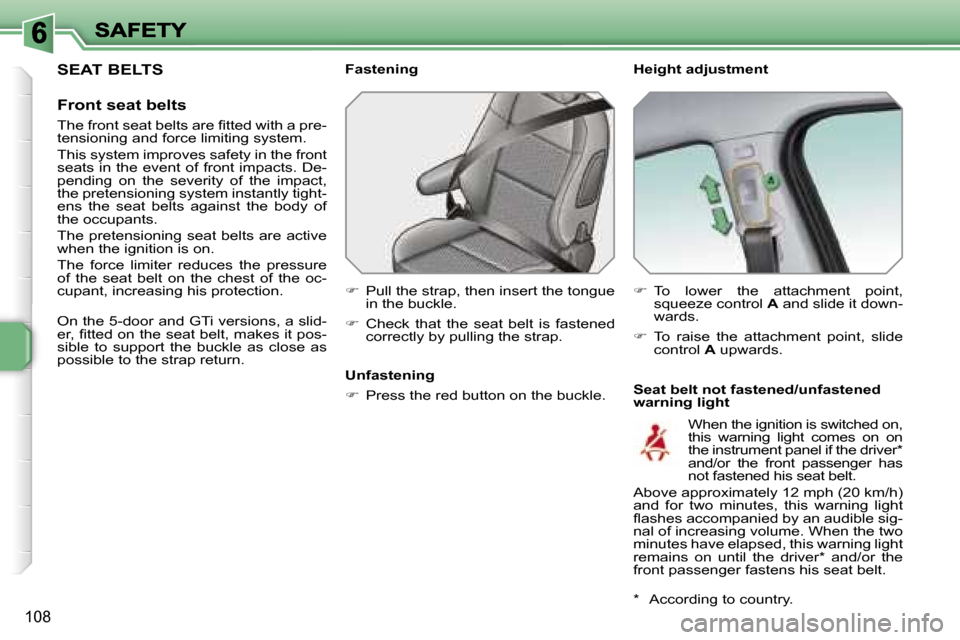

108
SEAT BELTS
Front seat belts
The front seat belts are fitted with a pre-tensioning and force limiting system.
This system improves safety in the front seats in the event of front impacts. De-pending on the severity of the impact, the pretensioning system instantly tight-ens the seat belts against the body of the occupants.
The pretensioning seat belts are active when the ignition is on.
The force limiter reduces the pressure of the seat belt on the chest of the oc-cupant, increasing his protection.
On the 5-door and GTi versions, a slid-er, fitted on the seat belt, makes it pos-sible to support the buckle as close as possible to the strap return.
Height adjustment
Seat belt not fastened/unfastened warning light
Fastening
 Pull the strap, then insert the tongue in the buckle.
 Check that the seat belt is fastened correctly by pulling the strap.
 To lower the attachment point, squeeze control A and slide it down-wards.
 To raise the attachment point, slide control A upwards.
When the ignition is switched on, this warning light comes on on the instrument panel if the driver* and/or the front passenger has not fastened his seat belt.
Above approximately 12 mph (20 km/h) and for two minutes, this warning light flashes accompanied by an audible sig-nal of increasing volume. When the two minutes have elapsed, this warning light remains on until the driver* and/or the front passenger fastens his seat belt.
* According to country.
Unfastening
 Press the red button on the buckle.

1. Front left seat belt warning light.
2. Front right seat belt warning light.
3. Rear left seat belt warning light.
4. Rear centre seat belt warning light**.
5. Rear right seat belt warning light.
On the central bar, the corresponding warning light 1 or 2 comes on:
- in red, if the seat belt is not fastened or is unfastened,- in green, if it is fastened.

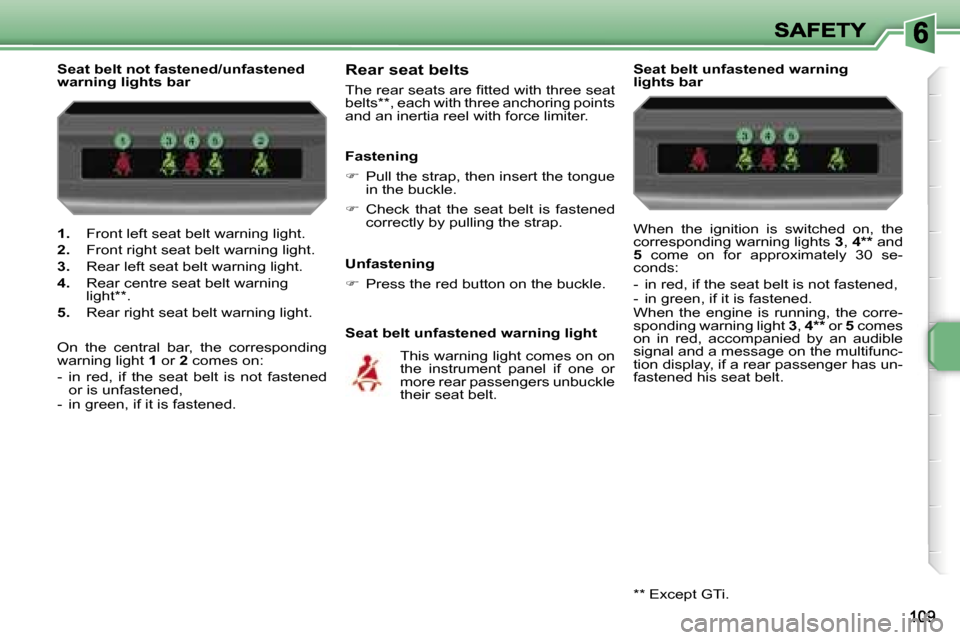

Seat belt not fastened/unfastened warning lights barRear seat belts
The rear seats are fitted with three seat belts**, each with three anchoring points and an inertia reel with force limiter.
Seat belt unfastened warning light
This warning light comes on on the instrument panel if one or more rear passengers unbuckle their seat belt.
Fastening
 Pull the strap, then insert the tongue in the buckle.
 Check that the seat belt is fastened correctly by pulling the strap.
Seat belt unfastened warninglights bar
When the ignition is switched on, the corresponding warning lights 3, 4** and 5 come on for approximately 30 se-conds:
- in red, if the seat belt is not fastened,- in green, if it is fastened.When the engine is running, the corre-sponding warning light 3, 4** or 5 comes on in red, accompanied by an audible signal and a message on the multifunc-tion display, if a rear passenger has un-fastened his seat belt.
Unfastening
 Press the red button on the buckle.
** Except GTi.

i

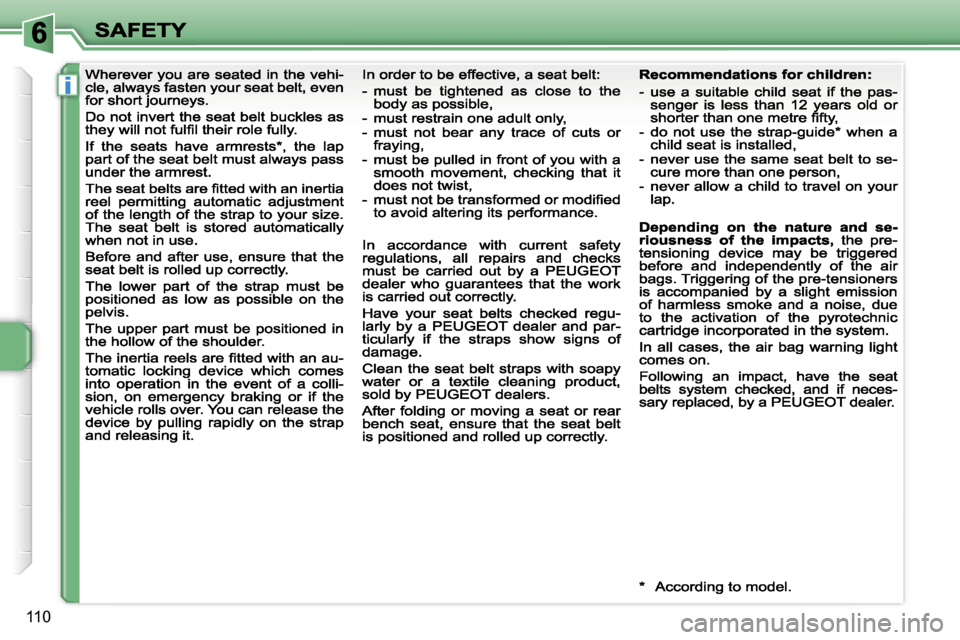

110

!
i
111

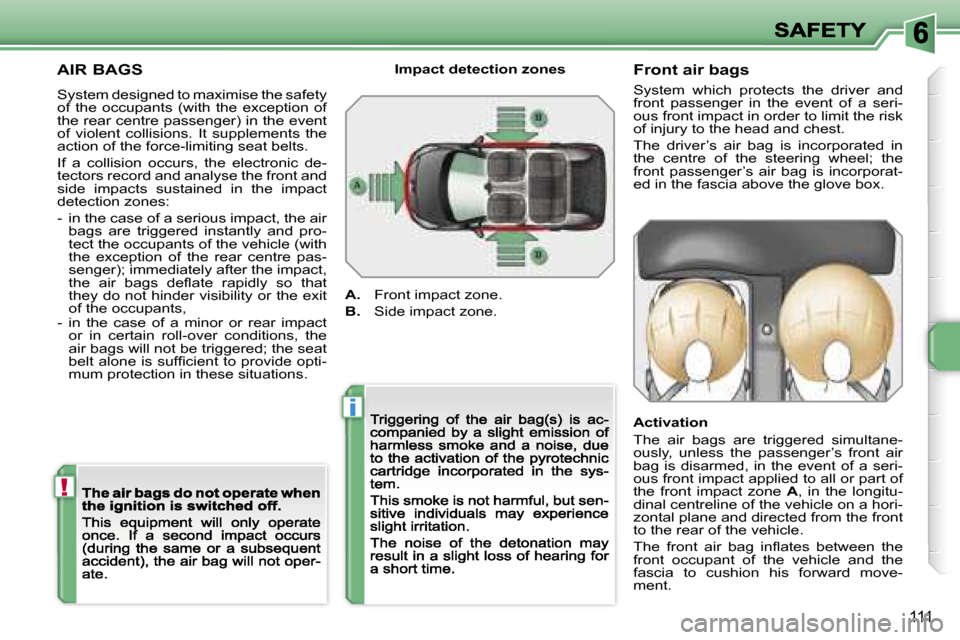

AIR BAGS
System designed to maximise the safety of the occupants (with the exception of the rear centre passenger) in the event of violent collisions. It supplements the action of the force-limiting seat belts.
If a collision occurs, the electronic de-tectors record and analyse the front and side impacts sustained in the impact detection zones:
- in the case of a serious impact, the air bags are triggered instantly and pro-tect the occupants of the vehicle (with the exception of the rear centre pas-senger); immediately after the impact, the air bags deflate rapidly so that they do not hinder visibility or the exit of the occupants,- in the case of a minor or rear impact or in certain roll-over conditions, the air bags will not be triggered; the seat belt alone is sufficient to provide opti-mum protection in these situations.
Front air bags
System which protects the driver and front passenger in the event of a seri-ous front impact in order to limit the risk of injury to the head and chest.
The driver’s air bag is incorporated in the centre of the steering wheel; the front passenger’s air bag is incorporat-ed in the fascia above the glove box.
Activation
The air bags are triggered simultane-ously, unless the passenger’s front air bag is disarmed, in the event of a seri-ous front impact applied to all or part of the front impact zone A, in the longitu-dinal centreline of the vehicle on a hori-zontal plane and directed from the front to the rear of the vehicle.
The front air bag inflates between the front occupant of the vehicle and the fascia to cushion his forward move-ment.
Impact detection zones
A. Front impact zone.
B. Side impact zone.

!
!

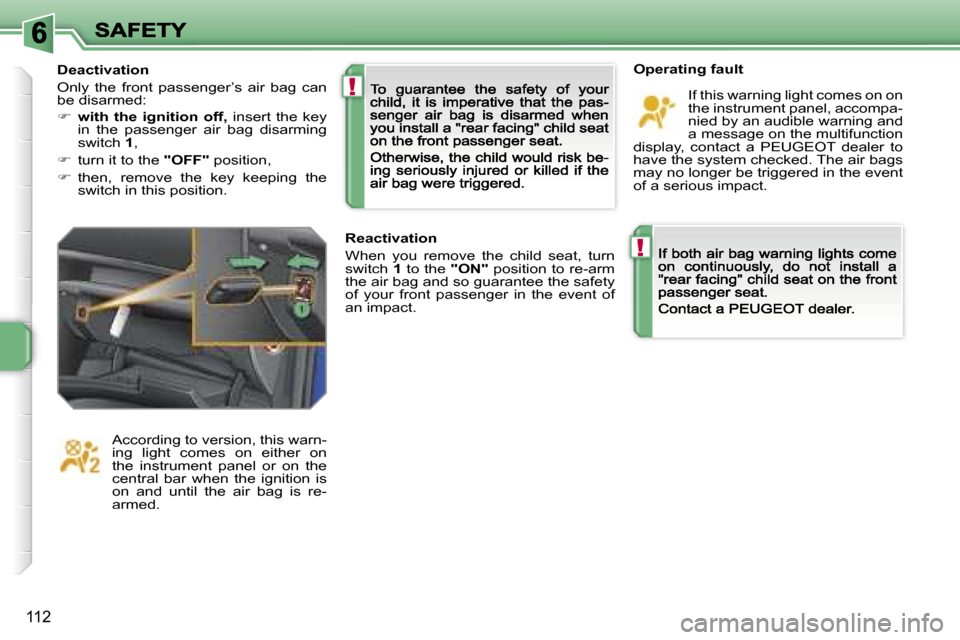

112
Operating fault
If this warning light comes on on the instrument panel, accompa-nied by an audible warning and a message on the multifunction display, contact a PEUGEOT dealer to have the system checked. The air bags may no longer be triggered in the event of a serious impact.
According to version, this warn-ing light comes on either on the instrument panel or on the central bar when the ignition is on and until the air bag is re-armed.
Reactivation
When you remove the child seat, turn switch 1 to the "ON" position to re-arm the air bag and so guarantee the safety of your front passenger in the event of an impact.
Deactivation
Only the front passenger’s air bag can be disarmed:
with the ignition off, insert the key in the passenger air bag disarming switch 1,
 turn it to the "OFF" position,
 then, remove the key keeping the switch in this position.
