Peugeot 207 Dag 2008 Owner's Manual

3

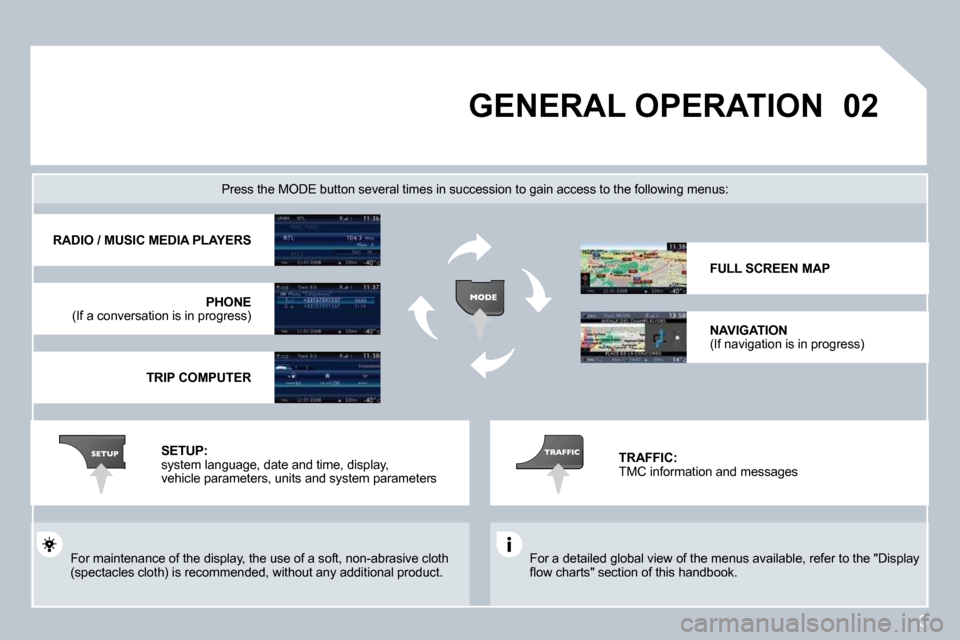

02 GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Display fl ow charts" section of this handbook.
Press the MODE button several times in succession to gain access to the following menus:
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any addi tional product.
RADIO / MUSIC MEDIA PLAYERS
PHONE (If a conversation is in progress)
TRIP COMPUTER
FULL SCREEN MAP
NAVIGATION (If navigation is in progress)
SETUP: system language, date and time, display, vehicle parameters, units and system parameters
TRAFFIC: TMC information and messages

4
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1
GENERAL OPERATION
A press on the OK dial to permits access to short-cut menus according to the display on the screen.
TRIP COMPUTER:
ALERT LOG
STATUS OF FUNCTIONS
MUSIC MEDIA PLAYERS:
TA
PLAY OPTIONS
NORMAL
RANDOM TRACK
REPEAT FOLDER
TRACK INTRO
SELECT MUSIC
NAV:
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
ROUTE INFO
SHOW DEST.
TRIP INFO
route type
avoidance criteria
satellites
ZOOM/SCROLL
VOICE ADVICE
ROUTE OPTIONS
RADIO:
IN FM MODE
TA
RDS
RADIOTEXT
REGIONAL PROG. (REG)
AM
IN AM MODE
TA
REFRESH AM LIST
FM
MAP:
ABORT/RESUME GUIDANCE
SET DESTINATION
POIS NEARBY
POSITION INFO
MAP SETTINGS
ZOOM/SCROLL
PHONE:
END CALL
HOLD CALL
DIAL
DTMF TONES
PRIVATE MODE
MICRO OFF

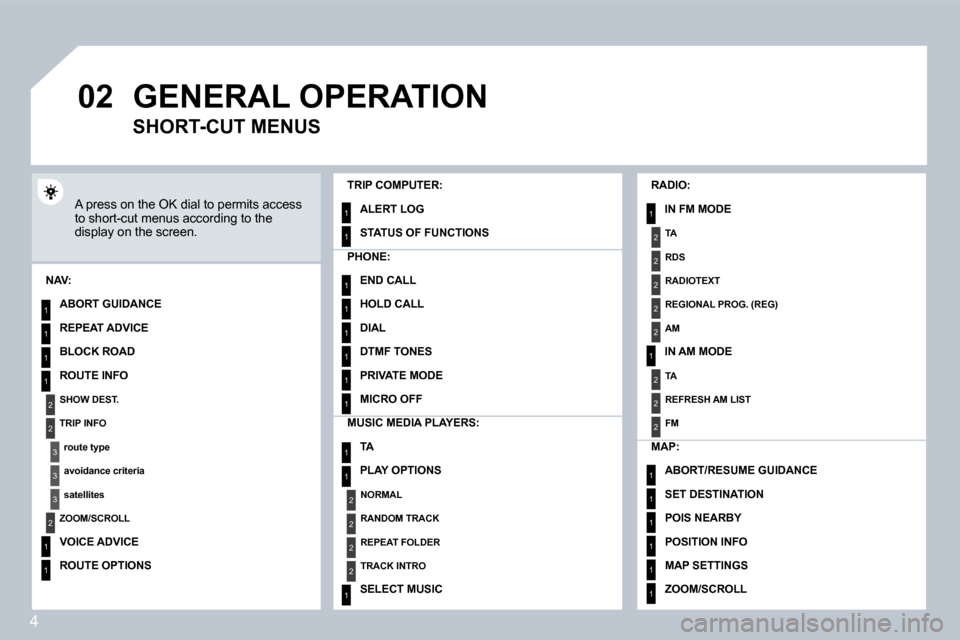

SHORT-CUT MENUS

5
03
1
2
3
6
5
4
NAVIGATION - GUIDANCE

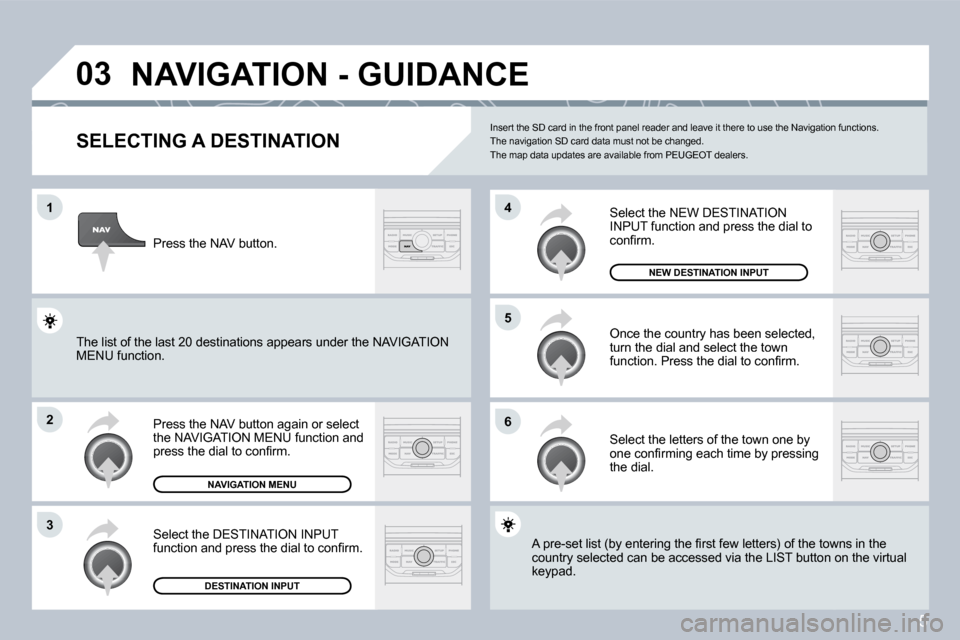

SELECTING A DESTINATION
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the DESTINATION INPUT function and press the dial to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing the dial.
Once the country has been selected, turn the dial and select the town function. Press the dial to confi rm.
NAVIGATION MENU
DESTINATION INPUT
Insert the SD card in the front panel reader and leave it there to use the Navigation functions. The navigation SD card data must not be changed. The map data updates are available from PEUGEOT dealers.
A pre-set list (by entering the fi rst few letters) of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the NEW DESTINATION INPUT function and press the dial to confi rm.
NEW DESTINATION INPUT
The list of the last 20 destinations appears under the NAthe NAVIGATION MENU function.

6
7
8
10
9

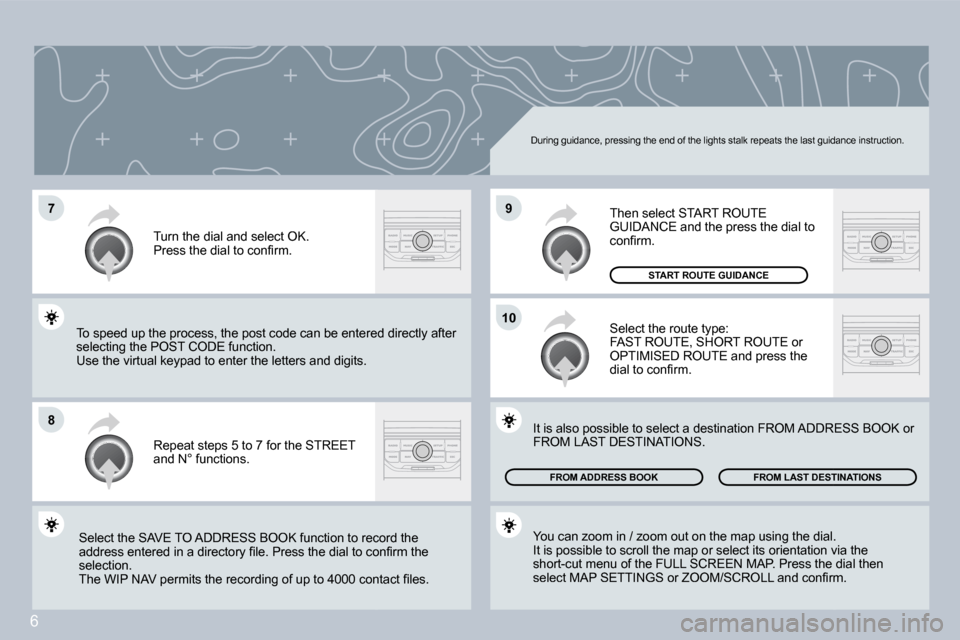

During guidance, pressing the end of the lights stalk repeats the last guidance instruction.
Repeat steps 5 to 7 for the STREET and N° functions.
Turn the dial and select OK. Press the dial to confi rm.
Select the SAVE TO ADDRESS BOOK function to record the Select the SAVE TO ADDRESS BOOK function to record the address entered in a directory fi le. Press the dial to confi rm the address entered in a directory fi le. Press the dial to confi rm the selection. The WIP NAV permits the recording of up to 4000 co ntact fi les. The WIP NAV permits the recording of up to 4000 contact fi les.
To speed up the process, the post code can be enteredtered directly after selecting the POST CODE function. Use the virtual keypad to enter the letters and digits.
Select the route type: FAST ROUTE, SHORT ROUTE or OPTIMISED ROUTE and press the dial to confi rm.
Then select START ROUTE GUIDANCE and the press the dial to confi rm.
You can zoom in / zoom out on the map using the di al. You can zoom in / zoom out on the map using the dial. It is possible to scroll the map or select its orientation viaion via the short-cut menu of the FULL SCREEN MAP. Press the d the dial then select MAP SETTINGS or ZOOM/SCROLL and confi rm. select MAP SETTINGS or ZOOM/SCROLL and confi rm.
It is also possible to select a destination FROM A DDRESS BOOK or It is also possible to select a destination FROM ADDRESS BOOK or FROM LAST DESTINATIONS.
FROM ADDRESS BOOKFROM LAST DESTINATIONSFROM LAST DESTINATIONS
START ROUTE GUIDANCE

7
03
5
6
7
1
2
3
4
NAVIGATION - GUIDANCE

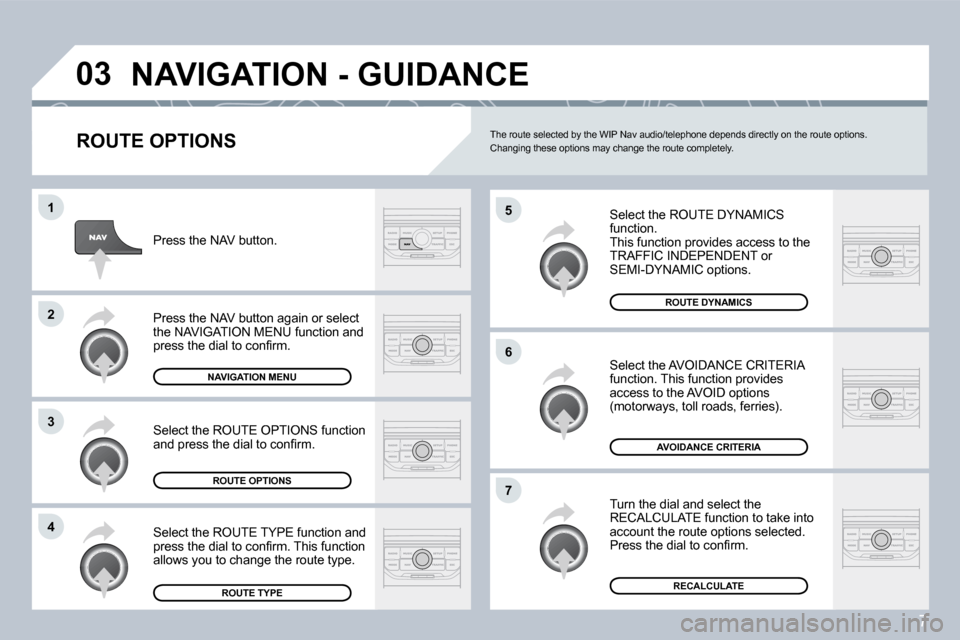

ROUTE OPTIONS
Select the ROUTE DYNAMICS function. This function provides access to the TRAFFIC INDEPENDENT or SEMI-DYNAMIC options.
Select the AVOIDANCE CRITERIA function. This function provides access to the AVOID options (motorways, toll roads, ferries).
Turn the dial and select the RECALCULATE function to take into account the route options selected. Press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the ROUTE TYPE function and press the dial to confi rm. This function allows you to change the route type.
Select the ROUTE OPTIONS function and press the dial to confi rm.
NAVIGATION MENU
ROUTE OPTIONS
ROUTE TYPE
ROUTE DYNAMICS
AVOIDANCE CRITERIA
RECALCULATE
The route selected by the WIP Nav audio/telephone depends directly on the route options. Changing these options may change the route comple tely.

8
5
6
7
1
2
3
4

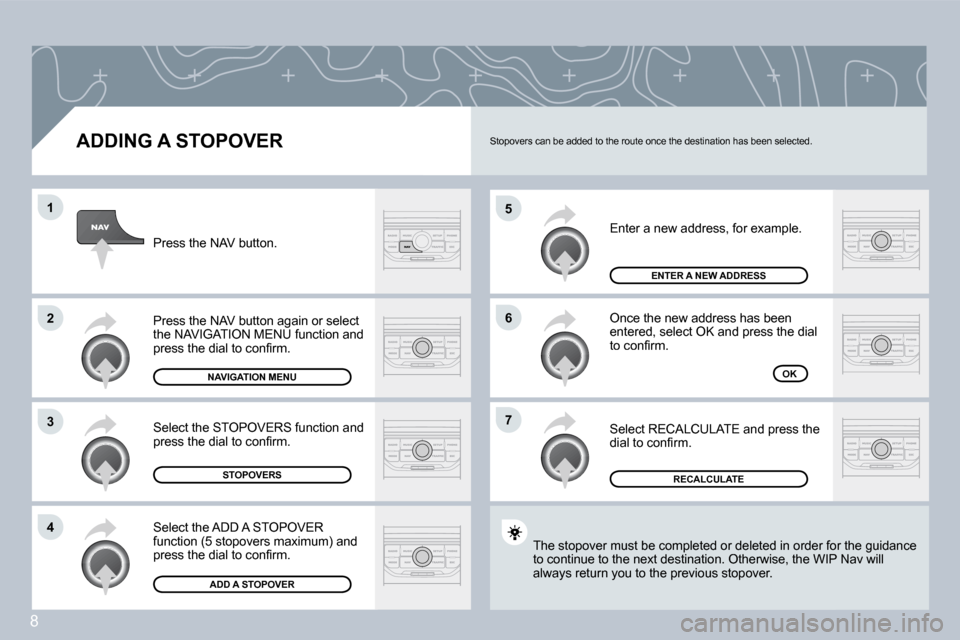

ADDING A STOPOVER
Enter a new address, for example.
Once the new address has been entered, select OK and press the dial to confi rm.
Select RECALCULATE and press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the ADD A STOPOVER function (5 stopovers maximum) and press the dial to confi rm.
Select the STOPOVERS function and press the dial to confi rm.
NAVIGATION MENU
STOPOVERS
ADD A STOPOVER
ENTER A NEW ADDRESS
OK
The stopover must be completed or deleted in order for the guidance The stopover must be completed or deleted in order for the guidance to continue to the next destination. Otherwise, the WIP N WIP Nav will always return you to the previous stopover.
Stopovers can be added to the route once the destination has been selected.
RECALCULATE

9
03
1
2
3
4
7
85
6
NAVIGATION - GUIDANCE

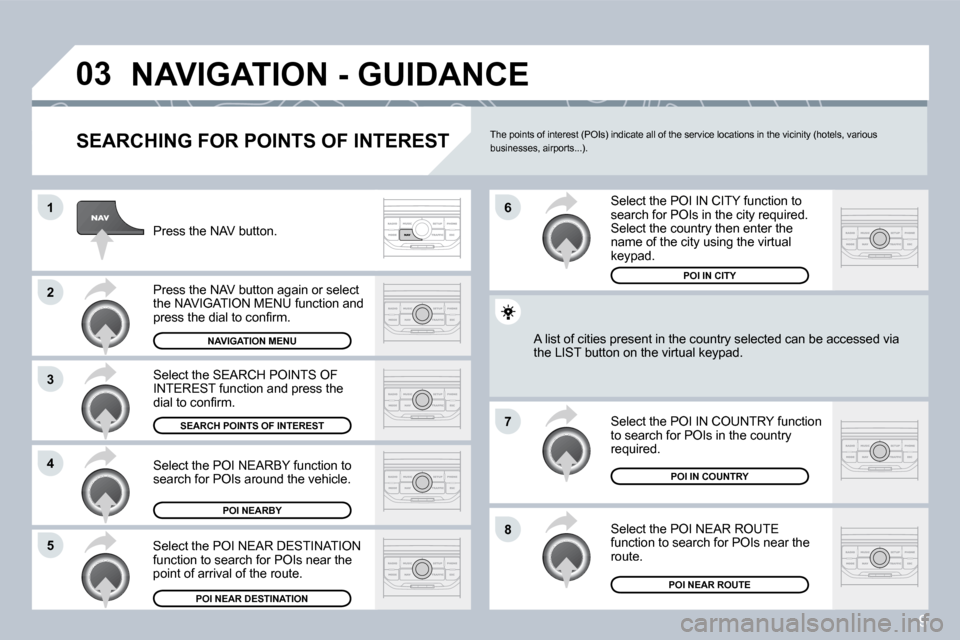

SEARCHING FOR POINTS OF INTEREST
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the POI NEARBY function to search for POIs around the vehicle.
Select the SEARCH POINTS OF INTEREST function and press the dial to confi rm.
NAVIGATION MENU
SEARCH POINTS OF INTEREST
POI NEARBY
Select the POI IN CITY function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the POI NEAR ROUTE function to search for POIs near the route.
Select the POI IN COUNTRY function to search for POIs in the country required.
Select the POI NEAR DESTINATION function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION
POI IN COUNTRY
POI NEAR ROUTE
A list of cities present in the country selected can be accbe accessed via the LIST button on the virtual keypad.
POI IN CITY
The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).

10
03 NAVIGATION - GUIDANCE

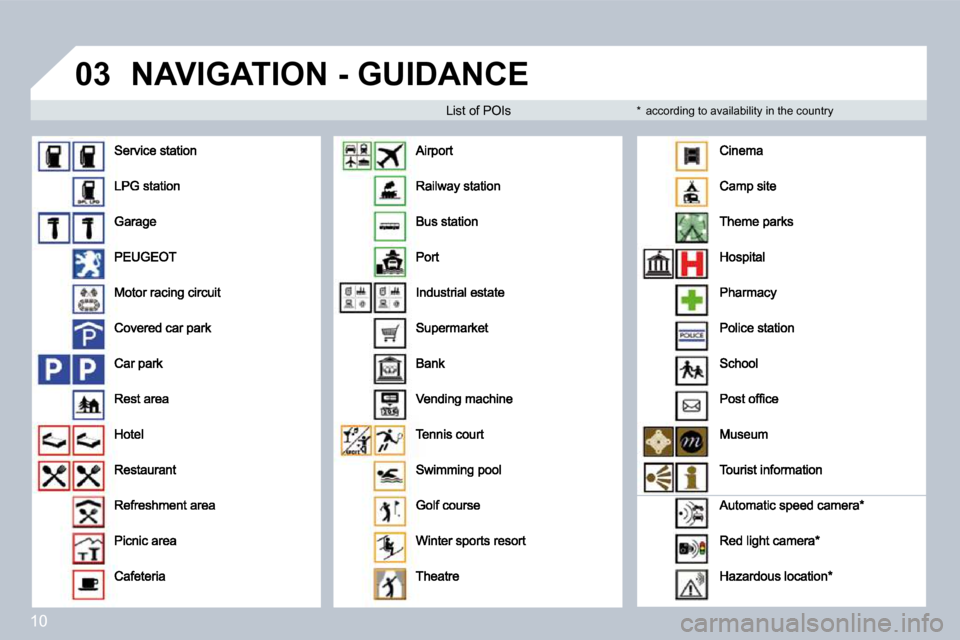

List of POIs * according to availability in the country

11
03
6
4
5
1
2
3

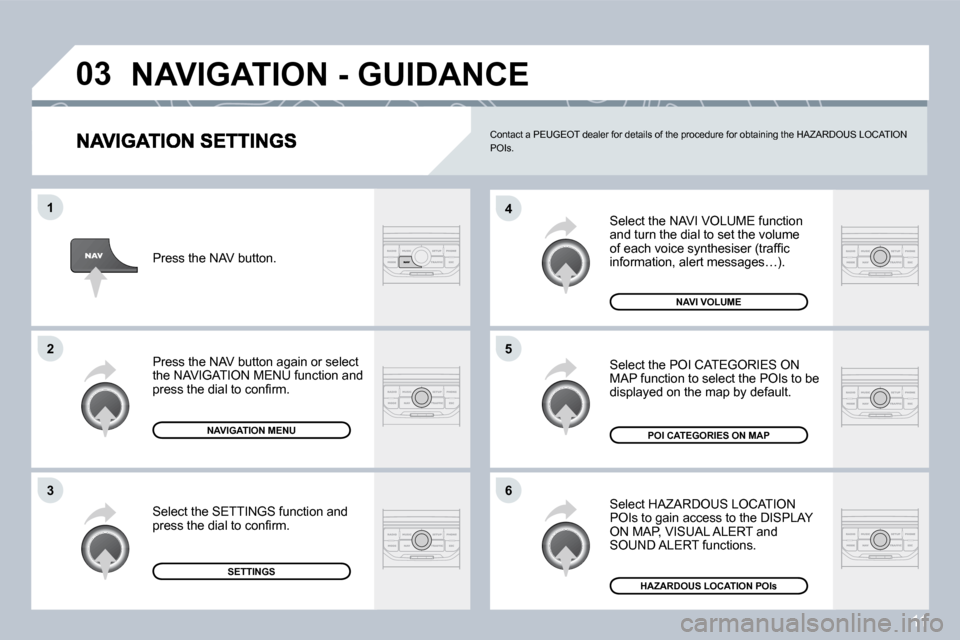

Select the NAVI VOLUME function and turn the dial to set the volume of each voice synthesiser (traffi c information, alert messages…).
Select HAZARDOUS LOCATION POIs to gain access to the DISPLAY ON MAP, VISUAL ALERT and SOUND ALERT functions.
Select the POI CATEGORIES ON MAP function to select the POIs to be displayed on the map by default.
NAVI VOLUME
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the SETTINGS function and press the dial to confi rm.
NAVIGATION MENU
SETTINGS
POI CATEGORIES ON MAP
HAZARDOUS LOCATION POIs
NAVIGATION - GUIDANCE
Contact a PEUGEOT dealer for details of the procedure for obtaining the HAZARDOUS LOCATION POIs.

12
04
1
2
5
4
3

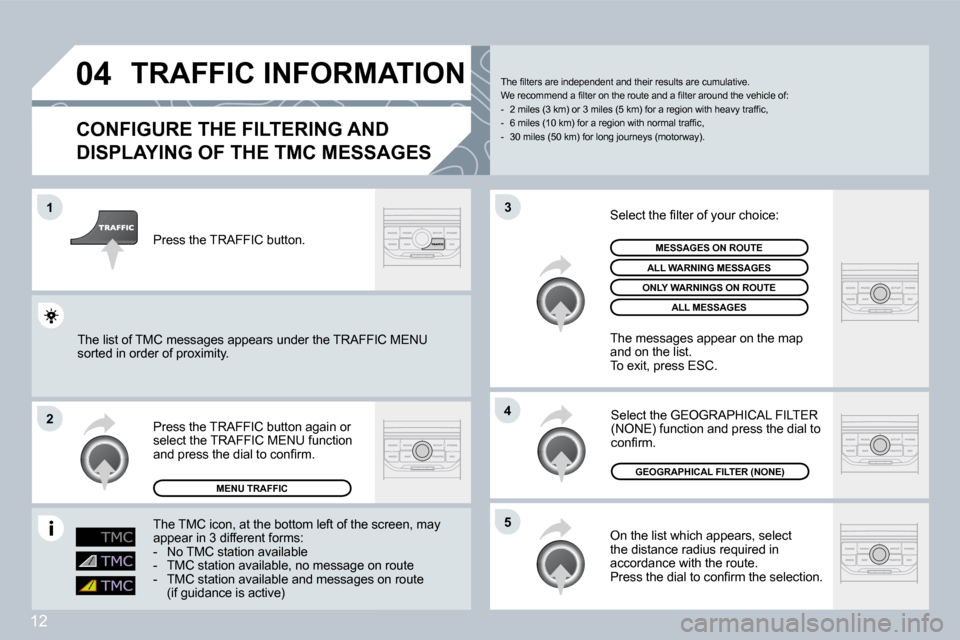

TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAYING OF THE TMC MESSAGES
On the list which appears, select the distance radius required in accordance with the route. Press the dial to confi rm the selection.
Press the TRAFFIC button again or select the TRAFFIC MENU function and press the dial to confi rm.
GEOGRAPHICAL FILTER (NONE)
Press the TRAFFIC button.
The fi lters are independent and their results are cumulative. We recommend a fi lter on the route and a fi lter ar ound the vehicle of: - 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c, - 6 miles (10 km) for a region with normal traffi c, - 30 miles (50 km) for long journeys (motorway).
Select the GEOGRAPHICAL FILTER (NONE) function and press the dial to confi rm.
The list of TMC messages appears under the TRAFFIC MENU The list of TMC messages appears under the TRAFFIC MENU sorted in order of proximity.
Select the fi lter of your choice:
MESSAGES ON ROUTE
ALL WARNING MESSAGES
ONLY WARNINGS ON ROUTE
ALL MESSAGES
The messages appear on the map and on the list. To exit, press ESC.
MENU TRAFFIC
The TMC icon, at the bottom left of the scthe screen, may appear in 3 different forms: - No TMC station available - TMC station available, no message on route - TMC station available, no message on route - TMC station available and messages on route - TMC station available and messages on route (if guidance is active)
